PYLE Audio Vintage PTCDCS3UIP Operating Instructions Manual
RADIO ,CD PLAYER,CASSETTE,USB
RECORDING,AUX IN
MODEL: PTCDCS3UIP
Nostalgic Music System
Operating Instructions Manual
CLASSICAL TURNTABLE WITH AM/FM
~~PYLE"PR()
VINTAGE
www.pyleaudio.com
L
1
TO PREVENT FIRE OR SHOCK HAZARD,DO NOT USE THIS PLUG WITH
ANEXTENSION CORD,RECEP TACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.TO
PREVENT FIRE OR SHOCK HAZARD,DONOT EXPOSE THISAPPLINACE TO
RAIN OR MOISTURE.
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
1.) Read these instructions.
2.) Keep these instructions.
3.) Heed all warnings.
4.) Follow all warnings.
5.) Do not use this apparatus near water.
6.) Clean only with dry cloth.
7.) Do not block any ventilation openings.Install in accordance with the
manufacturer's instructions.
8.) Do not install near any heat sources such as radiators,heat registers,stoves,or
other apparatus (including amplifiers)that produce heat.
9.) Protect the power cord from being walked on or pinched particularly at
plugs,convenience receptacles,and point where they exit from the apparatus.
10.)Only use attachments / accessories specified by the manufacturer.
11.)Unplug this apparatus during lightning storms or when unused for long
periods of time
12.)Refer all servicing to qualified service personnel.Servicing is required when
the apparatus has been damaged in any way,such as power-supply cord or
plug is damaged,liquid has been spilled or objects have fallen into the
apparatus,the apparatus has been exposed to rain or moisture,does not
operate normally,or has been dropped.
13.)This appliance shall not be exposed to dripping or splashing water and no
object filled with liquids such as vases shall be placed on the apparatus.
14.)Do not overload wall outlet.Use only power source as indicated.
2

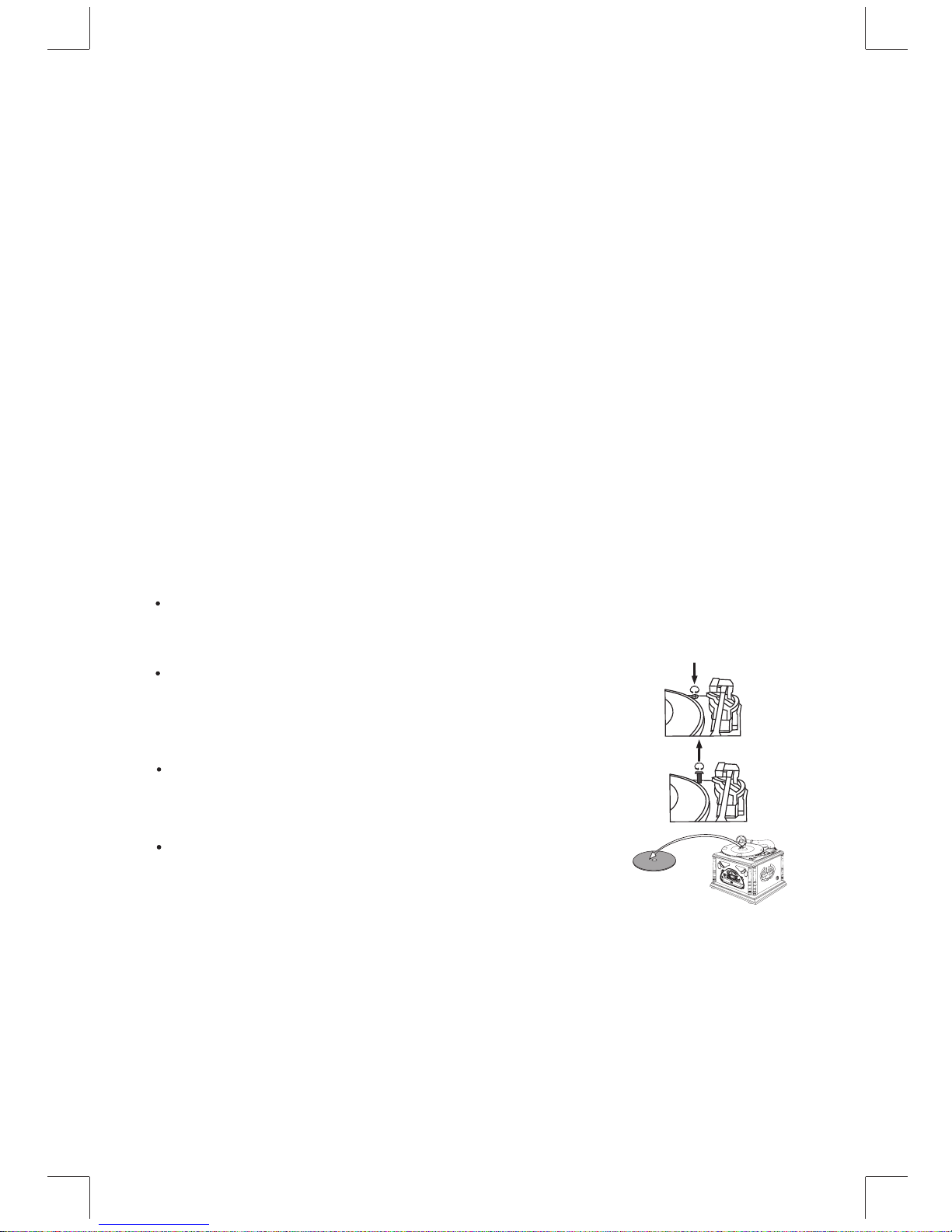

Carefully remove the unit from the display carton and remove all packing
material from the unit.
Unwind the AC power cord and extend it to its full length.
Unwind the FM Antenna wire and extend it to its full length.
Place the unit on a stable, level surface, convenient to an AC outlet, out of Direct
sunlight, and away from sources of excess heat, dust, moisture, humidity or
strong magnetic fields.
Remove the opaque white plastic stylus cover from the phonograph stylus by
sliding it in the direction of the arrow.
IMPORTANT NOTES
Avoid installing this unit in places exposed to direct sunlight or close to
heat radiating appliances such as electric heaters, on top of other stereo
equipment that radiates too much heat, places lacking ventilation or dusty
areas, places subject to constant vibration and/or humid or moist areas.
Do not attempt to clean this unit with chemical solvents as this might damage
the finish. Use a clean dry cloth.
Operate controls and switches as described in the manual.
Before turning On the power, make certain the AC power cord is plugged in.
Store your CDs, In a cool area to avoid damage from heat.
When moving the set, be sure to first disconnect the power cord.
PREPARATION FOR USE
UNPACKING AND SET UP
STYLUS COVER
3
POWER SOURCE
This product is designed to operate on 120V 60Hz AC only. Attempting to
operate this system from any other power source may cause damage to the
system, and such damage is
not covered by your warranty.
NOTE: You will note that this system is equipped with domestic standard AC
power 2-pin
plug. If this plug does not fit into your
existing AC outlet, do not try to defeat
this safety feature by filing the wide
blade to make it fit into your outlet.
If this plug will not fit into your
outlet, you probably have an outdated
non-polarized AC outlet. You should
have your outlet changed by a qualified
licensed electrician.
PROTECT YOUR FURNITURE
This model is equipped with non-skid rubber 'feet' to prevent the product from
moving when you operate the controls. These 'feet' are made from nonmigrating rubber material specially formulated to avoid leaving any marks or
stains on your furniture. However certain types of oil based furniture polishes,
wood preservatives, or cleaning sprays may cause the rubber 'feet' to soften,
and leave marks or a rubber residue on the furniture. To prevent any damage to
your furniture we strongly recommend that you purchase small self-adhesive felt
pads, available at hardware stores and home improvement centers everywhere,
and apply these pads to the bottom of the rubber 'feet' before you place the
product on fine wooden furniture.
4
1) Turntable.
2) Stylus.
3) Speakers.
4) Tuning Control Knob.
5) FM Dial Scale.
6) FM ST. Indicator.
7) AM Dial Scale.
8) AM/FM/PH/CD/USB/TAPE
Function Selector.
9) USB Socket.
10) RANDOM Control Button.
11) REPEAT Control Button.
12) PROGRAM Control Button.
13) PLAY/PAUSE Control Button.
14) STOP Control Button.
15) CD Drawer.
16) SKIP REV. Control Button.
17) SKIP FWD. Control Button.
18) OPEN/CLOSE Control Button.
19) PHONO Speed Selector.
20) CD Track Number Display.
21) REC Control Button.
22) FOLDER+/+10 Control Button.
23) FOLDER-/-10 Control Button.
24) Tone Arm.
25) Syphon.
26) Connector Tube.
27) OFF/VOLUME Knob.
28) PHONE Jack.

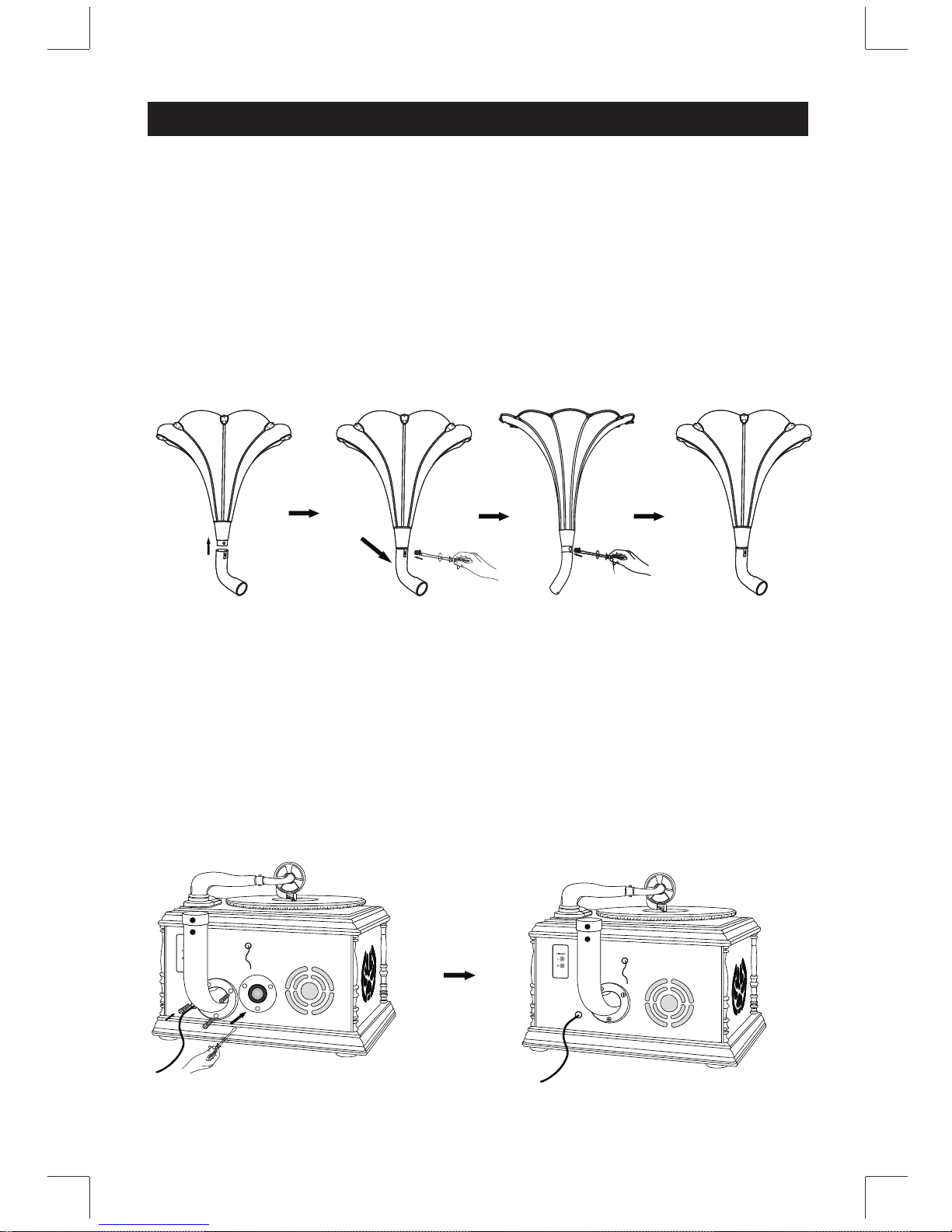

29) Big Horn Speaker.
30) Cassette Player Slot.
31) Cassette EJ/FF Button
(Eject/Fast Forward .)
20
21
22
23
27
3
3
24
25
26
29
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
28
30
2
1
19
31
LOCATION OF CONTROLS AND INDICATORS
FRONT PANEL
NOTE:All of the buttons on the remote control
have the same function as these buttons in the
unit.This remote control just used for CD/MP3
and USB mode.
R1
R3
R5
R7
R10
R2
R4
R6
R9
R11
R12
R8
REMOTE CONTROL OPERATION:
R1) OPEN/CLOSE.
R2) RECORD.
R3) REPEAT.
R4) PLAY/PAUSE.
R5) DN/FB(SKIP REV.).
R6) UP/FF(SKIP Forward.).
R7) STOP.
R8) TRACK-10.
R9) TRACK+10.
R10) RANDOM.
R11) DELETE.
R12) PROGRAM.
AUX IN
34
35
36
37
38
39
5
BACK PANEL
PHONOGRAPH
31.) Antenna Jack/FM Antenna.
32.) AUX IN (Audio input).
33.) AC Power Cord.
34.) Turntable.
35.) 45 RPM Adapter.
36.) Speed Selector(33/45/78 RPM).
37.) Tone Arm with Stylus.
38.) Speed Display.
39.) PHONO Power Switch.
31
33
32
