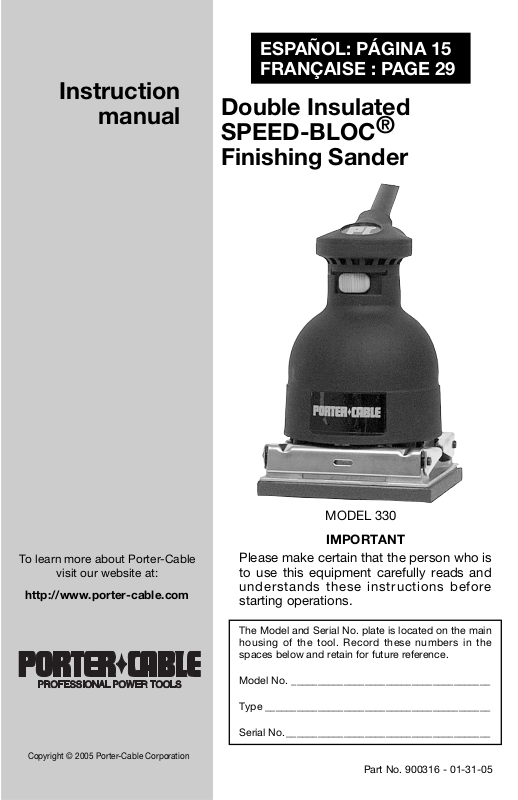

PYLE Audio SPEED-BLOC 330 User Manual

Instruction

manual

The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.

Model No. ______________________________________

Type ___________________________________________

Serial No. _______________________________________

IMPORTANT

Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.

ESPAÑOL: PÁGINA 15
FRANÇAISE : PAGE 29

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

Copyright © 2005 Porter-Cable Corporation

Part No. 900316 - 01-31-05

Double Insulated
SPEED-BLOC

®

Finishing Sander

MODEL 330

2

TABLE OF CONTENTS

Read and understand all warnings and operating instructions
before using any tool or equipment. When using tools or equipment, basic
safety precautions should always be followed to reduce the risk of personal
injury. Improper operation, maintenance or modification of tools or equipment
could result in serious injury and property damage. There are certain
applications for which tools and equipment are designed. Porter-Cable strongly
recommends that this product NOT be modified and/or used for any application
other than for which it was designed.

If you have any questions relative to its application DO NOT use the product
until you have written Porter-Cable and we have advised you.

Online contact form at www.porter-cable.com
Postal Mail: Technical Service Manager

Porter-Cable

4825 Highway 45 North
Jackson, TN 38305

Information regarding the safe and proper operation of this tool is available from
the following sources:

Power Tool Institute
1300 Sumner Avenue, Cleveland, OH 44115-2851

www.powertoolinstitute.org

National Safety Council
1121 Spring Lake Drive, Itasca, IL 60143-3201

American National Standards Institute, 25 West 43rd Street, 4 floor, New York,
NY 10036 www.ansi.org

ANSI 01.1Safety Requirements for Woodworking

Machines, and the U.S. Department of Labor regulations www.osha.gov

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . .2

SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ADDITIONAL SPECIFIC SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . .6

CARTON CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

FRANÇAISE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

SERVICE CENTER LOCATIONS . . . . . . . . . . . . . . . . . . . . . . .back cover

3

Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities contains chemicals known (to the
State of California) to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:

● lead from lead-based paints

● crystalline silica from bricks and cement and other masonry products

● arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, always wear NIOSH/OSHA
approved, properly fitting face mask or respirator when using such tools.

indicates an imminently hazardous situation which, if not

avoided, will result in death or serious injury.

indicates a potentially hazardous situation which, if not

avoided,could result in death or serious injury.

indicates a potentially hazardous situation which, if not

avoided,may result in minor or moderate injury.

used without the safety alert symbol indicates potentially

hazardous situation which, if not avoided, may result in

property damage.

SAFETY GUIDELINES - DEFINITIONS

CALIFORNIA PROPOSITION 65

It is important for you to read and understand this manual. The
information it contains relates to protecting YOUR SAFETY and
PREVENTING PROBLEMS. The symbols below are used to help
you recognize this information.

4

Read all instructions. Failure to follow all
instructions listed below may result in electric shock, fire and/or
serious injury. The term "power tool" in all of the warnings listed
below refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.

GENERAL SAFETY RULES

SAVE THESE INSTRUCTIONS

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite

accidents.

b) Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any

way. Do not use any adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will reduce risk of electric

shock.

b) Avoid body contact with earthed or grounded surfaces such as

pipes, radiators, ranges and refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a

power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the risk

of electric shock.

e) When operating a power tool outdoors, use an extension cord

suitable for outdoor use. Use of a cord suitable for outdoor use reduces
the risk of electric shock.

3) Personal safety
a) Stay alert, watch what you are doing and use common sense when

operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol or medication. A moment of

inattention while operating power tools may result in serious personal
injury.

b) Use safety equipment. Always wear eye protection. Safety equipment

such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.

c) Avoid accidental starting. Ensure the switch is in the off-position

before plugging in. Carrying power tools with your finger on the switch
or plugging in power tools that have the switch on invites accidents.

5

d) Remove any adjusting key or wrench before turning the power tool

on. A wrench or a key left attached to a rotating part of the power tool

may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This

enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your

hair, clothing and gloves away from moving parts. Loose clothes,
jewelry or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and

collection facilities, ensure these are connected and properly used.

Use of these devices can reduce dust-related hazards.

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your

application. The correct power tool will do the job better and safer at the

rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.

c) Disconnect the plug from the power source before making any

adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool
accidentally.

d) Store idle power tools out of the reach of children and do not allow

persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of

untrained users.

e) Maintain power tools. Check for misalignment or binding of moving

parts, breakage of parts and any other condition that may affect the
power tools operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power

tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools

with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance

with these instructions and in the manner intended for the
particular type of power tool, taking into account the working
conditions and the work to be performed. Use of the power tool for

operations different from those intended could result in a hazardous
situation.

5) Service
a) Have your power tool serviced by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the

power tool is maintained.

GENERAL SAFETY RULES

continued

6

ADDITIONAL SPECIFIC SAFETY RULES

1. Hold power tools by insulated gripping surfaces when performing an
operation where the cutting tool may contact hidden wiring or its own
cord. Contact with a "live" wire will make exposed metal parts of the tool

"live" and shock the operator.

2. Always disconnect the sander cord plug from the power circuit before
changing abrasive sheets. Such preventive safety measures reduce the

risk of starting the power tool accidentally.

3. Use proper safety equipment. Wear safety goggles to protect your eyes
and wear a protective mask to minimize breathing in the fine dust created
while sanding.

4. Sanding of lead-based paint is not recommend. Lead-based paint should
only be removed by a professional.

5. Wear eye and hearing protection. Always use safety glasses. Everyday

eyeglasses are NOT safety glasses. USE CERTIFIED SAFETY EQUIPMENT.
Eye protection equipment should comply with ANSI Z87.1 standards.
Hearing equipment should comply with ANSI S3.19 standards.

6. Use of this tool can generate and disburse dust or other

airborne particles, including wood dust, crystalline silica dust and
asbestos dust. Direct particles away from face and body. Always operate

tool in well ventilated area and provide for proper dust removal. Use dust
collection system wherever possible. Exposure to the dust may cause
serious and permanent respiratory or other injury, including silicosis (a
serious lung disease), cancer, and death. Avoid breathing the dust, and
avoid prolonged contact with dust. Allowing dust to get into your mouth or
eyes, or lay on your skin may promote absorption of harmful material.
Always use properly fitting NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure, and wash exposed areas with soap and
water.

SAVE THESE INSTRUCTIONS!

7

SYMBOL DEFINITION

V ........................ volts

A ........................ amperes

Hz ........................ hertz

W ........................ watts

kW ........................ kilowatts

F ........................ farads

µF ........................ microfarads

l ........................ litres

g ........................ grams

kg ........................ kilograms

bar ........................ bars

Pa ........................ pascals

h ........................ hours

min ........................ minutes

s ........................ seconds

n

0

........................ no-load speed

…/min or …min

-

1

......... Revolutions or reciprocations per minute

or d.c. ................ direct current

or a.c. ................ alternating current

2 ........................ two-phase alternating current

2N ........................ two-phase alternating current with neutral

3 ........................ three-phase alternating current

3N ........................ three-phase alternating current with neutral

........................ rated current of the appropriate fuse-link in amperes

........................ time-lag miniature fuse-link where X is the symbol

for the time/current characteristic, as given in IEC 60127

........................ protective earth

........................ class II tool

IPXX ........................ IP symbol

SAVE THESE INSTRUCTIONS!

8

ADDITIONAL SAFETY RULES FOR PAINT REMOVAL

Extreme care should be taken when removing paint. The
peelings, residue, and vapors of paint may contain lead, which
is poisonous. Exposure to even low levels of lead can cause
irreversible brain and nervous system damage. Young and
unborn children are particularly vulnerable.

Before beginning any paint removal process you should determine whether the
paint you are removing contains lead. This can be done by your local health
department or by a professional who uses a paint analyzer to check for lead.

Lead-based paint should only be removed by a professional.

Persons removing paint should follow these guidelines:

1. Keep the work area well ventilated. Open the windows and put an
exhaust fan in one of them. Be sure the fan is moving air from inside to outside.

2. Remove or cover any carpets, rugs, furniture, clothing, cooking
utensils, and air ducts. Such preventive safety measures reduce the risk of

exposure.

3. Place drop cloths in the work area to catch any paint chips or peelings.
Wear protective clothing such as extra work shirts, overalls and hats.

Such

preventive safety measures reduce the risk of exposure.

4. Work in one room at a time. Furnishings should be removed or placed in
the center of the room and covered. Work areas should be sealed off from the
rest of the dwelling by sealing doorways with drop cloths.

5. Children, pregnant, or potentially pregnant women and nursing mothers
should not be present in the work area until the work is done and all
cleanup is complete. Such preventive safety measures reduce the risk of

injury.

6. Wear a dust respirator or a dual filter (dust and fume) respirator mask
which has been approved by the Occupational Safety and Health
Administration (OSHA), the National Institute of Safety and Health (NIOSH),
or the United States Bureau of Mines. These masks and replaceable filters are

readily available at major hardware stores. Be sure the mask fits. Beards and
facial hair may keep the masks from sealing properly. Change filters often.
DISPOSABLE PAPER MASKS ARE NOT ADEQUATE.

7. Keep food and drink out of the work area. Wash hands, arms, and face
and rinse mouth before eating or drinking. Do not smoke or chew gum or
tobacco in the work area.

8. Clean up all removed paint and dust by wet mopping the floors. Use a
wet cloth to clean all walls, sills and any other surfaces where paint or dust is
clinging. DO NOT SWEEP, DRY DUST OR VACUUM. Use a high phosphate
detergent or trisodium (TSP) to wash and mop areas.

9. At the end of each work session, put the paint chips and debris in a
double plastic bag, close it with tape or twist ties and dispose properly.

Such

preventive safety measures reduce the risk of exposure.

10. Remove protective clothing and work shoes in the work area to avoid
carrying dust into the rest of the dwelling. Wash work clothes separately. Wipe

shoes off with a wet rag, then wash that rag with the work clothes. Wash hair and
body thoroughly with soap and water.

SAVE THESE INSTRUCTIONS!

9

If an extension cord is used, make sure the conductor size is large enough to
prevent excessive voltage drop which will cause loss of power and possible
motor damage. A table of recommended extension cord sizes will be found in
this section. This table is based on limiting line voltage drop to 5 volts (10 volts
for 230 volts) at 150% of rated amperes.

If an extension cord is to be used outdoors it must be marked with the suffix W-A
or W following the cord type designation. For example – SJTW-A to indicate it is
acceptable for outdoor use.

RECOMMENDED EXTENSION CORD SIZES FOR USE WITH PORTABLE ELECTRIC TOOLS

Length of Cord in Feet

115V 25 Ft. 50 Ft. 100 Ft. 150 Ft. 200 Ft. 250 Ft. 300 Ft. 400 Ft. 500 Ft.
230V 50 Ft. 100 Ft. 200 Ft. 300 Ft. 400 Ft. 500 Ft. 600 Ft. 800 Ft. 1000 Ft.

0-2 18 18 18 16 16 14 14 12 12
2-3 18 18 16 14 14 12 12 10 10
3-4 18 18 16 14 12 12 10 10 8
4-5 18 18 14 12 12 10 10 8 8
5-6 18 16 14 12 10 10 8 8 6
6-8 18 16 12 10 10 8 6 6 6

8-10 18 14 12 10 8 8 6 6 4
10-12 16 14 10 8 8 6 6 4 4
12-14 16 12 10 8 6 6 6 4 2
14-16 16 12 10 8 6 6 4 4 2
16-18 14 12 8 8 6 4 4 2 2
18-20 14 12 8 6 6 4 4 2 2

Nameplate Ampere Rating

EXTENSION CORD SELECTION

MOTOR

Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60
cycle A.C. current and voltage within plus or minus 5 percent of that shown on
the specification plate on the tool. Several models, however, are designed for
A.C. current only. Refer to the specification plate on your tool for proper voltage
and current rating.

Do not operate your tool on a current on which the voltage is not
within correct limits. Do not operate tools rated A.C. only on D.C.
current. To do so may seriously damage the tool.

CARTON CONTENTS

SAVE THESE INSTRUCTIONS!

1) Sander

2) Instruction Manual

3) Replacement Parts List

4) Combination Package

10

FUNCTIONAL DESCRIPTION

FOREWORD

Your Porter-Cable Finishing Sander is equipped to accept Stikit™ adhesive
backed abrasives (4

1

/2

" width) or conventional abrasive sheets (4

1

/2

" x 5

1

/2

").

This Sander is suitable for coarse, medium or fine sanding of wood, plaster,
metal and plastics. It is ideal for leveling wallboard joints, finishing cabinets,
rubbing and polishing furniture, fitting screens and doors and for general
finishing work in the shop.

SELECTING THE RIGHT ABRASIVE SHEET

By selecting the proper type of abrasive, the finest finishes can be attained. In
general, coarser grit sizes will remove the most material and finer grit sizes will
produce the best finishes.

Naturally, in all sanding operations, best results will be obtained if you select the
proper size and type of abrasives. Only garnet, aluminum oxide and silicon
carbide are recommended for use with finishing sanders. Flint paper is not
satisfactory for machine sanding, due to its weak structure.

Before starting to work, make sure you have the right abrasive for the material on
which the sander is to be used. Make sure you use the correct size abrasive
paper or cloth. Cut, do not tear, the abrasive sheets to size.

ASSEMBLY

ATTACHING STIKIT™ ABRASIVE

Stikit™ abrasives (ten yard rolls) and a convenient dispenser are available from
your Porter-Cable distributor.

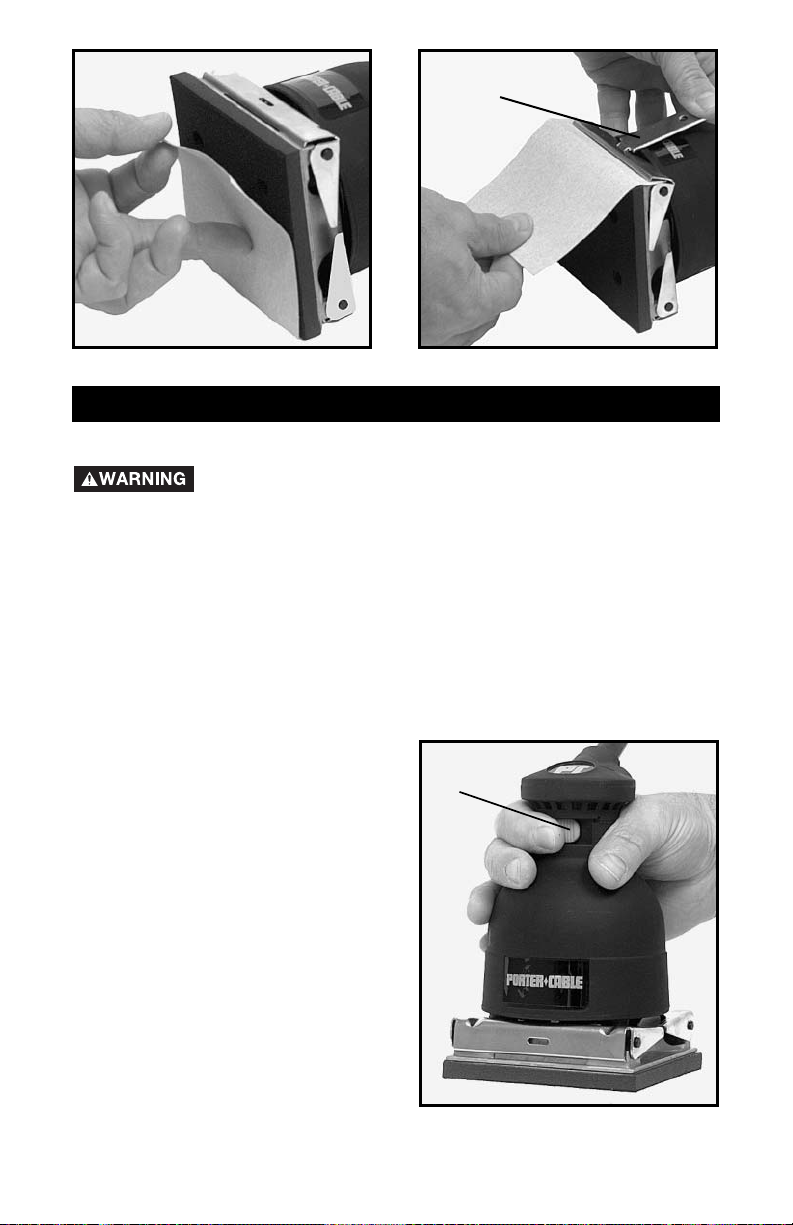

To install Stikit™ abrasive, cut a 4

1

/8" long piece of abrasive from roll, align

abrasive with sander pad and press in place as shown in Fig. 1.
To remove, lift one corner of abrasive with fingernail and peel off.

ATTACHING CONVENTIONAL ABRASIVE

Disconnect tool from power source.

1. Insert small end of wrench, furnished with sander, into slot (A), Fig. 2, with
hump of the wrench in up position, and press wrench toward sander housing to
open clamp.

2. Slip one end of abrasive sheet under clamp, stretch sheet tight over pad,
open rear clamp with wrench and slip free end of abrasive sheet under rear
clamp.

ABRASIVE ATTACHMENT TOOL IS REQUIRED

- Wrench (furnished)

NOTE: This tool is shipped completely assembled. No assembly time or

tools are required.

11

TO START AND STOP SANDER

Make sure switch (A), Fig. 3, is in “OFF” position.

1. Make sure power source voltage is the same as specified on the
sander’s specification plate.

2. Insert cord plug into power source outlet.

3. While holding sander firmly and off of work surface, slide switch (A), Fig.

3, to the “ON” position.

4. Allow sander to reach full speed. Set it down on the work evenly and
move it slowly back and forth in wide overlapping arcs (see SANDING
PROCEDURE section of this manual).

5. When you are finished sanding, lift sander up off work and slide switch

(A), Fig. 3, to the “OFF” position to stop sander.

SANDING PROCEDURE

The Porter-Cable Finishing Sander has
been designed for one-hand operation (Fig.

3). Because it is light in weight, vibration­free and perfectly balanced, the sander
can be easily guided over the work surface
with one hand. The normal weight of the
machine is sufficient for efficient sanding.
Do not put additional pressure on the
machine. This would only slow down the
speed of the pad, reducing the sanding
efficiency and put an additional burden on
the motor. In addition, it might cause the
sander to jump on the work. Let the sander
do the work.

OPERATION

Fig. 1

Fig. 2

A

Fig. 3

A

12

TROUBLESHOOTING GUIDE

For assistance with your tool, visit our website at www.porter-cable.com for a
list of service centers or call the Porter-Cable help line at 1-800-487-8665.

FINE FINISHING

The action of the Porter-Cable Finishing Sander causes thousands of tiny
abrasive grits to move in circular orbits against the work at high speed. Each
grain moves in the same direction at a constant speed so the cutting action is
uniform over the entire pad surface. Crossing and re-crossing of the abrasive
grits from all directions quickly levels surface irregularities to a fine, uniform
smoothness. Start the work with an abrasive grit just coarse enough to remove
the high spots and excessive roughness. Follow with a second sanding using a
grit one or two grades finer. Continue with successively finer grits until the
desired finish is obtained. DO NOT GO FROM A COARSE GRIT TO A VERY FINE
GRIT IN ONE STEP.

Going from a coarse grit to a very fine grit in one step could make it difficult to
remove swirl marks that might have been made by the coarse grit abrasive. Use
the finest grits practical for the roughing operation and then finish by using
successively finer grits.

REMOVING PAINT AND VARNISH

Read and follow all instructions in the ADDITIONAL

SAFETY RULES FOR PAINT REMOVAL section of this manual.

Your sander will do a good job of removing old paint and varnish if two
precautions are taken. First, be sure to use a coarse, open coat abrasive to avoid
the usual clogging of the abrasive surfaces. Second keep the machine moving
over new areas to avoid heating and softening the material being removed. Try
to work the entire surface down at the same time by working in wide,
overlapping arcs. Do not concentrate on small areas. If liquid removers or
heaters are used to speed the work, be sure the surface is cool and dry and the
excess material has been scraped away with a putty knife or other suitable
scraping tool before applying the sander.

CABINETS AND DOORS

The orbital motion of the Porter-Cable Finishing Sander is ideally suited for
finishing doors, cabinet fronts and other installations where wood grain is often
perpendicular to that of a joining piece. Since the motion is circular, the machine
may be moved in any direction and crossed from one part to the other without
regard to direction of grain. A uniform and smooth finish will result on both parts.
The same procedure may be used when evening joints in all types of cabinet
work. The sander may be worked on both sides and in all directions to obtain a
smooth, matching joint. By properly changing from coarser to finer grit abrasives,
an excellent finish will result.

RUBBING AND POLISHING

The finishing sander is excellent for all types of polishing and rubbing on flat or
round surfaces. Felt rubbing pads, available as accessory equipment can be
quickly attached for rubbing operations. With it, metal parts, enameled surfaces
and woodwork may be polished. Use rouge or paste wax for polishing with the
finishing sander.

13

KEEP TOOL CLEAN

Periodically blow out all air passages with dry compressed air. All plastic parts
should be cleaned with a soft damp cloth. NEVER use solvents to clean plastic
parts. They could possibly dissolve or otherwise damage the material.

Wear ANSI Z87.1 safety glasses while using compressed air.

FAILURE TO START

Should your tool fail to start, check to make sure the prongs on the cord plug are
making good contact in the outlet. Also, check for blown fuses or open circuit
breakers in the line.

LUBRICATION

This tool has been lubricated with a sufficient amount of high grade lubricant for
the life of the unit under normal operating conditions. No further lubrication is
necessary.

BRUSH INSPECTION (If applicable)

For your continued safety and electrical protection, brush inspection and
replacement on this tool should ONLY be performed by an AUTHORIZED
PORTER-CABLE SERVICE STATION or a PORTER-CABLE

•DELTA FACTORY

SERVICE CENTER.
At approximately 100 hours of use, take or send your tool to your nearest

authorized Porter-Cable Service Station to be thoroughly cleaned and inspected.
Have worn parts replaced and lubricated with fresh lubricant. Have new brushes
installed, and test the tool for performance.

Any loss of power before the above maintenance check may indicate the need
for immediate servicing of your tool. DO NOT CONTINUE TO OPERATE TOOL
UNDER THIS CONDITION. If proper operating voltage is present, return your tool
to the service station for immediate service.

MAINTENANCE

SERVICE

REPLACEMENT PARTS

When servicing use only identical replacement parts. For a service parts list or to
learn more about Porter-Cable visit our website at www.porter-cable.com

SERVICE AND REPAIRS

All quality tools will eventually require servicing, or replacement of parts due to
wear from normal use. For assistance with your tool, visit our website at

www.porter-cable.com

for a list of service centers or call the Customer Care

Department at 1-800-487-8665. All repairs made by our service centers are fully
guaranteed against defective material and workmanship. We cannot guarantee
repairs made or attempted by others.

Should you have any questions about your tool, feel free to write us at any time.
In any communications, please give all information shown on the nameplate of
your tool (model number, type, serial number, etc.).

14

PORTER-CABLE LIMITED

ONE YEAR WARRANTY

Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original
purchase. We will repair or replace at our option, any part or parts of the product and accessories
covered under this warranty which, after examination, proves to be defective in workmanship or
material during the warranty period. For repair or replacement return the complete tool or accessory,
transportation prepaid, to your nearest Porter-Cable Service Center or Authorized Service Station.
Proof of purchase may be required. This warranty does not apply to repair or replacement required
due to misuse, abuse, normal wear and tear or repairs attempted or made by other than our Service
Centers or Authorized Service Stations.

ANY IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, WILL LAST ONLY FOR ONE (1) YEAR FROM THE DATE
OF PURCHASE.

To obtain information on warranty performance please write to: PORTER-CABLE CORPORATION,
4825 Highway 45 North, Jackson, Tennessee 38305; Attention: Product Service. THE FOREGOING
OBLIGATION IS PORTER-CABLE’S SOLE LIABILITY UNDER THIS OR ANY IMPLIED WARRANTY
AND UNDER NO CIRCUMSTANCES SHALL PORTER-CABLE BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.

This warranty gives you specific legal rights and you may also have other legal rights which vary
from state to state.

WARRANTY

ACCESSORIES

A complete line of accessories is available from your Porter-Cable•Delta
Supplier, Porter-Cable

•Delta Factory Service Centers, and Porter-Cable

Authorized Service Stations. Please visit our Web Site www.porter-cable.com
for a catalog or for the name of your nearest supplier.

Since accessories other than those offered by Porter­Cable

•Delta have not been tested with this product, use of

such accessories could be hazardous. For

safest operation,

only Porter-Cable

•Delta recommended accessories should

be used with this product.
