Pyle Audio SL-BCM18 Instruction Manual

1080P HD ACTION CAMERA

USER MANUAL

Black Silver Red Blue

MODELS: SLBCM18BK, SLBCM18SL, SLBCM18RD, SLBCM18BL

Contents

Precaution
Camera Interface
Use securing clip
Button function
Camera Operation

Power on/off
Battery Charging

Video Mode
Normal recording
Loop recording
Picture Mode
Playback Mode

Menu Setting

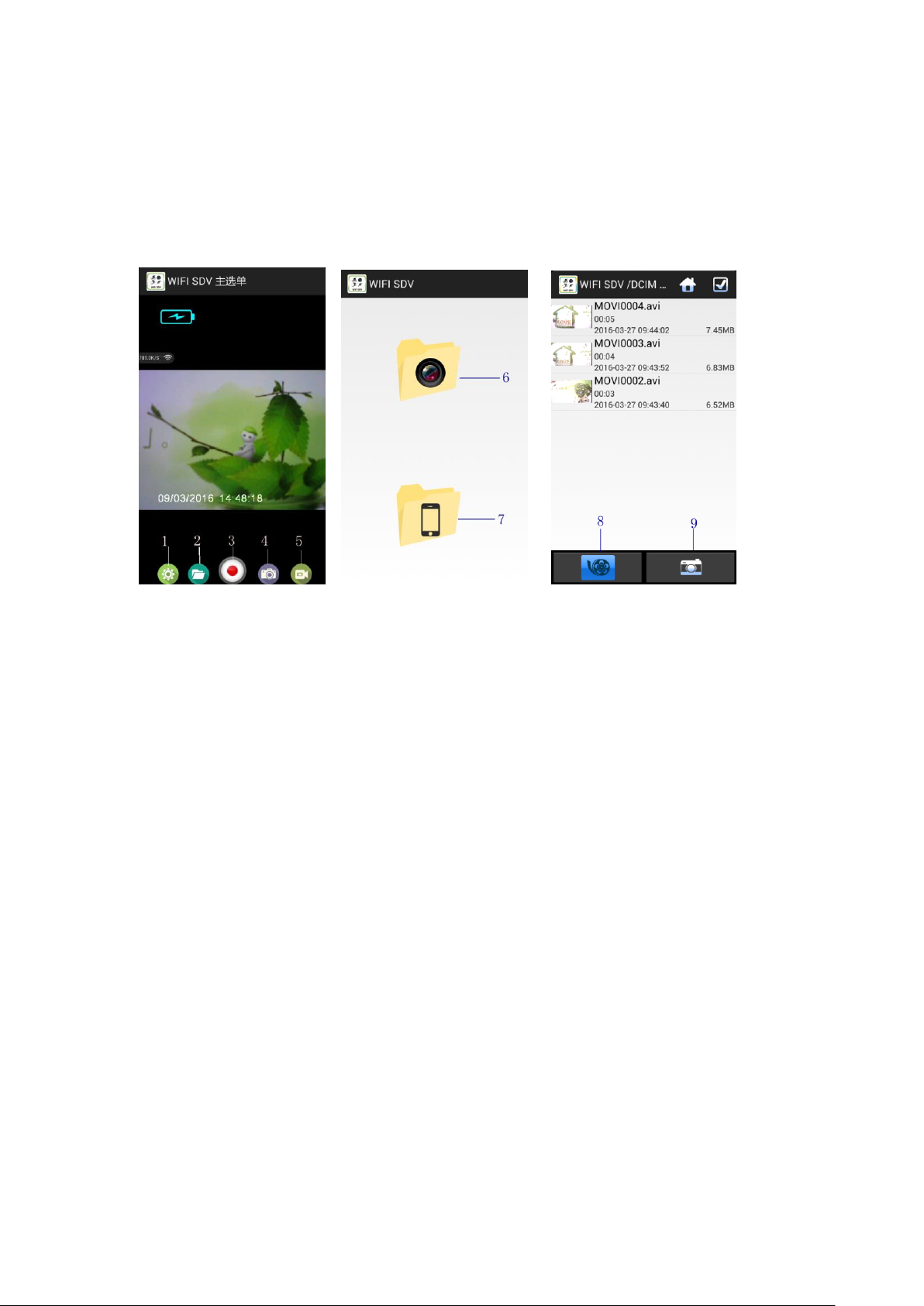

Install and use WIFI

Playback on PC
Technical specification

Precaution

Please make sure to look through the following guidelines before you use this
camera.

 Please refer to manual instruction to operate camera correctly. Wrong operation may

cause damage to internal components.

 Do not fall or hit camera, it may damage the internal components.
 Do not alter or dismantle camera to avoid damage.
 The temperature rise is normal when camera is used for a long time.

 Do not touch the lens when recording—it will affect video quality.

 Please use "Class10" and above Micro SD card to ensure proper function.

Camera Interface

1.Power button 2.Reset button 3.Microphone 4.Working/Charging indicator

5.Up button 6.Down button 7.Lens 8.TF card slot

9.USB port 11.Back shell 10.12.13.16.Buckle 14.Speaker

15.1/4” screw hole

Engage securing clip:

Make sure the buckles of securing clip are aligned with camera.
