PYLE Audio PYD2808 User Manual

Download

Page 1

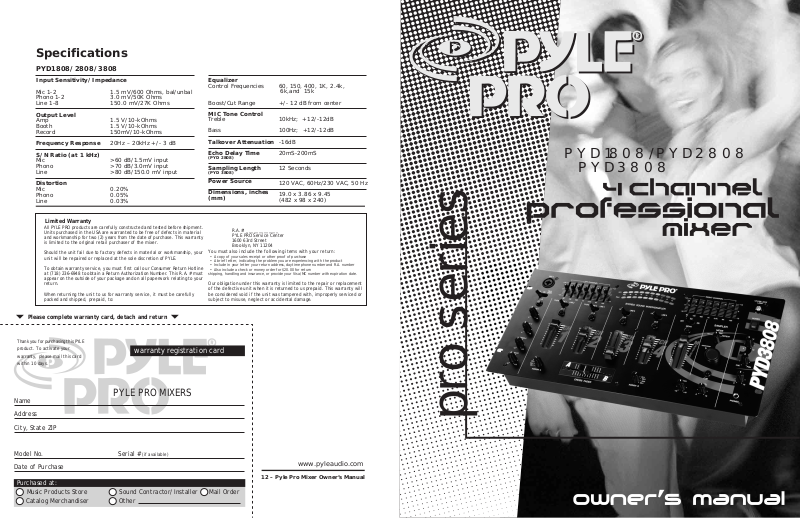

Specifications

PYD1808/2808/3808

Input Sensitivity/Impedance

Mic 1-2 Phono 1-2 Line 1-8

Output Level

Amp Booth R

ecord

Frequency Response S/N Ratio (at 1 kHz)

Mic Phono Line

Distortion

Mic Phono Line

Limited Warranty

All PYLE PRO products are carefully constructed and tested before shipment. Units purchased in the USA are warranted to be free of defects in material and workmanship for two (2) years from the date of purchase. This warranty is limited to the original retail purchaser of the mixer.

Should the unit fail due to factory defects in material or workmanship, your unit will be repaired or replaced at the sole discretion of PYLE.

To obtain warranty service, you must first call our Consumer Return Hotline at (718) 236-6948 to obtain a Return Authorization Number. This R.A. # must appear on the outside of your package and on all paperwork relating to your return.

When returning the unit to us for warranty service, it must be carefully packed and shipped, prepaid, to:

1.5 mV/600 Ohms, bal/unbal

3.0 mV/50K Ohms

150.0 mV/27K Ohms

1.5 V/10-kOhms

1.5 V/10-kOhms 150mV/10-kOhms

20Hz – 20kHz +/- 3 dB

>60 dB/1.5mV input >70 dB/3.0mV input >80 dB/150.0 mV input

0.20%

0.05%

0.03%

Equalizer

Control Frequencies

Boost/Cut R

MIC Tone Control

Treble Bass

Talkover Attenuation Echo Delay Time

(PYD 2808)

Sampling Length

(PYD 3808)

Power Source Dimensions, inches

(mm)

You must also include the following items with your return:

• A copy of your sales receipt or other proof of purchase

• A brief letter, indicating the problem you are experiencing with the product

• Include in your letter your return address, daytime phone number and R.A. number

• Also include a check or money order for $20.00 for return shipping, handling and insurance, or provide your Visa/MC number with expiration date.

Our obligation under this warranty is limited to the repair or replacement of the defective unit when it is returned to us prepaid. This warranty will be considered void if the unit was tampered with, improperly serviced or subject to misuse, neglect or accidental damage.

ange

R.A.#: _____________ PYLE PRO Service Center 1600 63rd Street Brooklyn, NY 11204

60, 150, 400, 1K, 2.4k, 6k,and 15k

+/- 12 dB from center

10kHz; +12/-12dB 100Hz; +12/-12dB

-16dB 20mS-200mS

12 Seconds

120 VAC, 60Hz/230 VAC, 50 Hz

19.0 x 3.86 x 9.45 (482 x 98 x 240)

PYD1808/PYD2808 PYD3808

Please complete warranty card, detach and return

Thank you for purchasing this PYLE product. To activate your warranty, please mail this card within 10 days.

warranty registration card

PYLE PRO MIXERS

Name Address City, State ZIP

Model No. Serial # Date of Purchase

Purchased at:

Music Products Store

Catalog Merchandiser

Sound Contractor/Installer Mail Order

Other

pro series

(if available)

www.pyleaudio.com

12 – Pyle Pro Mixer Owner’s Manual

Page 2

Your PYLE PRO Series Performance Mixer

is a sophisticated control center, perfect for mixing sound from multiple playback sources such as microphones, tuners, CD players, turntables or the audio outputs from a VCR. This mixer is ruggedly constructed for home or professional use. Wide range volume controls permit you to adjust sound levels accurately to achieve just the right mix for playing through your speaker system or for recording.

Features and Controls: PYD 1808 Mixer

Please read this manual thoroughly before you attempt to set up and use the mixer. It contains a range of suggestions and instructions to insure safe usage. Set up and used properly, you can expect years of trouble-free service from this product.

Owner’s Manual Table of Contents

Input/Output Features

Features and Controls: PYD 1808

Features and Controls: PYD 2808

Features and Controls: PYD 3808

Presetting Controls Before Use

Connecting the Mixer Inputs Connecting the Mixer’s Outputs

to Amplifiers to Recorders to Booth Speakers Using Headphones

Connecting the Lamp Using the Mixer Controls

Turning On the Mixer

Monitoring (”Cueing”) Inputs

Mixing Inputs Adding Equalization to the Mix

Using the MicrophoneTalkover Mode Microphone Tone and Level Controls Using the Mono/Stereo Switch

Using the Crossfader w/Assign Switches Using the Echo Controls (PYD 2808) Using the Sound Effects (PYD 2808) Using the Digital Sampler (PYD 3808) Troubleshooting

Specifications Warranty

Input/Output Features: all models

Stereo Line Inputs let you connect most high-lev CD players, tape deck, tuner or VCR.

el audio sources, such as

MIC 1 Combo Input Jack For connecting a balanced or unbalanced low impedance microphone with XLR type or 1/4” plug

MIC 2 Input Jack (on input panel)

or connecting a balanced or

F unbalanced low impedance microphone with 1/4”plug

Channel CUE Switch Allows you to monitor the selected audio

input source and prepare it prior to mixing it in. Channel Input Selector Lets you choose the input source to play

for each channel Dual Display Meter Indicates the levels of Left and Right Master

Channels 7-Band Equalizer Allows you to tailor the mixer output to suit your

taste or performance en cut or boost by up to 12dB.

vironment. Each frequency range can be

BNC Lamp Adaptor Allows

ou to connect a 12V/3W

y lamp to light the panel

Power Switch

Equalizer On/Off Selector

Booth Level Control

Lets y

ou control the mixer’s overall booth volume level, if you set up remote speakers or DJ booth monitors

Headphone CUE/PGM Control

Allows you to listen simultaneously or separately to the CUE material or the active program

Cue Level Control

Headphone Jack

Accepts headphones with 1/4” plug

VOLTAGE

FUSE

~AC iN

115/230V-60/50 Hz

Output Jacks to connect the mixer to a

er or amplifier – choose to use cables

receiv with either 1/4” plugs or RCA plugs.

Booth Output Jacks to connect the mixer to a second receiv speakers in the DJ booth or in a remote location

Record Output Jacks to connect the

er to a tape deck for recording the

mix mixed program

er or amplifier powering

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED)

CAUTION:

PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE

BALANCED

OUTPUT

MIC1/2 Tone Controls

DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE.

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE

CAUTION:

REPLACE ONLY WITH SAME TYPE FUSE.

BOOTHAMP

REC

CH 4 CH 3 CH 2 CH 1

LINE 7LINE 8

LINE 5LINE 6

Dual Purpose Stereo Inputs for using a turntable with a magnetic cartridge OR a high lev source

Input Select Switches – set these switches based on what is plugged into Phono1/Line1 and Phono2/Line3 input jacks

LINE 3LINE 4

INPUT

SELECT

PHONO 2

LINE 1LINE 2

el input

GROUND

MIC 2

INPUT

SELECT

PHONO 1

Ground Screw

for turntables

MIC2 Microphone connector

you to connect a balanced or unbalanced low impedance microphone with 1/4” plug.

permits

MIC1/2 Level Controls Lets you control the MIC lev

MIC Talkover Allows you to lower the lev them using the DJ Mic

els as they enter the mix

el of the input sources so you can talk

Master Level Control Lets you control mixer’s overall volume level

Master Mono/Stereo Switch

Channel Assign Switch Lets you select the input source to be mixed

y the Crossfade Slider Control

Crossfade Slider Control Allows you to smoothly switch between the input sources assigned to Channel A and Channel B

Pyle Pro Mixer Owner’s Manual – 1i – Pyle Pro Mixer Owner’s Manual

Page 3

Features and Controls: PYD 2808 Mixer

Channel Input Selector Lets you choose the input source to play

MIC 1 Combo Input Jack For

connecting a balanced or unbalanced low impedance microphone with XLR type or 1/4” plug

MIC 2 Input Jack (on input panel)

or connecting a balanced or unbalanced low impedance microphone with 1/4” plug

for each channel Channel CUE Switch Allows you to monitor the selected audio

input source and prepare it prior to mixing it in. Dual Display Meter Indicates the levels of Left and Right Master

Channels

Master Level Control Lets you control mixer’s overall volume level Master Mono/Stereo Switch

7-Band Equalizer Allows you to tailor the mixer output to suit your

taste or performance en cut or boost by up to 12dB.

vironment. Each frequency range can be

Features and Controls: PYD 3808 Mixer

Channel Input Selector Lets you choose the input source to play for each channel

Channel CUE Switch Allows you to monitor the selected audio input source and prepare it prior to mixing it in.

MIC 1 Combo Input Jack For connecting a balanced or unbalanced low impedance microphone with XLR type or 1/4”plug

MIC 2 Input Jack (on input panel)

or connecting a balanced or unbalanced low impedance microphone with 1/4”plug

Dual Display Meter Indicates the levels of Left and Right Master Channels

Master Level Control Lets you control mixer’s overall volume level Master Mono/Stereo Switch

7-Band Equalizer Allows you to tailor the mixer output to suit your

taste or performance en cut or boost by up to 12dB.

vironment. Each frequency range can be

MIC1/2 Tone Controls

MIC1/2 Level Controls Lets you control

the MIC lev

MIC Talkover Allows you to lower the lev them using the DJ Mic

els as they enter the mix

el of the input sources so you can talk

BNC Lamp Adaptor Allows y

ou to connect a 12V/3W

lamp to light the panel

Power Switch

Equalizer On/Off Selector

Booth Level Control Lets

ou control the mixer’s overall

y Booth volume level, if you set up remote speakers or DJ booth monitors

Headphone CUE/PGM

Allows you to listen

Control

simultaneously or separately to the CUE material or the active program

Cue Level Control

-Let you adjust the headphone's volume level

Headphone Jack

Accepts headphones with 1/4” plug

ECHO On/Off Switch

ECHO Repeat Control Lets you control the time

period during which the echo is repeated ECHO Delay Control Lets you adjust the delay

time for the echo ECHO Level Control Controls the depth of the

echo effect Sound Effect Volume Control Lets you control

the volume level of the sound effect within the mix Sound Effect Speed Control Lets you control

the pitch of the selected sound effect Digital Sound Effects Selectors Lets you create

special sound performance mixes from the six preprogrammed special effects

Channel Assign Switch Lets you select the input source to be mixed b

y the Crossfade Slider Control

Crossfade Slider Control Allows you to smoothly switch between the input sources assigned to Channel A and Channel B

MIC1/2 Tone Controls

MIC1/2 Level Controls Lets you control

the MIC lev

MIC Talkover Allows you to lower the lev them using the DJ Mic

els as they enter the mix

el of the input sources so you can talk

BNC Lamp Adaptor Allows y

ou to connect a 12V/3W

lamp to light the panel

Power Switch

Equalizer On/Off Selector

Booth Level Control Lets

you control the mixer’s overall Booth volume level, if you set up remote speakers or DJ booth monitors

Headphone CUE/PGM Control

simultaneously or separately to the CUE material or the active program

Cue Level Control

Headphone Jack

Accepts headphones with 1/4” plug

Sampler Mode Selector Selects the function of the sampler section

Sampler Start/Stop Controls the start and stop of the sampling process

Sampler CUE Switch Allows you to monitor the desired sample signal

Sampler Level Control Lets you adjust the volume of the desired sample signal as it enters the mix

Sampler Pitch Control Lets you control the sampled signal’

Channel Assign Switch Lets you select the input source to be mixed

y the Crossfade Slider Control

Crossfade Slider Control Allows you to smoothly switch between the input sources assigned to Channel A and Channel B

s pitch

Allows you to listen

Pyle Pro Mixer Owner’s Manual – 32 – Pyle Pro Mixer Owner’s Manual

Page 4

Power On/Off Tone Controls, Treble, Bass MIC 1/2, CH 1/2/3/4, Master & Cue Levels Crossfader

OFF 0 0 CENTER

Presetting the Controls Before Use

MIC 2

LINE 1LINE 2

INPUT

PHONO 1

SELECT

MIC 2

LINE 1LINE 2

INPUT

PHONO 1

SELECT

Since sudden high output levels from your PYLE PRO mixer can damage not only audio devices connected to the mixer output but your hearing as well (especially if you are using headphones), please adjust the mixer’s controls BEFORE connecting AC power or turning on the unit.

Set up the mixer controls like this before you start:

CONTROL SETTING

Connecting the Mixer Inputs

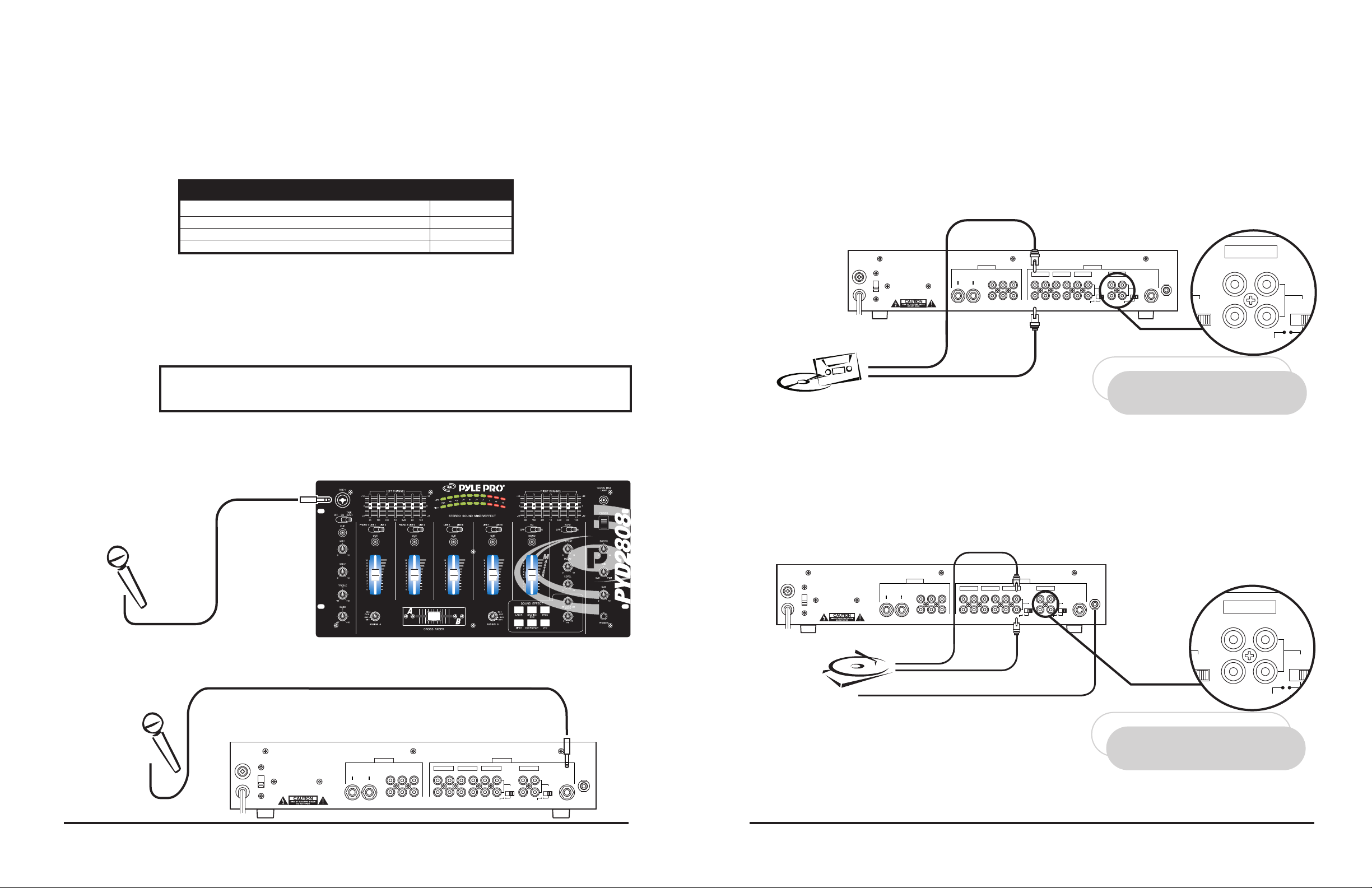

This mixer permits connection of up to eight (8) audio input sources,and two microphones. Such a system might include, for example:

Two Microphones Two Turntables Six CD players

Please observe the following:

Do not connect any audio source with a HIGH LEVEL OUTPUT to the LOW LEVEL PHONO 1 or PHONO 2 mixer audio input jacks (an audio

source output with a volume control is HIGH LEVEL).

Two Microphones Eight CD players

Two Microphones Two Turntables Three CD players Three Cassette Decks

Two Microphones Two Turntables Four CD players One Rhythm Synth One Cassette Deck

Connecting High Level Output Audio Sources

Connect up to 8 such sources (tuner, cassette deck, CD Player, camcorder or VCR) to the input jacks for Line 1 (if not being used as Phono 1 input), Line 2, Line 3 (if not being used as Phono 2 input), Line 4, Line 5 and Line 6. Please note that Phono 1 and Line 1 (as well as Phono 2 and Line 3) use the same jacks. The selector switch(e)s below the jacks should be set to Line position if the jacks are used for the High Level input sources described here.

Use RCA type patch cables

DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE.

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED)

CAUTION:

PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY

FUSE

~AC iN

115/230V-60/50 Hz

VOLTAGE

INSERTED TO PREVENT BLADE EXPOSURE

OUTPUT

BALANCED

RLL

High Level Output Audio Source

LEFT output

RIGHT output

CD player, cassette deck, camcorder, VCR, etc.

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE

CAUTION:

REPLACE ONLY WITH SAME TYPE FUSE.

BOOTHAMP

CH 4 CH 3 CH 2 CH 1

REC

LINE 7LINE 8

INPUT

GROUND

MIC 2

INPUT SELECT

LINE 5LINE 6

LINE 3LINE 4

PHONO 2

INPUT

SELECT

LINE 1LINE 2

PHONO 1

NOTE!

If you use a High Level Output Audio Source(s) in the Phono1/Line1 (and/or Phono2/Line3) input jack(s), be sure to place the Input Select switch in the LINE1 (and/or LINE3) position(s)!

Connecting Microphones

Microphone 1.

impedance mic with a 1/4” plug to the MIC 1 jack in the upper left corner of the mixer control panel.

Microphone 2. Connect a high quality balanced/unbalanced low impedance (600 Ohm) microphone with a 1/4” plug to the MIC 2 jack on the lower left corner of the mixer’s back panel.

Connect a balanced/unbalanced low impedance (600 Ohm) XLR type mic OR a low

Use 1/4” or XLR-type jack

MIC 1

MIC 2

Use 1/4” jack

DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE.

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE

CAUTION:

REPLACE ONLY WITH SAME TYPE FUSE.

BOOTHAMP

CH 4 CH 3 CH 2 CH 1

REC

LINE 7LINE 8

INPUT

GROUND

MIC 2

INPUT SELECT

LINE 5LINE 6

LINE 3LINE 4

PHONO 2

INPUT SELECT

LINE 1LINE 2

PHONO 1

FUSE

~AC iN

115/230V-60/50 Hz

VOLTAGE

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED)

CAUTION:

PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE

BALANCED

RLL

OUTPUT

Connecting Turntables and Other Level Output Audio Sources

Connect up to 2 turntables to the Phono 1 and Phono 2 input jacks. Please note that Phone 1 and Line 1 (as well as Phono 2 and Line 3) use the same jacks. The selector switch below the jacks should be set to Phono position if the jacks are used for phono inputs.

When using a turntable, you should also securely connect its ground wire (usually green or black) to the Ground screw on the input panel of the mixer.

Use RCA type

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED)

CAUTION:

PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY

FUSE

~AC iN

115/230V-60/50 Hz

VOLTAGE

INSERTED TO PREVENT BLADE EXPOSURE

RLL

Magnetic cartridge turntable

patch cables

OUTPUT

BALANCED

BOOTHAMP

LEFT output

RIGHT output

GROUND wire from turntable

DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE.

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE

CAUTION:

REPLACE ONLY WITH SAME TYPE FUSE.

CH 4 CH 3 CH 2 CH 1

REC

LINE 7LINE 8

INPUT

GROUND

MIC 2

INPUT SELECT

LINE 5LINE 6

LINE 3LINE 4

PHONO 2

INPUT SELECT

LINE 1LINE 2

PHONO 1

NOTE!

If you use a Turntable in the Phono1/Line1 (and/or Phono2/Line3) input jack(s), be sure to place the Input Select switch in the PHONO1 (and/or PHONO2) position(s)!

Pyle Pro Mixer Owner’s Manual – 54 – Pyle Pro Mixer Owner’s Manual

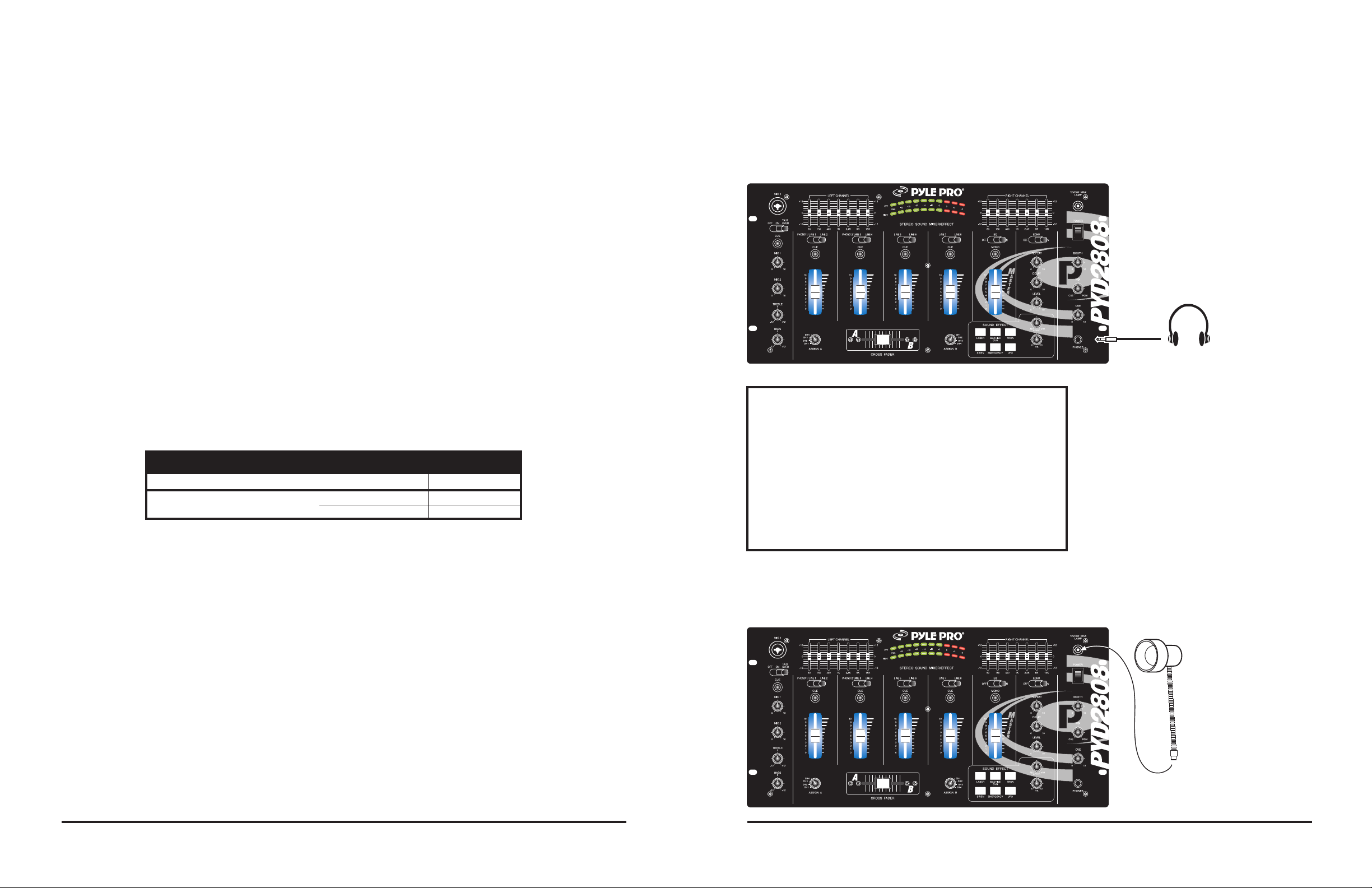

Page 5

Tape Deck Amplifier/Receiver

OFF OFF

FLAT

Connecting the Mixer Outputs

Output to an Amplifier

To play the mixer’s output signal through your speaker system (for events such as parties, dances, conferences, etc.) connect an audio patch cord (not supplied) from the mixers AMP L and R jacks to your receiver amplifier’s left and right input jacks.

This mixer features two kinds of output jacks for you to choose from: RCA style and 1/4” type. DO NOT USE BOTH SIMULTANEOUSLY.

Output to a Tape or Digital Audio Recorder

To play the mixer’s output signal through your speaker system (for events such as parties, dances, conferences, etc.) connect an audio patch cord (not supplied) from the mixers REC L and R jacks to your receiver/amplifier’s left and right input jacks.

Booth Output

Using Headphones

Plug a pair of stereo headphones (not supplied) with a 1/4” jack into the Phones input. Using headphones not only affords you the opportunity to listen privately, but also enables you to monitor (”cue”) the incoming audio sources so you can locate an exact passage or section before mixing it in. It also gives you the opportunity to set up the relative volume level of the upcoming passage before it joins the mix.

To monitor the mixer output to a second set of speakers in the DJ booth (or in a remote location) connect an audio patch cord (not supplied) from the mixers Booth L and R jacks to your secondary amplifier’s left and right input jacks.

CAUTION: In order to avoid sudden unpleasant sound output, adjust the output devices controls to these settings before you connect the mixer’s output jacks to these devices’ input jacks.

OUTPUT DEVICE SETTINGCONTROL

POWER POWER

TONE

Stereo Headphones

Listen Safely! Please observe the following:

Do not listen at extremely high volume levels. Extended, high-

volume listening can lead to permanent hearing loss. Follow these guidelines to protect your hearing, especially when using headphones.

Always start by setting the volume level to the lowest possible level before listening.

Put headphones on, and then gradually increase the volume as necessary.

Once you set the volume level do not increase it. Over

a period of time, your ears adapt to a volume level and there is a temptation to increase it. Even though such an increase may not cause discomfort, it might still damage your hearing.

Connecting the Lamp

If you wish to intall a console lamp (not supplied), simply insert the plug end of an appropriate 12V/3W gooseneck style or similar lamp into the lamp socket provided in the upper right corner of the mixer control panel. Power is supplied to this lamp when the mixer power switch is turned on.

12V/3W lamp

Pyle Pro Mixer Owner’s Manual – 76 – Pyle Pro Mixer Owner’s Manual

Page 6

Using the Mixer Controls

Turning on the Mixer

1. Turn on the output amplifier and temporarily set its volume to the minimum setting.

2. On the mixer, turn ON the power switch. The adjacent power LED will illuminate.

3. Turn on the audio input sources you wish to mix, and set them to play (or talk continuously into the microphone).

4. To monitor the audio input sources so that you can decide when to mix in each input, see “Monitoring ‘Cueing’ the Inputs.”

5. To mix the audio input sources so that you can play them through your amplifier system or record them on your tape deck, see “Mixing the Inputs.”

Adding Equalization to the Mix

You can further tailor the sound processed through the mixer to match your acoustic surroundings or suit your personal preferences by using the ten frequency sliders for each channel. To engage the equalization module, press the Equalization On/Off Switch.

Each one of the sliding controls boosts or cuts the selected frequency by up to 12 dB. If you leave a slider at the center (”0”) position, the corresponding frequency range for that stereo channel will be left unaffected (”flat”). Please note that in order to provide a smooth range of control, the frequency ranges overlap slightly. Therefore, for example, if you raise the level in the 1K range, the 400 and

2.4K ranges are also slightly affected.

Using the Microphone

Monitoring (”Cueing”) the Inputs

1. Set the CUE ASSIGN switch of the input source (MIC , CH1, CH2, CH3 or CH 4) you wish to monitor.

2. Adjust the Headphone Level control to a comfortable listening level.

3. The Headphone CUE/PGM control permits you to switch easily from listening to CUE material to the playing PROGRAM sound. You can also listen to both simultaneously by moving the Headphone CUE/PGM control to a point midway between the two ends.

PYD 3008: This model has an additional CUE on the sampler module for you monitor the sampled signal being applied. To monitor a sampled signal, press the SAMPLE ASSIGN button for the channel to which the sample has been saved, and then press the SAMPLE CUE button to audition this sound.

Mixing the Inputs

There are a maximum of ten input sources available at one time, including two microphone inputs. Both microphone input sources are always available as part of the mix, if desired. Each of the four audio channels can be linked to two different input sources, and one of these sources for each channel is available for mixing.Turn on all the available audio sources and be sure they are providing sound before continuing.

1. Select the Channel Input Selectors for each channel, choose the audio sources you want to mix for each channel (i.e., choose PHONO1/LINE1 or LINE2).

Incorporating Voice into the Mix

To blend voice from the microphones with the audio program material, first be sure the MIC/TALKOVER switch is set to the ON position. (In this position, the MIC channel is mixed into the program like any other audio input source.)

Then adjust the corresponding MIC level controls to increase or decrease the microphone level (this will not affect the main volume inputs). When a microphone is not in use, set the MIC/TALKOVER switch to OFF.

Talkover Mode

Talkover mode allows a voice to be heard clearly through the microphone by attenuating all the other audio input sources. This mode is engaged by setting the Talkover Switch to the TALKOVER position.

Microphone Tone Controls

These BASS and TREBLE controls, permit you to tailor the tone frequencies of the MIC inputs processed through the mix. Left in their center positions, the sound is unaffected (”flat”).

Microphone Level Controls

The independent MIC1 and MIC2 controls permit you to increase or decrease the levels of these microphones within the mix.

2. Set the Mic and Channel Level controls all to within the 8 - 10 range.

3. Slide the MASTER volume control toward 10 until you get an average reading of 0 on both Output Level LED Meters. The output level displayed in the meters represents the TOTAL output from all

the channels supplying audio to the mix. NOTE: Once you set this level, we suggest you do not change it!

4. If you add or change input sources, adjust the corresponding MIC1, 2 or CH1, CH2, CH3 or CH4 level

control(s) to maintain the average reading of 0 on the LED meters.

5. To change the overall sound level, adjust the RECEIVER/AMPLIFIER (NOT THE MIXER) volume

control to the desired volume.

Pyle Pro Mixer Owner’s Manual – 98 – Pyle Pro Mixer Owner’s Manual

Page 7

Using the Mono/Stereo Mode Switch

When the MASTER MONO/STEREO switch is in the MONO position, the mixer combines the right and left channels and sends them to the OUTPUT R and L jacks. These combined outputs can be used by a monoaural amplifier, such as a PA amp.

In the STEREO position, right and left channels remain separate. The mixer outputs can be used by a stereo amplifier or recorder.

4. To playback the recorded sample ONCE, turn the SAMPLER MODE switch to SINGLE, and press START/STOP. The LED will go on, indicating that a sample is playing. Pressing START/STOP during playback will stop the playback.

Each time you press the START/STOP control, the unit will replay the recorded sample from the beginning and play it through the end of the recorded sound. Rapid, consecutive pressing of the START/STOP button will create an interesting stuttering effect.

To playback the record sample repeatedly (”looping”), set the SAMPLER MODE switch to

5. REPEAT, and press START/STOP. The mixer will play the sampled recording all the way through, and thenrepeat it until you press the START/STOP button.

Using the Crossfader with the Assign Switches

For crossfading effects, you can assign any of the four channels to either A or B sides of the crossfade mix using the Crossfade assign knobs.

When the crossfade slider is in the center position, the two assigned channels play equally. Sliding the control towards the A position will increase the level of A and fade out B proportionally to the distance from center. Likewise, sliding the control towards the B position will increase the level of B and fade out A.

Using the Echo Controls (PYD 2808)

The built-in Echo effect is applied to the total mix. To turn on the Echo mode and activate the DELAY/REPEAT cycle, press the ECHO ON/OFF switch.

To change the length of time a sound is repeated, increase of decrease the REPEAT control. To vary the time in between the repeats, increase or decrease the DELAY control. To adjust the output level of the echo, increase or decrease the LEVEL control.

Using the Sound Effects (PYD 2808)

There are six pre-programmed sound effects for your selection. Press and hold any button to generate a sound which is added to the mix. The sound will play continuously until you release the button.

The SPEED control lets you raise or lower the pitch of the sound effect, and the VOLUME control allows you to increase or decrease the effect’s volume level within the mix.

Using the Digital Sampler (PYD 3808)

The PM 3008 mixer contains a digital sampler circuit which can record samples to the internal recording IC. These samples can then be assigned to CH 1, CH 2, CH 3, CH 4 and the MIC channel for playback. At the time of playback, the PITCH control can be adjusted to change the pitch of the sample.

Follow these steps to record a sample:

1. Play the audio source for recording as a sample.

2. While it is playing, press the desired cue/sample channel assign button (i.e., CH 1, CH 2, CH 3, CH 4 or MIC).

To record the source to that channel, set the SAMPLER MODE switch to the RECORD position and press the START/STOP button to begin recording. The LED will go on, indicating recording is in progress. To stop recording, press the START/STOP button again. Please note that the recording IC is limited to 12-second samples, so in the event you do not press stop, it will automatically stop after 12 seconds

6. To adjust the speed of the playback signal, rotate the SAMPLE PITCH control to reduce or increase the pitch of the sample during playback.

7. To adjust the level of the sample playback as it enters the mix, rotate the SAMPLE LEVEL to increase or decrease the level.

Troubleshooting

Your mixer should require very little maintenance. If you have problems, refer to the chart below for possible solutions. If you cannot solve the problem, contact a qualified technician for assistance.

PROBLEM POSSIBLE SOLUTION

Nothing works

No signal from an audio input source

Hum from PHONO

Hum from other source

Feedback is present

Care and Maintenance

Your Pyle Pro Mixer is an example of superior design and craftsmanship. The following suggestions will help you care for your mixer so you can enjoy years of use:

• Keep the mixer dry. If it gets wet, wipe immediately.

• Use the mixer only in wellventilated installations.

• Handle the mixer gently and carefully - do not drop!

• Keep the mixer away from dust and dirt.

• Wipe occasionally with a damp cloth to keep it looking new. Do not use harsh chemicals, solvents or detergents!

• Check the AC connection. Make sure the AC outlet is “live.”

• Check the power connection to the rest of the system (receiver/amplifier, etc.)

• Check the control setting

• Check the connection between the mixer and the input source

• Check that the turntable’s ground wire (usually black or green) is fastened securely to the GROUND SCREW on the mixer input panel

• Make sure there are no low level inputs connected to the LINE input jacks

• Move the microphone further away from the output speakers, or use a directional microphone

Please complete warranty card, detach and return

Stamp

PYLE PRO Audio, Inc. 1600 63rd Street Brooklyn, NY 11204

Place

Here

10 – Pyle Pro Mixer Owner’s Manual

Pyle Pro Mixer Owner’s Manual –11
