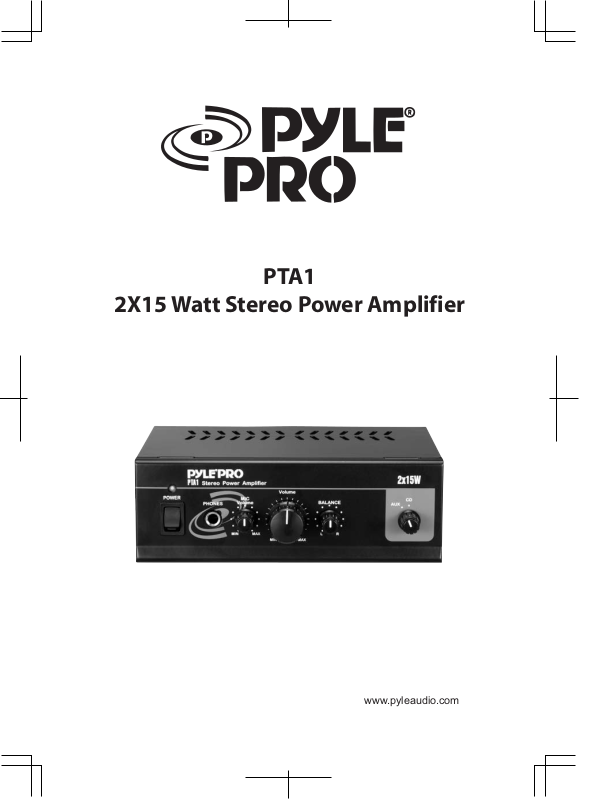

PYLE Audio PTA1 User Manual

PTA1

2X15 Watt Stereo Power Amplifier

www.pyleaudio.com

Your New Pyle Pro Amplifier gives you the power and

CAUTIO

T

O

THE COVER OR BACK. NO USER-SERICEABLE P

AR

T

SER

VICING T

O

.

The lightni

t

senclosure that might be of suffi

t

scase

included i

.

W

ARNING:

T

o reduce the

r

d

RISK O

K

versatility you need in a professional sound system. The
amplifier's wide frequency response makes it suitable for
amplifying music or vocal program material. It can be used
in meeting halls, house, restaurant, schools, stores, or for
paging systems.

PTA1 features a PAGER-MIXING function that offers the
flexibility of using it at paging or musical events.

Please read this manual thoroughly before you attempt to
set up and use the amplifier. It contains a range of
installation suggestions as well as instructions to ensure
safe usage.
Installed properly, you can expect years of trouble-free
service from this product.

TABLE OF CONTENTS

1. Features and Controls

3. Caring for your Pyle Pro Amplifier

5. Limited warranty

6. Specifications

CAUTION

N:

REDUCETHE RISK OF ELECTRIC SHOCK, DO NOTREMOVE

QUALIFIED PERSONNEL

presence of uninsulated, dangerous voltage within this
produc
to constitute a risk of electric shock. Do not open the
produc

The exclamation symbol is intended to inform you that
important operating and maintenace instructions are

F ELECTRIC SHOC

DO NOT OPEN

ng symbol is intended to alert you to the

.

n the literature accompanhing this product

isk of fire or shock hazard,

o not expose this product

to rain or moisture

S INSIDE. REFER

cient

magnitude

Features and controls

1. Power ON LED Indicator

-Lights to indicate power is turned on.

2. 1/4"PHONE JACK

-Accepts headphones with 1/4" plug.

3. MIC VOLUME CONTROL

-Lets you adjust the volume of connected MIC to the
proper setting.

4. MUSIC VOLUME CONTROL

-Lets you adjust the volume of music output from the
sources of AUX OR CD. It doesn't affect the volume from
MIC.

5. BALANCE CONTROL

-Lets you adjust the sound balance between the left and
right amplifier output.

6.AUX/CD INPUT SELECTOR

-Lets you select the desired input music source.

7. SWITCHABLE MIC PAGER AND MIXING MODES

-Set to PAGER, allows a voice to be heard clearly through
the microphone by attenuating automatically all the
audio input sources. This is good to use when paging the
person in office, store, or restaurant.

-Set to MIXING, both of the voices from microphone and

1
