PYLE Audio PT-610 User Manual

PT-610

PT-610

PT-610

USER MANUAL

www.PyleAudio. com

19'' Rack Mount 600 Watt Power Amplifier/
Mixer w/70V Output & Mic Talkover

TABLE OF CONTENTS

Your new Pyle Pro PT-610 600 Watt P.A. Amplifier gives you the power and
versatility you need in a professional sound system. The amplifier’s wide
frequency response makes it suitable for amplifying music or vocal program
material. It can be used for live bands, office paging systems, public
announcement systems, or a variety of other installations.

1

Please read this manual thoroughly before you attempt to set up and use the
amplifier. It contains a range of installation suggestions as well as
instructions to ensure safe usage. Installed properly, you can expect years of
trouble-free service from this product.

4. Installation Guidelines

4. Connecting a CD or tape player or tuner

4. Connecting an additional CD sound source

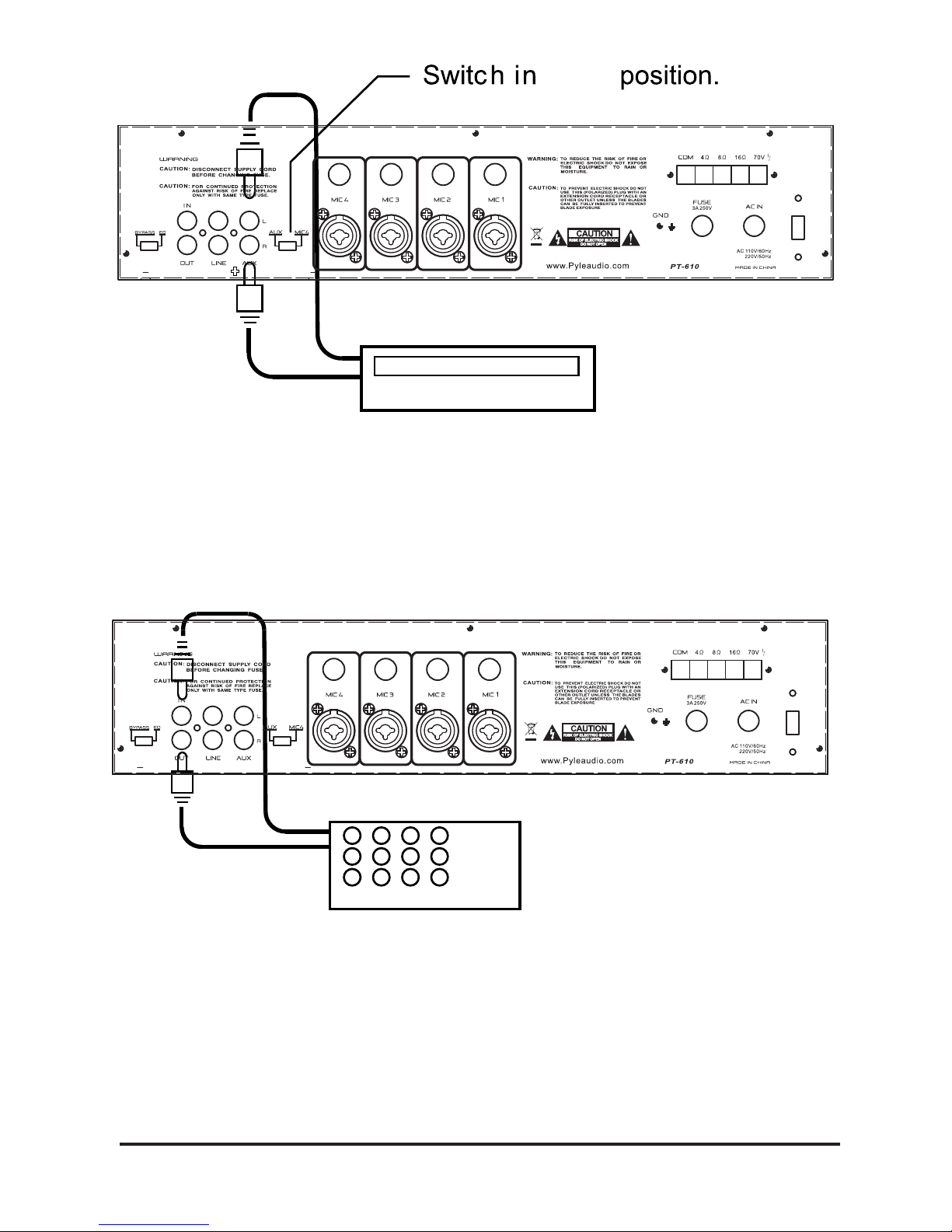

5. Connecting an equalizer or signal processor

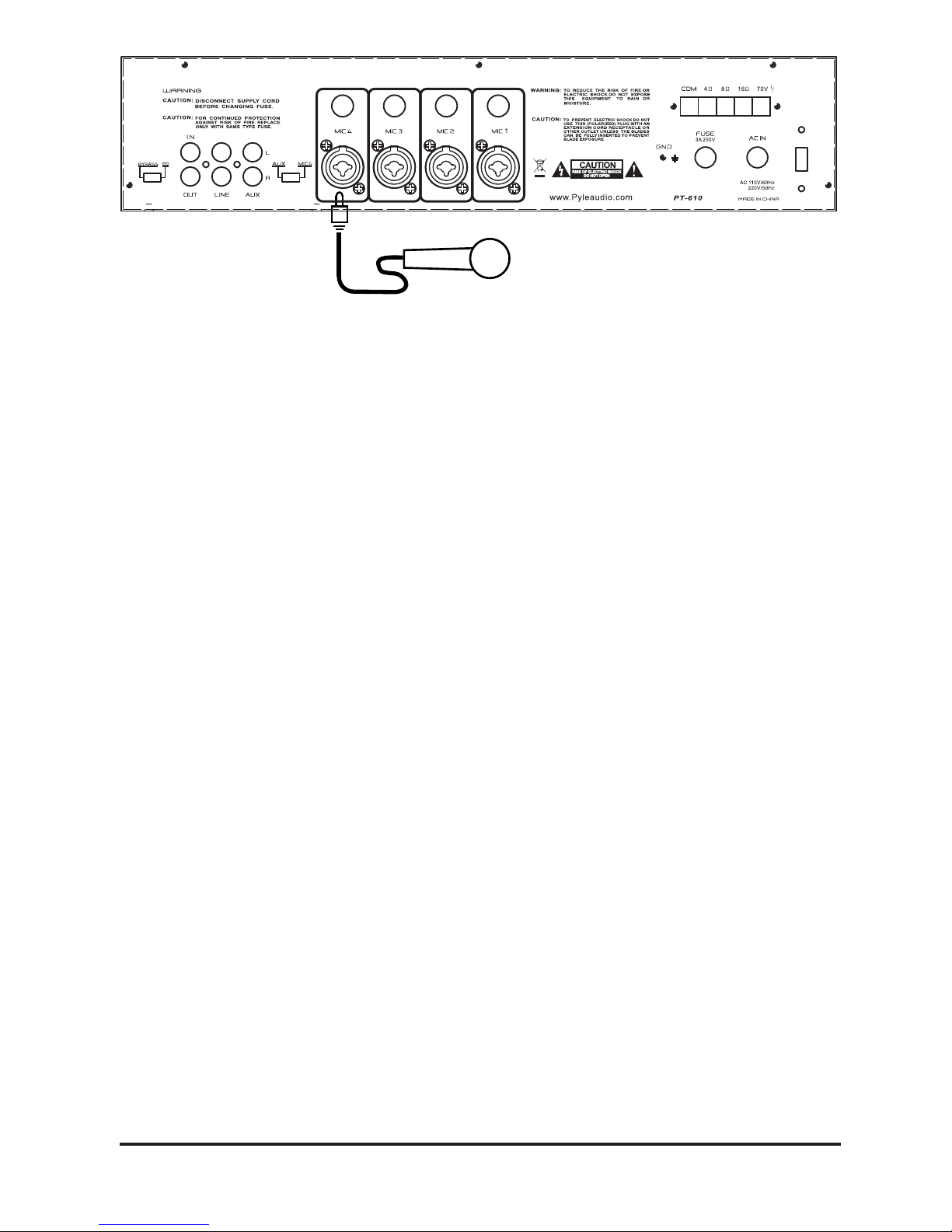

5. Connecting microphones

6. Speaker Connections

6. Connector options

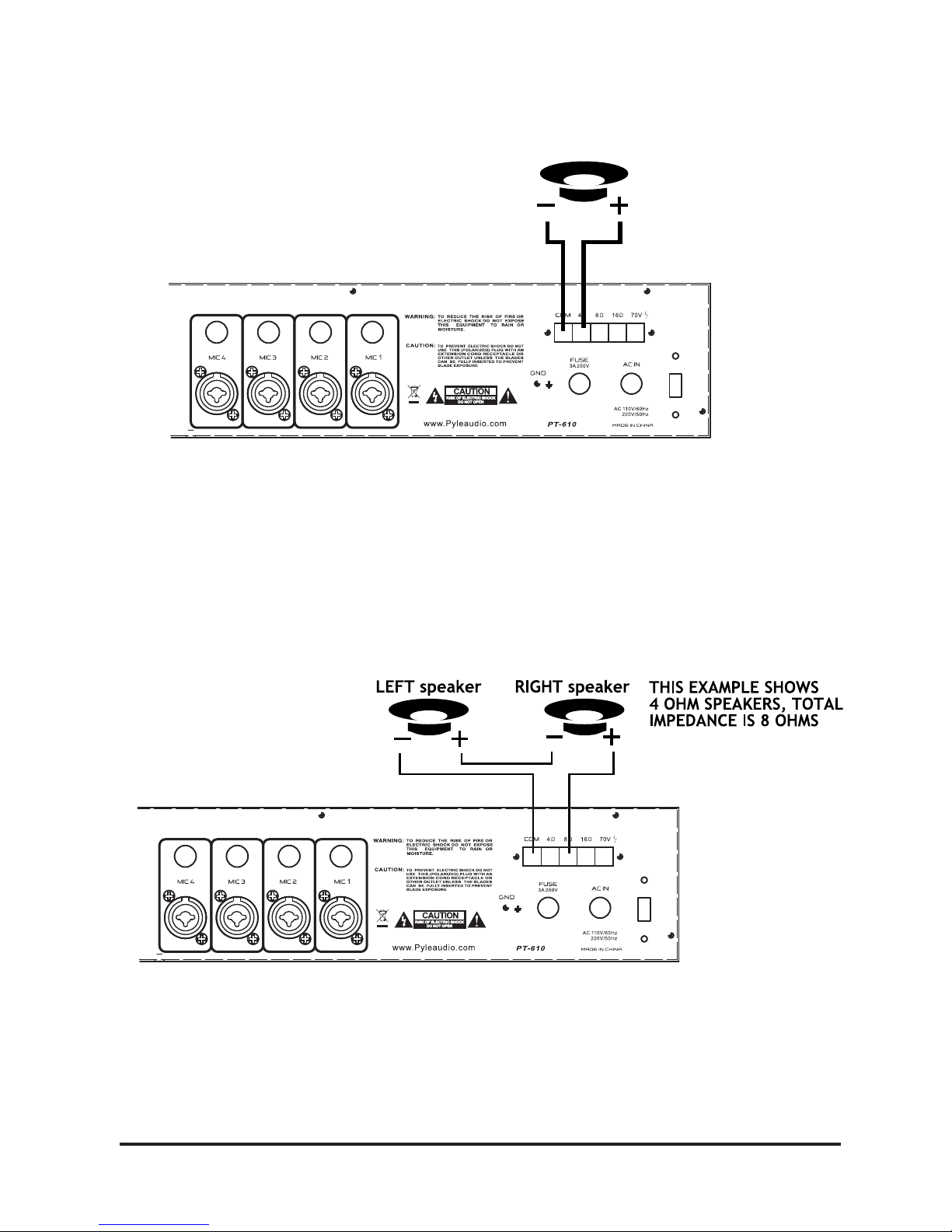

7. System 1: Single speaker system

7. System 2: Two speakers in series

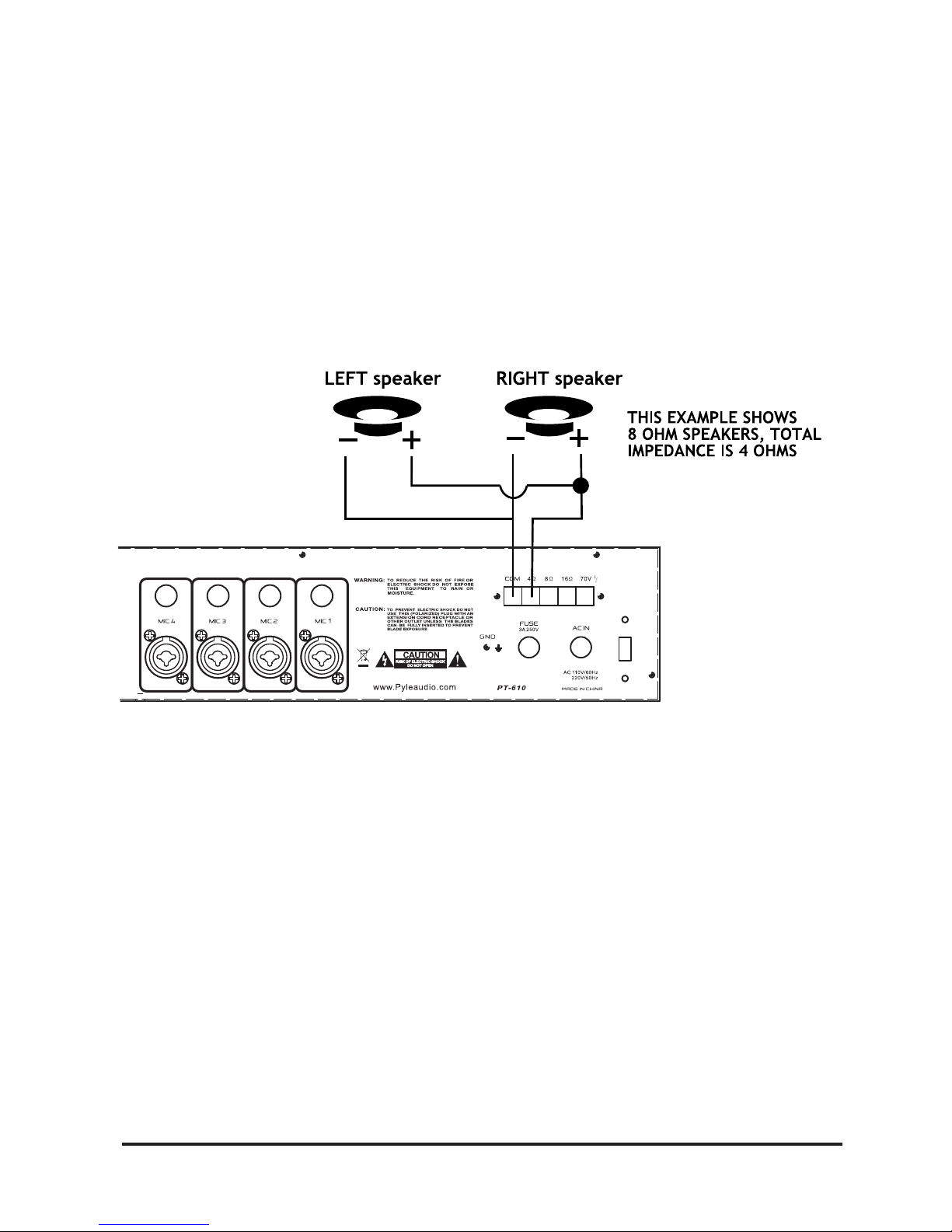

8. System 3: Two speakers in parallel

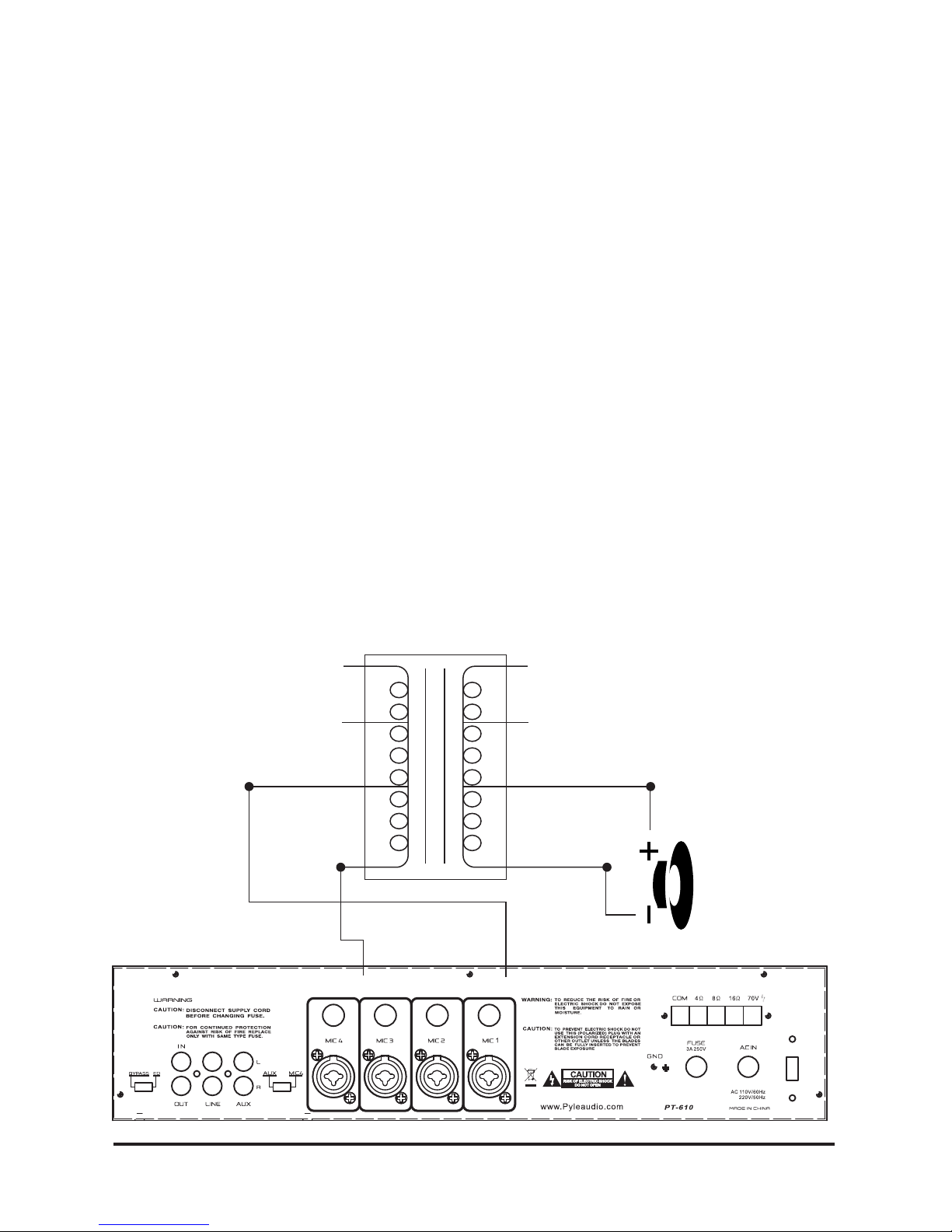

10.System 5: Connecting speakers with transformers

11.Using headphones

11.Connecting to AC power

11.Mounting the amplifier

11.Turning the amplifier on

12.Using the power meter

12.Using the master volume control

12.About the internal clip circuitry

12.About the internal protection circuitry

13.About the feedback filter

13.Caring for your PT610 Amplifier

13.Replacing a fuse

14.Specifications

2-4. Features and contents

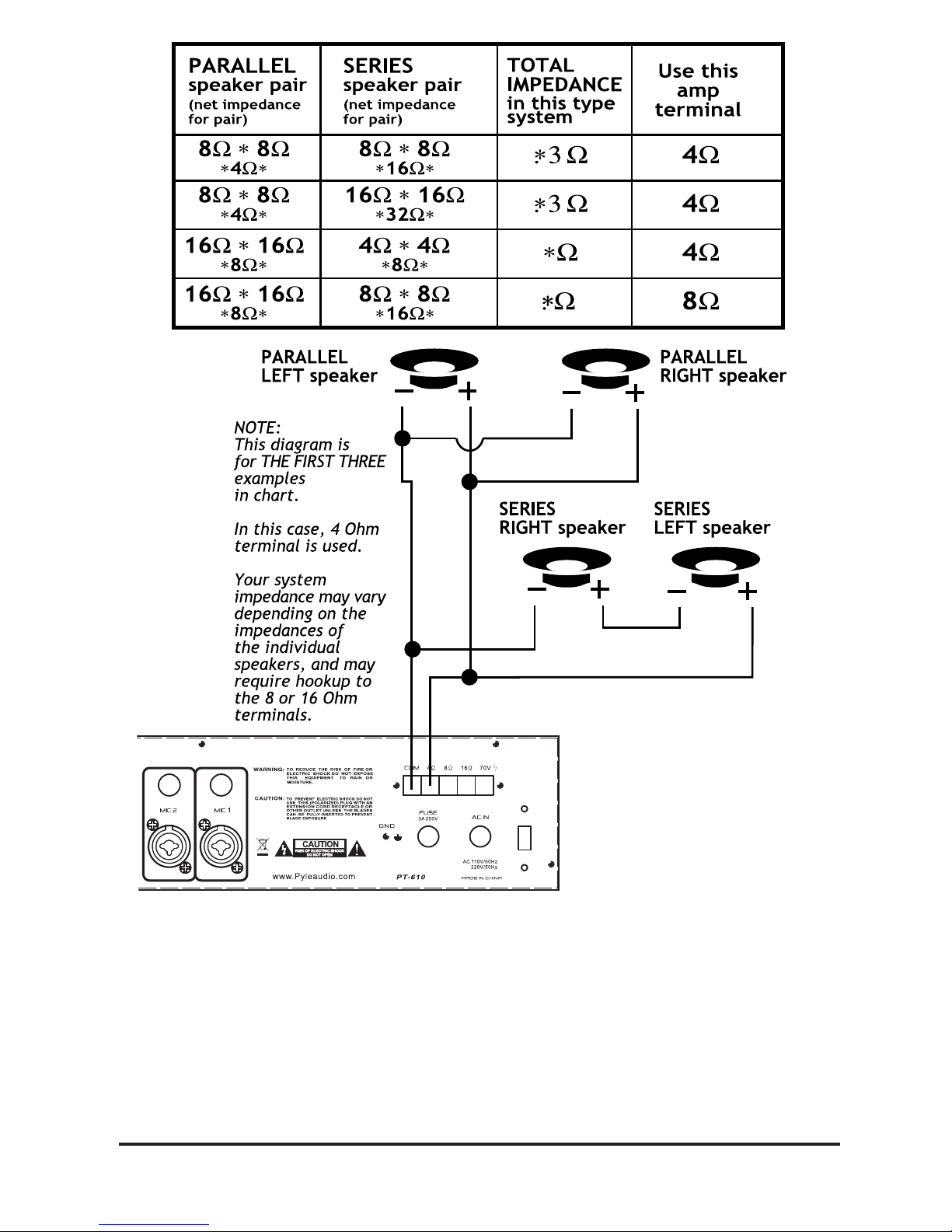

8-9. System 4: Four speakers in series/parallel

2

1 2 3 4 6

78

9

5

10

11 12 13 14 15 16 17 19

FEATURES AND CONTROLS

FRONT PANEL

REAR PANEL

18

1.Main Power On/Off Switch

The amplifier is switched ON or OFF by using the switch.

2.Phone Jack

Lets you connect a pair of stereo headphones for private listening or
cueing (monitoring) sound prior to “airing” it.

3.Five Input Sources Mixing Controls
Control the sound level for each of the audio input sources.

4.Feedback Filter
Control the audio frequency.

5.Master Volume

Lets you adjust the overall sound level.

6.3.5mm AUX Input Jack

Lets you easily connect the computerized MP3 devices (player) sources,
such as PC, Laptop, Walkman, iPod and Cell Phone.

7.Protection Indicator
This LED is illuminated when a thermal overload condition is present.

8.Clip Circuit and Indicator
This special circuitry protects the amplifier and speaker system from
being damaged by overdriving power levels. Indicator lights remind
the user to reduce the volume when amplifier output is excessive.

9.Power Meter
Indicate the output signal level.

10.BYPASS/ EQ Switch
Sets the switch to the EQ position, you can connect an equalizer.
Sets the switch to the BYPASS position, the equalizer has no effect
on your system’s sound.

11.EQ IN/OUT RCA Jacks
To connect an equalizer to these jacks, you can have the effect on
your system’s sound.

12.LINE/AUX RCA Inputs
To connect any high-level sound source, such as a CD player, tape
deck, or tuner to the amplifier’s LINE/AUX jacks.

13.AUX/MIC4 Switch
If you connect a low level audio input source to the AUX jacks, set
AUX/MIC4 to the AUX position.
If you set AUX/MIC4 to the MIC4 position, you can use MIC4.

14.Four Microphone Inputs
Allows you connect up to four Microphones by balanced XLR type
sockets or unbalanced 6. 35mm type sockets.

15.Speaker Terminals
Connect your speaker system to these terminals. You can connect
one or more 4ohm, 8ohm, 16ohm speakers to the amplifier,
with or without transformers. To ensure equal volume from each
speaker, all the connected speakers should have the same impedance
rating.

16.GND Screw Terminal

17.Power Fuse (3A, 250V)

It is the power supply fuse, it protects the amplifier from unwanted
voltage surges and the other abnormal operating conditions.

18. AC IN
Connect to AC 110V/60Hz or 220V/ 50Hz power supply.

3

19. Voltage Switch
The unit has a selectable input voltage from 115V/ 60Hz which is the
standard in the USA and Canada. You can also switch the input
voltage to 230V/50Hz for European operation. Please make sure
the switch is in the proper position before operating, otherwise
severe damage will result not covered by the warranty.

Input connections
The PT610 accepts a broad range of input sources, including:
Compact Disc (CD) Player
Cassette, Reel-to Reel or other tape player
Radio Tuner
Microphones (up to 4 simultaneously)
Equalizer
Signal Processor
Connecting front AUX jack
Permit you to connect one AUX MP3 devices with 3.5mm plug.

INSTALLATION GUIDELINES

Connecting a CD or tape player or tuner

In a normal installation, one would use the LINE JACK for connecting
a CD player, tape player or tuner.

4

Connecting an additional CD sound source

In this situation, use the AUX JACK, and set the MIC4/AUX
SELECTOR switch to the AUX position.
