Page 1
POWER
PT-600A
INTEGRATED STEREO AMPLIFIER
REMOTE SENSOR
PHONES
BASS
00
2222
4444
6666
8888
10 1010 10
TREBLE
Page 2
PRECAUTIONS
Thank you for purchasing this HI-FI product. Taking time
to read these operating instructions carefully before use
will acquaint you fully with all its features and help ensure
optimum performance.
In order to simplify the explanation illustrations may
sometimes differ from the originals.
RISK OF ELECTRIC SHOCK
DO NOT O PEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER(OR BACK)
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated
“dangerous voltage” within the product’s
Do not remove the case and bottom panel
Any inspections or adjustments inside the unit
may lead to malfunctions and electric shocks.
Do not touch any of the inside parts.
Ventilation warning
The normal ventilation of the product shall not
be impeded for intended use.
Installation precautions
Do not install the unit in any of the following
locations since this may result in deterioration
in performance or malfunction:
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
WARNING: To prevent fire or shock hazard, do not
expose this appliance to rain or moisture
Power plug
When disconnecting the power cord from the
power outlet, always take hold of the plug, and
not the wire, and pull free. Never connect or
disconnect the power plug with wet hands since
you may receive an electric shock.
Remember to disconnect the power plug from
the power outlet when you do not intend to use
the unit for a prolonged period of time.
* Locations exposed to direct sunlight or near objects
radiating heat such as heating appliances.
* Locations exposed to moisture or humidity.
* Locations with poor ventilation exposed to dust and
dirt.
* Locations which are unstable and not perfectly flat or
which are susceptible to vibration.
Do not wipe with thinners
Wipe the panels and case from time to time
with a soft cloth. Using any kind of thinner,
alcohol or volatile liquid will mar the surface,
cause blotching on the exterior and erase the
markings and should therefore be avoided. Do
not use insecticide sprays in the vicinity.
Dripping warning
The product shall not be exposed to dripping or splashing
and that no objects filled with liquids, such as vases, shall
be placed on the product.
Page 3
CONNECTIONS
Connection precautions
When connecting, either disconnect the power plug
from the power outlet or turn off the unit’s power
using the POWER switch.
Check the left and right channels and connect properly
(Left to L and Right to R).
Insert the plugs securely. Improper connection can lead
to the generation of noise.
Compact disc player
Connect the CD terminals to the OUTPUT terminals on the
compact disc player using the pin-plug cord.
PHONO CD TUNER PLAY REC
L
R
AUDIO
AV1 AV2
TAPE
EQ
PLAY REC
OUTPUT
L
R
Playback connections: Connect the TAPE PLAY
terminals to the output (LINE OUT) terminals on the
cassette deck using the pin-plug cord.
TAPE
PHONO CD TUNER PLAY REC
L
R
AUDIO
AV1 AV2
A
EQ
PLAY REC
L
R
B
LINE
(IN)REC PLAY(OUT)
PROCESSOR terminals
These terminals are used to connect a graphic equalizer or
sound processor. They also come in handy for connecting
an AV (audio/video) selector unit.
Use pin-plug cords to connect the REC terminals to the
AV1/AV2 terminals
These terminals have an electrical performance which is
equivalent to that of the CD terminals and the TUNER
terminals which means that they can be used as the audio
output terminals for a video disc player or TV tuner.
Connect these terminals to the OUTPUT terminals on the
component using the pin-plug cord.
TAPE Deck
Recording connections: Connect the TAPE REC
terminals to the input (LINE IN) terminals on the tape deck
using the pin-plug cord.
INPUT terminals on the selected component and also to
connect the PLAY terminals to its OUTPUT terminals.
TAPE
PHONO CD TUNER PLAY REC
L
R
AUDIO
AV1 AV2
EQ
PLAY REC
L
R
OUTPUT
(IN)REC PLAY(OUT)
Page 4

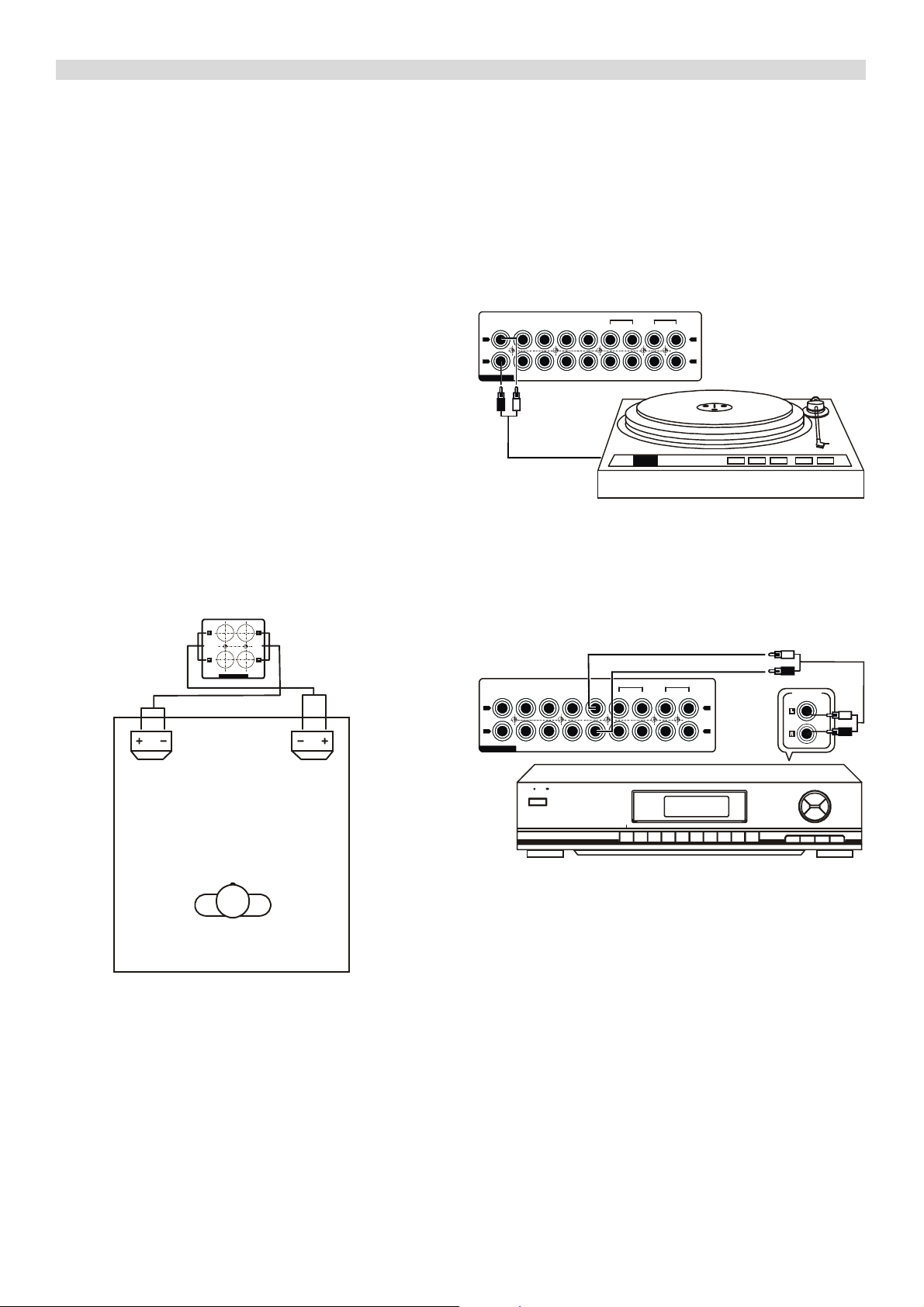

CONNECTIONS
Speaker systems
Connect the speaker systems to the SPEAKERS terminals
on the rear panel of the unit with the speaker cords.
When viewed from the front (the listening position), the
speaker mounted on the left should be connected to the L
terminals, and the speaker mounted on the right should be
connected to the R terminals. Be sure to connect the
polarities of the speaker systems and the SPEAKER
terminals correctly (+ to +, - to -). If the polarity of one of
the speaker systems is connected improperly, sound in the
central area between the speakers will appear to be missing,
and the position of the instruments will not be clear,
resulting in a loss of stereo directionality; so take care
when connecting.
* When connecting, do not allow the conductor of the
speaker cords to be exposed from the terminals and come
into contact with other terminals.
PHONO
Connect the turntable’s output cord L (white) plug to the L
PHONO terminal and the R (red) plug to the R terminal.
If your turntable is equipped with a grounding cable,
connect it to the unit’s GND terminal. But disconnect it if
you notice increased hum.
TAPE
PHONO CD TUNER PLAY REC
L
R
AUDIO
AV1 AV2
EQ
PLAY REC
L
R
Tuner
Connect the TUNER terminals to the OUTPUT terminals
RIGHT LEFT
L
_
Front Left
_
Ω
SPEAKERS6~8
Front Right
on the tuner using the pin-plug cord.
PHONO CD TUNER PLAY REC
L
R
AUDIO
AV1 AV2
TAPE
EQ
PLAY REC
L
R
OUTPUT
Page 5

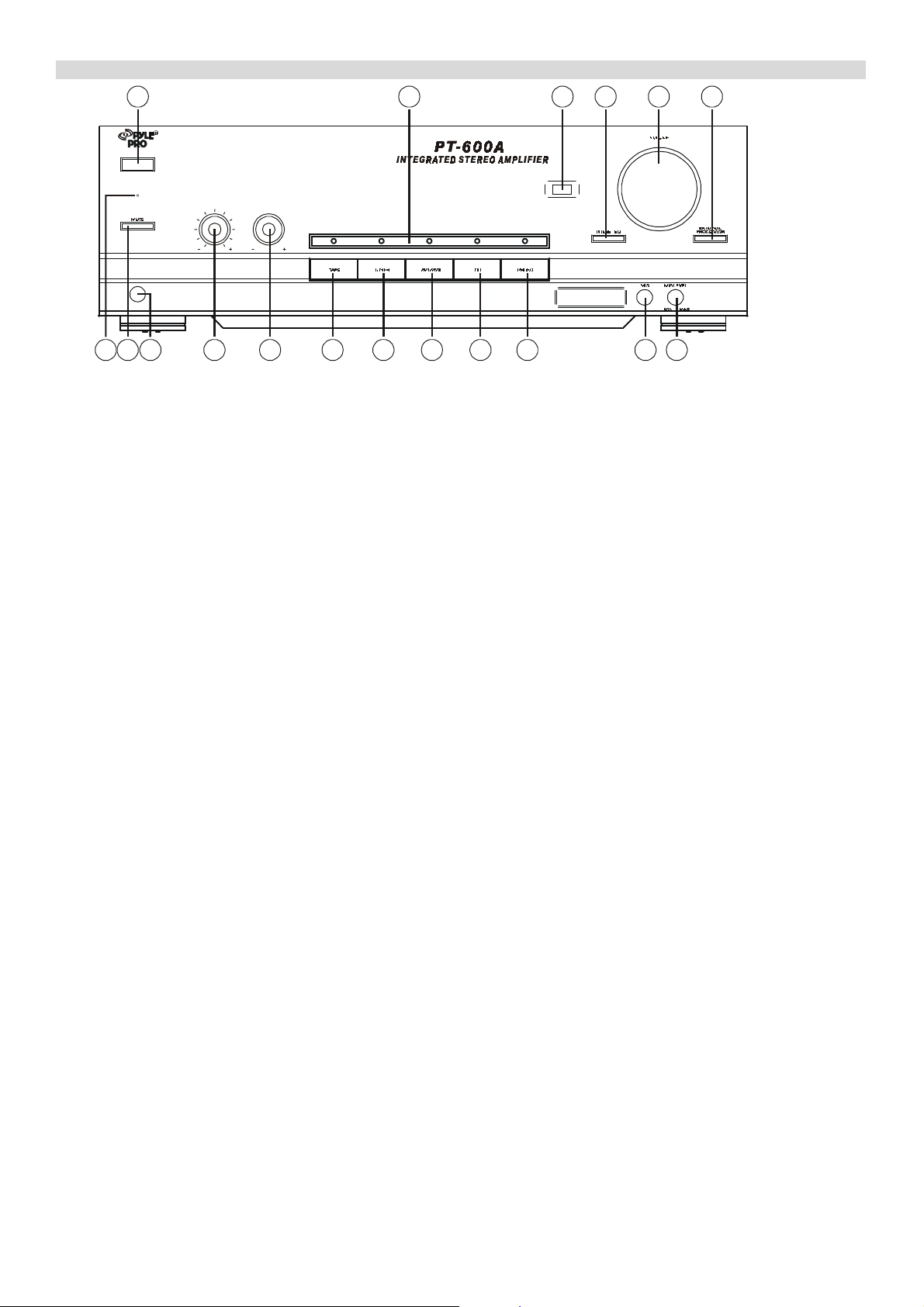

PANEL INFORMATION
1 2 3 4 5 6
POWER
REMOTE SENSOR
BASS TREBLE
00
2222
4444
6666
8888
10 1010 10
PHONE S
18 17 16 15 14 13 12 11 10
1. POWER SWITCH
Power is supplied to the amplifier when this switch is depressed and
the power is switched off when the switch is released.
2. FUNCTION
Press either TAPE, TUNER, AV1/AV2, CD, PHONO, the relative
indicator will be grown.
3. REMOTE SENSOR
Work with the remote control.
4. PRESET EQ
Press this switch to preset one of the following kinds of music: POP
(green color), ROCK (red color), CLASSIC (orange color) and
FLAT (no color).
5. VOLUME CONTROL
This is used to control the sound heard from the speakers or through
the headphones. Rotate it in clockwise or in counter clockwise, the
volume will be increased or decreased.
6. EXTERNAL PROCESSOR
When this unit is connected to an external graphic equalizer or sound
processor, press this switch.
7. MIC LEVEL VOLUME
Adjust the MIC LEVEL by rotating MIC LEVEL VOLUME knob.
8. MIC JACK
Inserting Microphone if using.
9. PHONO
This switch is pressed when you wish to listen to records on the
turntable (PHONO) connected to the PHONO terminal.
10. CD
This switch is pressed when you wish to listen to the compact disc
player connected to the CD terminals.
9 8 7
11. AV1/AV2
This switch is pressed when this unit is connected to the external
amplifier.
12. TUNER
This switch is pressed when you wish to listen to the radio
broadcasts from the tuner connected to the TUNER terminals.
13. TAPE
This switch is pressed when you wish to listen to the cassette deck
connected to the tape terminal.
14. TONE CONTROL TREBLE VOLUME
The treble sound is emphasized when the TREBLE knob is rotated
clockwise from its “0” position while it is attenuated when the knob
is rotated counterclockwise.
15. TONE CONTROL BASS VOLUME
The bass sound is emphasized when the BASS knob is rotated
clockwise from its “0” position while it is attenuated when the knob
is rotated counterclockwise.
16. PHONES JACK
This is the jack for headphones. Connect the plug on the stereo
headphones for private listening.
Adjust the volume so that it does not hurt your ears when using the
headphones.
If you do not intend to use your headphones, always ensure that
you unplug them.
17. MUTE
Press this switch to mute the sound, if resume, press it again.
18. REMOTE STANDBY INDICATOR
The Power Amplifier is in remote standby state if the remote standby
indicator is lighted.
Page 6
OPERATING PROCEDURES

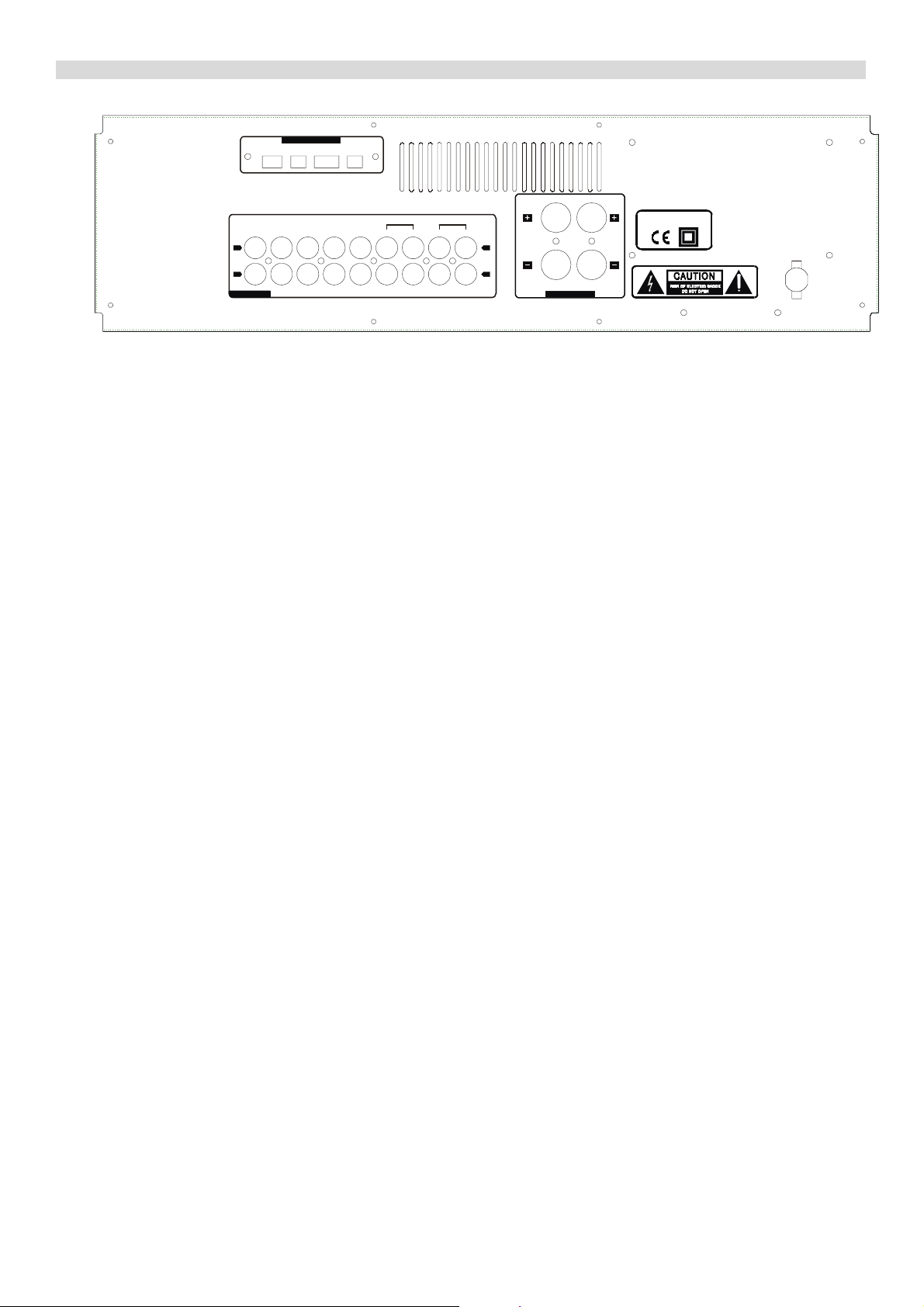

REMOTE SYSTE M
EQ TAPE TUNER
PHONO CD TUNER PLAY REC
L
R
AUDIO
AV1 AV2
CD
RIGHT L E FT
_
INTEGRATED CIRCUIT
AC 220V - 230V ~50Hz
TAPE
EQ
PLAY REC
L
L
_
R
Ω
SPEAKER S6 ~8
Before starting operation
Check that the controls have been set to the following
positions before commencing operation
Rotate the VOLUME control counterclockwise as far
as it will go and set it at the “0” minimum volume
position.
Set the BASS and TREBLE tone controls to the “0”
(center) position.
After these checks, press the POWER switch to turn on
the power.
If you find a remote standby indicator is lighted, the power
amplifier is in remote standby state.
(a) Press the power switch off and press it once again after
the remote standby indicator is off.
(b) Using the remote control to switch on the power.
Playing a program source
1.Press the desired input selector switch to select the
2.Operate the program source unit.
3.Gradually turn the VOLUME control clockwise until the
desired volume level is obtained.
4. To adjust the tone quality, adjust the BASS and
TREBLE control.
* When you wish to use headphones, insert the plug of the
headphones into the PHONES jack.
RECORDING TAPE
A record, compact disc, broadcast of the program source of
a component connected to the line terminals can be
recorded by the tape deck connected to the TAPE recording
(REC) terminals.
1.Select the input selector switch corresponds to the
program source PHONO, CD, TUNER, AV1/AV2 which is
to be recorded.
program source which you wish to listen to.
To listen to record: press the PHONO switch.
To listen to radio broadcast: Press the TUNER switch.
To listen to a compact disc: Press the CD switch.
To listen to a component connected to VIDEO
terminals: Press the AV1/AV2 switch.
To listen to a tape: Press the TAPE switch.
2.Start playing the program source.
3.Operate the tape deck and press the “REC” key.
*The volume, Tone and other controls (including graphic
equalizer) have no effect on the recording level or sound
quality of the signals being recorded even they are
operated.
Page 7
OPERATION

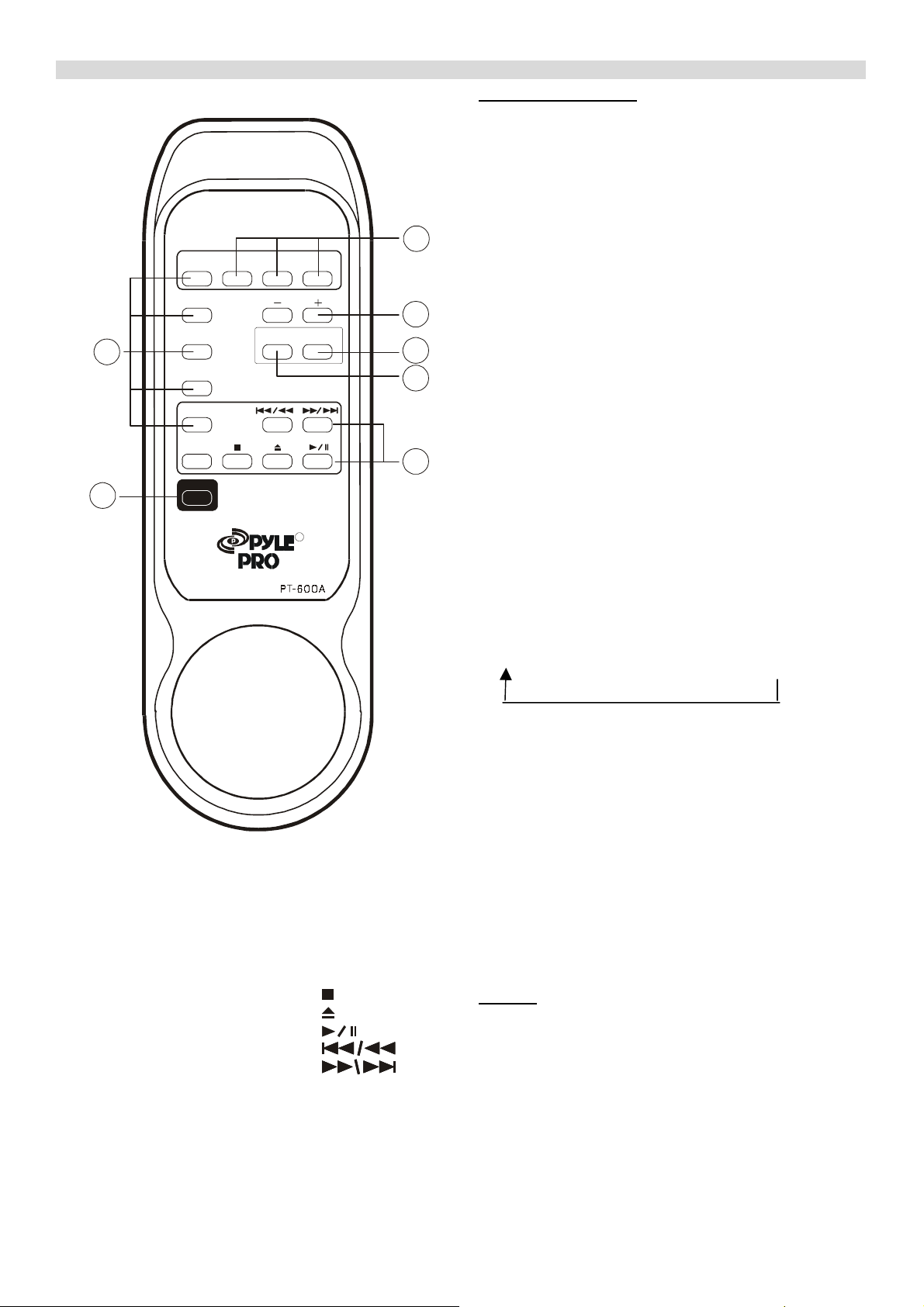

REMOTE CONTROL
Remote Controlling Instructions
The remote control box can directly control majority
of system functions of HI-FI SYSTEM. The functions
include power control of the whole system, Volume
control, sound field control, CD operation control,
PHONO SCAN
TUNER
MEMO MEMO
BAND HOLD
VOLUME
3
2
TAPE
7
AV1/AV2
CD
PRESET EQ
EXTERNAL
PROCESSOR
4
5
6
POWER
1
R
Tuner operation control and also source control
function. This remote controller may not function
properly if an roadblock is located between it and the
receiving unit, or if the remote controller is held at an
improper angle with respect to the receiving unit.
Battery Installation
Remove the rear cover of the remote controller by
sliding it backward. Install two AA (1.5 V) size
batteries, while observing the correct polarity [ match
the (+) and (-)signs].
Sound Field Control Operation
* Switch the power key to connect to electric current.
* Use PRESET EQ key to select the sound mode
decided.
Each time the button is pressed, the mode changes
as follows:
POP → ROCK → CLASSIC → FLAT
TUNER OPERATION BUTTONS
(1). Power Switch
(2) AM/FM Selector/Memory Scan/Hold
(3) Volume Control Key (+ -)
(4) External Processor
(5) Preset EQ
(6) CD Control Key
* STOP (
* CLOSE/OPEN (
* PLAY/PAUSE (
* SKIP/FAST BACKWARD (
* SKIP/FAST FORWARD (
(7)Function Keys:
* PHONO
* TUNER
* TAPE
* AV1/AV2
* CD
When the function switch is set to Tuner side:
* Press BAND keys for selecting AM/FM channel.
* Memo Scan: Press to scan the stations (0-9) stored
in the station memory.
* Memory Hold: After pressing Memory Scan key,
Tuner will scan through station (0-9). When your
desired station is reached, press MEMORY HOLD
to hold it.
)
)
)
)
)
OTHER
* Sound source can be changed directly by pressing
TUNER, PHONO, TAPE, CD or AV1/AV2 key.
* Volume level can be adjusted by pressing VOL
“-“ or “+” keys.
**Note** Exhausted batteries may reduce the level of
sensitivity of the controller.
Page 8
SPECIFICATIONS
Power output
Min. RMS, both channels driven, from 40-20 kHz, with no more
than 0.1% total harmonic distortion.
50 watts per channel into 6 ohms.
Load Impedance
Total Harmonic Distortion
Frequency response
RIAA curve deviation
…………….………………………+0.5 dB, -0.5 dB
Input sensitivity and impedance
output) PHONO……………..2.5mV/47 kohms
(Max. input capability: mV at 1 kHz, less than 0.1% total
harmonic distortion)
TUNER, TAPE PLAY………..250 mV/47 kohms
Output level
…………………..6 ohms
………less than 0.05% at 1/2 rated
RMS power output.
(at 1 watt)…..20 to 20 kHz, + 1 dB, -2dB
(PHONO 20 Hz to 20 kHz)
(at 1 kHz for rated power
(1 kHz)
Signal to noise ratio
PHONO……………….60dB
TUNER, TAPE PLAY….70 dB
Power requirements
Power voltage…….220V ~ 50Hz
For U.K………240V ~ 50Hz
For U.S.A & Canada…..110V ~ 60 Hz
Power consumption……300 Watts maximum
Dimensions
Weight
………..420 x 135 x 230mm (W x H x D)
………………6.2 Kg
Design and specifications for subject to changes without
notice for improvements
(short-circuit, A-network)
.
TAPE REC……………………250 mV into 47kohms
Loading...
