PYLE Audio PSWLE81 User Manual

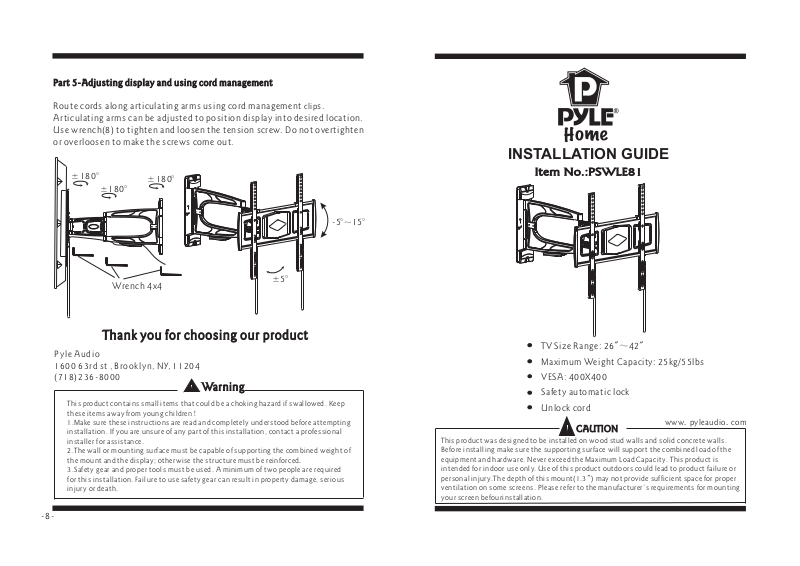

Part 5-Adjusting display and using cord management

Route cords along articulating arms using cord management s.

clip

Articulating arms can be adjusted to position display into desired location. Use wrench(8) to tighten and loosen the tension screw. Do not overtighten or overloosen to make the screws come out.

±180°

-5 15°~ °

Wrench 4x4

±5°

Thank you for choosing our productThank you for choosing our product

Pyle Audio 1600 63rd st , Brooklyn, NY, 11204 (718)236-8000

Warning

This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children

1.Make sure these instructions are read and completely understood before attempting installation. If you are unsure of any part of this installation, contact a professional installer for assistance.

2.The wall or mounting surface must be capable of supporting the combined weight of the mount and the display; otherwise the structure must be reinforced

3.Safety gear and proper tools must be used. A minimum of two people are required for this installation. Failure to use safety gear can result in property damage, serious injury or death.

!

.

INSTALLATION GUIDE

Item No.:

TV Size Range: 26 42

Maximum Weight Capacity: 25kg/55lbs

VESA: 400X400

Safety automatic lock

Unlock cord

This product was designed to be installed on wood stud walls and solid concrete walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Never exceed the Maximum Load Capacity. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury.The depth of this mount(1.3 ) may not provide sufficient space for proper ventilation on some screens. Please refer to the manufacturer’s requirements for mounting your screen befourinstallation.

PSWLE81

CAUTION

"

"～ "

www pyleaudio com..

-8-

Hardware Kit:

Part 4-Mounting the flat panel screen

1

5

Hook the top of brackets onto the top flange of wall plate(1). Then

(2)

swing the screen down. Fixed slide block into wall plate by screw.

6

7

NOTE:

Always use an assistant or mechanical lifting equipment to safely lift

and position heavy equipment.

4

2

Magnetic removable bubble level

A-D

ID Description

Qty

Wall plate

1

Bracket

2

3 4

5 6 7 8

2

Ribbon

2

TV plate

1

Plastic cover

2 2

Screw

2

Slide block(Position lock)

1

Wrench(4x4)

8

7

6

3

E

F

G

ID

A B C

D E

F G

H

Qty

4

M4 mm×16 bolt

4

M5 mm×16 bolt

4

M6× mm16 bolt

4

M8×16mm bolt

4

Square washer

3

Long bolt washer

3

Long bolt

3

Wall anchor

Description

FIG.A

Before installation, please attach these two decorative end caps to the two sides of TV plate.(FIG.A)

-2-

-7-

Part 3-Attaching brackets to screen

Part 1a-Wood Stud Mounting

Center brackets vertically on back of screen. Select the (B or C) or large(D) screws.

Attach brackets to screen using four selected

small(A),medium

screws and four square washers(E) at the top and bottom of each bracket. Tighten screws firmly. Do not overtighten

.

Square washer(E)

E

Large hole for M8 screws

Medium hole for M5andM6screws

Small hole for M4 screws

A-D

Usewallplate(1)asatemplate,makesureitislevel,andmark mounting holes on the wood studs. Drill 3/16

three (4.5mm)dia holes 50

”

mm deep. Level wall plate(1) and attach to wall with three long bolts(G and three washers(F . Tighten screws firmly Do not overtighten

)..

three

.

)

50mm

Φ3/16 (4.5mm)”

Stud finder

Wood stud

Magnetic removable bubble level

F

G

-6-

-3-

Part 1b-Concrete Wall Mounting

Part 2-Attaching plastic covers to wall plate

Level wall plate and use wall as a template to mark three holes. Drill three 7/16 (10.5mm) dia. holes 58mm deep. Insert three anchors(H) into holes

”

and secure wall plate with three long bolts(G) and three washers(F).Tighten screws firmly. Do not overtighten

.

58mm

Φ7/16 (10.5mm)”

Concrete Wall

Magnetic removable

H

bubble level

F

G

Secure plastic covers over wall plate by pushing them toward each other until they lock in place.

5

If you think the ribbon is too long, You can hide it at the back of the televesion,once you want to uninstall the TV, it can help you to take out the brackets

.

-4-

3

-5-
