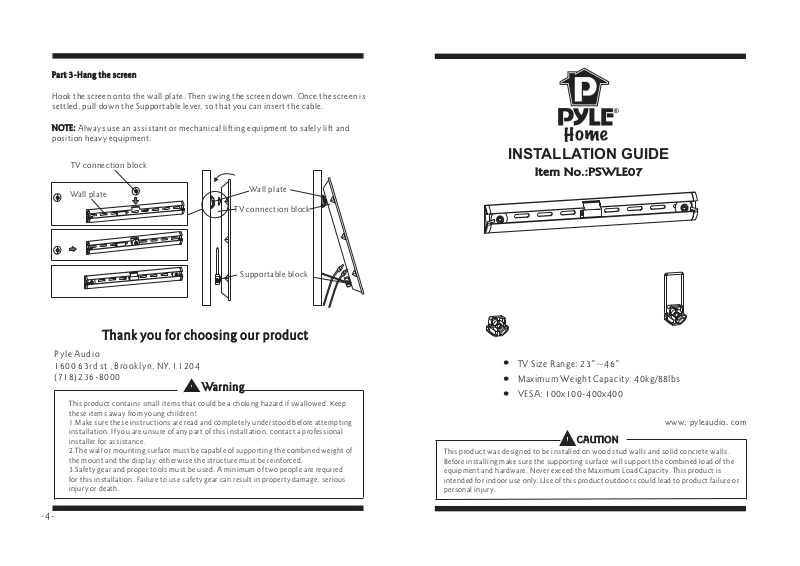

PYLE Audio PSWLE07 User Manual
Part 3-
Hang the screen
Part 3-
Hang the screen
Hook the screen onto the wall plate. Then swing the screen down. Once the screen is
settled, pull down the Supportable lever, so that you can insert the cable.
NOTE:
NOTE:
Always use an assistant or mechanical lifting equipment to safely lift and
position heavy equipment.
TV connection block
Wall plate
Wall plate
TV connection block
Supportable block
Thank you for choosing our productThank you for choosing our product
Pyle Audio
1600 63rd st , Brooklyn, NY, 11204
(718)236-8000
Warning
This product contains small items that could be a choking hazard if swallowed. Keep
these items away from young children
1.Make sure these instructions are read and completely understood before attempting
installation. If you are unsure of any part of this installation, contact a professional
installer for assistance.
2.The wall or mounting surface must be capable of supporting the combined weight of
the mount and the display; otherwise the structure must be reinforced
3.Safety gear and proper tools must be used. A minimum of two people are required
for this installation. Failure to use safety gear can result in property damage, serious
injury or death.
!
.
INSTALLATION GUIDE
Item No.:
Item No.:
TV Size Range: 23 ~46
Maximum Weight Capacity: 40kg/88lbs
VESA: 100x100-400x400
This product was designed to be installed on wood stud walls and solid concrete walls.
Before installing make sure the supporting surface will support the combined load of the
equipment and hardware. Never exceed the Maximum Load Capacity. This product is
intended for indoor use only. Use of this product outdoors could lead to product failure or
personal injury.
PSWLE07
PSWLE07
""
CAUTION
www pyleaudio com..
-4-
Hardware Kit:
Hardware Kit:
Wall plate
Supportable block
1
2
Part 1a-Wood Stud Mounting
Part 1a-Wood Stud Mounting
TV connection block
Bubble level
Supportable lever
3
4
A,C,E,G
B,D,F,H
IJ
ID
Qty
2
1
2
2
3
2
4
1
2
A
2
B
C
2
D
2
2
E
2
F
2
G
2
H
2
I
2
J
Description
Long bolt
Long bolt washer
Wall anchor
Box wrench
M4× mm15 bolt
M4×16mm bolt
M5 mm×15 bolt
M5× mm16 bolt
M6× mm15 bolt
M6×16mm bolt
M8× mm20 bolt
M8 mm×16 bolt
M5 taper washer
M5 washer
Use wall plate as a template, make sure it is level, and mark two mounting holes
along the center lines of the wood studs. Drill two 3/16
””(5mm)dia holes 2 (50mm)
deep. Level wall plate and attach to wall with two long bolts(1 and two washers
)..
(2 by box wrench(4). Tighten screws firmly Do not overtighten
Wood stud
406mm(16 )
.
)
"
Part 1b-Concrete wall mounting
Part
1b-Concrete wall
Level wall plate and use wall as a template to mark two holes. Drill two 3/10 (8mm)
dia. holes 2 (50mm) deep. Insert two anchors(3) into holes and secure wall plate
”
mounting
”
with two long bolts(1) and two washers(2) by box wrench(4).Tighten screws firmly.
Do not overtighten
.
406mm(16 )"
2 (50mm)”
3
Φ3/8 (10mm)”
2
1
4
Part 2-Attaching To ScreenSupportable block and TV connection block
Part 2-Attaching To ScreenSupportable block and TV connection block
First, select the small(A,B), medium(C,D,E,F) or large(G,H) screws. To attach
supportable block by using selected screws(A,C,E,G) and washers(I), and then
attach TV connection block to screen by using selected screws(B,D,F,H) and washers
(J). Tighten screws firmly but do not overtighten. WARING screws(A,B,C,D)need
washer, screws(E,F,G,H) don’t need washer.
-2-
2 50mm)
”(
Φ3/16 (5mm)”
2
I
E,G
A,C
I
J
1
4
F, H
J
B,D
-3-
