Step 3: Hanging display
Step 3: Hanging display
Firstly lift the bracket mounted display over the wall mount. And then hook the
brackets over the top of the wall mount. Rotate the display let the bottom of the
brackets hook over the bottom of wall mount, as shown in Fig.3a. Then put safe
bolts into the bottom of the brackets and lock it, as shown in Fig.3b.
Warning: Some TV require two people to lift, as we are not responsibleforany
Warning:
personal injury or product damage due to mishandling.
2
1
3
Fig 3a Fig 3b
Thank you for choosing our productsThank you for choosing our products

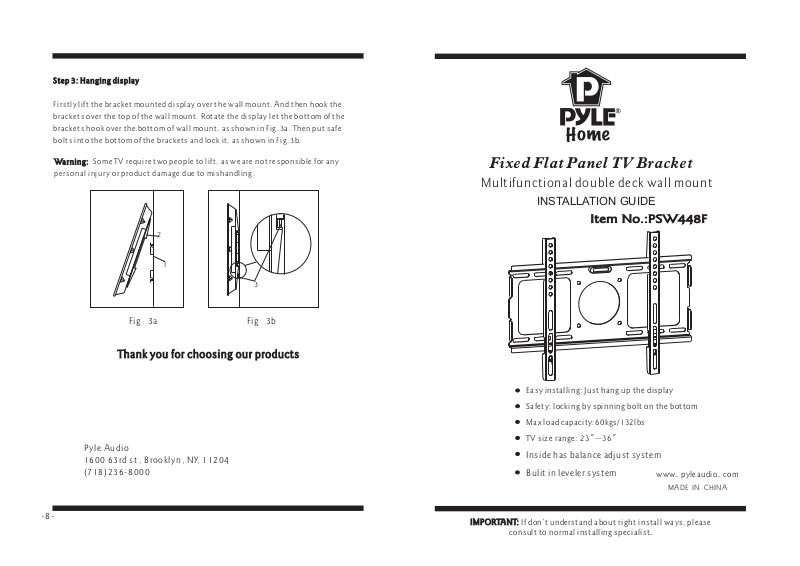

Fixed Flat Panel TV Bracket
Multifunctional double deck wall mount
INSTALLATION GUIDE
Item No.:PSW448FItem No.:PSW448F
UP
UP
-8-
Pyle Audio
1600 63rd st , Brooklyn, NY, 11204
(718)236-8000
Easy installing: Just hang up the display
Safety: locking by spinning bolt on the bottom
Max load capacity:60kgs/132lbs
TV size range: 23 ~36""
Inside has balance adjust system
Bulit in leveler system
IMPORTANT: If don’t understand about right install ways, please
IMPORTANT:
consult to normal installing specialist.
www pyleaudio com..
MADE IN CHINA
Hardware List: Actual parts appearance and the quantity may different
Hardware List:
with illustrated.
UP
2
2
UP
1
3
A-F
G
H
I
J
K
After determining the height of stand, follow the installation instructions in below
to install wall mount to different kinds of wall -wooden, concrete.
Woodenwall:
Woodenwall:
Using a awl or nail to make where the nails are located,as shownasfig.2b.Distance
between two nails for fixing wall mount must not less than 12”. Pre-drill these holes
with a 5mm drill bit to at least 40mm in deep hole. Please make sure these holes are
level and located at center. Use wall mount as a template to mark the location of other
three holes and drill the same holes. Fix the wall mount to the wall with 4 long bolts(H)
and washers(J).
Concrete wall:
Concrete wall:
Using the wall mount as template to mark 6 holes location on the wall. Th ee holes are
located at the top row of the slots and three more are located at the bottom row.The
outer holes must be fall to the left and right of the two holes in the middle of the
mount. Please make sure these holes are level and at least 6” between any two lines.
Pre-drill these holes with a 10mm drill bit to at least 50mm deep hole. Insert wall
anchors(I) into each of these holes. Attach the wall mount to the wall using 6 long
bolts(H) and washers(J).
r
-2-
ID Description
Qty
1
2
3
A
B
C
D
Wall mount
1
2
Bracket
Safe bolt
2
4
M4 mm×12 bolt
4
M4 mm×16 bolt
4
M5× mm16 bolt
4
M6×16mm bolt
ID
1
Qty
4
E
4
F
4
G
6
H
6
I
6
J
K
4
Description
M5×36mm bolt
M6×36mm bolt
Square washer
Long bolt
Wall anchor
Long bolt washer
Spacer
Fig 2b Fig 2c
Using balance-adjusting system on the plate, make sure whether wall plate is installed
balance. If not, then slide the wall plate let pointer level in the center position.
Balance-adjusting
J
H
