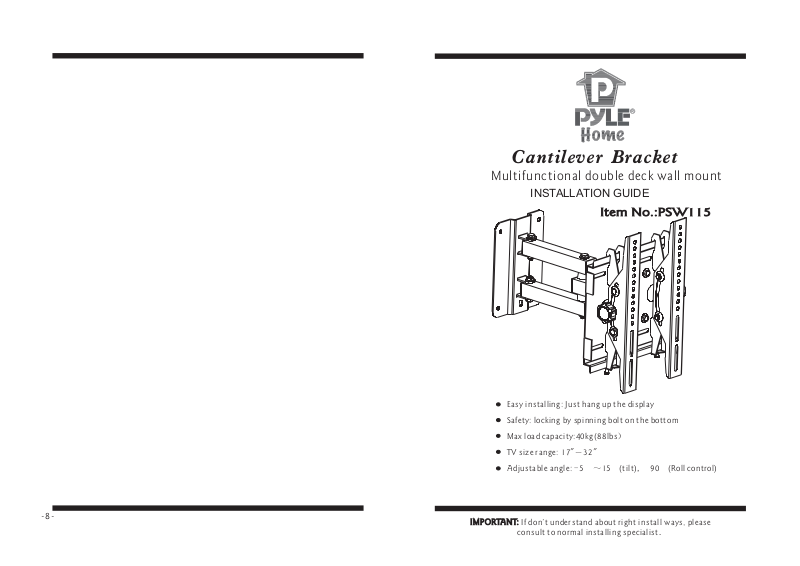

Page 1
Cantilever Bracket
Multifunctional double deck wall mount
INSTALLATION GUIDE
Item No.:PSW115Item No.:PSW115
Easy installing: Just hang up the display
Safety: locking by spinning bolt on the bottom
Max load capacity:40kg(88lbs
TV size range: 17 ~32
Adjustable angle: 5 15 (tilt) 90 (Roll control)
""
-～ ,
）
-8-
IMPORTANT: If don’t understand about right install ways, please
IMPORTANT:
consult to normal installing specialist.
Page 2
Hardware List:
Hardware List:
Brick, Concrete and Stone wall:
Brick, Concrete and Stone wall:
Using the wall mount as template to mark 4 holes location onthe wall. Pre-drill
these holes with a 10mm drill bit to at least 80mm deephole. Insert wall anchors(J)
into each of these holes. Attach the wall mount to the wallusing 4 long bolts(I) and
washers(K).
1
A-G
ID Description
Qty
1
2
3
42
1
1
1
H
Wall mount
Left bracket
Right bracket
Safe bolt
K
I
2
3
Fig 2b
Fig 2c
1
4
Step 3: Hanging display
Step 3: Hanging display
Firstly lift the bracket mounted display over the wall mount. And then hook the
brackets over the top of the wall mount. Rotate the display let the bottom of the
brackets hook over the bottom of wall mount, as shown in Fig.3a. Then put safe
bolts into the bottom of the brackets and lock it, as shown in Fig.3b.
Warning: Some TV require two people to lift, as we are not responsible for any
Warning:
personal injury or product damage due to mishandling.
2,3
4
Fig 3a
Fig 3b
ID
J
Qty
A
B
C
D
E
F
G
H
I
J
K
L
I
K
Description
4
M4 mm×12 bolt
4
Mmm5×12 bolt
4
M× mm6 12 bolt
4
M× mm4 25 bolt
4
M× mm5 25 bolt
4
M6× mm25 bolt
4
1/4 -20×5/8 bolt""
4
Square washer
4
Long bolt
4
Wall anchor
4
Long bolt washer
4
9/16 Spacer"
L
-2-
-7-
Page 3
Step 2: mount to wall
AttachStep 2: Attach mount to wall
First, determine the height of stand
The best height of stand is parallel to eyelevel of a person who sitting on a couch.
Normally, the horizontal distance of eyelevel is about 4’ from ground level.
The following two conditions are for determining the perfect height of stand:
1) the distance between wall and couch(Fig 2a).
2) the distance of eyelevel from ground level plus the distance measured from
eyelevel of a person sitting on couch with viewing angle of 15 (Fig 2a).
For example:
1) the distance of ‘a’ is 5’-7’, the distance of ‘b’ is about 1’
2) the distance of ‘a’ is 8’-13’, the distance of ‘b’ is about 3’
3) the distance of ‘a’ is 14’-17’, the distance of ‘b’ is about 4’
The perfect height of stand centre will be anywhere within b, where you feel
comfortable for viewing.
15 degree
viewing angle
°
b
eyelevel
a
Fig 2a
WARNING
We are not responsible for any personal injury or product damage due to mishandling,
incorrect mounting, incorrect assembly or incorrect use of this product.
The supplied wall mounting hardware is not for use on steel stud walls or cold
Note:
cinder block walls. If you are uncertain about the nature of your wall, please consult a
qualified contractor. If the hardware you required is not included please contact your
local hardware store.
Step 1: Attach bracket to TV
Step 1: Attach bracket to TV
CheckyourTVmanualtoconfirmthediameterofbolttobeusedorchoosea
appropriate bolts according to size, height and position of the holes on your TV. See
pages 4-5 of these instructions for examples.
For correct installing, make sure that hook of every bracket must facing down. Use
selected bolt, spacersandwasher for installingbracket at the back of display.
Adjust two brackets to equal heights and level.Oncealigned, tighten up the
bolts securely.
IMPORTANT:
IMPORTANT:
equipments and injure of person. Don't use electric drill to fasten any bolts.
Don't force the bolt into the hole, which will cause a damage of
After determining the height of stand, follow the installation instructions in below
to install wall mount to different kinds of wall -wooden, brick, concrete and stone.
Woodenwall(Fig 2b):
Woodenwall(Fig 2b):
Using a awl or nail to make where thenails are located, asshown asfig.2b. Pre-drill
these holes with a 5mm drill bit to at least 80mm in deep hole. Please make sure these
holes are level and located at center. Use wall mount as a template to mark the location
of other three holes and drill the same holes. Fix the wall mount to the wall with 4 long
bolts(I) and washers(K).
-6-
-3-
Page 4
Following examples shows how to use bolts, spacers and square washers.
1.Somedisplays have vertical backs. No spacer is required. Install the bracket directly
to the back of display by using bolts and square washers provided. As shown in Fig.1a.
2. Some displays have curved backs with
recessed mounting lands(Fig.a). It will
require the use of spacer. For this display,
install a 9/16” spacer(L) between display and
thebracket.AsshowninFig1b.
Fig a
M4 Fig bit M5 Fig bit
H
A
3
2
3
2
C
H
M5 Fig bitM4 Fig bit
L
L
D
H
B
3
H
2
E
H
M6 Fig bit
H
G
-4-
M6Fig bit
Fig 1a
1/4 -20 5/8 Fig bit＂＂
L
3
Fig 1b
H
F
-5-
