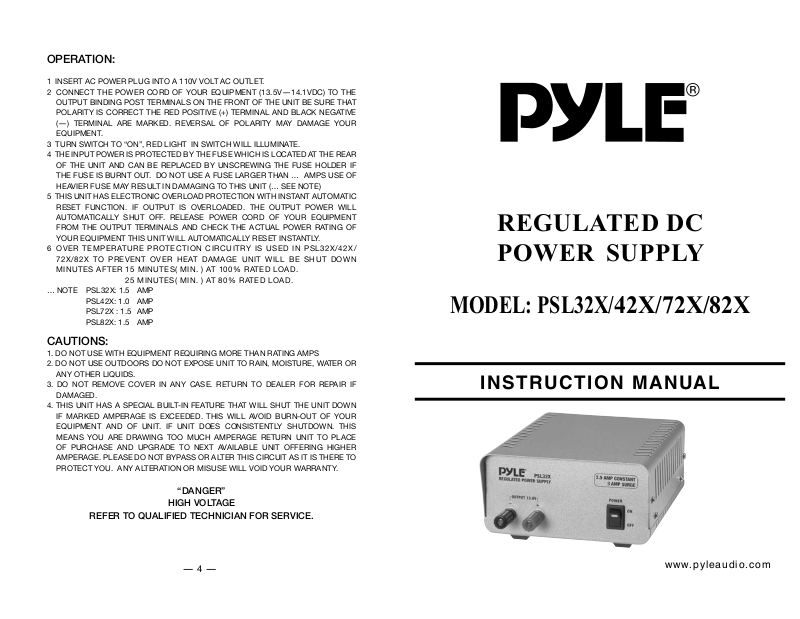

PYLE Audio PSL32X User Manual

OPERATION:

1 INSERT AC POWER PLUG INTO A 110V VOLT AC OUTLET. 2 CONNECT THE POWER CORD OF YOUR EQUIPMENT (13.5V

OUTPUT BINDING POST TERMINALS ON THE FRONT OF THE UNIT BE SURE THAT POLARITY IS CORRECT THE RED POSITIVE (+) TERMINAL AND BLACK NEGATIVE (

) TERMINAL ARE MARKED. REVERSAL OF POLARITY MAY DAMAGE YOUR

EQUIPMENT. 3 TURN SWITCH TO “ON”, RED LIGHT IN SWITCH WILL ILLUMINATE. 4 THE INPUT POWER IS PROTECTED BY THE FUSE WHICH IS LOCATED AT THE REAR

OF THE UNIT AND CAN BE REPLACED BY UNSCREWING THE FUSE HOLDER IF

THE FUSE IS BURNT OUT. DO NOT USE A FUSE LARGER THAN … AMPS USE OF

HEAVIER FUSE MAY RESULT IN DAMAGING TO THIS UNIT (… SEE NOTE) 5 THIS UNIT HAS ELECTRONIC OVERLOAD PROTECTION WITH INSTANT AUTOMATIC

RESET FUNCTION. IF OUTPUT IS OVERLOADED. THE OUTPUT POWER WILL

AUTOMATICALLY SHUT OFF. RELEASE POWER CORD OF YOUR EQUIPMENT

FROM THE OUTPUT TERMINALS AND CHECK THE ACTUAL POWER RATING OF

YOUR EQUIPMENT THIS UNIT WILL AUTOMATICALLY RESET INSTANTLY. 6 OVER TEMPERATURE PROTECTION CIRCUITRY IS USED IN PSL32X/42X/

72X/82X TO PREVENT OVER HEAT DAMAGE UNIT WILL BE SHUT DOWN

MINUTES AFTER 15 MINUTES( MIN. ) AT 100% RATED LOAD. 25 MINUTES( MIN. ) AT 80% RATED LOAD. … NOTE PSL32X: 1.5 AMP PSL42X: 1.0 AMP PSL72X : 1.5 AMP PSL82X: 1.5 AMP

14.1VDC) TO THE

CAUTIONS:

1. DO NOT USE WITH EQUIPMENT REQUIRING MORE THAN RATING AMPS

2. DO NOT USE OUTDOORS DO NOT EXPOSE UNIT TO RAIN, MOISTURE, WATER OR

ANY OTHER LIQUIDS.

3. DO NOT REMOVE COVER IN ANY CASE. RETURN TO DEALER FOR REPAIR IF

DAMAGED.

4. THIS UNIT HAS A SPECIAL BUILT-IN FEATURE THAT WILL SHUT THE UNIT DOWN

IF MARKED AMPERAGE IS EXCEEDED. THIS WILL AVOID BURN-OUT OF YOUR

EQUIPMENT AND OF UNIT. IF UNIT DOES CONSISTENTLY SHUTDOWN. THIS

MEANS YOU ARE DRAWING TOO MUCH AMPERAGE RETURN UNIT TO PLACE

OF PURCHASE AND UPGRADE TO NEXT AVAILABLE UNIT OFFERING HIGHER

AMPERAGE. PLEASE DO NOT BYPASS OR ALTER THIS CIRCUIT AS IT IS THERE TO

PROTECT YOU. ANY ALTERATION OR MISUSE WILL VOID YOUR WARRANTY.

5(*8/$7(''& 32:(5 6833/<

02'(/36/;

INSTRUCTION MANUAL

;;;

“DANGER”

HIGH VOLTAGE

REFER TO QUALIFIED TECHNICIAN FOR SERVICE.

www.pyleaudio.com
