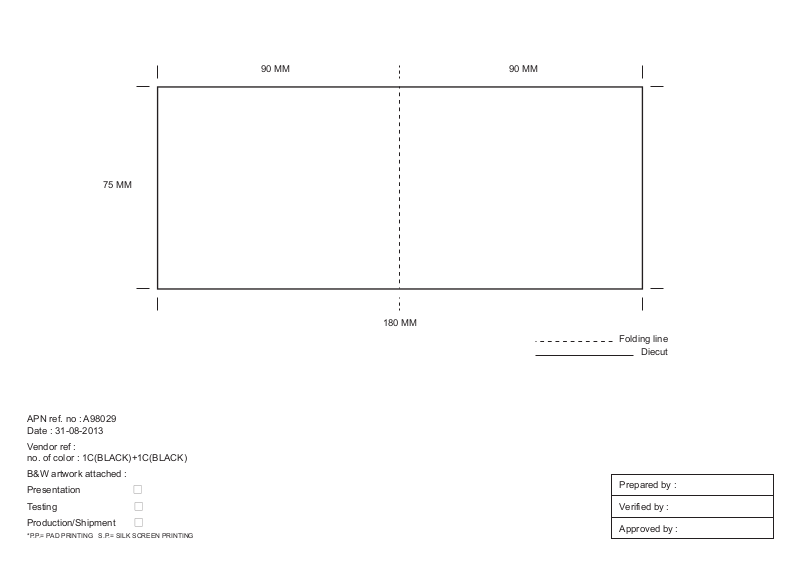

75 MM
90 MM 90 MM
180 MM
Folding line
Diecut
APN ref. no : A98029
Date : 31-08-2013
Vendor ref :
no. of color : 1C(BLACK)+1C(BLACK)
B&W artwork attached :
Presentation □
Testing □
Production/Shipment □
*P.P.= PAD PRINTING S.P.= SILK SCREEN PRINTING
Prepared by :
Verified by :
Approved by :
Visit Us @ PyleAudio.com
IMPORTANT: Pack carefully in original package if possible. We are not
responsible for damage incurred in returning items for repair. A letter
stating your exact street address, daytime phone number, and the problem
you are experiencing should be included. You must also enclose a copy
of the original receipt as proof of date of purchase
Brooklyn, NY 11204
Monday Through Thursday. 9AM to 5PM
Friday 9AM to 1PM Eastern.
www.pyleaudio.com
PSBTHR70
Bluetooth Heartbeat
Bluetooth Fitness Heart Rate Monitoring Watch
with Wireless Data Transmission and Sensor
OUTSIDE
User’s Manual
INSIDE
1.0 Introduction
Thank you for purchasing this Watch.

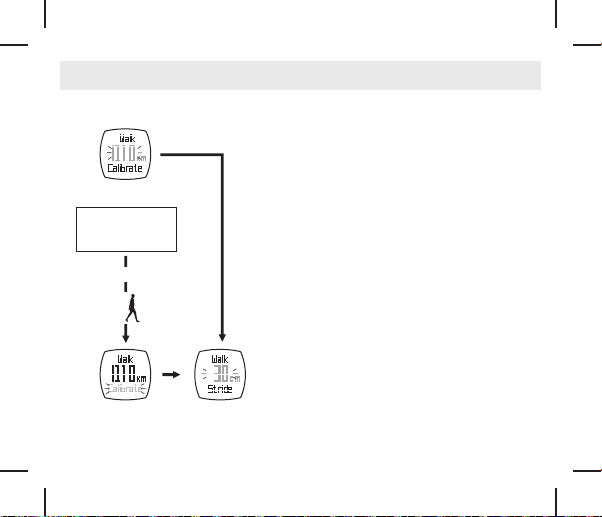

This Watch provides Timekeeping, Timer, Pedometer and
Heart Rate Functions. It is compatible with Bluetooth® smart
and Bluetooth® smart ready devices. With the bluetooth chest
strap, users can view their heart rate data on the watch.
Users can also sync the workout data to their phone for
reference.
In additional to general heart rate functions, this watch
specially includes Heart Rate Zone Alert Functions.
WARNING: Consult a doctor or trainer for setting the zone
prior to undergo an serious Cardo-fitness training.
To get the most of your purchase, be sure to read this manual
carefully and keep it on hand for later reference when
necessary. It is advisable to use this Watch in conformity with
the below notes:
• Avoid exposing the Watch to the extreme conditions.
• Avoid rough uses or severe impacts to the Watch.
• Do not open the Watch case unless performed a certified
service agency.
• Clean the Watch occasionally with a soft and moistened
cloth.
• Store the Watch in a dry place when it is not in use for a
long time.
1.1 Button and its Function
[E/V] EL / View Button
• To turn on the EL backlight for about
3 seconds except Workout Mode and
Recall Mode.
• Hold down to turn on the backlight for
3 seconds in Workout Mode and
Recall Mode.

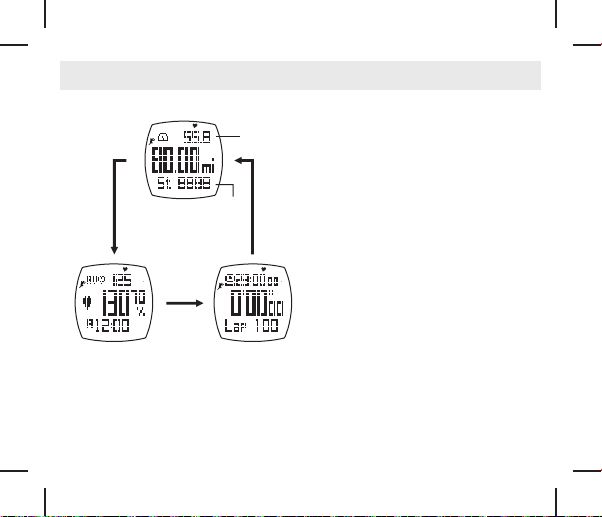

• To select different sub-functional
displays in the Workout Mode.
[M] Mode Button
• To select among function modes:
Home Time, Workout, Recall, Sync
Workout, Daily Alarm, Timer and
Dual Time.
• Hold down to select/exit setting
display in the following modes: Home
Time, Workout, Daily Alarm, Timer
and Dual Time.
• To select among different setting
items in setting mode.
[S/S] Start / Stop Button
• To start and stop the counting
in Workout Mode and Timer
Mode.
• To increase the setting value
during setting display.
• To start the synchronization of
the watch and a phone in Sync
Workout Mode.
[L/R] Lap / Reset Button

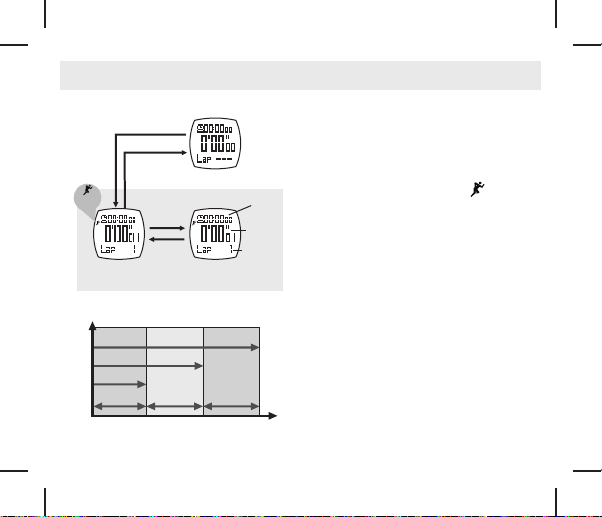

• To take lap records when
workout is running.
• To reset counting in Workout
Mode and Timer Mode.

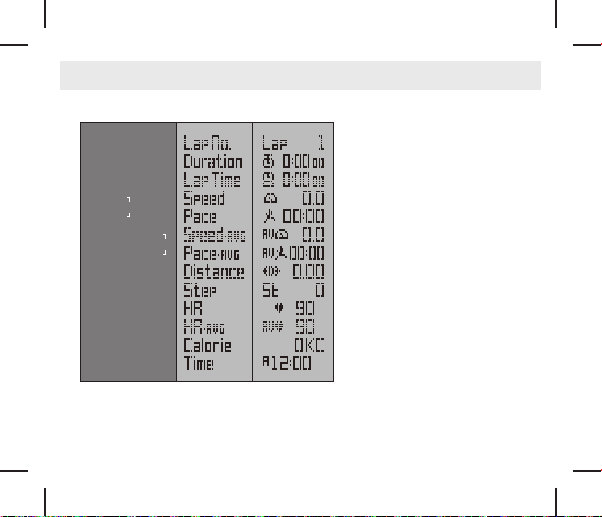

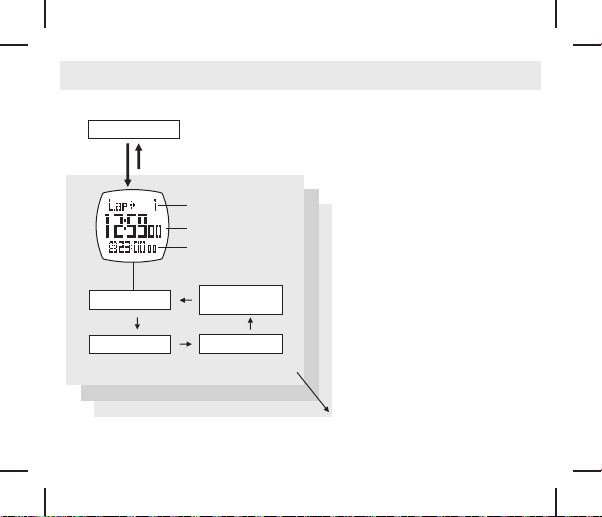

• To select among different
information display in Recall
Mode.
• To decrease the setting value
during setting display.
2.0 Major Function Modes
[M] [M]
Home Time Mode Workout Mode Recall Mode Sync Workout Mode
[M]
Dual Time Mode Countdown Timer Mode Daily Alarm Mode
[M]
[M]
[M]
[M]

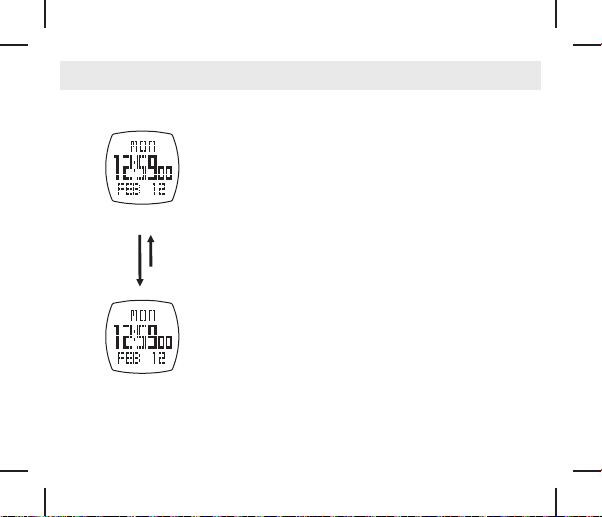

3.0 Home Time Mode
Day of week
Home Time
(hour, minute,
second)
Date
(month, day)
Home Time Mode
Home Time Display
• The day of week of the home time is shown on the 1st
row of the display.
• The current time (hour, minute and second) is shown on
the 2nd row of the display.
• The month and date are shown on the 3rd row of the
display.
4.0 Time Set Mode
Home Time Mode
hold [M]
hold [M]
Second
[M]
Minute
[M]
Hour
[M]
Year
How to Select a Time Set
• To select Time Setting Mode, hold down [M] for about 2
seconds in Home Time Mode.
• Press [M] to move the selection among these 16 settings
refer to the below diagram.
• Press [S/S] or [L/R] to adjust the value.
• Hold down [M] to exit the Time Setting Mode.
• Chime: When this function is on, audible sound will be
• Beep: when this function is on, audible sound will be heard
[M] [M]
heard at zero minute hourly.
when a key is pressed.
Chime
[M]
Time Format
[M]
Day
[M]
Month
[M]
[M]
Beep
[M]
Gender
[M]
Birth
[M]
Unit
Contrast
[M]
BMI
[M]
Weight
[M]
Height
5.0 Workout Mode - Precautions / Tips for Heart Rate Measurement
Connector Chest Strap
Front View
Heart Rate Features
• This Watch includes a Chest Strap with connector, thus the Watch can provide a continuous
supply of heart rate data like current heart rate, average heart rate and maximum heart rate to
user for guiding them to achieve their fitness goal.
Precautions / Tips
• The electrode areas on the Chest Strap use to detect heart rate. They must be firmly contacted
with the user’s skin during measurement.
• DO NOT take heart rate measurement when diving or under water.
• Rinse the strap under running water after every use and hang to dry. Clean the strap gently with
mild soap and water solution when needed.
• Do not stretch the strap or bend the electrode areas sharply.
• DO NOT use hand cream; it will insulate the signal between the skin and the electrode areas.
• Clean your skin with soap and water for better signal transmission.
• For those with extremely dry skin, apply some conductive gel or water may help.
• Adjust the Chest Strap with the buckles until it holds on your chest firmly to avoid it loosen when
doing exercise.
• Avoid doing any awkward motion during measurement, otherwise error may be resulted.
Snap
Button
Battery
Door
Back View
Electrode Area Electrode Area
Hook
5.1 Introduction:
CARE
This heart rate sensor is a high-tech instrument that should be handled with care.
Follow the caring instructions to ensure reliable measurement and to maximize
the life span of the heart rate sensor. It is advisable to use the unit and the chest
strap in conformity with the following instructions:
Connector: Detach the connector from the strap after every use and dry it with a
Strap: Rinse the strap under running water after every use and hang to dry. Clean
Dry and store the strap and the connector separately to maximize the heart rate
sensor battery lifetime. Keep the heart rate sensor in a cool and dry place. Do not
store the heart rate sensor wet in non-breathing material, such as a sports bag,
to prevent snap oxidation. Do not expose the heart rate sensor to direct sunlight
for extended periods.

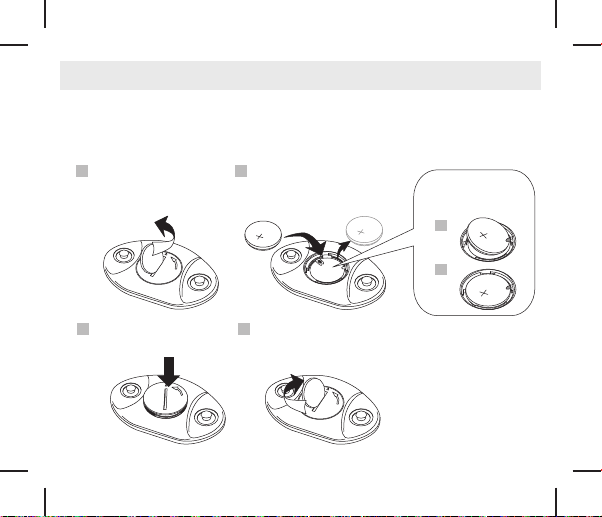

Remove the battery from the battery case when the unit or the chest strap WILL
NOT be used for a long time.
soft towel. Clean the connector with a mild soap and water solution
when needed. Never use alcohol or any abrasive material such as
steel wool or cleaning chemicals.
the strap gently with a mild soap and water solution when needed. Do not
use moisturising soaps as they can leave reside on the strap. Do not soak,
iron, dry clean or bleach the strap. Do not stretch the strap or bend the
electrode areas sharply.
MAINTENANCE
5.2 Workout Mode - Wearing the Chest Strap
How to Wear the Chest Strap
• Refer to the steps below to wear the Chest
Strap on one’s chest:
1) Attach the connector to the strap with the
snap buttons
2) Adjust the strap length to fit tightly but
comfortably.
3) Tie the strap around the chest just below
the chest muscles, and attach the hook to
the other end of the strap..
4) Check that the electrode areas are firmly
against your skin and that the logo of the
connector is in a central and upright
position.
• To pair up the Chest Strap with the watch
please refer to Chapter 5.10.4
IMPORTANT: DO NOT wear the Chest Strap over
your clothes, otherwise it CANNOT get the heart
rate signal.
NOTE: In dry seasons, wetting the contacts with
some water can make the signal transmission
better.
5.3 Setting Up:
Getting Started:
®
The heart rate sensor is compatible with Bluetooth
and 5.3kHz (if applicable) devices. It may require a separate application to view heart
rate data on the receiving device, such as a watch or a mobile phone.
Pair the heart rate sensor with the receiving device when using it for the first time.
Keep the receiving device in front of you to ensure sufficient transmission range from
the heart rate sensor to your device, such as in a front pocket or fixed on a belt.
DO NOT wear the receiving device on your back, such as in a back pocket or
backpack.
smart, Bluetooth® smart ready
