PYLE Audio PS-BCG90 Quick Start Guide

GPS Cycle Computer Device

Quick Stat Guide

1

What is GPS?

Symbol Explanations

GPS status indicator

 Solid with 1 bar: 3D fix with poor signal
 Solid with 2 bar: 3D fix with good signal
 Solid with 3 bar: 3D fix with strong signal

The Global Positioning System (GPS) is a space-based satellite navigation

system that provides location and time information in all weather conditions,

anywhere on or near the Earth where there is an unobstructed line of sight to four or

more GPS satellites. The system provides critical capabilities to military, civil and

commercial users around the world

CAUTION!

 Before using this device for the first time, please fully charge the device.
 As this device may get wet after activity, please dry the device before

connecting the USB cable.

 Before you start training, please let antenna face the sky to get 3D fix

Symbol Explanation

2

Timer icon, appears when training is getting started

RPM indicator

Heart rate monitor indication

Battery capacity indication

Up Vertical cumulative distance

Down Vertical cumulative distance

Screen Pages Explanation

In Screen Pages, there are five pages:

Start Page: This page is for menu selection.

Timer Page: This page is lets you start training and see training performance.

Custom Page: The page is configurable and lets you see the performance

information.

Ghost Page: The page will appear with race information when the GHOST function is

active.

Compass Page: This page is for viewing direction in degrees(Only applies for model

with such feature available)

Start Page Timer Page1 Timer Page2

Custom Page Map Page Ghost Page (if enable)

3

Button

Description

1. POWER/ESC

Press for 2 seconds to turn on/off device.

When device is on, quickly press this button will turn

on/off the backlight.

Press and hold this button for 10 seconds to do hardware

reset if the system is halted.

1 3 4

2

Compass Page (Only applied for model with such feature available)

Button Definition

4

In Menu mode, press ESC button shortly to escape from

the current page and go back to the previous page.

2. MODE /ENTER

Switch between the Menu and Timer pages.

Press for 2 seconds to change between Menu page and

Timer Page alternatively.

3. START/STOP

This lets you scroll clockwise or up as highlighted in the

Main Menu page.

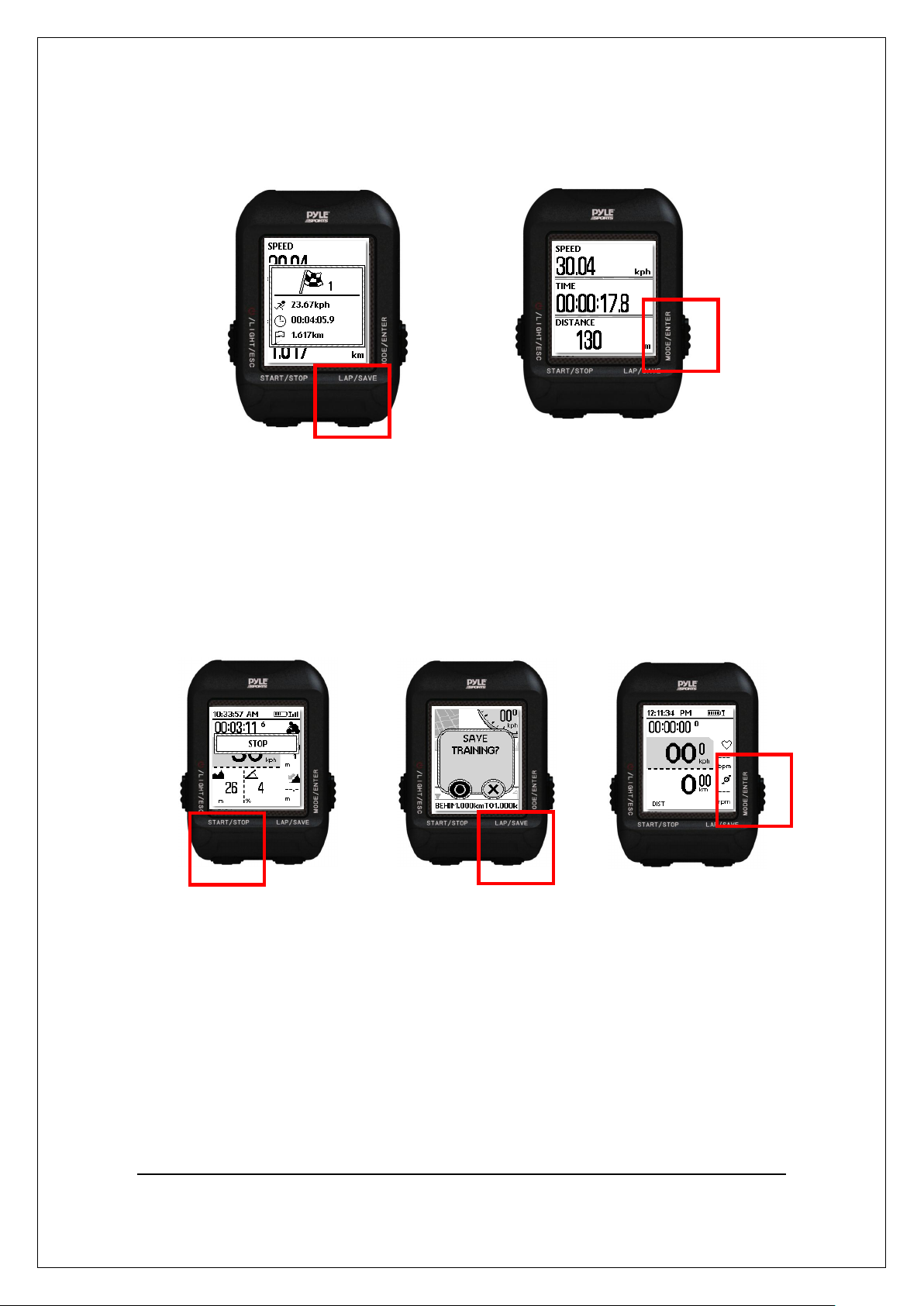

In Timer page, press START button to start timer for

training.

In Timer page, press STOP button to stop timer in

training.

In Map mode, press to zoom in.

4.Power /Lap/Save

This lets you scroll counter-clockwise or down as

highlighted in the Menu page.

In Timer page, when timer is running for training, press

Lap button to create a lap.

If timer is stopped while in training, press SAVE button to

save training.

The GPS antenna is located in the

upper right-handed side. Let it face to

the sky for better reception.

GPS Reception Check

5

You may check the GPS reciption status by the below:

Firstly, put the bike holder on bike

handle bar and use the strap to fix it

in place.

Then, place the GPS device over the

mount and press down when in the

direction as shown.

How to mount your GPS

6

Twist clockwise and GPS device will

be fixed on holder.

7

How to Set Up Custom Page

1. Press “MODE button’’ for 2 seconds

to enter MAIN MENU and select

SETUP.

2. Choose ‘’ WORKOUT PAGES’’ then

press the ‘’Enter button’’.

3. Chose ‘’ SET PAGE’ then press

‘’Enter button’’ to setup custom

page

.

4. Press Enter on the heading such as

“SPEED” . You can select the

parameter you want to see.

Set up the custom pages to display the information you want to see before you start

the training.

8

5. After the setup process is

completed, you can see this

information on custom page.

6. You may setup “SET LAP PAGE” to

edit the information you want to

see in LAP page.

7. You can select the parameter for

LAP page.

8. The lap page will appear when the

lap is active in training.

9

How to configure your device before training

1. Please press MODE button for 2

seconds to enter the Main MENU

and then chose SETUP

2. Press UP and Down button to select

the System option.

3. Select the Display icon to setup

display

Before you start training, you may configure your device to get more accurate

performance readings and information.

a. Device Setting

10
