Multmedia projector
Model:
User's Manual
CONTEINTS
Warning 1
safty precautions 2
Cautions 3
Installation of projector 4
Full setting 4
standard setting(front projection) 5
installation method 6
Input port instruction 7
Signal input map 8
Remote control instruction 9
Panel keystoke instruction 10
Open/Close 11
Open operation 11
Close operation 11
Image Adjustment 12
Focus adjustment 12
Trapeziod adjustment 12
Menu setting 13
sources switch method 13
Menu setting method 13
1.Image menu 13
2.Volume menu 14
3.Function menu 14
4.System menu 14
5.PIP menu 14
6.Computer menu 15
7.Analog TV menu 15
Digital TV 16
Digital tv setting 16
program setting 17
USB/SD 18
Multimedia play 18
operation 18
entertainment game 18
Maintenance 19
Filter clearance 19
Replacement lamp 20
Trouble shooting 22
Specification 24
Accessory 25
Accessory and purchasable parts
When you open the carton of projector,
plese check the full accessories
Accessory list :
Projector ------------------------ 1 unit
remote control --------------------------1 pc
power cable ---------------------------1 pc
AV signal cable--------------------------1 pc
VGA signal cable-------------------------1 pc
warranty card------------------------1pc
manual ---------------------------- 1 pc
spare fuse ------------------------1 pc
clear paper ----------------------------1 pc
Purchasable accessory
1, projector screen
2, projector ceiling mount
3, spare lamps
Specification
LCD Model 5"TFT
Input signal video component video(Ypbpr) ,VGA HDMI
USB,SD ,DVB-T ,analog TV
audio stereo
WARNING
warning
Please remember the model Number
and series number if you need.
And please check all accessories
when you drop the carton package
When you use this projector , please read this manual carefully
MODEL NUMBER
SERIES NUMBER
output signal audio 5W 2 speaker(select)
LCD native resolution 800*600 support 720P 1080p)
contrast ratio 800 1
Lens aperture 3.8
Focus 160mm
Lamp Power 150W
Color-Temperature 9300K
Life 6000-8000 hours
working time < 24 hours
Image size 72 150inch
Brightness > 1800 Lumens
keystone 20 degree
Power Voltage 220 10 VAC 50Hz 110 10 VAC 60Hz
power consumption < 200W
Working condifition temperature 0 +70
humidity 10 65
store condition temperature -20 +70
humidity 10 90
Donot see the light from the lens ,it is high bright lamp.
It will damage your eye .specially for chirdren.
Warning:Donot place the projector in the wet condition,
avoid to getting an electric shock
High Voltage,donot open it ,
except for professiona
WARNING
It indicates there is a instruction
for important operation
It indicates there is a dangerous
voltage
Warning
when close the projector ,the fans will continue to turn 90seconds.
Before pull out the power cable, please be sure the fans stop to turn .
Or it will damage the projector lamp
Remote control Frequency 38KHz
machine size 298 210 120mm
weight 6Kg
About the remote control battery:
The remote control battery should be fixed correctly ,
Or it will damage the remote control.
Make sure the remote control out of chirdren reach
If all parameter changed,donot note again
Safety precautions
g
Warning;
when use this projector ,please read this manual carefully.
If wrong operation ,it will cause electric shock or fire.so when use
and repair this projector ,please comply with the following points
1,Read manual
Before use this projector ,please
read full manual carefully and
operate according to this manual instruction
2,Clear
when clear this projector ,please pull
out the power cable. Use the wet cloth
to clear,not the cleasner
3.Accessory
please use our recommended accessory.
Or it will damage the projector.
4,Use environment
Donot place the projector in wet environment
5,installation and fix
please place this projector in stable table .
6, Ventilation
the ventilation in the projector are best
for projector work stably. Donot let the dust
wall up the filter. Or it will cause the projector
high-temperature protected. So please use the
water to clear the filter per month.
7, Power
please make sure the power same as your
projector inquiry specification. (220 V or 110V)
8, Earthing wire
this projector has earthing wire .
It is three pin plug.
9,protect the power cable
Please confirm the power cable
are perfect when connect the
projector.
10,Thunder
when the thunder happen or long time
no use , please pull the power cable
out of projector.
11,Repairment
As the high voltage inside ,please
donot open or try to repair the
projector by yourself. . Please ask a
professional technician to repair
the projector.
12, Far away Heat device
please make sure this projector far
away other heat device . It will
damage the projector service life
Trouble shootin
TROUBLE SHOOTING
Please refer to this chapter when you encounter a problem list prior to contacting your
dealer.
Problem: Possible solution(s):
Projector turns off automatically 1, Dust cover the filter ,
Please wash this filter by water .
2, Some of fans are broken ,donot turn again,
It is high temperature protected system.
Please replace the broken fans quickly.
Lamp doesn't work. 1, Power supplier are wrong . Please confirm your
Projector power specification . 220V or 110V .
2 , Lamp are broken or out of service life.
Please replace the lamp and test it again
3, Check the ignitor . It is broken , please change a
New ignitor.
Trouble Shooting
r
e
e
s
Caution
TROUBLE SHOOTING
Please refer to this chapter when you encounter a problem list prior
to contacting your dealer.
Problem: Possible solution(s):
No power 1, The projector donot connect the power cable
2, Donot open the projector .
3, Fuse broken
Remote doesn't operate 1,Projector turned on to quickly after
last turn off (needs 5 minutes).
2,Batteries defect.
3, Aim remote correctly at IR receiver.
No image
2, Projector turned off.
3, Selected the wrong input signal.
4, the mainboard are broken . Please
Replace this mainboard.
1, Please remove the len cap at first
About the installation
In order to improve the projector service life,
It shouldnot place in a wet and
ventilation condition
Donot put the projector under the sunshine
directly
Projector working temperature: 0 +70
Projector store temperature : -20 +70
Donot block the ventilation-window
of projector
If the projector interior temperature
are too hot , the machine will be shut
off automatically.This is hot protected system.
So please clean the filter of projector
per month . It is very important.
Donot let the dust cover the filter.
About Open and close the projector
when open the projector ,connect
the power cable and press the "power"
key on the panel .the projector will
work ,but the lamp will be bright more
and more .After 5 minutes, the lamp wo
normally
when close the projector , press the pow
key again . And then the lamp shut off.
But the fans still work until 5minutes lat
When close the projector ,donot pull out
the power cable directly . After 5minute
the projector will shut off automatically.
Warning
Fans will adjust the temperature It is controlled by system when the projector work,
the fans turn slowly or quickly so the fans noise are different But it is normal
when the projector work ,donot pull out the pwer cable If the fans stop to work,it will cause
the projector interior temperature very high, so it may damage the projector.
Installation
PROJECTOR INSTALLATION
Maintenance

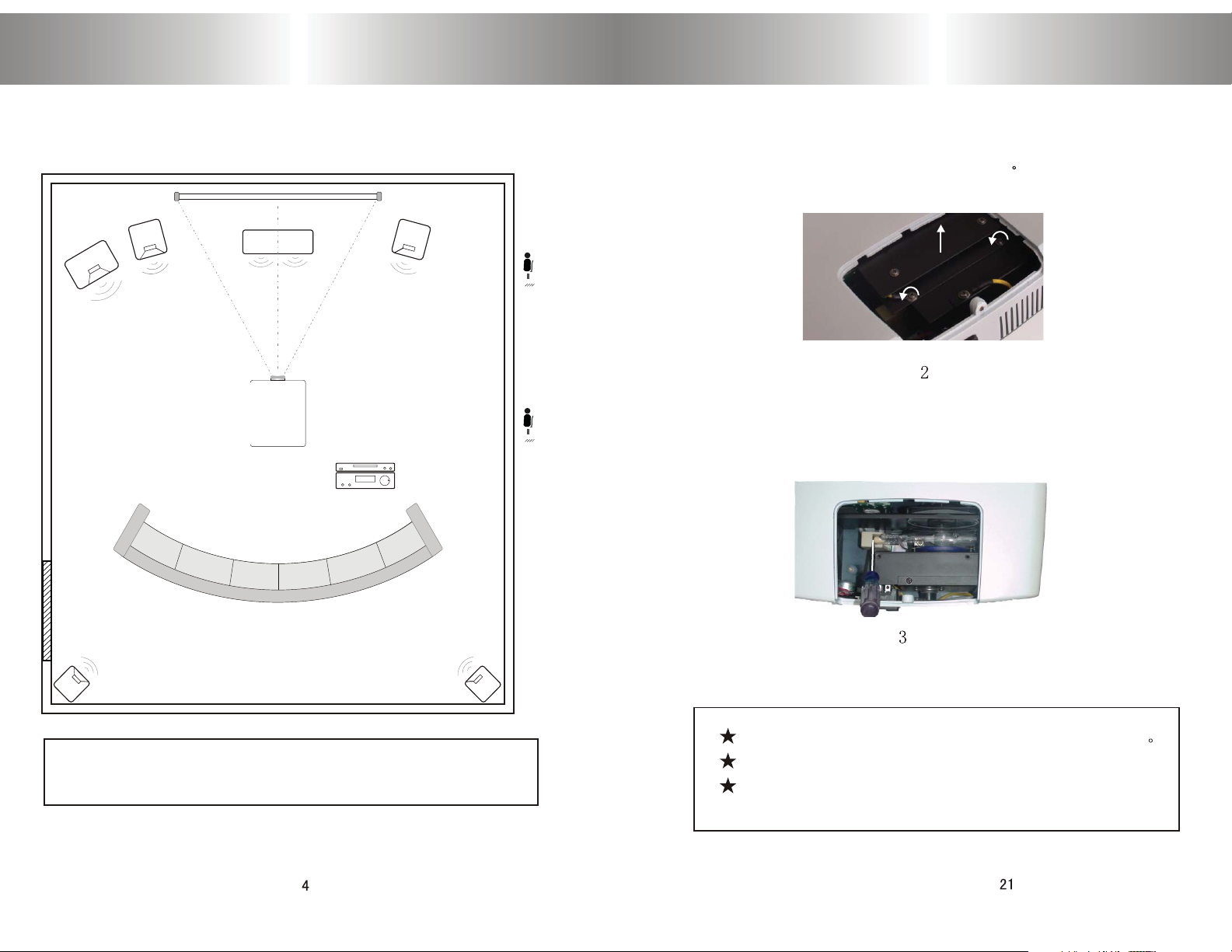

Please use the setup instruction below:
Speaker
L
Subwoofer
Appreciate seats
Screen
Speaker C
Projector
DVD
Amplifier
Speaker
R
2.Take away the panel like the picture 2
2.Take away the panel like the picture 2
3, Use a small screwdriver to push out the lamp as the picture 3
Door
Speaker
Ls
Speaker
Rs
In order to get good image quality ,donot let the sunlight shine
the screen directly .If you use the projector in the day time,
Before replacing the lamp,make sure the lamp are cold
Before open the lamp cover board,pull out the power cable
When replacing the lamp,donot drop some dirty goods
inside the projector.
Maintenance
Projector Installation
Replace the projector lamp
Our projector lamp warranty 6 months In different use environment
after 6000hours the lamp brightness will reduce the image will
become dark .Therefore please replace the lamp according to
the following steps
1, use the tool to remove the screw,like the picture 1 show
Standard setting Front projection
Please refer to the following sheet , adjust your picture size
and distance (from the lens to screen )
Taille D' cran
50"
72"
100"
The data maybe have 3% error,due to the image size according
to the distance between projector and screen if the distance is
less 2m or over 5m,the image maybe not clear.
warning
4:3 16:9
1.9m
2.5m
3.37m
2.0m
2.7m
3.8m
Please check the following picture to show the trapezoid adjustment
Screen
Screen
symmetry
axis
Projector
Incorrect installation,
the images left-right small.
Installed correctly,
the image is rectangular.
Incorrect installation,
the images right-left small.
Projector installation

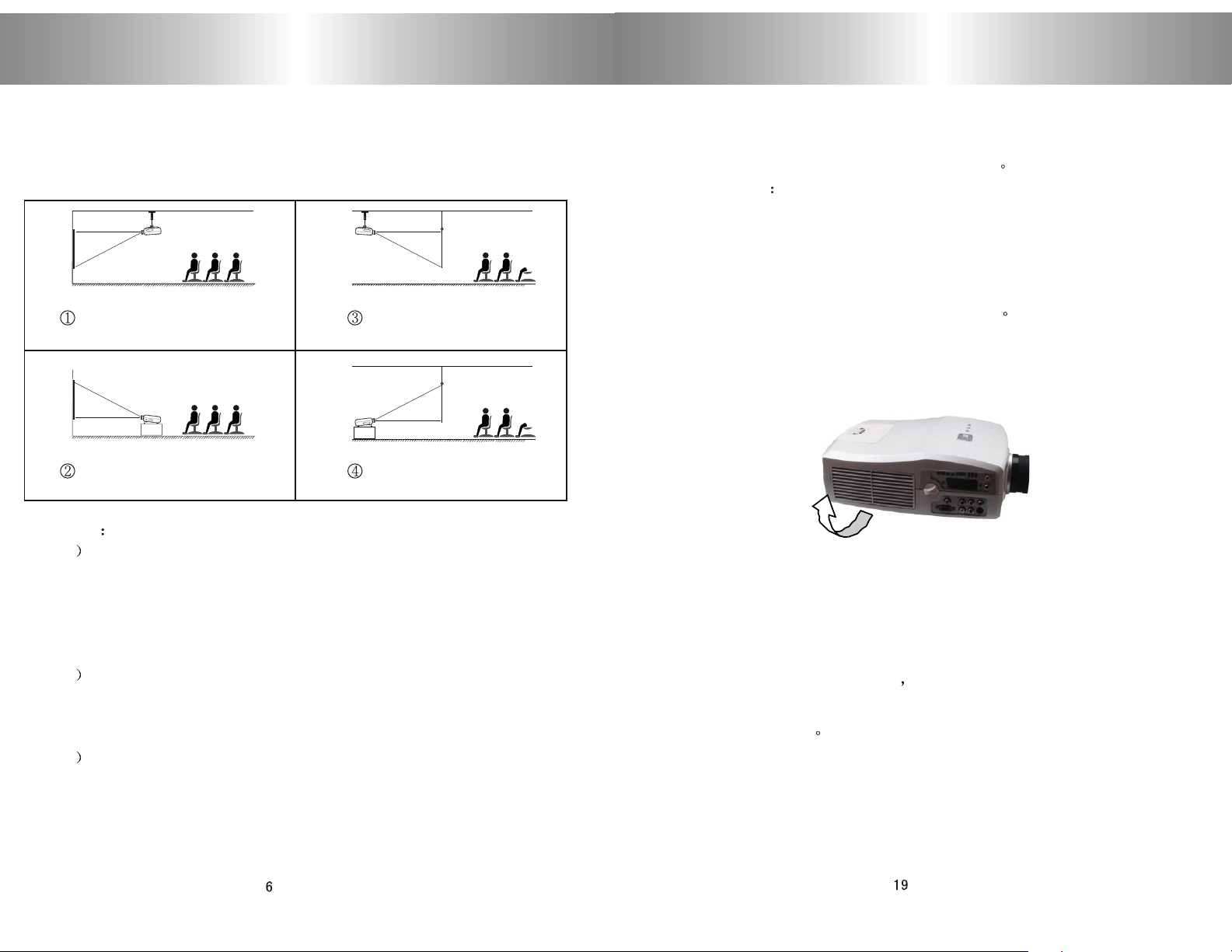

Installation method:
Contact a proffessional service man to mount this projector to a ceiling.
Follow the instructions belowe for the correct projector positions:
Maintenance
Maintenance filter
The filter should be cleaned at least once a month (more often
in dusty environments),or the projector will overheat
the step as follow
screen
screen
projector
Front projection
ceiling mount
projector
Front projection
Table mount
projector
Rear projection
Ceiling mount
projector
Rear projection
Table mount
screen
screen
Warning
1 This projector might damage beyond repair when it is incorrectly mounted on
a ceiling or when its incorrectly installed on a surface or installed on a
incorrect surface. It may also inflict damage to persons within close vicinity.
2)This projector can only be used in an environment with a temperature not
exceeding the range of 0- 35 degree .The projector may malfunction if
temperatures vary outside the normal operating range.
3 The sharpness of the screen might be interrupted when the
projector is being used in a dusty,wet,moist or smoke filled
environment. The projector might malfunction in a moist or wet
environment.
4 Take care of sufficient ventilation around the projector.
Otherwise this projecctor might overheat and cause life threatening
situations
1.Remove the grille like indicated below
2. clear the dusty on the filter Dry the filter sufficiently
neverinstall a moist filter in this projector,and complete
the installation
USB/SD PLAY
Projector installation
Multimedia play
Enter " DTV/CARD" mode insert USB or SD/MMC card,It can recognize the
file in format of Mp3 JPEG MPEG-4 AVI VOB DAT
1. Press to choose what you need to play
2. Press to enter the submenu then press to choose which
file you need to play,
3.If you want to return to main menu to play other media,press
4. Press RETURN to back previous menu
5. Choose the file and then press OK begin to play in full screen
Play Operation
1. Play USB Movie press the bottom key on the remote control
it can pause, stop forward back next previous and image zoom funtion
2. Play USB Music press the bottom key on the remote control
it can pause, stop forward back next previous and image zoom funtion
3. Play USB Photo press display the picture or reverse the picture,
press
SIZE +/- to magnify or shrink the picture Under the image zoom function,
press to remove the picture to center
4, Under play mode,press RETURN back to main menu
Entertainment games
Choose Games to enter the games main menu Box Man Tetris Hit Rat
Press OK to enter the games use the number and " to play the game
Input port instruction
This projector can support HDMI,USB,SD, component video signal, s-video signal,VGA
signal and TV signal,the audio in and audio out function.
•
••
1. Indicator light
on stay situation the light is red
on working situation the light is green
2. Panel key
use panel key to adjust parameter
read the introduce of the panel key
3. Remote control receiver
when use the remote control,please
point this receiver directly
4. Lens
adjust the lens focus to improve
the image quality
5. Trapezoid correction
turn the knob on the projector left or right .
Adjust the image become square,can adjust +/-15
6. HDMI signal input , max support 1080i signal.
7. Signal wire connect
connect projector signal source
read the signal port introduce
8. Power switch
when use ,you need connect the
power wire with projector and
the power jace
•
•
•• ••••
9. Fuse
if open the power switch,the indicator
light donot work,it maybe the fuse
broken 5A220V)
10. Power switch
open and shut off this switch
when you want to open the projector
it must open this switch at frist
11. ventilation
this ventlilation window is very important
donot block this window.otherwise
it will burn the projector
12. ventilation
two side of the projector have the ventilation
when use ,you must ensure do not block it
13.USB port
14,SD card port
15,Digital TV and analog TV port
•••
Projector install
Connecting video equipment
Without S-video output terminal.
Digital TV Use
1. Search Channel according the different area recently it support following country
germany UK italy France spain holland Taiwan China
Norway sweden finland
2. Manual search need to set up the scan frequency and bandwidth
please set up according to your local DVB Parameter
3. Auto search when the search finish,it will skip the search menu ,and it will play the
program which you search in the right screen .
Program instruction menu
If you want to learn the next or future program ,please press the EPG key on the
remote control and enter the program instruction menu windows
••• ••• ••••••
Connecting an analog TV or
digital TV (dvb-t )
1. Title
2. Display time list
3. Display particular time list
4. Program list press to move the cursor on the different program
press to switch the cursor left/right
5. Display the time period and information of recent program press
to move the cursor
6. Display particular program information which the cursor correspond
Digital TV use
Remote control instruction
If your country have the DVB TV signal,when you use this projector digital tv function
first times,please switch to "DTV/CARD mode,Then it will appear following menu
If you have used the projector digital tv function ,switch to"DTV/CARD mode it will
display the last time program which you received so you should press the DVB menu
key it can display the above menu
Under the full screen display :
press display key (on the remote ) to display the recent program information
press CH+- key(on the remote),you can change the TV channel
press menu key (on the remote) to entre the menu to change the language or audio
press SIZE +/- key(on the remote) to zoom the picture size under the zoom mode
you can press key to move the picture.
Digital TV setting:
Under the digital tv menu press OK key (on the remote) to enter the setting menu
As following

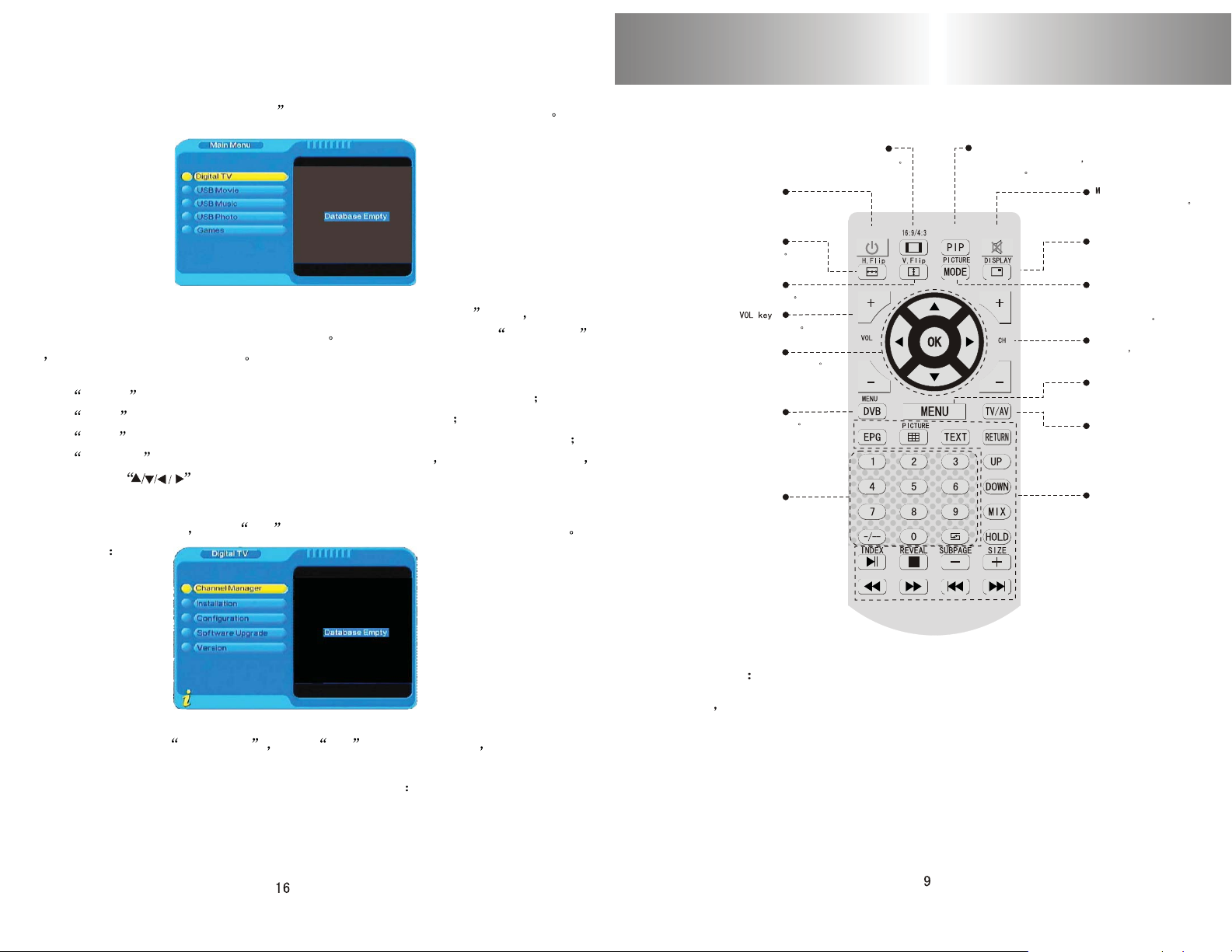

Remote panel instruction
16 9/4 3 switch key
switch the display picture for 16 9 or4 3
Power
for turn the power on.
adjust image left/right rotate
menu mode .adjust patameter
Number Buttons
selects TV channel directly
H.Flip key
V.Flip key
adjust image up/down rotate
adjust projector vol
Direction key
DVB key
use for digital TV mode
••• ••
PIP SWITCH KEY
under HDMI or VGA mode on/close
PIP function
ute
open or close the volume
••••
Display key
Display the work situation
Image effect reset key
can set the image brightness,
soft colour or personality
quickly in turn
Channel key
TV mode adjust TV Channel
Menu key
open or switch
the parameter menu
TV/AV
switch the input signal
Promotion key
use for DVB or SD
Move the cursor to Installation press OK key on the remote
it will display the dialogue "password",the default password"0000",
then you can enter the "search"menu.Picture as following
Precautions
1 you need to dry the remote control with a dry cloth immediately
when it gets wet.
2, when the battery hasn't been used for a long time we advise you to
remove it from the remote .be sure that children can't reach the
removed button cell .swallowing a of harm and is very dangerous
Panel keystoke instruction
Panel keystoke sketch map
Menu setting
5. PIP INTERFACE
NOTE: only Under HDMI and Pc mode support
PIP function when PIP function donot
close the singal just switch between
HDMI and PC
6. GEOMETRY INTERFACE
• •
Indicator light
Power key
It can open or close the projector
its function same as the "power"
in the remote control
It can adjust the menu by
UP/Down ,left/righ
AV/TV Key
This key can choose the mode
(switch from AV/HDMI/TV/PC)
Menu,direction Key
•
7. TV-CHANNEL INTERFACE
•••••
This menu is for analog TV function.
You can search the analog tv channel .
Menu setting
2. SOUND INTERFACE
the audio output have three types:normal ,line,speaker;
when you choose the normal mode, the projector internal speaker and
audio output function both work
when you choose the line mode,the projector internal speaker donot work,
only audio output funciton work.
When you choose the speak mode, only the projector internal speaker work,
the audio output function donot work ( no sound output)
••••••••••
••••
••••••
•••••••
•••
•••••••••
••••••••••••
: •••
: •••
•••••
••••••••
•••
•••
••••••
••••
: ••••
This menu for adjusting the sound. You can choose different
sound mode which you prefer
3. ADVANCE INTERFACE
•••••••
: •••
••••
••••
•
•
•
: ••••
••••••••••••
••••••
•••
•••••
: •••
When you watch the TTX ,you can choose the language and time
by this menu.
If the projector is the new one please read projector install
chapter placed the projector connect the powerwire and the signelwire
the operation as follow:
Open operation
1.Before use the remoter .
Put in two 7 size battery in it
2. Open the power switch on the backboard
the power light begin to flash
press the power key on the remote control or panel
the indicator light turn light
After 2 second the projector lamp begin work
began appear unclear white light on the screen
after 2 minute,the projector begin work
5. For the new projector. When the frist time to use maybe will appear image
unclear or trapezoid distortion please read image adjustment chapter
4. SYSTEM INTERFACE
ENGLISH
•••
•••••
•••••
•••••
•••••
•••••
•••••
••
•••
OSD language: our projector support English,Chinese
French,German,spanish;
Scale : 4:3/16:9 /letter box , there are three choice.
Only under AV mode, you can switch the 4:3/16:9 /letter box
But under HDMI/VGA/component mode,you only can see 4:3 .
It cannot display 16:9 sale screen.
Hzoom and Vzoom: it only work if you choose the scale:letterbox
6. After the image is clear then you can watch program during watching
you also can setup the system parameter please read menu setting chapter
Close operation
1.During use the projector press power key can let the projector
switch to stay situation
2.After inter into stay situation the projector under auto protect auto release hot
the indicator light is flase situation but here the projector is under auto protect
situation not accept any order if need to startup again must wait for finished
the release hot .
Image adjustment
The new projector using it first time commonly will
appear image faintness and the the image is trapezoid it is course
that not adjust well of the lens focus and the trapezoid
please follow the step the correction
Focus adjustment
• turn the lens into the projector then turn it out slowly
at the same time looking at the resolution point carefully
when the image is very clearly (take the middle area of the image),it is the
best situation of the lens
NOTE: When you replace the projector from a cold to a warm environment water
KEYSTONE
If a projected picture has keystone distortion, correct image with Keystone
adjustment. The image becomes trapezoid shape when the screen or project is not
level. Please reposition the projector to improve its angle to the screen. However, the
circumference of the image may not be focussed.
vapour might occur. Don't turn the projector on when this occurs but wait
until the vapour has disappeared.
Projector
Keystone
Screen
Screen
Projector
Menu setting
Menu setting method
1. Using the projector press menu key,
the picture disply on screnn to adjust the
menu(picture one)
2. press key the menu in turn
circle into image > volume >
function > system > setting >
image adjust interface
3. Elect the adjust interface use key
elect the item that need to adjust(picture two
4. use key to adjust the elect item paremeter
5. Finished the elect item parameter press the
menu key again exit the page
6. Repeat operate the 2 5step
till finished all the parameter's enactment
press exit key,exit the menu page
otherwise the menu page will auto exit
after a period time
1. Image menu adjustment
a. Press menu key untile disply the
above picture of the menu
b. Press key elect the option
that need to adjust
c. Press key adjust
parallelisn elect parameter.
d. Press the "menu" key again exit
the menu page parameter adjust station.
If not able to use the Keystone correction function to correct the trapezoid distortion,
••
Loading...
