PYLE Audio PPHP83MU, PPHP103MU, PPHP123MU, PPHP153MU User Manual

Page 1

Page 2

Before using your new speaker system please review all information and instruction found in this user manual for the safety of the operator and optimum device performance.

Caution: To reduce the risk of electrical shock, do not remove any pieces or attempt to access, service, troubleshoot,

modify any components or circuitry within the unit. No user serviceable parts inside; refer to servicing to qualified personnel. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL or contact Pyle Audio. Visit www.PyleAudio.com!

1. Carefully read and keep these instructions.

2. Be cautious of all warnings and follow instructions.

3. This unit should not be exposed to dripping, splashing or excessive moisture or objects filled with liquid.

4. Clean only with a dry cloth.

5. Do not block any of the ventilation openings and allow circulating air on all sides whenever in use.

6. Do not install near any heat sources such as radiators, stoves, or other electronics/devices which can produce heat.

7. Only use attachments/accessories specified by the manufacturer.

8. Unplug this unit when not in use for long periods of time.

9. Do not override or modify the power supplying purpose of the unit's plug connector. A polarized plug has two blades, with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade, or third prong, is provided for your safety and must not be tampered with. If the provided plug does not fit your outlet, consult an electrician to replace the outlet or use a compatible outlet.

10. Protect the power cord from any damage, including the cable or plug prongs.

11. Be cautious of the weight of the unit and be careful when transporting and placement not in, and not in use.

12. Refer all servicing to qualified service personnel or Pyle Audio Specialist. Servicing is required if the unit has been damaged in any way, or appears not to be performing as described, or performance/operation has changed.

13. The power switch located on the back of the unit does not break the power supply connection from the mains. Connect this unit only to the power source via the connection input indicated on the back of the unit's panel. Only use the provided accessories / cables provided by Pyle Audio (or others if advised by a Pyle Audio Technician).

Visit

www.PyleAudio.com for more information and technical support assistance

PyleAudio.com

PA Speaker Systems

Page 3

Electrical Safety:

LCD Display Digital Audio File Control Center

SD Memory Card Slot

Mode Selection

Play

Record

Repeat

USB Flash Memory Slot

Please Note: Model 'PPHP803MU' PA Speaker

All units are fitted with a power cord (supplied) which connects to the AC mains via the back control panel of the PA speaker. The power cord has an IEC female connector on one end and male mains connection on the other, to provide a safe and consistent power flow to the unit. This cord is provided specifically to accommodate the different worldwide safety and electrical code requirements, including your intended region of use. The power cord supplied with your product has a 3-Pin type plug prong connector. Do not modify, damage or tamper with the cable in any manner.

*Note: Avoid placing any microphone or wireless device against, or in close proximity, to the PA Loudspeaker -- as this may cause unwanted electrical interference, and has the ability to degrade the unit's performance, add 'noise' or interfere with other internal circuitry / components or your devices.

PA Speaker Placement:

Optimal audio performance can be achieved when elevating your speakers at higher elevations. The Pyle PA Loudspeakers feature the universal standard 35mm (1 3/8”) pole mount inserts with locking bolts, to make them compatible with virtually all speaker pole-mount stands. Ensure the speaker stand can support the weight of your Pyle PA speaker and your audience will definitely hear you!

Operation: Before connecting or powering on the speaker, ensure the volume control levels are set to low to prevent

any damage or electrical faults when connecting or operating.

does not feature 'Recording Ability' and the control panel appears different than pictured.

*Also located near the MP3 Audio File Control Center is the Auxiliary (3.5mm) input connector jack. This allows you to connect your device and stream media directly through the PA speaker system. Control the media playback and configure sound adjustment.

Visit

www.PyleAudio.com for more information and technical support assistance

PyleAudio.com

PA Speaker Systems

Page 4

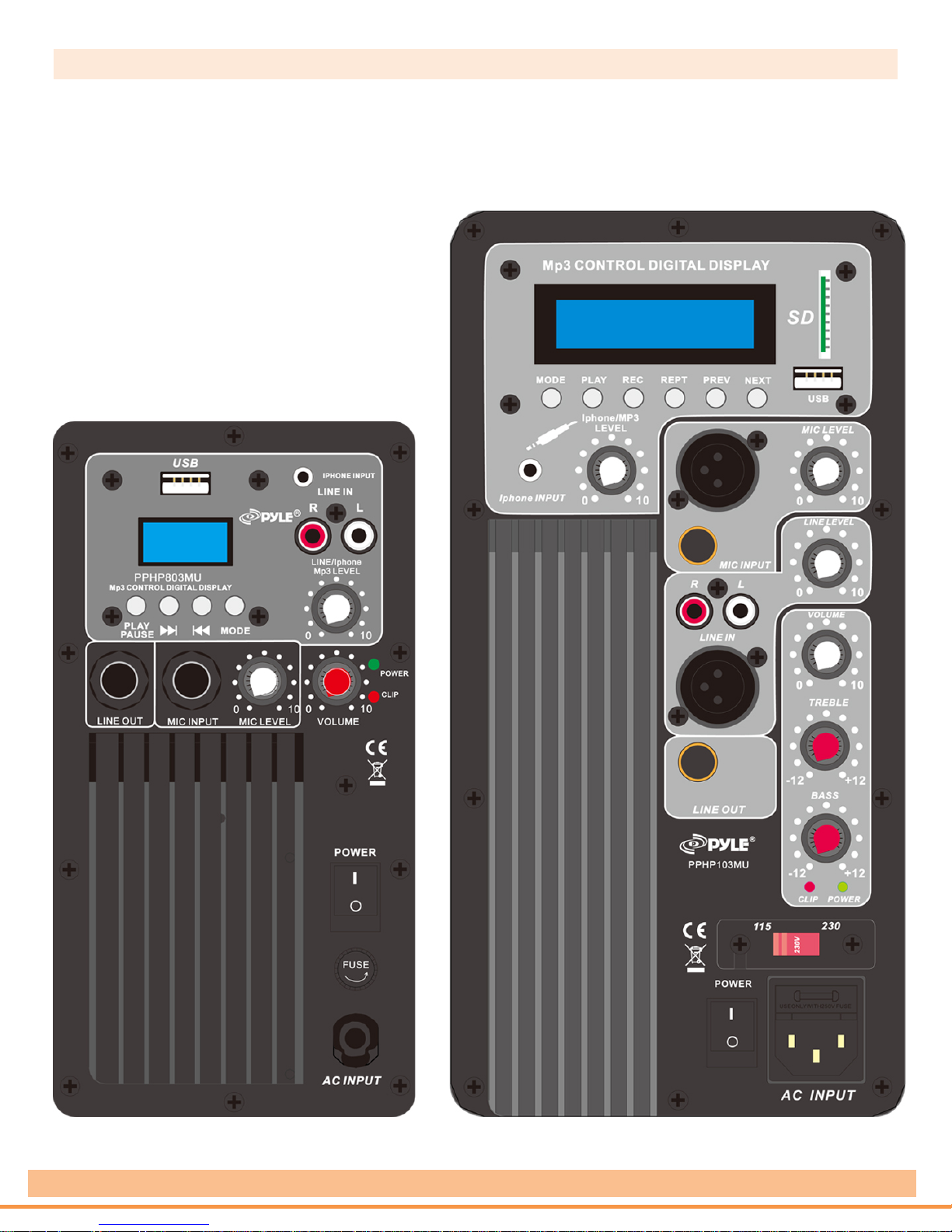

Control Panel Layout

Model:

PPHP103MU

PPHP803MU

PyleAudio.com

PA Speaker Systems

Page 5

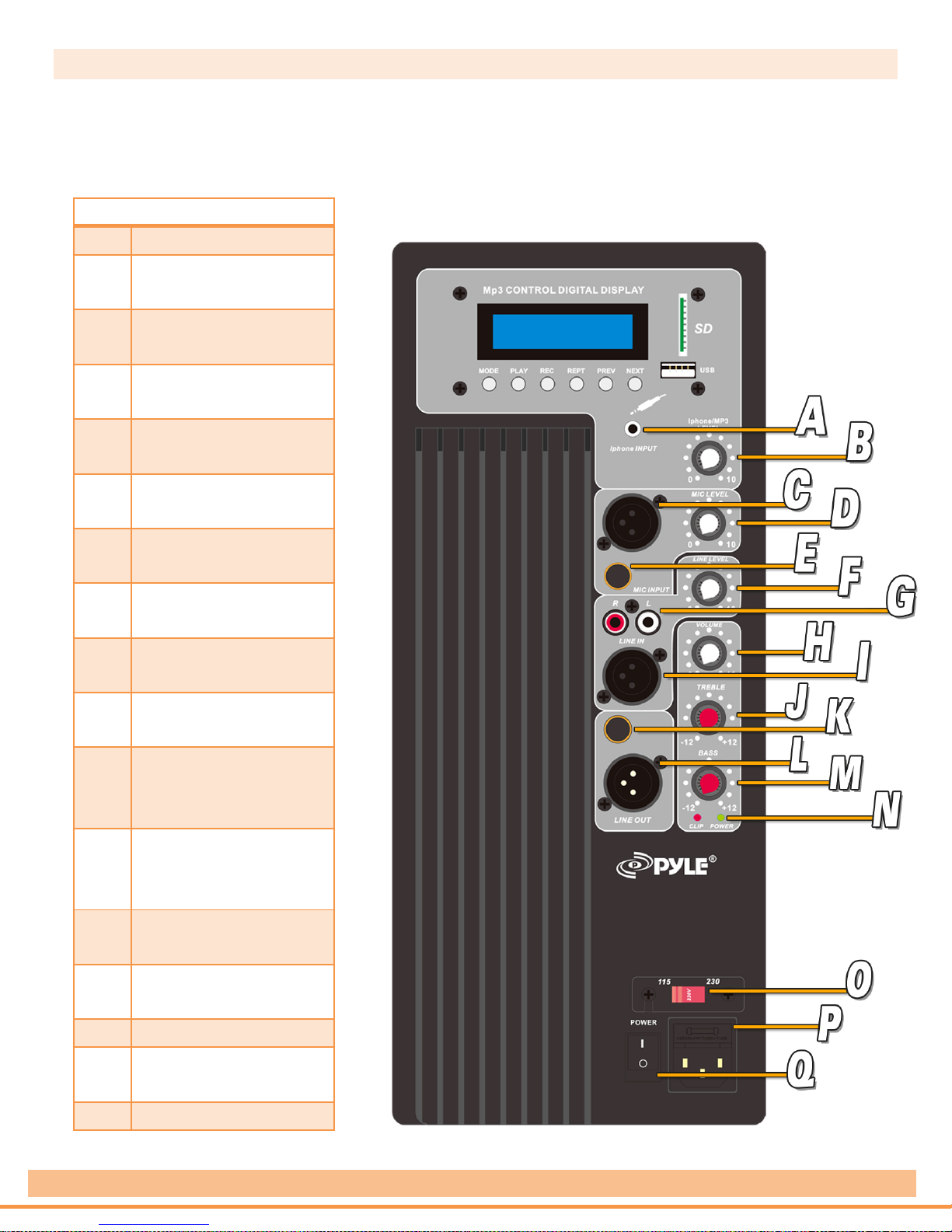

Control Panel Layout

Models:

PPHP153MU

Aux (3.5mm) Input

Aux Input Volume Control

3-Pin XLR Type Microphone Input

Microphone Input Volume Control

1/4'' Microphone Input

Line Level Input Volume Control

RCA (L/R) Input Connectors

Master Volume Control

3-Pin XLR Type Input Connector

Treble Audio Control

1/4''

Connector

3-Pin XLR Type

Connector

Bass Audio Control

Clip & Protect LED Indicator Lights

Power Switchable

Fuse Receptacle + AC Power Input

Power Switch

PPHP123MU

Line Output

PyleAudio.com

PA Speaker Systems

Page 6

System Features

Loudspeaker PA Cabinet Speaker System, Powered 2-Way

Loudspeaker PA Cabinet Speaker System, Powered 2-Way Full Range

PPHP803MU

PPHP103MU

Visit www.PyleAudio.com for more info

Full Range Sound, USB Reader, 8-Inch, 600 Watt, Aux Input

System Features:

Loudspeaker PA System Rugged, Durable & Reliable Sound Speaker System: 8'' Woofer, 1'' Tweeter Compression Driver - 1'' Titanium Diaphragm 2-Way Full Range Audio Projection Built-in Amplifier Aux (3.5mm) Input RCA (L/R) Stereo Line Input Connectors Ability to Connect External Devices (Smartphones, MP3 Players, Tablets, etc.) USB Flash Drive Reader USB Reader Doubles as Device Charging Port Digital LCD Display Screen ID3 Tag Song Readout Info: LCD Displays Song Title/Song Time Touch Button & Rotary Controls Mic Level, Input Level & Volume Control 1/4'' Microphone Input 1/4'' Line Output Connector Jack Convenient Carry Handles Universal Standard 35mm (1 3/8'') Speaker Stand Mount Engineered Heavy Duty ABS Housing Includes Remote Control and Power Cable

Technical Specs: Max Power Output: 600 Watt RMS Power Output: 300 Watt Amplifier Class: AB Digital Audio File Compatibility: MP3, WMA Maximum USB Flash Drive Support: 32GB T.H.D.: 1% S/N Ratio: 71dB Crossover Frequency: 3.0kHz AC 110/220 Voltage Selector Dimensions (L x W x H): 11.8'' x 9.8'' x 17.3'' Weight: 17 lbs.

Sound, Recording Ability, USB/SD, 10-Inch, 800 Watt, Aux Input

MP3 Audio Recording Ability:

It's Easy: One Button Record Activation Record Audio as Streamed through the Speaker System Ability to Record Vocals via Microphone Can Also Record Audio via Line & Aux Inputs Records to USB Flash & SD Memory Card Audio File Type Created: .WAV Easy Transfer to PC & Mac

System Features: Loudspeaker PA System Rugged, Durable & Reliable Sound Speaker System: 10'' Woofer, 1'' Tweeter Compression Driver - 1'' Titanium Diaphragm 2-Way Full Range Audio Projection Built-in Amplifier Aux (3.5mm) Input RCA (L/R) Stereo Line Input Connectors Ability to Connect External Devices (Smartphones, MP3 Players, Tablets, etc.) USB Flash & SD Memory Card Readers USB Reader Doubles as Device Charging Port Digital LCD Display Screen ID3 Tag Song Readout Info: LCD Displays Song Title/Song Time Touch Button & Rotary Controls Mic Level, Input Level, Volume, Bass & Treble Control 1/4'' Microphone Input 1/4'' Line Output Connector Jack (2) XLR Input Connector Jacks Ability to Connect an External Devices (Mic/Guitar) Convenient Carry Handles Universal Standard 35mm (1 3/8'') Speaker Stand Mount Engineered Heavy Duty ABS Housing Includes Remote Control and Power Cable

echnical Specs:

Max Power Output: 800 Watt RMS Power Output: 400 Watt Amplifier Class: AB Digital Audio File Compatibility: MP3, WMA Maximum USB Flash Drive Support: 32GB T.H.D.: 1% S/N Ratio: 72dB Crossover Frequency: 3.0kHz AC 110/220 Voltage Selector Dimensions (L x W x H): 14.1'' x 11.4'' x 21.2'' Weight: 23 lbs.

PyleAudio.com

PA Speaker Systems

Page 7

System Features

Loudspeaker PA Cabinet Speaker System, Powered 2-Way Full Range

PPHP123MU

PPHP153MU

Sound, Recording Ability, USB/SD, 12-Inch, 1000 Watt, Aux Input

MP3 Audio Recording Ability:

System Features: Loudspeaker PA System Rugged, Durable & Reliable Sound Speaker System: 12'' Woofer, 1.34'' Tweeter Compression Driver - Titanium Diaphragm 2-Way Full Range Audio Projection Fully Featured 3 Channel Mixer Built-in Amplifier Aux (3.5mm) Input RCA (L/R) Stereo Line Input Connectors Ability to Connect External Devices (Smartphones, MP3 Players, Tablets, etc.) USB Flash & SD Memory Card Readers USB Reader Doubles as Device Charging Port Digital LCD Display Screen ID3 Tag Song Readout Info: LCD Displays Song Title/Song Time Touch Button & Rotary Controls Mic Level, Input Level, Volume, Bass & Treble Control 1/4'' Microphone Input 1/4'' Line Output Connector Jack (2) XLR Input Connector Jacks for Microphone/Guitar (1) XLR Output Connector Jack Ability to Connect to External Amp or Speaker System Convenient Carry Handles Uni

versal Standard 35mm (1 3/8'') Speaker Stand Mount Engineered Heavy Duty ABS Housing Includes Remote Control and Power Cable

Technical Specs: Max Power Output: 1000 Watt, RMS Power Output: 500 Watt Amplifier Class: AB Digital Audio File Compatibility: MP3, WMA Maximum USB Flash Drive Support: 32GB T.H.D.: 1%, S/N Ratio: 74dB Crossover Frequency: 2.2kHz AC 110/220 Voltage Selector Dimensions (L x W x H): 16.5'' x 13.8'' x 25.2'' Weight: 32.76 lbs.

Sound, Recording Ability, USB/SD, 15-Inch, 1200 Watt, Aux Input

MP3 Audio Recording Ability:

System Features: Loudspeaker PA System Rugged, Durable & Reliable Sound Speaker System: 15'' Woofer, 1.75'' Tweeter Compression Driver - Titanium Diaphragm 2-Way Full Range Audio Projection Fully Featured 3 Channel Mixer Built-in Amplifier Aux (3.5mm) Input RCA (L/R) Stereo Line Input Connectors Ability to Connect External Devices (Smartphones, MP3 Players, Tablets, etc.) USB Flash & SD Memory Card Readers USB Reader Doubles as Device Charging Port Digital LCD Display Screen ID3 Tag Song Readout Info: LCD Displays Song Title/Song Time Touch Button & Rotary Controls Mic Level, Input Level, Volume, Bass & Treble Control 1/4'' Microphone Input 1/4'' Line Output Connector Jack (2) XLR Input Connector Jacks for Microphone/Guitar (1) XLR Output Connector Jack Convenient Carry Handles Universal Standard 35mm (1 3/8'') Speaker Stand Mount Engineered Heavy Duty ABS Housing Includes R

Technical Specs: Max Power Output: 1200 Watt, RMS Power Output: 600 Watt Amplifier Class: AB Digital Audio File Compatibility: MP3, WMA Maximum USB Flash Drive Support: 32GB T.H.D.: 1%, S/N Ratio: 76dB Crossover Frequency: 2.2kHz AC 110/220 Voltage Selector Dimensions (L x W x H): 19.3'' x 15.7'' x 29.1'' Weight: 42.9 lbs.

emote Control and Power Cable

PyleAudio.com

PA Speaker Systems

Page 8

Feedback Prevention

Acoustic feedback occurs when sound from the PA loudspeaker finds its way back into the performer's microphone when the system is in use. This unwanted audio signal can cause interference, noise, distortion or plainly cause a non-desired and non-expected sound. Pyle PA speakers are designed with more r elatively flat response rates to aid in minimizing any type of unwanted feedback. Factors involved with the elimination of feedback include proper system placement: placing the system well in front of any performer and/or microphone. Audio signal setting and configuration, along with EQ controls, can help fine-tune the overall sound output which can be specific to environment and type of audio generated by the loudspeakers. The shape of the performance area (including performance area, elevation, volume, etc.), the type of instrument being played, and vocals can all have their relative own relative frequencies and unique sound prints which can be uniquely affected and picked up by any microphone.

Record Function

By pressing the ‘REC’ button you will gain the ability to record and sav e dig ital audio files to USB and SD me m or y cards. Once your selected me mor y device is inserted (ei. USB F lash or SD memory card) you will be able to record and delete audio files dire ct ly from the speaker’s contr ol cent er and LCD screen.
