PYLE Audio PPDLSM User Manual

PPDLSM

METAL DISTORTION

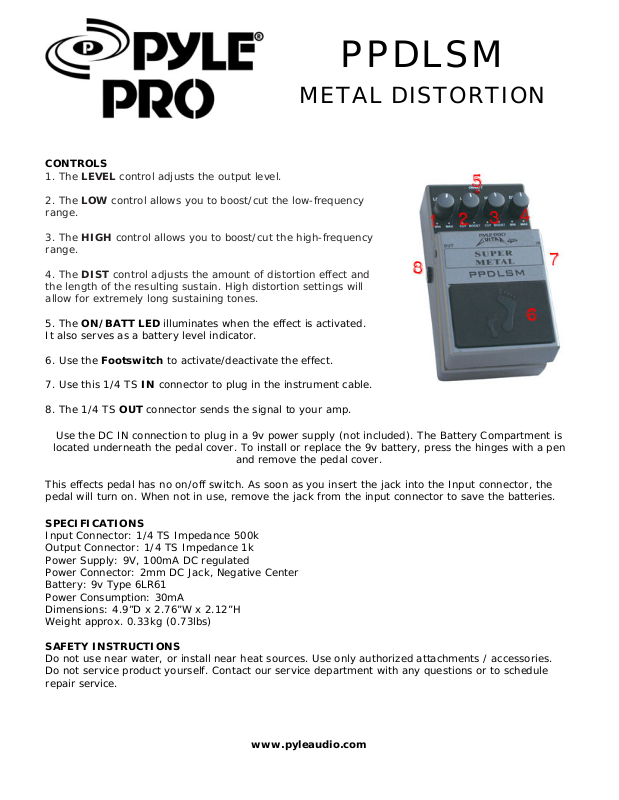

CONTROLS

1. The LEVEL control adjusts the output level.

2. The LOW control allows you to boost/cut the low-frequency range.

3. The HIGH control allows you to boost/cut the high-f range.

4. The DIST control adjusts the amount of distortion effect and the length of the resulting sustain. High distortion settings will allow for extremely long sustaining tones.

5. The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.

6. Use the Footswitch to activate/deactivate the effect.

7. Use this 1/4 TS IN connector to plug in the instrument c . The 1/4 TS OUT connector sends the signal to your amp.

Use the DC IN connection to plug in a 9v power supply (not included). The Battery Compartment is

located underneath the pedal cover. To install or replace the 9v battery, press the hinges with a pen

and remove the pedal cover.

his effects pedal has no on/off switch. As soon as you insert the jack into the Input connector, the

pedal will turn on. When not in use, remove the jack from the input connector to save the batteries.

PECIFICATIONS

Input Connector: 1/4 Output Connector: 1/4 TS Impedance 1k Power Supply: 9V, 100mA DC regulated Power Connector: 2mm DC Jack, Negativ Battery: 9v Type 6LR61 Power Consumption: 30m Dimensions: 4.9”D x 2.76”W Weight approx. 0.33kg (0.73lbs)

AFETY INSTRUCTIONS

Do not use near water, or in Do not service product yourself. Contact our service department with any questions or to schedule repair service.

TS Impedance 500k

e Center

x 2.12”H

stall near heat sources. Use only authorized attachments / accessories.

www.pyle udio.com

requency

able.
