Pyle Audio PP-BCM16 User Manual
Pyle Vigilante Pro HD Body Cam
User Manual
PPBCM16
User Manual
Device operation user manual ................................................................................................... 2
1. Structure ........................................................................................................................................ 2
1.1 Master Structure .................................................................................................................. 2
1.2 External lens structure (optional) ........................................................................................ 3
1.3 Wireless remote control structure ...................................................................................... 3
2. Operation ....................................................................................................................................... 4
2.1 Power Button【①】 ............................................................................................................. 4
2.2 Video【■◆】 ....................................................................................................................... 4
2.3 Photo/Menu【 /M】 ..................................................................................................... 4
2.4 AUD/Back【AUD】 ............................................................................................................ 4
2.5 OK/Playback ....................................................................................................................... 4
2.6 Up/Right .............................................................................................................................. 4
2.7 Down/Left ........................................................................................................................... 5
3. Indicators ....................................................................................................................................... 5
4. Basic function operation ............................................................................................................... 6
4.1 Power on/off ........................................................................................................................ 6
4.2 Screensaver/Standby ........................................................................................................... 6
4.3 System settings .................................................................................................................... 7
4.4 IR night vision lights and Filter switch on/off .................................................................... 8
4.5 Photo ................................................................................................................................... 8
4.6 Video/Capture ..................................................................................................................... 8
4.7 Audio ................................................................................................................................... 9
4.8 View/Playback video ........................................................................................................... 9
4.9 Delete files .......................................................................................................................... 9
4.10 Restart ............................................................................................................................... 9
4.11 AV output / intercom voice in real-time transmission ..................................................... 10
4.13 Connected to a computer ................................................................................................. 10
5. Installation and Remove of Clip and battery ............................................................................... 10

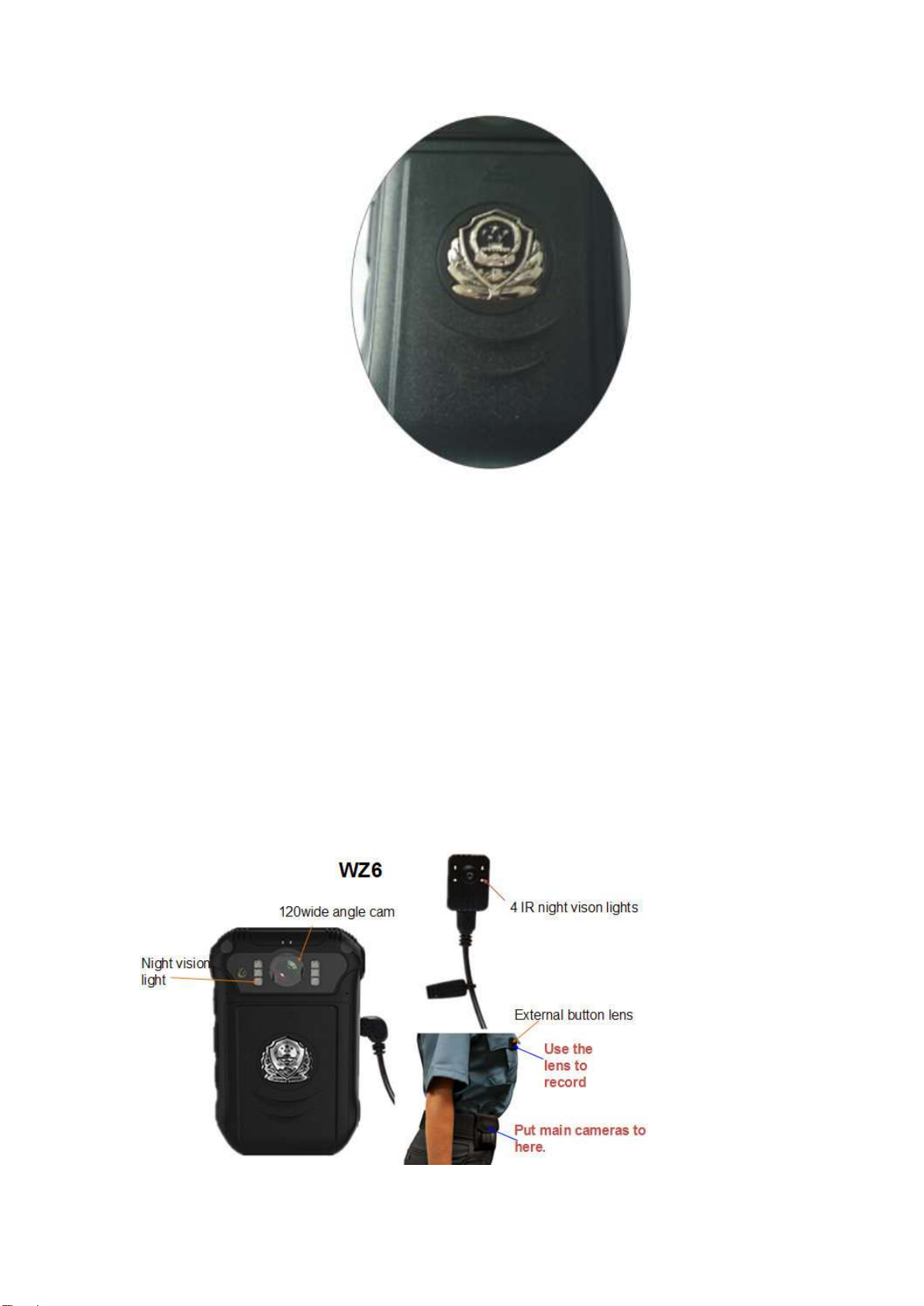

6. External Camera .......................................................................................................................... 11
7. Remote Control ........................................................................................................................... 12

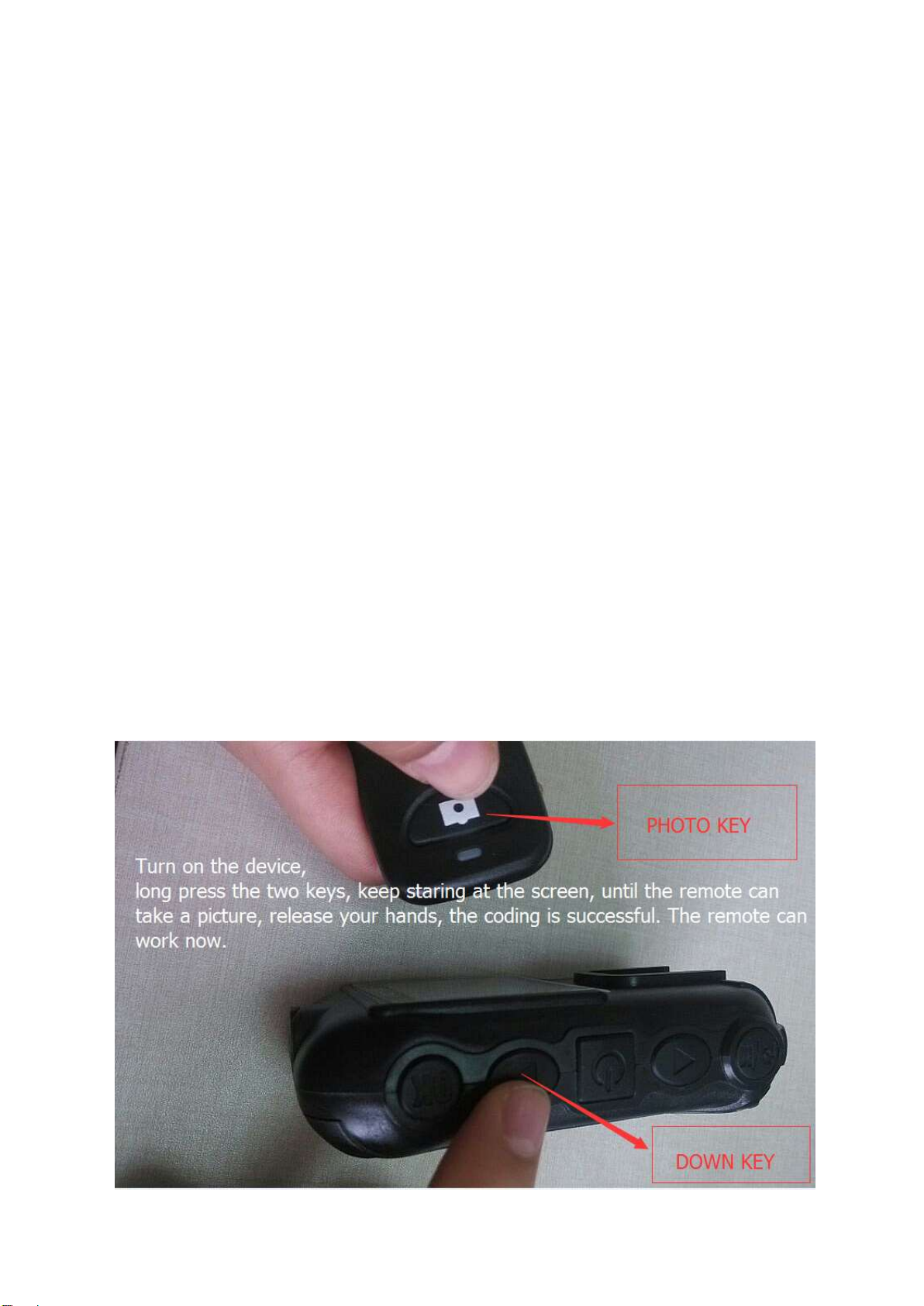

7.1 Match the code: ................................................................................................................. 12
7.2 Remote control buttons operate as follows: ...................................................................... 13
8. Battery Charging ......................................................................................................................... 13
9．Specification .............................................................................................................................. 14
10．Accessories .............................................................................................................................. 15
11. Troubleshooting and handling................................................................................................... 15
1
Device operation user manual
1. Structure
1.1 Master Structure
2
Remote indicator
AUD button
Photo button
Video button
1.2 External lens structure (optional)
1.3 Wireless remote control structure (optional)
3
Pyle Vigilante Pro HD Body Cam
User Manual
PPBCM16
2. Operation
2.1 Power Button
Press the power button to turn the device on. Press and hold the button to shut
the device down. Press the power button once to turn the laser positioning light
on/off (while the device is powered on).
2.2 Video/Talkback
Press the video button to begin video recording and stop video recording
(on/off).
2.3 Photo/Menu
Press the photo button to take pictures. Press and hold this button to enter the
settings menu.
2.4 AUD/Back
If you wish to record audio, press the Video/Talkback button located on the top
left of the body camera. If it begins recording video automatically, press it
once more. When you are in video mode and no video is recording, press the
AUD button to begin the sound recording. In the settings or any other menus,
press this button to return back to the previous menu.
2.5 OK/Playback
Press OK to confirm a choice. In Video/Audio playback mode, press the OK
button to confirm playback (begin/stop playing the video).
2.6 Up/Right
In the settings menu, press the button to move upward or to the right to make
choices.
A. When there is no external lens, turn the night vision lights on/off by pressing
and holding the UP/RIGHT button to make the IR cut filter work.
B. When the external lens connects with the device, press and hold the
UP/RIGHT button to turn the night vision lights on/off of the external lens.
4
