PYLE Audio PLVSMN7 User Manual

7" SUN VISOR TFT-LCD MONITOR

PLVSMN7

1. SPECIFICATION

* OPICAL

- SCREEN SIZE ----------------------------------- 7" DIAGONAL

- DISPLAY FORMAT ---------------------------- 1440(H) x 234(V)

- COLOR CONFIGURATION ------------------ RGB Stripe

- DOT PITCH -------------------------------------- 0.107(H) x 0.372(V)

- VIEWING ANGLE ------------------------------ Top: 50 deg. / Bottom: 20 deg.
Left: 45 deg. /

Right: 45 deg.

* ELECTRICAL

- BRIGHTNESS-----------------------------250 CD/M

2

- COLOR SYSTEM ------------------------- NTSC/PAL Auto Switch

- VIDEO INPUT ----------------------------- 1 Vp-p, 75ohms

- POWER CUNSUMPTION ---------------- DC12V 1A MAX. 6VA

- AUDIO OUTPUT POWER---------------- 0.5W(MAX)

2. FUNCTION KEYS AT FRONT PANEL:

POWER
MENU
MODE

UP
DOWN

SPEAKER

Menu Function
CONTRAST: Press or to adjust Contrast.
BEIGHTNESS: Press or to adjust Brightness.
COLOR: Press or to adjust Color.
SHARPNESS:

Press or to adjust Sharpness.
VOLUME: Press or to adjust Volume.
MODE: 16:9 / 4:3
LEFT RIGHT: Left/Right Revolving
RESET: The Display will Return to The

Original by Factory.

EXIT: Exit Menu Mode.

* POWER: Press the "Power" button once it will be power ON.
Press it again, will be power OFF.

* UP/DOWN: Press UP or DOWN directly is to adjust volume.
Using MENU button together can adjust the other functions.

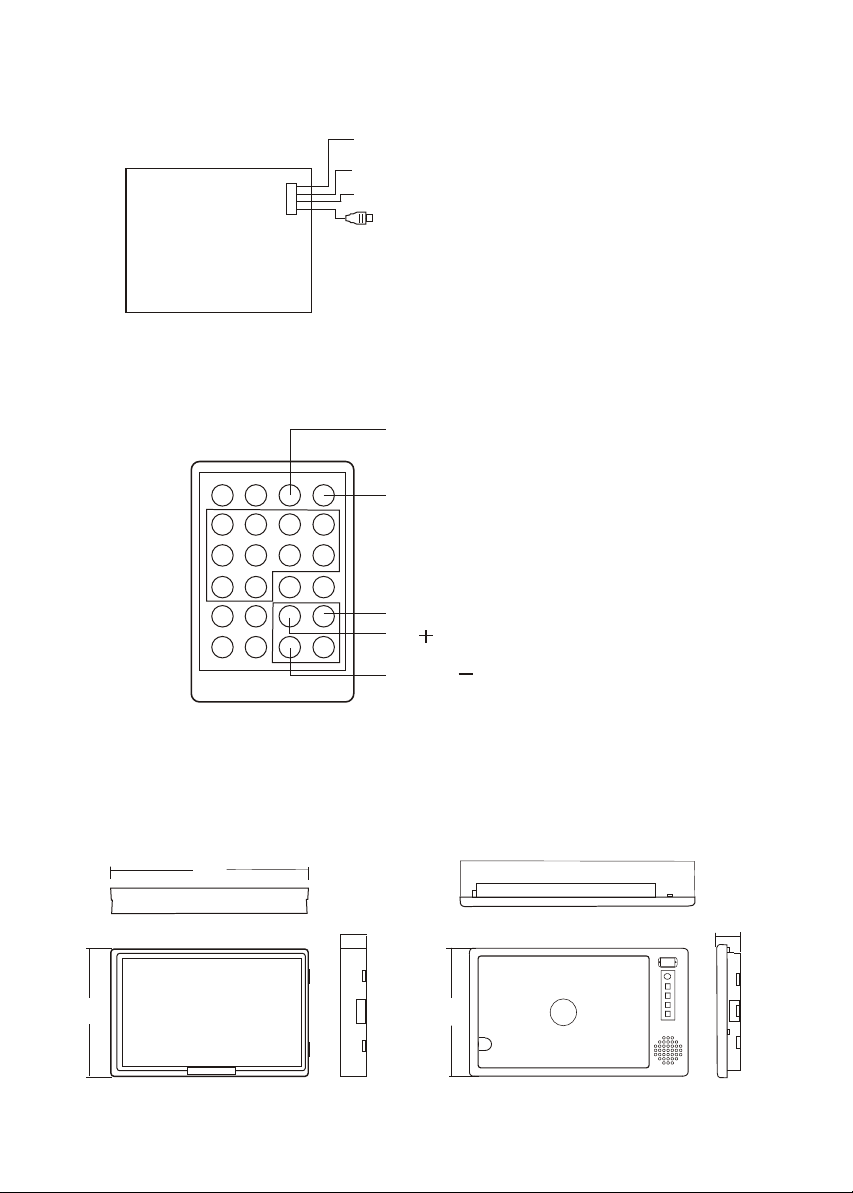

3. FUNCTION

4. REMOTE CONTROL

2

1
5
9

3

4

6

8

7

0

DC 12V INPUT B+ (RED)

GROUND (BLK)
AUDIO INPUT (WHITE)

VIDEO INPUT (YELLOW)

MUTE

POWER

FUNCTION/ODS MANU
UP

DOWN

5. DIMENSION

168

21.2

109

6. SUN VISOR KIT

223

22.5

127
