Page 1

PLTVD7P

OWNER’S MANUAL

Mobile Video System

• Digital Audio Out-Coaxial

• DVD Player With TV Tuner

• Multi Color TFT Monitor

• Multi-subtitle Languages Function

• Multi-audio Languages Function

• Multi-angle Function

• Parental Control

• Remote Control

Page 2

FEATURES

Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD)

This player can play discs recorded in either PAL or NTSC format.

• A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders.

• L/R stereo analog audio outputs for connection to existing head unit aux inputs. Video output is composite video.

• Supplied remote handles multi-function

software (multi-language audiotrack/subtitle, multi-angle, multistory, etc.), plus all basic functions.

Built In TV Tuner

• PLL Tuning System

•I

C Bus Control

Protect the Disc Mechanism

Avoid inserting any foreign objects into the slot of this player. Failure to observe this may cause malfunction due to the precise mechanism of this unit.

Use Authorized Service Centres

Do not attempt to disassemble or adjust this precision product. Please refer to the Service Centre list included with this product for service assistance.

For Installation

The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30°.

USE THIS PRODUCT SAFELY

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC, negative ground battery system (the regular system in a North American car).

Page 3

CONTENTS

Safety Information ........................................................................................4

Disc Notes .....................................................................................................5

The Player......................................................................................................6

Installation .....................................................................................................8

Open/Close the Monitor and Angle Adjustment........................................9

Electric Connection ....................................................................................10

Remote Control...........................................................................................11

Preparing the Remote Control..............................................................................13

Loading a DVD/VCD/CD Disc...............................................................................13

Ejecting a Disc ......................................................................................................13

Basic Operation ..........................................................................................14

On-Screen Display Function.................................................................................16

Multi-audio Language Function............................................................................17

Menu Function......................................................................................................17

Title Menu Function ..............................................................................................17

Multi-subtitle Language Function .........................................................................17

Multi-angle Function .............................................................................................17

MP3 Disc Play.......................................................................................................18

TV Operation.........................................................................................................18

Setup ............................................................................................................19

Initial Setup ...........................................................................................................19

General Setup.......................................................................................................19

Speaker Setup ......................................................................................................21

Audio Setup ..........................................................................................................21

Preferences Setup ................................................................................................22

Defaults Table .......................................................................................................24

Specifications..............................................................................................25

Page 4

SAFETY INFORMATION

CAUTION:

MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND - DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

• THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

Region Management Information

Region Management Information: This Mobile DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this Mobile DVD Player, this Mobile DVD Player cannot play this disc.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Page 5

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc (Single-sided disc only)

VIDEO CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this player

• DVD-ROM

• DVD-R/DVD-RAM

• CDV

• CD-G

Handling and Cleaning

• Dirt, dust, scratches and warping disc will cause misoperation.

• Do not place stickers or make scratches on discs.

• Do not warp discs.

• A disc should always be kept in its

case when not in use to prevent from damaging.

• Do not place discs in the following places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Label side up

Do not touch the underside of the disc

Do not bend

Wipe the disc from center toward the outside edge

Preparing New Discs with Rough Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Ball point pen or pencil

Rough spots

on inside edge

Page 6

THE PLAYER

FRONT VIEW

15 2

5-INCH MULTI COLOR TFT MONITOR

7-INCH MULTI COLOR TFT MONITOR

1. Power ( ) 2 IR (Remote Sensor)

3. EJECT ( )

4. Disc Slot

5. PLAY/PAUSE

6. STOP (

7. PREV (

8. NEXT (

)

) )

9. VIDEO INPUT

10. AUDIO INPUT

11. MODE

12. Indicator Light for DVD

13. Indicator Light for TV

14. Indicator Light for AV

15. SPEAKER ON/VOLUME

16. MULTI COLOR TFT MONITOR

17. COLOR Adjustment knob

18. BRIGHTNESS Adjustment knob

19. CONTRAST Adjustment knob

Page 7

THE PLAYER

SIDE VIEW

20.

This jack is for earphone. You can connect an earphone to the jack to receive sound signal.

21. VOLUME

Slide the knob to change the volume of the earphone.

22. Antenna

This antenna can receive TV signal.

BACK VIEW

23. DC 12V Power Input Socket

24. DC 12V Power Output Socket

25. Remote Control Socket

26. Digital Audio Out - Coaxial

25 26

27. AUDIO/VIDEO OUTPUT

28. Diversity Antenna Input

29. OPEN Button (Press to eject the screen display from the base at a little angle)

Page 8

INSTALLATION

1. Remove the two transport screws Press OPEN button on the back of the unit to eject the screen display from the base at a little angle then turn the monitor upward to display the two screw. And then use the screwdriver to remove the two screws.

Remove the transport scerws

Open Button

2. Push the monitor back into the monitor base unit until the screen engages with OPEN button. Then attach the brackets on both sides of unit with screws (M4x5), last install the unit with screws (M5x25). When fix the unit, you can slide the screw (M5x25) to left side or right side to meet your needed position. In the figure below, select two holes among the positions that marked 1, 2, 3 and 4 to fix the bracket.

SCREW

M4 x 5

SCREW M5 x 25

SCREW

M4 x 5

Page 9

OPEN/CLOSE THE MONITOR AND ANGLE ADJUSTMENT

Opening the monitor

Press the OPEN button on the back of the unit to eject the screen display from the base at a little angle. Then you can easily turn the monitor upward.

OPEN BUTTON

Adjusting the angle of the monitor

Rotate the monitor counter-clockwise to let the front view of the monitor appear. Then you can also adjust the monitor left and right from the central viewing position at a certain angle range. Don’t rotate the monitor forcibly to avoid mechanical damage.

Note: When the monitor is in upright position to the base, you can adjust the monitor left or right. Otherwise, the monitor may scrape the base surface when rotated.

Closing the Monitor

Rotate the monitor left and let the back of the monitor upward, then return the monitor to the central viewing position. Then push the monitor back into the monitor base unit until the screen engages with OPEN button.

Page 10

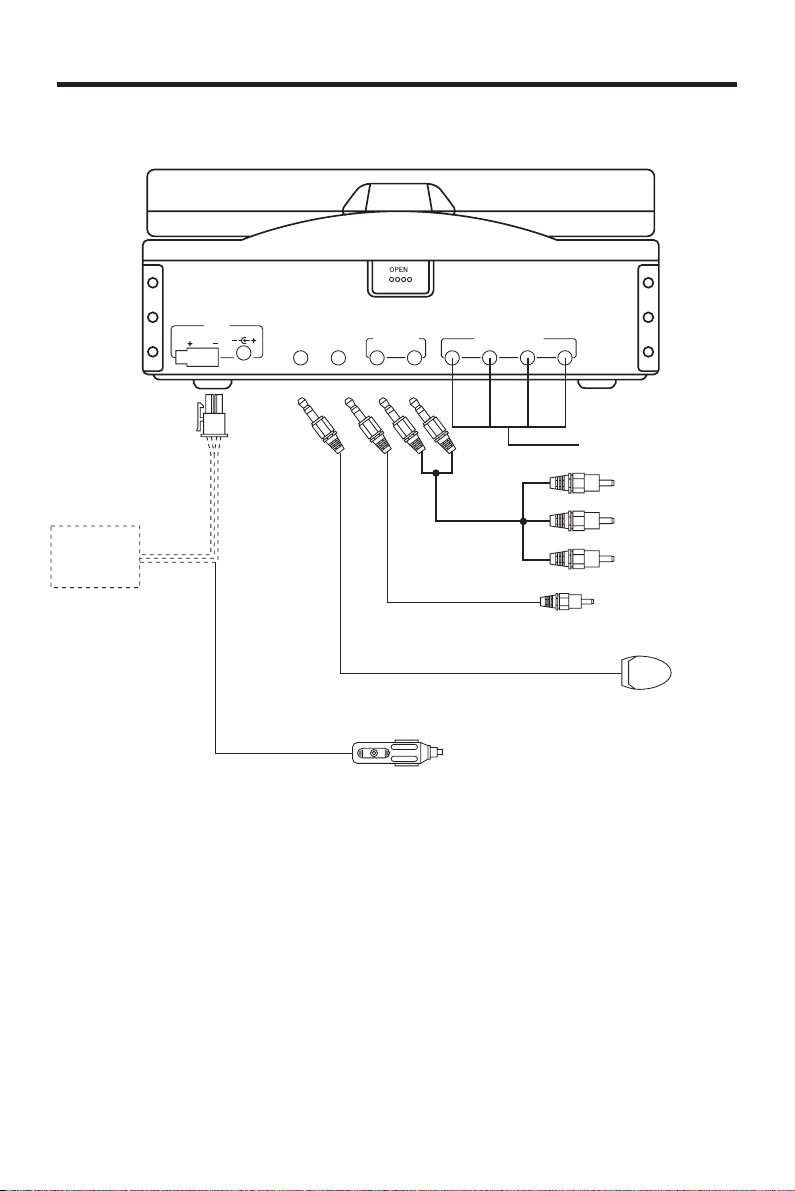

ELECTRIC CONNECTION

AC/DC

ADAPTOR

(OPTIONAL)

INPUT

DC 12V

OUTPUT

REMOTE

AUDIO/VIDEO

OUTPUT

REMOTE CONTROL RECEIVER

CIGARETTE LIGHTER

DIVERSITY ANTENNA

(OPTIONAL)

INPUT

DIVERSITY ANTENNA INPUT

YELLOW

VIDEO OUT

RED

AUDIO R OUT

WHITE

AUDIO L OUT

DIGITAL AUDIO

Page 11

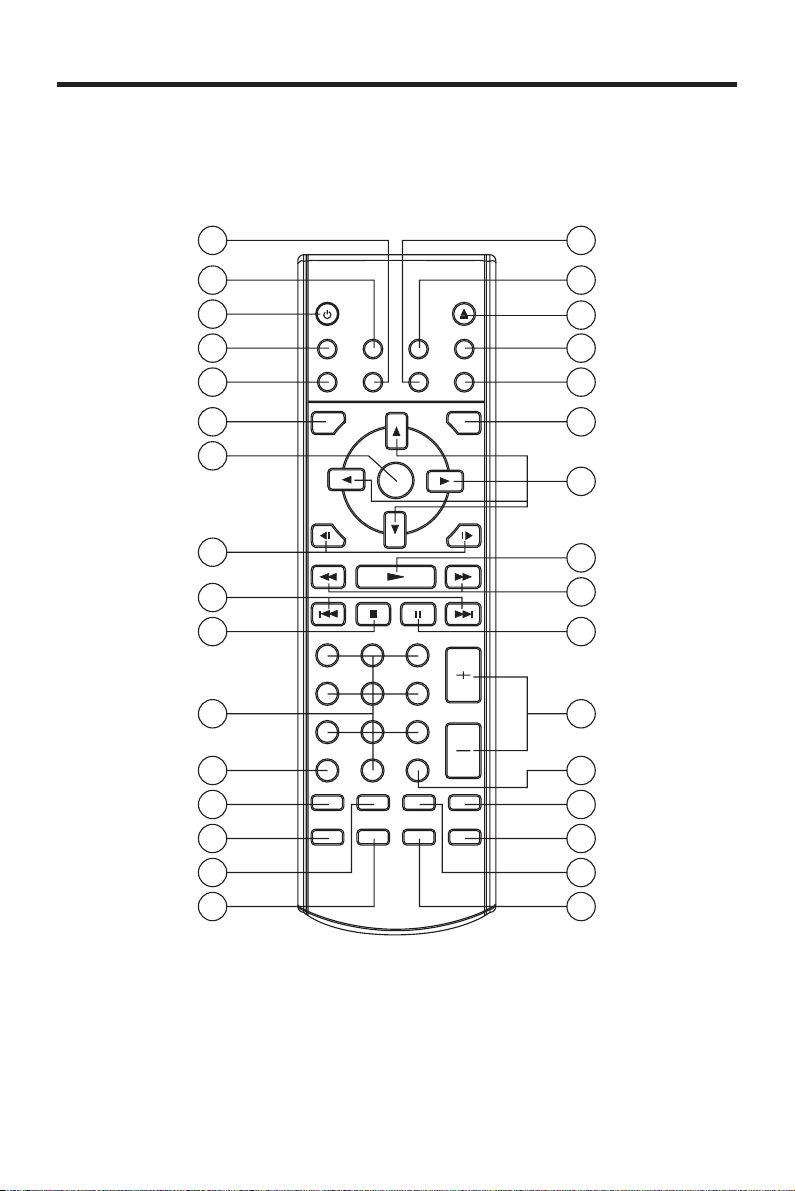

REMOTE CONTROL

2421

2726

3130

Page 12

REMOTE CONTROL

1. POWER Press POWER to turn the unit ON or OFF.

2. EJECT Press to eject the disc.

3. MUTE Press to mute the sound.

4. SUBTITLE Changing of the SUBTITLE language on multi-subtitle language

DVD disc.

5. ANGLE Changing of the view angle on multi-angle DVD disc.

6. DISPLAY Display statistical disc information during playback.

7. MODE Changing between DVD mode, TV mode and AV mode.

8. SETUP Display the SETUP menu.

9. PAL/NTSC Switch between PAL mode and NTSC mode.

10. AUDIO Changing of the AUDIO soundtrack on multi-audio soundtrack

DVD disc. Changing of the sound mode of the VCD/CD disc.

11. TITLE Display the TITLE menu that is stored in DVD disc.

12. MENU Display the root menu that is stored on the DVD disc.

In TV mode, press it to enter into search state, then pressing button to start searching TV channels.

13.

/ , / In case of MENU mode, / , / , buttons served as cursor

buttons to select item left/right, ahead/back..

14. ENTER Confirm the Track/Chapter selected with the numeric buttons or

selected with the cursor buttons on TV screen.

15.

/ Changing for slow forward/reverse playback motion.

16.

17. / Press to start forward rapidly & to reverse rapidly.

(CH+)

18.

19.

20.

21. 0 - 9 Numeric buttons

22. 10+ (-/--) Digital selecting button, cooperatively used with numeric buttons.

23. CLEAR When you input a number in error, press the button to clear it.

24. VOLUME+/- Press VOLUME+/- button to increase or decrease the volume

25. ZOOM Allows the picture to be increased or decreased in size.

26. RESUME When in stop mode, press the button, the play can be resumed

27. GOTO Disc search button, cooperatively used with numeric buttons.

28. PBC Changing between PBC ON and PBC OFF on the VCD disc.

29. RANDOM Allows the track played in random order.

30. PROGRAM Allows the track played in the order you programmed.

31. REPEAT Switch the Repeat mode of discs.

32. A-B A-B repeat allows a passage to be repeated continuously.

Press to play the disc.

(CH-)

Press to skip to the next track & press to skip back one track. In TV mode, press choose channel upward or downward.

Press it to stop playback. Press it to pause playback..

level.

from the stop point.

(CH+) button or (CH-) button to

Page 13

REMOTE CONTROL

Preparing the Remote Control

Inserting the Batteries

1. Open the battery compartment cover.

2. Insert the new batteries. Make sure

that the positive and negative terminals of the batteries are oriented indicated.

3. Close the cover

Battery: Two AAA size battery.

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal receiver). Operation angle: About ± 30 degree in each the direction of the front of the IR mark.

To prevent damage to the unit, be sure to follow the connection diagram (page 11).

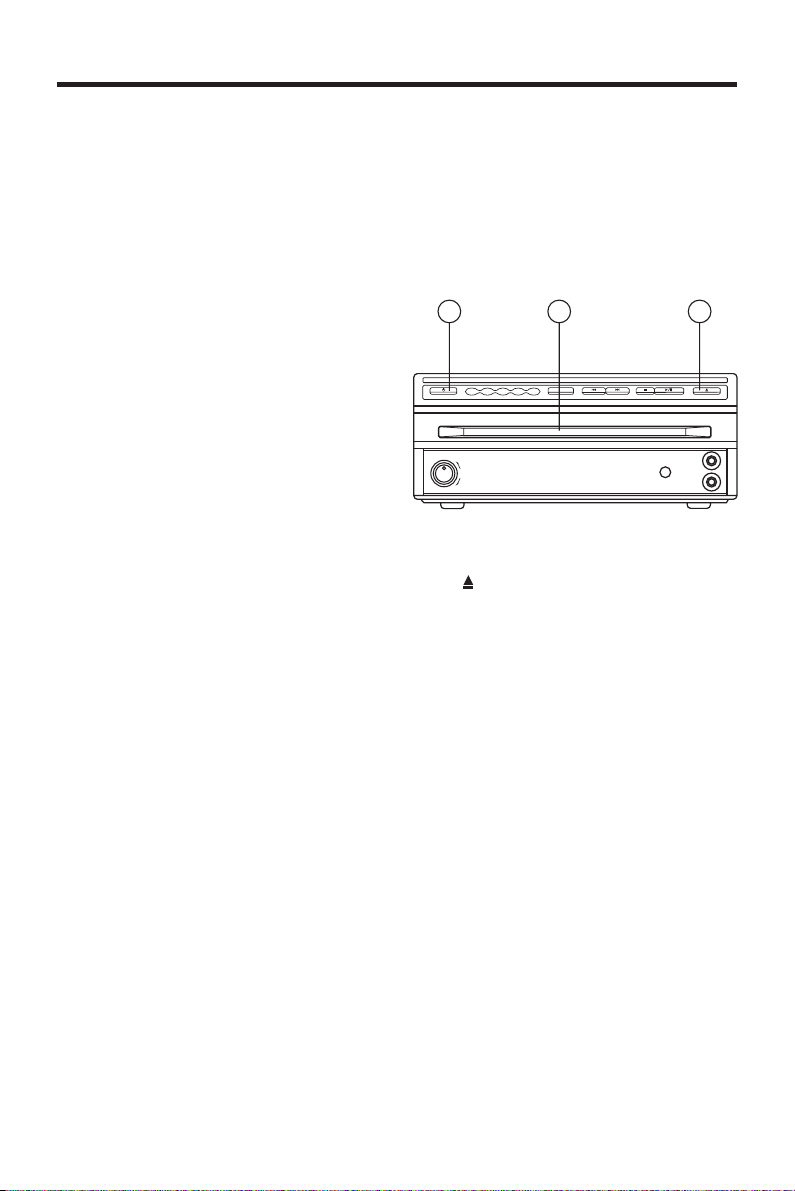

Loading a DVD/VCD/CD Disc

1. Turn the ignition on the accessory position.

2. Press the POWER button (1).

3. Insert the disc with printed side facing up into the disc slot (2).

4. The player starts playback automatically.

1 2 3

Ejecting a Disc

Press (EJECT) button (3) to eject the disc.

Page 14

BASIC OPERATION

Stopping Play

- Brief press the the unit playback, when press the

(Stop) button to stop

(Play) button it can continuous normal playback.

- Press

(Stop) button twice, it will stop the playback and go back to initial Track/Chapter.

Rapid Forward/Rapid Reverse

Press

& during play. Each time the button is pressed, the speed of rapid forward/reverse changes according to the disc as follow.

DVD:

Normal Playback 2X 4X 6X 8X

VCD/CD:

Normal Playback 1X 2X 3X 4X

MP3:

Normal Playback 2X 4X

Skipping Track

Press

/ on the remote handset or

/ buttons on the front panel during playback. Press

to skip to next track, and to back one track. Note: For some VCD2.0 discs (PBCplayback control),

/ buttons may

be unavailable.

Slow Motion Play

Press

/ during play. Each time the button is pressed, the speed of slow forward/reverse changes according to the disc as follow. DVD:

Normal Playback 2X 4X 8X

Pause (still picture)

Pressing

on the remote control or on the front panel during playback will stop play temporary. Return to normal

playback, press on the remote control

on the front panel.

MUTE

Will mute the sound, but the disc continues playing. When you unmute the sound (press MUTE again), a later passage will be playing.

Repeat

FOR DVD: Press the REPEAT button to select repeat mode as follow.

CHAPTER REPEAT ON TITLE REPEAT ON

REPEAT OFF

FOR VCD/CD: Press the REPEAT button to select repeat mode as follow.

REP-ONE REP-ALL REPEAT OFF

1. Continuously repeat at the current chapter/track, when selected REPONE mode.

2. Select REP-ALL mode to continuously repeat all chapter/track on the current disc.

3. When the player finish playback the current disc last chapter/track, it will stop display the elapsed time. When selected REPEAT OFF mode, REPONE & REP-ALL disappear at the screen display.

4. REPEAT feature not support VCD2.0 (with PBC ON).

A-B

A-B repeat allows a passage to be repeated continuously. Press A-B button at the start of the required passage, then press A-B button again at the end of the passage. To revert to normal playing, press A-B button again. Each time the button pressed, the screen will display as follows:

A TO B SET A ➝ A TO B SET B ➝ A TO B CANCELLED

Page 15

BASIC OPERATION

Disc Search (GOTO)

FOR DVD Press GOTO button twice, the screen will display the following message:

TITLE 01/01 TIME -- : -- : --

00:00:25

You can select the item you want to watch through TIME setting by using numeric buttons and ENTER key.

FOR CD/VCD (WITH PBC OFF): Press GOTO button once, the screen will display the following message:

GOTO -- : --

00:00:25

Use numeric buttons to input the time directly.

ZOOM

Allows the picture to be increased or decreased in size. Press ENTER to toggle among 1.5 scale, 2.0 scale and

3.0 scale.

RANDOM

Press RANDOM button, track selection will be made in random order. The display screen will show “SHUFFLE ON” on the right-top corner. Press RANDOM button again, “SHUFFLE OFF” appears and release the mode.

PROGRAM

In stop mode, press PROGRAM button, the screen will display “PROGRAM P00:00”. For example: press numeric button 4 and

button, “PROGRAM P01:04” appears. It means track 4 will be played first.

MODE SELECTION

Press MODE button on the front panel of the unit or on the remote control to select among DVD, TV and AV mode.

When select one mode, the corresponding indicator will be illuminated.

SPEAKER ON/VOLUME CONTROL KNOB

Rotate the SPEAKER ON/VOLUME knob clockwise or counter-clockwise to increase or decrease the volume level of the speakers on the base of the unit. When rotate the knob in the direction of volume decreasing to the end, it will turn off the speakers.

COLOR

Slide the COLOR knob upward or downward to increase or decrease the color of the screen display.

BRIGHTNESS

Slide the BRIGHTNESS knob upward or downward to increase or decrease the screen brightness.

CONTRAST

Slide the CONTRAST knob upward or downward to increase or decrease the contrast lever of the screen display.

OPEN (Monitor Release Button)

Press the OPEN button on the back of the unit to eject the screen display from the base at a little angle. Then you can easily turn the display upward or downward for good viewing.

Remote Sensor (IR)

Point the remote handset to the remote sensor on the front panel. Receive the signal from remote handset.

Turning the player on/off

Press the

(POWER) button on front of panel or on remote control to turn the player on or off.

Reset Function

When the function buttons are operated in error state, please unplug the DC 12V INPUT plug then put the plug in the socket again.

Page 16

BASIC OPERATION

On-Screen Display Function

Press the DISPLAY button during playback to display the contents of the current disc on the screen. Example:

DVD:

(1) Press DISPLAY for the first time:

TITLE 01/03 CHAPTER 002/025
