PYLE Audio PLTVD5P User Manual

PLTVD5P

OWNER’S MANUAL

Mobile Video System

• Digital Audio Out-Coaxial

• DVD Player With TV Tuner

• Multi Color TFT Monitor

• Multi-subtitle Languages Function

• Multi-audio Languages Function

• Multi-angle Function

• Parental Control

• Remote Control

FEATURES

Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD)

This player can play discs recorded in either PAL or NTSC format.

•A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders.

• L/R stereo analog audio outputs for connection to existing head unit aux inputs. Video output is composite video.

• Supplied remote handles multi-function

software (multi-language audiotrack/subtitle, multi-angle, multistory, etc.), plus all basic functions.

Built In TV Tuner

• PLL Tuning System

•I

C Bus Control

Protect the Disc Mechanism

Avoid inserting any foreign objects into the slot of this player. Failure to observe this may cause malfunction due to the precise mechanism of this unit.

Use Authorized Service Centres

Do not attempt to disassemble or adjust this precision product. Please refer to the Service Centre list included with this product for service assistance.

For Installation

The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than

30°.

USE THIS PRODUCT SAFELY

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC, negative ground battery system (the regular system in a North American car).

CONTENTS

Safety Information ........................................................................................4

Disc Notes .....................................................................................................5

The Player......................................................................................................6

Installation .....................................................................................................8

Open/Close the Monitor and Angle Adjustment........................................9

Electric Connection ....................................................................................10

Remote Control...........................................................................................11

Preparing the Remote Control..............................................................................13

Loading a DVD/VCD/CD Disc...............................................................................13

Ejecting a Disc ......................................................................................................13

Basic Operation ..........................................................................................14

On-Screen Display Function.................................................................................16

Multi-audio Language Function............................................................................17

Menu Function......................................................................................................17

Title Menu Function ..............................................................................................17

Multi-subtitle Language Function .........................................................................17

Multi-angle Function .............................................................................................17

MP3 Disc Play.......................................................................................................18

TV Operation.........................................................................................................18

Setup ............................................................................................................19

Initial Setup ...........................................................................................................19

General Setup.......................................................................................................19

Speaker Setup ......................................................................................................21

Audio Setup ..........................................................................................................21

Preferences Setup ................................................................................................22

Defaults Table .......................................................................................................24

Specifications..............................................................................................25

SAFETY INFORMATION

CAUTION:

MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND - DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

• THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

Region Management Information

Region Management Information: This Mobile DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this Mobile DVD Player, this Mobile DVD Player cannot play this disc.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc (Single-sided disc only)

VIDEO CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this player

• DVD-ROM

• DVD-R/DVD-RAM

• CDV

• CD-G

Handling and Cleaning

• Dirt, dust, scratches and warping disc will cause misoperation.

• Do not place stickers or make scratches on discs.

• Do not warp discs.

•A disc should always be kept in its case when not in use to prevent from damaging.

• Do not place discs in the following places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Label side up

Do not touch the underside of the disc

Do not bend

Wipe the disc from center toward the outside edge

Preparing New Discs with Rough Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Ball point pen or pencil

Rough spots

on inside edge

THE PLAYER

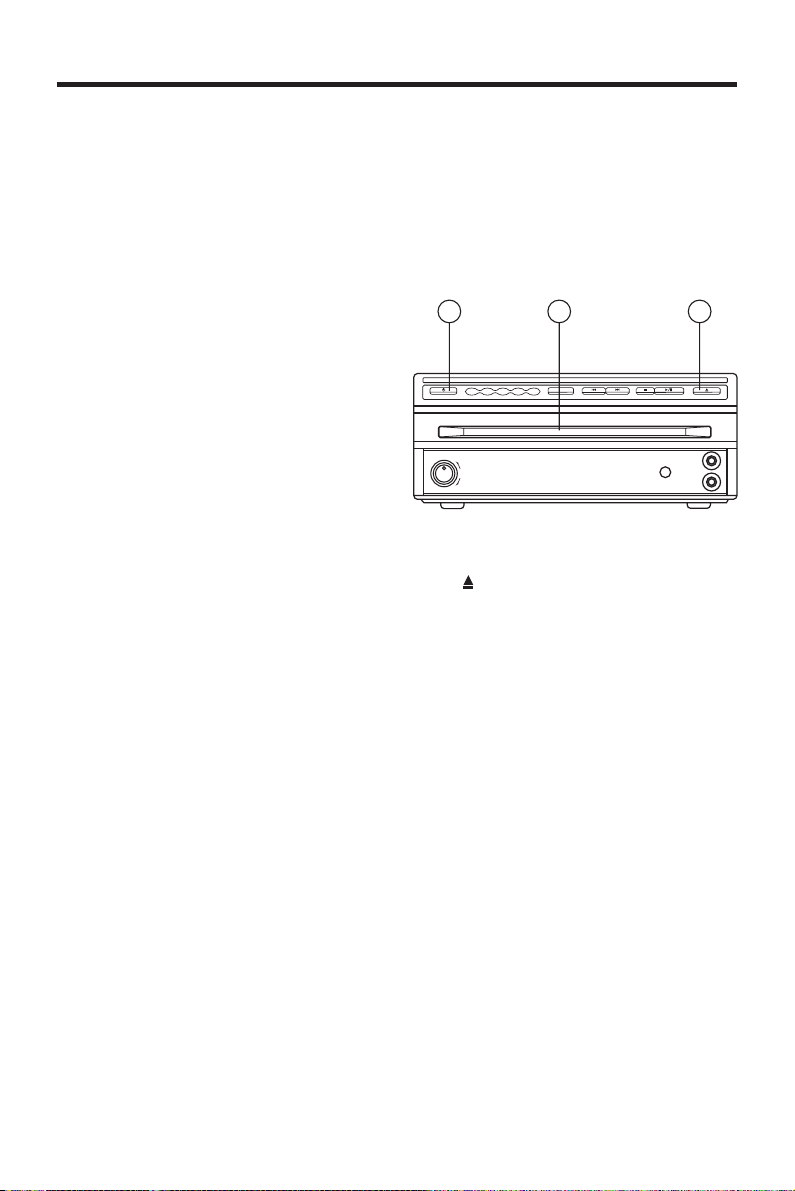

FRONT VIEW

15 2

5 -INCH MULTI COLOR TFT MONITOR

1. Power ( ) 2 IR (Remote Sensor)

3. EJECT ( )

4. Disc Slot

5. PLAY/PAUSE

6. STOP (

7. PREV (

8. NEXT (

9. VIDEO INPUT

10. AUDIO INPUT

)

) )

11. MODE

12. Indicator Light for DVD

13. Indicator Light for TV

14. Indicator Light for AV

15. SPEAKER ON/VOLUME

16. MULTI COLOR TFT MONITOR

17. COLOR Adjustment knob

18. BRIGHTNESS Adjustment knob

19. CONTRAST Adjustment knob

THE PLAYER

SIDE VIEW

20.

This jack is for earphone. You can connect an earphone to the jack to receive sound signal.

21. VOLUME

Slide the knob to change the volume of the earphone.

22. Antenna

This antenna can receive TV signal.

BACK VIEW

23. DC 12V Power Input Socket

24. DC 12V Power Output Socket

25. Remote Control Socket

26. Digital Audio Out - Coaxial

25 26

27. AUDIO/VIDEO OUTPUT

28. Diversity Antenna Input

29. OPEN Button (Press to eject the screen display from the base at a little angle)

INSTALLATION

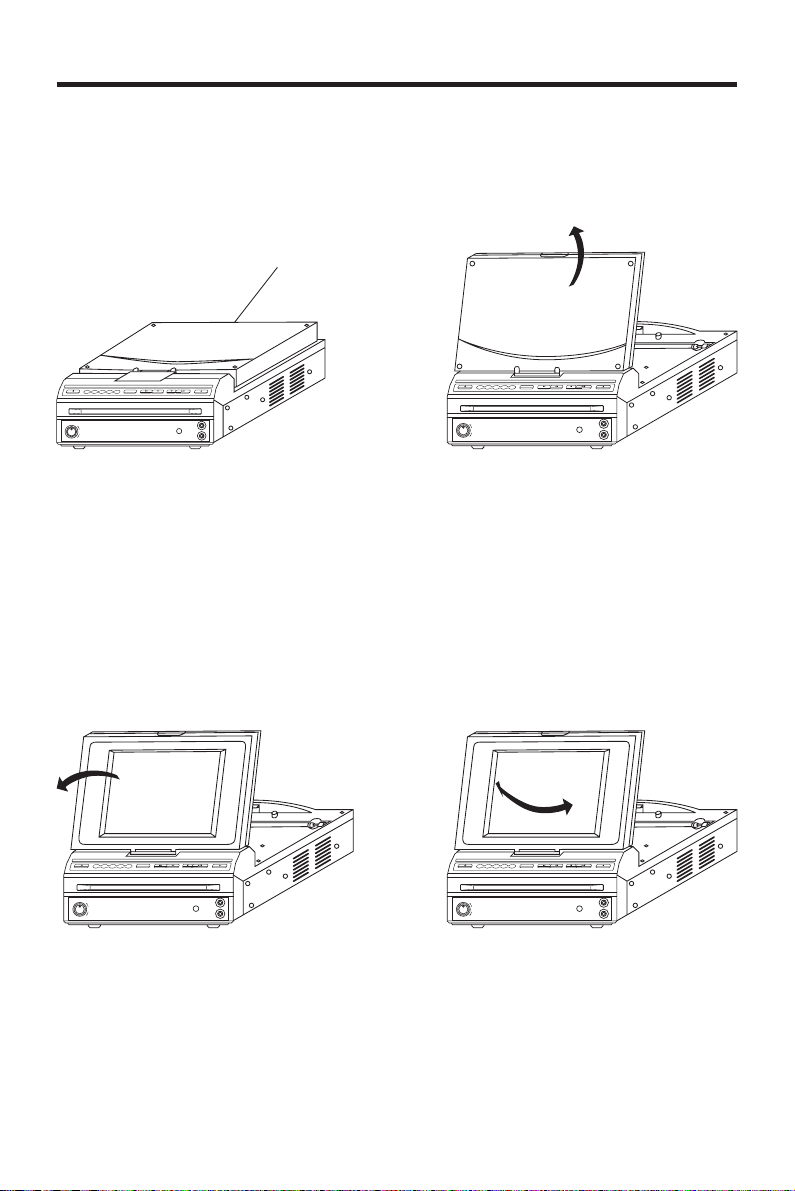

1. Remove the two transport screws Press OPEN button on the back of the unit to eject the screen display from the base at a little angle then turn the monitor upward to display the two screw. And then use the screwdriver to remove the two screws.

Remove the transport scerws

Open Button

2. Push the monitor back into the monitor base unit until the screen engages with OPEN button. Then attach the brackets on both sides of unit with screws (M4x5), last install the unit with screws (M5x25). When fix the unit, you can slide the screw (M5x25) to left side or right side to meet your needed position. In the figure below, select two holes among the positions that marked 1, 2, 3 and 4 to fix the bracket.

SCREW

M4 x 5

SCREW M5 x 25

SCREW

M4 x 5
