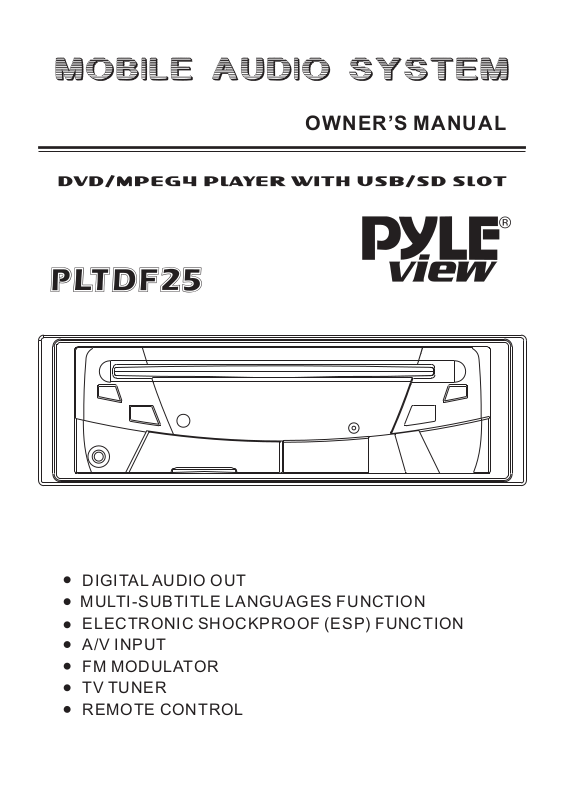

PYLE Audio PLTDF25 User Manual
OWNER’S MANUAL
DIGITAL AUDIO OUT
MULTI-SUBTITLE LANGUAGES FUNCTION
ELECTRONIC SHOCKPROOF (ESP) FUNCTION
A/V INPUT
FM MODULATOR
TV TUNER
REMOTE CONTROL
Page CONTENTS
1 Contents
2 Safety Information
3 Installation
5 Electric Connection
6 Operation
8 Using The Remote Control
9 General Operation
10 CD/MP3 Operation
11 DVD/VCD Operation
15 Data Disc Play Operation
16 Memory Card Play Operation
16 USB Device Operation
16 AV In Operation
16 FM Modulator Operation
17 TV Operation
17 Additional Information
18 Setup
18 System Setup
20 Language Setup
20 Audio Setup
20 Digital Setup
21 Specifications
21 Trouble shooting
User’s Manual - page 1
Safety Information
CAUTION:
This mobile DVD player is a class 1 laser
product. However this mobile DVD player
uses a visible/invisible laser beam which
could cause hazardous radiation
exposure if directed. Be sure to operate
the mobile DVD player correctly as
instructed.
Use of controls or adjustments or
performance of procedures other than
those specified herein may result in
hazardous radiation exposure.
Do not open covers and do not repair
yourself. Refer servicing to qualified
personnel.
WARNING:
- To reduce the risk of fire or electric
shock, do not expose this equipment to
rain or moisture.
- To reduce the risk of fire or electric
shock, and annoying interference, use
only the recommended accessories.
- This device is intended for continuous
operation.
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents
and other intellectual property rights
owned by Macro vision Corporation and
other rights owners. Use of this copyright
protection technology must be
authorized by Macro vision Corporation,
and is intended for home and other
limited viewing uses only unless
otherwise authorized by Macro vision
Corporation. Reverse engineering or
disassembly is prohibited.
DISC NOTES
Discs Note:
You can playback the following discs12CM on the receiver:
DVD VIDEO/DVD AUDIO
VIDEO CD/AUDIO CD
MP3/WMA/JPEG/MPEG4
Handling and Cleaning
- Dirt, dust, scratches and warping discs
will prevent proper operation.
- Do not place stickers or make scratches
on discs.
- Do not warp discs.
- A disc should always be kept in its case
when not in use to prevent from damage.
- Do not place discs in the following
places:
1.Direct sunlight.
2.Dirty, dusty and damp areas.
3.Near car heaters.
4.On the seats or dashboard.
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistened with isopropyl
(rubbing) alcohol. Never use solvents
such as benzene, thinner or conventional
record cleaners as they may mar the
surface of the disc.
Region Management Information
This mobile DVD Player is designed and
manufactured to respond to the Region
Management Information that is recorded
on a DVD disc. If the Region number
described on the DVD disc does not
correspond to the Region number of this
Mobile DVD Player, this Mobile DVD
Player cannot play this disc.
User’s Manual - page 2
Label side
up
Do nottouch
the underside
of thedisc
Do not
bend
Wipe thedisc from
center towardthe
outside edge
Preparing New Discs with Rough Spots
A new disc may have rough edges on its
inside and outside edges. If a disc with
rough edges is used, the proper setting
will not be performed and the player will
not play the disc. Therefore, remove the
rough edges in advance by using a
ballpoint pen or pencil as shown on the
right. To remove the rough edges, press
the side of the pen or pencil against the
inside and outside edges of the disc.
Installation
Notes:
- Choose the mounting location where the unit
will not distract the driver.
- Before the installing of the unit, connect the
wiring temporarily and make sure it is all
connected up properly and the unit and the
system works.
- Use only the parts included with the unit to
ensure proper installation. The use of
unauthorized parts can cause malfunctions.
- Consult with your nearest dealer if
installation requires the drilling of holes or
other modifications of the vehicle.
- Install the unit where it does not get in the
driver's way and cannot injure the passenger if
there is a sudden stop, like an emergency
stop.
- If installation angel exceeds 30°from
horizontal, the unit may not perform properly.
Rough spots
User’s Manual - page 3
Rough spots
on
outside edge
on inside
edge
Ball point pen
or pencil
- Avoid installing the unit where it will be
subject to high temperature, such as from
direct sunlight, or from hot air, from the
heater, or where it would be subject to
dust, dirt or excessive vibration.
The unit is designed for home-use and car-use. When installed on the car, please
follow the installation instruction below.
Notes:
1. First remove the two screws that lock the DVD mechanism, then attach the
brackets on both sides of unit with screws (m4X5), last install the unit with
screws (m5X25).
2. When fix the unit, you can slide the screw (m5X25) to left side or right side to
meet your needed position. In the figure above, select two holes among
position that marked 1, 2, 3 and 4 to fix the bracket.
User’s Manual - page 4
ELECTRIC CONNECTION
METHOD A
Use the conversion cable to obtain DC 12V power supply input through the AC/DC
ADAPTER or the cigarette lighter according to the illustrator as follows:
METHOD B
According to the illustrator below, install the unit in the car and obtain DC 12V power
supply input.
MEMORY/BATTERY(B+) (YELLOW)
GROUND (B-)(BLACK)
IGNITION SWITCH(ACC+) (RED)
IR Sensor
If you need to mount the DVD player in a location which is inaccessible, or where the line-ofsight between the remote control and the face of the player is interrupted, connect the remote
sensor as shown in the diagram above.
Mount the IR Sensor in a convenient location which is in direct line-of-sight with the use
location of the remote control. Point the remote control at the sensor to operate the player.
User’s Manual - page 5
OPERATION
LOCATION AND FUNCTION OF KEYS
Front panel
Remote Control
User’s Manual - page 6
