PYLE Audio PLRD92 User Manual

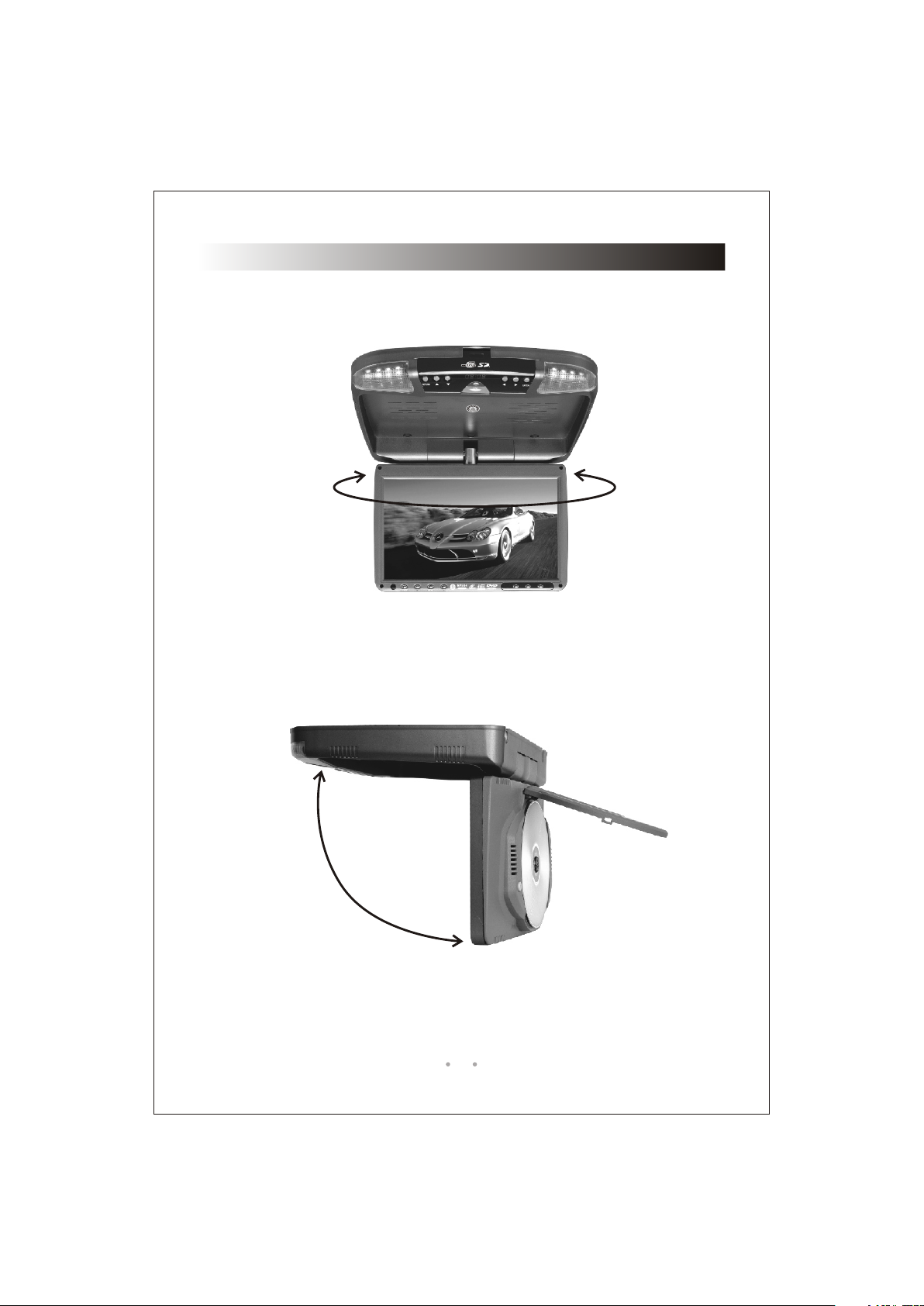

ROOF-MOUNT DVD PLAYER

(

USB/SD

9" TFT LCD COLOR MONITOR

)

MODE

V V

WARNING! HAZARD!

DO NOT OPERATE THIS UNIT UNLESS VEHICLE

IS PARKED IN SAFE AND LEGAL AREA.

PLAY STOP

USER'S MANUAL

Compatible with

DVD/SVCD/DVCD/VCD/CD/MP3/MP4/JPG/DivX

封二空白

Roofmounting monitor with multi-media player

TABLE OF CONTENTS

GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 & 6

OPERATION BUTTONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

WIRING INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

DVD/SD CARD/USB LOCATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . 9

MULTIDISC PLAYER OPERATION. . . . . . . . . . . . . . . . . . . . . . 10-14

MULTIDISC PLAYER SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

MP3 PLAYER OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SD CARD/USB OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Roofmounting monitor with multi-media player

Please read the manual carefully before using and keep it well for your future reference. Important instruction for safely:

For your safety, do not turn on, watch or operate the unit while driving. In some countries and regions, it may be against the laws. The product is comprised of many precision electronic components. Self-renovation or disassembling may cause malfunction to the device.

Note:

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. High voltage inside! Do not open or dismantle the unit. Do not repair yourself. Refer servicing to qualified personnel. The product is a laser product. Make sure to read instruction manual before operating. Do not try to open the covers to avoid direct laser radiation. When the cover of the unit is opened or the interlocking system gets unlocked, the laser light can be visible. Direct vision of laser beam is hazardous to your eyes. In order to prolong the life of the unit which has a large scale of integrate circuits and precision pick-up device, Frequent turn ON/OFF might damage the unit. More than 5 seconds interval is required.

Note:

LCD may have a few color dots, which is common for the matrix display technology, and doesn't indicate defects or faults.

Roofmounting monitor with multi-media player

Features:

1. The display unit has built in DVD player.

2. Built in USB 2.0 host and SD card reader.

3. Built in wireless FM Audio transmitter.

4. Built in IR Audio transmitter.

5. AV input channel

Discs for playback

Type

DVD

VCD

MP3

MP4

Icon

MP3

MP4

Content

Video & Audio (dynamic image)

Audio

Video & Audio (dynamic image)

Size

12cm / 8cm

Disc-related terms

Title (DVD only)

The main film content or accompanying feature content or additional feature content, or music album. Each title is assigned a title reference number enabling you to locate it easily.

Chapter (DVD only)

Sections of a picture or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a chapter number, enable you to locate the chapter you want. Depending on the disc, no chapters may be recorded.

Track (Video CD and audio CD only)

Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.

Diagram of DVD disc

Disc

Title

Diagram of VCD/CD

Disc

Chapeter

Track

Precaution Safety

Please check the voltage in the car as the machine required before playing. Please hold the plug tightly, and avoid dragging the power cords when insert the plug in or pull out it from the jack. This machine has laser system which is harmful for the eyes, please do not open the crust. Any repair you need, it is necessary to ask for the specialized personnel.

Roofmounting monitor with multi-media player

Placement

The storage temperature ranges from -30°C to -75°C, operating temperature ranges from -10°C to 55°C. Please keep the pick-up clean and away the dust. If so, the cleaning disc can help deal with this problem. For detailed operation instructions for cleaning the pick-up, you can consult the user's manual of pick-up cleaning disc. Do not expose this unit to rain or moisture. Avoid dropping or impact to the unit.

Vapor on convex mirror and trouble shooting

There's liquid on convex mirror in following cases, but it is normal phenomena. Due to sudden change in temperature and car air-conditioner is turned ON their will be a vapor formation on convex mirror. To de-vaporize it please take out the disc and power ON the unit about one hour. Please wipe the machine with soft and dry cloth dipped optional washing liquor in case of scratching the screen.

Note

Handling discs: Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc. Storing discs: After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car. Cleaning discs: Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out. Do not use strong solvents such as alcohol, benzine, thinner.

Brief Instructions

Checking the accessories

remote controller user's manual rubber pillow

1 1 6

Roofmounting monitor with multi-media player

Instructions for remote control (shown as pictures)

Pull

Push

* Press the catch and at the time pull out the battery tray. Insert the

battery, type CR2025 battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control.

* Direct the remote controller to infrared receiver window of the machine

within 60 and 3 meters, without any barriers between them.

* Commonly, the life-span of the batteries is about one year, always

replace the old set of new batteries.

* Please take out the battery when not using the remote controller for a

long time.

* Please pull out the separation film before when using the remote

controller.

Warning:

Store the battery where children cannot reach. Do not recharges, short, disassemble or heat the battery or dispose it in a fire.

30 29

27 26 25 24 23 22

21 20 19

18 17 16 15

11 12 13 14

3 4 5 6

7 8 9

Roofmounting monitor with multi-media player

REMOTE CONTROL FUNCTION

1. POWER button: Press the POWER key to turn the power ON/OFF.

2. NUMBER button: In the DVD/SD/USB mode by pressing these button you can directly select the program. In TV mode, you can directly select the TV channel.

3. SUBTITLE button: muti-subtitle select.

4. DISPLAY button: show information about DVD/SD/USB/TV.

5. AUDIO button: muti-language select.

6. ANGLE button: muti-angle select.

7. UPWARD button: In DVD/SD/USB mode, press it to select the menu or program. In TV mode, press to search upwards the TV channel.

8. SETUP button

9. ENTER button

10. LEFTWARD button: Press it to leftward select the menu or program.

11. CONSOLE button: Press CONSOLE that will display the select subtitle: BRIGHTNESS-CONTRAST-SATURATION-HUE-FM-IR-RESET.

12. DOWNWARD button: In DVD/SD/USB mode, press it to select down the menu or program. In TV mode, press it to select down the channel.

13.14. VOLUME button: Press the button to increase or decrease the volume.

15.16. PREVIOUS/NEXT button.

17.18. FAST BACKWARD/FAST FORWARD button.

19. STOP button: Press STOP for memory stop, press STOP twice to stop playing.

20. RIGHTWARD button: Press it to rightward select the menu or program.

21. PLAY button: Press once, it plays or pause.

22. AUTO/ZOOM button: in the DVD/SD/USB mode, press it the picture can be zoomed. In the TV mode, press it to auto search TV channel.

23. REPEAT button: In the playing mode, press it to perform the repeated playing.

24. MUTE button: Press the key to turn on and off the volume output.

25. PROGRAM button.

26. SLOW button.

27. SEARCH button.

28. AV/TV/DVD button: Select among these three modes.

29. TITLE button.

30. MENU PBC button.
