PLDVD92

OWNER’S MANUAL

Mobile Video System

• Digital Audio Out-Coaxial

• DVD Player

• Vacuum Fluorescent Display

• Multi-subtitle Languages Function

• Multi-audio Languages Function

• Multi-angle Function

• Parental Control

• Remote Control

FEATURES

Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD)

This player can play discs recorded in either PAL or NTSC format.

• A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders.

• L/R stereo analog audio outputs for connection to existing head unit aux inputs. Video output is composite video.

• Supplied remote handles multi-function software (multi-language audio-track/subtitle, multi-angle, multistory, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or other damage.

Use Authorized Service Centres

Do not attempt to disassemble or adjust this precision product. Please refer to the Service Centre list included with this product for service assistance.

For Installation

The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30°.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC, negative ground battery system (the regular system in a North American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into the slot of this player. Failure to observe this may cause malfunction due to the precise mechanism of this unit.

CONTENTS

Safety Information ........................................................................................4

Disc Notes .....................................................................................................5

The Player......................................................................................................6

Installation .....................................................................................................7

Mechanical Installation ...........................................................................................7

Electrical Connection..............................................................................................7

Remote Control.............................................................................................8

Preparing the Remote Control..............................................................................10

Loading a DVD/VCD/CD Disc...............................................................................10

Ejecting a Disc ......................................................................................................10

Basic Operation ..........................................................................................11

On-Screen Display Function.................................................................................13

Multi-audio Language Function............................................................................14

Menu Function......................................................................................................14

Title Menu Function ..............................................................................................14

Multi-subtitle Language Function .........................................................................14

Multi-angle Function .............................................................................................14

MP3 Disc Play.......................................................................................................15

Setup ............................................................................................................16

Initial Setup ...........................................................................................................16

General Setup.......................................................................................................16

Speaker Setup ......................................................................................................18

Audio Setup ..........................................................................................................18

Preferences Setup ................................................................................................19

Defaults Table .......................................................................................................21

Specifications..............................................................................................22

SAFETY INFORMATION

CAUTION:

MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND - DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

• THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

Region Management Information

Region Management Information: This Mobile DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this Mobile DVD Player, this Mobile DVD Player cannot play this disc.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc (Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this player

• DVD-ROM

• DVD-R/DVD-RAM

• CDV

• CD-G

Handling and Cleaning

• Dirt, dust, scratches and warping disc will cause misoperation.

• Do not place stickers or make scratches on discs.

• Do not warp discs.

• A disc should always be kept in its

case when not in use to prevent from damaging.

• Do not place discs in the following places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it unusable) depending on your handle it and conditions in the usage environment.

Note these scratches are not an indication of any problem with the player.

Label side up

Do not touch the underside of the disc

Do not bend

Wipe the disc from center toward the outside edge

Preparing New Discs with Rough Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Ball point pen or pencil

Rough spots on inside edge

THE PLAYER

Front View

DVD

3 2 1

BA C D FE

1. Power ON/OFF (

) 10. PAUSE ( )

1211

7 89 10

2. Power Indicator 11. VFD Display

3. Tray OPEN/CLOSE (

) A. Operating status indicator (Play/Pause)

4. Disc Loading Tray B. Title number indicator

5. Remote Sensor C. Chapter number indicator

6. PLAY (

7. STOP (

) D. Disc rotation/speed/direction indicator

) E. DVD indicator

8. Skip Next Chapter ( ) F. Playing time indicator

9. Skip Previous Chapter

( ) 12. Reset

Back View

VIDEO OUT

AUDIO OUT

CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1 PRODUTO LASER CLASSE 1

OUT

SERIAL NO

DC 12V

REMOTE

6 8 5 1 2 4 37

1. Stereo Audio Out-Left 5. Digital Audio Out - Coaxial

2. Stereo Audio Out-Right 6. DC 12V Power Input Socket

3. Video Out 1 7. DC 12V Power Output Socket

4. Video Out 2 8. Remote Control Socket

DIGITAL

AUDIO OUT

LR1

INSTALLATION

Install your DVD player on a stable flat surface. There must be sufficient space in front of the player for the drawer to be opened. Don’t expose your player to extremes of temperature or humidity. Avoid standing it on a hot surface such as on top of other hot running equipment and ensure that there is adequate ventilation to the player.

MECHANICAL INSTALLATION

Install step showing on as following figure. You can use screws or magic tapes to fix your unit.

Hexagonal bolt (M6 x 20) 4pcs

Tapping screw (M5x12) 4pcs

Bracket 2pcs

Magic Tape

(3 pcs)

Sponge 2pcs

Step 1 (Method A) Step 3

Step 2Step 1 (Method B)

ELECTRICAL CONNECTION

DVD

Player

Protective Pad

Tighten the screw

1. DIRECT CONNECT WITH A TV

Only connect the Audio cable and Video cable to your TV. Show on as Fig. 1. Fix the remote control receiver with magic tape on the proper position and it can “see” the remote control.

DC 12V

Cigarette Lighter

OUT

DVD PLAYER

CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1 PRODUTO LASER CLASSE 1

SERIAL NO

A/V CABLE

DIGITAL

AUDIO OUT

REMOTE

Remote control receiver

VIDEO OUT

AUDIO OUT

LR1

2. HOME THEATRE CONNECTION

Connect the video socket on the DVD to your TV. Do not connect the L-R Audio socket to the TV, or if the L-R connections are made, you need to set the TV volume control to zero. Show on as Fig. 2. Connect the digital audio out socket on the DVD to the digital input socket of your 5.1 channel receiver/amplifier.

5.1 CH.RECEIVER

DIGITAL AUDIO

4pcs

Fig. 1

Magic Tape

CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1 PRODUTO LASER CLASSE 1

OUT

DC 12V

Cigarette Lighter

DVD PLAYER

SERIAL NO

A/V CABLE

DIGITAL AUDIO OUT

REMOTE

Remote control receiver

Front Speaker (Left)

Centre

VIDEO OUT

AUDIO OUT

LR1

Rear Speaker

Magic Tape

(Left Surround)

Speaker

Front Speaker (Right)

Sub woofer

Rear Speaker (Right Surround)

Fig. 2

REMOTE CONTROL

2421

2726

3130

REMOTE CONTROL

1. POWER Press POWER to turn the unit ON or OFF.

2. EJECT Press to eject the disc.

3. MUTE Press to mute the sound.

4. SUBTITLE Changing of the SUBTITLE language on multi-subtitle language

5. ANGLE Changing of the view angle on multi-angle DVD disc.

6. DISPLAY Display statistical disc information during playback.

7. PBC Changing between PBC ON and PBC OFF on the VCD disc.

8. SETUP Display the SETUP menu.

9. PAL/NTSC Switch between PAL mode and NTSC mode.

10. AUDIO Changing of the AUDIO soundtrack on multi-audio soundtrack

11. TITLE Display the TITLE menu that is stored in DVD disc.

12. MENU Display the root menu that is stored on the DVD disc

13.

/ , / In case of MENU mode, / , / , buttons served as cursor

14. ENTER Confirm the Track/Chapter selected with the numeric buttons or

15.

/ Changing for slow forward/reverse playback motion.

16.

17. / Press to search forward rapidly & to search reverse rapidly.

/ Press to skip to the next track & press to skip back one

18.

19.

20.

21. 0 - 9 Numeric buttons

22. 10+ Digital selecting button, cooperatively used with numeric buttons.

23. CLEAR When you input a number in error, press the button to clear it.

24. VOLUME+/- Press VOLUME+/- button to increase or decrease the volume

25. ZOOM Allows the picture to be increased or decreased in size.

26. RESUME When in stop mode, press the button, the play can be resumed

27. GOTO Disc search button, cooperatively used with numeric buttons.

28. STEP Press to stop at the next picture.

29. RANDOM Allows the track played in random order.

30. PROGRAM Allows the track played in the order you programmed.

31. REPEAT Switch the Repeat mode of discs.

32. A-B A-B repeat allows a passage to be repeated continuously.

DVD disc.

DVD disc. Changing of the sound mode of the VCD/CD disc.

buttons to select item left/right, ahead/back.

selected with the cursor buttons on screen.

Press to play the disc.

track. Press it to stop playback.

Press it to pause playback.

level.

from the stop point.

REMOTE CONTROL

Preparing the Remote Control

Inserting the Batteries

1. Open the battery compartment cover.

2. Insert the new batteries. Make sure

that the positive and negative terminals of the batteries are oriented indicated.

3. Close the cover

Battery: Two AAA size battery.

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal receiver). Operation angle: About ± 30 degree in each the direction of the front of the IR mark.

To prevent damage to the unit, be sure to follow the connection diagram (page 7).

Loading a DVD/VCD/CD Disc

1. Turn the ignition on to the accessory

position and the STAND BY indicator (1) will display red.

2. Press the POWER button (2). The

STAND BY indicator will go out.

3. Press

4. Close the tray by pressing

button on the front panel (3) or on the remote control to open the disc loading tray (4), then place the disc with printed side facing up on the tray.

button on the front panel or on the remote control, and the player will start playback automatically.

Ejecting a Disc

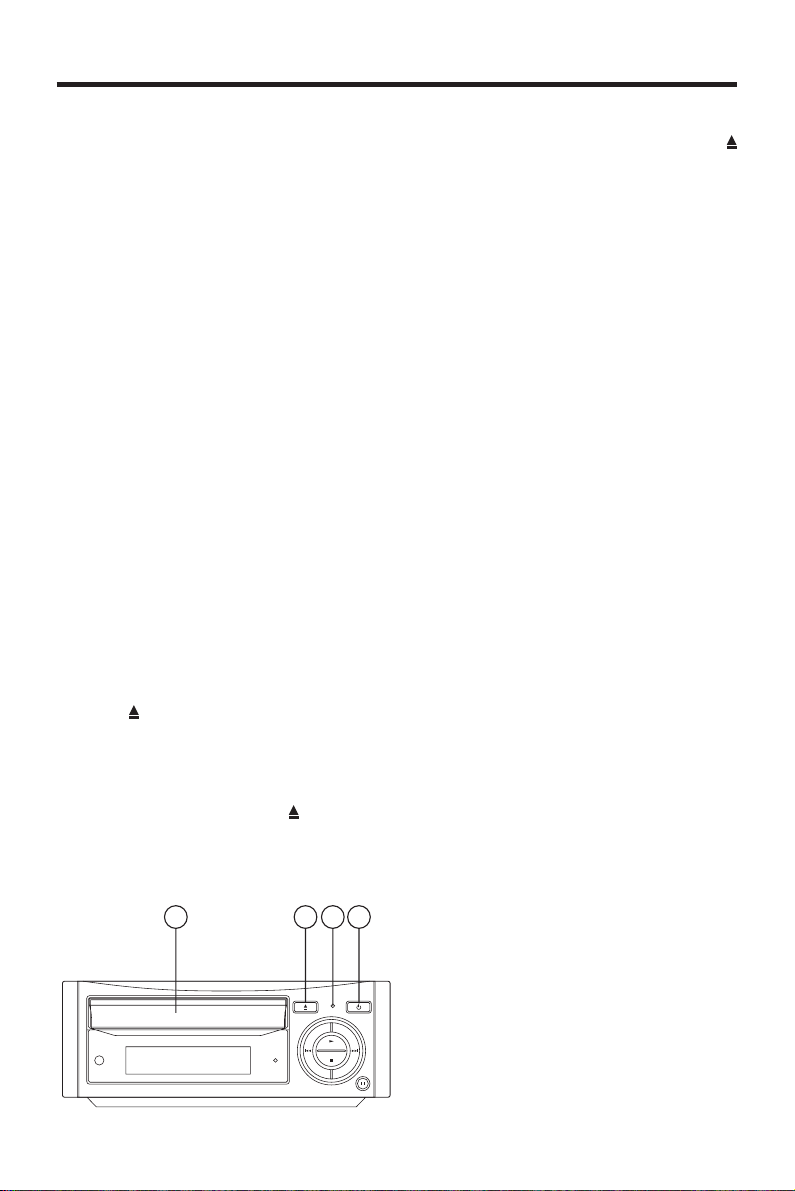

Open the disc loading tray by pressing button on the front panel or on the remote control, and then the disc will stop playing automatically. Then you can remove the disc and close the tray.

4 213

BASIC OPERATION

Stopping Play

- Brief press the (Stop) button to stop the unit playback, when press the (Play) button it can continuous normal playback.

- Press

(Stop) button twice, it will stop the playback and go back to initial Track/Chapter.

Rapid Forward/Rapid Reverse

Press

& during play. Each time the button is pressed, the speed of rapid forward/reverse changes according to the disc as follow.

DVD:

Normal Playback 2X 4X 6X 8X

VCD/CD:

Normal Playback 1X 2X 3X 4X

MP3:

Normal Playback 2X 4X

Skipping Track

Press

/ on the remote handset or buttons on the front panel during playback. Press

to skip to next track, and to back one track. Note: For some VCD 2.0 discs (PBC-playback control),

/ buttons

may be unavailable.

Slow Motion Play

Press

/ during play. Each time the button is pressed, the speed of slow forward/reverse changes according to the disc as follow.

DVD:

Normal Playback 2X 4X 8X

MUTE

Will mute the sound, but the disc continues playing. When you unmute the sound (press MUTE again), a later passage will be playing.

Repeat

FOR DVD: Press the REPEAT button to select repeat mode as follow.

CHAPTER REPEAT ON TITLE REPEAT ON

REPEAT OFF

FOR VCD/CD: Press the REPEAT button to select repeat mode as follow.

REP-ONE REP-ALL REPEAT OFF

Continuously repeat at the current chapter/ track, when selected REP-ONE mode.

Select REP-ALL mode to continuously repeat all chapter/track on the current disc.

When the player finish playback the current disc last chapter/track, it will stop display the elapsed time. When selected REPEAT OFF mode, REP-ONE & REP-ALL disappear at the screen display.

4. REPEAT feature does not support (with PBC ON).

A-B

repeat allows a passage to be repeated continuously. Press A-B button at the start of the required passage, then press A-B button again at the end of the passage. To revert to normal playing, press A-B button again. Each time the button pressed, the screen will display as follows:

A TO B SET A TO B SET B A TO B CANCELLED

Pause (still picture)

Pressing

during playback will stop play temporary. Return to normal playback, press

once again.

BASIC OPERATION

Disc Search (GOTO)

FOR DVD: Press GOTO button twice, the screen will display the following message:

TITLE 01/01 TIME -- : -- : --

00:00:25

You can select the item you want to watch through TIME setting by using numeric buttons and ENTER key.

FOR VCD (WITH PBC OFF)/CD: Press GOTO button once, the screen will display the following message:

GOTO -- : --

00:00:25

Use numeric buttons to input the time directly.

ZOOM

Allows the picture to be increased or decreased in size. Press ENTER to toggle among 1.5 scale, 2.0 scale and

3.0 scale.

pen or thin metal object. Reset button is to be activated for the following reasons:

- Initial installation of the unit when all wiring is completed.

All the function buttons do not operate.

- Error symbol on the display.

Remote Sensor (IR)

Point the remote handset to the remote sensor. Receive the signal from remote handset.

Turning the player on/off

Press the panel or on the remote

(POWER) button on the front

control to turn the

player on or off.

RANDOM

Press RANDOM button, track selection will be made in random order. The display screen will show “SHUFFLE ON” on the right-top corner. Press RANDOM button again, “SHUFFLE OFF” appears and release the mode.

PROGRAM

In stop mode, press PROGRAM button, the screen will display “PROGRAM P00:00”. For example: press numeric button 4 and P01:04” appears. It means track 4 will be played first.

Reset

Reset button is placed on the front panel and must be activated with a ball point

button, “PROGRAM

BASIC OPERATION

On-Screen Display Function

Press the DISPLAY button during playback to display the contents of the current disc on the screen. Example:

DVD:

(1) Press DISPLAY for the first time:

TITLE 01/03 CHAPTER 002/025
