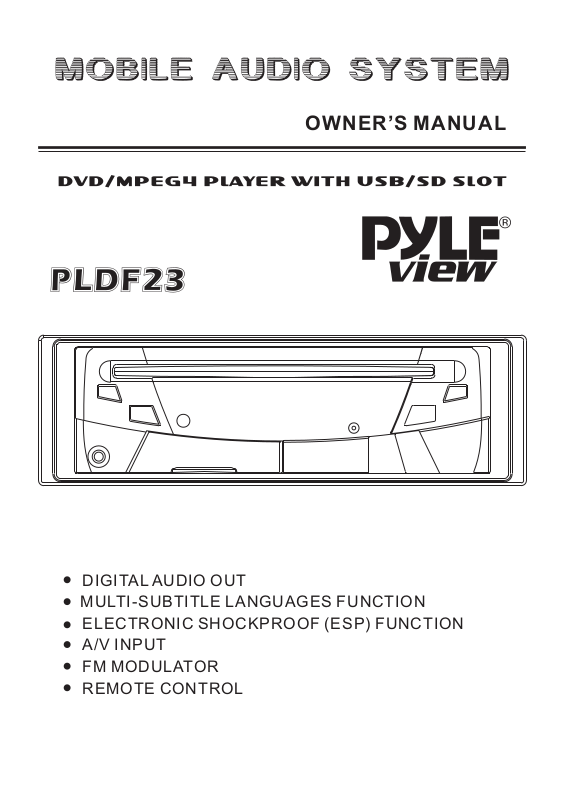

OWNER’S MANUAL
DIGITAL AUDIO OUT
MULTI-SUBTITLE LANGUAGES FUNCTION
ELECTRONIC SHOCKPROOF (ESP) FUNCTION
A/V INPUT
FM MODULATOR
REMOTE CONTROL
Page CONTENTS
1 Contents
2 Safety Information
3 Installation
5 Electric Connection
6 Operation
8 Using The Remote Control
9 General Operation
10 CD/MP3 Operation
11 DVD/VCD Operation
15 Data Disc Play Operation
16 Memory Card Play Operation
16 USB Device Operation
16 AV In Operation
16 FM Modulator Operation
17 Additional Information
18 Setup
18 System Setup
20 Language Setup
20 Audio Setup
20 Digital Setup
20 Specifications
21 Trouble shooting
User’s Manual - page 1
Safety Information
CAUTION:
This mobile DVD player is a class 1 laser
product. However this mobile DVD player
uses a visible/invisible laser beam which
could cause hazardous radiation
exposure if directed. Be sure to operate
the mobile DVD player correctly as
instructed.
Use of controls or adjustments or
performance of procedures other than
those specified herein may result in
hazardous radiation exposure.
Do not open covers and do not repair
yourself. Refer servicing to qualified
personnel.
WARNING:
- To reduce the risk of fire or electric
shock, do not expose this equipment to
rain or moisture.
- To reduce the risk of fire or electric
shock, and annoying interference, use
only the recommended accessories.
- This device is intended for continuous
operation.
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents
and other intellectual property rights
owned by Macro vision Corporation and
other rights owners. Use of this copyright
protection technology must be
authorized by Macro vision Corporation,
and is intended for home and other
limited viewing uses only unless
otherwise authorized by Macro vision
Corporation. Reverse engineering or
disassembly is prohibited.
DISC NOTES
Discs Note:
You can playback the following discs12CM on the receiver:
DVD VIDEO/DVD AUDIO
VIDEO CD/AUDIO CD
MP3/WMA/JPEG/MPEG4
Handling and Cleaning
- Dirt, dust, scratches and warping discs
will prevent proper operation.
- Do not place stickers or make scratches
on discs.
- Do not warp discs.
- A disc should always be kept in its case
when not in use to prevent from damage.
- Do not place discs in the following
places:
1.Direct sunlight.
2.Dirty, dusty and damp areas.
3.Near car heaters.
4.On the seats or dashboard.
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistened with isopropyl
(rubbing) alcohol. Never use solvents
such as benzene, thinner or conventional
record cleaners as they may mar the
surface of the disc.
Region Management Information
This mobile DVD Player is designed and
manufactured to respond to the Region
Management Information that is recorded
on a DVD disc. If the Region number
described on the DVD disc does not
correspond to the Region number of this
Mobile DVD Player, this Mobile DVD
Player cannot play this disc.
User’s Manual - page 2
Label side
up
Do nottouch
the underside
of thedisc
Do not
bend
Wipe thedisc from
center towardthe
outside edge
Preparing New Discs with Rough Spots
A new disc may have rough edges on its
inside and outside edges. If a disc with
rough edges is used, the proper setting
will not be performed and the player will
not play the disc. Therefore, remove the
rough edges in advance by using a
ballpoint pen or pencil as shown on the
right. To remove the rough edges, press
the side of the pen or pencil against the
inside and outside edges of the disc.
Installation
Notes:
- Choose the mounting location where the unit
will not distract the driver.
- Before the installing of the unit, connect the
wiring temporarily and make sure it is all
connected up properly and the unit and the
system works.
- Use only the parts included with the unit to
ensure proper installation. The use of
unauthorized parts can cause malfunctions.
- Consult with your nearest dealer if
installation requires the drilling of holes or
other modifications of the vehicle.
- Install the unit where it does not get in the
driver's way and cannot injure the passenger if
there is a sudden stop, like an emergency
stop.
- If installation angel exceeds 30°from
horizontal, the unit may not perform properly.
Rough spots
User’s Manual - page 3
Rough spots
on
outside edge
on inside
edge
Ball point pen
or pencil
- Avoid installing the unit where it will be
subject to high temperature, such as from
direct sunlight, or from hot air, from the
heater, or where it would be subject to
dust, dirt or excessive vibration.
The unit is designed for home-use and car-use. When installed on the car, please
follow the installation instruction below.
Notes:
1. First remove the two screws that lock the DVD mechanism, then attach the
brackets on both sides of unit with screws (m4X5), last install the unit with
screws (m5X25).
2. When fix the unit, you can slide the screw (m5X25) to left side or right side to
meet your needed position. In the figure above, select two holes among
position that marked 1, 2, 3 and 4 to fix the bracket.
User’s Manual - page 4
ELECTRIC CONNECTION
METHOD A
Use the conversion cable to obtain DC 12V power supply input through the AC/DC
ADAPTER or the cigarette lighter according to the illustrator as follows:
METHOD B
According to the illustrator below, install the unit in the car and obtain DC 12V power
supply input.
MEMORY/BATTERY(B+) (YELLOW)
GROUND (B-)(BLACK)
IGNITION SWITCH(ACC+) (RED)
IR Sensor
If you need to mount the DVD player in a location which is inaccessible, or where the line-ofsight between the remote control and the face of the player is interrupted, connect the remote
sensor as shown in the diagram above.
Mount the IR Sensor in a convenient location which is in direct line-of-sight with the use
location of the remote control. Point the remote control at the sensor to operate the player.
User’s Manual - page 5
OPERATION
LOCATION AND FUNCTION OF KEYS
Front panel
Remote Control
User’s Manual - page 6
1. POWER
Press it to turn the unit on/off.
2.
Pause playback a disc, press it again to
resume playback.
.
3MODE
Change between DVD, TV and AV mode.
4.
Press the button to skip back one track.
5.
Press the button to skip to the next track.
6. EJECT
Press it to eject the disc from the disc slot (7).
7. DISC Slot
Gently insert a disc with the printed side
uppermost into the disc slot (7) until you feel
some resistance.
8. AV IN
Connect peripheral audio/video system to
the unit through the AV IN terminals.
9. USB
You can connect an USB driver through this
port.
10. SD/MMC
You can insert SD/MMC card into the slot.
11. IR
Point the remote control handset to the
Remote Control Sensor IR (11). Press the
function keys on the handset to control the
system.
12. RESET
Press RESET button (12) to restores the
default setting.
13. DISP
Display statistical disc information during
playback.
14. A-B
A-B repeat allows a passage to be repeated
continuously.
15. RPT
Switch the repeat mode of discs.
16. ZOOM
Press the button to change the scaling.
17.
In some menus, , buttons served as
cursor buttons to move to up/down, left/right.
18. ENTER
Confirm the Track/Chapter selected with
the numeric buttons or selected with the
cursor buttons on TV screen.
terminals
port
card slot
19. SETUP
Press the button to enter into the system
setting menu.
20. TITLE/PBC
In DVD or VCD (PBC mode is on) mode,
TITLE/PBC
press button to display the TITLE
menu that is stored in disc.
21. 0~9
Numeric buttons.
22. AUDIO
On multi-audio sound track disc, press to
change the sound track.
23. SUB-T
Change the subtitle language on multi-subtitle
language DVD disc.
24. MUTE
Press it to mute the sound, press it again will
resume the sound.
25. ANGLE
Change the view angle on multi-angle DVD
disc.
26. VOL+/VOL-
Press the VOL+ to increase the volume level.
Press the VOL- to decrease the volume level.
27. MENU
In DVD or VCD (PBC mode is on) mode, press
the button to display the TITLE menu that is
stored in disc.
28.
Press the button to search forward rapidly.
29.
Press the button to search reverse rapidly.
30. GOTO
Press the button to select th bookmark that
you set.
31. STOP
Press it for the first time to pre-stop playback,
press it again to stop playback.
32. PROG
Press the button to play the track orderly by
what you programmed.
33. RDM
Press the button to play all tracksondisc
randomly. Press again to cancel the function.
AUDIO
User’s Manual - page 7
USING THE REMOTE CONTROL
Preparing and Using The Remote
Control
* Before using the remote control,
please take the transparent insulator
strip off the bottom of remote control.
* Point the remote control at the remote
sensor (11) from no more than 6 feet
away.
* If the IR sensor is exposed to direct
sunlight, the remote control may not be
able to communicate with it properly.
You may need to relocate or shield the
IR sensor.
* If you are more than 30 away from
0
being directly in front of the IR sensor,
the remote control may be unable to
communicate properly.
* The remote control is small,
lightweight precision device. To avoid
damage, short battery life, operational
erros and poor response, observe the
following:
-Do not subject the remote control to
excessive shock.
-Donotputinapocket.
-Keep away from food, moisture and
dirt.
-Do not place in direct sunshine.
2. Replacing the battery
Replace the battery with the same type
and the (+) side facing up.
3. Closing the cover
Gently push in the holder until securely
locked into place.
Battery replacement
The remote control uses a lithium button
type battery, model CR 2025 3V. Do not
use any other kind of battery in the
remote. Follow these instructions when
installing or replace the battery.
1. Remove the battery holder by
pressing the locking tab with your thumb
B
A
User’s Manual - page 8
GENERAL OPERATION
Initial System Start-Up
Be sure to press the button ( 12)
RESET
When using the unit for the first time,
after all connections are completed
correctly.
1. Turn off the unit power.
2. Press with a ballpoint pen or
RESET
similar pointed object.
Turning Power On and Off
Press button (1) or insert a disc to
turn on the unit.
When system is on, press button (1) to
turn off the unit.
Loading/Removing a Disc
1. Insert the disc into the disc slot (7)
with the printed side facing up. The
player will play the disc automatically.
2. Whenever press button (6) to eject
the disc.
Adjusting the volume level
Press button (26) to adjust
VOL+/VOL-
the volume level.
Input Source Select
Press button (3) to switch to the
MODE
desired input source.
The mode will change each time the
button is pressed.
.
DVD AV
ESP Function
This unit features ESP (anti-shock)
protection. It works by “playing ahead”
and buffering the stored part of the
program, playing it back when the
realtime portion of the program has been
disrupted. Depending on the
listening/viewing mode you are in, the
amount of time of disruption which can be
hidden is as follows:
CD, VCD: 18 seconds
MP3:160 seconds
DVD: 6 seconds
MPEG4: 20 seconds
Last Position Memory Feature
- During disc playback, if you press
button (1) to turn off the unit and then
press the button again to turn on the unit,
the DVD unit will resume playing from the
point that it was interrupted.
-During disc playback, if you press the
MODE
button (3) to switch to other mode,
and then return to DVD mode again, the
unit will resume playing from the point
that it was interrupted.
Reset Function
RESET
button on the housing must be
activated with either a ballpoint pen or
thin metal object. The button (12)
RESET
is to be activated at the following times:
-After initial installation of the unit when
all wiring is completed.
-Some of the function buttons do not
operate.
- Error symbol appears on the display.
Note:
If the unit still does not function after you
have pressed , try cleaning the
RESET
connectors which link the panel and the
main housing with a cotton swab
moistened with isopropyl (rubbing
alcohol). If it still does not work, bring the
unit to your dealer for servicing or advice.
User’s Manual - page 9
CD/MP3 Operation
Playback
1.2.Insert a disc with the label side facing
up. The disc will be drawn into the player
automatically. The information for the
current disc will be shown on the screen .
For CD:
3ForMP3.:
Pause Playback
Press button (2) to pause playback.
Press it again to resume playback.
Stopping playback
-
Briefly press the button (31) to stop
the playback hen the button is
pressed and then press button (
<
W
.
<
20),
normal playback will resume.
- Press button (31) twice and then
<
press button to stop the playback and
go back to first track.
Fast-Forward / Fast-Reverse
1. Fast-Forward
8
Press button (28) during playback.
Each time the button is pressed, the
speed of fast-forward increases as
follows
:
FORWARD 2X 4X 8X 20X
ÆÆÆ
In fast-forward state, press button (2)
to return to normal playback.
2. Fast-Reverse
7
Press button (29) during playback.
Each time the button is pressed, the
speed of fast-reverse increases as
follows:
Press /► button to move between
1).
◄
workarea A,Band C.
2). ▲/▼
Press button or input relative
numeric button to select the desired
folder or file of this work area.
Press button (18) to confirm
3).
ENTER
the selected item.
Return to the beginning of the previous
4.
track (file) by pressing the button (4).
Advance to the beginning of the next
5.
track (file) by pressing the button (5).
9
:
BACKWARD
ÆÆÆ
2X 4X 8X 20X
In fast-reverse state, press button (2)
to return to normal playback.
Repeat Play/ Paragraph Repeat Play
-
Repeat play:
Use this function when you wish to repeat
a whole disc, a track or a directory in the
disc.
1) RPT
Press button (15) repeatedly to
select different repeat modes.
2)
For different types of discs, pressing
RPT
button (15) has different effects.
For CD:
REP 1 REP ALL REP OFF
For MP3:
REP 1 REP DIR REP ALL REP
OFF
User’s Manual - page 10
Note:
REP 1:
Only a track (file) is played
repeatedly.
REP DIR:
Only tracks (files) in a folder
are repeatedly playing.
REP ALL:
An entire disc is played
repeatedly.
REP OFF:
The mode returns to normal
playback.
- Paragraph Repeat Play:
A-B repeat allows a selected passage to
be repeat continuously.
A-B
Press button (14) at the start of the
desired passage.
Press A-B button (14) at the end of the
passage.
Then the unit will repeat playing the
passage you just set from A to B.
To return to normal playback, press A-B
Button again.
Playing In Random Sequence
RDM
Press button (33) to switch the
random mode on/off. In this mode, tracks
(files) on the disc will be played in a
random sequence.
DVD/VCD Operation
Playback with PBC Menu
Some VCD or SVCD discs contain a
simplified menu to assist in selection of
tracks. To view this menu requires a
system called Playback Control (PBC).
PBC creates this disc directory “on-thefly” if PBC has been enabled. To turn PBC
On, press the PBC button (20). (Please
note that PBC does not accommodate the
following features: REPEAT, RANDOM,
A-B, PROGRAM and GO TO).
Playback With Menu
If the DVD disc or VCD/SVCD discs has a
menu system, and the PBC (playback
Control) setting is on, you can display the
menu which allow you to select the
program to playback by pressing PBC
button (20).
1. Move the cursor buttons ( , ) to
highlight the item you wish to select.
2. Press (18) to select this item.
ENTER
Some discs offer a series of menus which
with a wide variety of choices. You can
continue to navigate the menu further
using a combination of the cursor buttons
( , ) and the button (18).
ENTER
Pausing playback
To pause playback, press (2). Press
again to resume playback. Please note
that when playback is resumed, there
may be a short delay in either the image
or sound. This is normal.
User’s Manual - page 11
Stopping playback
Briefly press the button (31) to stop the
Unit playback. When the button is
pressed and then press button (2),
resume to the normal playback.
Press button (31) twice and then press
(20) to stop playback and go back to
the first track/chapter.
Fast-Forward / Fast-Reverse
1. Fast-forward
8
Press button (28) during playback.
Each time the button is pressed, the
speed of fast-forward increases as
follows:
FORWARD 2X 4X 8X 20X
In fast-forward mode, press button (2)
to return to normal playback.
2. Fast-Reverse
7
Press button (29) during playback.
Each time the button is pressed, the
speed of fast-reverse increases as
follows:
In fast-reverse mode, press button (2)
to return to normal playback.
Finding the Beginning of Chapters or
Tracks (Files)
Use this function to easily move to the
beginning of the chapters or tracks (files)
on the disc.
During playback, each time press the
button (5) or button (4) to skip and
playback the chapter/track.
:
:Press the button to start playback
From the beginning of the following
chapter or track (file).
9
:Press the button to start playback
from the beginning of the previous
chapter or track (file).
Note:
1. Some DVDs do not have chapters.
2. For some VCD2.0 discs (PBC control),
:9 87
/ or / buttons may be
unavailable.
Repeat Play/ Paragraph Repeat Play
-
Repeat play:
Use this function when you wish to repeat
an entire disc, a track or a chapter in the
disc.
1) RPT
Press button (15) repeatedly to
select different repeat modes.
ÆÆÆ
2X 4X 8X 20X
ÆÆÆBACKWARD
9
:
2)
For different types of discs, pressing
RPT
button (15) has different effects.
For DVD:
REP CHAPTER REP TITLE REP
OFF
For VCD/SVCD:
REP 1 REP ALL REP OFF
NOTES:
REP 1:
repeatedly.
REP CHAPTER:
repeatedly.
REP TITLE:
REP ALL:
repeatedly.
REP OFF:
playback.
* Repeat feature does not support VCD
2.0 (PBC is on).
-Paragraph Repeat Play:
Use this function when you wish to repeat
play a desired paragraph. A-B repeat
allows a passage to be repeated
continuously.
Press button (14) at the start of the
desired passage.
Press A-B button (14) at the end of the
passage.
Then the unit will repeat playing the
passage you just set from A to B.
To return to normal playback, press A-B
button again.
Searching Directly by Chapter or Track
Number
Use this function to easily move to the
beginning of the chapters or tracks (files)
on the disc.
Please note: This operation can only be
controlled from remote control unit.
1. During playback, pre-stop or pause,
input the chapter or track number you
want to using the numeric keypad( “ ” to
“ ”).
Only a track (file) is played
A chapter is played
A title is played repeatedly.
an entire disc is played
The mode returns to normal
A-B
0
9
User’s Manual - page 12
2. Waiting for a moment for the player
locate the track.
Playback starts from the selected
chapter or track.
*
This function is only available for discs
on which chapter numbers are recorded.
7)C:
Displays the total playback time for the
current chapter.
8)
Displays the current disc language, audio
type, subtitle language and play angle.
Playing In Random Order
Press button (33) to switch the
RDM
random mode on/off. If the random mode
is on, tracks (files) on the disc will be
played in a random order.
On Screen Display Function
Press the button (13) on the remote
DISP
control during playback to display onscreen information about the current
disc.
For DVD:
Pressing and holding button (13) on
DISP
the remote control to display information
in the following manner.
1) TT
Displays the current title number and
total title number.
2) CH
Displays the current chapter number and
total chapter numbers.
3)
Displays the playing time for the entire
disc.
4)C-:
Displays the remaining playback time for
the current chapter.
5)T:
Displays the total playback time for the
current title.
6)T-:
Displays the remaining playback time for
the current title.
User’s Manual - page 13
For VCD:
GOTO Function
The GO TO function allows you to select
a specific place in the program where you
want to begin playback. The function is
displayed slightly differently between
DVD and VCD modes.
GOTO
Press button (30), the screen will
display the following message:
FOR DVD:
Use the number keys (21) to input the
Track and Time then press button
ENTER
(18) to confirm.
ZOOM Function
Press ZOOM button (24) to increase or
decrease the size of the image. Please
note that the ZOOM function is only
available on discs which support it.
In zoom mode, press , buttons
(16) to move pictures up/down/left/right
direction in order to find the area of the
picture that you want to zoom into.
Multi-subtitle Language Function
Some DVDs have multiple subtitle
languages. The subtitle language can be
changed or subtitles hidden during
playback.
Press the SUB-T button (23) during
playback. The following information will
be shown on the screen.
Each time you press the button, the
subtitle cycles between the different
languages recorded on the disc.
Notes:
- Not all discs will allow changing the
subtitle during playback. In these cases,
select subtitle from the DVD’s menu.
- There may be a delay before the
selected subtitle appears.
- For some discs, the subtitles will be
displayed even when this is set to off.
- The number of available languages
have one subtitle language available.
Switching the Audio Tracks
For some VCD/SVCD discs which have
multiple audio tracks, you can change the
audio track temporarily during playback.
Each time you press the button
(22) during playback, the sound cycles
between the audio tracks recorded on the
disc.
CHANNEL [ STEREO]
CHANNEL [MONO L]
CHANNEL [MONO R]
Notes:
- Some discs only contain one
soundtrack language.
Multi-audio Language Function
For DVD discs which have multiple
language soundtrack, you can change
the language track temporarily during
playback.
Each time you press the button
(22) during playback, the sound cycles
between the audio tracks recorded on the
disc.
AUDIO
AUDIO
:
- Some discs only contain one
soundtrack language.
- Not all discs will allow changing the
subtitle during playback. In these cases,
select subtitle from the DVD’s menu.
Multi-angle Function
For DVD discs in which scenes have
been filmed from multiple angles, the
viewing angle can be switched during
playback.
Press (25) during playback. The
ANGLE
following information will be shown on
the screen.
ANGLE 1
The angle setting cycles between the
available viewing angles recorded on the
disc each time the button is pressed.
Notes:
- The ANGLE function is only available
for discs which support it and programs in
have been recorded.
- Depending on the disc, the angle may
switch in one of two ways.
1. Seamless: The angle switches
smoothly.
2. Non-seamless: When the angle is
switched, a still picture is displayed first,
after which the angle switches.
- The angle number varies from disc to
disc.
Program Play Function
- In VCD/CD playback mode, press
PROG
edit interface as follow:
button (32) to activate program
:
Notes:
- The language number is different
according to the disc.
User’s Manual - page 14
Use , cursor button to select the
item that you want to program.
1) The item you selected will become
highlighted.
2) Input the track number that you want to
program by numeric buttons (0~9) on the
remote control.
3) Press , cursor buttons to
move to “PLAY” operation button and
then press button (18) to
ENTER
program the playback.
- In DVD/MP3 playback mode, press
PROG
button (32) to activate program
edit interface as follow:
Use , cursor button to select the
item that you want to program.
1) The item you selected will become
highlighted.
2) Input the track number that you want to
program by numeric buttons (0~9) on the
remote control.
3) Press , cursor buttons to
move to “PLAY” operation button and
then press button (18) to
ENTER
program the playback.
Frequently Asked Questions
- I inserted a DVD disc, but it cannot be
played. The message “REGION
ERROR” is displayed.
DVD players and discs all have “REGION
CODES”. If the region code number on
the DVD disc does not correspond to the
region number of this DVD player, the
unit cannot play the disc.
- When I insert a DVD disc, there is a
window shown on the screen that
requires entering 4 characters
password. why?
User’s Manual - page 15
The current disc has a “Parental Control”
level, and the player’s parental level is
set below the level of the disc. To view
this disc, you should enter the correct
password to play the disc normally.
NOTE:
For how to set the “Parental Control”
level, please refer to “Parental Control”
on page 18.
Data Disc Play Operation
When you insert a data disc including
audio (MP3), movie (MPEG) or picture
(JPG) files into the disc slot, the following
media play window will be shown on the
screen:
Work area A:
Work area B:
folder list
files list
Work area C:
(1):
playback audio mode (default)
(2):
viewing picture mode
(3):
playback movie mode
Work area D:
file information display
1. Press button to move between
workareaA,workareaBandworkarea
C.
2. Press button to select the desired
folder or file of this work area.
3. Press ENTER button (18) to confirm
the selected item.
4. In picture views or movie playback
mode, if you want to return to the
previous menu, press (STOP) button.
Memory Card Play Operation
This disc player offers you a memory card
slot (10).
Using the SD/MMC card:
When you insert a SD/MMC card into the
Memory card slot (10), the DVD player
will read the SD/MMC card automatically.
The unit gives first priority to the card in
the slot. If you insert a disc into the disc
slot (7) while reading the SD/MMC card,
the unit will play the disc. Press (31)
button to enter into PRE-STOP mode,
then press button (30) to switch
GOTO
back to the reading card mode.
- The main unit can only support the
standard USB-memory disc which is
approved by Microsoft.
- USB MP3 player is not a standard
which means different brand name or
different models have their own standard.
So our product cannot support every MP3
player.
- When connecting an MP3 player and
there has normal battery in the player
(non rechargeable battery), you should
remove the battery from the MP3 player
then connect it to the USB port.
Otherwise, it may cause battery burst.
Note:
While reading the memory card, please
don’t touch or take out the card. If the is
unable to read the card, please check if
the card is in good condition. You may
also wish to try removing the card fully
from the reader, and reinserting it again.
USB Device Operation
This disc player offers you an USB
interface (9). An USB device can be
connected to this port.
Using the USB device:
When you insert a USB device into the
USB interface (9), the DVD player will
read the USB automatically.
The unit will give priority to the latter. If
insert a disc into the disc slot (7) or inset
a SD/MMC card into the SD/MMC
interface (10) while read the USB device,
the unit will play the disc or the SD/MMC.
Press (31) to enter into PRE-STOP
mode, then press button (30) to
GOTO
switch to the reading USB mode.
Note:
When reading the USB device, please
don’t touch or take out the card. If the is
unable to read the device, please check if
the device is in good condition. You may
also wish to try removing the card fully
from the port, and reinserting it again.
- When in USB play mode, be sure not to
remove the USB device from the USB
port.
AV IN Operation
This disc player offers you the option of
using the auxiliary front panel A/V input
jack to connect a video game, digital
camera/camcorder or other units you
wish to use in your mobile video system.
YELLOW toVIDEO OUT
RED toAUDIO Rch OUT
WHITE toAUDIO Lch OUT
FM MODULATOR OPERATION
This unit has the ability of transmit the
audio to radio device. The default transmitting frequency is 88.7MHz,you can
listen to audio of DVD player by radio device
To achieve the optimal transmitting effect
of FM modulator, please adjust volume
to maximum level
Besides, you can select 87.9MHz to transmit
the audio of DVD player. (The detail you can
refer to the SETUP part on page 19.)
.
User’s Manual - page 16
.
Additional Information
About MP3
About Parental Control
DVD discs have a parental level assigned to
the disc. The range of parental controls is
from 1 to 8. In general, this range
corresponds to established movie rating
systems. Movie rating systems may vary
depending on the country you live in.
Toward the bottom of this page is a small
chart showing the rating system and
corresponding Parental Control ratings for
the USA.
The player can be set in a similar way. If the
player's parental level is set to 8 it will play
all discs. If the player's parental level is set
below 8, only discs with a lower or equal
parental level will play.
For example if the player is set to 5, only
discs with parental control ratings of 1-5 will
play. To play a disc with higher number
rating, you must change the player's rating
to a higher number.
Consider a disc that is suitable for most
audiences, and is rated as level 2 for the
most part. However in the middle there are
also scenes rated at 5&7(notsuitable for
children). Alternative scenes with lower
rating are included. The player plays the
highest rated scene that the parental
setting allows.
WhatisMP3?
MP3, whose official name is “MPEG-1 Audio
Layer 3,” is a compression standard
prescribed by the ISO, the International
standardization organization and MPEG
which is a joint activity institution of the IEC.
MP3 files contain compressed audio data.
MP3 encoding is capable of compressing
audio data at extremely high ratios,
reducing the size of music files to as much
as one-tenth their original size. This is
achieved while still maintaining near CD
quality. The MP3 format realizes such high
compression ratios by eliminating the
sounds that are either inaudible to the
human ear or masked by other sounds.
Corresponding file systems
This device supports discs formatted with
iso9660 level 1 or level 2. Under the
iso9660 standard, there are some
restrictions to remember.
The maximum nested folder depth is 8
(including the root directory). The number
of characters for a folder/file names are
letters A-Z (all caps), numbers 0-9, and '_'
(underscore).
This device also can play back discs in
Joliet, Romeo, etc., and other standards
that conform to iso9660. However,
sometimes the file names, folder names,
etc., are not displayed correctly.
A section of the disc can have several
different sequences that vary in parental
control level. In the above example of a disc
with parental control, the player will show a
different section depending on the parental
control level set in the player's menu.
In this way parents can control the content
of films and there is no indication that any
censorship has occurred.
UnlockUnlock
1 KID SAFE
2G
3PG
4PG13
User’s Manual - page 17
5PG-R
6R
7 NC-17
8 ADULT
Setup
In DVD mode, when the disc is playing or
in stop mode, press button (19) to
enter setup menu.
1. When the cursor is in the upper part of
the menu, use buttons to move
between the different pages.
2. Press button to move the cursor to
the setup page below. Then you can use
the buttons to move between the
different setup options.
3.
Press or ENTER button to move to
the choice list of each setup option and
then use buttons and
button (18) to change your selection.
4. When the setting is complete, press
SETUP
button (19) to return to normal
mode.
* When settings are changed, old settings
are overwritten. Make note of the current
settings before making changes. If the
vehicle’s battery is disconnected, the
settings will be cleared and will return to
the factory settings when power is next
applied.
System Setup
When you open the setup menu, you will
see the system setup page at first, see
below:
SYSTEM SETUP
TV SYSTEM
SCREEN SAVER
TV TYPE
PASSWORD
RATING
DEFAULT
FM MODULATOR
EXIT SETUP
SETUP
,
ENTER
You can either choose AUTO SELECT,
which will sense the type of monitor
attached to the output and select NTSC
or PAL as needed. If you know the type of
monitor, you should choose the type in
this menu rather than letting AUTO
SELECT do it for you. This is because
there may be an undesirable small delay
and some flickering of the screen during
the AUTO-SELECT process.
SCREEN SAVER
As with computer monitor, video screens
can “burn in” if a still image is displayed
too long on the screen. This unit features
a “screen saver” which produces a
moving image to avoid burn-in. If
SCREEN SAVER is enabled in the Setup
menu, after a few minutes of displaying a
moving screen saver image.
SETTING the TV TYPE
TV types can vary based on their aspect
ratio. The common monitors fall into one
of three categories:4:3 (PS/Pan and
Scan), 4:3 (LB /Letterbox) or 16:9 (
Widescreen). Playing a video recorded in
one aspect ratio on a monitor with a
different ratio can result in some
mismatches and undesirable display
distortion or cutoffs. Read the following
to assist you in setting up the TV type:
4:3 PS (PAN SCAN)
Select this when connected to a
conventional 4:3 size monitor. The
picture will fill the entire TV screen.
However, due to the mismatch in aspect
ratio, parts of the movie at the extreme
left and right sides will not be visible
(when playing a 16:9 size movie).
TV SYSTEM
TV SYSTEM is used to select the TV
output mode. This player can play discs
recorded in either PAL or NTSC formats.
Select NTSC format, when the unit is
connected to NTSC TV.
Select PAL format, when the unit is
connected to PAL TV.
4:3 (Pan and Scan) format is the factory
default setting for this product.
User’s Manual - page 18
4:3 (LETTER BOX)
When you are playing a widescreen
format video on a normal (4:3) monitor,
the best way to view this is in (4:3)
letterbox format. You can see the full
picture, but there will be a black band at
the top and bottom of the screen.
16:9 (WIDESCREEN)
Select this when connected to a wide
screen TV.
PASSWORD
The Password system is used in
conjunction with the Parental Controls
settings to prevent a young person from
changing the settings without
permission. The factory default password
is 0000. If you wish to change this, enter
0000 and when prompted, enter a
differetn 4-digit number.
PARENTAL CONTROL LEVEL
Use this function to restrict the viewing of
movies to children of appropriate age
levels only.
1) Press or button to select
“ ” then press button.
PASSWORD ENTER
2) The password input mode is activate.
Use the numeric keypad “0” to “9” to input
the 4-digit password, and then press
ENTER
button. (The default password is
“0000” upon shipment from the factory.)
User’s Manual - page 19
3) Press or button to select
“ ” then press button.
RATING ENTER
The restriction level parental level
input display appears
4) Press button to select the
/
()
.
restriction level (1 to 8), and then press
ENTER
button.
5) When the setting is complete, press
SETUP
button to return to normal mode.
DEFAULT
Selecting DEFAULT and confirming it will
restore all the System Settings to those
programmed at the factory, except the
Parental Controls and Password.
FM MODULATOR
You can select 88.7MH or 87.9 MHz
to transmit the audio of DVD player.
Language Setup
When you open the language setup
menu, you will see the language setup
screen:
LANGUAGE SETUP
OSD LANGUAGE
AUDIO LANG
SUBTITLE LANG
MENU LANG
DIVX [R]
EXIT SETUP
There are many choices for the menu,
DVD and subtitle languages. You set the
languages for the DVD player in different
menus than the languages for playback
and subtitling on the discs. Of course,
options vary from disc to disc so some
settings may not be available.
OSD LANGUAGE:
ENGLISH/GERMAN/SPANISH/FRENCH/PORTU
GUESE/ITALIAN/RUSSIAN/POLISH
AUDIO LANG:
ENGLISH/GERMAN/SPANISH/FRENCH/PORTU
GUESE/ITALIAN/RUSSIAN/POLISH
SUBTITLE LANG:
ENGLISH/GERMAN/SPANISH/FRENCH/PORTU
GUESE/ITALIAN/RUSSIAN/POLISH
MENU LANG:
ENGLISH/GERMAN/SPANISH/FRENCH/PORTU
GUESE/ITALIAN/RUSSIAN/POLISH
Audio Setup
Specification
1. Supply voltage:
Power Supply Requirements
12V DC (11~15V), test voltage 14.4V,
negative ground
Current consumption:
Less than 2A
When you open the AUDIO menu, you will
see the following screen:
AUDIO SETUP
AUDIO OUT
KEY
EXIT SETUP
1) AUDIO OUT: Change among
SPDIF/OFF, SPDIF/RAW and
SPDIF/PCM.
2) KEY: Change among b, -4, -2, 0, +2,
+4, #.
Digital Setup
When you open the DIGITAL SETUP
menu, you will see the DIGITAL SETUP
screen:
DIGITAL SETUP
OP MODE
DYNAMIC RANGE
DUAL MONO
EXIT SETUP
2. Signal system:
Compositive video 1.0
+
0.2Vp-p 75
-
3. Discs played:
(1) DVD-VIDEO disc]
(2)Compact disc(CD-DA/CD-R/CDRW/MP3)
(3) VIDEO CD
4. Audio output level:
10KΩΩ(2ch2.0
+
0.5Vrms)
-
5. Audio signal output characteristics:
(1) Frequency response:
20Hz-20Khz
(2) S/N ratio:
80 dB(JIS)
(3) Wow and flutter:
Below measurable limits
Note:
Specifications and design are subject to
modification, without notice, due to
improvements in technology.
1) OP MODE: Change among LINE
OUT/RF REMOD.
- LINE OUT: LINE OUT mode, with
digital dialog normalization.
- RF REMOD: RF REMODULATION
mode, with heavy compression and
digital dialog normalization.
2). DYNAMIC RANGE: Change among
FULL, 6/8, 4/8, 2/8, OFF.
3). DUAL MONO: Change among
STEREO,MONOL,MONOR,MIX
MONO.
User’s Manual - page 20
Trouble Shooting
If it appears that your DVD unit is faulty,
please first consult this checklist. It may
be that something simple has been
overlooked.
Under no circumstances should you try to
repair the player yourself, as this will
invalidate the warranty. Only qualified
service personnel can remove the cover
or service this player.
No Power
If the power supply is connected to the
car accessory circuits, but the engine is
not turned on, switch the ignition key to
“ACC”.
Check if the fuse is blown. Then
replace the new fuse.
Check if the on/off button on the front of
the player is set to on.
No Picture
Check if the monitor or TV is switched
on.
Check if select proper mode has been
selected such as Disc Play mode or AV
mode.
Check the video connection.
Distorted Picture
Check the disc for fingerprints and
clean it with soft cloth, wiping from centre
to edge.
Sometimes a small amount of picture
distortion may appear. This is not a
malfunction.
No Sound
Check the audio connections.
The Player Does Not Respond To the
Remote Control
Aim the remote control directly at the
sensor on the front of the player.
Remove any obstacles which may
interfere with the signal path.
Inspect or replace the remote control
battery.
Distorted or B/W Picture
The disc format is not according to the
TV-set used (PAL/NTSC).
No Audio at Digital Output
Check the digital connections
Check the Digital Audio menu to make
sure that the digital output is correctly
set.
Check if the audio format of the
selected audio language matches your
receiver's capabilities.
Buttons Do Not Work
Press Reset button on the housing of
the DVD unit.
Completely Distorted Picture
The disc format is not according to the
TV-set used (PAL/NTSC).
No Color in Picture
The disc format is not according to the
TV-set used (PAL/NTSC).
Disc Does Not Play
Ensure the disc label is upwards.
Clean the disc.
Check if the disc is defective by trying
another disc.
User’s Manual - page 21
Loading...
