PYLE Audio PLD71MU User Manual

PLD71MU
Motorized Slide Down and Detachable Panel 7-Inch Wide TFT Touch Screen Monitor Front panel USB port and AUX input Car DVD/VCD/MP4/CD/MP3 Player Built in AM/FM Tuner and RDS SD Card Slot in the panel
Contents
Precautions .....................................
Safety Information.........................
Disc Notes ....................................
Installation ....................................
Detaching the control panel ..............
Changing the control panel ...............
Electric Connection ......................
Remote Control ...........................
Control Panel ................................
Touch Panel
Unit Keys ......................................
Basic Operations
TFT Monitor
Rear View Camera
Audio Quality Adjustments
Setting Audio Mode .........................
Reset Factory Settings
Alternate Audio/Video Source ..........
Radio Operations ..........................
Listening to the radio ......................
Storing stations in memory ..............
Listening to a preset station ............
RDS Function ................................
DISC Operations ...........................
Basic Operations ............................
Select Playback Mode .....................
AUX Operation ...............................
On-Screen Disc Operations .............
DISC Special Functions ................
Selecting audio languages ..............
....................................
..........................
Adjustment ................
........................
...............
..................
10
13
13
14
16
17
17
17
18
18
18
19
1
1
20
20
2
22
24
25
26
27
27
2
Selecting Subtitles ..........................
3
Selecting multi-angle views ..............
4
Title menu function ..........................
5
Setup .............................................
7
General Setup ................................
8
Speaker Setup ...............................
9
Dolby Digital Setup ........................
Preferences Setup ..........................
Defaults Table ................................
Other Main Operations ...................
USB Operations ..............................
SD/MMC Card Operations ...............
MP3/WMA/JPEG Play .....................
MPEG4 Play ...................................
Specifications ...............................
Trouble Shooting ..........................
9
9
2
27
27
27
28
28
30
30
31
32
33
33
34
35
35
36
37
-1-
Precautions
THANK YOU FOR PURCHASING THIS CAR DVD PLAYER .
Before operating the unit, read this manual thoroughly and keep it handy for future reference . To avoid injury or accident , read the following precautions before installing and operating the unit .
ON INSTALLATION
DO NOT install any receiver in locations where;
- it may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.
- it may obstruct the operation of safety devices such as air bags, as this may result in a fatal accident.
- it may obstruct visibility.
DO NOT operate any receiver while manipulating the steering wheel, as
this may result in a traffic accident.
The driver must not watch the monitor while driving. IF THE DRIVER watches the monitor while driving, it may lead to
carelessness and cause an accident.
IF YOU NEED to operate the receive while driving, be sure to look ahead
carefully or you may be involved in a traffic accident.
IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the
monitor, and no playback picture will be shown.
- This warning appears only when the parking brake wire is connected to
the parking brake system built in the car ( refer to the electric connection)
ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL
Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction . The picture may become unclear , or the LCD panel may be damaged .
NOTES ON CLEANING
-Clean the LCD panel with a slightly damp soft cloth.
-Do not use solvents such as benzine, thinner, commercially available
cleaners or antistatic spray .
-Do not use alcohol to clean the screen . If your car was parked in a cold or hot place, the picture may not be clear . The monitor is not damaged . The picture will become clear the temper­ature in your car becomes normal .
-2-
Safety Information
CAUTION:
THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE . HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLYAS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
COPYRIGHT PROTECTION
This product incorporates copyright protection technology that is protected
by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
REGION MANAGEMENT INFORMATION:
This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD Player cannot play this disc.
-3-
Disc Notes
Disc formats supported by this player
DVD
VCD
CD
MP3
Audio and Video Discsize12cm
Audio and Video Discsize12cm
Audio Discsize12cm
Audio Discsize12cm
Discs which cannot be played with this player
DVD-RAM CDV CDG
Handling and Cleaning
Dirt, dust, scratches and warping disc
will cause misoperation. Do not place stickers or make scratches on discs. Do not warp discs.
A disc should always be kept in its case when not in use to prevent from damaging. Do not place discs in the following places:
1.Direct sunlight
2.Dirty, dusty and damp areas
3.Near car heaters
4.On the seats or dashboard
Disc Cleaning
Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.
Note:
A disc may become somewhat scratched (although not enough to make it
unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.
Label side up
Do nottouch the underside of thedisc
Do not bend
Wipe the disc from center toward theoutside edge
Preparing New Discs with
Rough
Spots
A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.
Rough spots on outside edge
Ball pointpen or pencil
Rough spots on inside edge
-4-
Installation
NOTES:
1. Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
2. Before finally installing the unit, connect the wiring temporarily and make sure it is
all connected up properly and the unit and the system work properly.
3. Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
4. Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
5. Install the unit where it does not get in the driver s way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
. Avoid installing the unit where it would be subject to high temperature, such
6 as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration. 7
. If installation angle exceeds 30 from horizontal, the unit might not give its
optimum
performance.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either from "Front"(conventional DIN Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.
'
30
Revoving the unit
1. Press the button to release the front panel .REL
2. Remove the control panel .
-5-
Installation
Installation the unit
3. Remove the PLASTIC COVER of the both sides away
PLASTIC COVER
4. Insert the two KEY PLAT into the grooves at both sides of the unit as shown in figure until they click .
KEY PLATE
5. Pulling the levers makes it possible to remove the unit from the dashboard .
SPRING WASHER
PLAIN WASHER
TAPPING SCREW
DASH BOARD
HEX NUT
METAL MOUNTING STRAP
CONSOLE
SLIDE BRACKET HOUSING
HEX BOLT
-6-
Installation
How To Remove And Install The Front Panel
When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.
Detaching The Front Panel
Before detaching the control panel, be sure to turn off the power.
1). Press the release button and the left hand side of front panel will release.“REL”
RELEASE BUTTON
2). Pull-off the front panel and keep the front panel into the case .
PROTECTIVE CASE
Attaching The Front Panel
1). First insert the right hand side of the front panel into the hollow of the unit . (NOTE : the “bulge” point on the panel must be attached into the hollow of the unit .)
2). Gently push the left hand side of the front panel until you feel a “ Click” .
Hollow
Bulge
PUSH
-7-
Panel Angle Adjustment
CHANGING THE CONTROL PANEL ANGLE
When you want to change the viewing angle of the operating unit to play, you can touch the section on touch screen (or press the button on the front panel) repeatedly to select the desired angle as follows:
ANGLE1-ANGLE2-ANGLE3-ANGEL4-ANGLE 1 .
ANGLE 1 ANGLE 2
ANGLE 3ANGLE 4
Caution:
Do not insert your finger behind the control panel.
-8-
Electric Connection
WIRING CONNECTION
MAIN UNIT
RADIO ANTENNA JACK
IGNITION
SWITCH(B+)
MEMORY
BACK-UP(B+)
GROUND(B-)
ANTENNA
AUTO
RED
YELLOW
BLACK
BLUE
FRONT
Lch SPK.
REAR
Lch SPK.
FUSE
CHOKE BOX
FUSE
WHITE/BLACK
GREEN/BLACK
ISO CONNECTOR
WHITE
GREEN
REAR RCAOUTPUT
FRONT RCA OUTPUT
CABLE
GREY
GREY/BLACK
VIOLET
VIOLET/BLACK
YELLOW
RCA CABLE
CABLE
WHITE
BROWN
FRONT
Rch SPK.
REAR
Rch SPK.
(B+)12V REAR CAMERASWITCH
(B-)PARKING BRAKE
REAR CAMERAINPUT
GREY SUBWOOFER VIDEO OUT2 YELLOW
COAXIAL OUT BROWN
RCH RED
LCH WHITE
FRONT RCA RED R
VIDEO OUT 1 YELLOW
FRONT RCA WHITE L
Note: the earth connection cable (parking brake B-) must be connected in order for DVD pictures to be played back to the monitor. If the cable has not been correctly connected, the message “PARKING BRAKE” appears on the monitor.
-9-
Remote Control
Ref #
1
2
3
4
5
6
7
Button
CLOCK
MODE
STOP
SETUP
MO/ST (AUDIO)
SUBTITLE LOCAL/ DISTANT
REPEAT
15
7
2
6
22
11
4
17
19
13
14
18
10
DVD/RECEIVER CONTROLDVD/RECEIVER CONTROL
MUTE
MODE
REPEAT
MENU
MODE
LO/DX
OSD
BAND
TITLE/PBC
A/PS
VOL
TOP
1
VOL
RDM
4
SEL
7
SETUP
GOTO
PLAY/PAUSE
ANGLE
EQ
ENTER
2
5 6
8
+10
STOP
MO/ST
CLK
INT
3
AF
9
TA
0
16
3
5
20
1
21
23
9
12
26
25
24
8
Function
Press it briefly to view the clock time , Press again to return to normal display mode . Press longer to set the time .
Press repeatedly to cycle through the various modes: RADIO>DISC>AUXIN.
Press once to pause playback. Press PLAY/PAUSE to resume playback. Please note: if you press STOP twice, playback will start at the beginning of the disc.
Press this button to open the SETUP menu.
In Radio mode, press this button to change between Mono and Stereo reception modes (when a station is weak, sometimes switching to Mono will improve sound quality). In Disc Playback mode, pressing this button opens the AUDIO setup menu for making changes to the way the soundtrack is reproduced.
In DVD Disc Playback mode, pressing this button will allow you to change the subtitle language on discs which have this as an option. In Radio mode, press this button to change the radio reception sensitivity in stations are near or far.
Pressing this button will open a menu presenting you with the playback repeat options available for that kind of disc.
-10-
Remote Control
Ref #
8
9
10
11
12
13
14
15
16
17
Button
GOTO
/
SEL
VOL+/-
///
Menu SubWoofer
()
BAND (OSD)
(POWER)
PLAY/ PAUSE
MUTE
Function
Press it button to begin playback at a moment in the program you designate. Use number buttons to enter the data that is needed.
Press these buttons to skip ahead or back one track. (Note: In DVD mode, press continually the twice to skip back one)
Press this button repeatedly to cycle through the various audio and video adjustments you can make: Volume, Bass, Treble, Balance, Fader, Color, Brightness, Contrast and Tint.
Use these controls to adjust the volume level.
Press to navigate the various menus present in the product.
Press this button briefly to display the root level directory of a DVD disc. Press and hold this button to turn on or off the SUBWOOFER output.
In Radio mode, press this button repeatedly to switch between the five radio bands: FM1 > FM2 > FM3 > AM1 >AM2. In Disc Playback modes, Press this button to see information about the disc currently in play.
Press this button to turn the unit ON , press and hold to turn the unit OFF.
In Disc Playback mode, press to pause playback. Press again to start where playback stopped.
Press this button to turn off the audio. Press again to restore the sound to its prior volume level.
18
19
20
21
22
23
TITLE/ PBC(A/P)
ANGLE
EQ
/
ENTER
When playing a DVD, pressing this button will open the TITLE menu which is recorded on the DVD. When playing a VCD disc, press this button to create a PBC (Playback Control) menu for the disc to assist in making playback selections. In Radio mode, press and hold this button to start the Auto-Program mode, during which the tuner will scan for all strong stations and assign them to the radio preset buttons.
Press this button to adjust the screen viewing angle (see page 8).
For DVD discs which have alternate viewing angles encoded, when you see the "angle mark" symbol advising you that these angles are available, press this button to see them.
Press repeatedly to cycle through the different equalizer curve presets you may wish to use for enhanced listening.
In Disc Playback mode, press for fast forward/reverse playback.
This button is used to confirm selections and settings within many of the menus in the OSD system.
-11-
Remote Control
Ref #
24
25
26
Button
0-9
+10
1-6
These buttons are used for numeric entry in many different menus. In addition, in Radio Mode (when RDS is engaged), 0 serves as the TA button and 9 serves as the AF button.
This button is used with the other number buttons for use with two-digit number entries.
Six numbered preset buttons store and recall stations for each band.
Function
Preparing the Remote Control

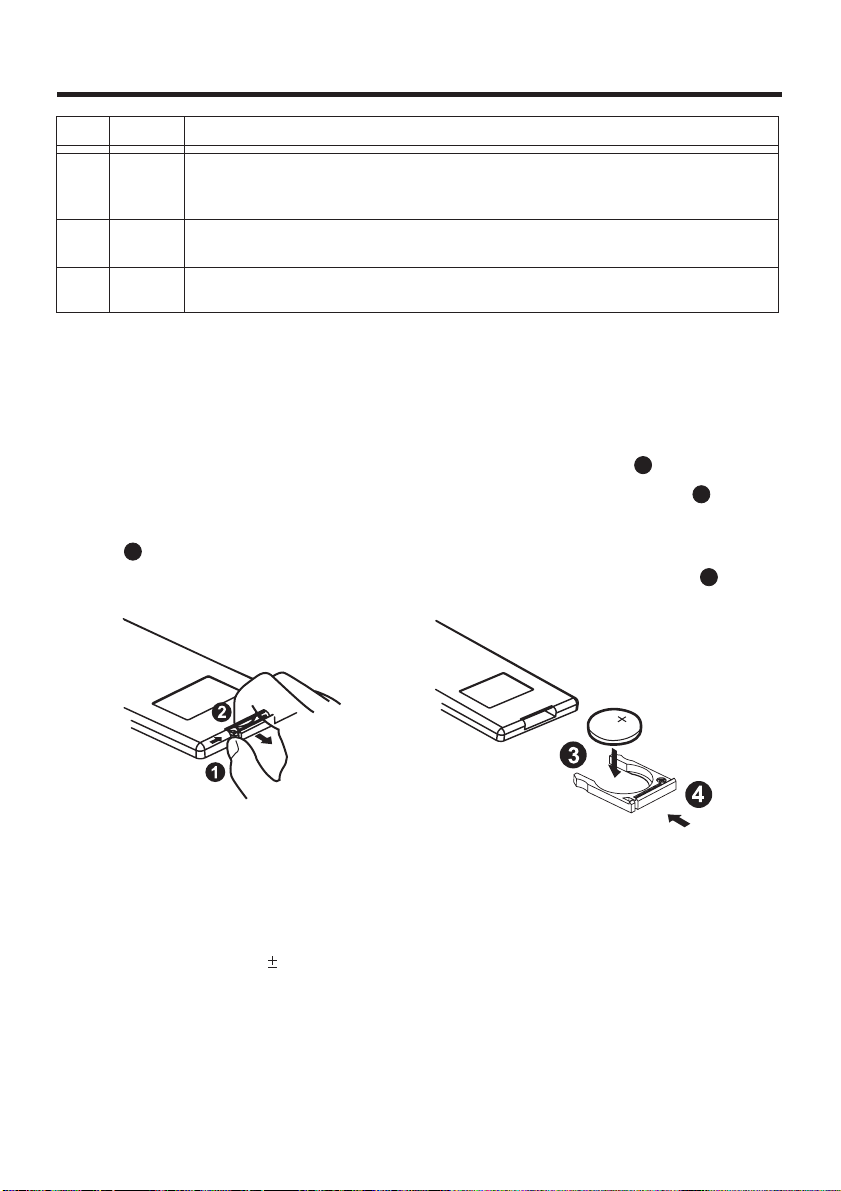

Inserting the Battery
1.First push to inside as the direction indicated by the arrow (See )And then
Remove the battery holder as the direction indicated by the arrow (See ).
2.Replace the battery Set a new battery property with (+)side up as illustrated
(See ).
3
3.Insert the battery holder. Push in the holder to the original position(See ).
1
2
4
Using the Remote Control
Face the remote control towards the player front face IR mark (remote control signal
receiver).
Operation angle: About 30 degree in each the direction of the front of the IR mark.
Note :
The lithium cell in the battery compartment of remote control has been secured for
transport with a foil . Before initial use please remove this foil so that the remote
control is ready for operation .
-12-
Control Panel
Key Functions
Touch Panel
CAR DVD/VCD/CD/MP3PLAYER WITH MPEG4
SEL
CH1-6
REL
MOD
VOL
IR
AUXIN
Touch Screen Key :
MODE
MUTE ON
DSP
Operating mode selection
To switch of the sound
Select EQ function
Loading and ejecting the DVD/CD
MODE MUTE ON
SEL
DSP
S-WOOFERLUDCLKAFTA
VOLUME+VOLUME-
CLK
LUD
S-WOOFER
TOUCHSCREEN
RES
Touch briefly show/hide clock, touch longer to set theclock.
Loudness Function
Subwoofer Function
Changing the viewing angle of the operating unit
TA
AF
Turning pre-switching for traffic announcements ON and OFF . (Only for RDS)
Switch ON and OFF and alternative frequency . (Only for RDS)
-13-
VOLUME-
SEL
VOLUME+
Decrease the volume level
Select the menu of the Picture/Sound
Increase the volume level
Control Panel
Unit Keys:
11
10
CAR DVD/VCD/CD/MP3PLAYER WITH MPEG4
9 8
7 6
SEL
CH1-6
REL
TOUCHSCREEN
5 4
MOD
VOL
RES
3
2
IR
AUXIN
1
1 AUX Input JACK
For information about connecting a AUX device, please see page 25 .
2 IR SENSOR
3 VOL+/VOL-KNOB
In normal mode, this knob is used to increase or decrease the volume. It is also used as an UP/DOWN knob when audio or video settings are being adjusted when accessed using the SELECT button.
12
4 (POWER On/Off )/MODE BUTTON
Press this button to switch the device on. WELCOME appears in the display. Press it again to switch the device off. SEE YOU appears in the display. In playback mode, you can use the button to select the input mode by pressing repeatedly until the proper one is found :
DISC > AUX IN> RADIO .
5 ANGLE (Screen position)
Press this button repeatedly to cycle through the different positions.
-14-
Control Panel
6 REL BUTTON
Press this button to release the front panel for removal . Refer to see page 7.
7 /CH 1-6 BUTTON(RADIO PRESET)
A)
In Disc Playback Mode
Press this button to pause playback, press it again to resume playback.
B)
In Radio Mode
you can store 30 stations in memory: 18 FM stations and 12 AM(MW) stations, each band stores up to six preset stations .
-Store in Memory >
Select the frequency band
> Press repeatedly the button to select the desired memory key .
> Select the station > Keep the desired memory key pressed in until the station is heard again
after a brief interruption .
-Retrieve a presetstation
press the button repeatedly to retrieve a station which had been stored in the memory in advance the chose number is shown on display .
8 SELECT BUTTON
To access the available adjustment settings for audio and video, press this
button repeatedly to cycle through and select them:
Buzzer Volume Bass Treble Balance
Tint Contrast Bright Color Fader
9 (EJECT) BUTTON
Press it button to eject the DISC or insert the DISC to start play .
10 USB OPERATION
For information about connecting a USB device, please see page 33.
11 SD/MMC CARD SLOT
12 RESET BUTTON
Press this button to return to factory settings .
-15-
Basic Operation
POWER On/Off
Press it to switch the device ON, press and hold about 2 seconds to switch the device OFF.
Ejecting The Disc
Use your finger to touch the
range on touch screen ,
the control panel of the unit
you can insert the disc or eject the disc . (You can also press the button on the front panel to eject the disc or insert the disctostartplay.)
will swing downwards . Then
Select Sources
Touch the MOD
MODE
DISC
AUX IN
repeatedly section on the screen, the signals will display in the screen as follow :
RADIO
Mute Function
MUTE ON
Touch “MUTE ON” range, it will mute the sound but the disc continues playing . Touch it again to resume .
Setting The Clock
CLK
VOL+/- to adjust .Touch it again, the minute will flash, then use the VOL+/­to adjust .
Touch briefly the range
to show/hide the clock . Touch hold for more than 2’s the hour will flash , the
“CLK”
use
Setting The Buzzer ON/OFF
SEL
Repeatedly touch range to select the item, and theusetheVOL+/-toswitchthe
BUZZER ON/OFF
“SEL”
BUZZER
.
Volume Adjusting
Volume button
A
Revolve : clockwise to increase /
Anticlockwise to decrease .
Touch screen
VOLUME-
VOLUME+
Touch the screen the VOLUME+ to increase the volume level .
Touch the screen the VOLUME- to decrease the volume level .
Setting the Background Color
SEL
ground color among of the
AUTO, wallpaper: 01...... wallpaper: 11”,
in the mode, the monitor of unit will change the background color automatically .
-16-
In radio mode, repeatedly touch
“ SEL ”
the range to select the
“wallpaper”
the VOL+/- to select the back-
“AU TO”
item, and then use
“wallpaper
Basic Operation
TFT Monitor Adjustment
During DISC playback, use your
SEL
finger to touch briefly the SEL section on the screen (or press SEL button on front panel to access the Picture
selection menu, by repeatedly touch the SEL section, and then touch the VOL+/­(or rotate the VOL+/-) to adjust the selected mode . (The corresponding value will show on the monitor )
Volume Bass Treble Balance
Contrast Bright ColorTint
BRIGHT 16
MODE
SEL
MUTE ON
VOLUME+VOLUME-
touch to select
touch to adjust
)
mode
FadeBuzzer
Rear View Camera
When connecting the rear view camera. the mirror image of the rear view through the rear view camera is automatically displayed on the monitor when you change the gear to the back position. (The monitor on the unit only.)
Audio Quality Adjustment
During DISC playback, use your
SEL
finger to touch briefly the SEL section on the screen (or press SEL button on the front panel )
to access the Sound mode selection menu, by repeatedly touch the SEL section, and then touch the vol+/­(or rotate the vol+/-) to adjust the selected mode . (The corresponding value will show on the monitor )
Volume Bass Treble Balance
FadeBuzzer
Contrast Bright ColorTint
FLAT
12: 18
TREBLE +02
MODE
MUTE ON
DISC-IN
ADJUSTABLE ITEMS:
COLOR: 0 to 32 Adjust the color for the picture-lighter or darker. BRIGHT:0to32 Adjust if the picture is too bright or too dark. CONTRAST: 0 to 32 Adjust the contrast of the bright and dark portion. TINT:0to32 Adjust the tint if the human skin color is unnatural.
-Adjustable when NTSC is selected for ““
NTSC/PAL .
““
VOLUME+VOLUME-
SEL
touch to select
touch to adjust
ADJUSTABLE ITEMS: Volume:
0to32
Adjust volume level by using VOL +/-.
-14to+14
Bass:
Adjust bass level by using VOL +/-.
Treble:
-14to+14
Adjust treble level by using VOL +/-.
-17-
Basic Operation
Balance:
R0-10toL0-10. Adjust sound balance between left and right speakers by using VOL + / -
-
Fader:
F0 10toR0-10. Adjust sound balance between front and rear speakers by using VOL + / VOL - .
Setting Audio Modes
Touch the screen the DSP range
DSP
(orpresstheEQbuttononthe remote control ) to select one of the preset sound modes .
(Rock/Pop/Jazz/Classic/Flat).
The information will display in the monitor as follow :
POP
FLAT
S-WOOFER
FLAT
ROCK
16: 18
POP
TA AF CLK LUD
DSP
OSD
GOTO
JAZZ
CLASSIC
DISC-IN
The button is to be activated for
RESET
the following reasons:
.
A. Initial installation of the unit when all wiring is completed. B. All the function buttons do not operate. C. Error symbol on the display.

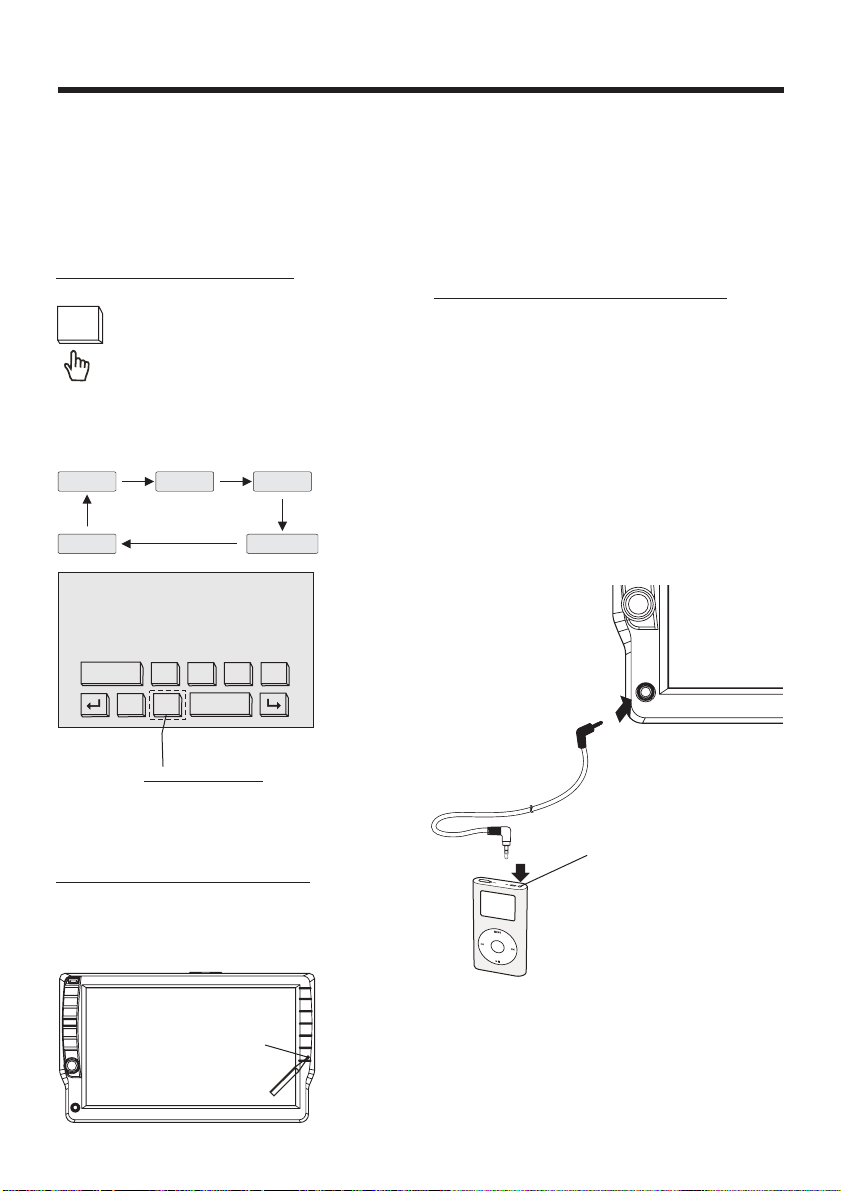

ALTERNATE AUDIO/VIDEO SOURCE
On the front panel of the unit , there is an AUX IN jack, to connect analogue replay devices. Use this jack to replay sound of other replay equipment such as DVD players, computers, etc. Via the loudspeakers.
1). Please f
ollowing the diagram below, connect the external device with stereo jack plug the AUX IN socket .
2). Press the MOD button to select the AUX IN connection.
3). Use the buttons on the external device itself to operate it .
AUXIN
AUX IN
touch to select
It`s depend on your habit to select the Audio mode .
Reset Factory Settings
RESET button is placed on the housing and must be activated with either a ballpoint pen or thin metal object.
RESET
RES
Headphones port
-18-
Radio Operation
Listening to the Radio
SwitchingTo Radio Mode
Touch the screen of
MODE
range (or press the MOD button on the front panel ) repeatedly to
select the RADIO mode. the following information will appears as below:
FLAT
FM1 87.60
MODE
123456
FLAT
FM1 87.60
12:06
MUTE ON
SEL VOLUME+VOLUME-
12:06
S-WOOFER
NO-DISC
MHZ
NO-DISC
MHZ
APS
ST
ST
PTYBND
AFTA LUDCLK LOC/DX
STEREO/MONO
DSP
DX
AF
DX
“MODE”
Start SearchingFor a Station
Manual Search
During Radio mode, briefly touch the screen of “ ” section or press the “ ” on front panel to increase frequency by one step of channel spacing .
Briefly touch the “ ” section or press the “ ” button on the front panel to decrease frequency by one step of channel spacing .
Automatic Search
During Radio mode, touch and hold (for more than 2’s ) the screen of “ / ” section or press longer the “ / ” on the front panel to start search for a radio station automatically .
When an FMstereo broadcast is hard to receive
Touch the section on touch screen (or press button on the remote control ) to select the MONO
or STEREO mode . (When Stereo mode is activated, the ST symbol will appear . )
“STEREO/MONO”
ST/MO
Touch “ ” to next .
Touch “ ” to previous .
Selecting The Frequency Band
Touch the screen of
BND
section (or press the on
the front panel ) repeatedly to
select the band , the message will show in turn :
FM1 FM2 FM3
AM2(MW2)
AM1(MW1)
“ BND ”
BND
To tune in strong-singnal FM
Station only (LO/DX function)
Touch the range on the touch screen (or press LO/DX button on the remote control ) to select the LOCAL or DX mode . ( You can choose between the LOCAL and DX(DISTANCE) mode for local or long-distance traffic news . )
-19-
“ LOC/DX ”
Radio Operation
Storing Stations In Memory
With this system, a total of 30 stations can be stored in the memory of six buttons. Each band stores up to six preset stations. The stations might be FM1, FM2, FM3, AM1(MW1), and AM2(MW2) band. The operation is as below :
Touch the screen of the sections“ 1-6 ”
FLAT
FM1 87.60
MODE
123456
Touchto preset station
-Store in Memory > Select the frequency band
> Select the station > Keep the desired memory key pressed in until the station is heard again after a brief interruption .
12:06
NO-DISC
ST
MUTE ON
SEL VOLUME+VOLUME-
DX
MHZ
e.g. FM1, for the stronger signal level until the search cycle has finished . The six strongest stations are then allocated to the corresponding storage locations . Then the station of the first storage location is set .
Scan Function
APS
In Radio mode, briefly touch the
section on the touch screen ,
APS
the radio briefly plays all the
preset stations of the frequency band .
RDS FUNCTION
In Radio mode, touch it to select the desired item, it will display the
following as below :
FLAT
12:06
ST
FM1 87.60
S-WOOFER
PTYBND
AFTA LUDCLK LOC/DX
STEREO/MONO
NO-DISC
MHZ
APS
DSP
AF
DX
-Retrieve a presetstation
1-6 sectionsTouch the briefly to retrieve
a station which had been stored in the memory in advance the chose number is shown on display .
Automatic Memory Storing & Program Scanning
Automatic Preset Setup
In Radio Mode, Touch and keep the
APS
APS section on the touch screen
for about 2 seconds to active
automatic station storage. The radio searches within the current frequency band,
TA Traffic Announcement
(Priority For Traffic Information)
In Radio mode, touch briefly the
TA
screen of range to activate the TA function.
Touch it again to turn off the TA function . When the TA function is activated, the TA symbol appears in the display . During radio operation in one FM frequency band the search for a traffic announcement station is started automatically (TA SEEK) . If an FM station is being received which transmits the latest traffic announce­ments from time to time, the TP display lights up.
-20-
“TA”
Radio Operation
When the TA function is switched on , the FM traffic automatically interrupt CD operation(the word TRAFFIC appears in the display).
The volume level is increased to the minimum value for the transmission of traffic announcements.
After the traffic announcements has finished, the program that was previously running is resumed.
Interruption of the TA Function: if you would like to interrupt the current traffic announcement, touch the TA section on screen briefly . This does switch off the TA mode .
AF FUNCTION
(Alternative Frequencies)
In Radio mode, touch briefly the
AF
screen of range to activate the AF function. Touch it again to turn off the AF function .
AF is a function that works with the help of RDS (Radio Data System) and can only be used with FM stations . The radio searches in the background for the best frequency reception of the station that has been tuned into .
Touch the AF section on touch screen or swing and keep the SEL knob in the TA/AF direction for about 2 seconds , the AF function is activated. The AF symbol appears in the display .
When the AF function has been switched on, the radio continuously tests the signal strength of the AF frequency . The test interval for each AF frequency depends on the signal strength of the current station and varies from a few minutes in the case of weak signals. Whenever the new AF frequency is stronger than the station that is currently tuned in , the radio switched to this frequency for a short time for a short time and the message “NEW FREQUENCY “ is displayed for one or two seconds.
“AF”
Note :
the status of the AF function is shown by an AF symbol in the display.
If the AF symbol appears in the display, the AF function is switched on and RDS transmission date is being received . If the AF symbol flashes in the display, the AF function is selected but no RDS signal can be received at the moment .
PTY FUNCTION
PTY
PTY Selection of the program type
besides the stations name, some FM stations also transmit information on the type of program. This information can be displayed by your car radio .
Examples of such types of program are :
SPORT NEWS POP WEATHER ......
With PTY function you can specifically select stations transmitting a particular type of program. Touch the PTY range on screen repeatedly to call up the PTY selection menu . The message “PTY SEEK” then appears briefly in the display .
When PTY has been selected the radio starts searching for corresponding PTY information and stops when the PTY information has been found, “NO PTY” appears in the display. If the PTY information being searched for no longer exists, the PTY function automatically switches to normal mode .
-21-
In Radio mode, touch the screen of “PTY” range to select the Program type .
DISC Operation
Basic Operation
During DISC playback, you can touch the screen to display the following:
FLAT
DVD 1-0:00:16
FLAT
DVD 1-0:00:16
RANDOM
AUDIO ZOOMSUBTITLE
FLAT
DVD 1-0:00:16
S-WOOFER
FLAT
DVD 1-0:00:16
Touch “ ” to next .
Touch “ ” to previous .
12: 16
MODE
SEL
12: 16
REPEAT INTRO
SETUP
12: 16
TA AF CLK LUD
DSP
OSD
12: 16
OK
DISC-IN
MUTE ON
VOLUME+VOLUME-
DISC-IN
TITLE
DISC-IN
GOTO
DISC-IN
Switching the DVD mode
Touch the screen of range (or press MOD button on the front panel ) to select the DISC mode, it display like following :
FLAT
DVD 1-0:00:16
MODE
SEL
Function setup (different the source thedisplay is different)
Stopping Play
Touch the screen the range (or press the button on remote control .) To stop the unit playback. Touch the section or press button on front panel to start play.
Pause (still picture)
Touch the “ ” section on touch screen during playback will stop play temporary, touch it again to return the normal playback .
Rapid Forward/Rapid Reverse
During DISC playback, touch the screen of “ / ” range or press longer (more than 2’s) the “ / ” button on the front panel , the speed of rapid forward/reverse changes according to the disc as follow:
DVD/VCD/CD/MP3:
Normal Playback2x 4x 8x 16x
12: 16
“MODE”
DISC-IN
MUTE ON
VOLUME+VOLUME-
-22-
DISC Operation
Skipping Track
During DISC playback, Touch the
/ section on the touch screen to skip to next/back one track. (You can also press the / on the front panel to skip to next /back one track.)
Note :
1. In DVD mode, touch the section continually twice to back one track . (Press the button continually twice to back one track .)
2. For some VCD2.0 disc (PBC-playback control), above these buttons may be unavailable .
Zoom Function
Repeatedly touch the section of
ZOOM
the ZOOM, the displaying rate can be 2x, 3x, 4x, 1/2, 1/3, 1/4 .
Use the direction keys ( / / / on remotecontrolor///ontouch screen) to move the enlarged picture . Note: During the JPEG disc playback , touch the screen of “ZOOM” range , the “zoom 100%” word will display, then you can touch longer (more than 2’s) the /
section on touch screen (or press the
/ buttons on remote control ) to zoom in/zoom out the picture. In zoomed mode, use the direction keys to move the enlarged picture .
Loud Function
LUD
Touch the screen of range to switch the Loudness function ON or OFF.
“LUD”
Subwoofer Function
S-WOOFER
Use your finger touch the “ section on the
S-WOOFER“
screen to turn on the Subwoofer function, touch it again to cancel function .
Selecting The PlayModes
During the Disc playback, touch the touch screen, it will display the following as below :
FLAT
DVD 1-0:00:16
RANDOM
AUDIO ZOOMSUBTITLE
Touchto select
1). Repeat Function
FOR DVD :
Touch the screen the of (or press longer button on the remote control) to select REPEAT mode
as follow :
CHAPTER REPEAT ON TITLEREPEAT ON
FOR VCD/CD/MP3 :
Touch the screen the of (or press longer button on the remote control) to select REPEAT mode
as follow :
REPEATONE REPEATALL
1. Continuously repeat at the current chapter/track, when selected REP-ONE mode .
2. Select REP-ALL mode to continuously repeat all chapter/track on the current disc .
2). RDM(RANDOM) Function
During DISC playback, touch screen of
“RANDOM” 4/RDM
button longer on the remote control to play in random.
-23-
12: 16
DISC-IN
REPEAT INTRO
SETUP
TITLE
2/RPT
REPEATALL
2/RPT
REPEATOFF
section ( press the
“REPEAT”
“REPEAT”
range
range
DISC Operation
Each playing, the order is different . (Depend on the disc used for VCD). Touch it again to cancel this function . Note : in random mode, the button is not available .
3). INT Function
FOR CD :
Touch the screen of the section (or longer press the button on the remote control ) to play the previous 6
seconds part of each track/chapter on disc. (Touch it again to cancel this mode)
FOR VCD :
Touch the screen of the section (or long press the button on the the remote control ). It display will
following menu as below : (touch it again to cancel this mode .)
SELECT DIGESTTYPE: TRACK DIGEST DISC INTERVAL TRACK INTERVAL
Use the UP, DOWN, LEFT and RIGHT arrows on the remote to select the item, and then press ENTER to confirm .
FOR DVD :
Touch the screen of the section (or long press the button on the the remote control ). It display will
following menu as below : (touch it again to cancel this mode .)
SELECT DIGESTTYPE: TITLE DIGEST CHAPTER DIGEST TITLE INTERVAL CHAPTER INTERVAL
Use the UP, DOWN, LEFT and RIGHT arrows on the remote to select the item, and then press ENTER to confirm .
NOTE : For MP3, the 3/INT button is not available.
“INTRO”
3/INT
“INTRO”
3/INTer
“INTRO”
3/INTer
DISC Search (GOTO)
FLAT
DVD 1-0:00:16
S-WOOFER
FLAT
DVD 1-0:00:16
GOTO ENTER
012345
FOR DVD :
Touch the screen the of range (or press on the remote control ) Twice, the screen will display
the following message :
Title 01/01 Time -:--:--
0:10:36
You can select the item you want to watch through TIME setting by using numberic buttons . (E.x. 0:10:36)
FOR VCD (With PBC OFF):
Touch the screen the of range (or press GOTO on the remote control )Once, the screen will display the following message :
Disc Go To --:--
00:36
Use the numberic buttons to input the time directly (E.x. : 00:36)
-24-
12: 16
DISC-IN
TA AF CLK LUD
DSP
OSD
GOTO
Touchto select
12:16
DISC-IN
6 7 8 9 +10
GOTOthe button
the button
“GOTO”
“GOTO”
DISC Operation
Note:
Touch and hold the / section on the touch screen , you can select the title or chapter of DVD . (Only for the DVD with title /chapter.)
AUX Operation
On the front panel of this unit, there is an AUX IN jack, follow the diagram below t connect analogue replay devices. Use this jack to replay sound of other replay equipment such as DVD players, computers, etc. Via the loudspeakers.
AUX IN JACK FRONT PANEL
AUXIN
MOD
VIDEO IN (yellow)
3) You now hear the sound from the external device played back through the loudspeakers .
4) Touch the volume+/- sections on touch screen or use the VOL+/- on the remote to adjust the volume level.
o
RCHIN(red)
LCH IN (white)
1) Please connect the external device with stereo jack plug the Aux in socket .
2) Touch the MOD section on screen or press the MOD button to select the AUX IN connection. It will display the following as below :
FLAT
MODE MUTE ON
AUX IN
VOLUME-
12: 16
SEL
DISC-IN
DSP
S-WOOFERLUDCLKAFTA
VOLUME+
-25-
DISC Operation
ON-SCREEN DISPLAY FUNCTION
During playback, touch the screen
OSD
the OSD section (or press the OSD on the remote), it will display the following as below :
1. DVD: A.Touch or Press for first time:OSD
TITLE ELAPSED
T 01/01 C 01/38 0:02:06
Title Number, Total Title Number, Chapter Number, Total Chapter Number of this Title of the disc currently being played will be shown on the screen, along with the elapsed time.
B.Touch or Press for second time:OSD
TITLE REMAIN
T 01/01 C 01/38 3:24:36
2.Example for VCD/SVCD/CD: A.Touch or Press for first time:OSD
SINGLE ELAPSED
TRACK 01/16 0:00:56
B.Touch or Press for second time:OSD
SINGLE REMAIN
TRACK 01/16 0:05:10
C.Touch or Press for hird time:OSD
TOTALELAPSED
TRACK 01/16 0:31:36
D.Touch or Press for fourth time:OSD
TOTALREMAIN
TRACK 01/16 0:36:26
C.Touch or Press for hird time:OSD
CHAPTER ELAPSED
T 01/01 C 01/38 0:02:56
D.Touch or Press for fourth time:OSD
CHAPTER REMAIN
T 01/01 C 01/38 0:04:32
E. Touch or Press for fifth time:
OSD
The message on the screen will be cleared.
E.Touch or Press for the fifth time:
OSD
The message on the screen will be cleared for SVCD and VCD.
NOTE:
For CD and MP3,the message will always display on the screen.
3.Example for MP3: Each time is pressed or touch , the
OSD
message displayed on screen changes as follows:
SINGLE ELAPSED SINGLE REMAIN
-26-

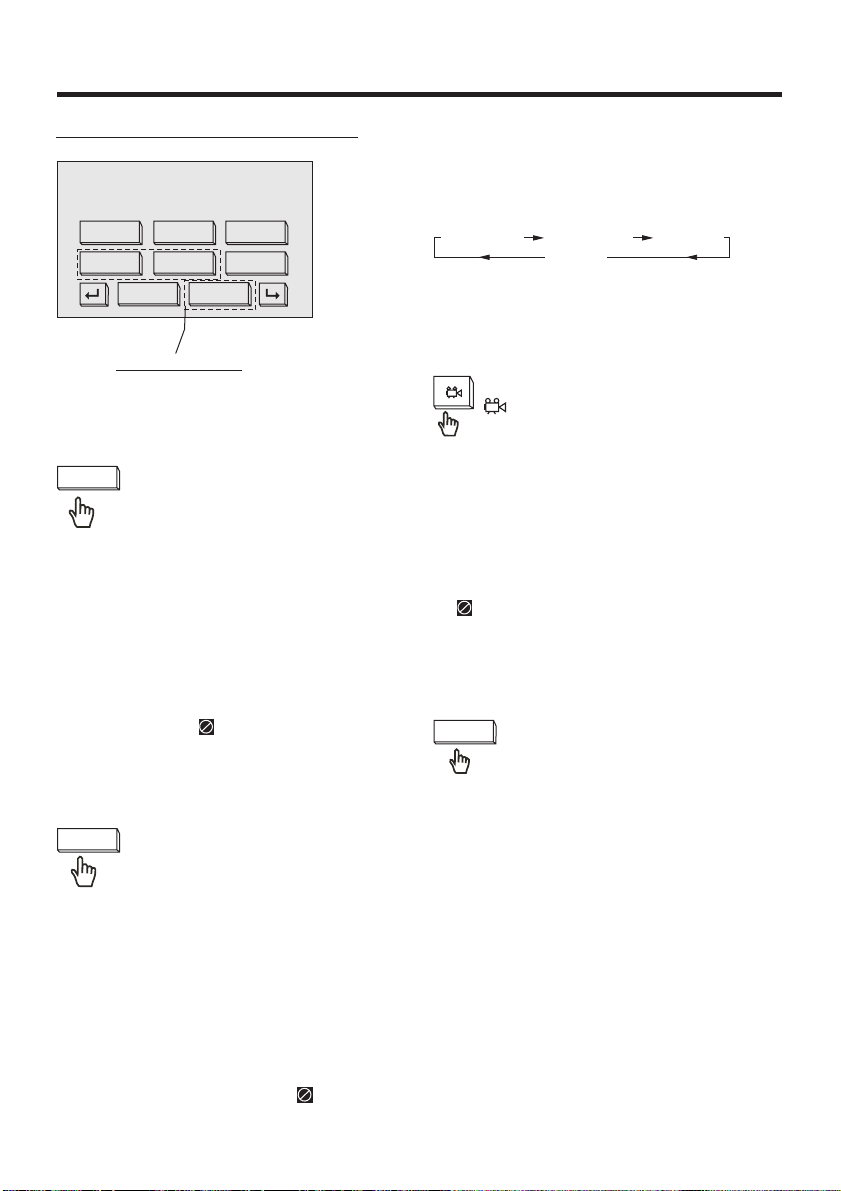

DISC Special Functions
DVD/VCD Special Function
FLAT
DVD 1-0:00:16
RANDOM
AUDIO ZOOMSUBTITLE
1. Multi-subtitle Language Function (for DVDOnly)
SUBTITLE
Each time the button is pressed or touch, number of the subtitle language changes in sequential order.
Notes:
- The language number is different according to the disc.
- Some discs only contain one subtitle language.
- When no different subtitle language are recorded, will be displayed at screen left top corner.
2. Multi-Audio Language Function
AUDIO
on the remote .) Each time the button is pressed or touch , number of the audio soundtrack language changes on sequential order.
Notes:
- The language number is different
according to the disc.
- Some disc only contain one language
soundtrack
- When no different language
soundtrack are recorded will be display at screen left top corner.
12: 16
DISC-IN
REPEAT INTRO
SETUP
TITLE
Touch toselect
During DVD playback. Touch
SUBTITLE
the section on touch screen(or press the SUBTITLE on the remote) .
For DVD:
During DVD playback , touch the section on touch
AUDIO
screen (or press the AUDIO
For VCD/CD:
during playback, touch the
AUDIO
section of the touch screen or Press
AUDIO
on the remote . It is possible to switch the sound between monaural and stereo sound.
MONO LEFT MONO RIGHT
STEREO
MIX-MONO
3. Multi-Angle Function (for DVD Only)
During DVD playback, touch the
section or Press ANGLE button on the remote . Each time the button is pressed or touch,number
of the angle changes in sequential order.
Notes:
- The angle number is different according to the disc.
- The function only work for disc having scenes recorded at different angles.
- When no different angle are recorded,
will be displayed at screen left top
corner.
4. Title Menu Function
TITLE
title menu to start playback.
- During DVD playback, touch the section or press TITLE button on the remote .The title menu is display.
- Touch the cursor button shown in TV screen, select preferred title by the cursor button and confirmed by touch ENT button .
For VCD:
Press button on the remote control while the disc is playing, you can switch between "PBC on"and "PBC off" mode.
-27-
For DVD:
If the DVD has multiple titles recorded on the disc. It can select preferred title from the
TITLE/PBC
TITLE
Setup
USING THE MENU
DOLBY
....GENERAL SETUP PAGE....
TV Display Angle Mark OSD Lang Spdif Output Captions Screen Saver Last Memory
Go To General Setup Page
1. Touch the screen of range or press the button on remote .
SETUP
2.The SETUP menu is displayed.
3.Select the preferred item by touch the ///range on the screen
or by using the / / / buttons .
4.Touch screen of the range or
Press on the remote to confirm .
ENTER
The Following Buttons ForEntering
The Selection.
LB ON ENG SPDIF/RAW ON ON ON
“ SETUP ”
“OK”
GENERAL SETUP
TV Setting
DOLBY
....GENERAL SETUP PAGE....
TV Display
TV Display Angle Mark
OSD Lang Spdif Output Captions Screen Saver Last Memory
Set TV Display Mode
16:9
4:3 Pan Scan
Normal/PS Normal/LB
Normal/LB Wide
4:3LetterBox
Touchto select
Right
Previous
OK
Enter
Up
Down Left
The buttons of the left and right are for selection of setting type . The buttons of the up and down are for selection of the setting program .
Overview OfThe Main Menu
DOLBY
()1 ()2 ()3 ()4
(1) General Settings (2) Speaker Settings (3) DOLBY Digital Settings (4) Preference Settings
1.TV DISPLAY SETUP
This is to select the appropriate TV aspect (4:3 or 16:9) according to the connected TV set.
Normal/PS (For 4:3 TV)
Played back in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off.)
Normal/LB (For 4:3 TV)
Played back in LETTER BOX style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen.)
Wide (For 16:9 TV)
Select when a wide-screen TV set is connected.
-28-
Setup
GENERAL SETUP
DOLBY
....GENERAL SETUP PAGE....
TV Display Angle Mark
Angle Mark OSD Lang Spdif Output Captions Screen Saver Last Memory
Set Angle Mark
ON
ON OFF
2.ANGLE MARK DISPLAY SETUP
If it is set to ON, when the multi-angle DVD disc is playing, (the angle mark) will appears on the screen; if is set to OFF, the mark will not appear.
LANGUAGE DISPLAYING
DOLBY
....GENERAL SETUP PAGE....
TV Display
English
Angle Mark OSD Lang
OSD Lang
OSD Lang Spdif Output Captions Screen Saver Last Memory
English French German Spanish Italian Portuguese
DOLBY
....GENERAL SETUP PAGE....
TV Display Angle Mark
OSD Lang
OSD Lang Spdif Output
Spdif Output Captions Screen Saver Last Memory
Setup SPDIF
SPDIF/OFF SPDIF/RAW
SPDIF/RAW SPDIF/PCM
4.SPDIF OUTPUT
This is to activate the audio output
from SPDIF OFF mode to SPDIF/RAW mode to SPDIF/PCM mode.
DOLBY
....GENERAL SETUP PAGE....
TV Display Angle Mark OSD Lang Spdif Output
Captions
Captions Screen Saver Last Memory
ON
ON OFF
Set OSD language
3.OSD LANG TYPE SETUP
Touch the / section on the touch screen or press the / button on the remote to select the preferred OSD language , then touch the section to confirm .
OK
Closed Caption
5.CAPTIONS SETUP
Activate the CAPTIONS feature by selecting ON. And release this feat­ure by selecting OFF.
-29-
Setup
GENERAL SETUP
DOLBY
....GENERAL SETUP PAGE....
TV Display Angle Mark OSD Lang Spdif Output Captions Screen Saver
Screen Saver Last Memory
Screen Saver
6.SCREENSAVER SETUP
If the screen displays a static image for too long, some "burn-in" may occur, leaving a permanent trace of the image behind. To avoid this, turn ON the SCREENSAVER item. After a short period of inactivity on the monitor, the unit will substitute a moving image to avoid burn-in.
....GENERAL SETUP PAGE....
TV Display Angle Mark OSD Lang Spdif Output Captions Screen Saver Last Memory
Last Memory
Set Last Memory State
7.LAST MEMORY SETUP
Select the LAST MEMORY output ON/OFF.
DOLBY
ON
ON OFF
ON
ON OFF
SPEAKER SETUP
.....Speaker Setup Page.....
DOLBY
....Speaker Setup Page....
DOWNMIX
DOWNMIX
Set Downmix Mode
LT/RT STEREO
STEREO
DOLBY DOWNMIX
Many DVD discs are recorded using a surround sound recording technology called Dolby AC3 5.1. When such a disc is played in a normal 2- or 4-channel playback unit like this one, the surround sound must be "downmixed" to stereo. In this case, choose "stereo," unless the output from this unit is connected to a mobile Dolby surround sound system. In that case, choose LT/RT.
DOLBY DIGITAL SETUP
DOLBY
....DOLBY Digital Setup....
FULL
DOWNMIXDYNAMIC
Set DRC OFF
DYNAMIC RANGE CONTROL
Select DRC and adjust the dynamic range of a Dolby Digital encoded program. There are 8 steps between full compression and off compression.
-30-
6/8
4/8
2/8
OFF
Setup
--- PREFERENCES PAGE ---
DOLBY
....Preference Page....
TV Type
TV Type Audio
OSD Lang
Subtitle Disc Menu Parental Password Default
Set TV Standard
PAL AUTO
NTSC
NTSC
1. TV TYPE SETUP
This player is capable of playing discs recorded in either PAL or NTSC formats. Make the selection based on whether you are connecting the unit to a PAL TV or an NTSC TV. You can also set the unit to AUTO (autoselect). The disadvantage to autoselect is that each time you turn the unit on it checks to see what kind of monitor is connected, which causes a small delay and some flickering of the display image which you may find unpleasant.
DOLBY
....Preference Page....
TV Type Audio
Audio
OSD Lang
Subtitle Disc Menu Parental Password Default
Preferred Audio Language
English
English French German Spanish Italian Portuguese
2.AUDIO LANGUAGE SETUP
Select the preferred AUDIO soundtrack language using the cursor buttons.
DOLBY
....Preference Page....
TV Type Audio
OSD Lang
Subtitle
Subtitle Disc Menu Parental Password Default
Preferred Subtitle Language
English French German Spanish Italian Portuguese Off
Off
3.SUBTITLE LANGUAGE SETUP
Select the preferred SUBTITLE language by using the cursor buttons.
DOLBY
....Preference Page....
TV Type
English
Audio
OSD Lang
Subtitle
Disc Menu
Disc Menu Parental Password Default
Preferred Menu Language
English French German Spanish Italian Portuguese
4.DISC MENU LANGUAGE SETUP
Select the preferred DISC MENU language by using the cursor buttons.
-31-
Setup
--- PREFERENCES PAGE ---
Age control
DOLBY
DOLBY
....Preference Page....
TV Type Audio
OSD Lang
Subtitle Disc Menu Parental
Parental Password Default
4PG13 5PGR 6R 7NC 17 8ADULT
8ADULT OFF
Set Parental Control
5.PARENTAL
Select suitable parental guidance with the cursor buttons and confirm it by pressing the ENTER button.
DOLBY
....Preference Page....
TV Type Audio
OSD Lang
Subtitle Disc Menu Parental Password
Password Default
Changed Password
6.PASSWORD SELECTION
Thepasswordmustbeusedtomake changes to the Parental Control menu above. The factory default password is
. To change this password, press
1379
change. You will be asked for the current password. Once you have entered it, you have the opportunity to change it. Then, when you enter the Parental Control menu, you will be required to use this new password in order to make any changes.
CHANGE
CHANGE
....Preference Page....
TV Type Audio
OSD Lang
Subtitle Disc Menu Parental Password
RESET
Default
Default
RESET
Load Factory Setting
7.DEFAULTS
Selecting the DEFAULT item and confirming RESET will return ALL personal settings you have made, including radio and TV presets, to the factory default settings.
DEFAULTS TABLE
GENERAL SETUP
SPEAKER SETUP
DOLBY DIGITAL
PREFERENCES
TV DISPLAY
ANGLE MARK
OSD LANGUAGE
SPDIF OUPUT
CAPTIONS
SCR SAVER
LAST MEMORY
DOWNMIX
DYNAMIC
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
NORMAL/LB
ON
ENGLISH
SPDIF/RAM
ON
ON
ON
STEREO
OFF
AUTO
ENGLISH
OFF
ENGLISH
8 ADULT
1379
-32-
Other Main Operation
USB Operation
Following the diagram below, connect your USB device to the front panel USB port . If it is properly connected, the device will be mounted and start playing automatically.
In USB Playback mode
Use the UP, DOWN, RIGHT or LEFT buttons to navigate to and select files to play, and press ENTER to begin playback (or viewing, in the case of JPEG files). To skip to the next or last track, touch or press the or . Press the or buttons for Fast Forward or Fast Reverse playback.
REPEAT
by repeatedly pushing until the desired mode is found.
play modes are also available
REPEAT
Changing From DISC to USB Playback Modes
If the disc present in the player is an MP3 disc, touch section on screen or press the STOP on remote once then touchorpresstheGOTOtoUSB playback.
If the disc present in the player is an DVD or VCD or CD disc, touch on the screen or press STOP twice on the remote then touch GOTO section on the screen or press the GOTO button on the remote to USB playback.
Important Note:
To prevent damage to the USB device,
do not remove or disconnect it during
playback. it is also a good practice to
remove the USB drive during disc
playback.
Changing From USB to DISC Playback modes
If you are in USB Playback mode and wish to begin playback of a disc already in the player, touch the range on the touch screen or press the STOP on the remote once. Then touch GOTO range on the screen or press the GOTO on the remote and the player will switch to DVD/VCD/CD/MP3 Playback mode.
-33-
Other Main Operation
SD/MMC card OPERATION
The unit can support playback MP3/WMA/JPEG/MP4 and Divx format which are stored into SD and MMC memory card . Please read below before you start the operation of memory card .
Inserting andremoving a SD or MMC card onthe front panelof unit .
Inserting theSD or MMCcard .
Label sidefacing backward
Insert the memory card into slot with label side facing backward .
Removing the SDor MMC card.
Press in till heard a .“CLICK”
Press in till heard a .“CLICK”
Remove the memory card .
Mode change to SD/MMC card
After a SD or MMC card was inserted into the main unit card slot . The unit will starts playing the files contained on the memory card . Once the unit read the memory card successfully, the first file on the memory card will automatically start play back . Press the mode button repeatedly is allowing changing to other modes .
Change DISC to SD/MMC card
The operations are same as USB mode, refer to see USB operation .
Change SD/MMC card to DISC
The operations are same as USB mode, refer to see USB operation .
File Playback Operation
All the SD or MMC memory car playback operation function is same as the operation on .
CD/MP3/WMA
Please to operation for more details .
“ MP3/WMA”
-34-
Other Main Operation

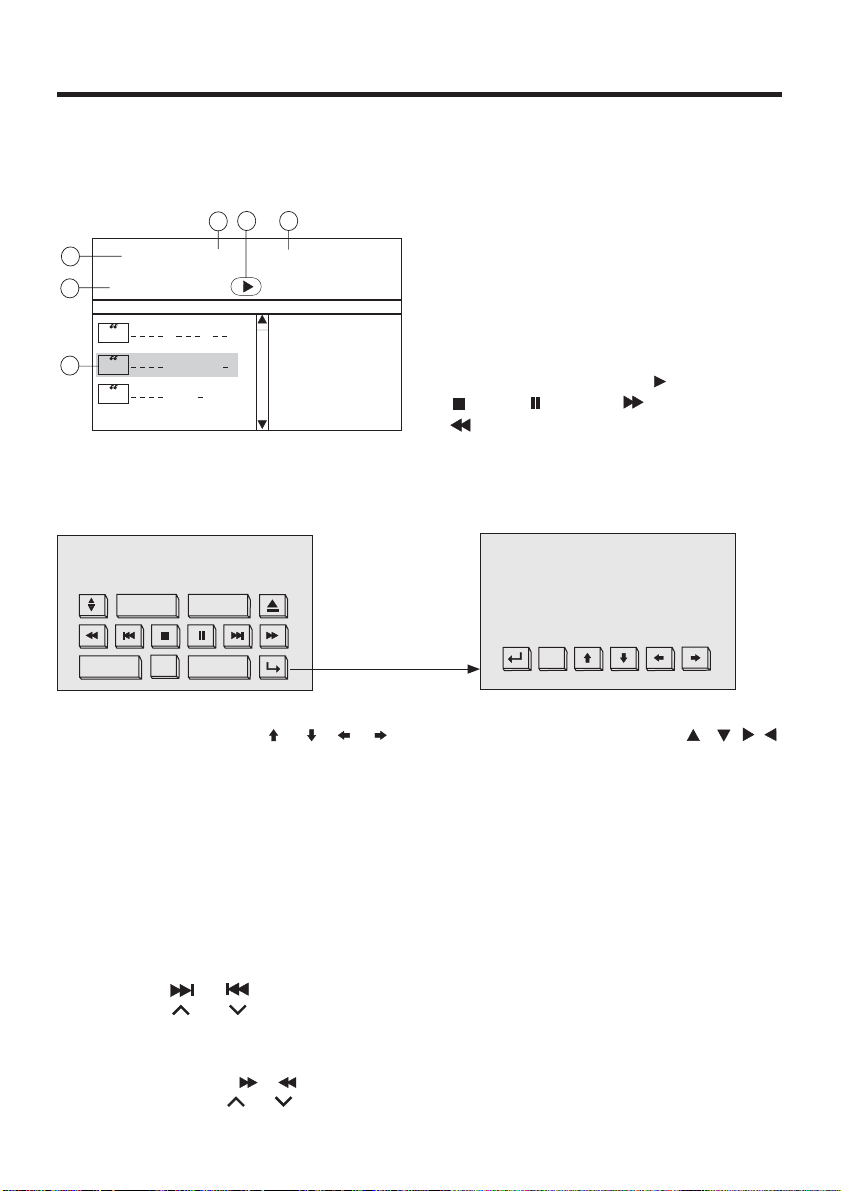

MP3/WMA/JPEG/MPEG4 DISC PLAY
When you insert a disc which contains MP3, WMA or JPEG files, the different file types are detected, and a list of the files are produced, as shown in the diagram below.
56
4
3
003/112
2
Mp3
Mp3
1
Mp3
..............
00:56 04:07
K
P
woman
new
ton
Repeat one
1
Touch the screen, it will display the following as below : (when the parking brake is applied .)
1 Current track(file)(highlighted bar) 2
Current track (file) number/total
number of tracks(files) in the current folder. Elapsed playing time of the current
3
track(
not available for JPEG disc)
4 total playing time.
( not available for
JPEG disc)
5 Operation mode icon. (Play),
(stop), (pause), (forward)
(reverse).
6
Selected playback mode
FLAT
MP3 02-0:36:20
MODE
08: 16
DISC-IN
MUTE ON
SEL VOLUME+VOLUME-
FLAT
MP3 02-0:36:20
Touchrepeatedly
12: 16
DISC-IN
OK
In stop mode, touch the / / / sections on touch screen (or Use / / / on the remote control ) to select the item or folder, then touch the range (or press button on the remote control ) to confirm.
Touch the screen of range or press longer on the remote control
ENTER
“REPEAT ” “REPEAT”
“OK”
repeatedly can select two kinds of repeat play mode.
REP-ONE:
Play the same song over and over again.
REP ALL:
Play all songs on the disc, then repeats the entire disc over and over again .
Moving To Another Track :
1. Touch the or section to skip a track ahead or back.
2. Press the or button to skip a track ahead or back.
Fast Forward/Fast Backward
1. Touch briefly the “ / ” range on touch screen for fast forward / fast backward.
2. Press longer the or button for forward or backward .
-35-
Specification
Generall :
Supply Voltage: 12V DC (11V-15V) Current Consumption: Less than10 A Signal System: Compositive video 1.0Vp-p 75 Discs Played: (1)DVD-VIDEO Disc
5"(12 cm) single-sided, single-layer 5"(12 cm) single-sided, double-layer (2)Compact Disc (CD-DA, VIDEO CD) 5"(12cm) disc
Audio Signal Output: 2ch&4ch line out Characteristics: (1)Frequency Response 20 Hz - 20 KHz
(2)S/N Ratio 90 dB (JIS) (3)Wow and Flutter Below measurable limits
RADIO Section:
For 3 Bands For 2 Bands For 2 Bands
(Europe) (Europe) (U.S.A.)
FM FM FM Frequency Coverage: 87.5 to108 MHz 87.5 to108 MHz 87.5 to107.9 MHz IF: 10.7 MHz 10.7 MHz 10.7 MHz Sensitivity (S/N = 30 dB): 15 dBu 15 dBu 15dBu
MW MW AM Frequency Coverage: 522 to1620 KHz 522 to1620 KHz 530 to1710 KHz IF: 450 KHz 450 KHz 450 KHz Sensitivity (S/N = 20 dB): 40 dBu 40 dBu 40 dBu
TFT Monitor:
Monitor Screen Size: 7 Inch Wide Number of Pixels: 480 X RGB X 234 pixels Color System: NTSC/PAL
NOTE:
Specifications and design are subject to modification, without notice, due to improvements in technology.
-36-
Trouble Shooting
Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.
SYMPTOM CAUSE SOLUTION
If the power supply is properly connected to the car accessory terminal,switch the ignition key
"ACC"
to
Replace the fuse
Remove the disc in the player, then put a new one
Insert the compact disc with the label facing upward
Clean the disc or try to play a new one
Cool off or until the ambient temperature return to normal
Please switch to correct color system from menu
Make proper connection according to wire connection
For safety reasons no television /video images are displayed while the vehicle is moving. Engaging the parking brake will cause images to be displayed.
Please the television mode of the choice accommodation
Change the disc
Change the disc Record JPEG files using a compliant application
Press the RESET button. Front panel is not properly fixed into its place
Insert the antenna cable firmly
Select a station manually
“”
No power
Disc can not be loaded or ejected
Television/video imageappears black-white
No television/video image appears
No color in picture
JPEG disc can not be played back
The operation keys do not work
The radio does not work
The car ignition switch is not on
The fuse is blown
Presence of disc inside the player.
Inserting the disc in reverse direction
The disc is extremely dirty or defective
Temperature inside the car is too high
The color system is set incorrectly
The unit is not connected to the parking brake detection switch
The parking brake is not engaged
Thediscformatisnot accordingto the TV-set used (PAL/NTSC)
No JPEG files are recorded on the disc.
JPEG files are not recorded in a compliant formant
The built-in microcomputer is not operating properly due to noise The antenna cable is not connected
The signals are too weak
-37-
888-J9000-03S
Loading...
