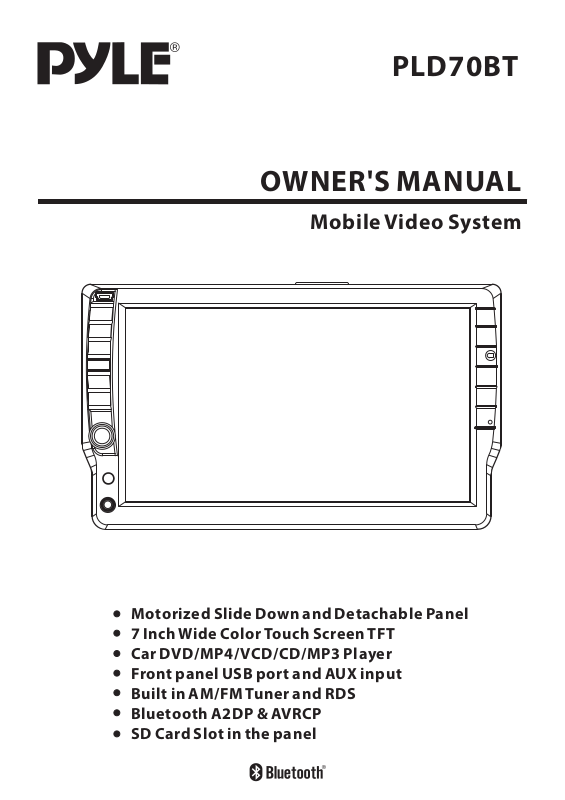

PYLE Audio PLD70BT User Manual

PLD70BT

OWNER'S MANUAL

Mobile Video System

Motorized Slide Down and 7 Inch Wide ColorTouch Screen TFT Car DVD/MP4/VCD/CD/MP3 Player Front panel USB port and AUX input Built in AM/FMTunerand RDS Bluetooth A2DP & AVRCP SD Card Slot in the panel

Detachable Panel

Contents

Precautions .....................................

Safety Information.........................

Disc Notes ....................................

Installation ....................................

Detaching the control panel ..............

Changing the control panel ...............

Electric Connection ......................

Remote Control ...........................

Control Panel ................................

Touch Panel

Unit Keys ......................................

Basic Operations

TFT Monitor

Rear View Camera

Audio Quality Adjustments

Setting Audio Mode .........................

Reset Factory Settings

Alternate Audio/Video Source ..........

Radio Operations ..........................

Listening to the radio ......................

Storing stations in memory ..............

Listening to a preset station ............

RDS Function ................................

DISC Operations ...........................

Basic Operations ............................

Select Playback Mode .....................

AUX Operation ...............................

On-Screen Disc Operations .............

DISC Special Functions ................

Selecting audio languages ..............

....................................

..........................

Adjustment ................

........................

...............

..................

Selecting Subtitles ..........................

Selecting multi-angle views ..............

Title menu function ..........................

Setup .............................................

General Setup ................................

Speaker Setup ...............................

Dolby Digital Setup ........................

Preferences Setup ..........................

Defaults Table ................................

BLUETOOTH .................................

Other Main Operations ...................

USB Operations ..............................

SD/MMC Card Operations ...............

MP3/WMA/JPEG Play .....................

MPEG4 Play ...................................

Specifications ...............................

Trouble Shooting ..........................

-1-

Precautions

THANK YOU FOR PURCHASING THIS CAR DVD PLAYER .

Before operating the unit, read this manual thoroughly and keep it handy for future reference . To avoid injury or accident , read the following precautions before installing and operating the unit .

ON INSTALLATION

DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this may result in a fatal accident.

- it may obstruct visibility.

DO NOT operate any receiver while manipulating the steering wheel, as

this may result in a traffic accident.

The driver must not watch the monitor while driving. IF THE DRIVER watches the monitor while driving, it may lead to

carelessness and cause an accident.

IF YOU NEED to operate the receive while driving, be sure to look ahead

carefully or you may be involved in a traffic accident.

IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the

monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to

the parking brake system built in the car ( refer to the electric connection)

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction . The picture may become unclear , or the LCD panel may be damaged .

NOTES ON CLEANING

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available

cleaners or antistatic spray .

-Do not use alcohol to clean the screen . If your car was parked in a cold or hot place, the picture may not be clear . The monitor is not damaged . The picture will become clear the temperature in your car becomes normal .

-2-

Safety Information

CAUTION:

THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE . HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLYAS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD Player cannot play this disc.

-3-

Disc Notes

Disc formats supported by this player

DVD

VCD

MP3

Audio and Video Discsize12cm

Audio Discsize12cm

Discs which cannot be played with this player

DVD-RAM CDV CDG

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation. Do not place stickers or make scratches on discs. Do not warp discs.

A disc should always be kept in its case when not in use to prevent from damaging. Do not place discs in the following places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Label side up

Do nottouch the underside of thedisc

Do not bend

Wipe the disc from center toward theoutside edge

Preparing New Discs with

Rough

Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Ball pointpen or pencil

Rough spots on inside edge

-4-

Installation

NOTES:

1. Choose the mounting location where the unit will not interfere with the normal driving function of the driver.

2. Before finally installing the unit, connect the wiring temporarily and make sure it is

all connected up properly and the unit and the system work properly.

3. Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

4. Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

5. Install the unit where it does not get in the driver s way and cannot injure the passenger if there is a sudden stop, like an emergency stop.

. Avoid installing the unit where it would be subject to high temperature, such

6 as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration. 7

. If installation angle exceeds 30 from horizontal, the unit might not give its

optimum

performance.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

Revoving the unit

1. Press the button to release the front panel .REL

2. Remove the control panel .

-5-

Installation

Installation the unit

3. Remove the PLASTIC COVER of the both sides away

PLASTIC COVER

4. Insert the two KEY PLAT into the grooves at both sides of the unit as shown in figure until they click .

KEY PLATE

5. Pulling the levers makes it possible to remove the unit from the dashboard .

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

DASH BOARD

HEX NUT

METAL MOUNTING STRAP

CONSOLE

SLIDE BRACKET HOUSING

HEX BOLT

-6-

Installation

How To Remove And Install The Front Panel

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching The Front Panel

Before detaching the control panel, be sure to turn off the power.

1). Press the release button and the left hand side of front panel will release.“REL”

RELEASE BUTTON

2). Pull-off the front panel and keep the front panel into the case .

PROTECTIVE CASE

Attaching The Front Panel

1). First insert the right hand side of the front panel into the hollow of the unit . (NOTE : the “bulge” point on the panel must be attached into the hollow of the unit .)

2). Gently push the left hand side of the front panel until you feel a “ Click” .

Hollow

Bulge

PUSH

-7-

Panel Angle Adjustment

CHANGING THE CONTROL PANEL ANGLE

When you want to change the viewing angle of the operating unit to play, you can touch the section on touch screen (or press the button on the front panel) repeatedly to select the desired angle as follows:

ANGLE1-ANGLE2-ANGLE3-ANGEL4-ANGLE 1 .

ANGLE 1 ANGLE 2

ANGLE 3ANGLE 4

Caution:

Do not insert your finger behind the control panel.

-8-

Electric Connection

WIRING CONNECTION

MAIN UNIT

RADIO ANTENNA JACK

IGNITION

SWITCH(B+)

MEMORY

BACK-UP(B+)

GROUND(B-)

ANTENNA

AUTO

RED

YELLOW

BLACK

BLUE

FRONT

Lch SPK.

REAR

Lch SPK.

FUSE

CHOKE BOX

FUSE

WHITE/BLACK

GREEN/BLACK

ISO CONNECTOR

WHITE

GREEN

WHITE

BROWN

YELLOW

RCA CABLE

REAR RCAOUTPUT

CABLE

FRONT RCA OUTPUT

CABLE

(FOR RCALINE OUT VERSION ONLY)

GREY

GREY/BLACK

VIOLET

VIOLET/BLACK

FRONT

Rch SPK.

REAR

Rch SPK.

(B+)12V REAR CAMERASWITCH

(B-)PARKING BRAKE

REAR CAMERAINPUT

GREY SUBWOOFER VIDEO OUT2 YELLOW

COAXIAL OUT BROWN

RCH RED

LCH WHITE

FRONT RCA RED R

VIDEO OUT 1YELLOW

FRONT RCA WHITE L

Note: the earth connection cable (parking brake B-) must be connected in order for DVD pictures to be played back to the monitor. If the cable has not been correctly connected, the message “PARKING BRAKE” appears on the monitor.

-9-

Remote Control

Ref #

Button

CLK

PAIR/

STOP

SETUP

MO/ST (AUDIO)

SUBTITLE LOCAL/ DISTANT

Redial/

Function

Press it briefly to view the clock time , Press again to return to normal display mode . Press longer to set the time .

Press it to use the Bluetooth function , refer to the page 33 . Press once to pause playback. Press PLAY/PAUSE to resume

playback. Please note: if you press STOP twice, playback will start at the beginning of the disc.

Press this button to open the SETUP menu.

In Radio mode, press this button to change between Mono and Stereo reception modes (when a station is weak, sometimes switching to Mono will improve sound quality). In Disc Playback mode, pressing this button opens the AUDIO setup menu for making changes to the way the soundtrack is reproduced.

In DVD Disc Playback mode, pressing this button will allow you to change the subtitle language on discs which have this as an option. In Radio mode, press this button to change the radio reception sensitivity in stations are near or far.

Press this button to use the Bluetooth function, refer to page 33.

-10-

Remote Control

Ref #

Button

GOTO

SEL

VOL+/-

///

Menu SubWoofer

()

BAND (OSD)

/MOD

PLAY/ PAUSE

Function

Press it button to begin playback at a moment in the program you designate. Use number buttons to enter the data that is needed. In Bluetooth menu, it serves as the asterisk button on your mobile handset.

Press these buttons to skip ahead or back one track. (Note: In DVD mode, press continually the twice to skip back one)

Press this button repeatedly to cycle through the various audio and video adjustments you can make: Volume, Bass, Treble, Balance, Fader, Color, Brightness, Contrast and Tint.

Use these controls to adjust the volume level.

Press to navigate the various menus present in the product.

Press this button briefly to display the root level directory of a DVD disc. Press and hold this button to turn on or off the SUBWOOFER output.

In Radio mode, press this button repeatedly to switch between the five radio bands: FM1 > FM2 > FM3 > AM1 >AM2. In Disc Playback modes, Press this button to see information about the disc currently in play.

Press this button to turn the unit ON , press and hold to turn the unit OFF. Press it briefly to select the Disc, Radio , AUX In , BT Music mode.

In Disc Playback mode, press to pause playback. Press again to start where playback stopped.

MUTE

TITLE/ PBC(A/P)

ANGLE

EQ/LOUD

Press this button to turn off the audio. Press again to restore the sound to its prior volume level.

When playing a DVD, pressing this button will open the TITLE menu which is recorded on the DVD. When playing a VCD disc, press this button to create a PBC (Playback Control) menu for the disc to assist in making playback selections. In Radio mode, press and hold this button to start theAuto-Program mode, during which the tuner will scan for all strong stations and assign them to the radio preset buttons.

Press this button to adjust the screen viewing angle (see page 8).

For DVD discs which have alternate viewing angles encoded, when you see the "angle mark" symbol advising you that these angles are available, press this button to see them.

Press repeatedly to cycle through the different equalizer curve presets you may wish to use for enhanced listening.

In Disc Playback mode, press for fast forward/reverse playback.

-11-

Remote Control

Ref #

Button

ENTER

0-9

+10/

1-6

This button is used to confirm selections and settings within many of the menus in the OSD system.

Use to input numerical values during programming, with the GOTO button, or to directly select a track to play . In addition, in Radio Mode (when RDS is engaged), 0 serves as the TA button and 9 serves as the AF button.

This button is used with the other number buttons for use with two-digit number entries. In Bluetooth menu, it serves as the hash button on your mobile handset.

Six numbered preset buttons store and recall stations for each band

Function

Preparing the Remote Control

Inserting the Battery

1.First push to inside as the direction indicated by the arrow (See )And then

Remove the battery holder as the direction indicated by the arrow (See ).

2.Replace the battery Set a new battery property with (+)side up as illustrated

(See ).

3.Insert the battery holder. Push in the holder to the original position(See ).

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal

receiver).

Operation angle: About 30 degree in each the direction of the front of the IR mark.

Note :

The lithium cell in the battery compartment of remote control has been secured for

transport with a foil . Before initial use please remove this foil so that the remote

control is ready for operation .

-12-

Control Panel

Key Functions

Touch Panel

MODE MUTE ON

Touch Screen Key :

Changing the viewing angle of the operating unit

MODE

MUTE ON

Operating mode selection

To switch of the sound

Loading and ejecting the DVD/CD

PAIR

SEL

DIAL

VOLUME+VOLUME-

REDIAL

VOLUME-

SEL

VOLUME+

REDIAL

Redialling

Decrease the volume level

Select the menu of the Picture/Sound

Increase the volume level

PAIR

DIAL

Registering devices with one another

Calling up the Bluetooth menu

Next menu

-13-

Control Panel

Unit Keys :

9 8

7 6 5 4

1 AUX Input JACK

For information about connecting a AUX device, please see page 25 .

2 IR SENSOR

3 VOL+/VOL- KNOB

In normal mode, this knob is used to increase or decrease the volume. It is also used as an UP/DOWN knob when audio or video settings are being adjusted when accessed using the SELECT button.

4 (POWER On/Off )/MODE BUTTON

Press this button to switch the device on. WELCOME appears in the display. Press it again to switch the device off. SEE YOU appears in the display. In playback mode, you can use the button to select the input mode by pressing repeatedly until the proper one is found :

DISC > AUX IN >RADIO > BLUETOOTH MP3 .

5 ANGLE (Screen position)

Press this button repeatedly to cycle through the different positions.

-14-

Control Panel

6 REL BUTTON

Press this button to release the front panel for removal . Refer to see page 7.

7 /CH 1-6 BUTTON(RADIO PRESET)

In Disc Playback Mode

Press this button to pause playback, press it again to resume playback.

In Radio Mode

Press this button repeatedly to preset station. With this system a total of 30

stations can be stored in the memory . Each band store up to six preset stations. The stations might be FM1, FM2, FM3, AM1 (MW1) and AM2 (MW2) band.

-Store in Memory >

Select the frequency band

> Press repeatedly the button to select the desired memory key .

> Select the station > Keep the desired memory key pressed in until the station is heard again

after a brief interruption .

The operation as below:

-Retrieve a preset station

press the button repeatedly to retrieve a station which had been stored in the memory in advance the chose number is shown on display .

8 SELECT BUTTON

To access the available adjustment settings for audio and video, press this

button repeatedly to cycle through and select them:

Buzzer Volume Bass Treble Balance Fader

Tint Contrast Bright Color Bluetooth

9 (EJECT)BUTTON

Press it button to eject the DISC or insert the DISC to start play .

10 USB OPERATION

For information about connecting a USB device, please see page 35.

11 SD/MMC CARD SLOT

12 MIC

Microphone .

13 RESET BUTTON

Press this button to return to factory settings .

-15-

Basic Operation

POWER On/Off

Press it to switch the device ON, press and hold about 2 seconds to switch the device OFF.

Ejecting The Disc

Use your finger to touch the

range on touch screen , the control panel of the unit will swing downwards . Then

you can insert the disc or eject the disc .

Select Sources

Touch the MOD

MODE

DISC

RADIO BLUETOOTH MP3

repeatedly section on the screen, the signals will display in the screen as follow :

AUX IN

Volume Adjusting

Volume button

Revolve : clockwise to increase /

Anticlockwise to decrease .

Touch screen

Mute Function

MUTE ON

Touch “MUTE ON” range, it will mute the sound but the disc continues playing . Touch it again to resume .

Setting The Clock

CLK

VOL+/- to adjust .Touch it again, the minute will flash, then use the VOL+/to adjust .

Touch briefly the range

to show/hide the clock . Touch hold for more than 2’s the hour will flash , the

“CLK”

use

Setting The Buzzer ON/OFF

SEL

Repeatedly touch range to select the item, and theusetheVOL+/-toswitchthe

BUZZER ON/OFF

“SEL”

BUZZER

Setting the Background Color

SEL

ground color among of the

AUTO, wallpaper: 01 ......wallpaper:11”,

in the mode, the monitor of unit will change the background color automatically .

In radio mode, repeatedly touch

“ SEL ”

the range to select the

“wallpaper”

the VOL+/- to select the back-

“AU TO”

item, and then use

“wallpaper

VOLUME-

VOLUME+

Touch the screen the VOLUME- to decrease the volume level .

Touch the screen the VOLUME+ to increase the volume level .

Setting Blue-toothON/OFF

SEL

-16-

Repeatedly touch range to select the item, and theusetheVOL+/-toswitchthe

Bluetooth ON/OFF

“SEL”

Bluetooth

Basic Operation

TFT Monitor Adjustment

During DISC playback, use your

SEL

finger to touch briefly the SEL section on the screen (or press SEL button on front panel to access the Picture

selection menu, by repeatedly touch the SEL section, and then touch the VOL+/(or rotate the VOL+/-) to adjust the selected mode . (The corresponding value will show on the monitor )

Volume Bass Treble Balance

Bluetooth

Contrast Bright ColorTint

BRIGHT 16

MODE

SEL

MUTE ON

VOLUME+VOLUME-

touch to select

touch to adjust

)

mode

FadeBuzzer

Rear View Camera

When connecting the rear view camera. the mirror image of the rear view through the rear view camera is automatically displayed on the monitor when you change the gear to the back position. (The monitor on the unit only.)

Audio Quality Adjustment

During DISC playback, use your

SEL

finger to touch briefly the SEL section on the screen (or press SEL button on the front panel )

to access the Sound mode selection menu, by repeatedly touch the SEL section, and then touch the vol+/(or rotate the vol+/-) to adjust the selected mode . (The corresponding value will show on the monitor )

Volume Bass Treble Balance

Bluetooth

FadeBuzzer

Contrast Bright ColorTint

FLAT

12: 18

TREBLE +02

MODE

MUTE ON

DISC-IN

ADJUSTABLE ITEMS:

COLOR: 0 to 32 Adjust the color for the picture-lighter or darker. BRIGHT:0to32 Adjust if the picture is too bright or too dark. CONTRAST: 0 to 32 Adjust the contrast of the bright and dark portion. TINT:0to32 Adjust the tint if the human skin color is unnatural.

-Adjustable when NTSC is selected for ““

NTSC/PAL .

““

VOLUME+VOLUME-

SEL

touch to select

touch to adjust

ADJUSTABLE ITEMS: Volume:

0to32

Adjust volume level by using VOL +/-.

-14to+14

Bass:

Adjust bass level by using VOL +/-.

Treble:

-14to+14

Adjust treble level by using VOL +/-.

-17-

Basic Operation

Balance:

R0-10toL0-10. Adjust sound balance between left and right speakers by using VOL + / -

Fader:

F0 10toR0-10.

Adjust sound balance between front and rear speakers by using VOL + / VOL - .

Setting Audio Modes

Touch the screen the DSP range

DSP

(orpresstheEQbuttononthe remote control ) to select one of the preset sound modes .

(Rock/Pop/Jazz/Classic/Flat).

The information will display in the monitor as follow :

POP

ROCK

FLAT

RANDOM REPEAT INTRO

S-WOOFER

16: 18

ROCK

TA AF CLK LUD

DSP

OSD

JAZZ

CLASSIC

DISC-IN

GOTO

ALTERNATE AUDIO/VIDEO SOURCE

On the front panel of the unit , there is an AUX IN jack, to connect analogue replay devices. Use this jack to replay sound of other replay equipment such as DVD players, computers, etc. Via the loudspeakers.

1). Please f

ollowing the diagram below, connect the external device with stereo jack plug the AUX IN socket .

2). Press the MOD button to select the AUX IN connection.

3). Use the buttons on the external device itself to operate it .

AUXIN

AUX IN

Headphones port

touch to select

It`s depend on your habit to select the Audio mode .

Reset Factory Settings

RESET button is placed on the housing and must be activated with either a ballpoint pen or thin metal object.

The button is to be activated for

RESET

the following reasons: A. Initial installation of the unit when all wiring is completed. B. All the function buttons do not operate. C. Error symbol on the display.

-18-

Radio Operation

Listening to the Radio

SwitchingTo Radio Mode

Touch the screen of

MODE

range (or press the MOD button on the front panel ) repeatedly to

select the RADIO mode. the following information will appears as below:

FLAT

FM1 87.60

123456

FLAT

FM1 87.60

BND

PAIR

FLAT

FM1 87.60

12:06

MODE

STEREO/MONO

CLOCK LOUDNESS

MUTE ON

SEL VOLUME+VOLUME-

12:06

S-WOOFER

DIAL

12:06

NO-DISC

MHZ

NO-DISC

MHZ

APS

DSP

NO-DISC

MHZ

REDIAL

PTY

LOC

“MODE”

select the band , the message will show in turn :

FM1 FM2 FM3

AM2(MW2)

AM1(MW1)

Start SearchingFora Station

Manual Search

During Radio mode, briefly touch the screen of “ ” section to increase frequency by one step of channel spacing .

Briefly touch the “ ” section to decrease frequency by one step of channel spacing .

Automatic Search

During Radio mode, touch and hold (for more than 2’s ) the screen of “ / ” section to start search for a radio station automatically .

When an FMstereo broadcast is hard to receive

Touch the section on touch screen (or press button on the remote control ) to select the MONO

or STEREO mode . (When Stereo mode is activated, the ST symbol will appear . )

“STEREO/MONO”

ST/MO

Touch “ ” to next .

Touch “ ” to previous .

Selecting The Frequency Band

BND

Touch the screen of

section repeatedly to

“ BND ”

To tune instrong-singnal FM

Station only (LO/DXfunction)

Touch the range on the touch screen (or press LO/DX button on the remote control ) to select the LOCAL or DX mode . ( You can choose between the LOCAL and DX(DISTANCE) mode for local or long-distance traffic news . )

-19-

“LOC ”

Radio Operation

Storing Stations In Memory

With this system, a total of 30 stations can be stored in the memory of six buttons. Each band stores up to six preset stations. The stations might be FM1, FM2, FM3, AM1(MW1), and AM2(MW2) band. The operation is as below :

Touch the screen of the sections“ 1-6 ”

FLAT

FM1 87.60

123456

Touchto preset station

-Store in Memory > Select the frequency band

> Select the station > Keep the desired memory key pressed in until the station is heard again after a brief interruption .

MODE

12:06

NO-DISC

MHZ

MUTE ON

SEL VOLUME+VOLUME-

e.g. FM1, for the stronger signal level until the search cycle has finished . The six strongest stations are then allocated to the corresponding storage locations . Then the station of the first storage location is set .

Scan Function

APS

In Radio mode, briefly touch the

section on the touch screen ,

APS

the radio briefly plays all the

preset stations of the frequency band .

RDS FUNCTION

In Radio mode, touch it to select the desired item, it will display the

following as below :

FLAT

FM1 87.60

12:06

CLOCK LOUDNESS

NO-DISC

MHZ

PTY

Touchto select

LOC

-Retrieve a preset station

1-6 sectionsTouch the briefly to retrieve

a station which had been stored in the memory in advance the chose number is shown on display .

Automatic Memory Storing & Program Scanning

Automatic Preset Setup

In Radio Mode, Touch and keep the

APS

APS section on the touch screen

for about 2 seconds to active

automatic station storage. The radio searches within the current frequency band,

TA TrafficAnnonuncement

(priority For Traffic Information)

In Radio mode, touch briefly the

screen of range to activate the TA function.

Touch it again to turn off the TAfunction . When the TA function is activated, the TA symbol appears in the display . During radio operation in one FM frequency band the search for a traffic announcement station is started automatically (TASEEK) . If an FM station is being received which transmits the latest traffic announcements from time to time, the TP display lights up.

-20-

“TA”

Radio Operation

When the TA function is switched on , the FM traffic automatically interrupt CD operation(the word TRAFFIC appears in the display).

The volume level is increased to the minimum value for the transmission of traffic announcements.

After the traffic announcements has finished, the program that was previously running is resumed.

Interruption of the TAFunction: if you would like to interrupt the current traffic announcement, touch the TA section on screen briefly . This does switch off the TA mode .

AF FUNCTION

(Alternative Frequencies)

In Radio mode, touch briefly the

screen of range to activate the AF function. Touch it again to turn off the AF function .

AF is a function that works with the help of RDS (Radio Data System) and can only be used with FM stations . The radio searches in the background for the best frequency reception of the station that has been tuned into .

Touch the AF section on touch screen or swing and keep the SEL knob in the TA/AF direction for about 2 seconds , the AF function is activated. The AF symbol appears in the display .

When the AF function has been switched on, the radio continuously tests the signal strength of the AF frequency . The test interval for each AF frequency depends on the signal strength of the current station and varies from a few minutes in the case of weak signals. Whenever the new AF frequency is stronger than the station that is currently tuned in , the radio switched to this frequency for a short time for a short time and the message “NEW FREQUENCY “ is displayed for one or two seconds.

“AF”

Note :

the status of the AF function is shown by an AF symbol in the display.

If the AF symbol appears in the display, the AF function is switched on and RDS transmission date is being received . If the AF symbol flashes in the display, the AF function is selected but no RDS signal can be received at the moment .

PTY FUNCTION

PTY

PTY Selection of the program type

besides the stations name, some FM stations also transmit information on the type of program. This information can be displayed by your car radio .

Examples of such types of program are :

SPORT NEWS POP WEATHER ......

With PTY function you can specifically select stations transmitting a particular type of program. Touch the PTY range on screen repeatedly to call up the PTY selection menu . The message “PTY SEEK” then appears briefly in the display .

When PTY has been selected the radio starts searching for corresponding PTY information and stops when the PTY information has been found, “NO PTY” appears in the display. If the PTY information being searched for no longer exists, the PTY function automatically switches to normal mode .

-21-

In Radio mode, touch the screen of “PTY” range to select the Program type .

DISC Operation

Basic Operation

During DISC playback, you can touch the screen to display the following:

FLAT

DVD 1-0:00:16

FLAT

DVD 1-0:00:16

PAIR

AUDIO ZOOMSUBTITLE

FLAT

DVD 1-0:00:16

RANDOM REPEAT INTRO

S-WOOFER

FLAT

DVD 1-0:00:16

12: 16

MODE

SEL

12: 16

DIAL

SETUP

12: 16

TA AF CLK LUD

DSP

OSD

12: 16

DISC-IN

MUTE ON

VOLUME+VOLUME-

DISC-IN

REDIAL

TITLE

DISC-IN

GOTO

DISC-IN

Switching the DVDmode

Touch the screen of range (or press MOD button on the front panel ) to select the DISC mode, it display like following :

FLAT

DVD 1-0:00:16

MODE

SEL

Function setup (different the source the display is different)

Stopping Play

Touch the screen the range (or press the button on remote control .) To stop the unit playback. Touch the section or press button on front panel to start play.

Pause (still picture)

Touch the “ ” section on touch screen during playback will stop play temporary, touch it again to return the normal playback .

12: 16

“MODE”

DISC-IN

MUTE ON

VOLUME+VOLUME-

Touch “ ” to next .

Touch “ ” to previous .

Rapid Forward/Rapid Reverse

During DISC playback, touch the screen of “ / ” range the speed of rapid forward/reverse changes according to the disc as follow:

DVD/VCD/CD/MP3:

Normal Playback2x 4x 8x 16x

-22-

DISC Operation

Skipping Track

During DISC playback, Touch the

/ section on the touch screen

to skip to next/back one track.

Note :

1. In DVD mode, touch the section continually twice to back one track .

2. For some VCD2.0 disc (PBC-playback control), above these buttons may be unavailable .

Zoom Function

Repeatedly touch the section of

ZOOM

the ZOOM, the displaying rate can be 2x, 3x, 4x, 1/2, 1/3, 1/4 .

Use the direction keys ( / / / on remotecontrolor///ontouch screen) to move the enlarged picture . Note: During the JPEG disc playback , touch the screen of “ZOOM” range , the “zoom 100%” word will display, then you can touch shortly the / section on touch screen (or press the / buttons on remote control ) to zoom in/zoom out the picture. In zoomed mode, use the direction keys to move the enlarged picture .

Loud Function

LUD

Touch the screen of range to switch the Loudness function ON or OFF.

“LUD”

Subwoofer Function

S-WOOFER

Use your finger touch the “ section on the

S-WOOFER“

screen to turn on the Subwoofer function, touch it again to cancel function .

Selecting The Play Modes

During the Disc playback, touch the touch screen, it will display the following as below :

FLAT

DVD 1-0:00:16

RANDOM REPEAT INTRO

S-WOOFER

Touchto select

1). Repeat Function

FOR DVD :

Touch the screen the of (or press longer button on the remote control) to select REPEAT mode

as follow :

CHAPTER REPEAT ON TITLE REPEATON

FOR VCD/CD/MP3 :

Touch the screen the of (or press longer button on the remote control) to select REPEAT mode

as follow :

REPEATONE REPEATALL

1. Continuously repeat at the current chapter/track, when selected REP-ONE mode .

2. Select REP-ALL mode to continuously repeat all chapter/track on the current disc .

2). RDM(RANDOM) Function

During DISC playback, touch screen of

“RANDOM” 4/RDM

button longer on the remote control to play in random.

-23-

12: 16

TA AF CLK LUD

DSP

OSD

GOTO

2/RPT

REPEATALL

2/RPT

REPEATOFF

section ( press the

DISC-IN

“REPEAT”

range

DISC Operation

Each playing, the order is different . (Depend on the disc used for VCD). Touch it again to cancel this function . Note : in random mode, the button is not available .

3). INT Function

FOR CD :

Touch the screen of the section (or longer press the button on the remote control ) to play the previous 6

seconds part of each track/chapter on disc. (Touch it again to cancel this mode)

FOR VCD :

Touch the screen of the section (or long press the button on the the remote control ). It display will

following menu as below : (touch it again to cancel this mode .)

SELECT DIGESTTYPE: TRACK DIGEST DISC INTERVAL TRACK INTERVAL

Use the UP, DOWN, LEFT and RIGHT arrows on the remote to select the item, and then press ENTER to confirm .

FOR DVD :

Touch the screen of the section (or long press the button on the the remote control ). It display will

following menu as below : (touch it again to cancel this mode .)

SELECT DIGESTTYPE: TITLE DIGEST CHAPTER DIGEST TITLE INTERVAL CHAPTER INTERVAL

Use the UP, DOWN, LEFT and RIGHT arrows on the remote to select the item, and then press ENTER to confirm .

NOTE : For MP3, the 3/INT button is not available.

“INTRO”

3/INT

“INTRO”

3/INTer

“INTRO”

3/INTer

DISC Search (GOTO)

FLAT

DVD 1-0:00:16

RANDOM REPEAT INTRO

S-WOOFER

FLAT

DVD 1-0:00:16

GOTO ENTER

012345

FOR DVD :

Touch the screen the of range (or press on the remote control ) Twice, the screen will display

the following message :

Title 01/01 Time -:--:--

0:10:36

You can select the item you want to watch through TIME setting by using numberic buttons . (E.x. 0:10:36)

FOR VCD (With PBC OFF):

Touch the screen the of range (or press GOTO on the remote control )Once, the screen will display the following message :

Disc Go To --:--

00:36

Use the numberic buttons to input the time directly (E.x. : 00:36)

-24-

12: 16

DISC-IN

TA AF CLK LUD

DSP

OSD

GOTO

Touchto select

12:16

DISC-IN

6 7 8 9 +10

GOTOthe button

the button

“GOTO”

DISC Operation

Note:

Touch and hold the / section on the touch screen , you can select the title or chapter of DVD . (Only for the DVD with title /chapter.)

AUX Operation

On the front panel of this unit, there is an AUX IN jack, follow the diagram below t connect analogue replay devices. Use this jack to replay sound of other replay equipment such as DVD players, computers, etc. Via the loudspeakers.

AUX IN JACK FRONTPANEL

AUXIN

MOD

VIDEO IN (yellow)

FLAT

12: 16

DISC-IN

AUX IN

CLK

DSP

LUD

S-WOOFER

3). You now hear the sound from the external device played back through the loudspeakers .

4). Touch the volume+/- sections on touch screen or use the VOL+/- on the remote to adjust the volume level.

RCHIN(red)

LCH IN (white)

1). Please connect the external device with stereo jack plug the Aux in socket .

2). Touch the MOD section on screen or press the MOD button to select the AUX IN connection. It will display the following as below :

FLAT

PAIR

VOLUME-

AUX IN

MODE

SEL

12: 16

DIAL

DISC-IN

MUTE ON

REDIAL

VOLUME+

-25-

DISC Operation

ON-SCREEN DISPLAYFUNCTION

During playback, touch the screen

OSD

the OSD section (or press the OSD on the remote), it will display the following as below :

1. DVD: A.Touch or Press for first time:OSD

TITLE ELAPSED

T 01/01 C 01/38 0:02:06

Title Number, Total Title Number, Chapter Number, Total Chapter Number of this Title of the disc currently being played will be shown on the screen, along with the elapsed time.

B.Touch or Press for second time:OSD

TITLE REMAIN

T 01/01 C 01/38 3:24:36

2.Example for VCD/SVCD/CD: A.Touch or Press for first time:OSD

SINGLE ELAPSED

TRACK 01/16 0:00:56

B.Touch or Press for second time:OSD

SINGLE REMAIN

TRACK 01/16 0:05:10

C.Touch or Press for hird time:OSD

TOTALELAPSED

TRACK 01/16 0:31:36

D.Touch or Press for fourth time:OSD

TOTALREMAIN

TRACK 01/16 0:36:26

C.Touch or Press for hird time:OSD

CHAPTER ELAPSED

T 01/01 C 01/38 0:02:56

D.Touch or Press for fourth time:OSD

CHAPTER REMAIN

T 01/01 C 01/38 0:04:32

E. Touch or Press for fifth time:

OSD

The message on the screen will be cleared.

E.Touch or Press for the fifth time:

OSD

The message on the screen will be cleared for SVCD and VCD.

NOTE:

For CD and MP3,the message will always display on the screen.

3.Example for MP3: Each time is pressed or touch , the

OSD

message displayed on screen changes as follows:

SINGLE ELAPSED SINGLE REMAIN

-26-

DISC Special Functions

DVD/VCD Special Function

FLAT

DVD 1-0:00:16

PAIR

AUDIO ZOOMSUBTITLE

1. Multi-subtitle Language Function (for DVD Only)

SUBTITLE

Each time the button is pressed or touch, number of the subtitle language changes in sequential order.

Notes:

- The language number is different according to the disc.

- Some discs only contain one subtitle language.

- When no different subtitle language are recorded, will be displayed at screen left top corner.

2. Multi-Audio LanguageFunction

AUDIO

on the remote .) Each time the button is pressed or touch , number of the audio soundtrack language changes on sequential order.

Notes:

- The language number is different

according to the disc.

- Some disc only contain one language

soundtrack

- When no different language

soundtrack are recorded will be display at screen left top corner.

12: 16

DISC-IN

DIAL

SETUP

REDIAL

TITLE

Touch to select

During DVD playback. Touch

SUBTITLE

the section on touch screen(or press the SUBTITLE on the remote) .

For DVD:

During DVD playback , touch the section on touch

AUDIO

screen (or press the AUDIO

For VCD/CD:

during playback, touch the

AUDIO

section of the touch screen or Press

AUDIO

on the remote . It is possible to switch the sound between monaural and stereo sound.

MONO LEFT MONO RIGHT

STEREO

MIX-MONO

3. Multi-Angle Function (for DVD Only)

During DVD playback, press the ANGLE ( ) button on the remote control . Each time the button is pressed , the number of the angle changes in sequential order.

Notes:

- The angle number is different

according to the disc.

- The function only work for disc having

scenes recorded at different angles.

- When no different angle are recorded,

will be displayed at screen left top

corner.

4. Title Menu Function

TITLE

title menu to start playback.

- During DVD playback, touch the section or press TITLE button on the remote .The title menu is display.

- Touch the cursor button shown in TV screen, select preferred title by the cursor button and confirmed by touch ENT button .

For VCD:

Press button on the remote control while the disc is playing, you can switch between "PBC on"and "PBC off" mode.

-27-

For DVD:

If the DVD has multiple titles recorded on the disc. It can select preferred title from the

TITLE/PBC

TITLE

SETUP

GENERAL SETUP

--- GENERAL PAGE ---

DOLBY

-----General setup page----

TV Display

Angle Mark

OSD Lang

Spdif Output

Captions

Screen Saver

Last Memory

ENG

SPDIF/RAW

Go To General Setup Page

1. Press button on the remote

SETUP

control .

2.The SETUP menu is displayed.

3.Select the preferred item by using the / / / buttons

4.Press ENTER button.

a.GENERAL SETUP

This setup page includes the item of TV display & audio output feature. The detail please refer to

GENERAL SETUP MENU.

b.SPEAKER SETUP

This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode. Please refer to

SPEAKER SETUP MENU.

c.DOLBY DIGITAL SETUP

Please refer to

DOLBY DIGITAL

SETUP.

d.PREFERENCE SETUP

This setup page includes all the configuration of support feature. The detail please refer to

PREFERENCES SETUP MENU.

DOLBY

-----General setup page----

TV Display

Angle Mark

OSD Lang

Normal/PS

Normal/LB

Wide

Spdif Output

Captions

Screen Saver

Last Memory

Set TV Display Mode

Video Material

4:3

Normal

TV Screen

Pan Scan

Letter-box

Wide(16:9)

1.TV DISPLAY SETUP

This is to select the appropriate TV aspect (4:3 or 16:9) according to the connected TV set.

Normal/PS (For 4:3 TV)

Played back in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off.)

Normal/LB (For 4:3 TV)

Played back in letterbox style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen.)

Wide (For 16:9 TV)

Select when a wide-screen TV set is connected.

-28-

SETUP

DOLBY

-----General setup page----

TV Display

Angle Mark

OSD Lang

OFF

Spdif Output

Captions

Screen Saver

Last Memory

Set Angle Mark

2.ANGLE MARK DISPLAY SETUP

If it is set to ON, when the multi-angle DVD disc is playing, (the angle mark) will appears on the screen; if is set to OFF, the mark will not appear.

DOLBY

-----General setup page----

TV Display

Angle Mark

English

French

DOLBY

-----General setup page----

TV Display

Angle Mark

Osd Lang

Spdif Output

SPDIF OFF

SPDIF/RAW

Captions

SPDIF/PCM

Screen Saver

Last Memory

Setup SPDIF

4.SPDIF OUTPUT

This is to activate the audio output from SPDIF OFF mode to SPDIF/RAW mode to SPDIF/PCM mode.

DOLBY

-----General setup page----

TV Display

Angle Mark

OSD Lang

Spdif Output

Captions

Screen Saver Screen Saver

Last Memory

German

Spanish

Italian

Portuguese

Russian

OSD Lang

Spdif Output

Captions

Last Memory

Set OSD Language

3.OSD LANG TYPE SETUP

Select the preferred OSD language by using the / buttons.

5.CAPTIONS SETUP

Activate the CAPTIONS feature by selecting ON. And release this feature by selecting OFF.

-29-

OFF

Closed Caption

SETUP

DOLBY

-----General setup page----

TV Display

Angle Mark

OSDLang

Spdif Output

Captions

Screen Saver

Last Memory

OFF

Screen Saver

6.SCR SAVER SETUP

Select the SCR SAVER output ON/OFF.

DOLBY

-----General setup page----

TV Display

Angle Mark

OSD Lang

Spdif Output

Captions

Screen Saver

Last Memory

OFF

SPEAKER SETUP

--- SPEAKER SETUP PAGE ---

DOLBY

-----Speaker Setup Page----

DOWNMIX

Set Downmix Mode

This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode. Select the preferred SPEAKER connection by using the cursor buttons. Select the LT/RT to activate the Dolby surround compatible output. Select the STEREO to activate simple stereo mode.

LT/RT

STEREO

DOLBY DIGITAL SETUP

DOLBY

-----Dolby Digital Setup----

FULL

6/8

DYNAMIC

4/8

2/8

OFF

Set Last Memory State

7.LAST MEMORY SETUP

Select the LAST MEMORY output ON/OFF.

Set DRC OFF

DYNAMIC RANGE CONTROL

Select DRC and adjust the dynamic range of a Doby Digital encoded program. There are 8 steps between full compression and off compression.

-30-

SETUP

PREFERENCES SETUP

--- PREFERENCES PAGE ---

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

PAL

AUTO

NTSC

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

Default

DOLBY

English

French

German

Spanish

Italian

Portuguese

Russian

Default

Set TV standard

1.TV TYPE SETUP

This player can play discs recorded in either PAL or NTSC format.Select NTSC format, when you connected to NTSC TV.Select PAL format, when you connected to PALTV.Select AUTO format, the player TV output format will according to the DVD disc format..

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

Default

Preferred Audio Language

2.AUDIO LANGUAGE SETUP

Select the preferred AUDIO soundtrack by using the cursor buttons.

English

French

German

Spanish

Italian

Portuguese

Russian

OFF

Preferred Subtitle Language

3.SUBTITLE LANGUAGE SETUP

Select the preferred SUBTITLE language by using the cursor buttons.

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

Default

English

French

German

Spanish

Italian

Portuguese

Russian

Preferred Menu Language

4.DISC MENU LANGUAGE SETUP

Select the preferred DISC MENU language by using the cursor buttons.

-31-

SETUP

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

Default

1KID SAF

3PG

4PG13

5PGR

7NC 17

8 ADULT

OFF

Set Parental Control

5.PARENTAL

Select suitable parental guidance by the cursor buttons and conformed by pressing ENTER button.

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

CHANGE

Default

Change Password

6.PASSWORD

Select the change and press ENTER button. Type the old password (The initial factory code is ) and key in 4 characters password now you want to use, and retype again to confirm key in correctly.

1379

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

Default

RESET

Load Fcatory Setting

7.DEFAULTS

Select reset to become factory initial setting.

DEFAULTS TABLE

TV DISPLAY

ANGLE MARK

GENERAL SETUP

SPEAKER SETUP

DOLBY DIGITAL

PREFERENCES

-32-

OSD LANGUAGE

SPDIF OUPUT

CAPTIONS

SCR SAVER

LAST MEMORY

DOWNMIX

DYNAMIC

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

NORMAL/LB

ENGLISH

SPDIF/RAM

STEREO

OFF

AUTO

ENGLISH

OFF

ENGLISH

8 ADULT

1379

Bluetooth Operation

Bluetooth Car Kit User Manual

1.“Pair”ToYourBluetooth Phone

Prior to using the Car Kit for the fist time, you must pair it with a Bluetooth-enabled mobile handset. The following steps describes pairing the instruction for a typical Bluetoothenabled mobile handset.

Touch the touch screen , the touch operation menu will display. Touch the “ ” section to select , it will display following as below :

FLAT

DVD 1-0:00:16

PAIR

AUDIO ZOOMSUBTITLE

SETUP

12: 16

DIAL

DISC-IN

REDIAL

TITLE

5). “8888”

Enter passkey , then press

“ ” to pair the Car Kit and the handset,

the word , will display in the

“PAIROK”

TFT .

6). “CONNECT”Select the from the list on the phone, if you connect successfully , the ICON remains solid on the screen , then you can operate the function of blue-tooth about the unite .

Important:

1). If the pairing can not be completed within approximately 2 minutes , whiles the pairing mode is activated, and you will need to reattempt pairing (See steps 2-5 above) .

2). After pairing is completed, if the ICON is stilling flash on the TFT , please follow the steps to reattempt pairing through your handset until the

ICON remains solid on the screen.

Touch to select

1). Place theCarKit and mobile handset in 3 metersapart.

2). Put theCarKit in pairing mode.

a Pressthe buttontoturnON,

POWER

the ICON will flash on the TFT .

b. Touch the screen of “ ” range

or press the on the remote

“PAIR/ ”

control until the word

PAIRING”

display, it’s now ready

PAIR

“BLUETOOTH

for pairing.

3). Set yourbluetooth phone to “discover”theCar Kit .

Following your phone’s instruction guide for details, active your mobile handset’s Bluetooth function, the handset will search for accessible Bluetooth devices.

4). Your phone will find thisCar Kit .

Select this Car Kit from the list.

2. Using The Bluetooth Car Kit.

Once connecting is complete, you may access the following function. Some of the below mentioned functions only accessible for handset supported with hands-free profile.

Makeacall

Touch the screen of “ ” range, (or press briefly the button on the remote control ) the word

“DIAL NUMBERS”

then you can touch the number section on screen (or dial the number buttons on the remote control ), and then touch the

DIAL

“ ” section or press button to confirm .

When you dial the wrong number,

Note:

you can touch the screen to delete the wrong number . (You can also press the “ ” button on the remote controltodoso.)

Please note :

“ ” and “ ” serves as the “ ” and “ ” button on your mobile handset .

-33-

DIAL

“ PAIR/ ”

will display on the TFT .

“ PAIR/ ”

“ CLEAR ”

Bluetooth Operation

Touch the screen of “ ” section ,

DIAL

the message will display as below :

DIAL NUMBERS

123 45

678 90

CLEAR

CALL CONNECTED

PICKUP MUTE ON

SEL VOLUME+VOLUME-

DIAL

REJECT

touch todial

Answer a call

After you hear the ring tone,

the incoming telephone number will display on the TFT LCD .

Touch the screen of “ ” range to

listen or press the button on

PICKUP

“PAIR/ ”

the remote control .

CallTransfer

During talking mode , user can touch the screen of the “ ” range (or press the button on the remote

“PAIR/ ”

control ) to transfer the audio from the unit back to the mobile phone for privacy reason .

PICKUP

End/Reject acall

In Bluetooth menu, touch the screen

REJECT

of “ ” range (or press briefly

“REDIAL/ ”

button on remote control ) ,

the message display the

“CALL HOOKED/CALL EJECTED”

Redial last number

In Bluetooth menu, touch the “ ” (or press longer button

“ REDIAL/ ”

on the remote control the

“DIAL LAST CALL/DIAL OUT NOW ”

display on the TFT LCD.

REDIAL

will

Adjust the Volume

During conversation in progress, tune the Volume switch until you reach the desired volume level.

Play BT music

In Bluetooth menu, touch the screen of

“MODE” “BT MUSIC”

range to select the , you can play the BT MUSIC from your mobile handset.

FLAT

BLUETOOTH MP3

MODE

08: 16

SEL VOLUME+VOLUME-

DISC-IN

MUTE ON

S-WOOFER

touch to select

Note:

please make sure it support the Bluetooth profile.A2DP & AVRCP

Note:

1). Before using the function of the Bluetooth about the unit , please check your phone’s instruction guide or contact

phone manufacture if you are not sure if your phone supports the hands-free Bluetooth function .

2). When operating the function of bluetooth about the unit , you need make your call-phone and the unit successfully for one time. Afterwards, you only need to take on the power and the function of blue-tooth will work in three minutes automatically if you want to operate the function of blue-tooth .

3). If you want not to use the function of the Blue-tooth about the unit , you can select the Bluetooth OFF . (The method to see the page 16.)

-34-

Other Main Operation

USB Operation

Following the diagram below, connect your USB device to the front panel USB port . If it is properly connected, the device will be mounted and start playing automatically.

In USB Playback mode

Use the UP, DOWN, RIGHT or LEFT buttons to navigate to and select files to play, and press ENTER to begin playback (or viewing, in the case of JPEG files). To skip to the next or last track, touch or press the or . Press the or buttons for Fast Forward or Fast Reverse playback.

REPEAT

by repeatedly pushing until the desired mode is found.

play modes are also available

REPEAT

Changing From DISC to USB Playback

Modes

If the disc present in the player is an

MP3 disc, touch section on screen

or press the STOP on remote once then

touchorpresstheGOTOtoUSB

playback.

If the disc present in the player is an DVD or VCD or CD disc, touch on the screen or press STOP twice on the remote then touch GOTO section on the screen or press the GOTO button on the remote to USB playback.

Important Note:

To prevent damage to the USB device,

do not remove or disconnect it during

playback. it is also a good practice to

remove the USB drive during disc

playback.

Changing From USB to DISC Playback modes

If you are in USB Playback mode and wish to begin playback of a disc already in the player, touch the range on the touch screen or press the STOP on the remote once. Then touch GOTO range on the screen or press the GOTO on the remote and the player will switch to DVD/VCD/CD/MP3 Playback mode.

-35-

Other Main Operation

SD/MMC card OPERATION

The unit can support playback MP3/WMA/JPEG/MP4 and Divx format which are stored into SD and MMC memory card . Please read below before you start the operation of memory card .

Inserting andremovinga SD or MMCcardon the front panel ofunit .

Inserting theSD or MMC card .

Label sidefacing backward

Insert the memory card into slot with label side facing backward .

Removing the SDor MMC card .

Press in till heard a .“CLICK”

Remove the memory card .

Mode change to SD/MMC card

After a SD or MMC card was inserted into the main unit card slot . the unit will starts playing the files contained on the memory card . Once the unit read the memory card successfully, the first file on the memory card will automatically start playback. Press the mode button repeatedly is allowing changing to other modes .

Change DISC to SD/MMC card

The operations are same as USB mode, refer to see USB operation .

Change SD/MMC cardto DISC

The operations are same as USB mode, refer to see USB operation .

File Playback Operation

All the SD or MMC memory car playback operation function is same as the operation on .

CD/MP3/WMA

Please to operation for more details .

“ MP3/WMA”

-36-

Other Main Operation

MP3/WMA/JPEG/MPEG4 DISC PLAY

When you insert a disc which contains MP3, WMA or JPEG files, the different file types are detected, and a list of the files are produced, as shown in the diagram below.

003/112

Mp3

..............

00:56 04:07

woman

new

Repeat one

ton

Touch the screen, it will display the following as below : (when the parking brake is applied .)

1 Current track(file)(highlighted bar) 2

Current track (file) number/total

number of tracks(files) in the current folder. Elapsed playing time of the current

track(

not available for JPEG disc)

4 total playing time.

( not available for

JPEG disc)

5 Operation mode icon. (Play),

(stop), (pause), (forward)

(reverse).

Selected playback mode

FLAT

MP3 02-0:36:20

MODE

08: 16

DISC-IN

MUTE ON

SEL VOLUME+VOLUME-

FLAT

MP3 02-0:36:20

Touchrepeatedly

12: 16

DISC-IN

In stop mode, touch the / / / sections on touch screen (or Use / / / on the remote control ) to select the item or folder, then touch the range (or press button on the remote control ) to confirm.

Touch the screen of range or press longer on the remote control

ENTER

“REPEAT ” “2/RPT”

“OK”

repeatedly can select two kinds of repeat play mode.

REP-ONE:

Play the same song over and over again.

REP ALL:

Play all songs on the disc, then repeats the entire disc over and over again .

Moving ToAnother Track :

1. Touch the or range on the touch screen to skip a track ahead or back.

2. Press the or button on the remote control to skip a track ahead or back.

Fast Forward/Fast Backward

1. Touch briefly the “ / ” range on touch screen for fast forward / fast backward .

2. Press briefly the or button on the remote control for forward or backward .

-37-

Specification

Generall :

Supply Voltage: 12V DC (11V-15V) Current Consumption: Less than10 A Signal System: Compositive video 1.0Vp-p 75 Discs Played: (1)DVD-VIDEO Disc

5"(12 cm) single-sided, single-layer 5"(12 cm) single-sided, double-layer (2)Compact Disc (CD-DA, VIDEO CD) 5"(12cm) disc

Audio Signal Output: 2ch&4ch line out Characteristics: (1)Frequency Response 20 Hz - 20 KHz

(2)S/N Ratio 90 dB (JIS) (3)Wow and Flutter Below measurable limits

RADIO Section:

For 3 Bands For 2 Bands For 2 Bands

(Europe) (Europe) (U.S.A.)

FM FM FM Frequency Coverage: 87.5 to108 MHz 87.5 to108 MHz 87.5 to107.9 MHz IF: 10.7 MHz 10.7 MHz 10.7 MHz Sensitivity (S/N = 30 dB): 15 dBu 15 dBu 15dBu

MW MW AM Frequency Coverage: 522 to1620 KHz 522 to1620 KHz 530 to1710 KHz IF: 450 KHz 450 KHz 450 KHz Sensitivity (S/N = 20 dB): 40 dBu 40 dBu 40 dBu

TFT Monitor:

Monitor Screen Size: 7 Inch Wide Number of Pixels: 480 X RGB X 234 pixels Color System: NTSC/PAL

BLUETOOTH:

Bluetooth specification: V1.2 Class 2 Bluetooth profile supported: Headset, Handsfree and A2DP &AVRCP profiles Range of frequency: 2.4GHz Spectrum

NOTE:

Specifications and design are subject to modification, without notice, due to improvements in technology.

-38-

Trouble Shooting

Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.

SYMPTOM CAUSE SOLUTION

If the power supply is properly connected to the car accessory terminal,switch the ignition key

"ACC"

Replace the fuse

Remove the disc in the player, then put a new one

Insert the compact disc with the label facing upward

Clean the disc or try to play a new one

Cool off or until the ambient temperature return to normal

Please switch to correct color system from menu

Make proper connection according to wire connection

For safety reasons no television /video images are displayed while the vehicle is moving. Engaging the parking brake will cause images to be displayed.

Please the television mode of the choice accommodation

Change the disc

Change the disc Record JPEG files using a compliant application

Press the RESET button. Front panel is not properly fixed into its place

Insert the antenna cable firmly

Select a station manually

“”

No power

Disc can not be loaded or ejected

Television/video imageappears black-white

No television/video image appears

No color in picture

JPEG disc can not be played back

The operation keys do not work

The radio does not work

The car ignition switch is not on

The fuse is blown

Presence of disc inside the player.

Inserting the disc in reverse direction

The disc is extremely dirty or defective

Temperature inside the car is too high

The color system is set incorrectly

The unit is not connected to the parking brake detection switch

The parking brake is not engaged

Thediscformatisnot

accordingto the TV-set used (PAL/NTSC)

No JPEG files are recorded on the disc.

JPEG files are not recorded in a compliant formant

The built-in microcomputer is not operating properly due to noise The antenna cable is not connected

The signals are too weak

-39-

8880-J9000-04S

PYLE Audio PLD70BT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
