PYLE Audio PLD58MUT User Manual

PLD58MUT

OWNER'S MANUAL

Mobile Video System

Motorized Slide Down And Detachable Panel

3.6 Inch Wide TFT Color Monitor

Car DVD/VCD/CD/MP3 Player/TV Tuner

AM/FM Digital Pll Tuning Radio

MPEG4 Player

USB Connect

Remote Control

www.pyleaudio.com

CONTENTS

Safety Information......................................................................................

Disc Notes .................................................................................................

Installation .................................................................................................

Change Angle .............................................................................................

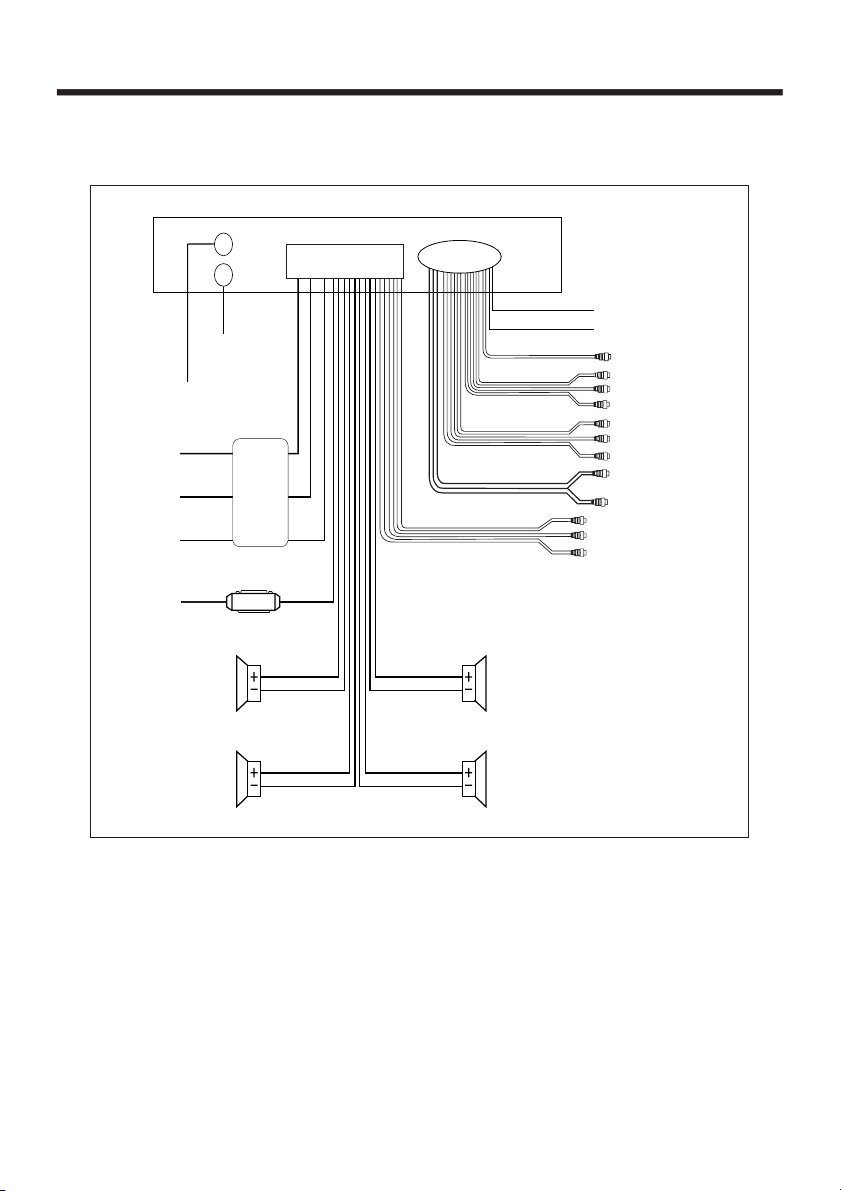

Electric Connection ....................................................................................

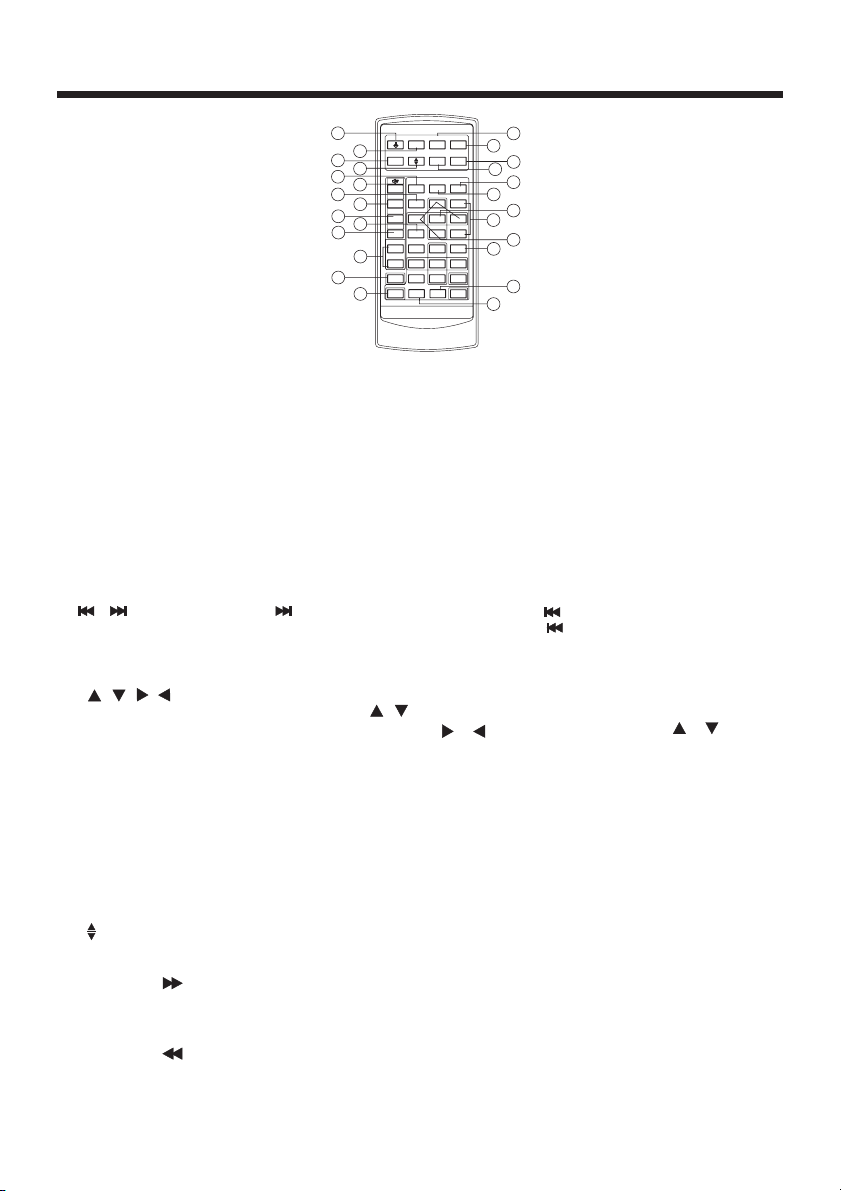

Remote Control ..........................................................................................

Basic Operation ........................................................................................

MP3/WMA/JPEG Disc Play .....................................................................

AUX Operation .......................................................................................

Alternate Auido/video Source ...................................................................

TFT Monitor Operation ...........................................................................

Rear View Camera .................................................................................

MPEG4 Player ........................................................................................

USB Operation .......................................................................................

On-Screen Display Function ...................................................................

Multi-Audio Language Function ..............................................................

Multi-Subtitle Language Function ...........................................................

Multi-Angle Function .............................................................................

Title Menu Function ...............................................................................

TV Operation ..........................................................................................

Setup .........................................................................................................

General Setup ........................................................................................

Speaker Setup .......................................................................................

Dolby Digital Setup ................................................................................

Preferences Setup .................................................................................

Defaults Table ........................................................................................

Specifications ...........................................................................................

Trouble Shooting ......................................................................................

SAFETY INFORMATION

CAUTION:

THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE . HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLYAS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD Player cannot play this disc.

DISC NOTES

Disc formats supported by this player

VIDEO

MPM

CD-RW

DVD 12 cm disc (Single-sided disc only) Video CD 12 cm disc CD 12 cm disc MP3

12 cm disc

Discs which cannot be played with this player

DVD-ROM DVD-R/DVD-RAM CDV CD-G

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation. Do not place stickers or make scratches on discs. Do not warp discs.

A disc should always be kept in its case when not in use to prevent from damaging. Do not place discs in the following places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Label side up

Do nottouch the underside of thedisc

Do not bend

Wipe the disc from center toward theoutside edge

Preparing New Discs with

Rough

Spots

A new disc may have rough edges on its inside and outside edges.If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc.Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right.To remove the rough edges, press the si de of th e pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Ball pointpen or pencil

Rough spots on inside edge

INSTALLATION

NOTES:

Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

Before finally installing the unit, connect the wiring temporarily and make sure

it is

all connected up properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use

unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or

other

modifications of the vehicle.

Install the unit where it does not get in the driver s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

If installation angle exceeds 30 from horizontal, the unit might not give its

optimum

performance.

Avoid installing the unit where it would be subject to high temperature, such as from subject to dust,

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN Front-mount) screw holes at the sides of illustrated installation methods.

direct sunlight, or from hot air, from the heater, or where it would be

dirt or excessive vibration.

or "Rear"(DIN Rear-mount installation, utilizing threaded

the unit chassis). For details, refer to the following

INSTALLATION

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

DASH BOARD

METAL MOUNTING STRAP

CONSOLE

SLIDE BRACKET HOUSING

HEX BOLT

KEY PLATE

PLASTIC COVER

KEY PLATE

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove the PLASTIC COVER of the both sides away, then insert

the two KEY PLATE into left and right side of chassis as above illustration.

INSTALLATION

How To Remove And Install The Front Panel

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching The Control Panel

Before detaching the control panel, be sure to turn off the power.

1.Press the release button and the left hand side of the front panel will release. (FIG. 1)

2.Pull-off the front panel (FIG. 2) and keep the front panel into the case (FIG. 3)

Install The Front Panel

First insert the right hand side of the front panel into the housing of the unit , then push the left hand side of the front panel and make sure the panel is properly installed(FIG.4),and then press the PWR button (2) briefly to switch the device ON.

FRONT PANEL

RELEASE BUTTON

FIG.1

PROTECTIVE CASE

FIG.3

FRONT PANEL

FIG.2

Installing The Front Panel

FIG.4

CHAGNE ANGLE

CHANGING THE CONTROL PANEL ANGLE

When you want to change the viewing angle of the operating unit to play, you can press the (angle)button repeatedly to select the desired angle as follows:

Angle 1 Angle 2

Angle 4

Angle 3

Caution:

Do not insert your finger behind the control panel.
