PYLE Audio PLD53MUT User Manual
PLD53MUT
OWNER'S MANUAL
Mobile Video System
Motorized Slide Down Panel
2.5 Inch TFT Color Monitor
Car DVD/VCD/CD/MP3 Player/TV Tuner
AM/FM Digital Pll Tuning Radio
MPEG4 Player
USB Connect
Remote Control
www.pyleaudio.com
CONTENTS
Safety Information......................................................................................
Disc Notes .................................................................................................
Installation .................................................................................................
Change Angle .............................................................................................
Electric Connection ....................................................................................
Remote Control ..........................................................................................

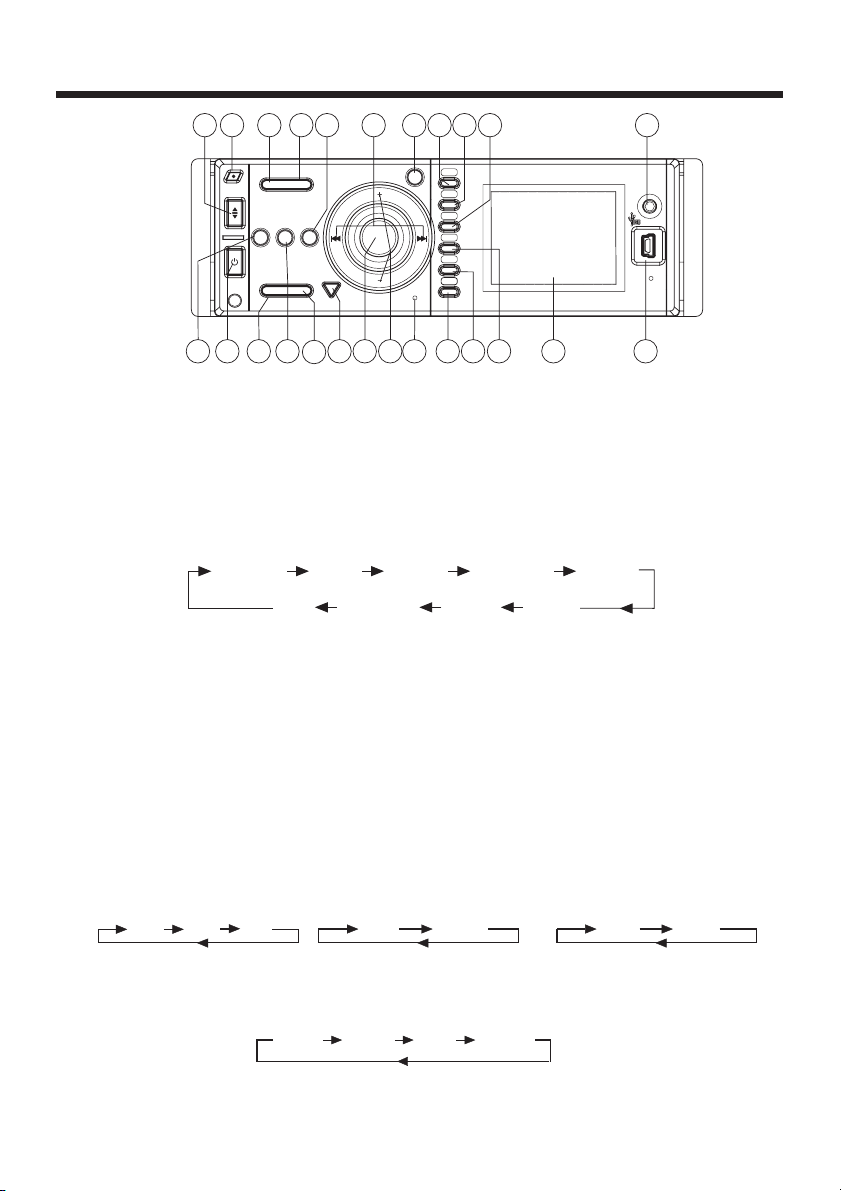

Basic Operation ........................................................................................

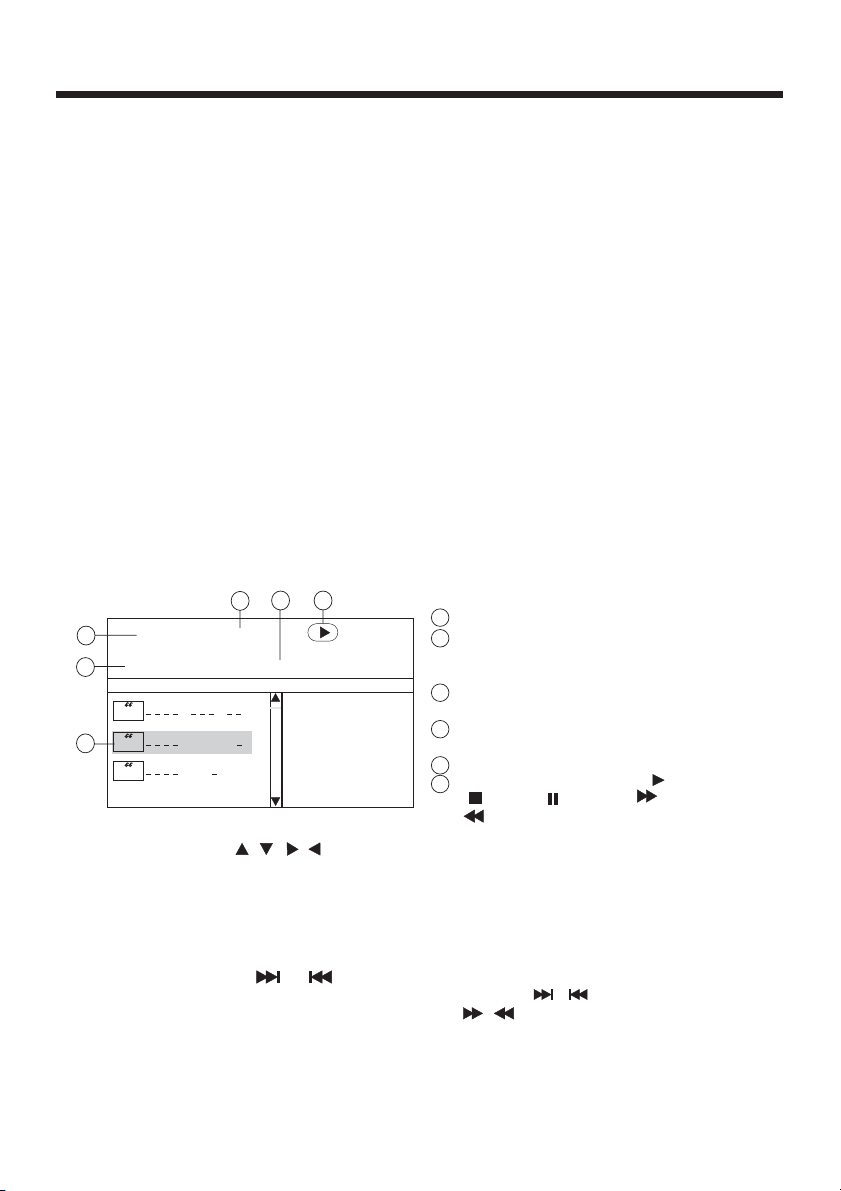

MP3/WMA/JPEG Disc Play .....................................................................
AUX Operation .......................................................................................
TFT Monitor Operation ...........................................................................
Rear View Camera .................................................................................
MPEG4 Disc Play ..................................................................................
USB Operation .......................................................................................
On-Screen Display Function ...................................................................
Multi-Audio Language Function ..............................................................
Multi-Subtitle Language Function ...........................................................
Multi-Angle Function .............................................................................
Title Menu Function ...............................................................................
TV
Operation .........................................................................................

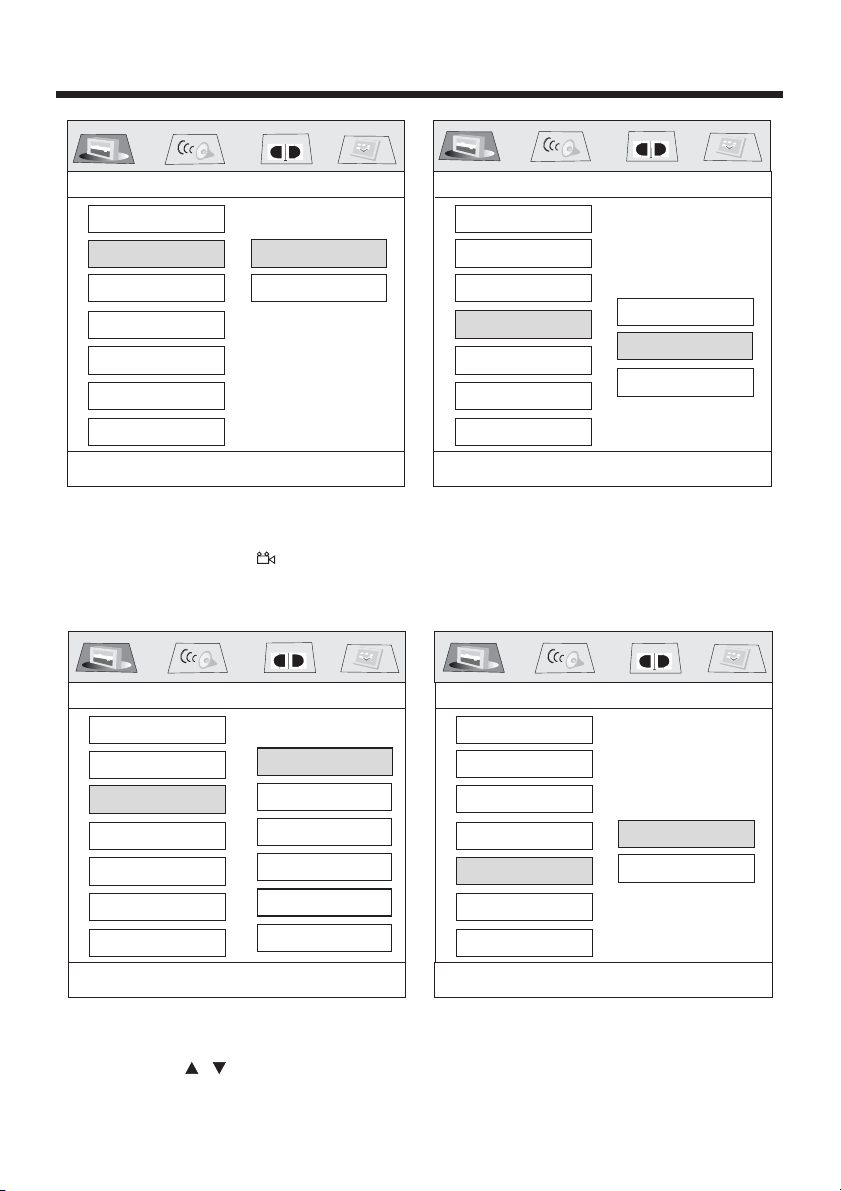

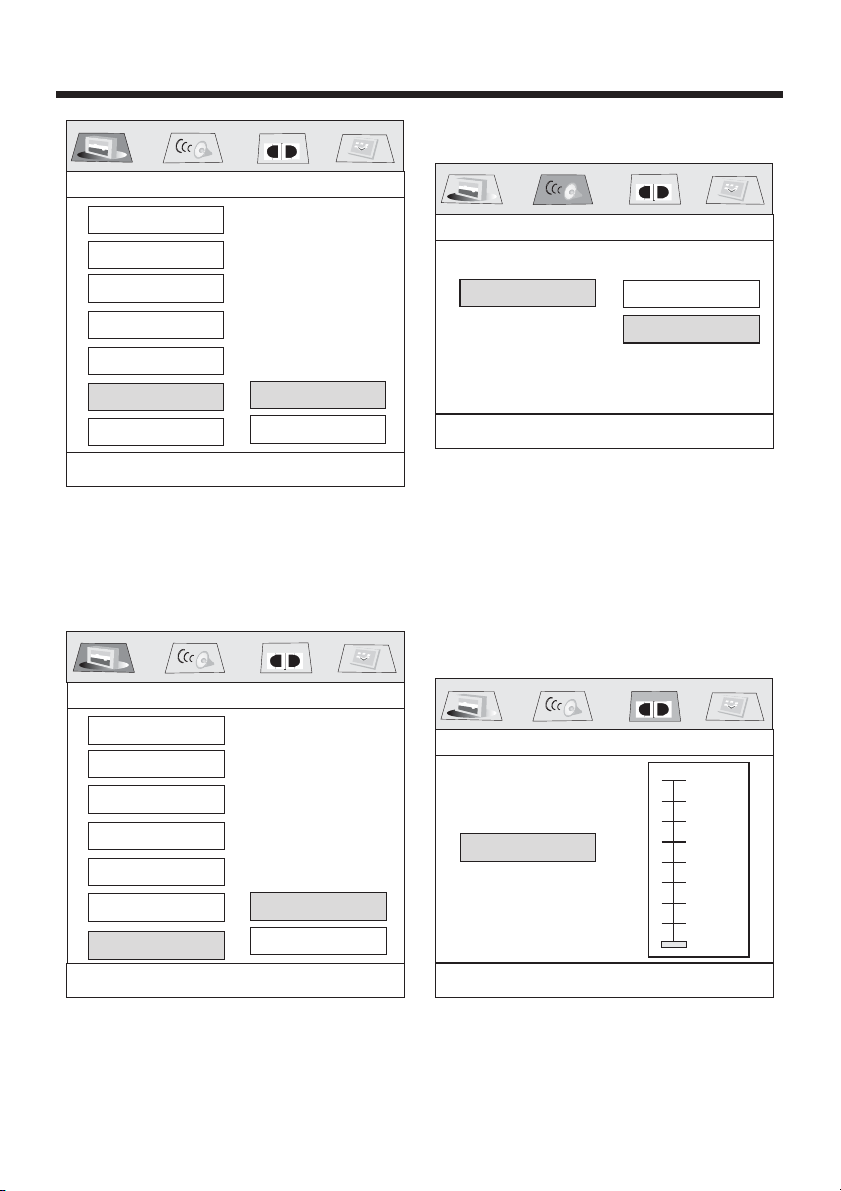

Setup .........................................................................................................
General Setup ........................................................................................
Speaker Setup .......................................................................................
Dolby Digital Setup ................................................................................
Preferences Setup .................................................................................
Defaults Table ........................................................................................
Specifications ...........................................................................................
Trouble Shooting ......................................................................................
2
3
4
6
7
8
10
13
13
14
14
14
15
15
16
16
16
16
16
17
17
19
19
20
21
22
23
1
SAFETY INFORMATION
CAUTION:
THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD
PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE
THE DVD PLAYER CORRECTLYAS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
This product incorporates copyright protection technology that is protected
by method claims of certain U.S. Patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners.Use of this
copyright protection technology must be authorized by Macro vision Corporation,
and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
REGION MANAGEMENT INFORMATION:
This DVD Player is designed and manufactured to respond to the Region
Management Information that is recorded on a DVD disc. If the Region number
described on the DVD disc does not correspond to the Region number of this
DVD Player, this DVD Player cannot play this disc.
2
2
DISC NOTES
Disc formats supported by this
player
VIDEO
MPM
CD-RW
DVD
12 cm disc
(Single-sided disc only)
Video CD
12 cm disc
CD
12 cm disc
MP3
P
3
12 cm disc
Discs which cannot be played
with this player
DVD-ROM
DVD-R/DVD-RAM
CDV
CD-G
Handling and Cleaning
Dirt, dust, scratches and warping disc
will cause misoperation.
Do not place stickers or make
scratches on discs.
Do not warp discs.
A disc should always be kept in its
case when not in use to prevent from
damaging.
Do not place discs in the following
places:
1.Direct sunlight
2.Dirty, dusty and damp areas
3.Near car heaters
4.On the seats or dashboard
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.
Label side
up
Do nottouch
the
underside
of thedisc
Do not
bend
Wipe the disc from
center
toward theoutside
edge
Preparing New Discs with
Rough
Spots
A new disc may have rough edges on
its inside and outside edges.If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc.Therefore,
remove the rough edges in advance
by using a ball point pen or pencil as
shown on the right.To remove the
rough edges, press the si de of th e pen
or pencil against the inside and outside
edges of the disc.
Rough spots
on
outside edge
Ball pointpen
or pencil
Rough spots
on inside
edge
3
INSTALLATION
NOTES:
Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure
it is
all connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use
of
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or
other
modifications of the vehicle.
Install the unit where it does not get in the driver s way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.
If installation angle exceeds 30 from horizontal, the unit might not give its
optimum
performance.
'
30
Avoid installing the unit where it would be subject to high temperature, such
as from
subject to dust,
DIN FRONT/REAR-MOUNT
This unit can be properly installed either from "Front"(conventional DIN
Front-mount)
screw holes at the sides of
illustrated installation methods.
direct sunlight, or from hot air, from the heater, or where it would be
dirt or excessive vibration.
or "Rear"(DIN Rear-mount installation, utilizing threaded
the unit chassis). For details, refer to the following
4
INSTALLATION
HEX NUT
SPRING WASHER
PLAIN WASHER
TAPPING SCREW
DASH BOARD
METAL MOUNTING
STRAP
CONSOLE
SLIDE BRACKET
HOUSING
HEX BOLT
KEY PLATE
PLASTIC COVER
KEY PLATE
If you want to take CHASSIS out of the SLIDE BRACKET HOUSING,
first remove the PLASTIC COVER of the both sides away, then insert
the two KEY PLATE into left and right side of chassis as above illustration.
5
CHAGNE ANGLE
CHANGING THE CONTROL PANEL ANGLE
When you want to change the angle to play, you can press repeatedly the
(angle)button to select the desired angle as follows:
Angle 1 Angle 2
Angle 4
Angle 3
Caution:
Do not insert your finger behind the control panel
6
ELECTRIC CONNECTION
WIRING CONNECTION
MAIN UNIT
TV ANT IN
ANTENNA CONNECTOR
IGNITION
SWITCH(B+)
MEMORY
BACK-UP(B+)
GROUND(B-)
ANTENNA
AUTO
RED
YELLOW
BLACK
BLUE
FRONT
Lch SPK.
REAR
Lch SPK.
CHOKE
BOX
FUSE
WHITE/BLACK
GREEN/BLACK
WHITE
GREEN
WHITE
GREEN
YELLOW
AUX(optional)
RCA CABLE
REAR RCAOUTPUT
CABLE (optional)
FRONT RCA OUTPUT
CABLE
(FOR RCALINE OUT VERSION ONLY)
GREY
GREY/BLACK
VIOLET
VIOLET/BLACK
FRONT
Rch SPK.
REAR
Rch SPK.
(B+)12V
REAR CAMERASWITCH
(B-)PARKING BRAKE
REAR CAMERAINPUT
VIDEO INYELLOW
RCH INRED
LCHINWHITE
GREY SUBWOOFER
VIDEO OUT2 YELLOW
COAXIAL OUT BROWN
RCH RED
LCH WHITE
FRONT RCA RED R
VIDEO OUT 1YELLOW
FRONT RCA WHITE L
7
