PYLE Audio PLD52MU User Manual

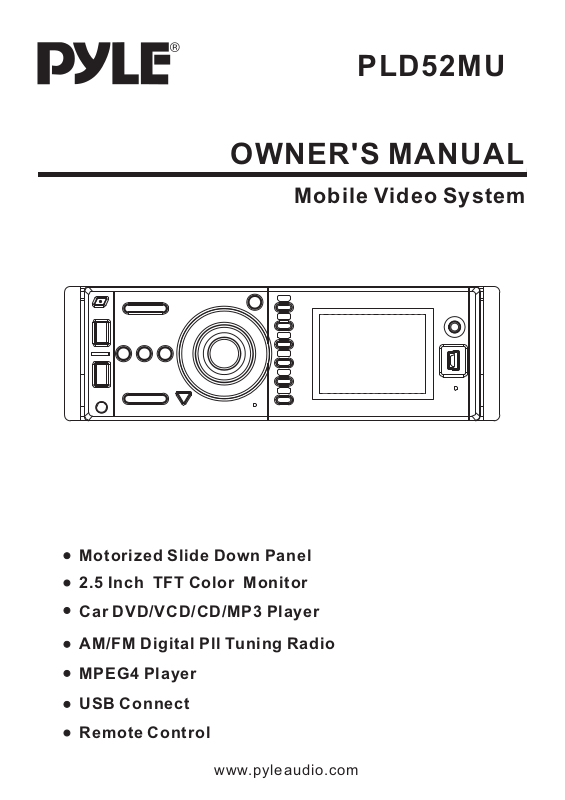

PLD52MU
OWNER'S MANUAL
Mobile Video System
Motorized Slide Down Panel
2.5 Inch TFT Color Monitor
Car DVD/VCD/CD/MP3 Player
AM/FM Digital Pll Tuning Radio
MPEG4 Player
Remote Control
www.pyleaudio.com
CONTENTS
Safety Information......................................................................................
Disc Notes .................................................................................................
Installation .................................................................................................
Change Angle .............................................................................................
Electric Connection ....................................................................................

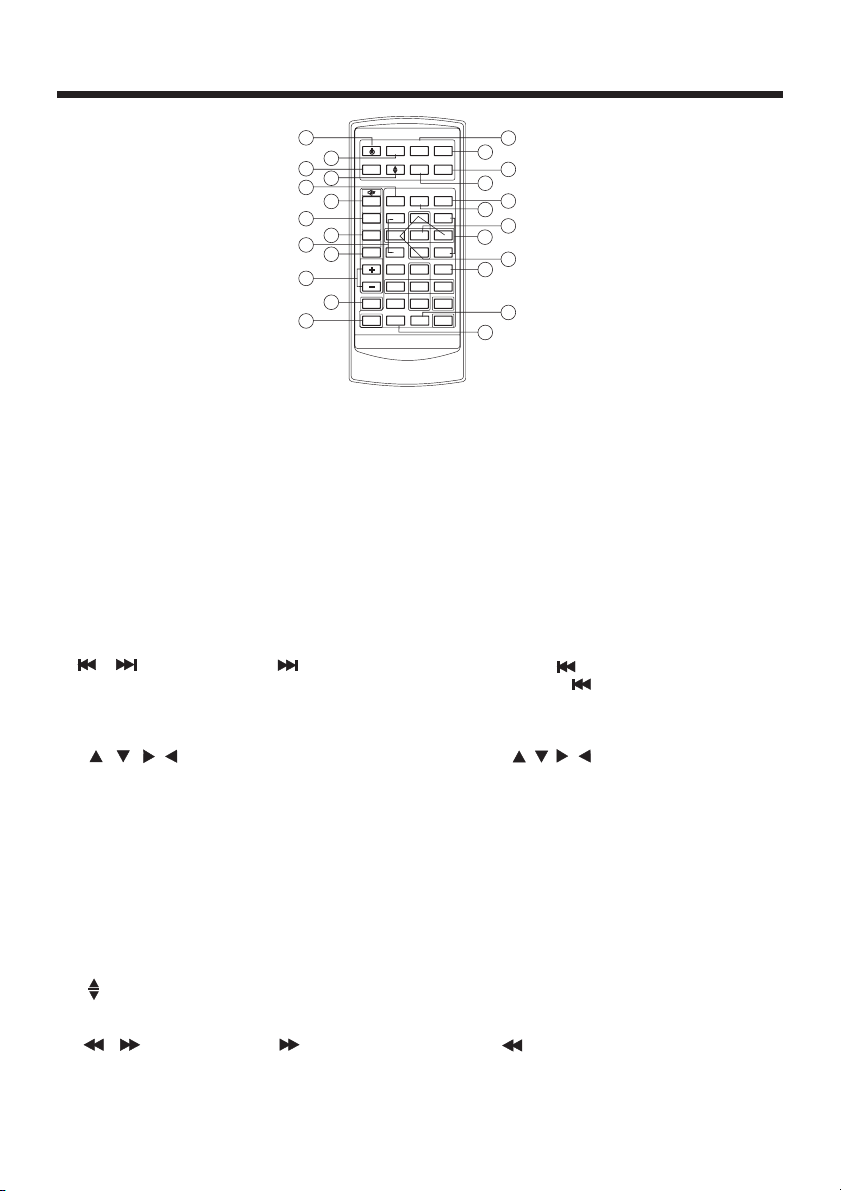

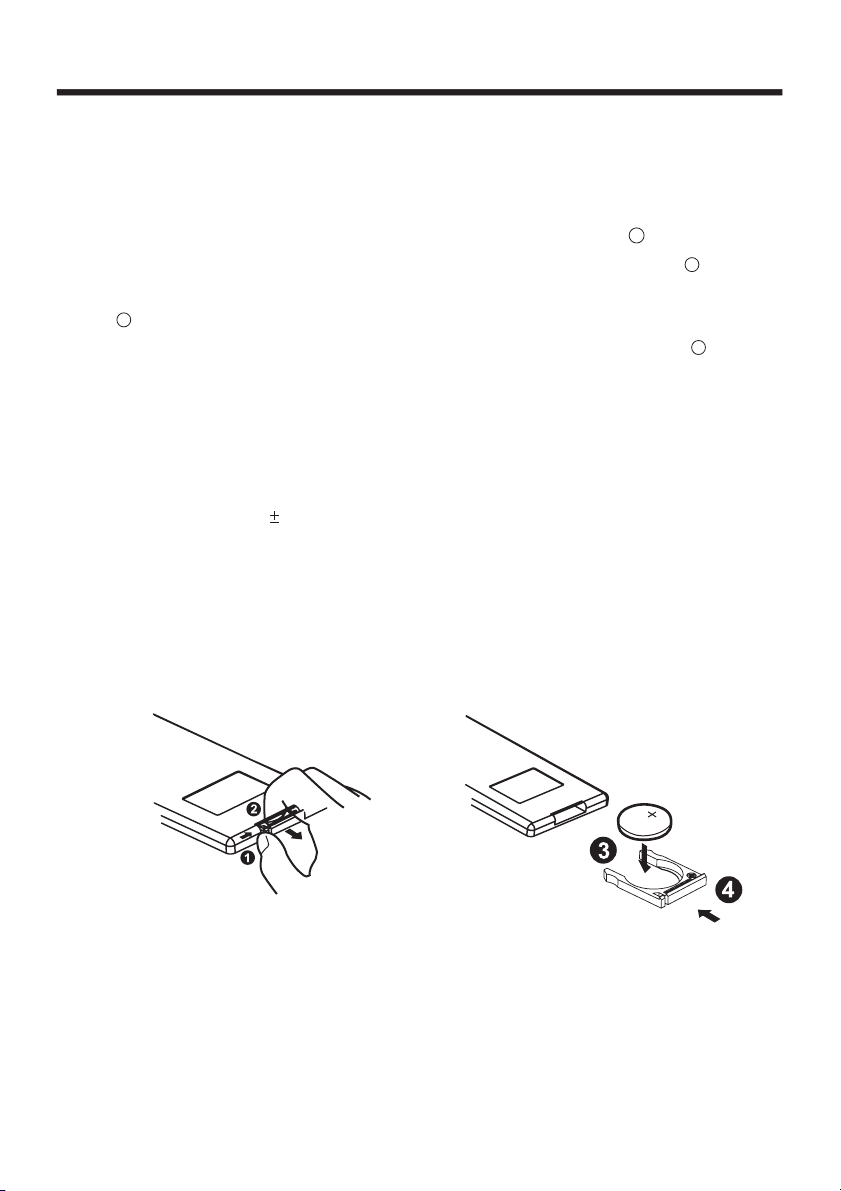

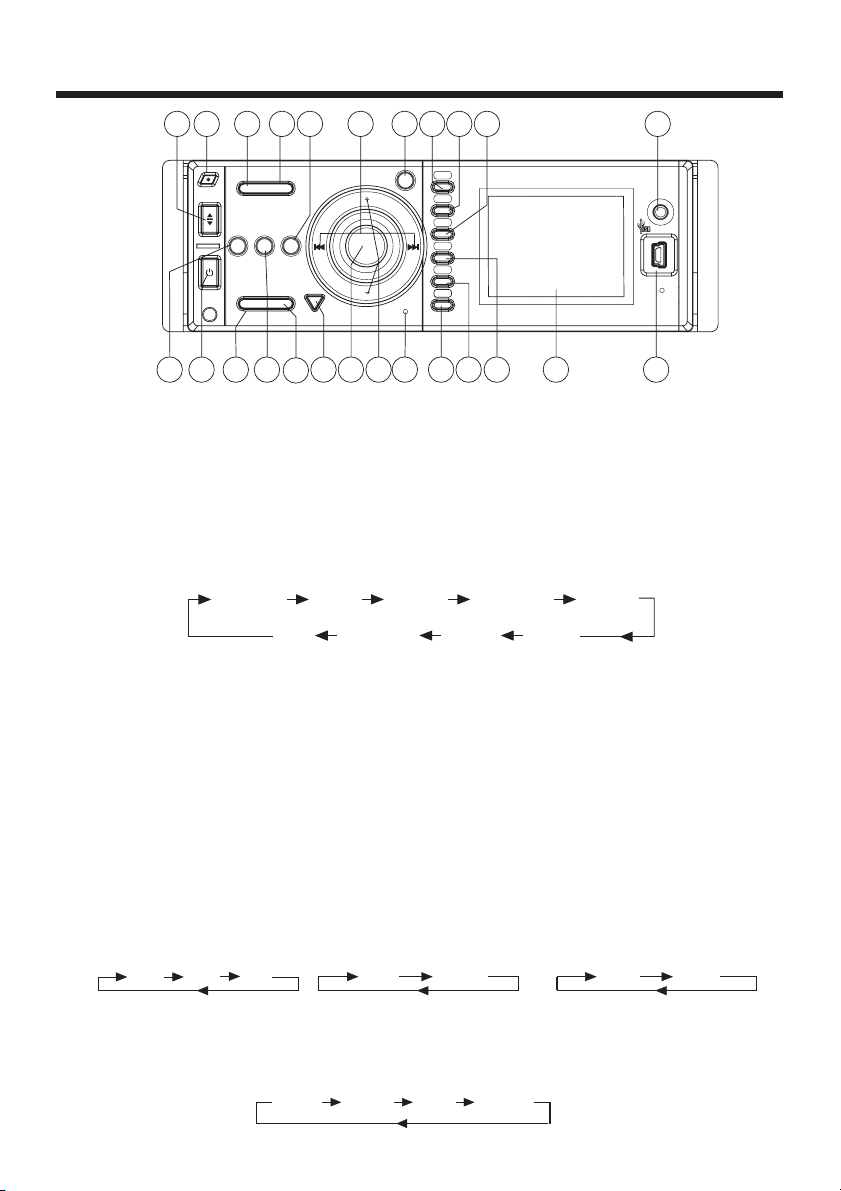

Remote Control ..........................................................................................
Basic Operation ........................................................................................

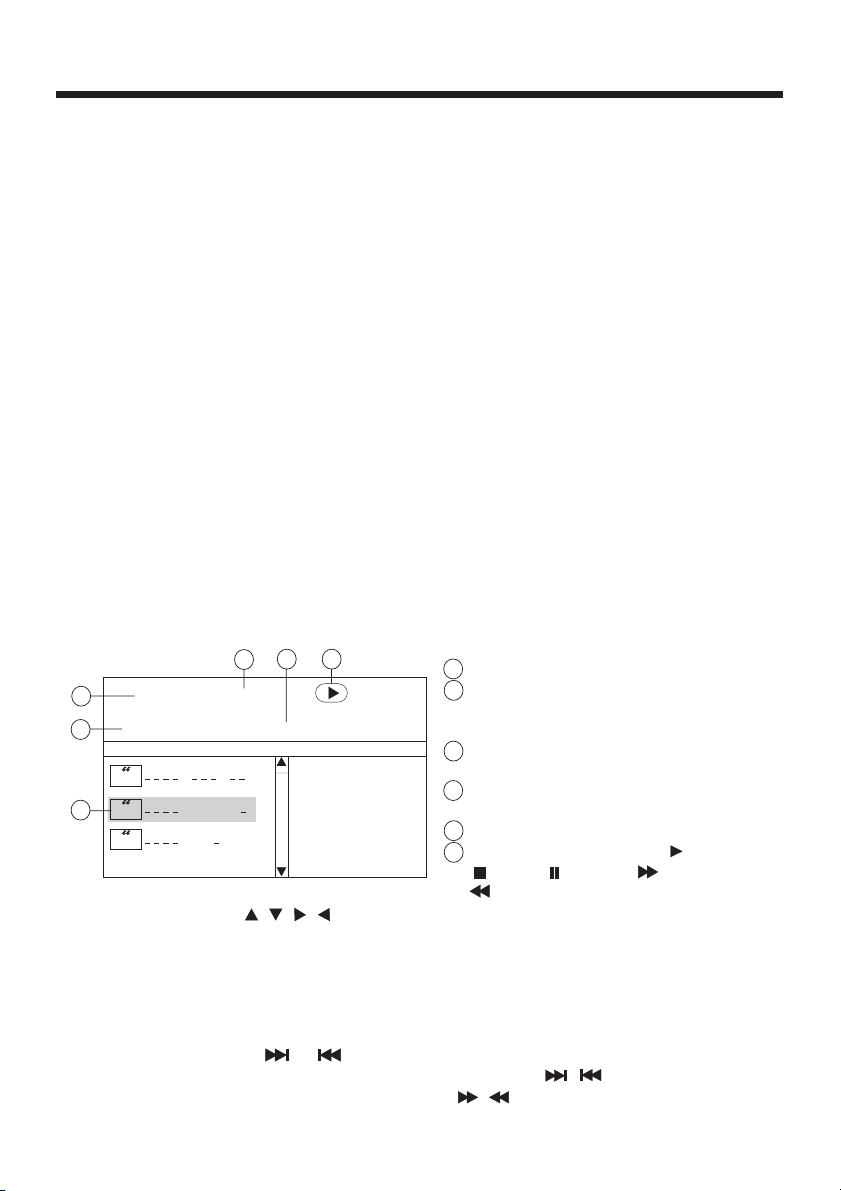

MP3/WMA/JPEG Disc Play .....................................................................
AUX Operation .......................................................................................
TFT Monitor Operation ...........................................................................
Rear View Camera .................................................................................

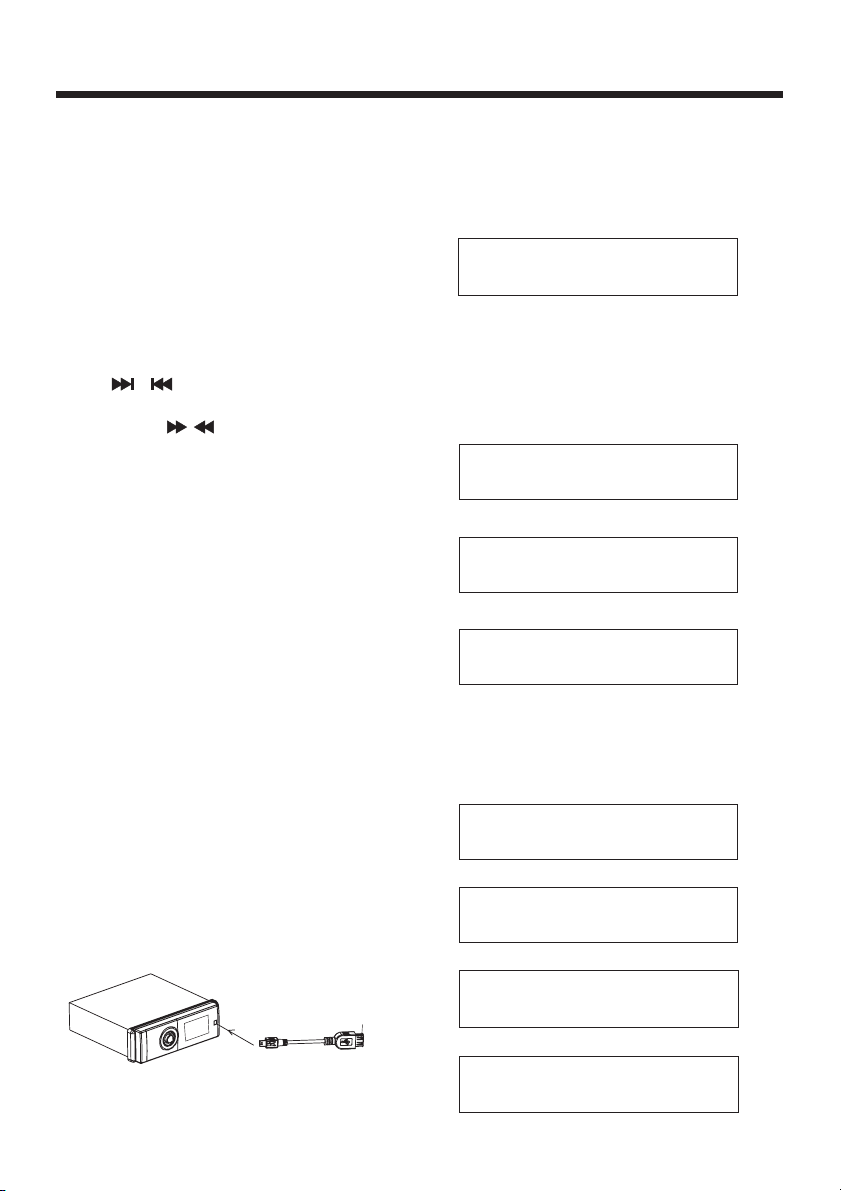

USB Operation .......................................................................................
On-Screen Display Function ...................................................................
Multi-Audio Language Function ..............................................................
Multi-Subtitle Language Function ...........................................................
Multi-Angle Function .............................................................................
Title Menu Function ...............................................................................
MPEG4 Disc Play ..................................................................................

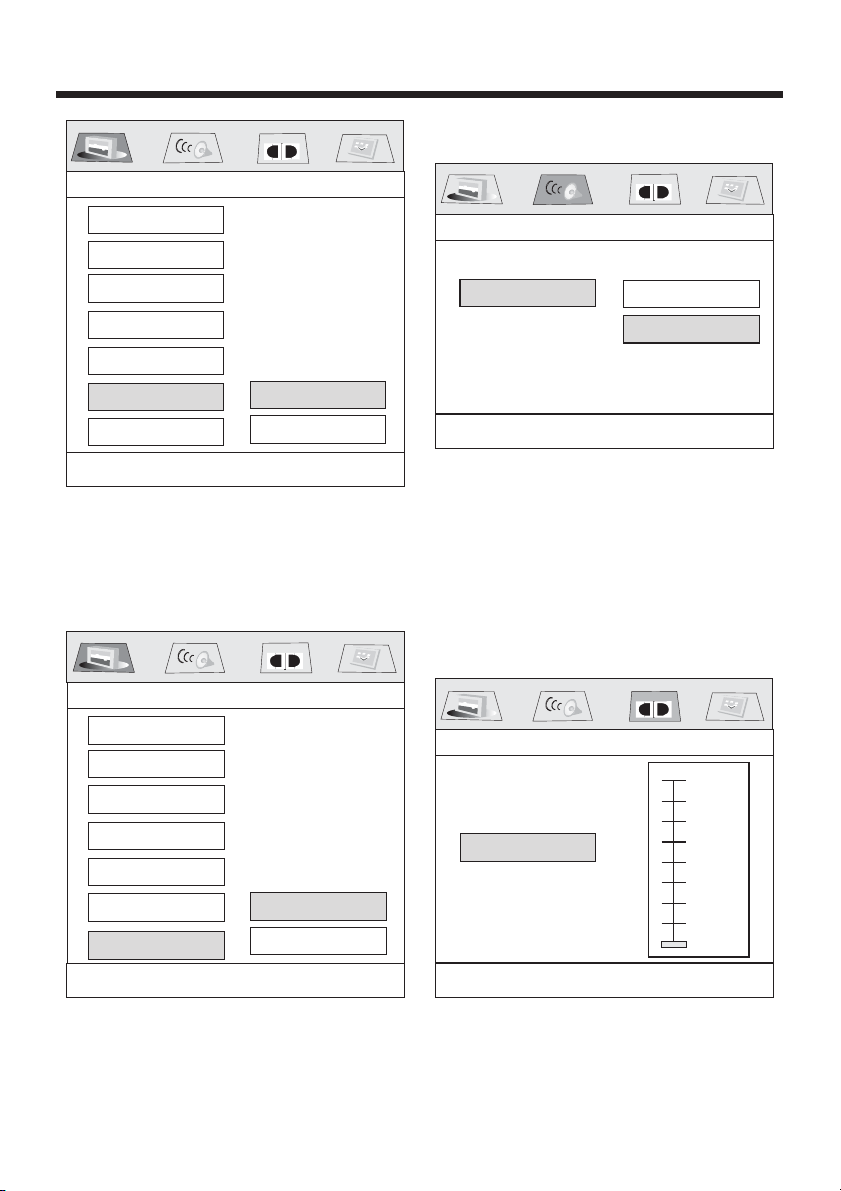

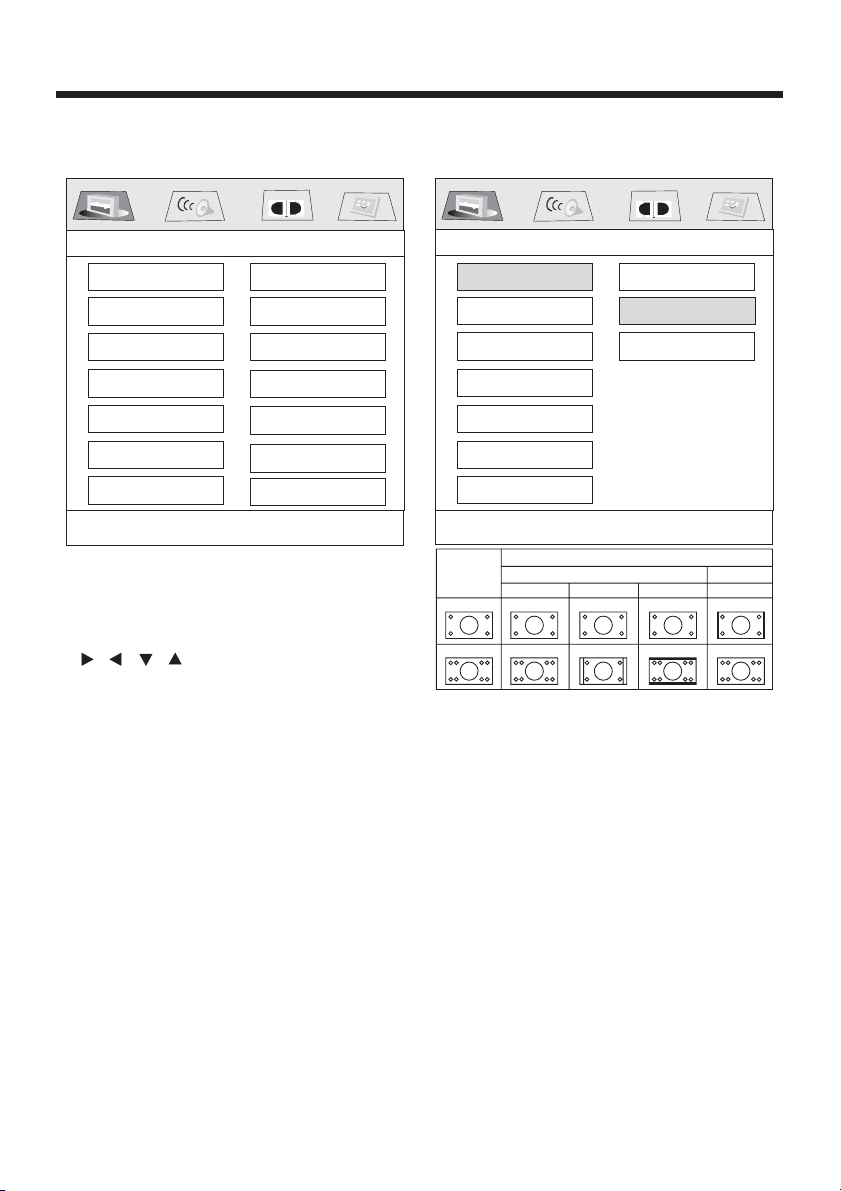

Setup .........................................................................................................
General Setup ........................................................................................
Speaker Setup .......................................................................................
Dolby Digital Setup ................................................................................

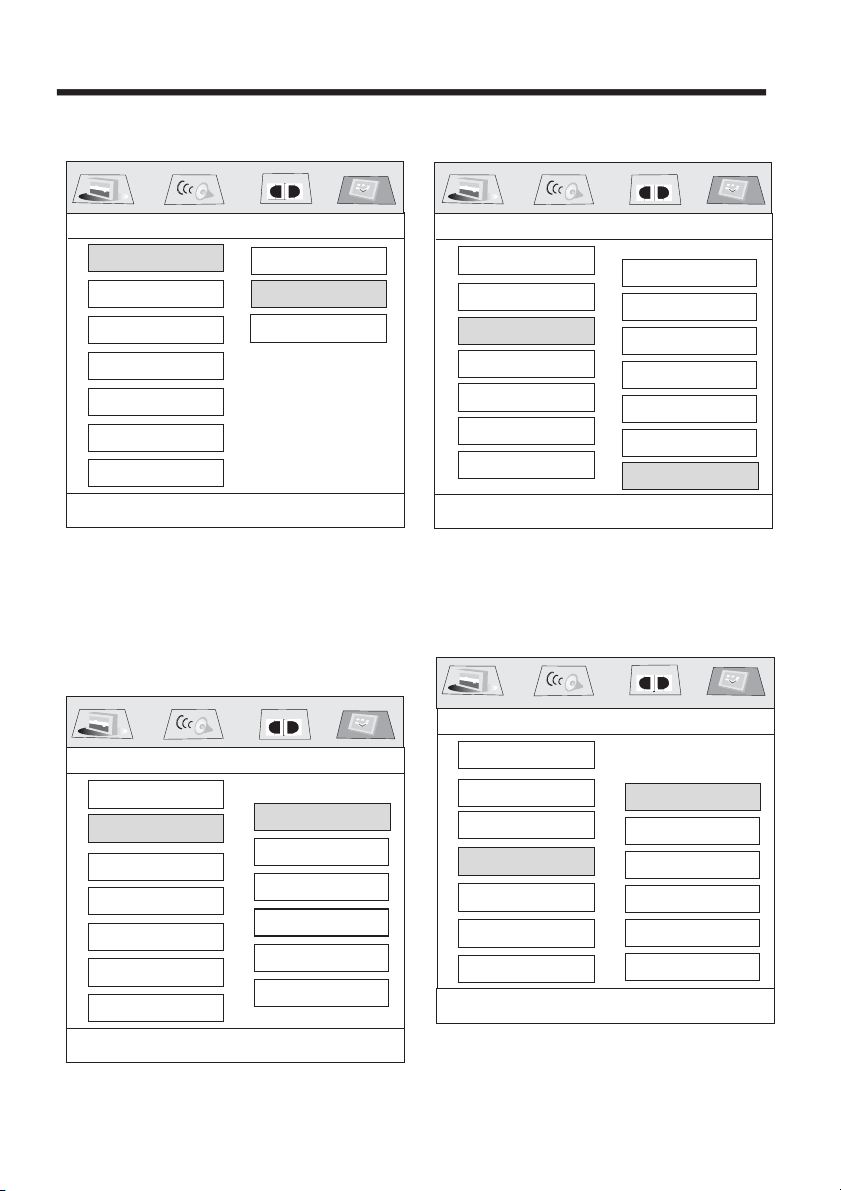

Preferences Setup .................................................................................
Defaults Table ........................................................................................
Specifications ...........................................................................................
Trouble Shooting ......................................................................................
2
3
4
6
7
8
10
13
14
14
14
15
15
16
16
16
16
16
17
17
19
19
20
21
22
23
1
SAFETY INFORMATION
CAUTION:
THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE . HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLY AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
REGION MANAGEMENT INFORMATION:
This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD Player cannot play this disc.
2
2
DISC NOTES
Disc formats supported by this player
VIDEO
MPM
CD-RW
DVD 12 cm disc (Single-sided disc only) Video CD 12 cm disc CD 12 cm disc MP3
P
3
12 cm disc
Discs which cannot be played with this player
DVD-ROM DVD-R/DVD-RAM CDV CD-G
Handling and Cleaning
Dirt, dust, scratches and warping disc
will cause misoperation. Do not place stickers or make scratches on discs. Do not warp discs.
A disc should always be kept in its case when not in use to prevent from damaging. Do not place discs in the following places:
1.Direct sunlight
2.Dirty, dusty and damp areas
3.Near car heaters
4.On the seats or dashboard
Disc Cleaning
Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.
Note:
A disc may become somewhat scratched (although not enough to make it
unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.
Label side up
Do nottouch the underside of thedisc
Do not bend
Wipe the disc from center toward theoutside edge
Preparing New Discs with
Rough
Spots
A new disc may have rough edges on its inside and outside edges.If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc.Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right.To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.
Rough spots on outside edge
Ball pointpen or pencil
Rough spots on inside edge
3
INSTALLATION
NOTES:
Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure
it is
all connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use
of
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or
other
modifications of the vehicle.
Install the unit where it does not get in the driver s way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.
If installation angle exceeds 30 from horizontal, the unit might not give its
optimum
performance.
'
30
Avoid installing the unit where it would be subject to high temperature, such as from subject to dust,
DIN FRONT/REAR-MOUNT
This unit can be properly installed either from "Front"(conventional DIN Front-mount) screw holes at the sides of illustrated installation methods.
direct sunlight, or from hot air, from the heater, or where it would be
dirt or excessive vibration.
or "Rear"(DIN Rear-mount installation, utilizing threaded
the unit chassis). For details, refer to the following
4
INSTALLATION
HEX NUT
SPRING WASHER
PLAIN WASHER
TAPPING SCREW
DASH BOARD
METAL MOUNTING STRAP
CONSOLE
SLIDE BRACKET HOUSING
HEX BOLT
KEY PLATE
PLASTIC COVER
KEY PLATE
If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove the PLASTIC COVER of the both sides away, then insert
the two KEY PLATE into left and right side of chassis as above illustration.
5
CHAGNE ANGLE
CHANGING THE CONTROL PANEL ANGLE
When you want to change the angle to play, you can press repeatedly the
(angle)button to select the desired angle as follows:
Angle 1 Angle 2
Angle 4
Angle 3
Caution:
Do not insert your finger behind the control panel
6
ELECTRIC CONNECTION
WIRING CONNECTION
MAIN UNIT
ANTENNA CONNECTOR
IGNITION
SWITCH(B+)
MEMORY
BACK-UP(B+)
GROUND(B-)
ANTENNA
AUTO
RED
YELLOW
BLACK
BLUE
FRONT
Lch SPK.
REAR
Lch SPK.
CHOKE BOX
FUSE
WHITE/BLACK
GREEN/BLACK
WHITE
GREEN
WHITE
GREEN
YELLOW
AUX(optional)
RCA CABLE
REAR RCAOUTPUT
CABLE (optional)
FRONT RCA OUTPUT
CABLE
(FOR RCALINE OUT VERSION ONLY)
GREY
GREY/BLACK
VIOLET
VIOLET/BLACK
FRONT
Rch SPK.
REAR
Rch SPK.
(B+)12V REAR CAMERASWITCH
(B-)PARKING BRAKE
REAR CAMERAINPUT
VIDEO INYELLOW RCH INRED
LCHINWHITE
GREY SUBWOOFER VIDEO OUT2 YELLOW
COAXIAL OUT BROWN RCH RED
LCH WHITE
FRONT RCA RED R
VIDEO OUT 1YELLOW
FRONT RCA WHITE L
7
