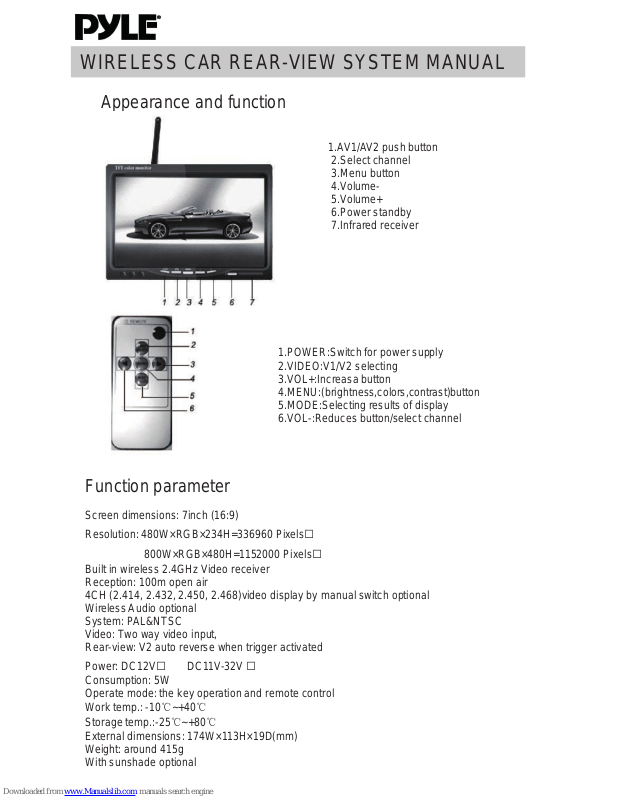

PYLE Audio PLCMTR76WIR User Manual

WIRELESS CAR REAR-VIEW SYSTEM MANUAL

Appearance and function

1.AV1/AV2 push button

2.Select channel

3.Menu button

4.Volume-

5.Volume+

6.Power standby

7.Infrared receiver

1.POWER:Switch for power supply

2.VIDEO:V1/V2 selecting

3.VOL+:Increasa button

4.MENU:(brightness,colors,contrast)button

5.MODE:Selecting results of display

6.VOL-:Reduces button/select channel

Function parameter

Screen dimensions: 7inch (16:9)
Resolution: 480W×RGB×234H=336960 Pixels

□

800W×RGB×480H=1152000 Pixels

□

Built in wireless 2.4GHz Video receiver
Reception: 100m open air
4CH (2.414, 2.432, 2.450, 2.468)video display by manual switch optional
Wireless Audio optional
System: PAL&NTSC
Video: Two way video input,
Rear-view: V2 auto reverse when trigger activated

Power: DC12V

□

DC11V-32V

□

Consumption: 5W
Operate mode: the key operation and remote control
Work temp.: -10℃~+40℃

Storage temp.:-25℃~+80℃
External dimensions: 174W×113H×19D(mm)
Weight: around 415g
With sunshade optional

WIRELESS BACK UP CAMERA

Image Sensors: IR Color CMOS□CCD□Camera

Wireless camera built in 2.4GHz VIDEO Transmitter
Transmission: 100m open air
TV System:PAL/ NTSC
waterproof rate:Ip67
Effective Pixels:512 x 582 pixels / 512 x 492 pixels

752x582 pixels / 768×494 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
Pin Lens:f=2.8mm / F = 2.0
Lens Angle:120° IR leds: 18 Pcs
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p,

75Ohm

Power Supply:DC12V

□

DC11V-32V

□

Current Consumption:≤300mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95％ MAX

Storage Temperature:-40°C~85°C ,RH95％ MA
with microphone optional

INSTALLATION DIAGRAM
