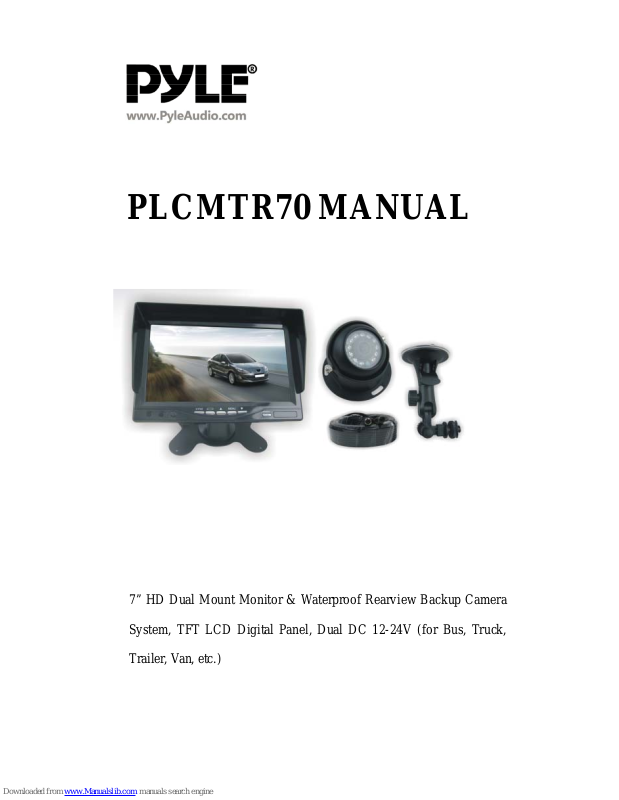

PL

CMTR70 MANUAL

7” HD Dual Mount Monitor & Waterproof Rearview Backup Camera

System, TFT LCD Digital Panel, Dual DC 12-24V (for Bus, Truck,

Trailer, Van, etc.)



Please read instructions carefully before installation and use. Installation

should be performed by a professional installer. To ensure your safety,

the driver should not watch videos or operate features on the monitor

while driving. There are no serviceable parts in this unit, do not

disassemble or try to repair this unit. If the unit malfunctions please

return to your vendor or send to a Pyle repair facility. Please observe and

obey the local laws and regulations when installing the unit.

Upon Installation, please make sure as to not to interfere with any of the

vehicle's safety features, wiring, components, etc. We are not responsible

for any damages, injury, malfunctions or otherwise noted due to faulty or
non‐professional installation.

Connection

Connect the camera’s threaded locking 4‐pin cable connectors into the

female receiving connection of the included 4‐pin extension cables. The

extension cables then connect to your compatible video monitors with
4‐pin receiving connectors. The threaded locking cable connectors of the

camera serve to provide power and video for all cameras.

Please remember to disconnect your vehicle's battery prior to any

connection / installation. Use the included wiring harness

to provide power and video signals to your monitor. There are colored

wires to assist in the video camera system setup. See the wiring diagram

for connections between cameras, monitor and your vehicle.


