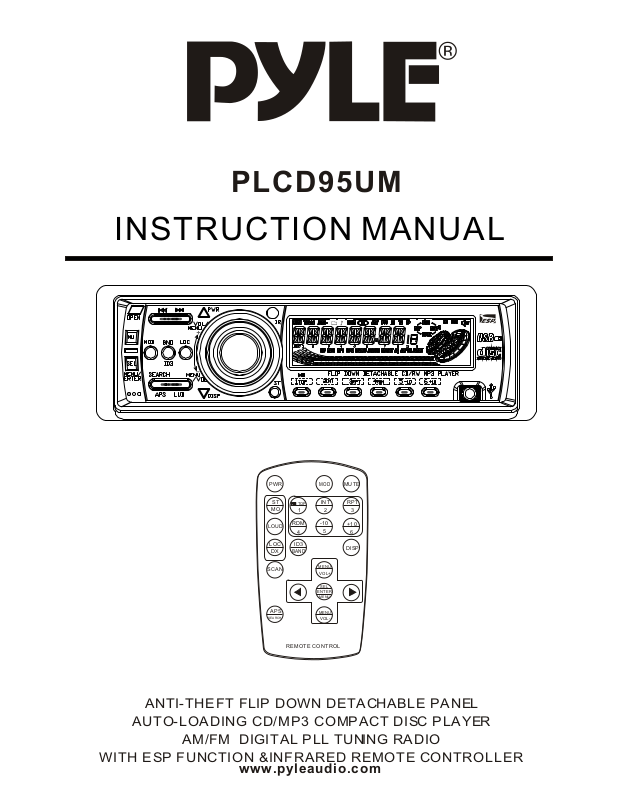

PYLE Audio PLCD95UM User Manual

PLCD95UM

INSTRUCTION MANUAL

PWR

ST MO

RDM

LOUD

LOC

BAND

SCAN

APS

REMOTE CONTROL

ID3

TOP

MUTE

MOD

INT RPT

-10

+10

DISP

VOL+

SEL

ENTER

VOL-

ANTI-THEFT FLIP DOWN DETACHABLE PANEL

AUTO-LOADING CD/MP3 COMPACT DISC PLAYER

AM/FM DIGITAL PLL TUNING RADIO

WITH ESP FUNCTION &INFRARED REMOTE CONTROLLER

www.pyleaudio.com

BASIC OPERATION

AUX CABLE

BASIC OPERATION

1. OPEN BUTTON

Press it to flip down the front panel then you can insert the CD disc into the CD

compartment .

2.VOLUME(MENU)+/-KNOB

Rotate the VOL+/-button to adjust volume level. IN MENU MODE: Rotate the vol+ /- button also can adjust the selected mode. IN MP3 MODE: Press search button to select track or file search, and then press ENTER button to enter track or file search and using the vol+/- button to move track or file search upward or downward.

3.SEL/MNU(ENTER) BUTTON

Press SEL button immediately to move display through volume, bass, treble and balance functions. Use vol+/-buttton to adjust the select mode. When mode has not been adjusted for several seconds, display returns to normal radio or cd display.

VOL BAS TRE BAL FAD

(VOLUME) (BASS) (TREBLE) (BALANCE) (FADER)

Note: During press SEL button if any one of the EQ mode is turned on, LCD display only indicate as follows:

VOL BAS FAD

(VOLUME) (BASS) (FADER)

A. Adjust volume level by using vol+/- button NOTE: The unit is initially set to volume mode. B.Press the SEL button to select volume ,bass, treble, balance, fader mode than use volume +/ - button to adjust the level of them. NOTE: The fader function controls balance between front or rear speakers for four speakers system C.Press and hold SEL button for one second to move display through EQ, ESP, MULT, WOOFER(the woofer function for woofer version only), and BEEP functions. When mode has not been adjusted for several seconds, display return to normal radio or cd display.and then use vol+/- button to adjust the selected mode as follows:

EQ:

ESP:

MULT:

WOOFER:

WOOFER ON WOOFER OFF

BEEP:

D.IN mp3 playback, Used for enter track and file search during MP3 mode after press SEARCH button during track search, after selecting the desired track with 1 digit or 2 digits, selected song begins to play after enter button is pressed for longer than 0.5 second. During file search, when enter button is pressed or longer than 0.5second.at the current directory mode, first song in the corresponding director will begin playing.

FLAT M CLASS M ROCK M POP M DSP OFF

ESP ’12 ESP ’45

MULT ON MULT OFF

BEEP ON BEEP OFF

BASIC OPERATION

4.5.TRACK UP /DOWN BUTTONS

A.During RADIO mode, press and hold or for more than 2 seconds you can auto search channel. Then press or ,you can have manual search channel. B.During CD mode, Press or button to choose the following track or the previoustrack.Press and hold or button for several seconds to fast forward or fast reverse. Releasing the button to stop fast playing C.IN MP3 MODE:Press the or button once to choose the next or previous track under normal MP3 playback.

6. MODE BUTTON

Press it repeatedly to select CDP, AUX and RADIO mode in sequence and circulation.

7. LUD

When reduce volume to half level,press it to enhance the bass effect.

8.ST BUTTON

Press ST button to stereo reception for radio stations.

9.EJECT BUTTON

Press it to eject the DISC .

10-11-12-13-14-15. PRESET MEMORY BUTTONS

A. To memorize the current frequency, press any one of the six preset Buttons hold for more than 2 seconds. B. To recall the preset memory, press one of the preset buttons [1-6]. C. In CDP mode, press 1TOP button to pause CDP playing, press it again to resume CDP playing. Long press 1 TOP button to select the first track/chapter to play. D. In CDP mode, press 2INT button to play the first 10 seconds part of each song, press it

again to stop scanning and retain playing the song currently selected. E. In CDP mode, press 3RPT button to play the current track repeatedly. Press it again to cancel this mode. F. In CDP mode, press 4RDM button to play the track in random order. Press it again to cancel this mode. G.In mp3 mode ,press the 5-10/6+10 buttton to select back 10 tracks or next 10 tracks.

16.MUTE BUTTON

Press it to eliminate the sound immediately.

17.DISP BUTTON

Press DSP button immediately to recall time display, then press and hold this button for three seconds until the time is blinking. And rotate VOL+ button to adjust hour or VOL button to adjust minutes.

18.APS/SEARCH BUTTON

IN RADIO MODE:

When short pressing, the radio searches for each preset station.

When the field strength level is more than the threshold level of stop level, the radio is holding at that preset number for few secretary with releasing mute, and than searches again. In FM band, FM 1, FM 2 and FM 3 is checked one at a time. When long pressing (more than 1 second),the radio searches from the current frequency and checks the signal strength level until 1 cycle search is finished. And then 6 strongest stations are preset to the corresponding preset number. The AS operation is implemented in the each band of selected band. When the AS operation is finished, the radio executes the preset scan.
