PYLE Audio PLCD45MP3 User Manual

OWNER'S MANUAL

ANTI-SHOCK CD / MP3 PLAYER

SUPER POWER OUTPUT & AUXILIARY INPUT

FACE DETACHABLE PANEL

FM-AM FM-MPX RADIO RECEIVER

WITH REMOTE CONTROL

MODEL:

PLCD45MP3

Page. 1

P / N : 570-961652-03

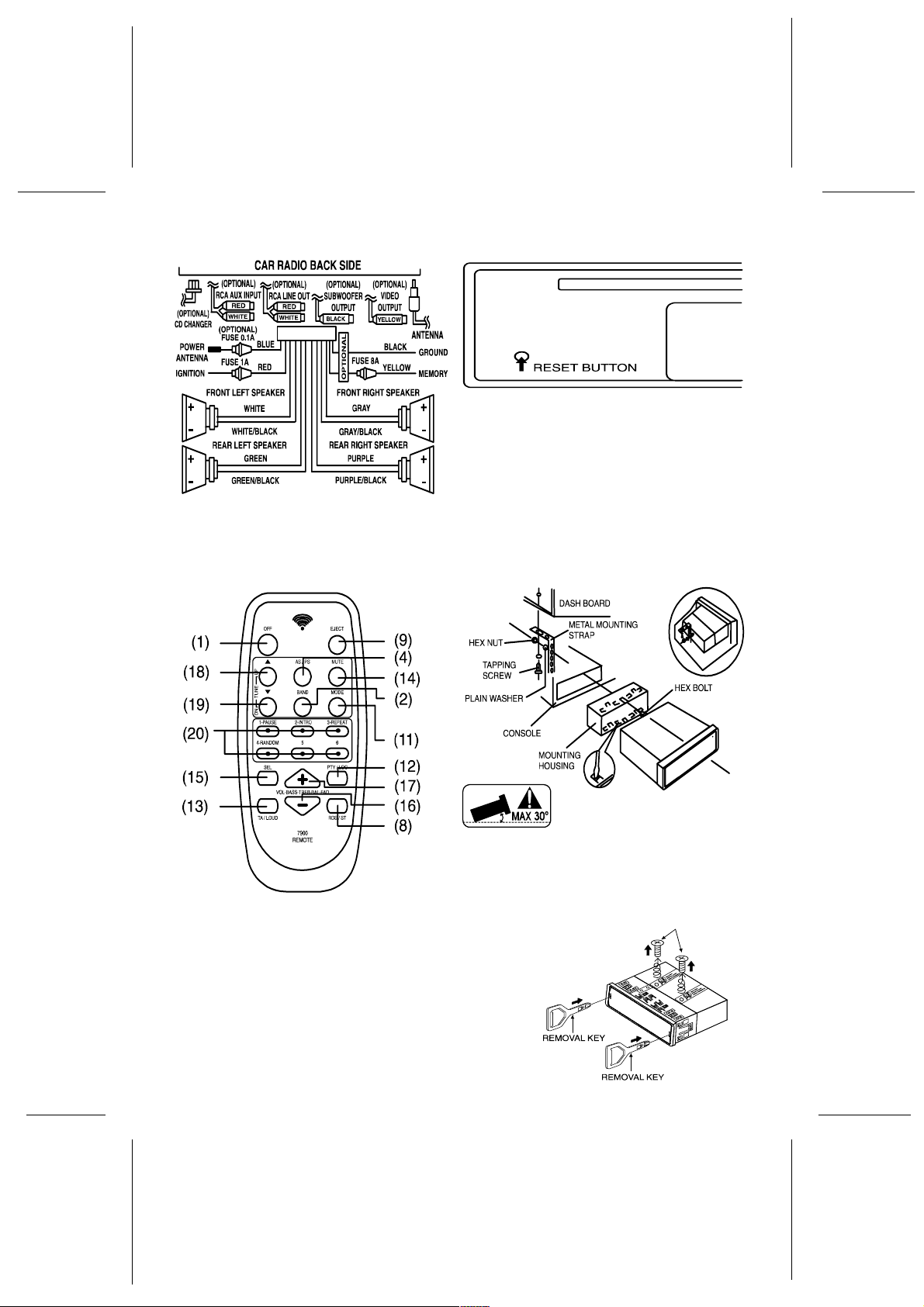

LOCATION OF CONTROLS

REMARK :

AT ANY TIME, IF THE WIRE IS DISCONNECTED, THE RESET SWITCH MUST BE PRESSED AGAIN BEFORE OPERATE THE
RADIO (REFER TO PAGE 4 FOR DETAIL). OTHERWISE, THE RADIO MAY NOT WORK PROPERLY.

OPERATING INSTRUCTIONS

1. POWER ON/OFF CONTROL

Press the button to turn the power “ON” or “OFF”.
Note : The unit can be turn on by pressing any keys on the panel (except panel release button & disc eject button). It will help

the user who cannot find the power button in dark.

2. BAND SELECTOR

Each time this button is pressed, the radio band is changed. The indication “FM1”, “FM2”, “FM3”, “MW1” or “MW2” will
appear on the display according to your selection.

3. SCAN CONTROL

Press this button to scan the receivable FM / MW stations. When receivable stations are tuned in, they are monitored for
approximately 5 seconds before advancing to the next receivable station. Press SCAN button once again to stop scanning as
desired.

4. PRE-SCAN/AUTO-STORE BUTTON

This button allows you to enjoy “Preset Memory Scan” function by pushing it shortly, and “Auto-Store Memory” function by
pushing it more than 2 seconds.
* PS (PRESET MEMORY SCAN ) - It calls the memorized station frequencies ( from 1-6 ) automatically every 5 seconds.
* AS (AUTO-STORE MEMORY ) - It searches all station frequencies upward and memorize automatically 6 stations by

catching the frequency which has scan-stop level, the memorized station is shown on LCD as “CH1...6”. After memorizing,
auto-store memory function will be changed to “Preset Memory Scan” function automatically.

5. DISC SLOT

Holding the disc and insert into the disc slot. The disc mechanism will automatically engage into CD/MP3 play mode.

6. LCD DIGITAL DISPLAY

The unit utilizes a digital type display which shows numerical indication of station FREQUENCY and other FUNCTIONS.

7. DISPLAY CONTROL

The display key serves to show available information as following:

- Time

- Track No. / Playing Time (during CD and MP3 mode)

- Directory Name / File Name (during MP3 mode and the file must contain directories or files name written by the CD writer)

SETTING CLOCK TIME

1. Press CLOCK button and hold it until the display flash and release.

2. Press “+” button to set HOUR and press “-” to set MINUTE.

8. STEREO/MONO CONTROL

Press this button to select “FM STEREO” or “MONO” reception.

9. EJECT BUTTON

Press the button to eject the disc inside disc slot.

10. PANEL RELEASE BUTTON

This button is used to release the panel from the unit. To detach the front panel, press the button so that the left side of the
panel is released. Grasp the released side and pull it off of the chassis. To re-attach the panel, insert the right side of the panel
in place first and then press the left side of the panel until the chassis hold the panel firmly.

11. MODE SELECTION

Press this button to select Radio (TUNER), CD/MP3 (S-CDP), or Auxiliary input (AUX) mode.

12. LOCAL/DISTANT SELECTOR

Press this button to prevent strong local stations from overlapping weaker stations. For normal operation, press this button again
for distance.
