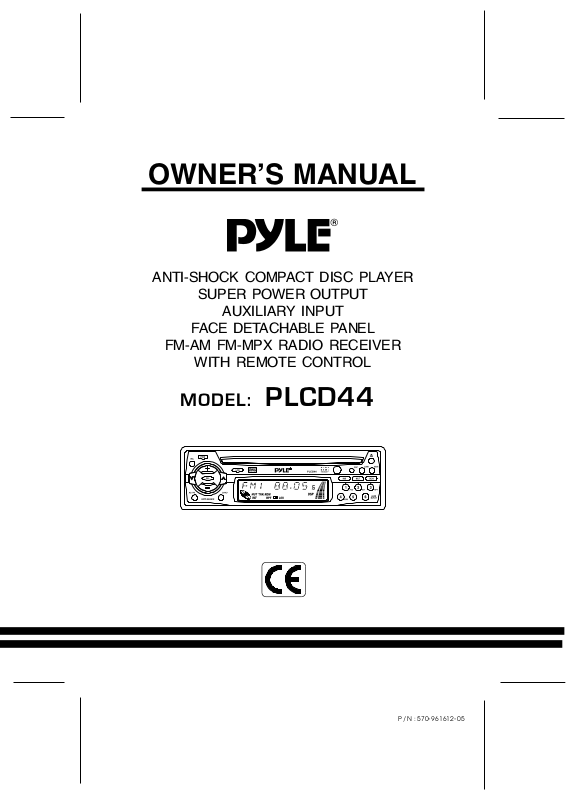

PYLE Audio PLCD44 User Manual

OWNER'S MANUAL

ANTI-SHOCK COMPACT DISC PLAYER

SUPER POWER OUTPUT

AUXILIARY INPUT

FACE DETACHABLE PANEL

FM-AM FM-MPX RADIO RECEIVER

WITH REMOTE CONTROL

MODEL: PLCD44

Page. 1

P / N : 570-961612-05

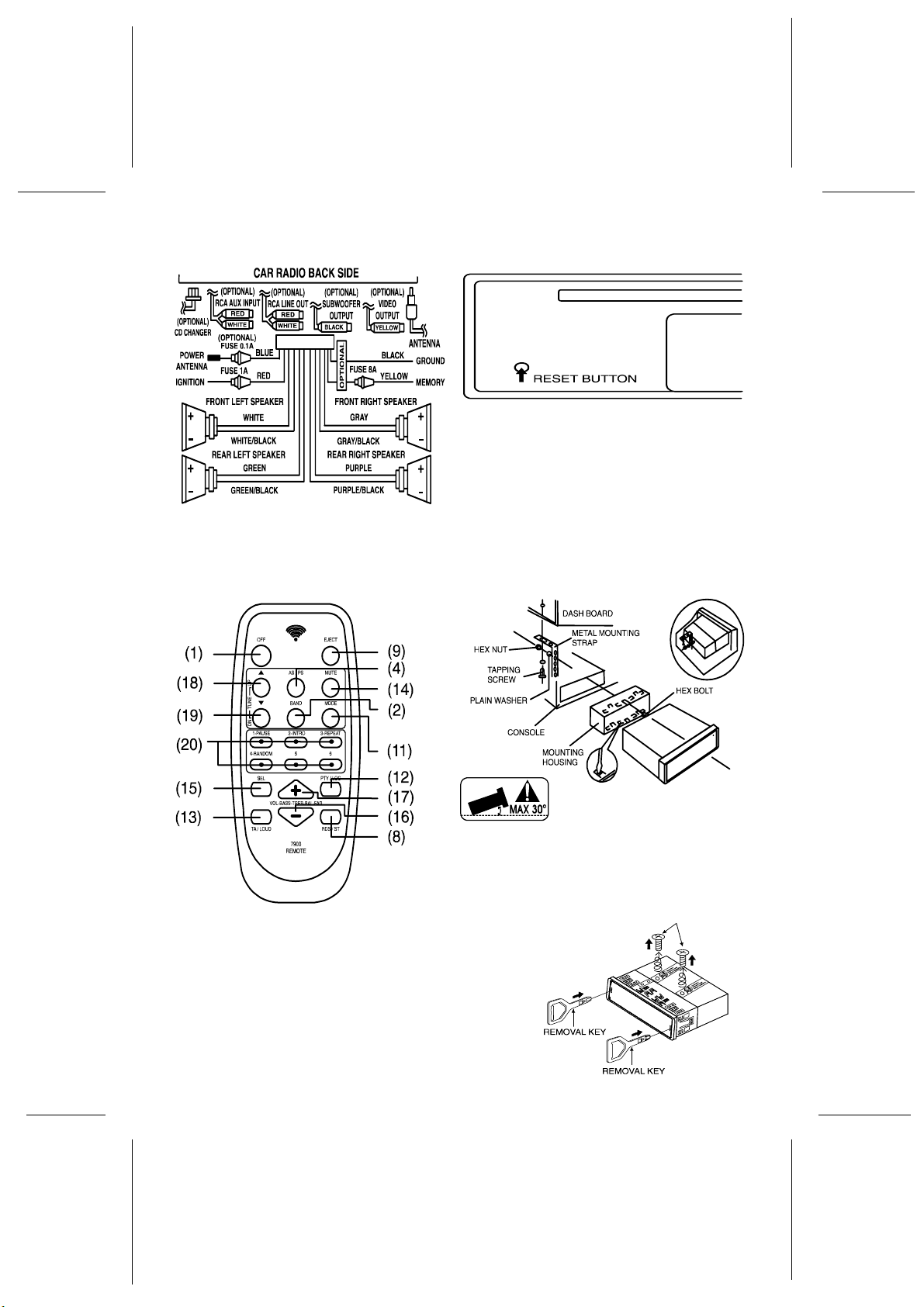

LOCATION OF CONTROLS

OPERATING INSTRUCTIONS

1. POWER ON/OFF CONTROL

Press the button to turn the power “ON” or “OFF”.
Note : The unit can be turn on by pressing any keys on the panel (except panel release button & disc eject button). It will help

the user who cannot find the power button in dark.

2. BAND SELECTOR

Each time this button is pressed, the radio band is changed. The indication “FM1”, “FM2”, “FM3”, “MW1” or “MW2” will
appear on the display according to your selection.

3. SCAN CONTROL

Press this button to scan the receivable FM / MW stations. When receivable stations are tuned in, they are monitored for
approximately 5 seconds before advancing to the next receivable station. Press SCAN button once again to stop scanning as
desired.

4. PRE-SCAN/AUTO-STORE BUTTON

This button allows you to enjoy “Preset Memory Scan” function by pushing it shortly, and “Auto-Store Memory” function by
pushing it more than 2 seconds.

* PS (PRESET MEMORY SCAN ) - It calls the memorized station frequencies ( from 1-6 ) automatically every 5 seconds.
* AS (AUTO-STORE MEMORY ) - It searches all station frequencies upward and memorize automatically 6 stations by

catching the frequency which has scan-stop level, the memorized station is shown on LCD as “CH1...6”. After memorizing,
auto-store memory function will be changed to “Preset Memory Scan” function automatically.

5. DISC SLOT

Holding the disc and insert into the disc slot. The CD mechanism will automatically engage into CD play mode.

6. LCD DIGITAL DISPLAY

The unit utilizes a digital type display which shows numerical indication of station FREQUENCY and other FUNCTIONS.

7. DISPLAY CONTROL

During radio and CD operation, press this button to call the time display on the incorporated quartz clock.

SETTING CLOCK TIME

1. Press CLOCK button and hold it until the display flash and release.

2. Press “+” button to set HOUR and press “-” to set MINUTE.

8. STEREO/MONO CONTROL

Press this button to select “FM STEREO” or “MONO” reception.

9. EJECT BUTTON

Press the button to eject the disc inside disc slot.
