PLCD29
OWNER’S MANUAL
Mobile Audio System
• PLL Synthesizer Stereo Radio
• Digital Compact Disc Player
• Automatically Memory Storing
• Full Detachable Panel
• Auxiliary Input Function
CONTENTS
Installation ............................................................................................... 3
DIN Front-Mount (Method A) ........................................................................... 3
Installing the unit ........................................................................................ 3
Removing the unit ...................................................................................... 4
DIN Rear-Mount (Method B) ............................................................................ 4
Using the Detachable Front Panel ................................................................... 5
Wiring Connection .................................................................................. 6
Operation ................................................................................................. 7
General Operation ............................................................................................ 7
Radio Operation ............................................................................................... 8
CD Operation ................................................................................................... 9
Specification ............................................................................................ 10
Trouble Shooting ..................................................................................... 11
INSTALLATION
Notes:
• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
• Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver’s way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 30˚ from horizontal, the unit might not give its optimum performance.
DIN FRONT-MOUNT (Method A)
Installing the unit
182
(Fig. 1)
1. Dashboard
2. Holder After inserting the holder into the dashboard, select the appropriate tab according to the thickness of the dashboard material and bend them inwards to secure the holder in place.
3. Screw
30˚
• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either from “Front” (conventional DIN Front­mount) or “Rear” (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.
(Fig. 2)
1. Dashboard
2. Nut (5mm)
3. Spring washer
4. Screw (5 x 25mm)
5. Screw
6. Strap Be sure to use the strap to secure the back of the unit in place. The strap can be bent by hand to the desired angle.
7. Plain washer
INSTALLATION
Removing the unit
1. Frame
2. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When reattaching the frame, point the side with a groove downwards and attach it.)
3. Lever Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click. Pulling the levers makes it possible to remove the unit from the dashboard.
DIN REAR-MOUNT (Method B)
Installation using the screw holes on the sides of the unit.
Fastening the unit to the factory radio mounting bracket.
1. Select a position where the screw holes of the bracket and the screw holes of the main unit become aligned (are fitted), and tighten the screws at 2 places on each side. Use either truss screws (5 x 6mm) or flush surface screw (4 x 6mm), depending on the shape of the screw holes in the bracket.
2. Screw
3. Factory radio mounting bracket
4. Dashboard or Console
5. Hook (Remove this part)
Note: The mounting box, outer trim ring, and half-sleeve are not used for method B installation.
USING THE DETACHABLE FRONT PANEL
To Detach the Front Panel
1. Press the release button (REL), then the right-hand side of the panel will be ejected.
Release
Button
2. Remove the front panel by pulling its right-hand side outward.
Front Panel
3. For safekeeping, store the front panel in the supplied protective case immediately after being removed.
To Reinstall the Front Panel
1. Push the front panel into the main body. A ‘click’ sound should be heard.
2. Note that if the front panel fails to lock in position properly, press control button may not function and LCD display may be missing some segments. Pressing the release button and then reinstall the front panel again.
Precautions when Handling
1. Do not drop the front panel.
2. Do not put pressure on the display or control buttons when detaching or reinstalling the front panel.
Protective Case
Front Panel
3. Do not touch the contacts on the front panel or on the main unit body. It may result in poor electrical contact.
4. If any dirt or foreign substances adhered on the contacts, they can be removed with a clean and dry cloth.
5. Do not expose the front panel to high temperatures or direct sunlight in anywhere.
6. Keep away any volatile agents (e.g. benzene, thinner, or insecticides) from touching the surface of the front panel.
7. Do not attempt to disassemble the front panel.

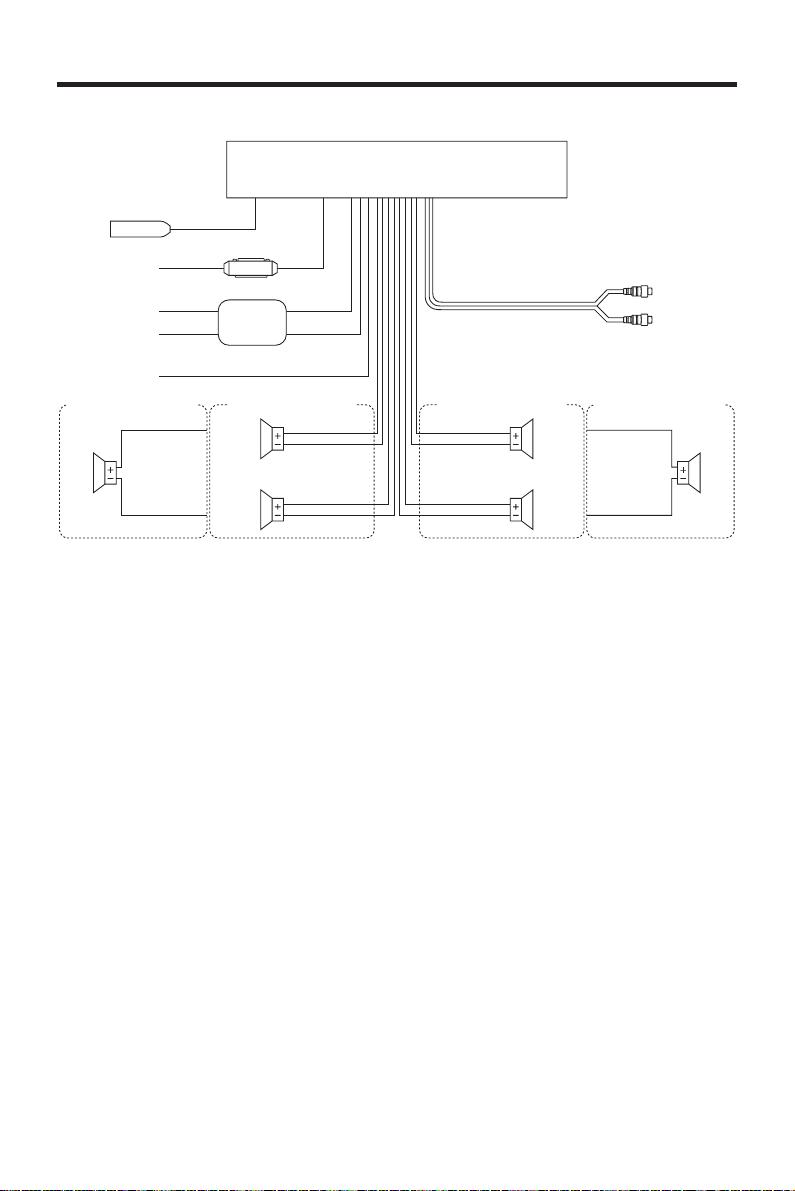

WIRING CONNECTION
ANTENNA CONNECTOR
MAIN UNIT
IGNITION
SWITCH (B+)
MEMORY BACK-UP
GROUND (B–)
ANTENNA
2-SPEAKERS SYSTEM 2-SPEAKERS SYSTEM
Lch
SPK.
RED
YELLOW
BLACK
POWER
WHITE
GREEN/BLACK
FUSE
CHOKE
BOX
BLUE
4-SPEAKERS SYSTEM
FRONT
Lch SPK.
REAR
Lch SPK.
WHITE/BLACK
GREEN/BLACK
WHITE
GREEN
RCA CABLE
4-SPEAKERS SYSTEM
GREY
GREY/BLACK
VIOLET
VIOLET/BLACK
FRONT Rch SPK.
REAR Rch SPK.
(GREY)
GREY
VIOLET/BLACK
Rch RED
Lch WHITE
Rch SPK.
Note:
1. For 2-speakers system, green, violet, white/black and grey/black wire leads are unconnected and isolated.
2. For 2-speakers system, keep the fader indicator at center position to maintain the existing volume level.
88-C1280-11
OPERATION
34 7
14 8 51721222023
6
2
1210119 1615 181 19 13 24
25 26
GENERAL OPERATION
• ON/OFF
Press the PWR button (1) to turn on. Press PWR again to turn it off.
• MUTE
Press the MUT button (3) to silence the receiver. Press again to resume listening.
• FACEPLATE RELEASE
Press REL button (5) to detach the removable faceplate.
• LOUDNESS
Press LOU button (6) to increase bass output and display will show “LOUD”.
• SET THE CLOCK
Press and hold the DSP button (7), the clock will show on the display, then press the TRACK/TUNE button (16) to change minutes or TRACK/TUNE button (15) to change hours.
• SELECT MODE
Press SEL button (9) to move display through bass, treble, balance, fader and volume functions.
OPERATION
Use VOLUME (10) and VOLUME (11) buttons to adjust the selected mode. When mode has not been adjusted for several seconds, display returns to normal radio or CD display.
BA TR B F V-
(Bass) (Treble) (Balance) (Fader) (Volume)
• SELECT LISTENING MODE
Press MOD button (13) to choose desired listening mode. (e.g. radio mode to CD mode to AUX IN mode)
• LIQUID CRYSTAL DISPLAY
Exhibit current frequency and activating functions on the display (14).
• AUXILIARY INPUT
The unit can be connected to a portable audio player through this jack (24).
• LED
When the front panel does not install on the main unit, the LED indicator (25) is flashing.
• RESET
Press RESET button (26) to re-initialize the unit in case abnormalities or malfunction is observed. When reset is activated, all preset station/program will be cleared. Reset button can be access by any pointed material.
RADIO OPERATION
• SELECT BAND
Press BAND button (12) to change between three FM bands and two AM bands. Each band stores up to six preset stations.
FM1 FM2 FM3 AM1 AM2
• SELECT STATIONS
Press TRACK/TUNE button (15) or TRACK/TUNE button (16) shortly to
tune the frequency downward or upward by step. Hold it for several seconds to seek the previous or next station.
• MONO/STEREO
Press MON button (4) to select monaural or stereo (Mono reception for radio stations). You can sometimes improve reception of distant stations by selecting mono operation.
• PRESET STATIONS
The six buttons (17) store and recall stations for each band. Store a station: Select a band (12) and station, then hold a preset button for several seconds. Recall a station: Select a band (12), press a preset button to select stored station.
• AUTOMATICALLY STORING & PROGRAM SCANNING
Automatically Storing
Press and hold AMS button (18) for several seconds to toggle automatically storing function. It starts searching next frequency and stores the station into the preset memory. At the end of automatically storing operation, mode is changed to preset scan.
OPERATION
Preset Scanning
Press AMS button (18) shortly to toggle preset scanning function. During the scanning, it will stop at every stored station for several seconds and the frequency of station being scanned flashes on the display. Press it again to stop scanning.
• DISPLAY
During radio operation, press the DSP button (7) to recall the time display. Press it again or activating any tuning function, display will return to station frequency read-out.
CD OPERATION
• DISC PLAY
Push a compact disc with the label side facing up into the disc slot (2). When there have correspondingly showing on the display, press button (19) to start playing with the first track of the disc. The digital display will indicate the track number and playing time. During the playing, press button (19) to temporarily stop the playing. Press EJECT button (8) to stop CD play and eject CD from slot. Receiver switches to radio operation.
• SELECT TRACKS
In CD operation, press TRACK/TUNE button (15) or TRACK/TUNE button (16) to move to the previous track or the following track. Track number shows on display. In CD operation, hold TRACK/TUNE button (15) or TRACK/TUNE button (16) to fast reverse or fast forward. CD play starts from when you release the button.
• PLAY THE FIRST TRACK
Press TOP button (20) to play the first track of the current disc.
• PREVIEW ALL TRACKS
In CD operation, press SCN button (22) to play first several seconds of each track on the current disc. Press it again to stop intro and recover normal playing.
• REPEAT THE SAME TRACK
In CD operation, press RPT button (21) to continuously repeat the same track. Press it again to stop repeat.
• PLAY ALL TRACKS
In CD operation, press RDM button (23) to play all tracks on current disc in random order. Press it again to cancel the function.
SPECIFICATION
GENERAL
Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 155 (D) x 50 (H) Tone Controls
- Bass (at 100 Hz) : + 10 dB / – 10 dB
- Treble (at 10 KHz) : + 10 dB / – 10 dB Maximum Output Power : 4 x 40 Watts (max.) Current Drain : 5 Ampere (max.)
CD PLAYER
Signal to Noise Ratio : More than 60 dB Channel Separation : More than 60 dB Frequency Response : 20 Hz - 20 KHz
RADIO
Frequency Coverage : 87.5 to 107.9 MHz IF : 10.7 MHz Sensitivity (S/N = 30 dB) : 3 µV Stereo Separation : > 30 dB
Frequency Coverage : 530 to 1710 KHz IF : 450 KHz Sensitivity (S/N = 20 dB) : 32 dBu
FM
AM
10
TROUBLE SHOOTING
Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.
Symptom Cause Solution
No power. The car ignition switch is If the power supply is properly
Disc cannot Presence of CD disc inside Remove the disc in the player, then be loaded or the player. put a new one. ejected.
No sound. Volume is in minimum. Adjust volume to a desired level.
Sound skips. The installation angle is Adjust the installation angle to less
not on. connected to the car accessory
circuits, but the engine is not moving, switch the ignition key to “ACC”.
The fuse is blown. Replace the fuse.
Inserting the disc in Insert the compact disc with the reverse direction. label facing upward.
Compact disc is extremely Clean the disc or try to play a new dirty or defective disc. one.
Temperature inside the car Cool off or until the ambient is too high. temperature return to normal.
Condensation. Leave the player off for an hour or
so, then try again.
Wiring is not properly Check wiring connection. connected.
not more than 30 degrees. than 30 degrees.
The disc is extremely dirty Clean the compact disc, then try to or defective disc. play a new one.
The operation The built-in microcomputer Press the RESET button. keys do not is not operating properly Front panel is not properly fixed into work. due to noise. its place.
The radio does The antenna cable is not Insert the antenna cable firmly. not work. The connected. radio station automatic The signals are too weak. Select a station manually. selection does not work.
11
www.pyleaudio.com
88-C1280-11
