PYLE Audio PLA-4350, PLA-2750, PLA-419 User Manual

PLA- 2 1 9 PLA-2150 PLA-2250 PLA-2350 PLA-2450 PLA-2550 PLA-2650 PLA-2750 PLA-2850

Two Channel High Performance Power Amplifier

PLA- 4 1 9 PLA-4150 PLA-4250 PLA-4350

Four Channel High Performance Power Amplifier

PLA-4300D

Class-D Mono Block Power Amplifier

congratulations...

on your purchase of a Pyle Gear X Series amplifier. This amplifier extends the Pyramid tradition into a totally new series of amps, designed from the ground up to deliver the power, performance and flexibility the modern car audio enthusiast demands.

When you check the list of features offered by the PLA-219, PLA-419, PLA-2150, PLA-2250, PLA-2350, PLA-2450, PLA-2550, PLA-2650, PLA-2750, PLA2850, PLA-4150, PLA-4250, PLA-4350, PLA-4300D you’ll know you made the right choice with a Pyle Power amplifier.

table of contents

general features

features and specifications

PLA-219 PLA-419

PLA-2150/PLA-2250/PLA-2350

PLA-2450/PLA-2550/PLA-2650

PLA-2750/PLA-2850

PLA-4150/PLA-4250/PLA-4350

PLA-4300D

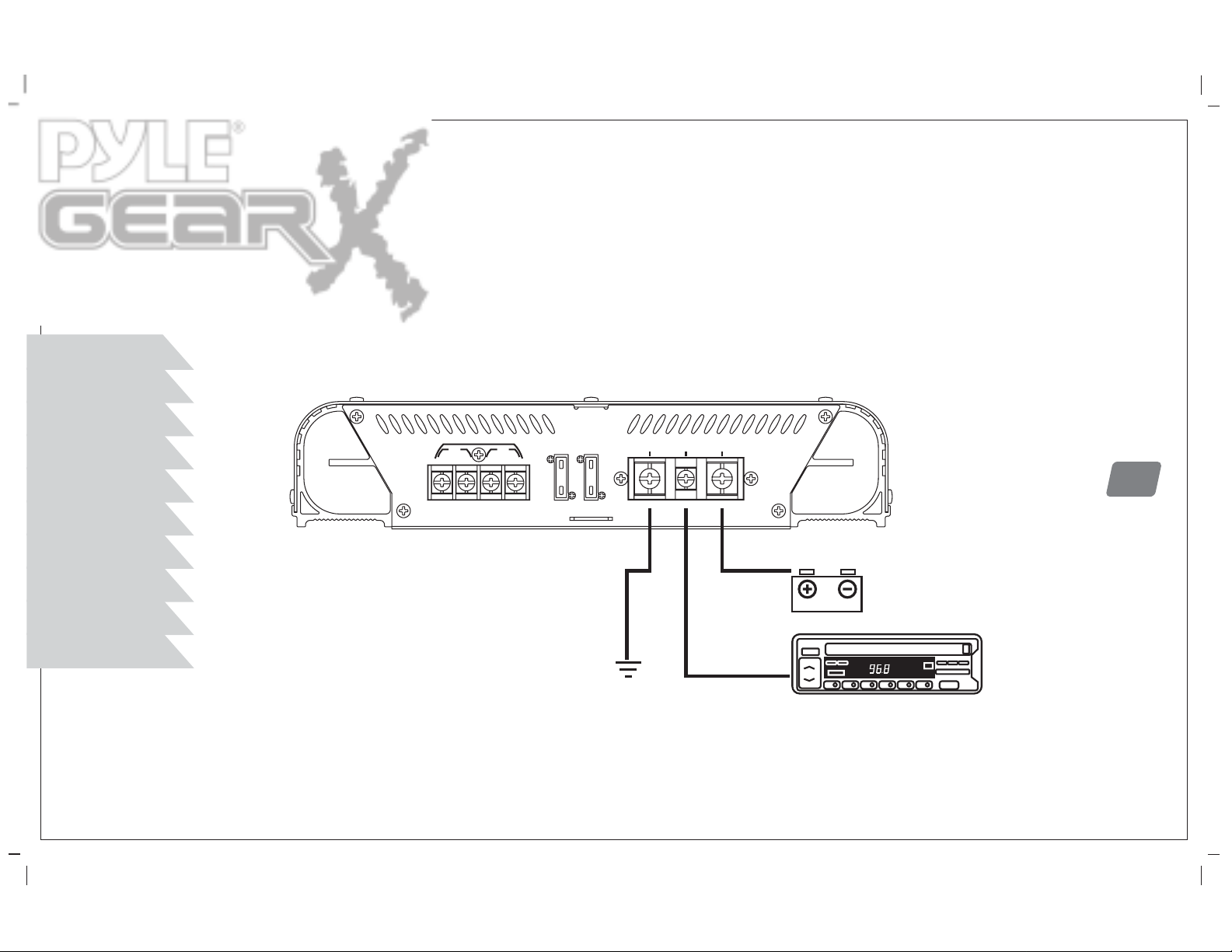

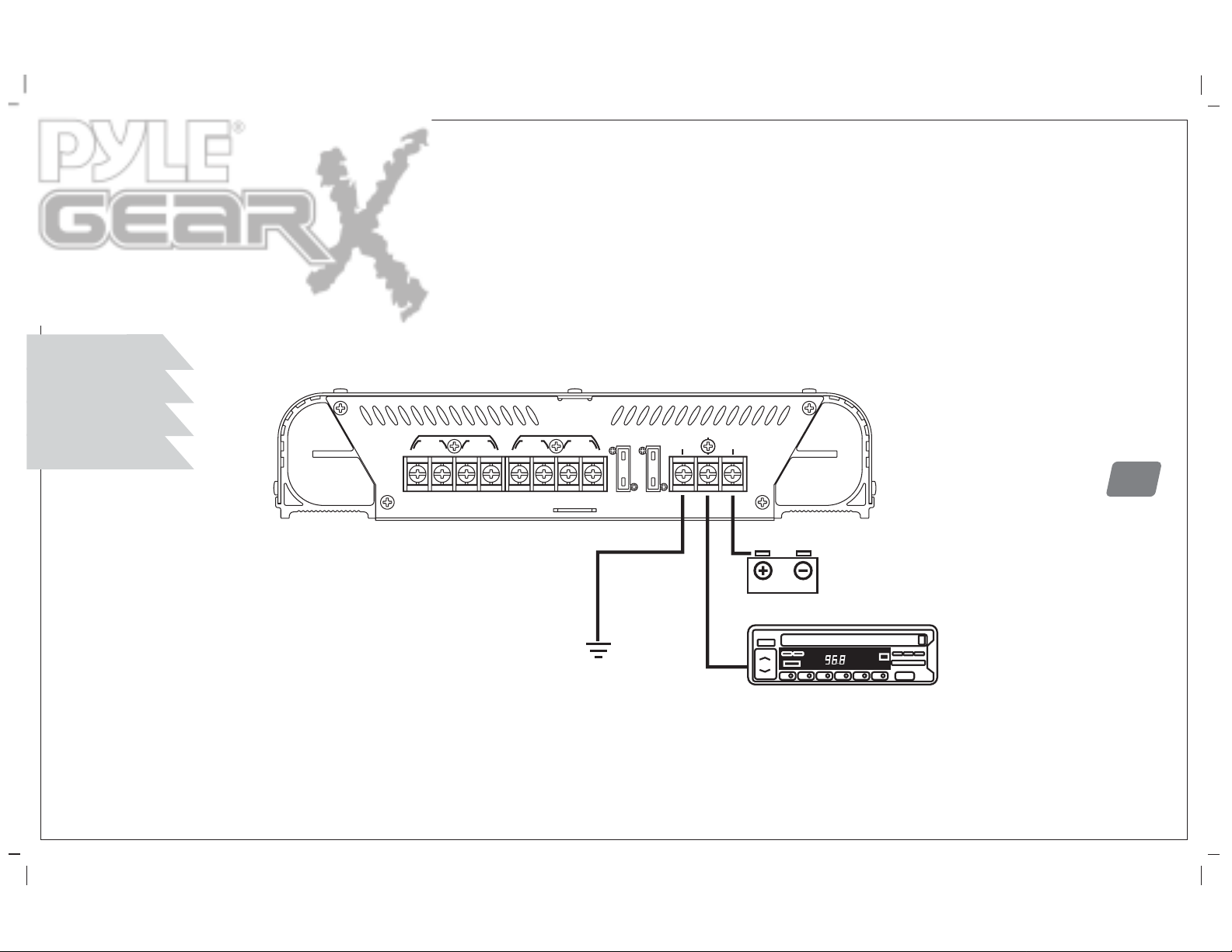

electrical connections

PLA-219/PLA-419/PLA-2150/PLA-2250

PLA-2350/PLA-2450/PLA-2550

PLA-2650/PLA-2750/PLA-2850

PLA-4150/PLA-4250/PLA-4350

PLA-4300D

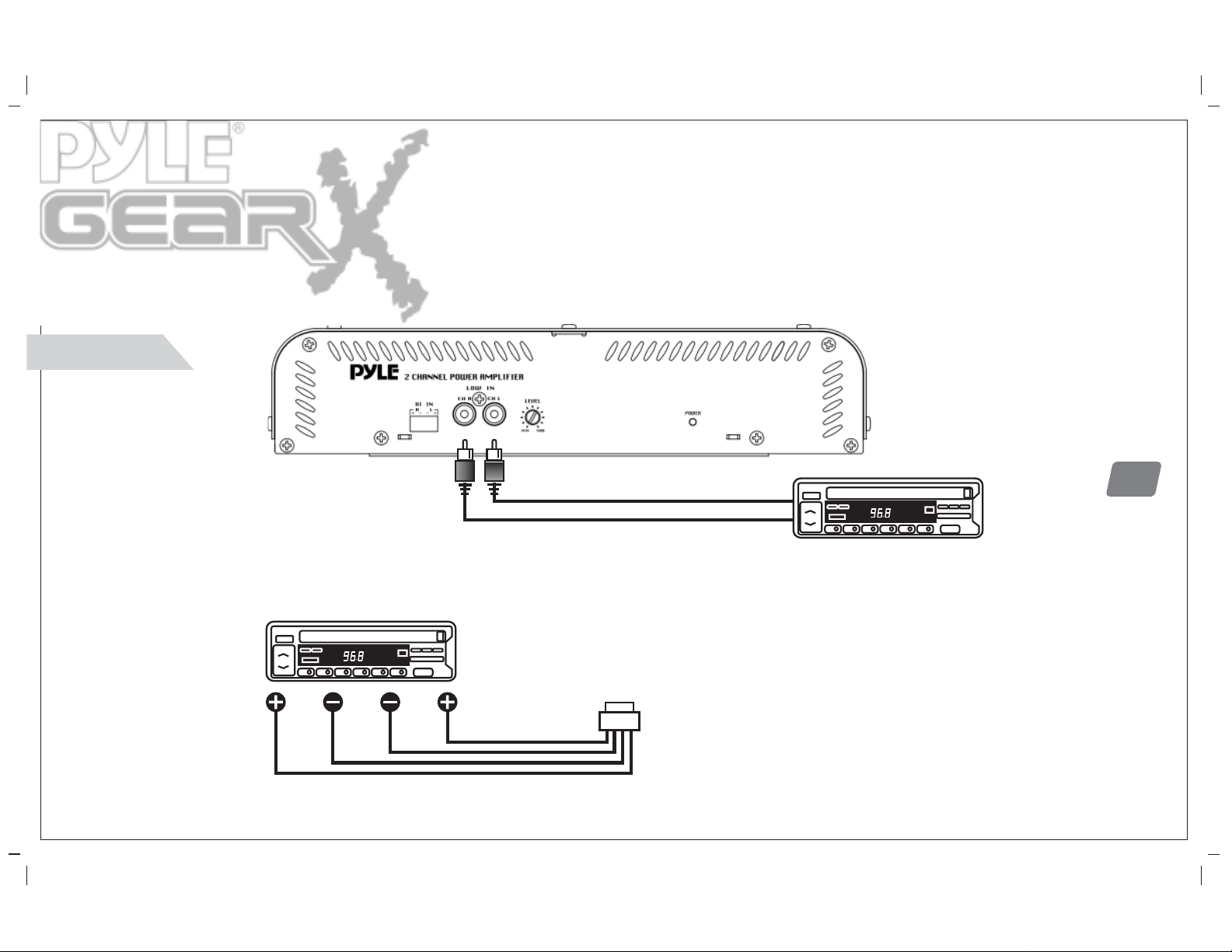

stereo input connections

PLA-219/PLA-2150/PLA-2250/PLA-2350

PLA-2450/PLA-2550/PLA-2650

PLA-2750/PLA-2850

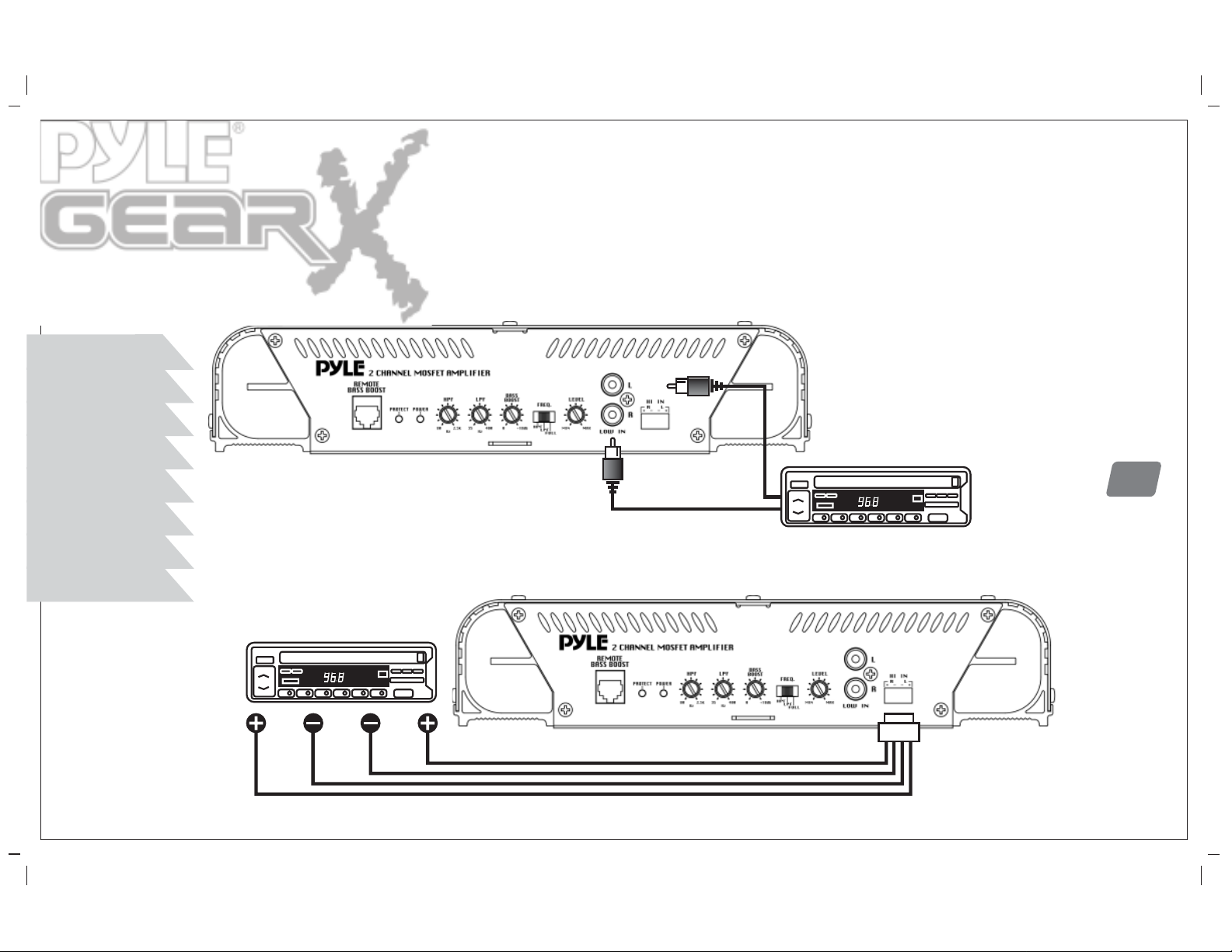

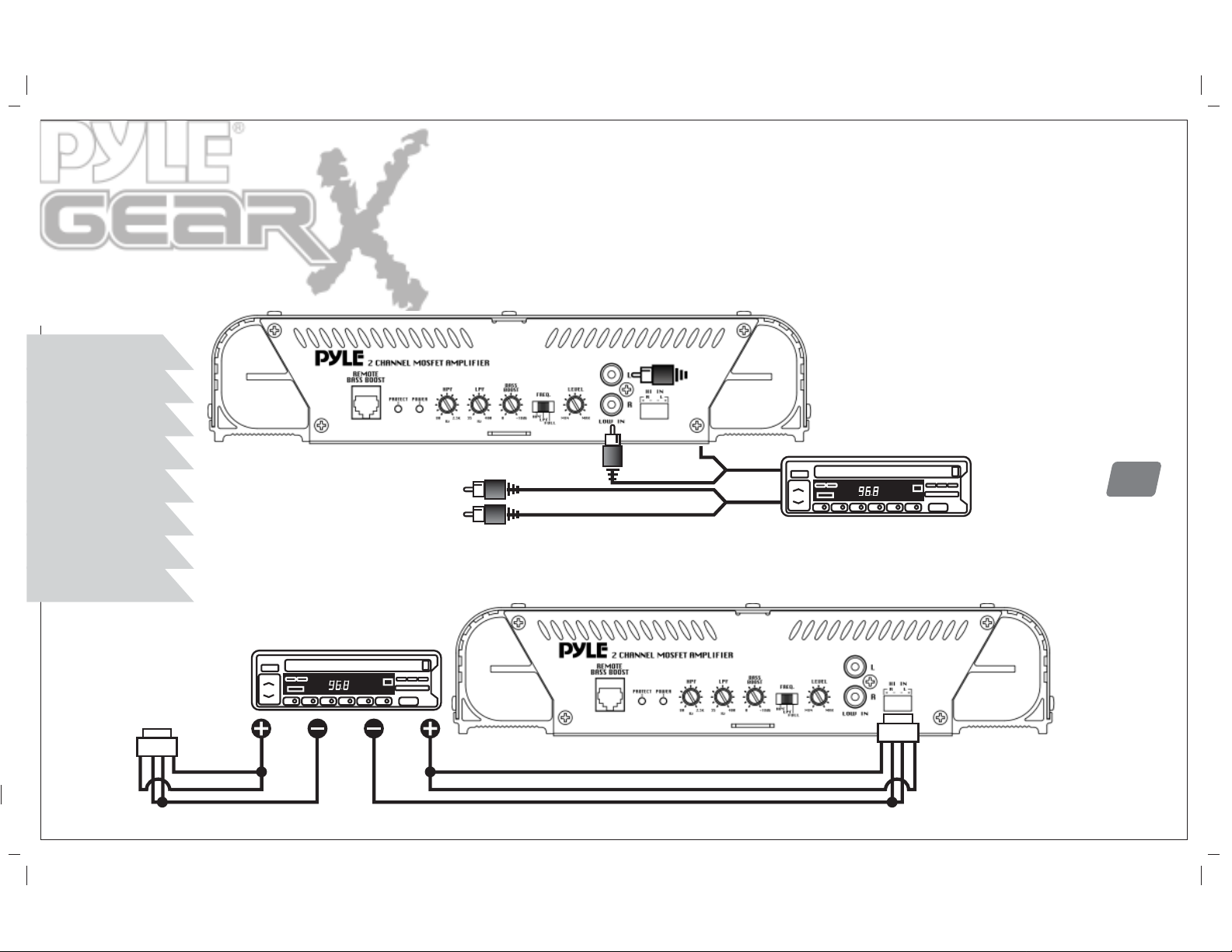

mono input connections

PLA-2150/PLA-2250/PLA-2350

PLA-2450/PLA-2550/PLA-2650

PLA-2750/PLA-2850

2-6 7-8

9-10 11-14

15-16 17-18

19-20

21-22

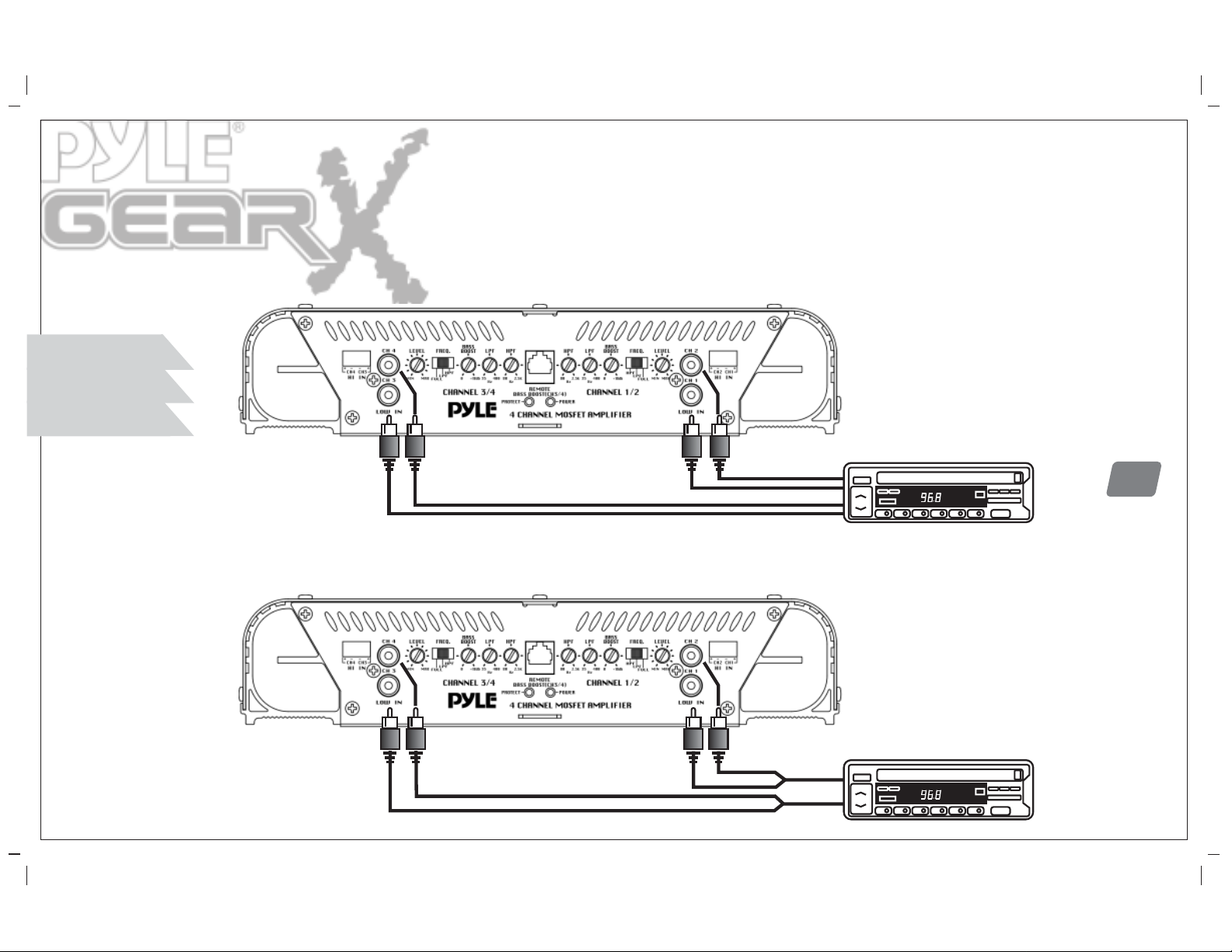

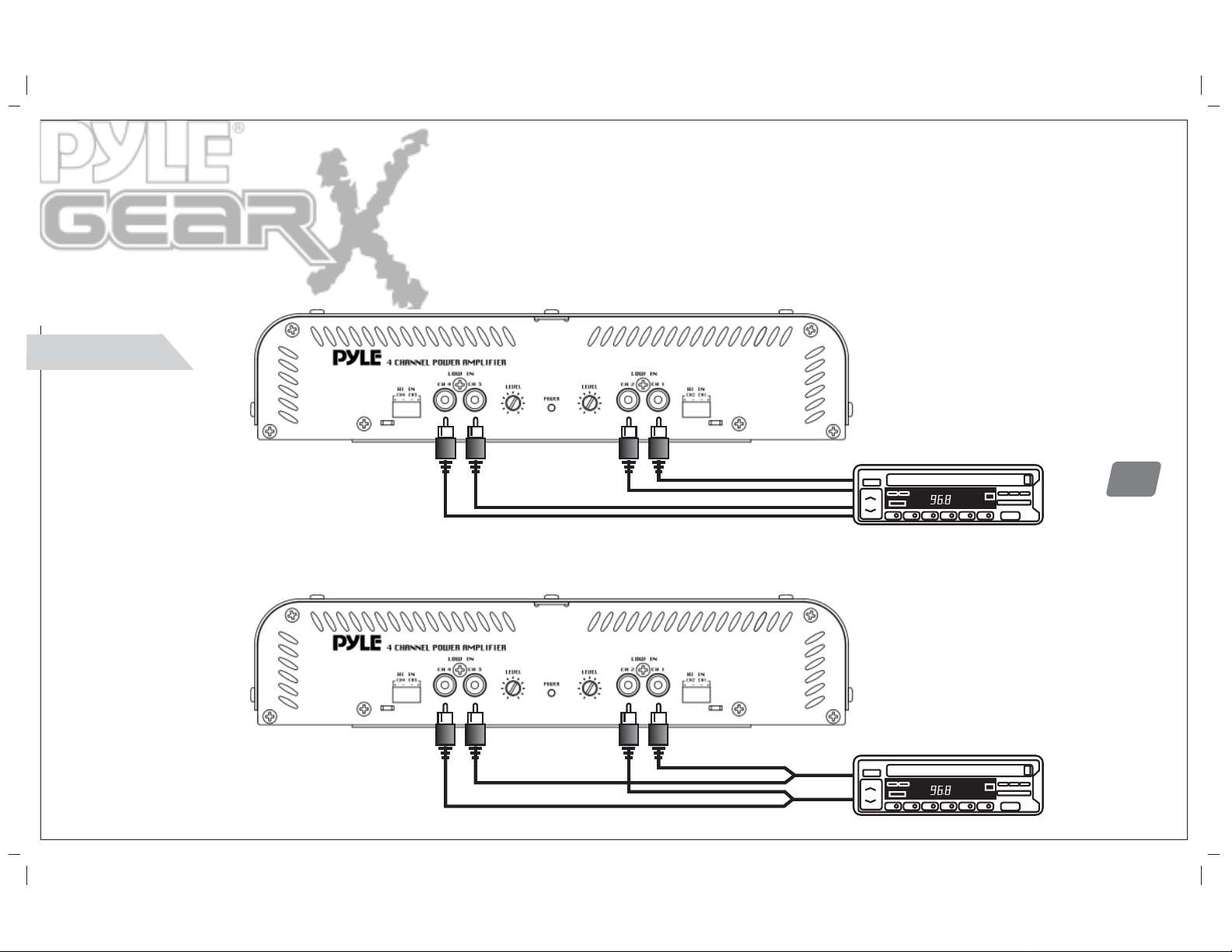

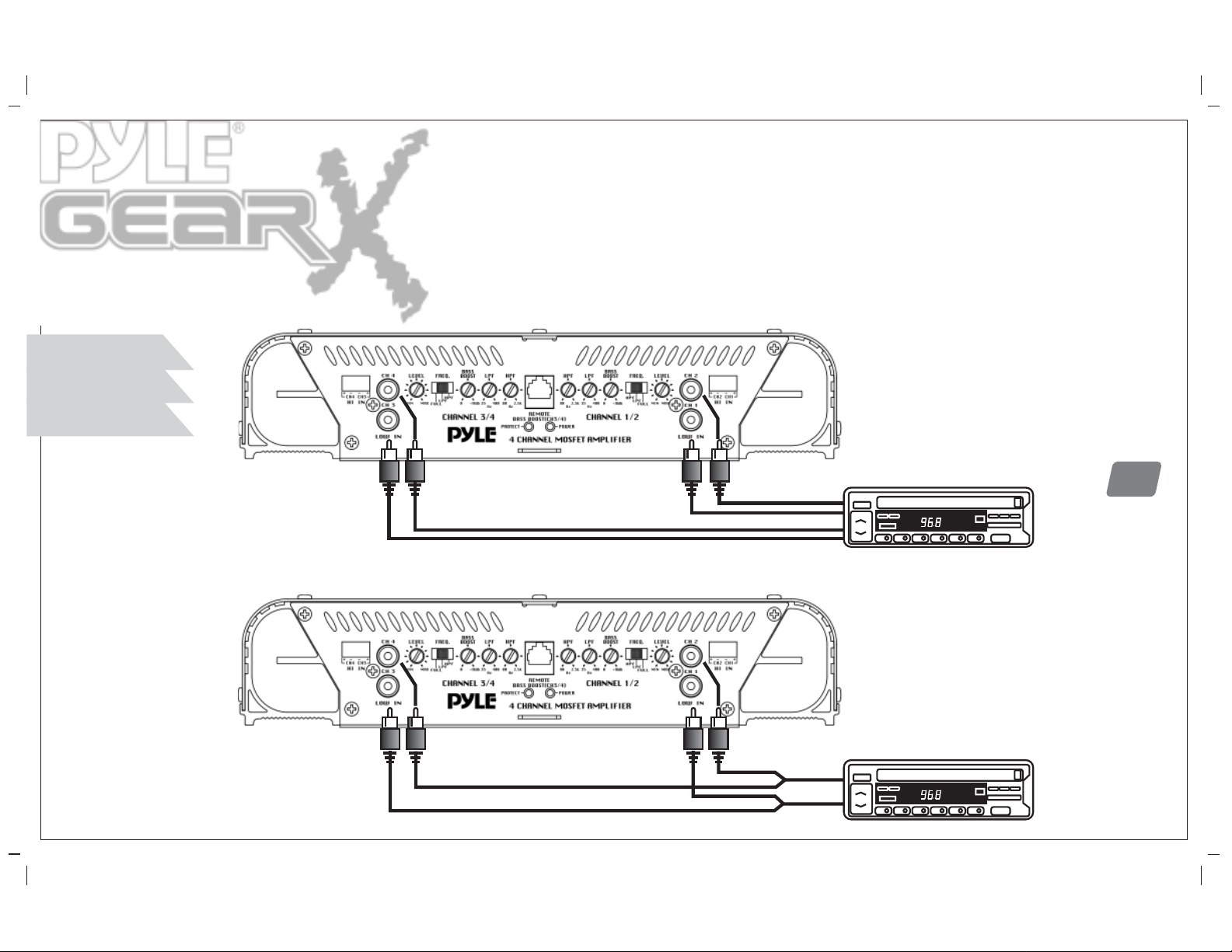

2/4 channel input connections

PLA-419

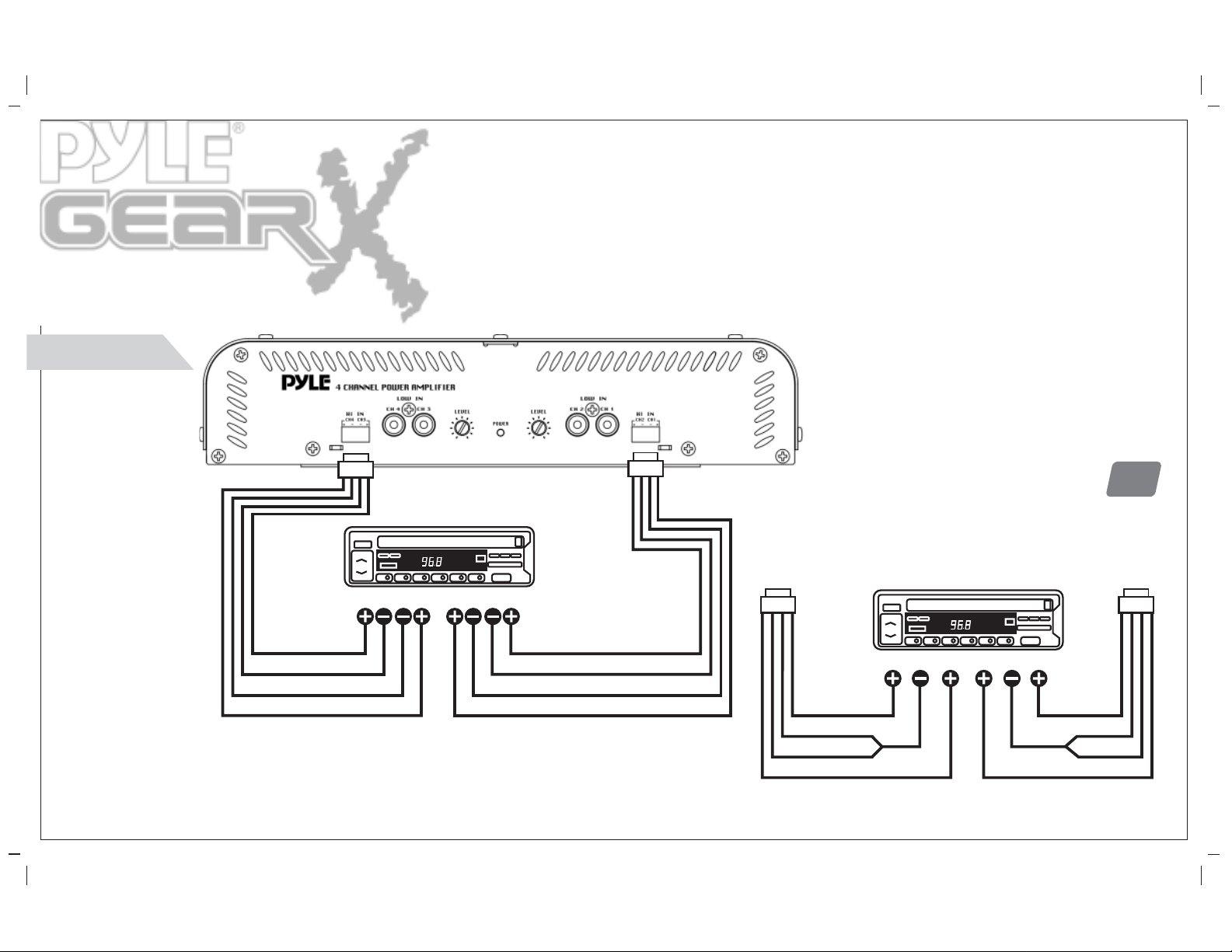

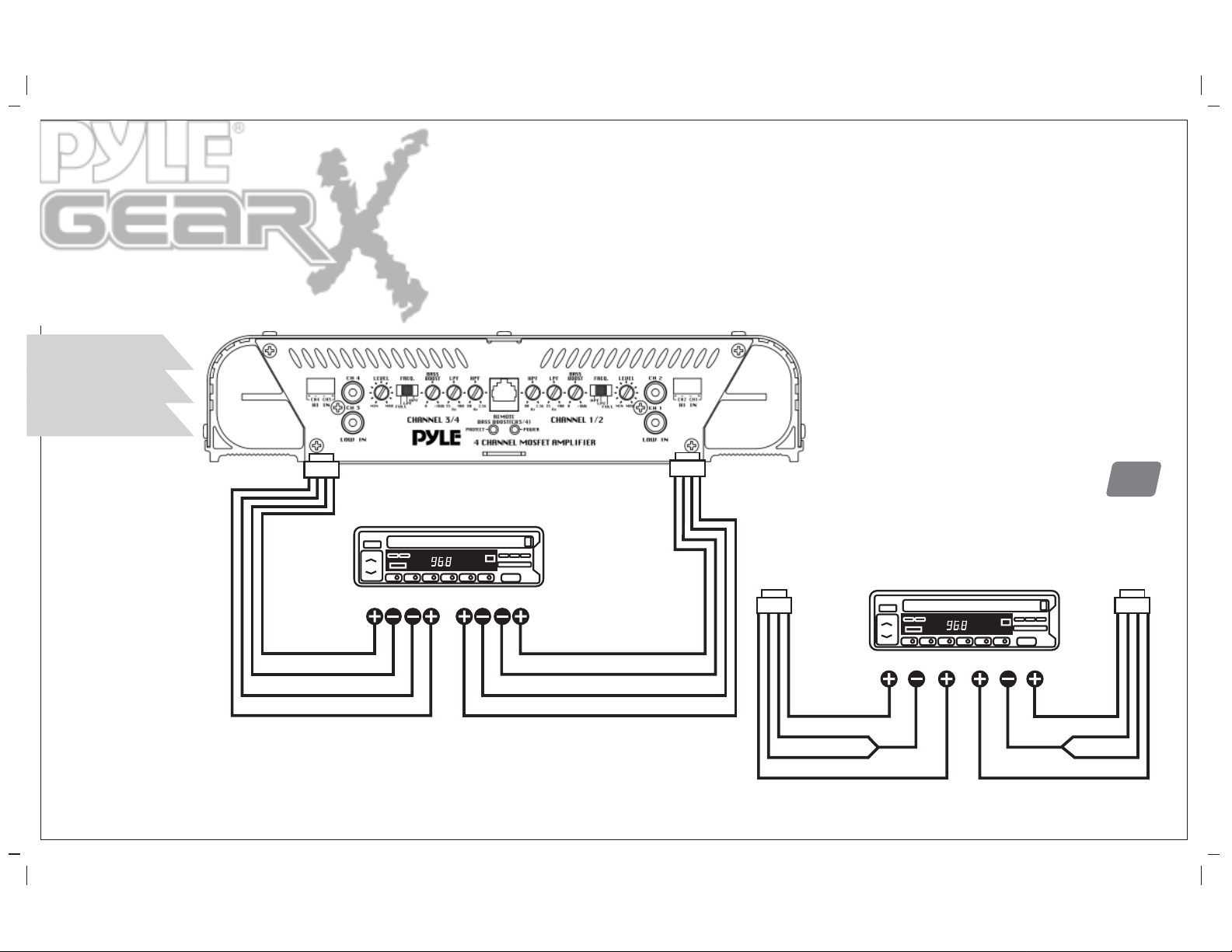

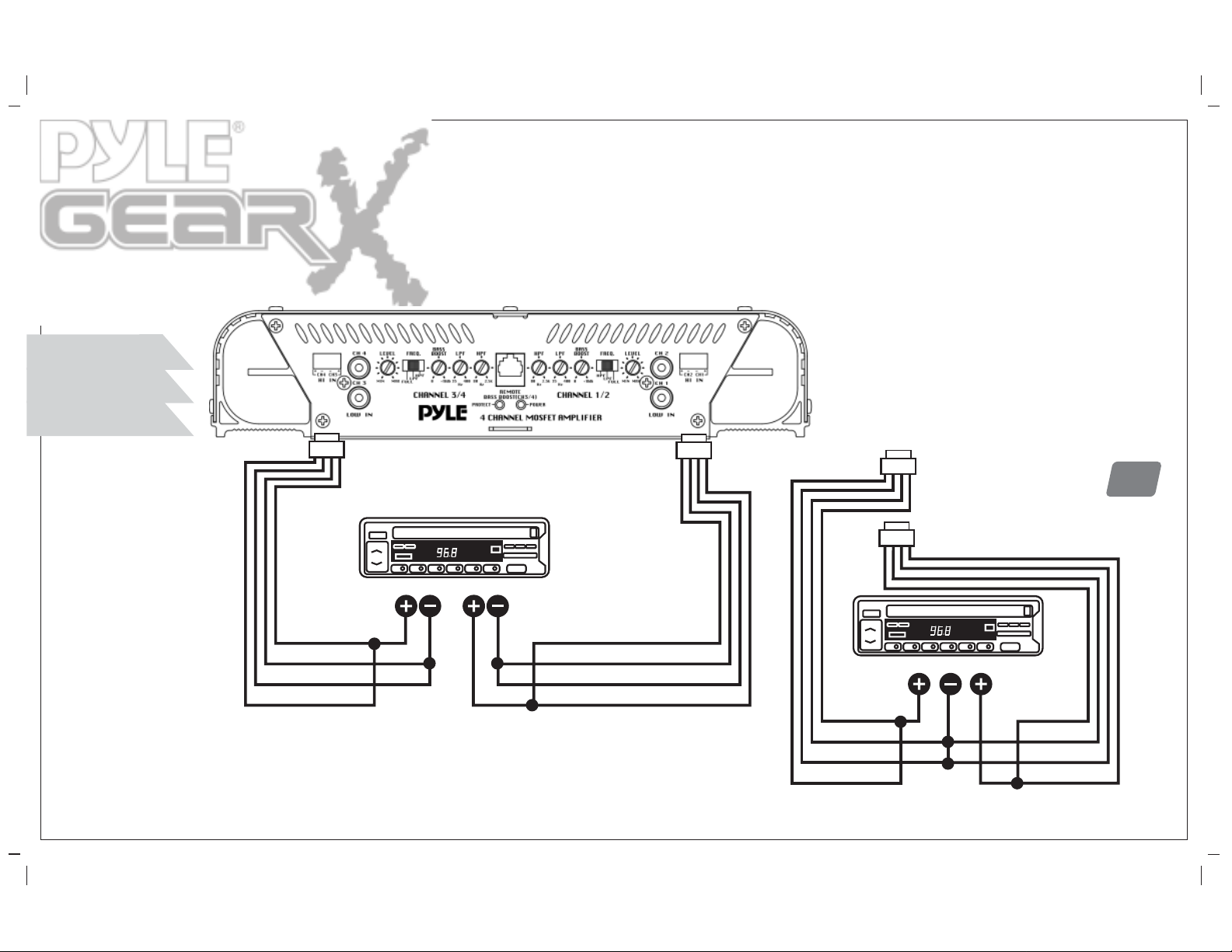

high level input connections

PLA-4150/PLA-4250/PLA-4350

mono input connections

PLA-4150/PLA-4250/PLA-4350

high level mono input connections

PLA-4150/PLA-4250/PLA-4350

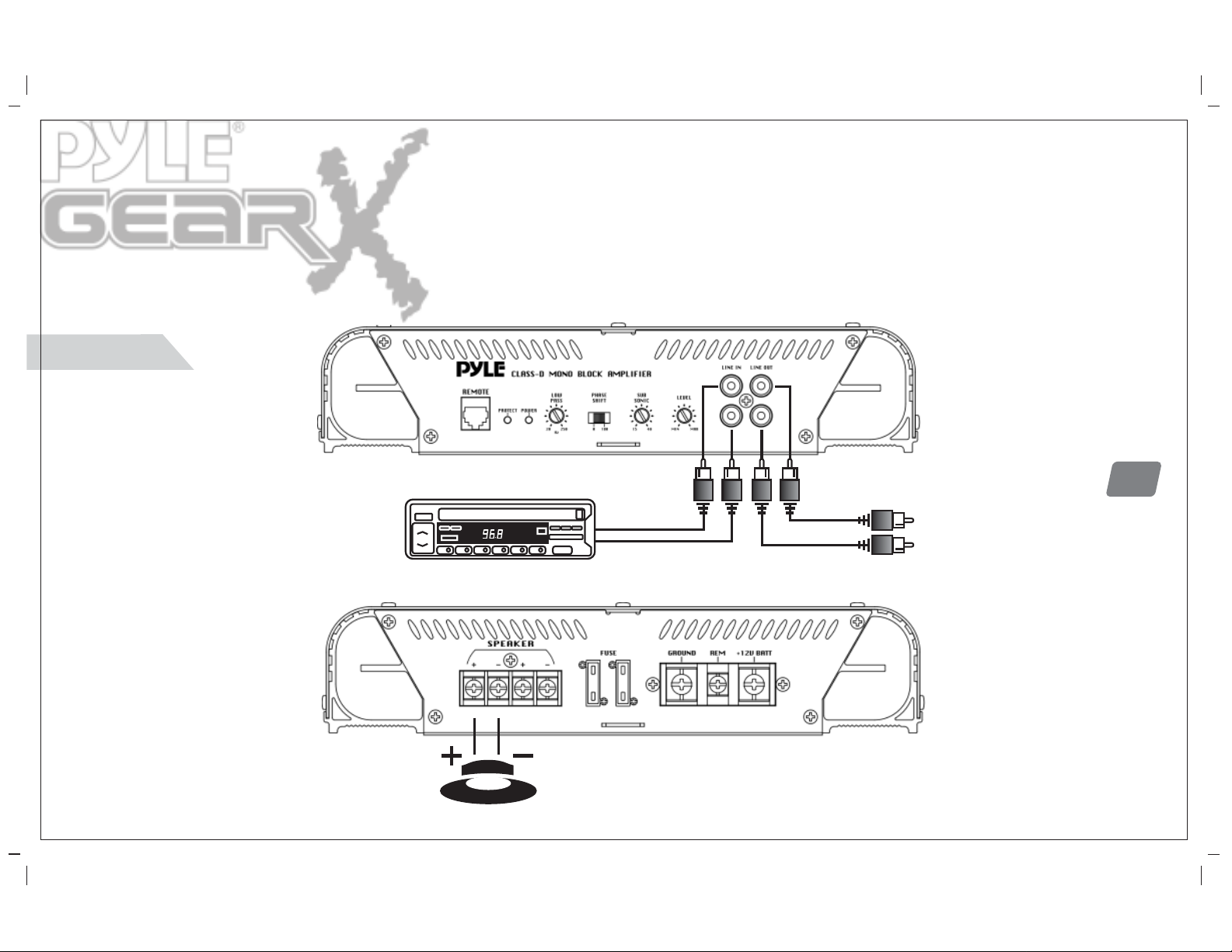

system wiring

PLA-4300D

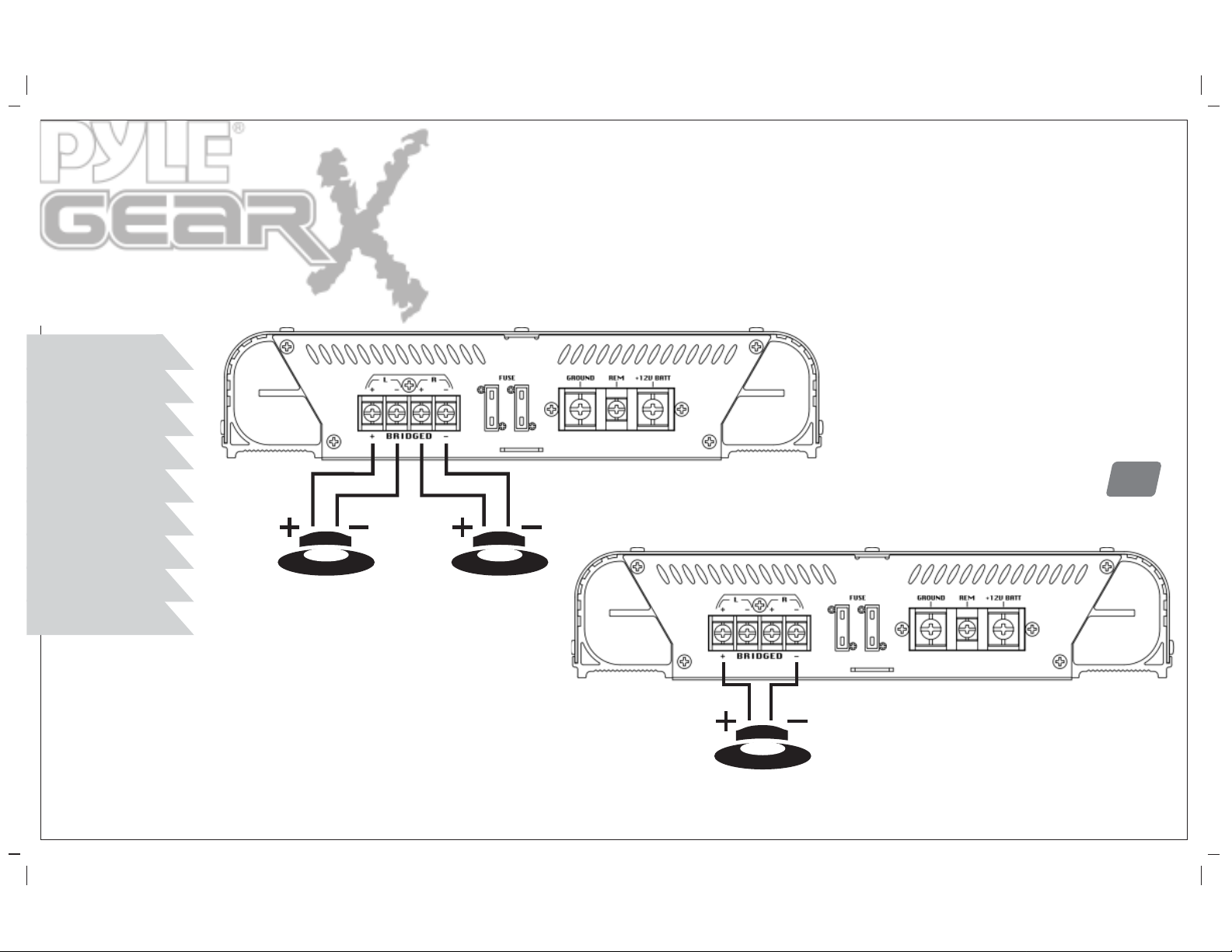

speaker connections

PLA-2150/PLA-2250/PLA-2350

PLA-2450/PLA-2550/PLA-2650

PLA-2750/PLA-2850

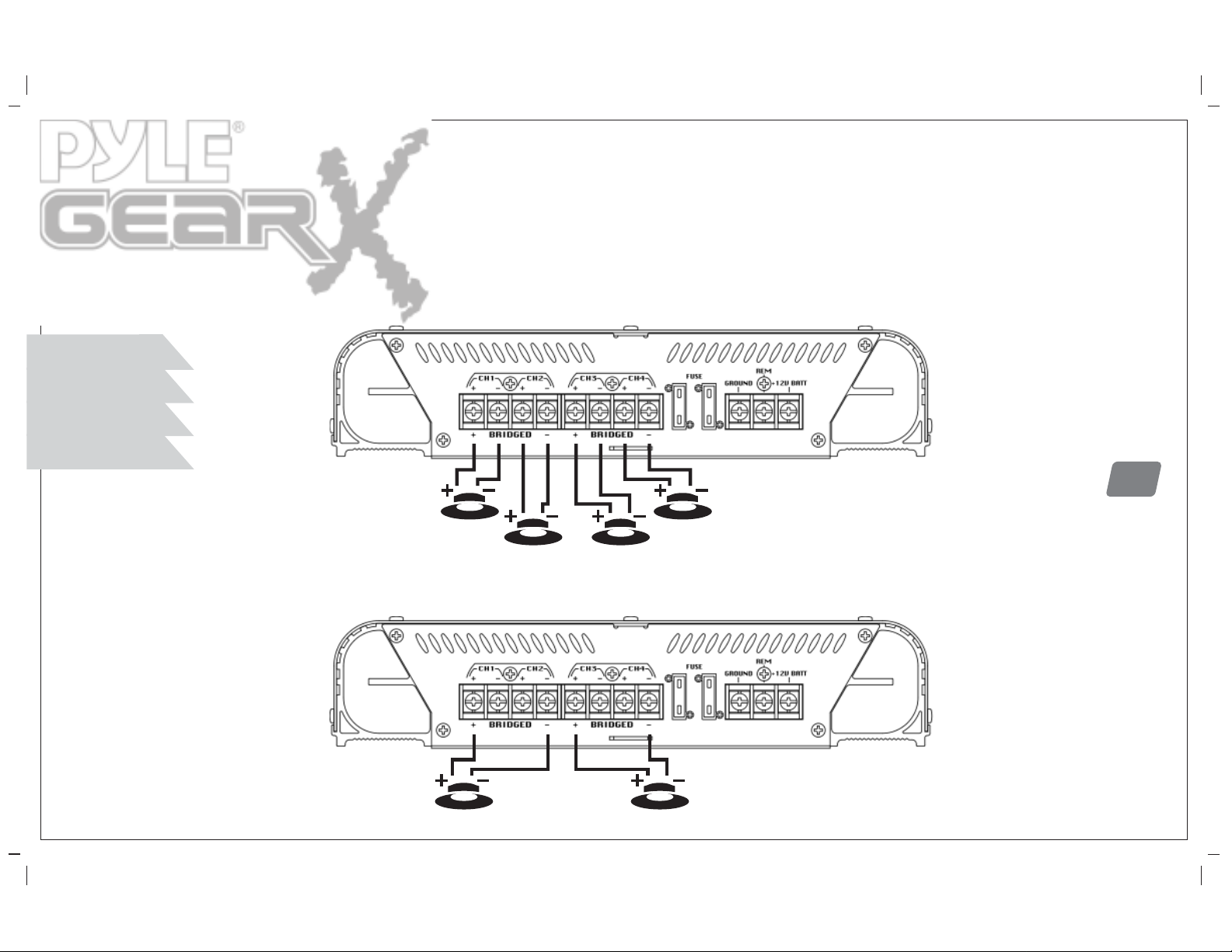

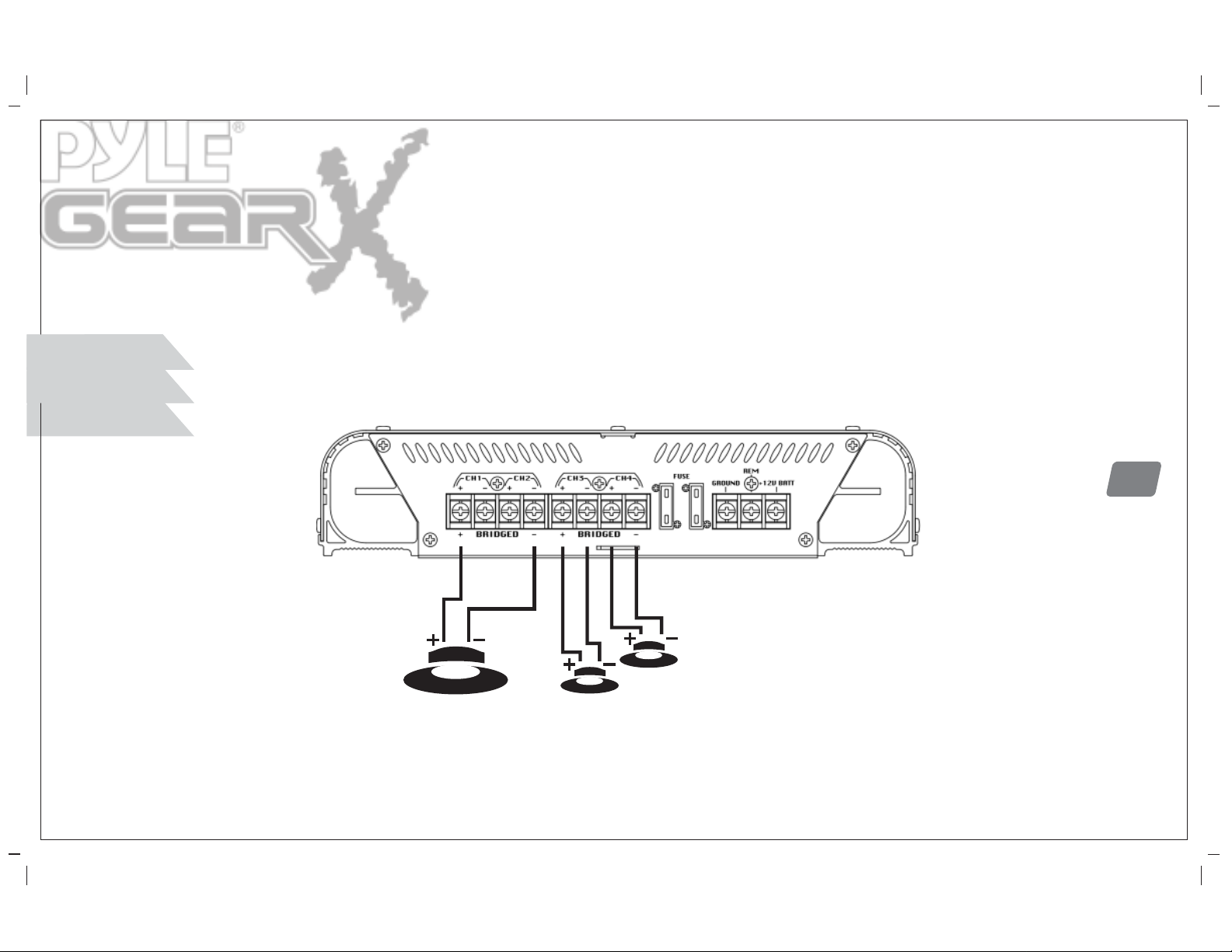

speaker connections

PLA-419/PLA-4150

PLA-4250/PLA-4350

mounting and installation

protection circuitry and troubleshooting

precautions

24-25

29 30

32-33

34 35 36

general features

PLA-219

High Performance

· 120 Watts x 2 Output

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Input

· Power ON LED Indicator

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

240

Watt 2 Channel Amplifier

PLA-419

High Performance 400 Watt 4 Channel Amplifier

· 100 Watts x 4 Output

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Input

· Power ON LED Indicator

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

PLA-2150

High Performance 600 Watt 2 Channel Bridgeable MOSFET Amplifier

· 300 Watts x 2 Output

· 600 Watts x 1 Bridged Output

· Variable Hi/Lo Electronic Crossover Network

· Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Input

· Power ON LED Indicator

· LED Protection Indicator

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

general features

PLA-2250

High Performance 1000 Watt 2 Channel Bridgeable MOSFET Amplifier

· 500 Watts x 2 Output

· 1000W x 1 Bridged Output

· Variable Hi/Lo Electronic Crossover Network

· Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Inputs

· Power ON LED Indicator

· LED Protection Indicator

· Remote Bass Boost

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

PLA-2350

High Performance 1200 Watt 2 Channel Bridgeable MOSFET Amplifier

· 600 Watts x 2 Output

· 1200W x 1 Bridged Output

· Variable Hi/Lo Electronic Crossover Network

· Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Inputs

· Power ON LED Indicator

· LED Protection Indicator

· Remote Bass Boost

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

PLA-2450

High Performance 1400 Watt 2 Channel Bridgeable MOSFET Amplifier

· 700 Watts x 2 Output

· 1400W x 1 Bridged Output

· Variable Hi/Lo Electronic Crossover Network

· Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Inputs

· Power ON LED Indicator

· LED Protection Indicator

· Remote Bass Boost

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

general features

PLA-2550

High Performance 1600 Watt 2 Channel Bridgeable MOSFET Amplifier

· 800 Watts x 2 Output

· 1600 Watts x 1 Bridged Output

· Variable Hi/Lo Electronic Crossover Network

· Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Input

· Power ON LED Indicator

· LED Protection Indicator

· Remote Bass Boost

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

PLA-2650

High Performance 1800 Watt 2 Channel Bridgeable MOSFET Amplifier

· 900 Watts x 2 Output

· 1800 Watts x 1 Bridged Output

· Variable Hi/Lo Electronic Crossover Network

· Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Input

· Power ON LED Indicator

· LED Protection Indicator

· Remote Bass Boost

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

PLA-2750

High Performance 2400 Watt 2 Channel Bridgeable MOSFET Amplifier

· 1200 Watts x 2 Output

· 2400 Watts x 1 Bridged Output

· Variable Hi/Lo Electronic Crossover Network

· Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Input

· Power ON LED Indicator

· LED Protection Indicator

· Remote Bass Boost

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

general features

PLA-2850

High Performance 4000 Watt 2 Channel Bridgeable MOSFET Amplifier

· 2000 Watts x 2 Output

· 4000 Watts x 1 Bridged Output

· Variable Hi/Lo Electronic Crossover Network

· Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Input

· Power ON LED Indicator

· LED Protection Indicator

· Remote Bass Boost

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

PLA-4150

High Performance 1000 Watt 4 Channel Bridgeable MOSFET Amplifier

· 250 Watts x 4 Output

· 500 Watts x 2 Bridged Output (250Wx2+500Wx1)

· Dual Variable Hi/Lo Electronic Crossover Network

· Dual Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Input

· Power ON LED Indicator

· LED Protection Indicator

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

· Tri-Mode Configurable

PLA-4250

High Performance 1400 Watt 4 Channel Bridgeable MOSFET Amplifier

· 350 Watts x 4 Output

· 700 Watts x 2 Bridged Output (350Wx2+700Wx1)

· Dual Variable Hi/Lo Electronic Crossover Network

· Dual Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Input

· Power ON LED Indicator

· LED Protection Indicator

· Remote Bass Boost

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

· Tri-Mode Configurable

general features

PLA-4350

High Performance 2000 Watt 4 Channel Bridgeable MOSFET Amplifier

· 500 Watts x 4 Output

· 1000W x 2 Bridged Output (500W x 2+1000W x 1)

· Dual Variable Hi/Lo Electronic Crossover Network

· Dual Variable Bass Boost (0 - +18 dB @ 60Hz)

· Variable Input Level (Gain) Control

· Remote Turn On/Off

· Gold Plated RCA Inputs

· High Level MOLEX Inputs

· Power ON LED Indicator

· LED Protection Indicator

· Remote Bass Boost

· S/N Ratio: > 95 dB

· THD: <0.04%

· Thermal Protection

· Overload Protection

· Short Circuit Protection

· Anti-Thump Turn-On

· Tri-Mode Configurable

PLA-4300D

4000W Mono Block MOSFET Amplifier

· Mono Block Subwoofer Amplifier

· 1 Ohm Stable

· MOSFET Power Supply

· PWM (Pulse-Width-Modulation) System

· Glass Epoxy PCB

· Gold Plated RCA Inputs for Line Input & Bypass Output.

· Gold Plated Terminals for Speaker Output and Power Input.

· Thermal, Overload and Short Protection

· Variable Sub-sonic Filter (15Hz~40Hz, 24dB/Octave)

· Variable Low-pass Filter (20Hz~250Hz, 24dB/Octave)

· Phase Control 0-180 degree

· Remote Bass Control

· Input Impedance : 10K Ohms

· Soft Turn On/Off

· Advanced Protection Circuitry

· S/N Ratio:>90dB

· Heavy Duty Power Coated Heatsink

PLA-219

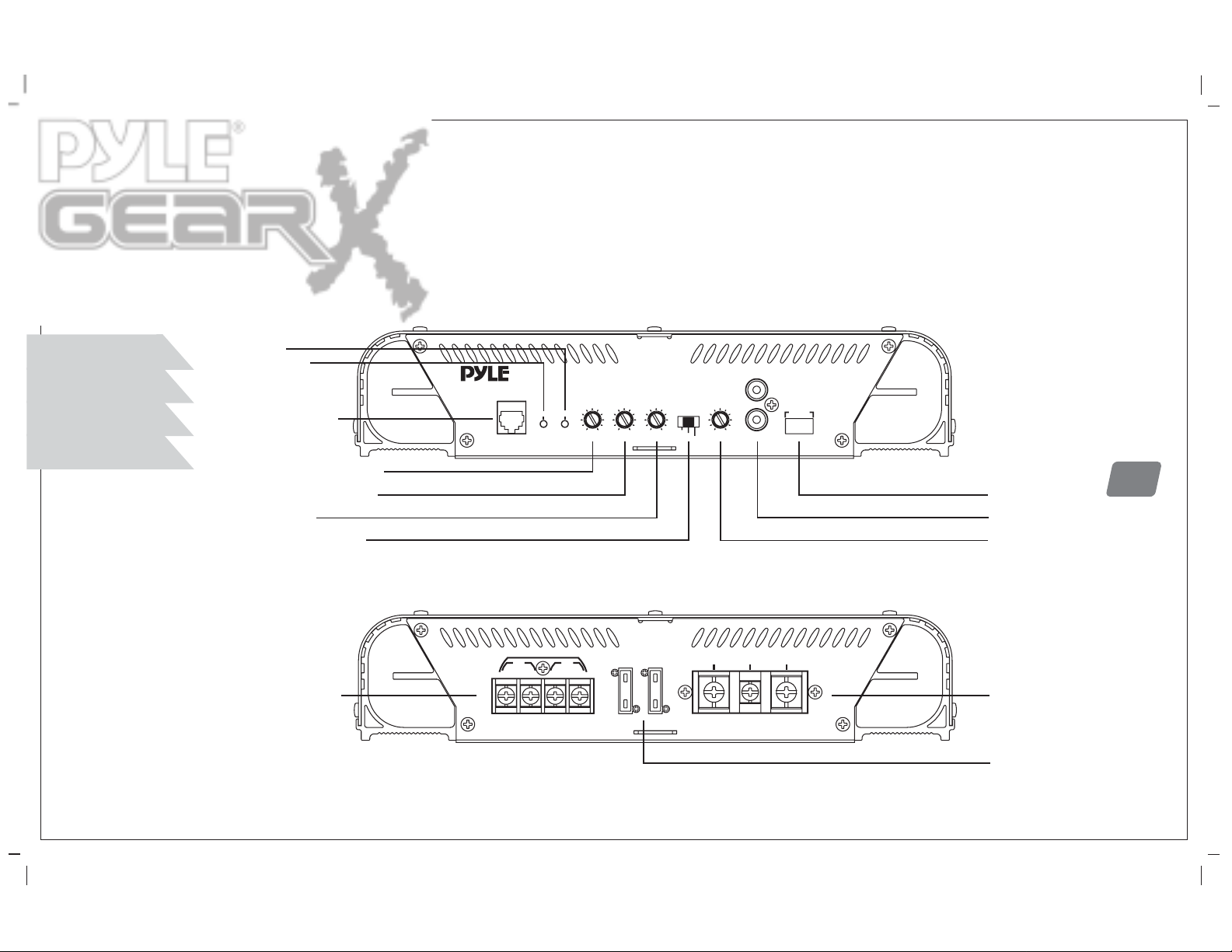

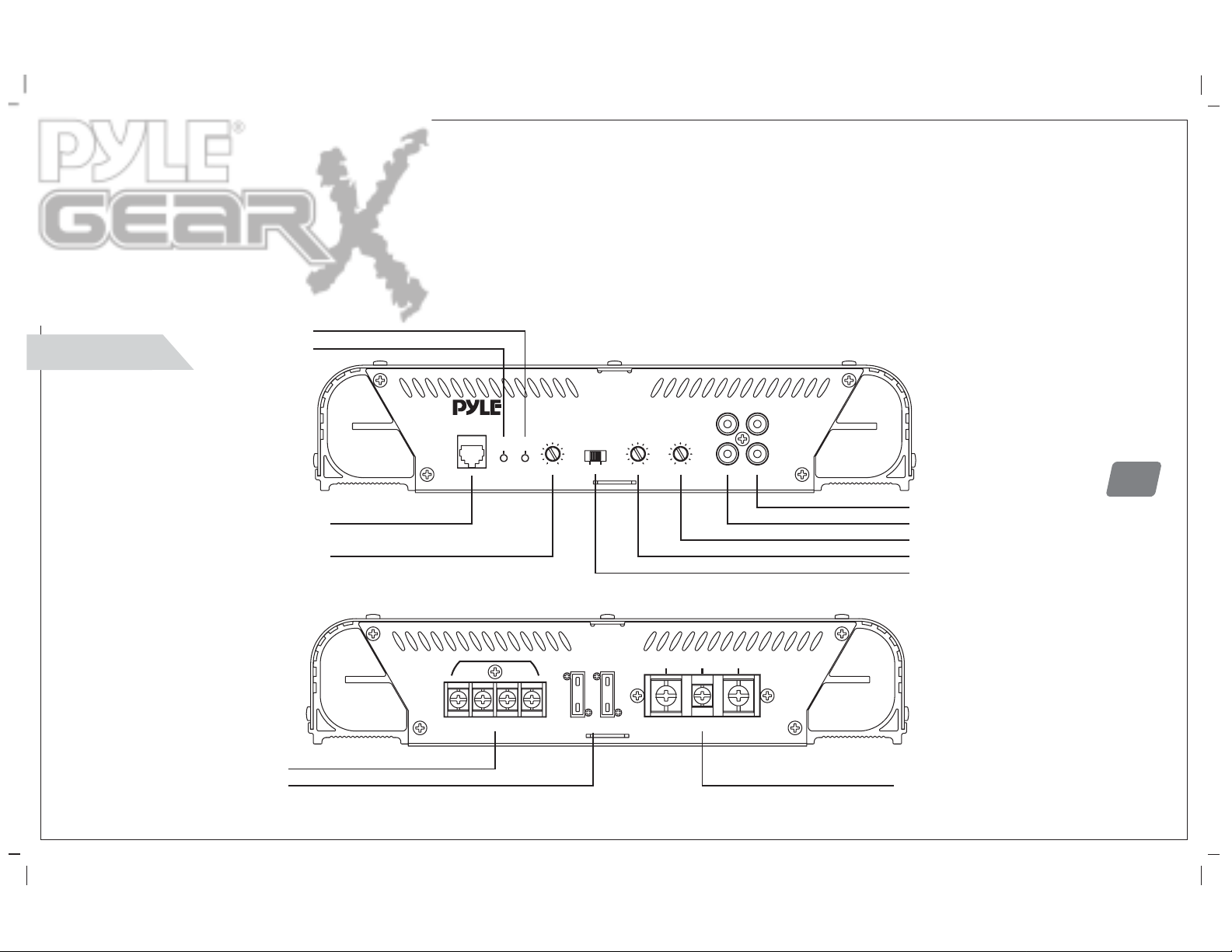

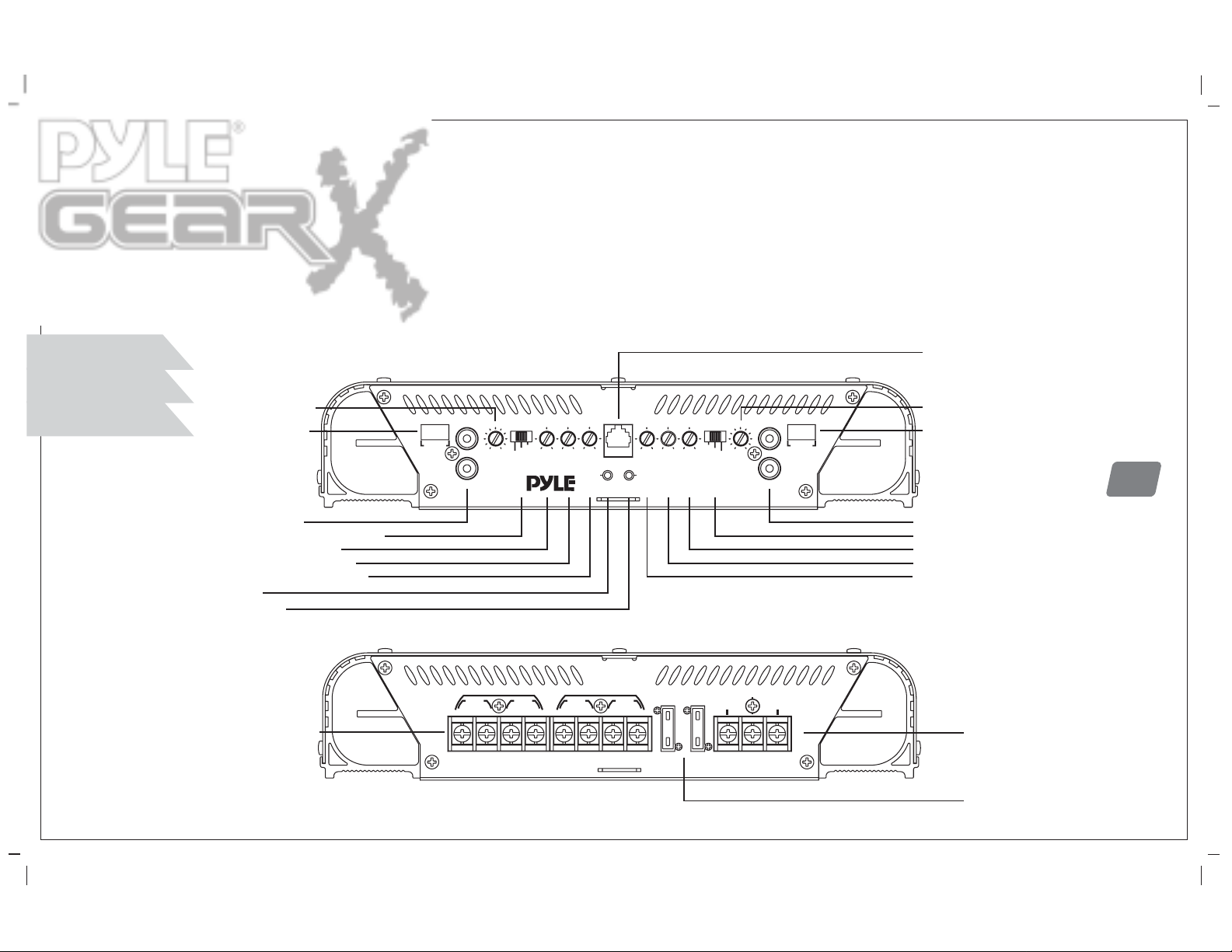

features and controls

2 ch amp PLA-219

high level inputs low level inputs input level control

speaker connections

power LED

power terminals

power fuse

features and specifications

2 ch amp PLA-219

input level control

low level inputs

high level inputs

power LED

power fuse

power terminals

speaker connections

use this control to match the outputs of your head unit to the amplifier. Starting with your head unit set at about the 2 o’clock position, increase the amp level control until distortion begins to occur, and reduce slightly from this point.

this amp features gold-plated RCA input jacks for high impedance input. Use these with car stereo output which uses RCA-type connector cables.

if your car stereo lacks RCA-type output jacks, you may connect speaker output leads to these input connectors.

this indicator is illuminated when power is applied. the fuse protects the amplifier and your car’s electrical system from short

circuit conditions. use these connectors to deliver power, ground and remote turn-on control

to the amplifier. these terminals are 14K gold plated to guarantee high conductivity and

minimum signal loss.

output power @ 14.4v DC, 1KHz

RMS Power @ 4 Ohms

Maximum Power Output

frequency response

input impedance

low level inputs

high level inputs

input sensitivity

low level inputs

high level inputs

power supply voltage

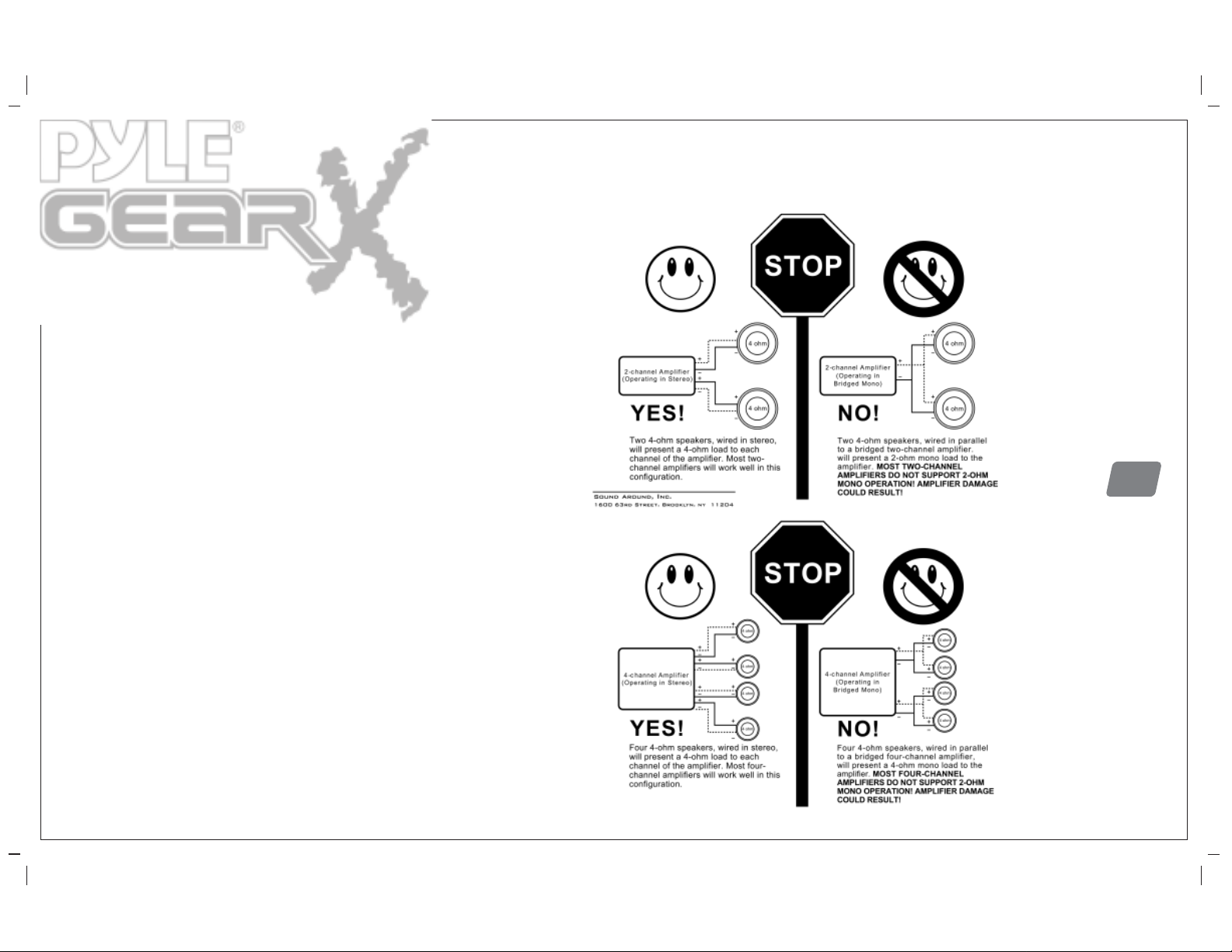

matching speaker impedance

stereo mode

bridged mode

maximum current draw

dimensions (W x H x L)

inches

30 Watts x 2

120 Watts x 2 15 Hz-30 KHz

10K Ohms 100 Ohms

250mV

2.5V

14.4V DC Neg. Ground (10.5-16V)

2-4 Ohms

281 x 59 x 209

11.06 x 2.32 x 8.25

PLA-419

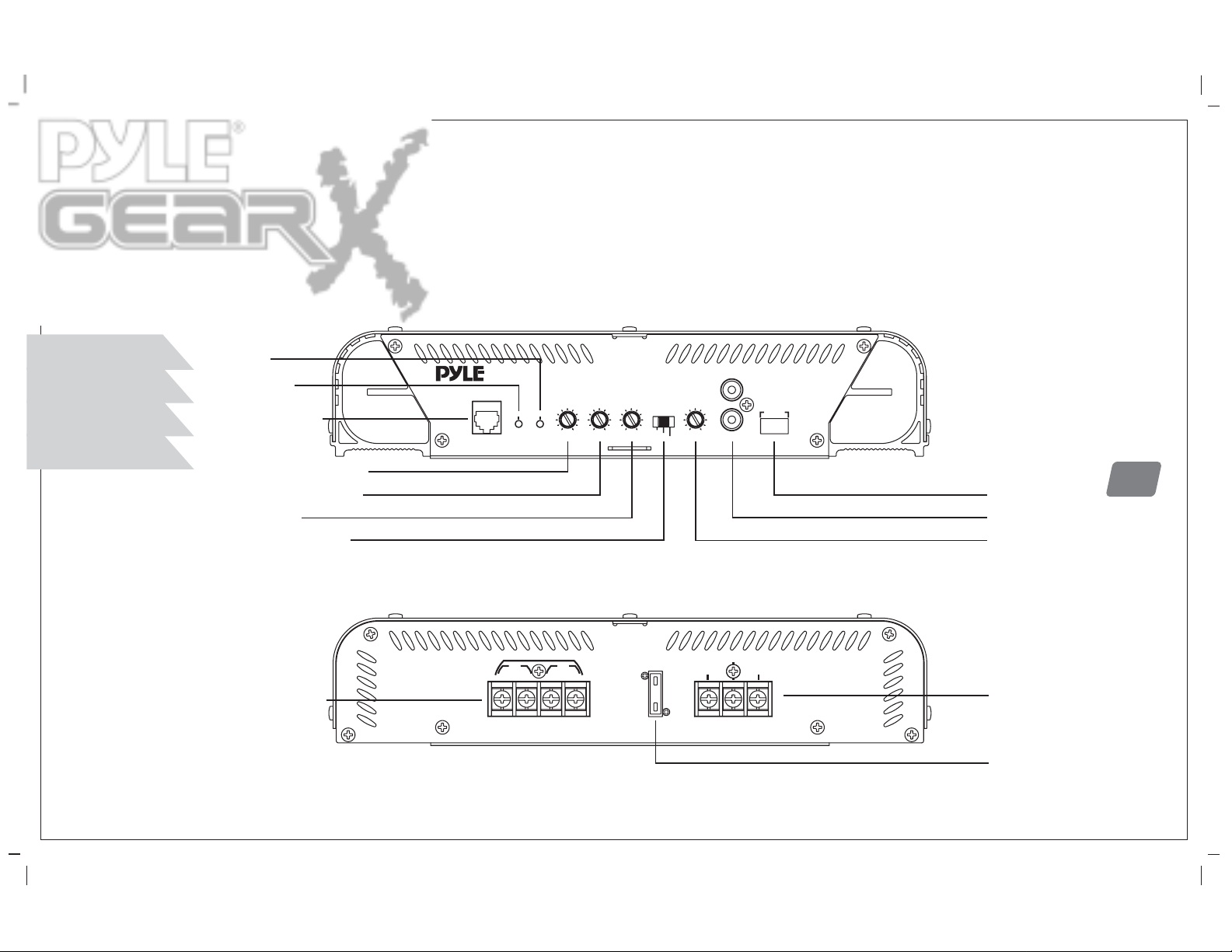

features and controls

4 ch amp PLA-419

power LED

high level inputs low level inputs input level control

speaker connections

high level inputs low level inputs input level control

power terminals

power fuse

features and specifications

4 ch amp PLA-419

input level control

low level inputs

high level inputs

power LED

power fuse

power terminals

speaker connections

this amp features gold-plated RCA input jacks for high impedance input. Use these with car stereo output which uses RCA-type connector cables.

if your car stereo lacks RCA-type output jacks, you may connect speaker output leads to these input connectors.

this indicator is illuminated when power is applied. the fuse protects the amplifier and your car’s electrical system from short

circuit conditions. use these connectors to deliver power, ground and remote turn-on control

to the amplifier. these terminals are 14K gold plated to guarantee high conductivity and

minimum signal loss.

output power @ 14.4v DC, 1KHz

RMS Power @ 4 Ohms

Maximum Power Output

frequency response

input impedance

low level inputs

high level inputs

input sensitivity

low level inputs

high level inputs

power supply voltage

matching speaker impedance

stereo mode

bridged mode

maximum current draw

dimensions (W x H x L)

inches

30 Watts x 4

100 Watts x 4 15 Hz-30 KHz

10K Ohms 100 Ohms

250mV

2.5V

14.4V DC Neg. Ground (10.5-16V)

2-4 Ohms

10A

281 x 59 x 2

11.06 x 2.32 x 9.25

+ 27 hidden pages
