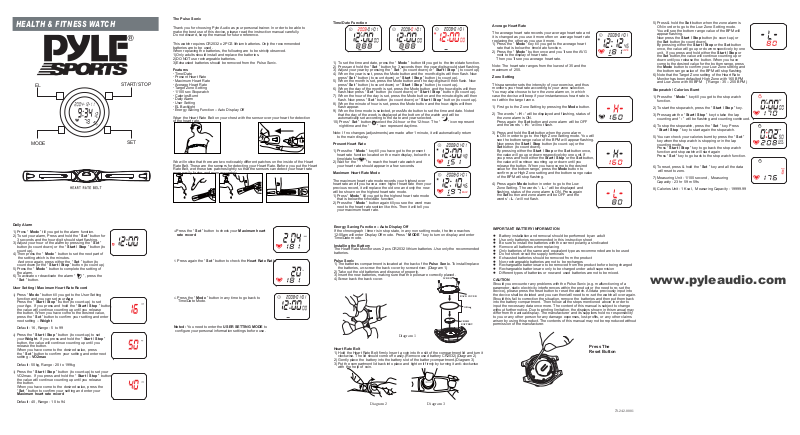

PYLE Audio PH-RM34 Operating Instructions
HEALTH & FITNESS WATCH
www.pyleaudio.com
EL
MODE
START/STOP
SET
The Pulse Sonic
Thank you for choosing Pyle Audio as your personal trainer. In order to be able to
make the best use of this device, please read the instruction manual carefully.
Do not discard, keep the manual for future reference.
This watch requires CR2032 x 2PCS lithium batteries. Only the recommended
batteries are to be used.
When replacing the batteries, the following are to be strictly observed.
1)Only adults should install and replace the batteries.
2)DO NOT use rechargeable batteries.
3)Exhausted batteries should be removed from the Pulse Sonic.
Features
· Time/Date
· Present Heart Rate
· Maximum Heart Rate
· Average Heart Rate
· Target Zone Setting
· 1/100 sec Stopwatch
· Calories Burnt
· Daily Alarm
· User Setting
· EL Backlight
· Energy Saving Function – Auto Display Off
Wear the Heart Rate Belt on your chest with the sensor over your heart for detection
of the heart rate.
We will notice that there are two noticeably different patches on the inside of the Heart
Rate Belt. These are the sensors for detecting your Heart Rate. Before you put the Heart
Rate Belt, wet these two patches lightly so that the sensors can detect your heart rate
more easily, faster and more accurately.
Time/Date Function
1) To set the time and date, press the “ Mode ” button till you get to the time/date function.
2) Press and hold the “ Set ” button for 3 seconds then the year digits would start flashing.
3) Adjust your year by pressing the “ Set ” (to count down) or “ Start / Stop ” (to count up)
4) When the year is set, press the Mode button and the month-digits will then flash. Now
press“ Set ” button (to count down) or “ Start / Stop ” button (to count up).
5) When the month is set, press the Mode button and the day-digits will then flash. Now
press“ Set ” button (to count down) or “ Start / Stop ” button (to count up).
6) When the day of the month is set, press the Mode button and the hour-digits will then
flash.Now press “ Set ” button (to count down) or “ Start / Stop ” button (to count up).
7) When the hour of the day is set, press the Mode button and the minute-digits will then
flash. Now press “ Set ” button (to count down) or “ Start / Stop ” button (to count up).
8) When the minute of hour is set, press the Mode button and the hour-digits will then
flash appear.
9) When the time mode is selected, press Mode button to set the time and date. Noted
that the day of the week is displayed at the bottom of the watch and will be
automatically set according to the date and year selected.
10) Press “ Set ” button to select the 24-hour or the 12-hour. The “ ” icon represent
nighttime and the “ ” icon represent daytime.
Note: If no changes (adjustments) are made after 1 minute, it will automatically return
to the main display.
Present Heart Rate
1) Press the “ Mode ” key till you have got to the present
heart rate function located on the main display, below the
time/date function.
2) Wait for the “ " to reach the heart rate watch and
your heart rate should appear in a few seconds.
Maximum Heart Rate Mode
The maximum heart rate mode records your highest ever
heart rate and if you have a even higher heart rate then your
previous record, it will replace the old one and only the new
will be shown on the highest heart rate mode.
1) Press “ Mode ” till you get to the highest heart rate mode
that is below the time/date function.
2) Press the “ Mode ” button again till you see the word max
next to the heart rate section like this. Then it will tell you
your maximum heart rate.
Average Heart Rate
The average heart rate records your average heart rate and
it is changed as you use it more often on average heart rate
replacing the other as you use it more.
1) Press the “ Mode ” key till you get to the average heart
rate that is below the time/date function.
2) Press the “ Mode ” button once and you ’ll see the AVG
next to the display of heart rate.
Then you ’ll see you average heart rate.
Note: The heart rate ranges from the lowest of 35 and the
maximum of 250.
Zone Setting
This parameter sets the intensity of your exercise, and thus
monitors your heat rate according to your zone selection.
You may also choose to turn the zone alarm on, in which
case the devise will beep if your instantaneous heart rate is
not within the target zone.
1) First go to the Zone Setting by pressing the Mode button.
2) The words ' - H - ' will be displayed and flashing, status of
the zone alarm is ON.
Press again the Set button and zone alarm will be OFF
and the words ' - H - ' will not flash.
3) Press and hold the Set button when the zone alarm
is ON in order to go to the High Zone Setting mode. You will
see the bottom range value of the BPM will appear flashing.
Now press the Start / Stop button (to count-up) or the
Set button (to count down).
By pressing either the Start / Stop or the Set button once,
the value will go up or down respectively by one unit. If
you press and hold either the Start / Stop or the Set button,
the value will continue counting up or down until you
release the button. When you have come to the desired
value for the bottom range, press the Mode button to
confirm your High Zone setting and the bottom range value
of the BPM will stop flashing.
4) Press again Mode button in order to go to the Low
Zone Setting. The words ' - L - ' will be displayed and
flashing, status of the zone alarm is ON. Press again
the Set button and zone alarm will be OFF and the
words ' - L -' will not flash.
5) Press & hold the Set button when the zone alarm is
ON in order to go to the Low Zone Setting mode.
You will see the bottom range value of the BPM will
appear flashing.
Now press the Start / Stop button (to count-up) or
the Set button (to count down).
By pressing either the Start / Stop or the Set button
once, the value will go up or down respectively by one
unit. If you press and hold either the Start / Stop or
the Set button,the value will continue counting up or
down until you release the button. When you have
come to the desired value for the bottom range, press
the Mode button to confirm your Low Zone setting and
the bottom range value of the BPM will stop flashing.
6) Note that the Target Zone setting of the Heart Rate
Monitor has been defaulted High Zone with 160 BPM
and Low Zone with 80 BPM ( Range : 35 – 250 BPM )
Stopwatch / Calories Burnt
1) Press the “ Mode ” key till you get to the stop watch
function.
2) To start the stopwatch, press the “ Start / Stop ” key.
3) Press again the “ Start / Stop ” key to take the lap
counting and “ : ” will be flashing and counting continued.
4) To stop the stopwatch, press the “ Set ” key. Press
“ Start / Stop ” key to start again the stopwatch.
5) You can check your calories burnt by press the “ Set ”
key when the stop watch is stopping or in the lap
counting mode.
Press “ Start / Stop ” key to go back the stop watch
function and stop watch will start again
Press “ Set ” key to go back to the stop watch function.
6) To reset, press & hold the “ Set ” key and all the data
will reset to zero.
7) Measuring Unit : 1/100 second , Measuring
Capacity : 23 hr 59 m 59s
8) Calories Unit : 1 Kcal , Measuring Capacity : 19999.99
Daily Alarm
1) Press “ Mode ” till you get to the alarm function.
2) To set your alarm, Press and hold the “ Set ” button for
3 seconds and the hour digit should start flashing.
3) Adjust your hour of the alarm by pressing the “ Set ”
button (to count down) or the “ Start / Stop ” button (to
count up).
4) Then press the “ Mode ” button to set the next part of
the setting which is the minutes.
And once again, press either the “ Set ” button (to
count down)or the “ Start / Stop ” button (to count up)
5) Press the “ Mode ” button to complete the setting of
the alarm.
6) To activate or deactivate the alarm “ ”, press the
“ Set ” button.
User Setting / Maximum Heart Rate Record
1) Press “ Mode ” button till you get to the User Setting
function and you can set your Age
Press the “ Start / Stop ” button (to count-up) to set
your Age. If you press and hold the “ Start / Stop ” button,
the value will continue counting up until you release
the button. When you have come to the desired value,
press the “ Set ” button to confirm your setting and enter
next setting – Weight
Default : 16, Range : 5 to 99
2) Press the “ Start / Stop ” button (to count-up) to set
your Weight. If you press and hold the “ Start / Stop ”
button, the value will continue counting up until you
release the button.
When you have come to the desired value, press
the “ Set ” button to confirm your setting and enter next
setting – VO2max
Default : 50kg, Range : 20 to 199kg
3) Press the “ Start / Stop ” button (to count-up) to set your
VO2max. If you press and hold the “ Start / Stop ” button,
the value will continue counting up until you release
the button.
When you have come to the desired value, press the
“ Set ” button to confirm your setting and enter your
Maximum heart rate record
Default : 40, Range : 10 to 94
4 Press the “ Set ” button to check your Maximum heart
rate record
5. Press again the “ Set ” button to check the Heart Rate Ratio
6. Press the “ Mode ” button in any time to go back to
Time/Date Mode.
Noted : You need to enter the USER SETTING MODE to
configure your personal information settings before use.
Energy Saving Function – Auto Display Off
If the chronograph / timer is in stop state, in any non setting mode, the time reaches
12:00am will enter Display Off mode. Press “ MODE ” key to turn on display and enter
Time/Date mode.
Installing the Battery
The Heart Rate Monitor uses 2 pcs CR2032 lithium batteries .Use only the recommended
batteries.
Pulse Sonic
1) The batteries compartment is located at the back of the Pulse Sonic. To install/replace
the batteries, un-screw the back cover by screw driver. (Diagram 1)
2) Take out the old batteries and dispose of properly.
3) Insert the new batteries, making sure that the poles are correctly placed.
4) Screw back the back cover.
SCREW
BACK COVER
O Ring
CR2032
BATTERY
Diagram 1
Heart Rate Belt
1) Hold the Heart Rate Belt firmly. Insert a coin into the slit of the compartment lid and turn it
clockwise. The lid should come off easily.(Remove used battery CR2032)(Diagram 2)
2) Gently place the battery into the battery slot of the battery compartment.(Diagram 3)
3) Put the compartment lid back into place and tighten it firmly by turning it anti-clockwise
with the help of coin.
Diagram 2
Diagram 3
IMPORTANT BATTERY INFORMATION
Battery installation and removal should be performed by an adult
Use only batteries recommended in this instruction sheet
Be sure to install the batteries with the correct polarity, as indicated
Remove all batteries when replacing
Only batteries of the same and equivalent type as recommended are to be used
Do not short-circuit the supply terminals
Exhausted batteries should be removed from the product
Non-rechargeable batteries are not to be recharges
Rechargeable batteries are to be removed from the product before being charged
Rechargeable batteries are only to be charged under adult supervision
Different types of batteries or new and used batteries are not to be mixed.
CAUTION
Should you encounter any problems with the Pulse Sonic (e.g. malfunctioning of a
parameter, static electricity, interferences within the product or the need to re-set the
device), please press the reset button to reset the watch. All data previously input into
the device shall be deleted and you can then/will need to re-set the watch all over again.
Should this fail to correction the situation, remove the batteries and then put them back
into the battery compartment. Then follow all the steps mentioned above in order to
input the necessary data once more. The content of this manual is subject to change
without further notice. Due to printing limitation, the displays shown in this manual may
differ from the actual display. The manufacturer and its suppliers hold no responsibility
to you or any other person for any damage expenses, lost-profits, or any other claims
arisen by using this product. The contents of this manual may not be reproduced without
permission of the manufacturer.
Press The
Reset Button
73-242-0001
Loading...
