Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Model No. PFTL31404.1
Serial No.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT DIRECTLY.
USER'S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 250 pounds or less.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 10. To purchase a surge suppressor, see
your local PROFORM dealer or call the tollfree telephone number on the front cover of
o reduce the risk of burns, fire, electric shock, or injury to persons, read the
this manual and order part number 146148, or
see your local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the treadmill is
not working properly.)
15. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
16. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
17. The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
Always wear athletic
18. Never leave the treadmill unattended while it
is running. Always remove the key and unplug
the power cord when the treadmill is not in
use.
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 13.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
When folding or moving the treadmill, make
21.
sure that the storage latch is fully closed.
3
22. Inspect and properly tighten all parts of the
treadmill regularly.
3. Never insert any object into any opening.
2
24. DANGER:Always unplug the power
cord immediately after use, before cleaning
he treadmill, and before performing the
t
maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
hould be performed by an authorized ser-
s
vice representative only.
25. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on your treadmill. If a decal is missing, or
if it is not legible, please call the toll-free telephone number on the front cover of
this manual and order a free replacement decal. Note: The decals are not shown at
actual size.
4
BEFORE YOU BEGIN
hank you for selecting the revolutionary PROFORM
T
X 450 treadmill. The LX 450 treadmill combines ad-
L
vanced technology with innovative design to help you
get the most from your exercise program in the convenience and privacy of your home. And when you’re not
exercising, the unique LX 450 treadmill can be folded
up, requiring less than half the floor space of other
treadmills.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
Accessory Tray
Handrail
®
anual. To help us assist you, note the product model
m
umber and serial number before calling. The model
n
number of the treadmill is PFTL31404.1. The serial
number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Key/Clip
Upright
Fan
Storage Latch
Walking Belt
Foot Rail
BACK
Rear Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
RIGHT SIDE
Cushioned Walking Platform
for maximum exercise comfort
5
ASSEMBLY
Washer (45)–6
3
1” Tek Screw (39)–6
Wheel Nut (13)–2
3/4” Screw (2)–6
1/2” Ground Screw
(75)–1
3” Bolt (37)–6
Handrail Bolt (27)–2
1/2” Screw (73)–6
2 1/4” Bolt (35)–2
Star Washer
(63)–2
Wheel Bolt (64)–2
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of
the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there
is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver ,
adjustable wrench , wire cutters , and needlenose pliers .
For help identifying the assembly hardware, refer to the PART IDENTIFICATION CHART below.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip the treadmill onto its left side as shown. Partially fold the Frame
(86) so that the treadmill is more stable.
fold the treadmill until it is completely assembled.
Attach two Round Base Pads (57) (only one shown) and
two Base Pads (61) to the bottom of the Base (69) with
six 1” Tek Screws (39) (only five are shown).
Attach a Wheel (66) to the Base (69) with a Wheel Bolt
(64) and a Nut (32) as shown. Do not overtighten the
the Wheel should turn freely.
Nut;
Do not fully
6
1
61
39
61
39
69
86
39
57
64
66
32
2. Identify the Right Upright (24) and the Left Upright (99).
traighten the Upright Wire (42), and feed it into the lower
S
end of the Right Upright (24) and out of the upper end.
ext, hold the Right Upright against the right side of the
N
Base (69); make sure that the Right Upright is turned
so that the upper end is angled in the direction
shown. Hand tighten two 3” Bolts (37) with one Star
Washer (63) and two Washers (45) into the Base and the
Right Upright; be careful not to damage the Upright
Wire.
With the help of a second person, carefully tip the treadmill onto its other side. Attach the Left Upright (99) and
the other Wheel (not shown) as described above and in
step 1.
Upright are positioned as shown. Note: There is not
an upright wire on the left side.
Make sure that the two small holes in the Left
2
37
63
45
42
24
69
Small
Holes
99
3. With the help of a second person, carefully tip the treadmill so that it is flat on the floor, and raise the Uprights
(99, 24) to the vertical position as shown.
Hold the Crossbar (25) between the Left Upright (99) and
the Right Upright (24). Attach the Crossbar with two 3”
Bolts (37).
Identify the Right Handrail (72), which has a large round
hole in the location shown. Route the Upright Wire (42)
through the hole in the Right Handrail. Next, hand tighten
a 2 1/4” Bolt (35) into the upper end of the Right Handrail
and the Right Upright (24). Then, hand tighten a Handrail
Bolt (27) with a Washer (45) into the lower end of the
Right Handrail and the Right Upright. Be careful not to
pinch the Upright Wire. Firmly tighten the Bolts.
Attach the Left Handrail (71) in the same way. Note:
There is not an upright wire on the left side.
Firmly tighten the Bolts.
3
37
35
45
99
27
25
71
35
42
Large
Hole
45
72
37
24
27
7
4. Hold the Console Base (47) near the Left Handrail (71).
Attach the ground wire on the Console Base to the small
ole in the side of the Left Handrail with the 1/2” Ground
h
Screw (75) as shown.
4
47
Small
Hole
75
71
5. Set the Console Base (47) on the Right Handrail (72) and
the Left Handrail (71). Attach the Console Base with four
3/4” Screws (2). Start all four Screws before tightening
them; do not overtighten the Screws.
6. Touch the Right Handrail (72) to discharge any static.
Press the end of the Upright Wire (42) into the socket in the
bottom of the Console Base (47). The connector should
slide easily into the socket and snap into place. If the
connector does not slide easily and snap into place, turn
the connector and then insert it.
5
72
2
6
47
72
47
71
2
42
8
7. Press the Upright Wire (42) into the slot in the underside
of the Console Base (47) in the indicated area. Cover the
pright Wire with the Right Grip Plate (36). B
U
not to pinch the Upright Wire. Tighten three 1/2”
crews (73) into the Right Grip Plate and the Console
S
Base.
Attach the Left Grip Plate (32) over the ground wire and
the other wires with three 1/2” Screws (73).
not to pinch any wires.
e careful
Be careful
32
47
Ground
ire
W
7
lot
S
42
36
8. Lower the Uprights (99, 24) until the Handrails (71, 72)
are touching the floor.
See the lower drawing. Position the Uprights (99, 24) so
that the treadmill Frame (86) is centered between the
Uprights.
Firmly tighten the four 3” Bolts (37). Then, raise the
Uprights (99, 24) back to the vertical position.
8
24
73
73
99, 24
37
71, 72
Top View
99
86
9. Attach the Storage Latch (29) and the Latch Spacer (44)
to the left Upright (99) with two 3/4” Screws (2) as shown.
Do not overtighten the Screws.
10.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 16). To protect the floor or carpet, place a mat under the treadmill.
9
99
44
29
2
9
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
DANGER:Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the toll-free
telephone number on the front cover of this manual and order part number 146148, or see your local
electronics store.
ric shock. This product is equipped with a cord having
t
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate or stop unexpect
edly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
If it should malfunc
-
-
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
-
trician to determine if the outlet box cover is
grounded before using an adapter.
10

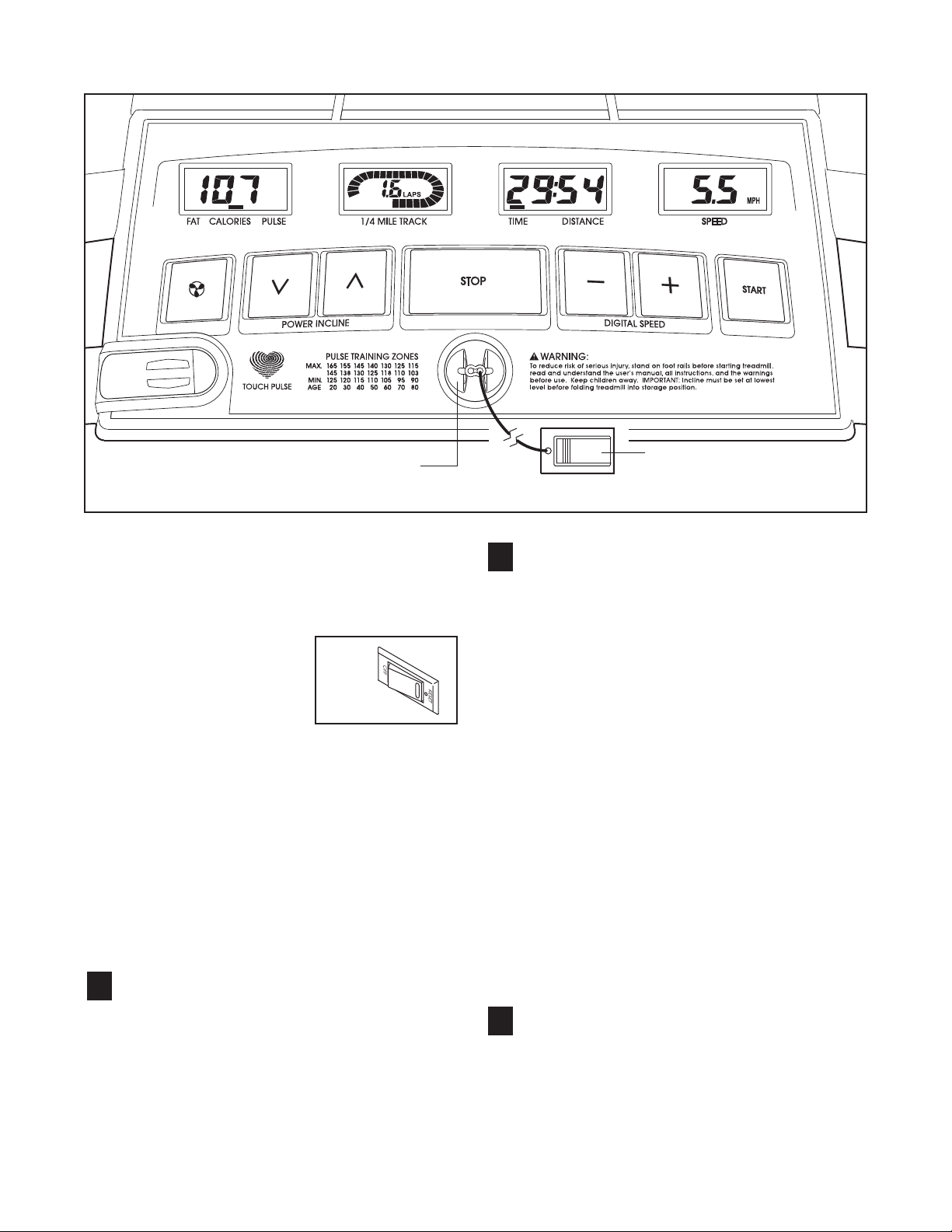

CONSOLE DIAGRAM
Note: If there is a thin sheet of
plastic on the console, remove it.
STEP-BY-STEP CONSOLE OPERATION
Before operating the console, make sure that the
power cord is properly plugged in (see page 10).
Next, locate the reset/off circuit breaker on the treadmill
frame near the power cord.
Make sure that the circuit
breaker is in the reset
position.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing above), and
slide the clip onto the waistband of your clothes. Then,
insert the key into the console. After a moment, the
displays will light. Test the clip by carefully taking a
few steps backward until the key is pulled from the
console. If the key is not pulled from the console,
adjust the position of the clip.
Reset
Key
Clip
Press the Start button or the Speed increase
2
button to start the walking belt.
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.
As you exercise, change the speed of the walking
belt as desired by pressing the Speed buttons.
Each time a button is pressed, the speed setting
will change by 0.1 mph; if a button is held down,
the speed setting will change in increments of 0.5
Note: The console can display speed and
mph.
distance in either miles or kilometers (see THE
SPEED DISPLAY on page 12). For simplicity, all
instructions in this section refer to miles.
To stop the walking belt, press the Stop button.
The elapsed time will begin to flash in the
Time/Distance display.
Follow the steps below to operate the console.
Insert the key into the console.
1
A few seconds after the key is inserted, the displays will light.
Note: During the first few minutes that the treadmill
is used, inspect the alignment of the walking belt,
and align it if necessary (see page 16).
Change the incline of the treadmill as desired.
3
To change the incline of the treadmill, press either
buttons until the desired incline level
of the I
is reached.
1
1
ncline
Follow your progress with the track and the
4
displays.
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
The track—The track
represents a distance of
/4 mile. As you walk or
1
run on the treadmill, the
indicators around the
track will light in succession until the entire track is lit. The track will then
darken and the indicators will again begin to light
in succession. The center of the track will show
the number of laps that you have completed.
The Fat Calories/
Calories/Pulse
display
shows the approximate
numbers of
and
burned (see FAT BURNING on page 17). The display will change from one number to the other
every few seconds. The display will also show
your heart rate when you use the pulse sensor
(see step 5).
The Time/Distance
display—This display
shows the elapsed time
and the distance that
you have walked or run.
The display will change
from one number to the other every few seconds.
When the Stop button is pressed, the elapsed time
will flash.
The Speed display—
This display shows the
speed of the walking
belt.
—This display
fat calories
calories
you have
Measure your heart rate if desired.
5
o measure your heart
T
rate, stand on the foot
rails and place your
thumb on the pulse sensor. Do not press too
hard, or the circulation
in your thumb will be restricted and your pulse will not be detected.
After a few seconds, the heart-shaped indicator in
the Fat Calories/Calories/Pulse display will begin
to flash, one or two dashes (– –) will appear, and
then your heart rate will be shown. Hold your
thumb on the pulse sensor for about 15 seconds
for the most accurate reading.
If the displayed heart rate appears to be too high
or too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds.
Then, place your thumb on the pulse sensor as described above. Remember to stand still while measuring your heart rate.
Turn on the fan if desired.
6
To turn on the fan, press
the Fan button. To turn
on the fan at high speed,
press the button a second
time. To turn off the fan,
press the button a third
time. Note: If the fan is left on when the walking
belt is stopped, the fan will automatically turn off
after a few minutes.
When you are finished exercising, remove the
7
key.
Note: The console can
display speed and dis
tance in either miles or
kilometers. An “MPH” or
a “Km/H” will appear in
the Speed display to
show which unit of measurement is selected. To
change the unit of measurement, first hold down
the Stop button, insert
and continue to hold the Stop button for a moment.
An “E” for English miles or an “M” for metric kilometers will appear in the Speed display. Press the
Speed increase
surement. When the desired unit of measurement
is selected, remove the key and then reinsert it.
-
the key into the console,
button to change the unit of mea
-
12
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
level. The incline must be at the lowest level
when the treadmill is raised to the storage position or the treadmill will be damaged.
remove the key from the console and put the key
in a secure place.
When you are finished using the treadmill
move the
position and unplug the power cord.
reset/off circuit breaker to the “off”
Next,
,
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be per-
anently damaged. Next, unplug the power cord. CAUTION:
m
You must be able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
1. Hold the treadmill with your hands near the location shown by
the arrow.
legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your
back.
tion.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left thumb, press the storage latch
to the left. Raise the treadmill until the storage latch closes
over the catch.
engaged over the catch.
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in
temperatures above 85° Fahrenheit.
To decrease the possibility of injury, bend your
Raise the treadmill about halfway to the vertical posi-
Make sure that the storage latch is fully
Engaged
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage
position as described above. Make sure that the frame is se
curely held by the storage latch.
Hold the upper ends of the handrails. Place one foot on a
1.
front wheel.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while moving the treadmill. Do not move the treadmill over an uneven surface.
3. Place one foot on a front wheel, and carefully lower the
treadmill until it is resting in the storage position.
-
Front Wheels
Storage
Latch
Catch
Base
13
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand.
Press the storage latch to the left. Pivot the treadmill down
until the frame and foot rail are past the storage latch.
2. Hold the treadmill firmly with both hands, and lower the tread-
mill to the floor. Do not drop the treadmill frame to the
floor. To decrease the possibility of injury, bend your legs
and keep your back straight.
Storage
Latch
Catch
14
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call the toll-free telephone number on the
ront cover of this manual.
f

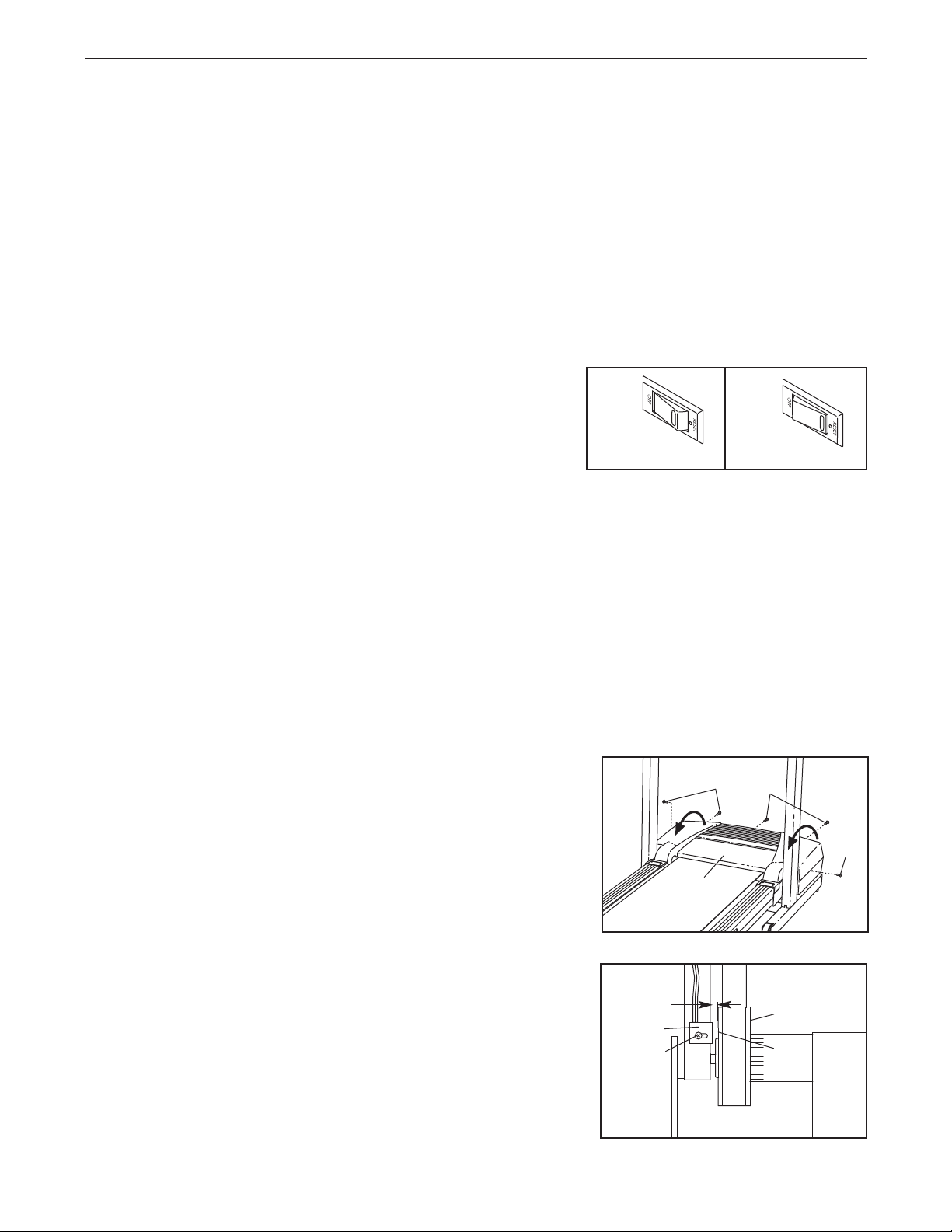

PROBLEM: The power does not turn on
SOLUTION:
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker located on the treadmill frame near the power cord (see the
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes
and then press the switch back in.
drawing above). If the circuit breaker has tripped, wait for five minutes and then press the switch
back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, see the front cover of this manual.
c
Tripped
Reset
PROBLEM: The displays of the console do not function properly
SOLUTION:
a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the Screws (2) from the
Hood (1), and carefully pivot the Hood off.
Locate the Reed Switch (10) and the Magnet (18) on
the left side of the Pulley (17). Turn the Pulley until
the Magnet is aligned with the Reed Switch.
sure that the gap between the Magnet and the
Reed Switch is about 1/8”.
Screw (26), move the Reed Switch slightly, and then
retighten the Screw. Re-attach the Hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
If necessary, loosen the
Make
a
Top
View
1/8”
10
26
2
1
2
2
17
18
15

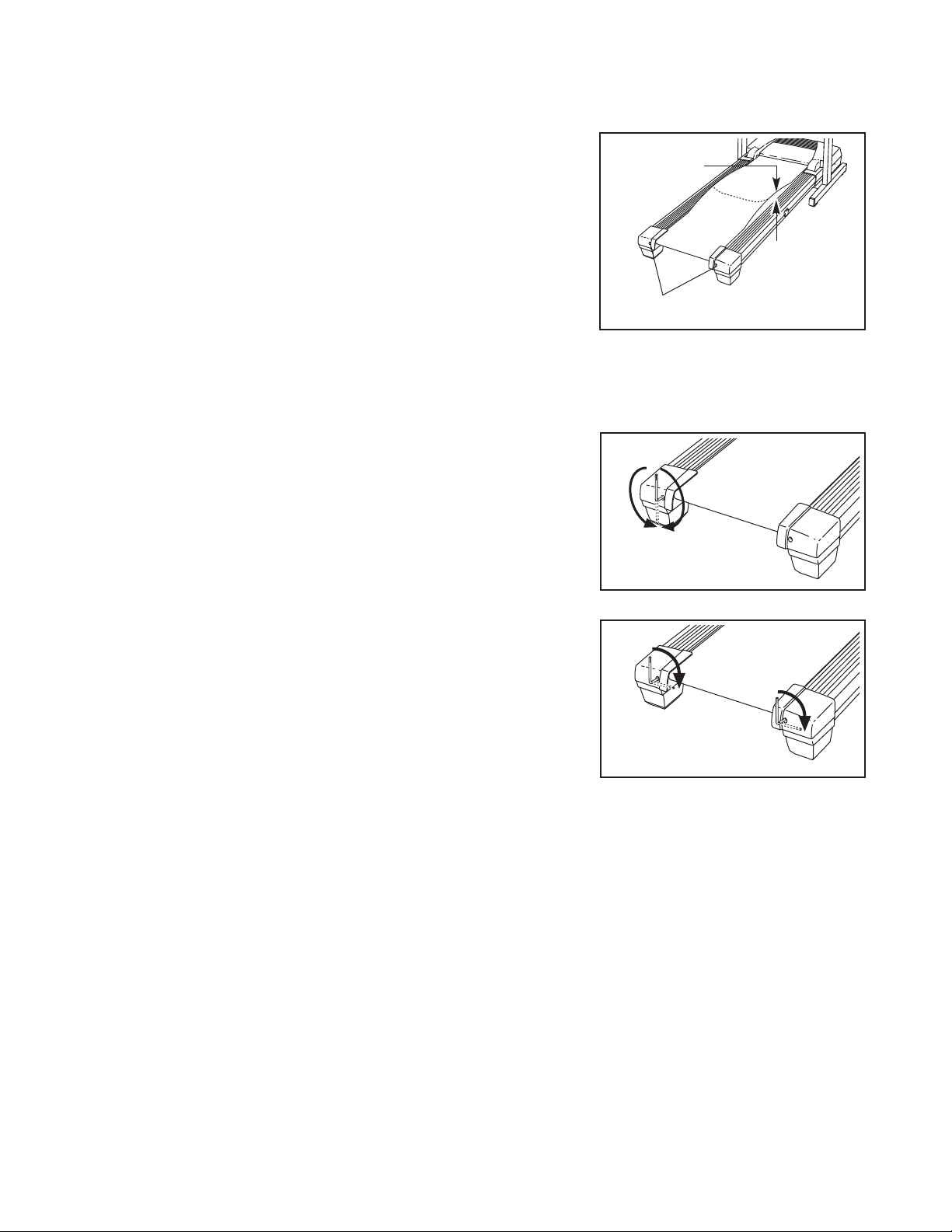

PROBLEM: The walking belt slows when walked on
OLUTION: a
S
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION:
. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.
. If the walking belt is overtightened, treadmill perfor-
b
mance may decrease and the walking belt may become damaged. Remove the key and
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 2 to
3 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
left bolt counterclockwise 1/2 of a turn. Be careful not
to overtighten the walking belt. Plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is centered.
UNPLUG THE
b
”–3”
2
Rear Roller Adjustment Bolts
a
b. If the walking belt slips when walked on, first remove
the key and
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
UNPLUG THE POWER CORD. Using
b
16
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
ian. This is especially important for individu-
c
als over the age of 35 or individuals with preexisting health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
uses easily accessible
ergy. Only after the first few minutes does your body
egin to use stored
b
is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
carbohydrate calories
at calories
f
or energy. If your goal
f
for en-

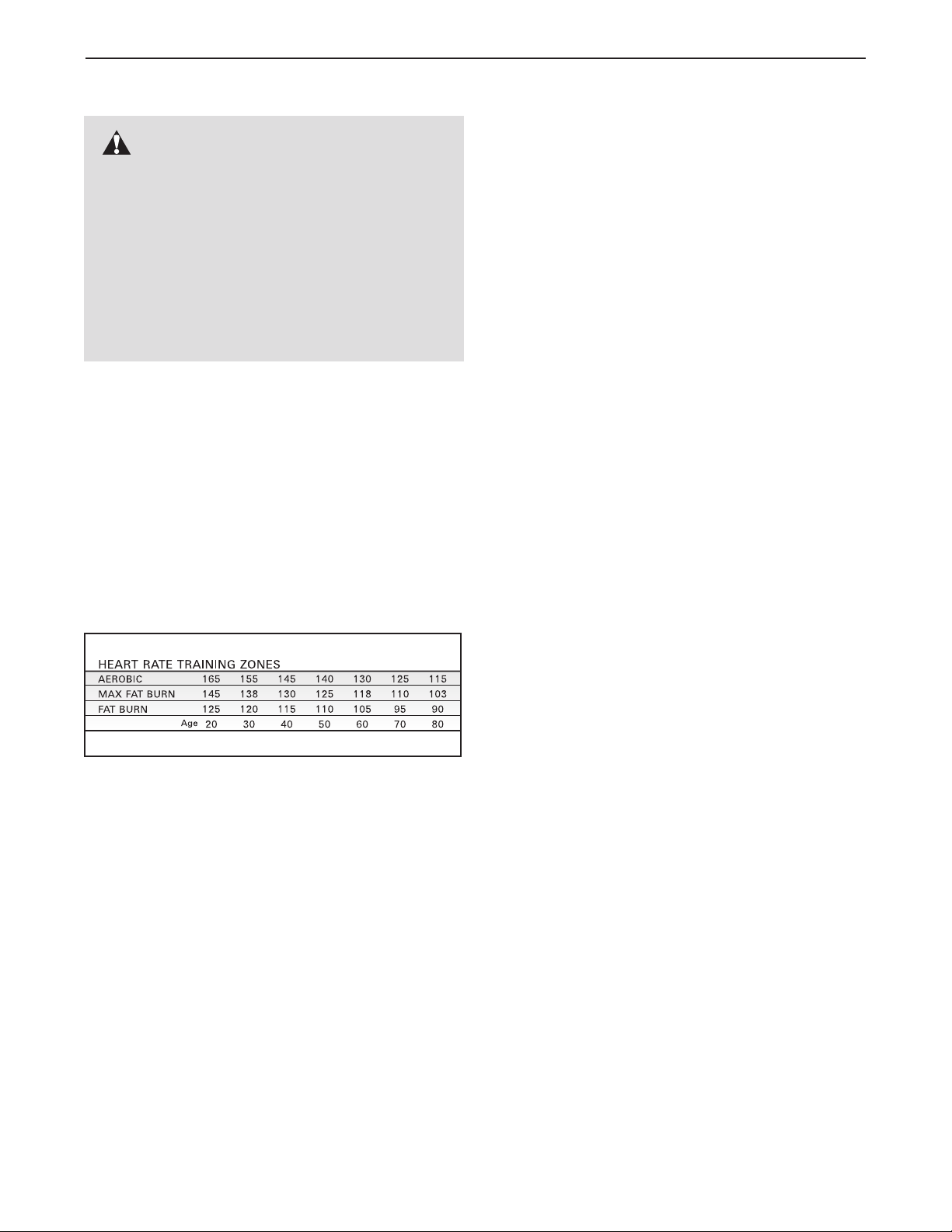

To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “training zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
pulse sensor. If your heart rate is too high or too low,
adjust the speed and incline of the treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise—never
hold your breath.
A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent postexercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
17

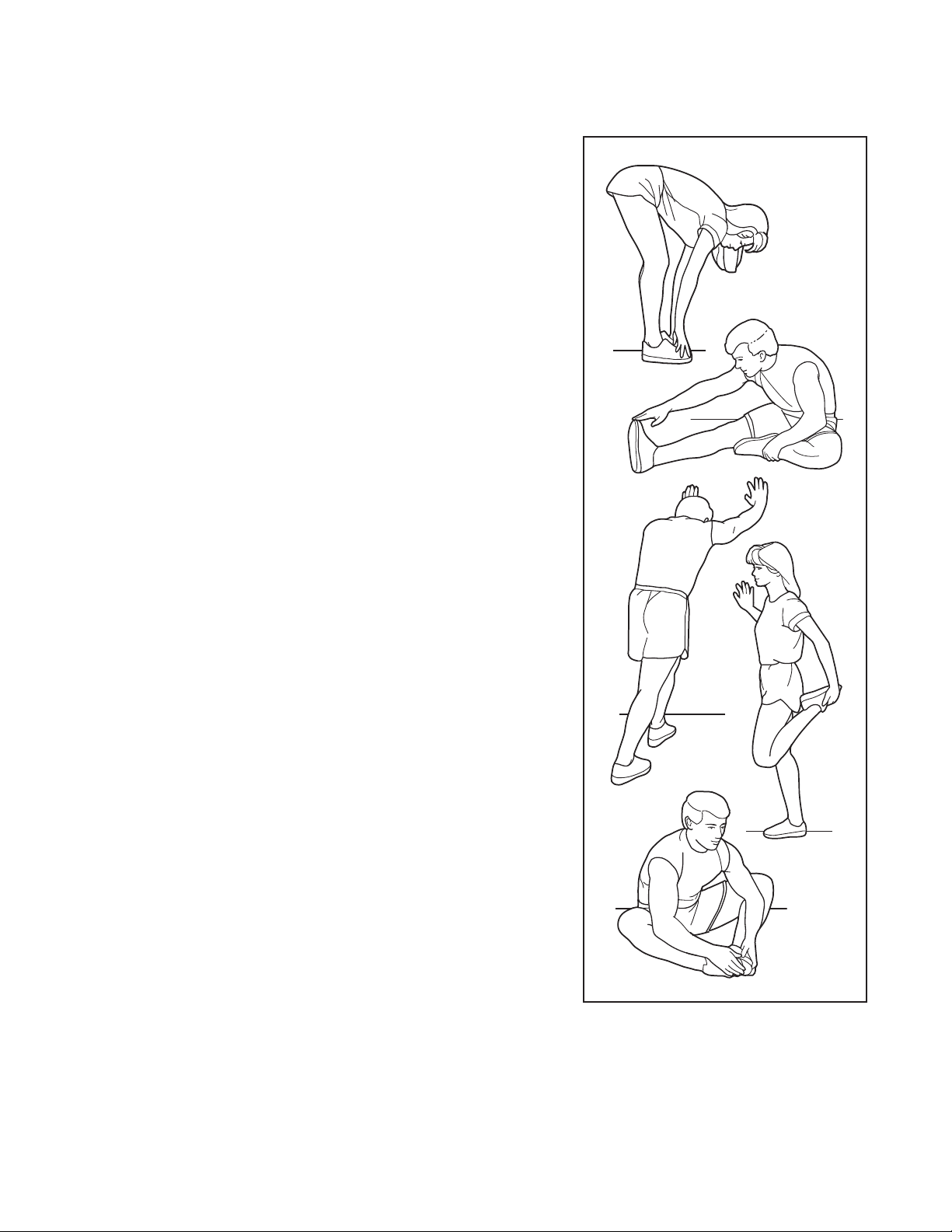

SUGGESTED STRETCHES
he correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
T
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for
each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
18
NOTES
19
PART LIST—Model No. PFTL31404.1 R0405A
Key
No. Qty. Description
1 Hood
1
2 15 3/4” Screw
3 1 Motor Belt
4 1 Motor Tension Bolt
5 5 3/8” Washer
6 1 Motor Star Washer
7 1 Flywheel
8 1 Drive Motor
9* 1 Drive Motor Assembly
10 1 Reed Switch
11 1 Latch Warning Decal
12 2 Frame Spacer
13 5 Frame Pivot
Nut/Motor Nut
14 2 Frame Pivot Bolt
15 4 Walking Platform
Screw
16 1 Right Foot Rail
17 1 Front Roller/Pulley
18 1 Magnet
19 1 Motor Pivot Bolt
20 2 Motor Bracket Bolt
21 1 Right Foot Rail
Endcap
22 2 Belly Pan Clip
23 1 Front Roller
Adjustment Bolt
24 2 Right Upright
25 1 Crossbar
26 6 Ground Screw
27 2 Handrail Bolt
28 1 Motor Tension Nut
29 1 Storage Latch
30 1 Latch Catch
31 1 Right Rear
Endcap Pad
32 2 Wheel Nut
33 1 Fan
34 1 Left Grip Plate
Key
No. Qty. Description
5 2 2 1/4” Bolt
3
36 1 Right Grip Plate
37 4 3” Bolt
38 2 1/4” Washer
39 6 1” Tek Screw
40 2 Front Isolator
41 1 5/32” Allen Wrench
42 1 Upright Wire
43 1 Console
44 1 Latch Spacer
45 6 Washer
46 1 Book Holder
47 1 Console Base
48 1 1/2” Silver Screw
49 1 Filter Wire
50 1 Key/Clip
51 1 Incline Motor
52 1 Incline Bracket
53 1 Incline Motor
Bolt (lower)
54 3 Incline Pivot Bolt
55 2 Incline Pivot Nut
56 1 Motor Controller Wire
57 4 Round Base Pad
58 12 3/4” Tek Screw
59 1 Controller
60 1 Lift Frame
61 2 Base Pad
62 2 Warning Decal
63 2 Star Washer
64 2 Wheel Bolt
65 4 Base Endcap
66 2 Wheel
67 6 Endcap Screw
68 4 8” Cable Tie
69 1 Base
70 1 Grommet
71 1 Left Handrail
72 1 Right Handrail
Key
No. Qty. Description
3 6 1/2” Screw
7
74 1 Left Foot Rail Endcap
75 1 1/2” Ground Screw
76 1 Isolator Insert
77 4 Belly Pan Screw
78 2 U-Nut
79 1 Power Cord
80 1 Power Cord Grommet
81 1 Belly Pan
82 2 Belt Guide
83 4 Belt Guide Screw
84 2 Plastic Fastener
85 2 Isolator Cushion
86 1 Frame
87 4 Releasable Tie
88 1 Base Ground Screw
89 2 Cable Tie Clamp
90 1 Ground Wire
91 1 Left Rear Endcap Pad
92 2 Rear Roller
Adjustable Bolt
93 1 Right Rear Endcap
94 1 Allen Wrench
95 1 Left Rear Endcap
96 1 Walking Belt
97 1 Walking Platform
98 1 Left Foot Rail
99 1 Left Upright
100 1 Rear Roller
101 1 Fan Cover
102 1 Fan Housing
103 1 Motor Mount Bracket
# 1 6” Black Wire, 2 Ring
# 1 8” Green Wire, F/Ring
# 1 4 ” Red Wire, M/F
# 1 User’s Manual
*Includes all parts shown in the box
#These parts are not illustrated
58
72
67
2
2
2
31
73
40
26
2
29
44
55
54
55
54
27
27
37
45
63
37
45
63
25
37
37
2
2
45
45
73
28
10
58
12
19
13
13
60
23
2
13
12
14
21
16
18
17
14
15
74
98
82
83
97
15
96
86
15
95
92
38
92
38
93
81
77
83
82
77
79
80
69
13
53
57
39
39
57
51
54
13
62
64
32
66
26
90
58
89
87
68
100
65
42
88
70
15
94
41
91
11
58
22
22
56
71
3
4
5
6
7
8
9*
103
20
85
84
84
85
58
30
75
39
61
39
61
77
76
76
26
59
67
2
2
35
35
2
47
46
43
36
34
49
78
78
40
117
50
52
65
62
42
102
2
33
101
99
24
40
26
58
58
1
2
2
2
EXPLODED DRAWING—Model No. PFTL31404.1 R0405A
ORDERING REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
the following information:
• The MODEL NUMBER OF THE PRODUCT (PFTL31404.1)
• The NAME OF THE PRODUCT (PROFORM®LX 450 treadmill)
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST
attached in the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The drive motor is warranted for three (3) years after
the date of purchase. The parts and labor are warranted for ninety (90) days after the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to
replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customer’s responsibility. For inhome service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
-
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
2005 ICON IP, Inc.
Part No. 223774 R0405A
Printed in USA
©
Loading...
