PYLE Audio PEMP-12 User Manual

Specifications and Main Features

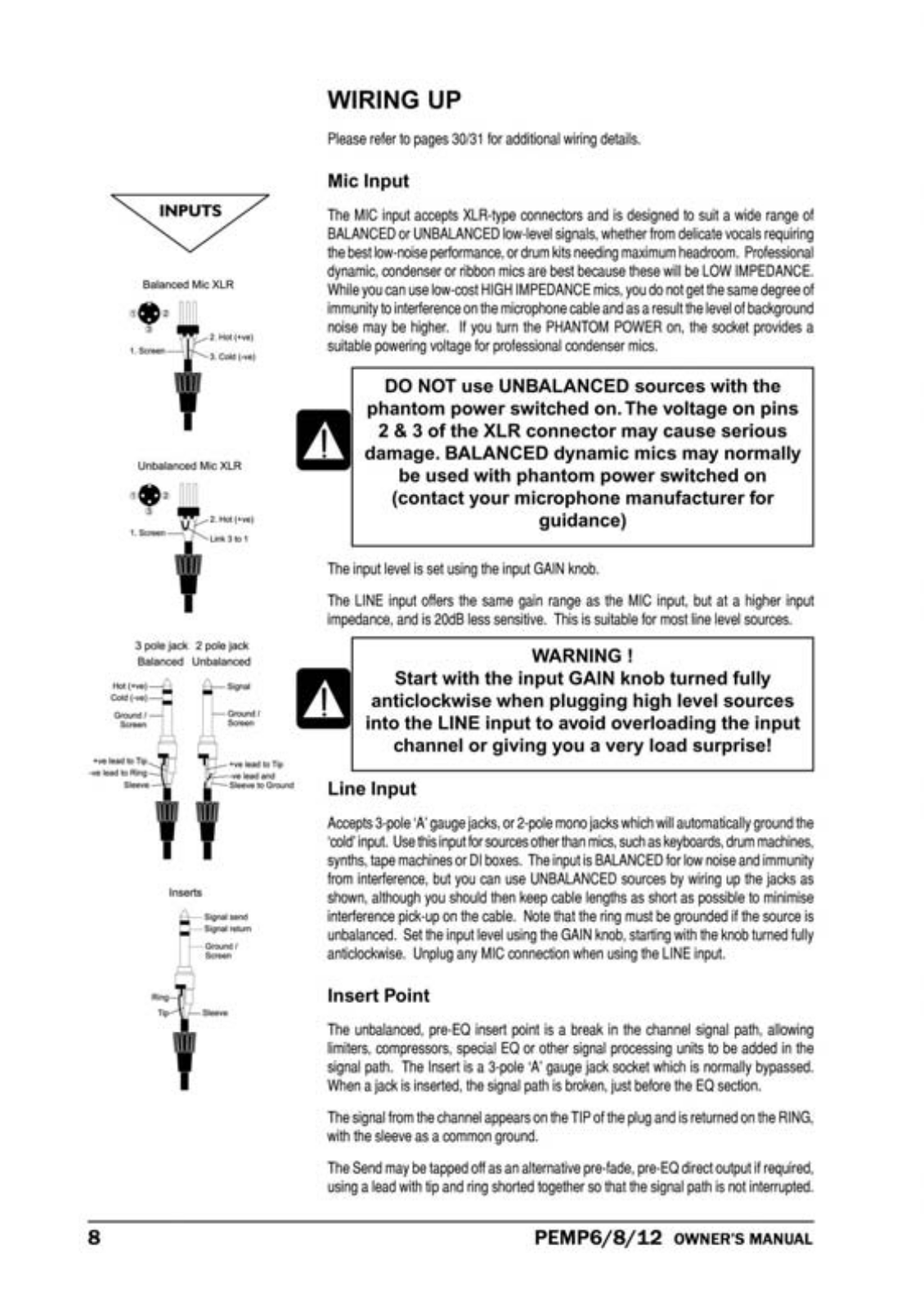

  • Mic Input: accommodates XLR-type connectors as its audio input.
  • Equalizer: High and low-pass filters for control over frequency ranges.
  • Headphone Output: Allows for stereo sound with a minimum impedance of 200Ω.
  • Balanced and Unbalanced inputs are included.
  • 12 Channel Stereo Console Mixer.
  • Mic elenco: accepting 3 pole A gauge jacks as its line input.
  • LED power indicator.
  • Monitor outputs A gauge jacks, three pole.
  • Harsh sound limiters trim: crosstalk : < - 96db.

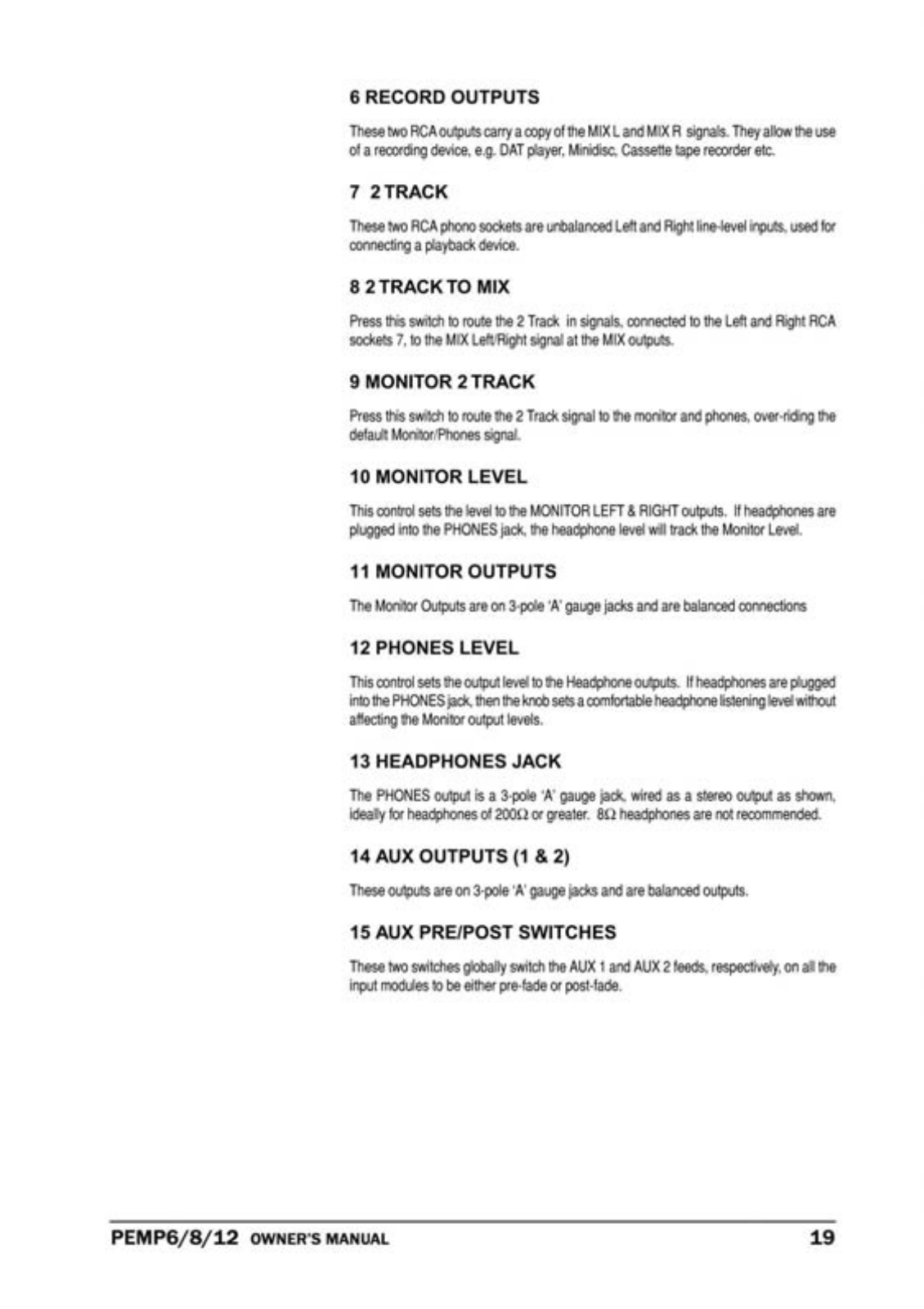

  • Allows for support using RCA outputs for recording devices.
  • Auxiliary sends: 1 and 2, offers a configuration for pre or post fade.
  • MIDI connectors: used for connecting intermediate device to a computer.

Frequently Asked Questions

Q: What does phantom power do?

A: It is used to deliver voltage to professional condenser microphones.

Q: Can I connect unbalanced microphones to the mixer?

Q: The purpose or function of the PFL switch?

A: The PFL switch enables you to monitor and diagnose the pre-fader signal before it is further processed or mixed.

Q: How to connect the headphones to the mixer?

A: The PHONES jack allows connection of headphones with 200Ω or above, as it is designed specifically for this purpose.

Q: What line inputs devices can I connect?

A: Devices like keyboards, percussion machines, or synths which operate at line signal levels can be plugged into the line inputs.

Q: This mixer supports usage of effects audio processors?

A: Of course, external effects processors can be connected via the insert points of the channels.
