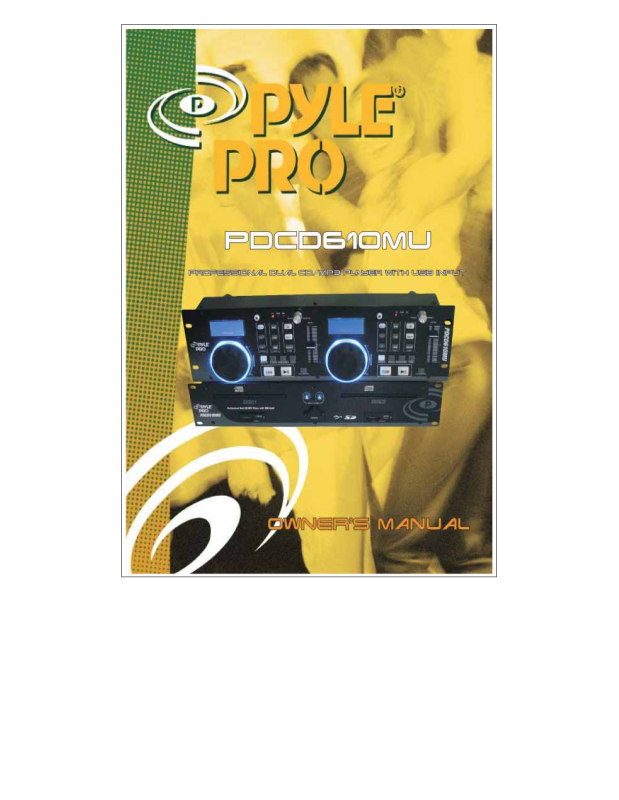

PROFESSIONAL CD PLAYER WITH ANTI-SHOCK MEMORY
USER MANUAL
PDCD610MU
IMPORTANT
Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CD Player function :
1. POWER BUTTON
Press the power switch to turn the unit on. To switch the POWER off press the POWER switch
again.
2. JOG & SHUTTLE WHEELS
The controls values functions, as follows :
speed control:Rotating the wheel, in play mode, will change the playback speed according. While
rotating clock wise, the player speed increase,rotatind counterclockwise ,tthe speed decrease.
Searchin: Rotating the wheel in pause mode, the player will forward or backward to the desired
point to start. The searching speed changed according to the dialing speed. It can be carried out
by one frame increase
3. TIME BUTTON
This buttons switches the time display/between each. Remaining time, elapsed playing time, and
total remaining time.
4. SEARCH BUTTON
Press the button to switch the function of jog dial between SEARCH and PITCH BEND, when the
indicator LED is light, dial the jog for quick search forward and backward, when the indicator LED
is off, dial the jog for pitch bend function .If the jog is unmoved for 8 seconds, the indicator is off
and the jog is for pitch bend function.
2
5. IN BUTTON (LOOP SYSTEM)
This button sets the beginning of the loop. The Loop indicator on the display flashes.
6. CONT. / SINGLE BUTTON
Press these to switch between the SINGLE and CONTINUOUS play mode. The selected mode is
indicated on the LCD. In SINGLE mode, after each track, the unit pause of begining next track. In
continu mode, the unit plays all track and stops.
7. PROG BUTTON
In STOP mode, you can program several tracks (20 tracks max):
- Press the STOP button to enter in the stop mode
- Press the PROG button to enter in the program mode
- Use the skip track buttons to choose the track you want to listen then press the PROG button to
enter your choice.
- Use one more time the skip track buttons to choose the track you want to listen then press the
PROG button to enter your choice.
- Repeat the operation to select all the track you want to listen
- Press the play / pause button to start the playback
8. OUT BUTTON (LOOP BUTTON)
When you press this button, you set the end point of the seamless loop and you start the loop. To
finish the loop, press again this button.
9. TRACK SELECT BUTTONS
Pressing 0-9 buttons, allow you to select tracks from the CD.
10. RELOOP BUTTON (LOOP SYSTEM)
This button is used to start the last saved loop. To finish the loop, press the RELOOP button.
11. SKIP I<< BUTTON
This button selects the last track to be player.
12. CUE BUTTON
The CUE function allows the CD to be played from the memorized point any numbers of times,
with the unit in pause mode. Press the CUE button to set up the memorized CUE point and then
the CUE button blinks.
13. +10 BUTTON
Use this button to jump of 10 tracks in one press.
14. PLAY / PAUSE BUTTON
Each time you press the PLAY/PAUSE button, the operation changes from play to pause or from
pause to play.
15. SKIP >>I BUTTON
Use the botton select the next track.to be player.
16. PITCH CONTROL
Use this conntrol slider to increase or decrease the speed playback.
17. PITCH BEND +/- BUTTON
The pitch will automatically rise when the + button is pressed and return to the original pitch when
it is released.
18. PITCH BUTTON
If you push this button, the adjustement of the pitch potentiometer is available.
19. DISPLAY
LCD display indicate the track time(minutes, second frame), remain, pitch, beat, loop, auto, single,
ontinue and time bar.
20. DISC-TRAY
To enter the disc, please refer to the explanations under 6.2 CD-tray.
3
21. OPEN/CLOSE BUTTON
The Disc Is placed on this tray pressing the Disc tray open/close buttons will open or close the
trayt.
22. USB PORT
Support USB playing and you may also connect the computer with the USB cable but only when
enter into USB work mode.
23. CD/USB/SD
To enter into the CD and USB or SD work mode by this key conversion.
24.
3 IN 1 CARD SLOT
Slot for inserting 3 IN 1 card. The contacts of the card must point downwards. The unit cannot
read cards with a capacity of more than 4GB. The unit is not compatible to SDHC cards and only
supports the MP3 format.
Connection :
25. LINE OUT 1-2
The audio for each CD player is an output for these jacks. Connect to the line input of the mixer.
26. AC CORD
Use this cable to connection power cord unit in AC walk out let with the properly voltage.
27. CONNECTION PORT
The connection port the connection of the control unit to main unit.
4
WARRANTY CONDITIONS
PLYE PRO equipment is covered by a 1-year warranty on parts and labor except for faders (90 days).
The following rules apply from the day the equipment leaves the factory:
The date on the invoice is considered to be the date the warranty begins.
Only companies approved by PLYE PRO are allowed to work on the equipment. Warranty becomes
void when other service technicians open the equipment.
During warranty period, defective equipment must be sent by pre-paid mail in the original box.
PLYE PRO will return the goods by pre-paid mail during the first year of warranty; thereafter the
mailing cost is to be paid by the recipient.
Potentiometers have a limited lifetime and are not covered by the manufacturer for more than normal
use.
For all service enquiries, refer to your local distributor, as he is best able to help you.
SPECIFICATIONS:
Anti-Shock Buffer Memory: 40 seconds
Range of adjustments: +/- 16%
Power supply: ~ 115/230V, 60/50Hz
Dimensions : Player : 482x90x255mm
Controller : 482x132x80mm
5
