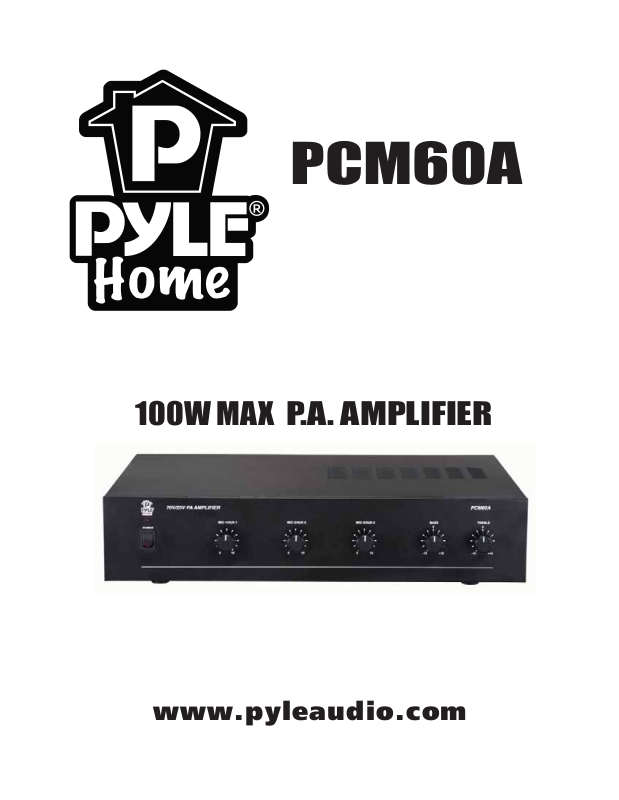

PCM60A
100W MAX
P.A. AMPLIFIER
www.pyleaudio.com
IMPORTANT SAFETY INSTRUCTIONS
1. Read Instructions — All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions — The safety and operating instructions should be retained for future reference.
3. Heed Warnings — All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions — All operating and use instructions should be followed.
5. Water and Moisture — The appliance should not be used near water -for example, near a bathtub, washbowl, kitchen sink, laundry tub,
swimming pool, or a wet basement.
6. Ventilation — The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the
appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings: or placed in a built-in
installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. Heat — The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
8. Power Sources — The appliance should be connected to a power supply only of the type described in the operating instructions or
as marked on the appliance.
9. Grounding or Polarization — Precaution should be taken to insure that the grounding or polarization means of an appliance is not defeated.
10. Power-Cord Protection — Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point at which they exit from the
appliance.
11. Cleaning — The appliance should be cleaned only as recommended by the manufacturer.
12. Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should
be taken to keep from touching such power lines or circuits as contact with them might be fatal.
13. Nonuse Periods — The power cord of the appliance should be unplugged from the outlet when the appliance is
to be left unused for a long period of time.
14. Object and Liquid Entry —
Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
15. Carts and Stands — If the appliance is used with a cart or stand, the cart or stand should be a type recommended by
the manufacturer.
An appliance and cart combination should be moved with care. Quick stops, excessive force,
and uneven surfaces cause the appliance and cart combination to overturn.
16. Mounting — The appliance should be mounted only as recommended by the manufacturer.
17. Damage Requiring Service — The appliance should be serviced by qualified service personnel when:
A. The power-supply cord or plug has been damaged.
B. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
C. The appliance has been exposed to rain.
D. The appliance has been dropped, or the enclosure damaged.
E. The appliance does not appear to operate normally or exhibits a marked change in performance.
18. Servicing — The user should not attempt to service the appliance beyond that described in the user’s operating instructions. All other
servicing should be referred to qualified personnel.
19. Overloading — Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
20. Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
21. Safety Check — Upon completion of any service or repairs to this appliance, ask the service technician to perform safety checks to
determine that the appliance is in proper operating condition.
WARNING: To reduce the risk of fire or shock hazard, do not
expose this product to rain or moisture.
RISK OF ELECTRIC SHOCK
CAUTION: To reduce the risk of electric shock, do not remove
cover or back. No user-serviceable parts inside. Refer servicing
to qualified personnel.
1 - Pyle Home PCM60A Manual
CAUTION
DO NOT OPEN
This symbol is intended to alert you to the - 6 presence of uninsulated dangerous voltage within the product’s enclosure that
might be of sufficient magnitude to constitute a risk of electric
shock. Do not open the product’s case.
This symbol is intended to inform you that important
operating and maintenance instructions are included in the
literature accompanying this product.
Your new PYLE HOME PCM Amplifier
gives you the power and versatility you need in a professional sound system. The
wide frequency response of it handles easily amplification of voice and music. The
monitor terminal, talkover function on MIC 1, AUX output for extra amp connection,
and Tel/Paging make it perfectly to use in meeting halls, auditoriums, sports events
in school, and paging system in offices, anywhere you need to deliver special
announcement with excellent sound.
FEATURES AND CONTROLS
Pyle Home PCM60A Manual - 2
FEATURES AND CONTROLS
The input impedance of the
device should be more than 600 Ohms.
3 - Pyle Home PCM60A Manual
SPEAKER CONNECTION
One or more speakers (4, 8 or 16 Ohms) can be connected to the amplifier with or
without transformers. However, before you connect any speakers to the amplifier, the
total impedance must be calculated in order to avoid damage to the amplifier. A total
speaker impedance greater than 16 Ohms or less than 4 Ohms can cause this damage
to occur.
SYSTEM 1 : Single Speaker System
depending on the speaker being used.
NOTE : Connect the speaker (+) to the amplifier's 4-Ohm, 8-Ohm or 16-Ohm terminal,
SYSTEM 2 : Two (or more) Speakers in Series
depending on the TOTAL IMPEDANCE of the two speakers. If each speaker
has an impedance of 8-Ohm, the total speaker impedance in this series
cofiguration is 16 ohms.
NOTE : Connect the speaker (+) to the amplifier's 4-Ohm, 8-Ohm or 16-Ohm terminal,
Pyle Home PCM60A Manual - 4
SYSTEM 3 : Two (or more) Speakers in Parallel
depending on the TOTAL IMPEDANCE of the two speakers. If each speaker
has an impedance of 8-Ohm, the total speaker impedance in this series
configuration is 4 ohms.
NOTE : Connect the speaker (+) to the amplifier's 4-Ohm, 8-Ohm or 16-Ohm terminal,
SYSTEM 4 : Four Speakers in Series and Parallel
a parallel pair in a parallel hook up, simply be sure you have calculated the total
impedance, and attach the speaker (+) circuit wire to the proper amp terminal.
NOTE : Although the description above is for connecting two series pairs of 8 Ohms
speakers in a parallel hook up, you may also select to combine a series pair and
SYSTEM 5 : Connecting Speakers with Transformers
must be used with each speaker, All transformers must be connected in parallel,
never connect line transformers in series.
5 - Pyle Home PCM60A Manual
NOTE :
When the 25V or 70V constant line voltages are used, a line matching transformer
CONNECTION DIAGRAM
NOTE :
Unit comes with jumper set on AUX 1
WARNING:
These adjustments are to be
performed safely by the qualified
service technician in proper
operating condition, the AC
power source must be
disconnected before removing
the unit's cover, otherwise may
result in electric shock, or other
hazards.
NOTE :
electric condenser microphone, unit comes with
jumper set to Phantom Power enable ON.
The unit provides a Phantom Power DC 15V for
Pyle Home PCM60A Manual - 6
Specifications
Input Impedance
AUX 1/AUX 2/AUX 3...........200mV/50k-Ohm, Unbalanced
MIC 1/MIC 2/MIC 3.................1.0mV/600-Ohm, Balanced
TEL/PAGE .............................100mV/600-Ohm, Balanced
Max Output Power.......................................100 Watts x 1
THD at rated output power..................1% or less at 1 kHz
Frequency Response +/- 3 dB................. 50 Hz to 15 kHz
Signal to Noise Ratio A-Weighted
MIC..........................................................................60dB
AUX..........................................................................70dB
TEL...........................................................................60dB
Speaker Outputs........................4-Ohm, 8-Ohm, 16-Ohm,
25V, and 70V line outputs
AUX Output...................................................600-Ohm 1V
Monitor (MOH) Output............600-Ohm 1V (head phones)
and 8-Ohm 1W (speaker)
Attenuation Level (AUX 1/AUX 2/AUX 3/MIC 2/MIC 3)...40dB
Tone Controls
Treble....................................................+/- 10dB, 10 kHz
Bass......................................................+/- 10dB, 100 Hz
Power Requirement............120V AC 60Hz/230V AC 50Hz
Power Fuse......................T 2.5AL 250V for 110-120V and
T 1.2AL 250V for 220-240V
Dimensions, inches (mm) WxHxD.......16.93 x 3.46 x 10.51
(430 x 88 x 267)
Weight, lbs (kg) ...............................................14.88(6.75)
Specifications are typical; individual units might vary.
Specifications are subject to change and improvement without notice.
Your Pyle Home Amplifier is an
example of superior design and
7 - Pyle Home PCM60A Manual
