Bluetooth Hands-free Car Kit
®
with LCD display
PBT70R
User Manual
Environmental
friendly
()
TableofContent
I. Profile and Its Function…………...................…..........………………………………………………….…4
I- 1 Profile…….……...................…...............………………………………………………………….…4
I- 2 Function……...................................…………………………………………………………….……5
II. How to Use……...............................…………………………………………………………………………6
II-1 Installation of the Hands-Free Car Kit ......................................….………………………..…..6
II-2 Optional mounting method ..........................................................….………………………..…..7
II-3 Turn on the Hands-free Car Kit....…................................…………………………………….……8
II-4 Pair the Hands-free Car Kit with Your Mobile Phone…......................................……8
II-5 Establish Link…………………………….............................……………………..……..9
II-6 2-link operation and its LCD display status….…..........……………………………………………10
II-7 LCD display general status…...…................................…….......…………..……………..……..11
II- 8 Answer an Incoming Call...…...................….........…………………………………………..…….14
II-9 Transfer Calls between this Hands-free CarKit and your Phone............................14
II-10 Make a New Call by Using Voice Dialing.......................................…..…………………………14
II-11 Answer the call waiting ................................ ..............................…....………………………….15
II-12 Mute the Microphone …..................... .........…....…………………………………………….……15
II-13 End a Call ……........…................. .........…………………………………………………………….15
II-14 Reject a Call …….…….…......... …….................………………………………………………….15
II-15 Redial Last Dialed Number …................. ...........…………………………………….……………15
II-16 Adjust the Speaker Volume…….............................………………………………………………15
II-17 Turn off the Hands-free Car Kit …............…..............…..…………………………..……………16
II-18 Auto connection to the Bluetooth Mobile Phone.......………..…….............…………….16
III. Maintenance and Safe Use…......... ....................………………………………………………………. 16
IV. Package Contents……………………………………………………………………………………………16
FCC Interference Statement…............... ..........................……………..……………………………………17
Bluetooth
Bluetooth
Bluetooth
3
I. Profile and Its Function
()I-1 Profile please refer to Fig.1
Built-in Microphone
7
Mic
LD77A
Mic
Phone 1icon
Phone 2icon
Mute icon
1
2
3
4
6
5
Fig.1
1. On/Off
2. Volume Up
3. Volume Down
Battery icon
Metal Stand
with 2-sidetape
4. LED
5. Speaker
PBT70R
6. 12 - 24V Power Connector
7. LCD display
4
I-2 Function
(please refer to Fig.1)
1On/Off
.
If you press “On / Off ”, you can:
Switch on and off
Pair
Answer a new call
Reject a call
Make a new call using voice dialing
.
2 Volume Up
Increase the speaker volume
Mute / un-mute the microphone
.
3 Volume Down
Redial the last dialed number
Decrease the speaker volume
Answer call waiting
.
4LED
There are two LED colors ( blue and red ) to indicate the state of this Car Kit.
.
5 Speaker
.
6 12-24V Power Connector
Connect the Car Kit with the cigarette lighter and power the Car Kit.
.
7 LCD display
It displays a caller’s ID and operating status.
5
II. HowtoUse
II-1 Installation of the Hands-free Car Kit please referto Fig.2 Fig.3 and Fig.4
Thank you for buying the PBT70R, Hands-free Car Kit.
Whenever you use the Hands-free Car Kit, please plug the Car Kit into the cigarette lighter socket
in your car to get the power.
(,)
Bluetooth
1. Attach the metal stand to the desired position.
Fig.2
2. Put the PBT70R into the cigarette lighter socket.
Fig.3
cigarette lighter socket
6
3. Slide the LCD 77A LCD display
into the metal stand.
Installation complete.
Fig.4
II-2 Optional mounting method (user needs topurchase the air vent clip separately).
please refer to Fig.5 Fig.6 and Fig.7(,)
1 Put the PBT70R into the cigarette lighter socket..
Air ventwindow
Cigarette socketlighter
Fig.5
2 Slide theair vent clip intothe air vent
.
window in your car as indicated.
Air ventwindow
Air ventclipLD 77A
3 Installation complete..
Fig.6
7
Fig.7
II-3 Turn on the Hands-free Car Kit
When the car kit is plugged to the cigarette lighter socket in your car and your car is on, the car
kit will turn on automatically and try to auto reconnect the last connected mobile phone. A long
tone indicates that the hands-free Car Kit has turned on. At the same time, blue LED will flash
for a second. Blue LED will keep on flashing every 3 seconds.
Note: The Car Kit can also be turned on manually by pressing and holding the “On/Off ” key for 2
seconds when it is off.
II-4 Pair the Hands-free Car Kit with Your Mobile Phone
1 Put the hands-free Car Kit in pairing mode
After the Car Kit has turned on automatically, it will try to auto reconnect the last connected
mobile phone. If it fails connecting for the first time, it will enter pairing mode immediately. A
double tone will be heard. The red and blue LEDs will flash alternatively, which indicates the
hands-free Car Kit has entered into the pairing mode.
Note: The Car Kit can also be put in pairing mode manually by pressing and holding the
“On/Off ” key for 5 seconds when it is off.
Bluetooth
2 Put your mobile phone in pairing mode
Bluetooth
2.1 Follow the operation manual of your mobile phone to start the pairing process.
Typically, this has to be done by going to a setup or connect menu and then selecting the
options to discover devices. may take several seconds to establish a
connection.
2..2 Your phone's display will indicate that it has found the new device “PBT70R ”. When you
want to pair it, the phone's display would demand a passkey or PIN. You can enter a
sequence of “0000”.
Bluetooth Bluetooth
Bluetooth
8
3 Pair the hands-free Car Kit with your Mobile Phone
The blue LED of hands-free Car Kit will flash every 3 seconds indicating successful pairing.
The phone may also ask whether you want to change the Car Kit's name. We recommend you
should approve the name of “PBT70R ” and do not change it.
Note: Make sure if pairing does not occur as expected, turn off the hands-free car kit and your
phone, then wait for 10 seconds. Turn on them again and repeat from Step 1 to Step 3
II-5 Establish Link
After pairing, the mobile phone usually has “connect” menu. Please select it to establish the link.
A beep tone will indicate that the Car Kit is connected. Now you are ready to make and answer
calls on the hands-free Car Kit.
Bluetooth
Bluetooth
9
.
II-6 2-link operation and its LCD display status
The CarKit is able to connect to 2 mobile phones at the same time.
Pair with the the first mobile phone (II3-4).
Swith off the PBT70R, and then switch on
again to enter into pairing mode(the Blue &
Red LEDs will flash alternatively which
indicates the Car Kit has entered into the
pairing mode).
Pair with the second mobile phone (II3-4).
Connect to the first mobile phone (II-5).
Connect to the second mobile phone(II-5).
It will operate with the last connected or activated mobile phone and automatically
switch between them.
10
II-7 LCD display general status

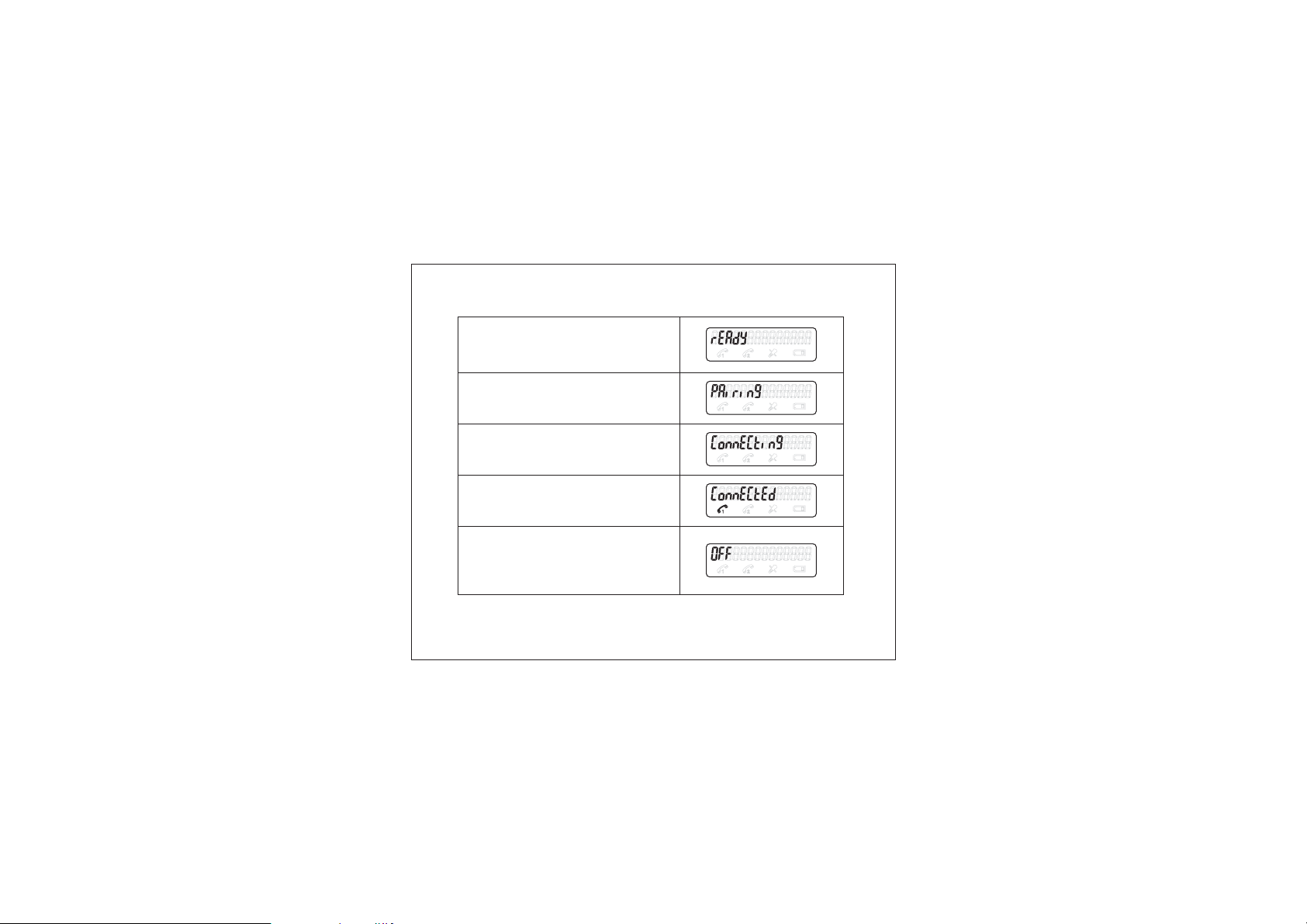

7.1 On / Off and Pairing
When the car kit is turned on and idle, the
LCD displays“RE DY”.A
When the Car Kit is in pairing mode, the LCD
screen displays “PAIRING”.
While the car kit is connecting to the mobile
phone, the LCD screen displays
“CONNECTING .”
After the car kit has connected to the mobile
phone successfully, the LCD screen displays
“CONNECTED”.
When the car kit is being turned off, the LCD
displays “OFF” with LED on for a few
seconds. When the car kit is still in
connection with power, the LCD displays
“OFF” without LED on.
11
7.2 Calling in
When there is an incoming call, the LCD screen
displays Caller ID if it is received or “RINGING”.
Note: Some mobile phones may not display
Caller ID via this LCD Display unit.
When the call is answered, the LCD screen
displays “ON LINE”.
In case the call is rejected, it will go back to
standby state and the LCD screen displays
“CONNECTED”.
7.3 Calling out
When there is an outgoing call from the mobile
phone, the LCD screen displays “CALLING”.
When the call is made successfully, the LCD
screen displays “ON LINE”.
OR RINGING
12

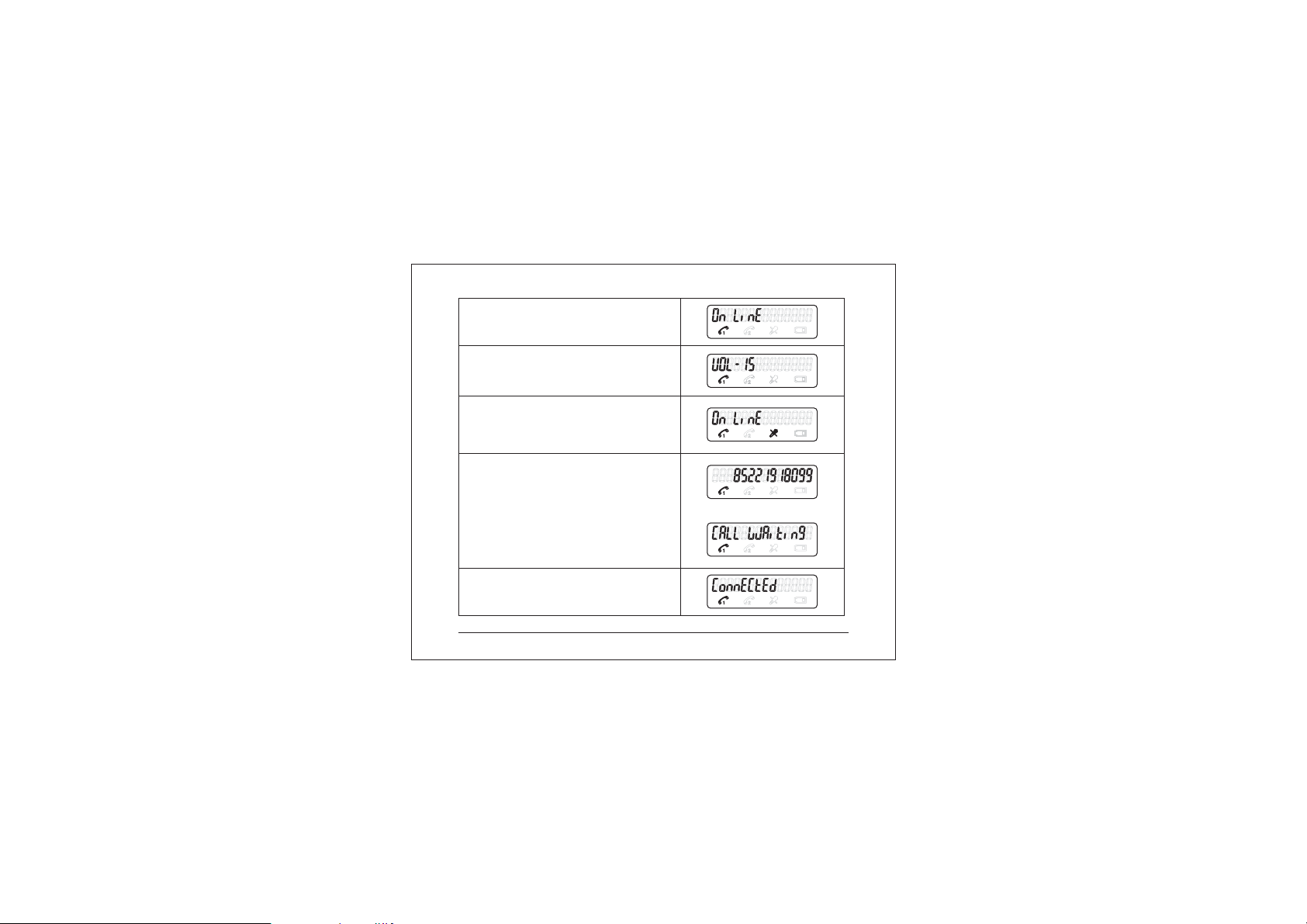

7.4 On Line
When youare talking on line, the LCD screen
displays “ON LINE”.
Whenever the Volume Up key or Volume Down
key is pressed, the LCD screen displays “ VOL”
and the current volume setting for 2 seconds.
If you mute the microphone, the mute icon
will be turned on. And it stays on until you
cancel it.
When there is another call incoming while
you are on line, the LCD screen will show
Caller ID if it is received or “CALLWAITING”.
Note:
1. Some mobile phones may not display
“CALL WAITING” or Caller ID via this LCD
Display unit.
2. Some phones may not support this feature.
When the call is ended, it will go back to the
standby state. The LCD screen displays
“CONNECTED”.
OR CALLWAITING
Note: Phone 2 icon will be shown instead if the Car Kit is operating with mobile phone 2.
13
II-8 Answer an Incoming Call
When an incoming call is present, the hands-free Car Kit will ring. Press “On / Off ” key and you
can answer the call. The blue LED will continue to flash once a second while the call is in
session.
II-9 Transfer Calls between this Hands-free Car Kit and your Phone
When you are in session, calls can be transferred from your Phone to the hands-free
Car Kit and vice versa.
1 From Phone to the Car Kit
Bluetooth
Press “On / Off ” key once, the call will be transferred to the Car Kit.
2 From Car Kit to the Phone
Please follow the operation manual of your phone.
II-10 Make a New Call by Using Voice Dialing
1 When using a Mobile Phone:
1.1 Press “On / Off ” key on the hands-free Car Kit shortly when the Car Kit is standby.
Note: Make sure that thevoice dialing function is properly set up in the mobile phone and
it is within the range of the hands-free Car Kit.
1.2 Put through the call
After the beep tone on the hands- free Car Kit, you can make a voice dial by saying the
name of the person on the hands-free Car Kit. The call will be connected in a few
seconds.
2 When using a mobile phone without built-in and requiring a
dongle:
2.1 Press “On / Off ” key on the hands-free Car Kit shortly when the Car Kit is standby.
Note: Make sure that the voice dialing function is properly set up in the Mobile phone and
it is within the range of the hands-free Car Kit.
2.2 Put through the call
After the beep tone on the hands - free Car Kit, you can make a voice dial and the call will
be connected in a few seconds.
Bluetooth
Bluetooth
Bluetooth Bluetooth
14
Bluetooth
Bluetooth
II-11 A nswer the call waiting
uring the active call in session if another call is coming, pressing“Volume Down” key for 2
D
seconds will make the mobile phone switch to the waiting call and place the active call on
hold. Press “Volume Down” key for 2 secondsagain, mobile phone will come back to the first
active call.
II-12 Mute the Microphone
1 Tomuteacall
Press“ Volume Up” key for about 2 seconds and a beep tone will indicate the microphone is
muted. Aperiodic reminder tone will be heard while the mute function is active.
2 Toun-muteacall
When the microphone is muted, press “Volume Up” key for about 2 seconds. Then the mute
function will end and the periodic reminder tone will stop.
II-13 End a Call
While a call is in session on the hands-free Car Kit, press “On/Off ” key and you will disconnect
the call. A long tone will indicate that the call has ended After the call is disconnected, the
blue LED will flash normally.
II-14 Reject a Call
When the hands- free Car Kit is ringing, press “On/Off” key for 2 seconds. Ringing will stop and a
long tone will indicate that the call is rejected.
II-15 Redial Last Dialed Number
To redial the last dialed number, press “Volume Down” key for 2 seconds when the Car Kit is
standby, a beep tone will indicate an attempt to redial.
II-16 Adjust the Speaker Volume
While a call is in session, pressing and releasing “Volume Up” key will increase the speaker
volume, and pressing and releasing “Volume Down” key will decrease the speaker volume. A
double tone will be heard whenever the volume limit is reached..
15
II-17 Turn off the Hands-free Car Kit
When the hands-free Car Kit is on, press and hold “On/Off ” key for 5 seconds. A long tone will
indicate that the Car Kit starts to power off. LED continues to flash for a few seconds. At last
LED will turn off and the Car Kit is powered off.
II-18 Auto connection to the Mobile Phone
The Car Kit has already been paired with a Bluetooth mobile phone. If it is turned off and
turned back on again, it will search for the last connected Bluetooth link. If the previously
paired mobile phone’s Bluetooth feature is on, the Car Kit and the mobile phone will reestablish the Bluetooth link automatically.
III. Maintenance andSafe Use
- Use dry cloth to clean hands-free car kit!
- Do not expose the car kit to liquid or moisture!
- Do not expose the car kit to fire or open flames!
Bluetooth
Note: Not all functions may be available on all phones.
IV. Package Contents
Alcohol
PrepPad
FORPROFESSIONALANDHOSPITAL USE
Accessories
1 x Metal stand
2 x Double-sided adhesive tape
for metal stand
1 x Alcoholpreppad
Status
Provided
Provided
Provided
1x Air Vent Clip
16
Optional
Note:
BQB, CE and FCC approved
The word mark and logos are owned by the SIG, Inc.
Bluetooth Bluetooth
And anyuse of such marks by is under license. Other trademarks and trade
names are those of their respective owners.
Bluetooth functions and operations may not be available or may vary depending on different
mobile phones.
Sound Around Inc.
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
17
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC RadiationExposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between theradiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Sound Around Inc. PBT70R
GHz by specified firmware controlled in U.S.A.
declares that (FCC ID: NV6-CS8110) is limited in CH1~CH11 for 2.4
,
Bluetooth Qualified Design ID: B012322
Sound Around Inc.
1600 63rdStreet
Brooklyn N.Y. 11204, USA
Phone: 1-800-444-5671 718-535-1800
Fax: 718-236-2400
18
()
()
Loading...
