About This Guide

Thank you for choosing the SoundPoint IP 32x/33x SIP, a full-duplex, hands-free phone. This unit provides business telephony features and functions such as multiple call appearances, call hold, transfer, and conference over an IP network.

This User Guide provides everything you need to quickly use your new phone. Verify with your system administrator that the network is prepared for configuring your SoundPoint IP 32x/33x SIP phone. As well, read the Parts

List and Regulatory Notices sections in this guide before you set up and use

the SoundPoint IP 32x/33x SIP phone. This information can also be found at

http://www.polycom.com/support/voip/

Changes to this Guide

Major updates have occurred to the following sections since the previous edition:

• Connecting the Handset and Optional Headset on page 1-5

The following section is new for this edition:

• Backlight Intensity on page 2-3

iii

User Guide for the SoundPoint IP 32x/33x Desktop Phone

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

1 Getting Started with Your SoundPoint IP 32x/33x Phone . . 1–1

2 Customizing Your SoundPoint IP 32x/33x

Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Changes to this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Assembling Your SoundPoint IP 32x/33x Phone . . . . . . . . . . . . . . . . . . . . 1–3

Connecting Network and Power Source . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Connecting the Handset and Optional Headset . . . . . . . . . . . . . . . . . 1–5

Attaching the Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Registering the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

Features of Your SoundPoint IP 32x/33x Phone . . . . . . . . . . . . . . . . . . . . 1–9

Before You Use Your SoundPoint IP 32x/33x Phone . . . . . . . . . . . . . . . . 1–12

Configuring Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Appearance of Time and Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Display Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Backlight Intensity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Headset Memory Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Electronic Hookswitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Ring Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

Language Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

Directory Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

Muting the Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

Managing Call Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10

Managing Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

Adding Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

Editing Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

Deleting Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–16

User Guide for the SoundPoint IP 32x/33x Desktop Phone

Placing a Call to a Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–16

Searching For a Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

Managing Incoming Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–19

Distinguishing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–19

Rejecting Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–19

Diverting Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20

System Customizations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–21

Supporting Multiple Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–21

Supporting Multiple Line Keys Per Line . . . . . . . . . . . . . . . . . . . . . . 2–22

Supporting Shared Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–22

3 Using the Basic Features of Your SoundPoint IP 32x/33x

Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

Placing a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7

Redialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–8

Placing a Call on Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–8

Setting Up Conferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9

Transferring Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–10

Forwarding Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–12

Enabling Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–14

Assigning Speed Dial Indexes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–14

Using Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–16

4 Using the Advanced Features of Your SoundPoint IP 32x/33x

Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

SIP-B Automatic Call Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Using Multiple Call Appearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

Using Buddy Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Presence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Managing Buddies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Integrating With Microsoft Live Communications Server 2005 . . . . 4–7

Restarting Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

5 Troubleshooting Your SoundPoint IP 32x/33x Phone . . . . . 5–1

Power and Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

Contents

Access to Screens and Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

Productivity Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

Testing Phone Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

Regulatory Notices . . . . . . . . . . . . . . . . . Regulatory Notices–1

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Index–1

End-User License Agreement for Polycom® Software . . EULA–1

vii

User Guide for the SoundPoint IP 32x/33x Desktop Phone

viii

Getting Started with Your SoundPoint IP 32x/33x Phone

This chapter provides basic installation instructions and information for obtaining the best performance with the SoundPoint IP 32x/33x (SoundPoint IP 320, 321, 330, 331, or 335) phone.

The SoundPoint IP 32x/33x provides a powerful, yet flexible IP communications solution, delivering excellent voice quality. The graphic display supplies content for call information, multiple languages, directory access, and system status. The SoundPoint IP 32x/33x supports advanced functionality, including multiple call and flexible line appearances, presence, custom ring tones, local conferencing, HTTPS secure provisioning, and Polycom’s superb voice quality. The SoundPoint IP 335 uses Polycom® HD™ Voice technology.

This chapter contains:

• Parts List

• Assembling Your SoundPoint IP 32x/33x Phone

• Features of Your SoundPoint IP 32x/33x Phone

• Before You Use Your SoundPoint IP 32x/33x Phone

To customize your phone, refer to Customizing Your SoundPoint IP 32x/33x

Phone on page 1-1. To read about the phone’s basic features, refer to Using the Basic Features of Your SoundPoint IP 32x/33x Phone on page 3-1. To read

about the phone’s advanced features, refer to Using the Advanced Features of

Your SoundPoint IP 32x/33x Phone on page 4-1.

If you require additional information or assistance with your new phone, contact your system administrator.

1 - 1

User Guide for the SoundPoint IP 32x/33x Desktop Phone

Parts List

The following components are included in your SoundPoint IP 32x/33x package:

• Polycom SoundPoint IP 32x/33x phone

Line 1Dial

Line 2

DEF

ABC

Hold

MNOJKLGHI

PQRS

TUV8WXYZ

OPER

• Handset and Handset Cord

1 - 2

• Phone Base

• Network / Power Cable

Getting Started with Your SoundPoint IP 32x/33x Phone

• Quick Start Guide and registration card

Ensure that you have received each item. If you are missing any items, contact your system administrator.

Assembling Your SoundPoint IP 32x/33x Phone

This section describes how to assemble your SoundPoint IP 32x/33x phone. Topics include:

• Connect network and power source

• Connect handset and headset (optional)

• Attach phone base

If your phone is already assembled, go to Features of Your SoundPoint IP

32x/33x Phone on page 1-9.

1 - 3

User Guide for the SoundPoint IP 32x/33x Desktop Phone

Connecting Network and Power Source

Use Power over Ethernet (PoE) for network and power source connections unless otherwise directed by your system administrator.

Note

The AC power adapter is a separate, optional accessory. Your system administrator will provide one if necessary.

Power over Ethernet

Using a regular CAT5 cable (optional accessory from Polycom), the phone can be powered from a PoE (IEEE 802.3af) compliant switch or hub.

To connect using a PoE source:

• Plug the supplied network cable between the LAN jack on the phone and an available power and data port on the in-line power switch.

IEEE802.3af compliant PoE Hub/Switch/Midspan Unit

Power Adapter

(Optional Accessory)

Optional PC Port

(SoundPoint IP 33x Only)

1 - 4

Note

The SoundPoint IP 33x phones have an optional PC connection. The SoundPoint IP 32x phones do not.

If you want to use the optional PC connection on the SoundPoint IP 33x, a separate ferrite clamp (not included) is required. Contact your system administrator.

Connecting the Handset and Optional Headset

To connect the handset and optional headset:

1. Connect the short straight end of the phone cord to the handset and the

corresponding longer straight end of the cord to the handset jack on the back of the phone

Getting Started with Your SoundPoint IP 32x/33x Phone

2. Connect the headset (optional) to the headset jack on the back of the phone.

SoundPoint IP 320, 321, 330 and 331:

SoundPoint IP 335:

Headset

(Not Included)

Headset

Adapter

(Not Included)

Headset

(Not Included)

1 - 5

User Guide for the SoundPoint IP 32x/33x Desktop Phone

For information on supported headsets, go to www.polycom.com/sup-

port/voice/soundpoint_ip/VoIP_Technical_Bulletins_pub.html and look for “Techni-

cal Bulletin 37477: Headset Compatibility List”.

Note

Attaching the Base

For headsets terminated in RJ-9 modular jacks to be used with SoundPoint IP 320, 321, 330, and 331 phones, a separate Headset Jack Adapter (P/N 2457-11095-001) is required. To purchase the Headset Jack Adapter, contact your reseller.

Plug the headset RJ9 jack into the adapter, and then plug the adapter into the

2.5mm port on the right side of the phone as shown below. The headset operates as before.

If headsets are deployed in high static environments where users frequently disconnect and re-connect the headset to the phone, it is possible that the phone can be damaged by electrostatic discharge (ESD).

You should take precautions to avoid excessive static buildup in your environment. This can include humidity control and removal of synthetic materials near the phone location. Antistatic spray applied to carpets in the workplace can reduce the level of static buildup.

Attach the phone base to the phone in one of the following ways:

• As a desk mount

• As a wall mount

1 - 6

For more detailed instructions, go to

http://www.polycom.com/support/voip/and search for the “Wallmount

Instructions for SoundPoint IP Phones” quick tip.

Getting Started with Your SoundPoint IP 32x/33x Phone

To attach the base as a desk mount:

1. Place all cords in the recessed area above the modular jacks.

2. Align the protrusions on the bracket with their corresponding holes in the

phone.

3. Snap them together to lock the bracket to the phone.

1 - 7

User Guide for the SoundPoint IP 32x/33x Desktop Phone

To attach the base as a wall mount:

1. Place all cords in the recessed area below the modular jacks.

2. On the back of the phone, remove the key located behind the hook switch

and reposition it so that the end tab (at a 45

angle) is facing up.

3. Using wall anchors (not included), fasten the base stand with the mounting tab facing up.

4. Align the base stand tabs with their corresponding insertion points on the phone, and then snap the phone into place (as shown).

Registering the Phone

1 - 8

Generally, your phone will be deployed with multiple other phones. In this case, your system administrator will configure the phone parameters beforehand, so that after you set up your phone, the phone will be registered and ready to use.

Getting Started with Your SoundPoint IP 32x/33x Phone

If your phone is not part of a large phone deployment, your phone may not be registered after you set it up. Before you use your phone, you or your system administrator will have to register it. For detailed information on how to register your phone after you install it, see Quick Tip 44011: Register Standalone SoundPoint® IP, SoundStation® IP, and Polycom® VVX™ 1500 Phones available at http://www.polycom.com/usa/en/support/voice/soundpoint_ip/

VoIP_Technical_Bulletins_pub.html

Features of Your SoundPoint IP 32x/33x Phone

217

Line 1Dial

Line 2

13 5

DEF

ABC

TUV8WXYZ

OPER

Hold

MNOJKLGHI

PQRS

The features of the SoundPoint IP 32x/33x phone are:

1. Message Waiting Indicator—This will alert you to voice and text (instant) messages.

2. Line Icons—Use these keys to activate up to lines that can be assigned to your phone. The associated icons represent:

— Registered line

— Registered shared line

— Unregistered line

— VoiceMail/Messages

1 - 9

User Guide for the SoundPoint IP 32x/33x Desktop Phone

— Speed-Dial

— Ringing

— Call in progress/Conference

— Call Forward

— Do Not Disturb

— Presence/BLF

3. Soft Keys—The screen will display labels for these keys, to identify their context-sensitive functions.

4. Line Indicators—Individual multi-color LEDs display the dynamic call state and remote user status (busy lamp field (BLF) and presence). The LED’s indicate the following:

— Solid green—An active call is in progress.

— Fast flashing green—There is an Incoming (ringing) call.

— Flashing green—The call is held by the other party.

— Flashing red—The call is on hold.

— Solid red—The line is busy remotely (shared lines).

5. Line Keys and —Activate up to two lines that can be assigned to your phone.

6. Hold —Holds an active call or resumes a held call.

7. Headset —Allows you to place and receive calls through an

optionally connected headset.

8. Speakerphone —Allows for hands-free communication during

calls.

9. Hands-free Microphone—Picks up audio during hands-free calls. Place your phone on a hard, flat surface for best results.

10. Volume Keys —Adjusts the volume of the handset, headset, speaker, and ringer.

1 - 10

11. Microphone Mute —Mutes local audio during calls.

Getting Started with Your SoundPoint IP 32x/33x Phone

12. Dial Pad—Provides the 10 digits, alphabetic characters, and special characters available in context-sensitive applications.

13. Feature Keys—Access important features using these keys.

— —Dials phone numbers or allows you to view the placed

call list.

— —Accesses local (your phone) and call server features.

14. Display Control Keys—Use , , , and (arrow keys)

to scroll through the displayed information.

Use (the Select key) to select a field of displayed data or enter edit

mode for some settings.

15. Speaker—For ringer and hands-free audio output.

16. Hookswitch

17. Graphic Display—Shows information about calls, messages, soft keys,

time, date, and other relevant data.

— Important messages appear on the idle display through an animated

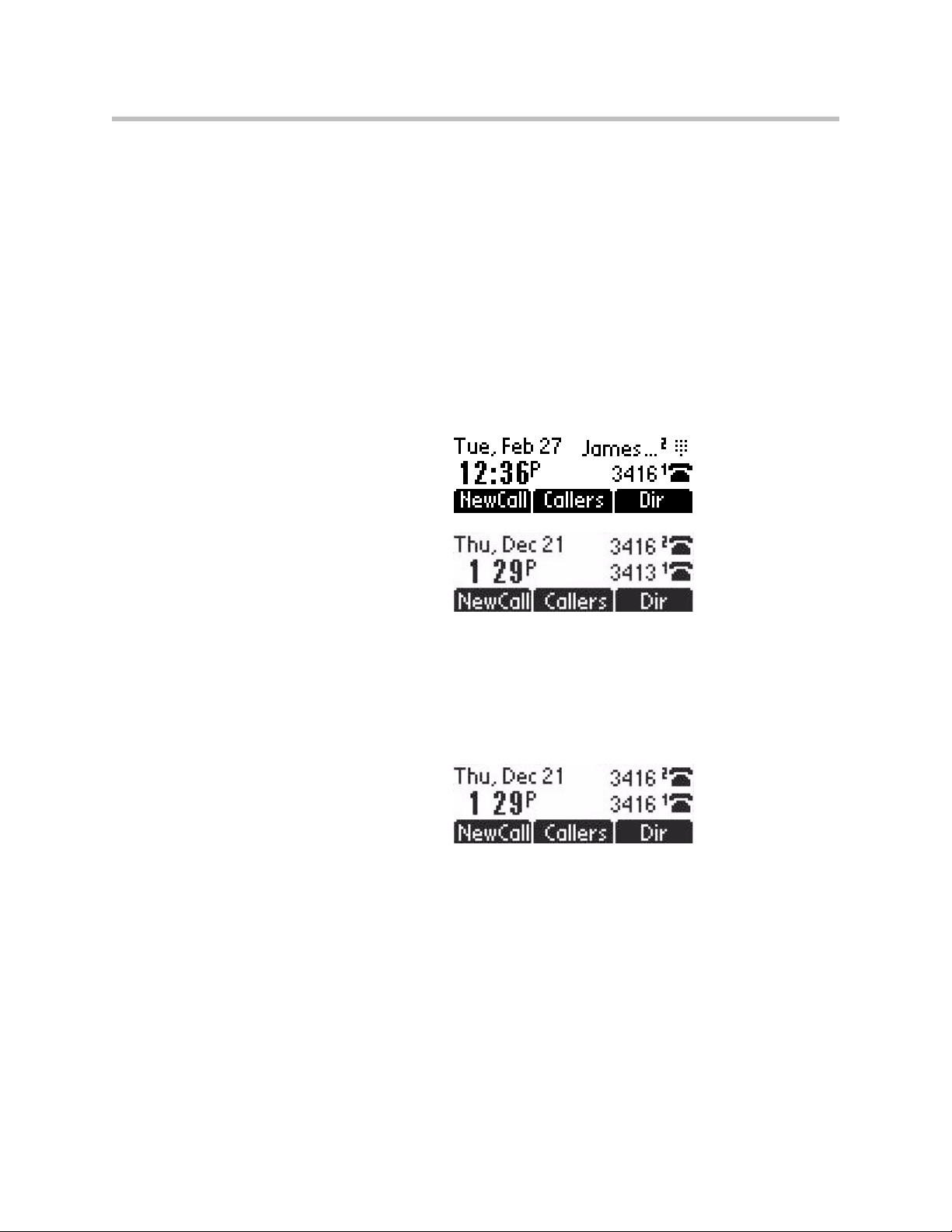

scrolling list, which has precedence over the idle display. The following figures show a phone with four messages. The messages continuously scroll over the screen.

1 - 11

User Guide for the SoundPoint IP 32x/33x Desktop Phone

Before You Use Your SoundPoint IP 32x/33x Phone

To navigate through menus and to enter data, these are useful tips:

• Press to enter the basic settings menu or exit from any menu.

• Press and or hold and down to scroll through the

lists.

Note

Press the * key to page up. Press the # key to page down. These shortcuts can be used when lists appear on more than one page. However, these shortcuts do not work in the Contact Directory.

• Use the dial pad keys to navigate through and make selections in numbered menu lists.

• The navigation guide icon in the top left-hand corner of the graphic display shows which arrow keys can be used at a particular sublevel.

For example, the following figure shows that , , , and

can be used at this point.

After 20 seconds of inactivity, the menu system will also automatically exit to the idle display unless an edit session is in progress.

• To enter text using the dial pad, press the number keys one or more times.

1 - 12

For example, for ‘A’ press ‘2’ and for ‘C’ press ‘222’. The text that can be entered by a key is shown beneath the entry line. This is true for all languages that can be displayed by the phone. When in text entry mode, the title will show whether keys will generate numbers (1) or characters (a or A).

Getting Started with Your SoundPoint IP 32x/33x Phone

The type of text entry available is displayed in the title line.

Switch between alphabetic (with and without an uppercase letter first) and numeric text entry by pressing the # key. Special characters like * and _ are considered alphabetic and appear when you press *, 1, or 0.

Switch to uppercase by pressing and to lowercase by pressing .

Note

Pressing the # also allows for URL or IP address entry. These options are only available to system administrators in appropriate menu items. For example, when editing directory contacts use “Abc”, “abc”, or “123” and when editing server addresses use “URL”, “IP”, or “123”.

To enter the “#” character, use the “*” key to access the appropriate special character. “#” cannot be entered using its own key because it is used to change text entry modes.

• Press and hold (for one second) from the idle display:

— to point to the contact in the directory system where you

can scroll through the individual fields.

— to the Placed Calls list when the phone is idle.

Pressing again will call the currently highlighted number.

Pressing while in the dialing editor will dial the current number.

• Press and hold the Backspace soft key to delete an entire field.

1 - 13

User Guide for the SoundPoint IP 32x/33x Desktop Phone

1 - 14

Customizing Your SoundPoint IP 32x/33x Phone

You can customize your SoundPoint IP 32x/33x desktop phone by adjusting the setting for time and date, display contrast, and ring type, for example. You can add contacts to the phone’s directory manually or from call lists. You can handle incoming calls from different contacts in different ways.

This chapter provides basic operating instructions for customizing your SoundPoint IP 32x/33x phone. This chapter contains instructions on:

• Configuring Basic Settings

• Managing Call Lists

• Managing Contacts

• Managing Incoming Calls

Some customizations of your SoundPoint IP 32x/33x phone are performed by your system administrator. These include:

• Supporting Multiple Lines

• Supporting Multiple Line Keys Per Line

• Supporting Shared Lines

To read about the phone’s basic features, refer to Using the Basic Features of

Your SoundPoint IP 32x/33x Phone on page 3-1. To read about the phone’s

advanced features, refer to Using the Advanced Features of Your SoundPoint

IP 32x/33x Phone on page 4-1.

If you require additional information or assistance with your new phone, contact your system administrator.

2 - 1

User Guide for the SoundPoint IP 32x/33x Desktop Phone

Configuring Basic Settings

To configue basic settings, press , and then select Settings > Basic. You can configure the following basic settings:

• The appearance of the time and date

• Display contrast

• Backlight intensity (SoundPoint IP 335 only)

• Headset Memory Mode

• Headset hookswitch selection

• Ring type

• Language support (localization)

• Directory search

You can mute the microphone and adjust the volume using separate keys.

Appearance of Time and Date

The time and date appears on the graphic display of the SoundPoint IP 32x/33x SIP phone. If the phone cannot obtain a time and date from a configured SNTP server, the display will flash. Contact your system administrator if either the time or date is incorrect.

You have control over the format of the time and date display and can turn the display of time and date off. The default time and date format appears in the following figure.

To configure the time and date:

1. Press .

2. Select Settings > Basic > Preferences > Time & Date.

3. Select from Clock Date, Clock Time, Clock Order, or Enable/Disable.

4. Scroll through the options under each of these selections using the

2 - 2

and .

Display Contrast

Customizing Your SoundPoint IP 32x/33x Phone

5. Press to confirm your choice.

For example, the following figure shows Clock Time.

6. Press or repeatedly to return to the idle display.

To adjust the contrast on the display to a comfortable level:

1. Press .

2. Select Settings > Basic > Contrast.

Backlight Intensity

Note

3. Press the Up or Down soft keys to increase or decrease the display contrast.

4. Press the Save soft key to accept changes or to cancel changes.

5. Press or repeatedly to return to the idle display.

Backlight is available on the SoundPoint IP 335 only.

Backlight intensity has three components:

• Backlight On

• Backlight Idle

• Maximum Intensity

You can modify the Backlight On intensity and the Backlight Idle intensity separately. You can select high, medium, low, and off levels for both.

2 - 3

User Guide for the SoundPoint IP 32x/33x Desktop Phone

When you modify the Maximum Intensity, you are modifying the entire backlight intensity scale. For example, if you decrease the Maximum Intensity, the low, medium, and high values for both Backlight On intensity and the Backlight Idle intensity decrease.

The Backlight On intensity applies for the following events:

• Any key press

• Hookswitch release

• Incoming calls

• Ending a call, holding a call, resuming a call by the other party

• A voice or instant message received

If you do not press any keys on the phone, after 20 seconds of the backlight turning on, the backlight dims (or changes) to medium in the following cases:

• A call is in progress

• A call is on hold

• There is an incoming call (ringing)

• There is an outgoing call (ringing back)

• Any menu shows on the display

In all other cases, the Backlight Idle intensity applies.

To modify the backlight intensity:

1. Press .

2. Select Settings > Basic > Backlight Intensity.

2 - 4

Customizing Your SoundPoint IP 32x/33x Phone

3. Select Backlight On Intensity.

4. Use or to select high, medium, low, or off, and then press the

Select soft key.

The default level is High.

5. Select Backlight Idle Intensity.

6. Use or to select high, medium, low, or off, and then press the

Select soft key.

The default level is low.

7. Select Maximum Intensity.

8. Press the Up or Down soft keys to increase or decrease the backlight

intensity.

9. Press the Ok or Cancel soft keys to accept or cancel changes.

10. Press to return to the idle display.

2 - 5

User Guide for the SoundPoint IP 32x/33x Desktop Phone

Headset Memory Mode

This feature is especially useful for permanent or full-time headset users.

To permanently enable the Headset Memory Mode:

1. Press .

2. Select Settings > Basic > Preferences > Headset > Headset Memory.

3. Use the or to select Enabled.

4. Press to confirm your choice.

5. Press or repeatedly to return to the idle display.

Electronic Hookswitch

Repeat steps 1 to 4 to select Disabled and turn Headset Memory Mode off.

To activate Headset Memory Mode:

Press twice.

Pressing or Answer soft key to receive a call will now connect to the your headset automatically.

This feature enables electronic hookswitch support.

For information on supported headsets to provide electronic hookswitch features for placing, answering, and ending calls, go to www.polycom.com/support/voice and enter “Headset Compatibility List” in the Knowledge Base text box or contact your system administrator.

To select a headset that supports electronic hookswitch:

1. Press .

2 - 6

2. Select Settings > Basic > Preferences > Headset > Analog Headset Mode.

Ring Type

Customizing Your SoundPoint IP 32x/33x Phone

3. Use the or to select your headset and press the Select soft key.

4. Press or the Exit soft key repeatedly to return to the idle.

You can select from the different ring types to distinguish between lines or to have a different ring from your neighbor’s phone. You can set distinctive incoming ringing tones for contacts in your local directory (refer to Editing

Contacts on page 1-3).

To change the incoming ring to a desired sound:

Note

1. Press .

2. Select Settings > Basic > Ring Type.

3. (Optional) If multiple lines are configured on your phone, first select the

line to change from the list using and .

4. Using and , select the desired ring type.

Press the Play soft key to hear the selected ring type.

5. Press the Select soft key to change to the selected ring type.

6. Press or repeatedly to return to the idle display.

If you configure your SoundPoint IP 32x/33x phone for silent ring, press the ringing Line key or the Answer soft key to answer the call. If your handset is off hook, the call is routed to the handset. If your handset is on hook, the call is routed to the speaker.

2 - 7

+ 67 hidden pages
