Generator
Instruction
manual
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
The Model and Serial No. plate is located on the frame. Record these
numbers in the spaces below and retain for future reference.
Model No.
Type
Serial No.
ESPAÑOL: PÁGINA 23
FRANÇAIS: PAGE 45
IMPORTANT
Please make certain that the person who is to use this equipment
carefully reads and understands these instructions before starting
operations.
Model
BSV750
PROFESSIONAL POWER TOOLS
Copyright © 2000 PORTER-CABLE Corporation
Part No. D24130-023-1
Shown with optional portability kit
2 — ENG
This product is not equipped with a spark arresting muffler. If the product will be used around
flammable materials, or on land covered with materials such as agricultural crops, forest, brush, grass, or
other similar items, then an approved spark arrester must be installed and is legally required in the state of
California. It is a violation of California statutes section 130050 and/or sections 4442 and 4443 of the California Public Resources Code, unless the engine is equipped with a spark arrestor, as defined in section
4442, and maintained in effective working order. Spark arresters are also required on some U. S. Forest
service land and may also be legally required under other statutes and ordinances.
This product may contain chemicals known to the state of California to cause cancer, birth defects, or other
reproductive harm. This warning is given in compliance with California Proposition 65, as detectable
amounts of chemicals subject to proposition 65 may be contained in this product.
•
•
SPECIFICATION
MODEL BSV750
HORSE POWER 13
RATED/SURGE WATTS 7500/10,750
VOLTAGE 120/240
AMPERAGE 62.5/31.25
PHASE SINGLE
FREQUENCY 60 Hz
ENGINE SPEED 3600 RPM
MAX. AMBIENT TEMP. 104° F
FUEL CAPACITY 7 GALLON
RUN TIME @ 50%/100% 9.4/5.4HRS
3 — ENG
WARRANTY
Porter-Cable Corporation
4825 Highway 45 North
P.O. Box 2468
Jackson, TN 38302-2468
1-888-559-8550
PORTER-CABLE CORPORATION warrants to the original purchaser that each new electric generator and service part is
free from defects in material and workmanship, and agrees to repair or replace under this warranty any defective product or
part as follows from the original date of purchase.
2 YEARS – Limited warranty on electric generator alternators and 1 year limited warranty on all other parts.
90 Days – Service parts
Engine warranties are the responsibility of the engine manufacturer. Warranties of merchandise sold by Porter-Cable which
has been manufactured by and identified as the product of another company are the responsibility of the manufacturer of
that product.
THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COVER
Products sold damaged or incomplete, sold “as is,” sold reconditioned, or used as rental equipment.
Delivery, installation, or normal adjustments explained in the owner’s manual.
Damage or liability caused by shipping, improper handling, improper installation, improper maintenance, improper
modification, or the use of accessories and/or attachments not specifically recommended by PORTER-CABLE for the
product.
Repairs necessary because of operator abuse or negligence, or the failure to install, operate, maintain, and store the
product according to the instructions in the owner’s manual.
Damage caused by cold, heat, rain, excessive humidity, corrosive environments and materials, or other contaminants.
Expendable items that become worn during normal use such as fuel filters, air cleaners, spark plugs, and engine oil.
Cosmetic defects that do not interfere with product functionality.
Freight costs from customer to Porter-Cable.
Repair and transportation costs of products or parts determined not to be defective.
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM
ANY DEFECT, FAILURE OR MALFUNCTION OF THE PRODUCT. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
WARRANTY SERVICE is available by delivering or shipping the defective product or part to any Porter-Cable authorized
warranty service location. To determine the nearest authorized warranty service location, call the toll free number, 1-888559-8550, 24 hours a day, 7 days a week. Specific instructions regarding servicing arrangements and scheduling may vary
depending on the type and size of the product and the availability of repair parts.
DO NOT return the defective product to the retailer.
Retain the original cash register sales receipt as proof of purchase for warranty work.
Purchasers should contact Porter-Cable directly if they do not receive satisfactory results from the authorized warranty
service center.
4 — ENG
Attempting to connect generator
directly to the electrical system of
any building structure.
Back feeding electricity through a
building’s electrical system to the outside utility feed lines could en-danger
repair persons attempting to restore
service.
Never backfeed electricity through
a structure's electrical system.
HAZARD
HOW TO PREVENT ITWHAT COULD HAPPEN
RISK OF ELECTROCUTION AND FIRE
When using this product basic pre cautions should always be
followed including the following:
• SAVE THESE INSTRUCTIONS •
IMPORTANT SAFETY INSTRUCTIONS
SAFETY GUIDELINES - DEFINITIONS
Information that you should pay special
attention to.
This manual contains information that
is important for you to know and understand. This information relates to
protecting YOUR SAFETY and PRE-
VENTING EQUIPMENT PROBLEMS. To help you recognize this
information, we use symbols to the
right. Please read the manual and pay
attention to these sections.
URGENT SAFETY INFORMATION - A HAZARD
THAT WILL CAUSE SERIOUS INJURY OR
LOSS OF LIFE.
IMPORTANT SAFETY INFORMATION - A
HAZARD THAT MIGHT CAUSE SERIOUS
INJURY OR LOSS OF LIFE.
Information for preventing damage to
equipment.
To connect to a structure's electrical system in a safe manner,
always have a Double-Throw
Transfer Switch installed by a qualified electrician and in compliance
with local ordinances. (When in-
stalling a Double-Throw Transfer
Switch, a minimum of 10 gauge
wiring must be used.)
Attempting to connect to the incoming utility service could result in electrocution.
Restoration of electrical service while
the generator is connected to the
incoming utility could result in a fire or
serious damage if an isolator switch is
not installed.
Failure to use a double throw transfer
switch when connecting to a structure's electrical system can damage
appliances and WILL VOID the
manufacturer's warranty.
5 — ENG
READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.
RISK OF ELECTROCUTION AND FIRE (cont’d)
HAZARD
HOW TO PREVENT ITWHAT COULD HAPPEN
Operation of generator in rain, wet,
icy, or flooded conditions.
Water is an excellent conductor of
electricity! Water which comes in
contact with electrically charged components can transmit electricity to the
frame and other surfaces, resulting in
electrical shock to anyone contacting
them.
Operate generator in a clean, dry,
well ventilated area. Make sure
hands are dry before touching
unit.
Use of worn, damaged, undersized
or ungrounded extension cords.
Placing generator on or against
highly conductive surface, such as
a steel walkway or metal roof.
Improper connection of items to
generator.
Operation of unit when damaged,
or with guards or panels removed.
Contact with worn or damaged extension cords could result in electrocution.
Use of undersize extension cords
could result in overheating of the
wires or attached items, resulting in
fire.
Use of ungrounded cordsets could
prevent operation of circuit breakers
and result in electrical shock.
Accidental leakage of electrical
current could charge conductive
surfaces in contact with the generator.
Exceeding the load capacity of the
generator by attaching too many
items, or items with very high load
ratings to it could result in overheating of some items or their attachment
wiring resulting in fire or electrical
shock.
Attempting to use the unit when it has
been damaged, or when it is not functioning normally could result in fire or
electrocution.
Removal of guarding could expose
electrically charged components and
result in electrocution.
Inspect extension cords before
use and replace with new cord if
required.
Use proper size (wire gauge)
cordset for application see chart
in the Assembly section of this
manual.
Always use a cordset having a
grounding wire with an
appropriate grounding plug. DO
NOT use an ungrounded plug.
Place generator on low conductivity surface such as a concrete
slab.
ALWAYS operate generator a minimum of six feet from any conductive surface.
Do not operate generator with
protective guarding removed.
Read the load rating chart and instructions in the Wattage Calculation section. Make sure that the
summation of electrical loads for
all attachments does not exceed
the load rating of the generator.
Do not operate generator with
mechanical or electrical problem.
Have unit repaired by an Authorized Service Center.
6 — ENG
READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.
RISK OF FIRE
HAZARD
HOW TO PREVENT ITWHAT COULD HAPPEN
Attempting to fill the fuel tank while
the engine is running.
Sparks, fire, hot objects
Improper storage of fuel
Inadequate ventilation for generator
Tampering with factory set engine
speed settings.
Overfilling the fuel tank – fuel spillage.
Gasoline and gasoline vapors can
become ignited by coming in contact
with hot components such as the
muffler, engine exhaust gases, or from
an electrical spark.
Cigarettes, sparks, fires, or other hot
objects can cause gasoline or gasoline vapors to ignite.
Improperly stored fuel could lead to accidental ignition. Fuel improperly secured could get into the hands of children or other unqualified persons.
Materials placed against or near the
generator or operating the generator in
areas where the temperature exceeds
104° F. ambient (such as storage rooms
or garages) can interfere with its proper ventilation features causing overheating and possible ignition of the
materials or buildings.
Engine speed has been factory set to
provide safe operation. Tampering with
the engine speed adjustment could result in overheating of attachments and
could cause a fire.
Spilled fuel and its vapors can become
ignited from hot surfaces or sparks.
Turn engine off and allow it to cool
before adding fuel to the tank.
Equip area of operation with a fire
extinguisher certified to handle
gasoline or fuel fires.
Add fuel to tank in well ventilated
area. Make sure there are no
sources of ignition near the generator.
Store fuel in a OSHA approved
container designed to hold
gasoline. Store container in secure
location to prevent use by others.
Operate generator in a clean, dry,
well ventilated area a minimum of
four feet from any building, object
or wall. DO NOT OPERATE UNIT
INDOORS OR IN ANY
CONFINED AREA.
Never attempt to “speed-up” the
engine to obtain more performance. Both the output voltage
and frequency will be thrown out of
standard by this practice,
endangering attachments and the
user.
Use care in filling the tank to
avoid spilling fuel. Make sure fuel
cap is secured tightly and check
engine for fuel leaks before
starting engine. Move generator
away from refueling area or any
spillage before starting engine.
Allow for fuel expansion. Keep
maximum fuel level 1/2 inch below
the tip of the fuel tank. Never
refuel with the engine running.
7 — ENG
READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.
RISK OF BREATHING - INHALATION HAZARD
Operate generator in clean, dry,
well ventilated area. Never operate
unit in enclosed areas such as
garages, basements, storage,
sheds, or in any location occupied
by humans or animals. Keep children, pets and others away from
area of operating unit.
Breathing exhaust fumes will cause
serious injury or death.
Gasoline engines produce toxic carbon monoxide exhaust fumes.
HAZARD
HOW TO PREVENT IT
WHAT COULD HAPPEN
Risk of Injury and Property Damage When
Transporting Generator
If generator is equipped with a fuel
shut-off valve, turn the valve to the
off position before transporting to
avoid fuel leaks. If generator is not
equipped with a fuel shut-off valve,
drain the fuel from tank before
transporting. Transport fuel only in
an OSHA approved container.
Always place generator on a
protective mat when transporting
to protect against damage to
vehicle from leaks. Remove
generator from vehicle immediately
upon arrival at your destination.
Fuel or oil can leak or spill and could
result in fire or breathing hazard, serious injury or death can result. Fuel or
oil leaks will damage carpet, paint or
other surfaces in vehicles or trailers.
Fire, Inhalation, Damage to Vehicle
Surfaces
HAZARD
HOW TO PREVENT IT
WHAT COULD HAPPEN
8 — ENG
HAZARD
HOW TO PREVENT ITWHAT COULD HAPPEN
During operation, touch only the control surfaces of the generator. Keep
children away from the generator at all
times. They may not be able to recognize the hazards of this product.
Contact with hot surfaces, such as engines exhaust components, could result in
serious burns.
Contact with hot engine and generator
components.
RISK OF HOT SURFACES
READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.
Always use a U.L. listed voltage sensitive surge protector to connect voltage sensitive appliances (TV, computer, stereo, etc.). Failure to use a U.L.
listed voltage surge protector will
void the warranty on your generator.
Notice: A multiple outlet strip is not a
surge protector. Make sure you use a
U.L. listed voltage surge protector.
Any gasoline operated household generator
will incur voltage variations causing damage
to voltage sensitive appliances or could
result in fire.
Operation of voltage sensitive appliances without a voltage surge protector.
RISK OF UNSAFE OPERATION
HAZARD
HOW TO PREVENT ITWHAT COULD HAPPEN
Generator will not operate properly and
will cause damage to the generator and
could cause serious injury or death to you
or others.
Operating generator while suspended Never operate generator while sus-
pended or in an unlevel position.
Always operate generator on a flat,
level surface.
Operation of generator in careless
manner.
All sources of energy include the potential
for injury. Unsafe operation or maintenance of your generator could lead to
serious injury or death to you or others.
• Review and understand all of the
operating instructions a
warnings in this manual.
• Become familiar with the operation and controls of the
generator. Know how to shut it
off quickly.
• Equip area of operation with a
fire extinguisher certified to
handle gasoline or fuel fires.
• Keep children or others away
from the generator at all times.
9 — ENG
RISK FROM LIFTING
HAZARD
HOW TO PREVENT IT
WHAT COULD HAPPEN
The generator is too heavy to be
lifted by one person. Obtain assistance from others before you try to
move it.
Serious injury can result from attempting to lift too heavy an object.
Lifting a very heavy object.
READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.
RISK OF MOVING PAR
TS
HAZARD
HOW TO PREVENT ITWHAT COULD HAPPEN
Never operate generator with guarding or cover plates removed. Avoid
wearing loose fitting clothing or jewelry which could be caught by moving
parts.
The generator contains parts which rotate
at high speed during operation. These
parts are covered by guarding to prevent
injury.
Contact with moving parts can result in
serious injury.
RISK OF BURN-EXPLOSION HAZARD
Wear NIOSH approved goggles
and protective gloves when
handling battery.
Explosive chemicals can cause
blindness,serious injury, or death.
Sulfuric acid is a flammable and
explosive chemical that is harmful to
the skin, eyes, and clothing.
HAZARD
HOW TO PREVENT IT
WHAT COULD HAPPEN
Keep sparks, flame, cigarettes, or
anything flammable away from
battery.
EXTERNAL: Flush with water
EYES: Flush with water for 15
minutes and get prompt medical
attention.
Chemicals come in contact with
eyes or skin.
Chemicals are ingested.
Chemicals can cause blindness,
serious injury, or death.
Ingested chemicals can cause
serious injury or death.
INTERNAL: Drink large quantities
of water or milk. Follow with Milk
of Magnesia, beaten eggs, or
vegetable oil. Call physician
immediately.
10 — ENG
ASSEMBLY
Read this manual. Do not attempt to operate
equipment until you have read this Manual for
Safety, Operation, and Maintenance Instructions.
Grounding Lug
NOTE: This manual is a general manual. Information in this manual may or may not pertain to your
model. Please read carefully.
NOTE: Left and right describes the location of a
part with the operator facing the outlet panel.
REMOVE GENERATOR FROM CARTON
• Open carton from top.
• Cut carton along dotted lines.
• Remove all carton inserts.
• Remove generator through opening in carton.
• (If equipped) See portability Kit instructions to
assemble the portability kit.
• (if equipped) Remove
shipping block from
under the gen head by
unscrewing the bolt and
remove the wood
block. It is very
important that this is
removed before starting your
generator. See Figure 1.
IMPORTANT: Before any attempt to start your generator be sure to check engine oil (See Engine Operator's
manual)
GROUNDING THE GENERATOR
A grounding lug is supplied with the generator for use
when required by local electrical ordinances. Refer to
article 250 of the National Electrical Code to clarify any
needed grounding information. Your local electric company or a certified electrician should be able to help
you with this information.
NOTE: Your engine is already grounded to the frame by
a grounding strap.
Figure 2
Figure 1
TYPICAL INSTALLATION OF BATTERY
● Recommended Battery for Electric
Start: 12V - 45 A H. or 210 CCA (Cold Cranking
Amps)
● Purchase battery and battery hardware separately,
not included with unit.
1. Place battery in rack with terminals facing towards
generator head.
2. Place battery bracket (A) over battery as shown in
Figure 3 (opposite battery terminals).
3. Place "L" bolt (B) through top and bottom brackets
and secure with wing nut (C).
4. Locate the solenoid on the left side of the unit. See
Figure 4.
To Prevent sparks connect the red (positive)
cable to the positive (+) terminal before
connecting the black negative cable.
5. Remove the nut from the solenoid post and place
one end of the positive (red) battery cable onto the
post. Reassemble nut and tighten securely. See
Figure 4.
Nut
Positive (+)
Battery Cable
Solenoid
Figure 4
Figure 3
11 — ENG
Extension Cord Wire Gauge Chart
Amperage
*Up to 20 amp draw
Up to 30 amp draw
Cord
Length
0 to 100 ft.
0 to 100 ft.
Wire Gauge
Size
12 ga.
10 ga.
*NOTE: When amperage exceeds 20 amps; a 12
gauge extension cord should not be used for long distances.
Extension Cords
When using an appliance or tool at a considerable
distance from the generator, a 3-wire extension cord
that has a 3-blade grounding plug and a 3-slot receptacle that accepts the tool's plug MUST be used in order
to reduce the risk of electrical shock. A cord of adequate size must be used. Using the following chart to
determine the minimum wire size required.
An extension cord that is hot to the touch is
overloaded. Repair or replace damaged extension cords immediately.
Double Throw Transfer Switch
Potential hazards exist when a portable electric generator is connected to the main electrical supply coming
into the house. It is at that point that the electrical
generator could feed back into the utility company's
system causing possible electrocution of workers who
are repairing the electrical lines.
To avoid back feeding of electricity into utility systems,
a double-throw transfer switch must be installed
between the generator and utility power. The DoubleThrow Transfer Switch should be installed by a licensed
electrician and in compliance with all state and local
electrical codes. (When installing a Double-Throw
Transfer Switch, a minimum of 10 gauge wiring
must be used.)
The electrician should also install a sub-panel to isolate
the circuits you would want to use during an emergency or electrical power outage. Your generator will not
be large enough to handle the load of all the lights, appliances, TV, etc. at one time. To select which items to
run during the electrical power outage, see Wattage
Calculation section in this manual.
OBTAINING ELECTRICITY FROM THE
GENERATOR
There are basically 2 ways to obtain electricity from a
generator:
1. Use of extension cords directly from the generator
to the appliance, lights, tools, etc.
2. Use of a double-throw transfer switch installed
directly to the main electrical supply outside of
house.
Lawn & Garden batteries can come in two
terminal configurations. The Positive (+) and
Negative (-) terminals can be oriented so that
they are +/- or -/+. See Figure 5. In the unlikely
event that the battery terminals are unmarked,
we recommend that you return the battery to
the retailer for exchange for a properly marked
battery or let an authorized service center
install the battery for you. Failure to connect the
battery properly can possibly cause bodily
injury. In addition, extensive engine electrical
damage not covered under warranty can result.
6. Attach the other end of the positive (red) battery
cable to the positive (+) terminal on the battery.
7. Attach one end of the negative (black) cable to the
negative (-) terminal on the battery.
8. Attach the other end of the negative (black) cable
to the frame as shown. Install the star washer
between the cable and the frame. See Figure 6.
IMPORTANT: See Figure 5 caution before connecting
cable to battery.
Star
Washer
Negative
(-)
Battery
Cable
(-) Negative Battery Cable Connection
Figure 6
Figure 5
12 — ENG
OPERATION
KNOW YOUR GENERATOR
Read this General Manual and Safety Rules before
operation of your Generator. Compare the illustration
in your parts manual with your generator to familiarize
yourself with the location of various controls and adjustments. Save all manuals for future references.
GENERATOR CAPACITY
IMPORTANT: Exceeding the rated capacity of your
generator can result in serious damage to your generator and connected electrical devices. See the Wattage
Calculation section in this manual to assist you in determining the appliances and tools that can be ran with
the wattage capacity of your generator.
CIRCUIT BREAKERS
Each receptacle has a circuit breaker to protect the
generator from overloading. If the circuit breaker trips,
unplug all electrical loads from the generator. Let the
circuit breaker cool down. Push circuit breaker button
to reset.
LOW OIL SHUTDOWN
Your generator engine is equipped with Low Oil Shutdown. Low Oil Shutdown is a safety device designed
to protect your engine from damage in the event the oil
level in the crankcase is low.
If while the engine is running, the oil gets low, it will automatically shut itself down and will not restart until the
oil is added. If the oil is low before start-up, the generator will not start until oil is added.
NOTE: The Low Oil Shutdown mechanism is very sensitive. You must fill the engine to the full mark on the
dipstick to inactivate this safety device.
OFF/RUN/START SWITCH
Placed in the START position to start engine and the
OFF position to stop engine. NOTE: When engine is
running switch will remain in the run position.
IDLE CONTROL
Choose the correct application.
1. For normal application such as power tools, small
electric appliances, light bulbs, and radios:
Place the idle control switch in the ON position.
The generator will idle down when there is no load.
This lowers the engine noise, saves on fuel
consumption, and engine life.
2. Idling down IS NOT recommend on large motors
(refrigerators, freezers, etc) or voltage sensitive
electronic equipment (computers, televisions, etc).
For these applications:
Place the idle control switch in the OFF position.

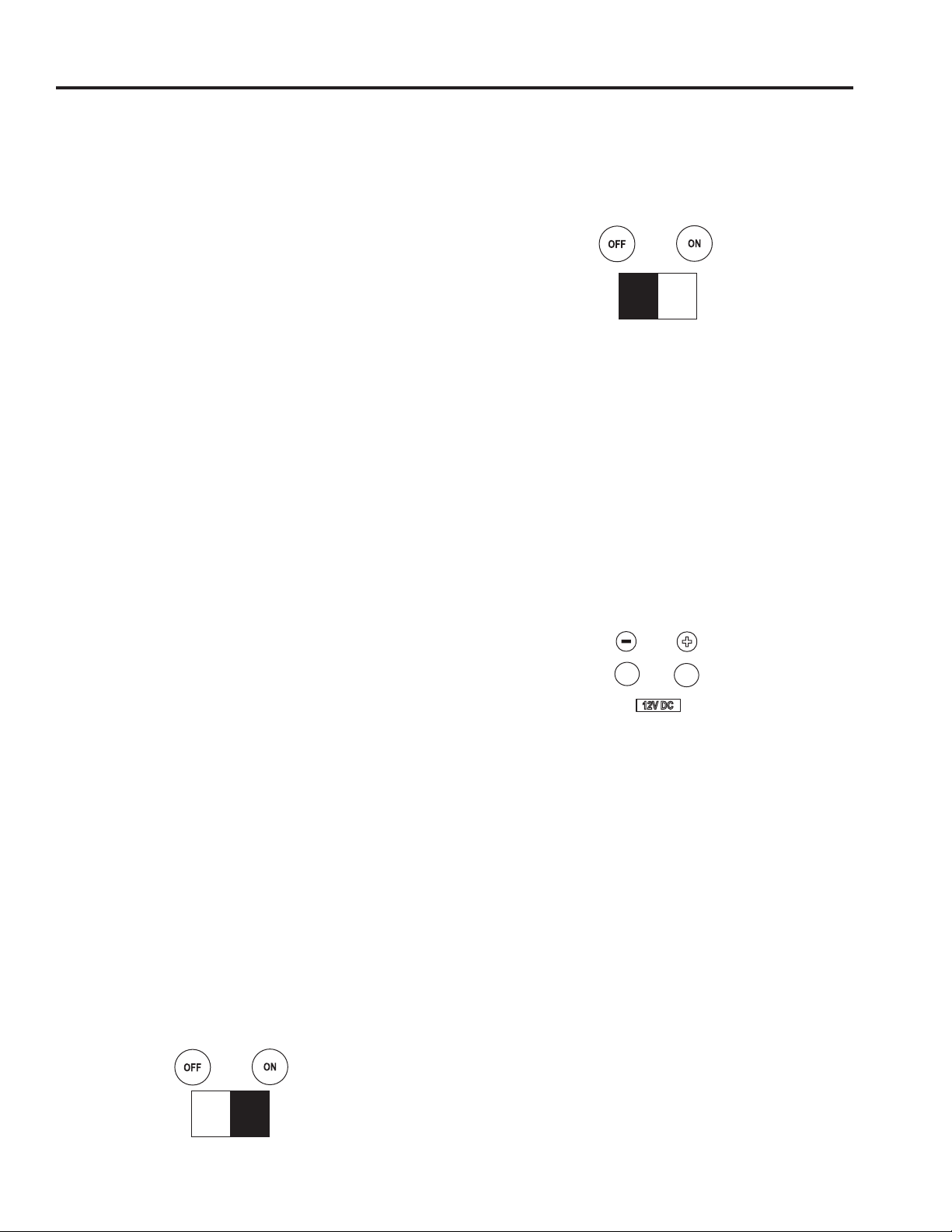

12V DC OUTLET
IMPORTANT: Allow generator to run at no load for 5
minutes upon each initial start-up to allow engine to
stabilize.
IMPORTANT: When the unit is running the battery
will charge. DO NOT connect the 12V DC cables to
the generator’s battery.
To charge battery:
1. Using the 12V DC cables supplied, connect the
red positive (+) 12V DC cable to the battery's
positive (+) terminal.
2. Attach the other end of the red positive (+) 12V DC
cable to the generators positive (+) 12V DC outlet.
3. Connect the black negative (-) 12V DC cable to the
battery's negative (-) terminal.
4. Attach the other end of the black negative (-) 12V
DC cable to the generators negative (-) 12V DC
outlet.
5. Charge the battery according to battery or
equipment manufacturer recommendations.
13 — ENG
BEFORE START UP
This generator has been
shipped from the factory
without oil in the crankcase. Operating the unit
without oil can damage the engine.
Always check engine oil
level before every start.
Running engine low of oil or out of oil could
result in serious damage to the engine.
Follow the steps listed below before starting generator:
1. Check engine oil. Refer to the Engine Operator's
Manual for correct grade and quantity of oil.
2. Check fuel level, fill as required. Make sure generator is turned off and has been allowed time to cool
down. Use clean, fresh, regular unleaded gasoline
with a minimum of 87 octane. Do not mix oil with
gasoline.
Never fill fuel tank completely.
Fill tank to 1/2" below the
bottom of the filler neck to provide space for fuel
expansion. Wipe any fuel spillage from engine and
equipment before starting engine.
Never fill fuel tank indoors.
Never fill fuel tank when
engine is running or hot. Do not smoke when filling
fuel tank.
Never run engine indoors or in
enclosed, poor ventilated
areas, engine exhaust contains carbon monoxide,
an odorless and deadly gas.
3. Make sure generator is grounded in accordance
with local requirements.
4. All electrical loads MUST be disconnected
5. The idle control switch MUST be in the OFF
position.
Engine speed has been fac-
tory set to provide safe operation. Tampering with the engine speed
adjustment could result in overheating of attachments and could cause a fire. Never attempt to
“speed-up” the engine to obtain more performance. Both the output voltage and frequency
will be thrown out of standard by this practice,
endangering attachments and the user.
You MUST unplug any load
from the generator before
starting to prevent permanent damage to any
appliances.
TO START THE ENGINE
Never run engine indoors or in
enclosed, poor ventilated areas,
engine exhaust contains carbon monoxide, an
odorless and deadly gas.
IMPORTANT: Make sure the battery is properly serviced, fully
charged, and assembled before starting.
1. Open the fuel shut-off valve.
2. Move the choke control located on the engine to
"CHOKE" position. A cold engine may require to
be choked longer than a warm engine.
3. For Electric Start:Push
OFF\RUN\START switch
on control panel to the
"START" position to start
engine. Hold in "START"
position no longer than
15 seconds per minute
when trying to start engine. Extended cranking can
damage the starter motor.
NOTE: When the engine starts the OFF/RUN/START
switch is released into the RUN position.
For Recoil Start:Place
OFF/RUN/START switch
in the RUN position.
Grasp handle on rope
rewind slowly. Pull rope
with a rapid full arm
stroke. Let rope rewind
slowly. Repeat if necessary.
4. When engine starts, gradually
move the choke to the "NO
Choke" position.
NOTE: IF ENGINE OIL LEVEL IS
TOO LOW, ENGINE WILL NOT
START. CHECK OIL LEVEL AND
ADD IF NECESSARY.
IMPORTANT: Allow generator to run
at no load for 5 minutes upon each
initial start-up to allow engine and generator to stabilize.
N
U
R
14 — ENG
STOPPING ENGINE
1. Disconnect all electrical loads.
2. Turn OFF/RUN/START switch to "OFF" position.
3. Close fuel shut-off valve.
CONNECTING ELECTRICAL LOADS
1. Let engine run and warm up for five minutes after
starting with no electrical load.
Connect loads in the following manner to prevent
damage to equipment:
2. Connect inductive load equipment first, inductive
loads consist of refrigerators, freezers, water
pumps, air conditioners, or small hand tools.
Connect the items that require the most wattage
first. See Wattage Calculation Section in this
manual.
3. Connect the lights next.
4. Voltage sensitive equipment should be the last
equipment connected to the generator. Plug
voltage sensitive appliances such at TV's, VCR's,
microwaves, ovens, computers, and cordless
telephones into a UL listed voltage surge protector,
then connect the UL listed voltage surge protector
to the generator.
Failure to connect and
operate equipment in this
sequence can cause damage to equipment
and will void the warranty on your generator.
Follow the wattage calculation table in the
Wattage Calculation section of this manual.
Overloading the generator will cause power
fluctuations and can damage equipment and
appliances.
Porter-Cable Corporation will only be
responsible for damage to customer's
equipment when the generator is determined
to be defective. This determination will only be
made by an authorized representative of
Porter-Cable Corporation and this decision will
be final. Porter-Cable Corporation reserves
the right to inspect the electrical connections
at the customer's site of operation and test the
generator for proper operation before any
determination of liability is made. Failure to
maintain the equipment or wiring for
inspection will void any claim for damages by
the customer. Porter-Cable Corporation will
not be responsible for equipment damaged as
a result of voltage surges, improper operation
or improper installation of the generator.
15 — ENG
MAINTENANCE
GENERAL RECOMMENDATIONS
The warranty of the generator does not cover items that have
been subjected to operator abuse or negligence. To receive
full value from the warranty, operator must maintain the
generator as instructed in this manual.
ENGINE MAINTENANCE
Refer to the Engine Operator's manual for service and
maintenance of the engine.
GENERATOR MAINTENANCE
Your generator should be kept clean and dry at all times. The
generator should not be stored or operated in environments
that includes excessive moisture, dust or any corrosive
vapors. If these substances are on the generator, clean with a
cloth or soft bristle brush. Do not use a garden hose or
anything with water pressure to clean the generator. Water
may enter the cooling air slots and could possibly damage
the rotor, stator and the internal windings of the generator
head.
GROUND FAULT CIRCUIT INTERRUPTER
(GFCI RECEPTACLE)
MONTHLY: For maximum protection against electrical shock
the GFCI should be tested monthly.
To test:
1. Depress the TEST button. The RESET button should
extend. If the RESET button does not extend, notify a
Porter-Cable Authorized Service Center.
2. To restore power, depress the RESET button firmly into
the GFCI unit until an audible click is heard. If reset
properly, the RESET button is flush with the surface of
the test button. When the button stays in, the power is
ON.
Note 1: Change oil after first two (2) operating hours and every 50 operating hours thereafter, more often if operated in extreme
dusty or dirty conditions.
Note 2: Check oil after 5 hours of operation
CUSTOMER RESPONSIBILITIES TABLE
MAINTENANCE TASK
Before each
use
Every 25
Hours or Every
Season
Every 50
Hours or Every
Season
Every 100
Hours or Every
Season
Check oil level
Change oil
Clean Air Filter Assembly
Check Spark Plug
Prepare Unit for Storage
Prepare unit for storage if it is to remain idle for more than 30 days.
X
See Note 2
X
See Note 1
X
16 — ENG
STORAGE
If you are going to store your generator for more than 30
days, use the following information as a guide to prepare the
generator for storage.
Never store generator with fuel in the tank indoors or
in enclosed, poorly ventilated areas, where fumes can
reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer or other gas appliances.
Engine Preparation
1. Add fuel stabilizer to fuel tank to minimize the formation
of fuel gum deposits during storage.
2. Run engine at least 5 minutes after adding stabilizer to
allow it to enter the fuel system.
3. Next shut off engine.
4. Disconnect the spark plug wires and remove the spark
plugs.
5. Add one teaspoon of oil through the spark plug hole.
6. Place rag over spark plug hole and pull the recoil a few
times to lubricate the combustion chamber.
7. Replace the spark plugs and reconnect spark plug wires.
NOTE: If a fuel stabilizer is not used, all gasoline must be
drained from the tank and carburetor to prevent gum
deposits from forming on these parts and causing possible
malfunction of the engine.
Generator
1. Clean the generator as outlined in the Maintenance
Section on this manual.
2. Check that cooling air slots and openings on generator
are open and unobstructed.
Battery
To prevent sparks,
disconnect the black
battery cable from the negative (-) terminal
before disconnecting the red positive cable.
1. Remove black negative battery cable from the battery.
2. Remove red positive battery cable from the battery.
3. Clean the battery posts.
4. The battery should be fully charged before storing the
generator. Use a portable 12 volt battery charger. if
needed, to bring battery to full charge (12.6 at 70ºF.).
Refer to the battery charger’s operator’s manual for the
correct procedure. If a battery charger is not available,
have an authorized service center charge the battery.
When charging the battery, do
not smoke. Keep away from any
sparks. The fumes from the battery acid can cause
an explosion. To prevent explosive fumes from
accumulating do not charge in an enclosed area.
Sulfuric acid is a flammable
and explosive chemical
that is harmful to the skin, eyes, and clothing.
NOTE: The battery may need to be recharged if stored a long
period of time.
17 — ENG
Never exceed the rated capacity of your generator. Serious damage to the generator or appliance could result from an
overload.
1. Starting and running wattage requirements should always be calculated when matching a generators wattage
capacity to the appliance or tool.
2. There are two types of electrical appliances that can be powered by your generator:
A. Items such as radios, light bulbs, television sets, and microwaves have a "resistive load". Starting wattage and
running wattage are the same.
B. Items such as refrigerators, air compressors, washer, dryer, and hand tools that use an electrical motor have an
"inductive load". Inductive load appliances and tools require approximately 2 to 4 times the listed wattage for
starting
the equipment. This initial load only lasts for a few seconds on start-up but is very important when
figuring your total wattage to be used.
C. Always start your largest electric motor first, and then plug in other items, one at a time.
NOTE: On 120-volt loads the maximum starting wattage should NOT exceed one half of the rated generator wattage.
Example: a 5000 rated wattage generator = 2500 maximum starting wattage.
DETERMINING WATTAGE REQUIREMENTS
Before operating this generator list all of the appliances and/or tools that are going to operate at the same time. (Then
determine the starting wattage requirements and the running wattage requirements by following example and/or refer to
wattage calculator on page 16.)
1. First total the running wattage of all appliances and/or tools that will be operated at the same time.
Running Watts
Starting Watts
Example 1:
Lights = 100 Watts 0
Television = 300 Watts 0
Slow Cooker = 250 W
atts 0
TOTAL = 650 Watts 0
2. Next the starting wattages of any appliances and/or tools that will start and stop during operation.
Running Watts Starting Watts
Example 2: Small Refrigerator 500 W
atts 2000 Watts
TOTAL = 500 Watts 2000 Watts
3. The running wattage of examples 1 & 2 totals 1150 watts. The starting wattage of the small refrigerator is 2000 watts which
is 1500 watts more than the running watts. Take this difference of 1500 starting watts from the refrigerator and add to the
total running watts of 1150.
Example 3: 1500 Starting Watts
1150 Running W
atts
TOTAL = 2650 Total Watts
Generator must have a maximum capacity of at least 2650 watts.
WATTAGE CALCULATIONS
IMPORTANT
18 — ENG
STARTING WATTAGE REQUIREMENTS
1. Some appliances and tools will list on the motor name
plate the starting and running voltage and amperage
requirements. Use the following formula to convert
voltage and amperage to wattage:
Volts X Amp = Watts
120 volts x 10 amps = 1200 watts
2. To determine the approximate starting wattage
requirement for most appliances and tools with
inductive type motors, multiply the wattage that was
calculated by 2 to 4 times to assure adequate generator
capacity. If the nameplate information is not available
use the values on the following chart as a guide.
3. Remember that the starting and running wattage for
resistive loads are the same. (Example: a 100 watt light
bulb requires only 100 watts to start.) Most resistive
loads will
be listed in wattage.
WATTAGE CALCULATIONS
Application Guide
To select the right generator for your needs, total the wattage
of the items to be run at the same time.
Electric Appliance
3/8" Hand Drill
Jigsaw
1/3 HP Airless Sprayer
6" Bench Grinder
Belt Sander
Demolition Hammer
ContractorEmergency ReliefRecreational
7 1/4" Circular Saw
100
250
Wattage
500
1000
1500
2000
Run
2500
3000
3500
4000
4500
5000
Start
5500
6000
6500
7000
7500
Light Bulb
Home Security
Television
Microwave
Toaster Oven
Portable Heater (5,000 BTU)
Furnace Fan
Refrigerator/Freezer
Sump Pump
Clothes Washer
Water Heater
Air Conditioner (20,000 BTU)
12V DC Battery Charger
Radio
Slow Cooker
Electric Blanket
Electric Skillet
Coffee Maker
Small Refrigerator
The wattage ratings shown are averages. Wattage requirements may vary
with different brands of appliances.
19 — ENG
HOUSEHOLD WATTAGE CALCULATOR
WATTAGE CALCULATIONS
DEVICES WITH HIGH STARTING (INDUCTIVE)LOADS
RUN WATTS
800
600
2400
1000
800 3
1000 2
TIMES (X) START FACTOR
x
x
x
x
3
3
3
2
x
x
CAUTION !!
DO NOT CONNECT VOLTAGE SENSITIVE
ELECTRONIC EQUIPMENT (TV SET, COMPUTER,
ETC.) DIRECTLY TO YOUR GENERATOR. IF YOU USE
THE GENERATOR TO POWER SENSITIVE EQUIPMENT
YOU MUST USE A U.L. LISTED VOLTAGE SURGE
PROTECTOR.
NOTICE: FAILURE TO USE A U.L. LISTED VOLTAGE
SURGE PROTECTOR WILL DAMAGE YOUR
EQUIPMENT AND VOID YOUR WARRANTY.
APPLIANCE OR
LOAD DEVICE*
REFRIGERATOR/
FREEZER
SMALL REFRIGERATOR
AIR COND.(ROOM)
SUMP PUMP 1/2 HP
FURNACE FAN 1/3 HP
WELL PUMP 1/2 HP
HOT PLATE
TELEVISION
MICROWAVE
SPACE HEATER
TYPICAL DEVICE
WATTAGE**
=
=
=
=
=
=
=
=
=
=
2400
1800
7200
2000
2400
2000
1500
300
800
1500
=
=
=
=
=
=
=
=
=
=
TOTAL
CAUTION !!
THE IDLE CONTROL MUST BE IN THE
OFF POSITION WHEN OPERATING
LARGE MOTOR LOADS (FREEZERS,
REFRIGERATORS,ETC.) OR VOLTAGE
SENSITIVE ELECTRONIC EQUIPMENT
(TV, COMPUTERS, ETC.)
*FOR PRODUCTS NOT
LISTED REFER TO
CALCULATION
INSTRUCTIONS
**AVERAGE VALUES -
ACTUAL INDIVIDUAL
DEVICE VOLTAGES MAY
BE HIGHER OR LOWER
LIGHTING
60 WATT BULBS
75 WATT BULBS
100 WATT BULBS
300 WATT BULBS
WATTAGE RATING OF YOUR GENERATOR
THIS TOTAL MUST BE GREATER THAN YOUR HOUSEHOLD WATTAGE LOAD
WATER HEATER
WATTS
60
75
100
300
=
4000
TIMES NUMBER
OF BULBS
x
x
x
x
=
=
=
=
=
ELECTRIC LOAD GRAND TOTAL
THIS TOTAL MUST BE LESS THAN YOUR GENERATOR RATING
20 — ENG
PROBLEM
CAUSE CORRECTION
TROUBLESHOOTING GUIDE
Engine will not start
No electrical output
Repeated circuit breaker
tripping
Generator overheating
7. Attach wire to spark plug.
1. Add fuel or oil.
2. Turn to "ON" position.
3. Replace spark plug.
4. Adjust choke accordingly.
5. Open fuel shut-off valve.
6. Remove load from unit.
1. Low on fuel or oil..
2. Ignition switch in "Off" position.
3. Faulty spark plug.
4. Choke in wrong position.
5. Fuel shut-off valve in closed position.
6. Unit loaded during start-up.
7. Spark plug wire loose.
1. Faulty receptacle.
2. Circuit breaker kicked out.
3. Defective capacitor.
4. Faulty power cord.
5. GFCI switch breaker kicked out
1. Have an Authorized Service Center
replace.
2. Depress and reset.
3. Have an Authorized Service Center
replace.
4. Repair or replace cord.
5. Depress and reset
1. Overload
2. Faulty cords or equipment.
1. Reduce load.
2. Check for damaged, bare, or
frayed wires on equipment. Replace.
1. Generator overloaded.
2. Insufficient ventilation.
1. Reduce load.
2. Move to adequate supply of fresh air.
8. Have an Authorized Service Center
replace.
8. Faulty fuel shut-off solenoid.
No auto idle (if equipped)
1. Faulty solenoid.
2. Faulty idle control switch.
3. Faulty windings in stator.
4. Faulty circuit board.
5. Faulty wire harness.
1. Have Service Center replace.
2. Have Service Center replace.
3. Have Service Center replace.
4. Have Service Center replace.
5. Have Service Center replace.
DC does not have power with
the circuit breaker depressed
(if equipped)
1. Faulty rectifier.
2. Faulty windings in stator.
3. Faulty wire harness.
1. Have Service Center replace.
2. Have Service Center replace.
3. Have Service Center replace.
21 — ENG
NOTES
22 — ENG
Porter-Cable Corporation
4825 Highway 45 North
P.O. Box 2468
Jackson, TN 38302-2468
1-888-559-8550
GENERATOR QUICK FACTS
CALL 1-888-559-8550 TO FIND A LOCAL AUTHORIZED SERVICE CENTER NEAR YOU
FOR REPAIRS AND SERVICE PART PURCHASES
Use clean, fresh gasoline with a minimum 87 octane rating. Do not add
gasoline during or immediately after use.
Most generators are equipped with a low-oil shutdown. If the oil is low or if
the Generator is not level, the engine will not start.
Make wattage calculations before use. Refer to general operator's manual for
further instructions.
Contact an electrician for any wiring instructions. If wiring into a house, a
double-throw transfer switch and a heavy duty cord set must be used.
Use a standard BCI group 5IR or similar (12V) battery with 45 A.H. or 210
CCA.
The voltage and frequency are regulated by the rpm's of the engine. Do not
adjust the throttle or governor to achieve higher performance. This will only
alter the factory Pre-set settings and damage anything connected to the
generator.
Be sure a volt/amp surge protector is used when sensitive electronic
equipment is used, such as: televisions, computers, stereos, and etc… The
damage of such equipment without the use of a protector WILL NOT be
covered under warranty.
Do not adjust or attempt maintenance without consulting engine manual or an
authorized engine service center.
Add stabilizer to fuel tank and run engine for 5 minutes before storage.
When in long term storage, operate the generator every 60 days for at least 10
minutes with a load on it. This will prevent the loss of residual magnetism that
produces the electricity.
Allow the generator to run 5 minutes at no load for the engine and the
genhead to stabilize.
Make sure the adequate size of extension cord is used. Refer to the
Grounding Instructions/Extension Cord section of the owners manual.
If the generator is operating equipment that is drawing half of the rated watts
it is considered 50% load. Using all of the rated watts is considered 100%
load.
ALWAYS REFER TO THE MANUALS SUPPLIED WITH THIS UNIT
ENGINE
GAS
ENGINE OIL
WATTAGE
WIRING
ENGINE
STORAGE
OPERATION
BATTERY
VOLT
REG.
Refer to engine owner's manual for oil recommendations.
Loading...
