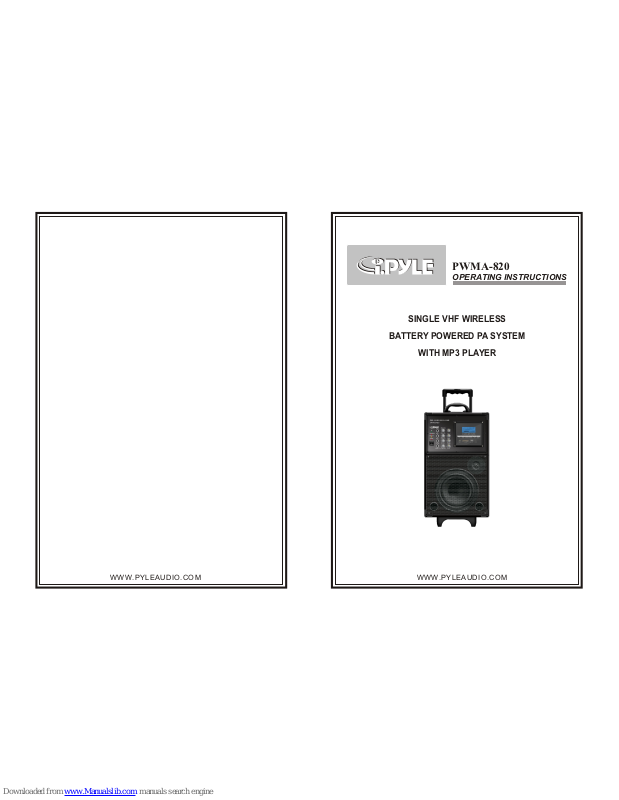

OPERATING INSTRUCTIONS
PWMA-820
SINGLE VHF WIRELESS
BATTERY POWERED PA SYSTEM
WITH MP3 PLAYER
WWW.PYLEAUDIO.COMWWW.PYLEAUDIO.COM
1. This ALL-IN-ONE karaoke system is suitable for karaoke, meeting,
schools, presentation, aerobics etc.
2. Built-in 512MB MP3 player. With USB port which can play flash
drive, Mp3 player etc. With SD/MMCcard reader. With 3.5mm
AUX in jack which can connect with iPod, CD player etc.
With recording function.
3. 8" woofer and 3" tweeter. 150WRMS, 300W peak power.
4. Built-in one set of wireless microphone.
5. Two MIC-IN, one guitar in and one 6.35mm audio in jacks.
6. Built-in 7AH/12V rechargeable battery which can work
continuously for about 4 hours. Suitable for indoor and outdoor
activities.
7. Treble, bass and echo controls
8. 110V/220V voltage switchable.
9. Telescoping handle and caster wheels. Easy for transportation.
GENERAL DESCRIPTIONS
1. Correct power must be used. Don't use any other power
except the specified one.
2. Don't drag the power cable when pull out the plug. Hold the
plug to pull it out from socket.
3. Don't open chassis: it is very dangerous either open the
chassis or put your hand inside the chassis. If the device is
not under normal working, pull out the plug at once and contact
your retailer or the nearest distributor.
4. Don't take volatile solvent such as toluene, alcohol, gasoline to
clear the surface.
5. Please don't put it in an unventilated environment or at direct
sunlight in summer.
6. Avoid moisture or rain.
IMPORTANT SAFEGUARDS
PARTS DESCRIPTION
1. Metal corner for protection
2. Input jack for Mic 1
3. Input jack for Mic 2
4. RF signal indicator
5. Charge indicator
6. Low battery indicator
7. Power indicator
8. Power switch
9. GUITAR INPUT 1
10. Audio input jack
11. Guitar volume control
12. Audio volume control
13. Grille
14. Woofer
---1---
1
2
3
4
5
6
7
8
9
10
12
14
15
17
181920
2122
23
11
13
---2---
MENU MENU ENTER ENTER PLAY/PAUSE PLAY/PAUSE PREVIOUS PREVIOUS NEXTNEXT RECORDRECORD
USB USB AUX INAUX IN
DIGITAL MP3 PLAYER
SD/MMCSD/MMC
FLASH DRIVERFLASH DRIVER
16
+
FUSE
AC
110V
220V
24
29
25
26
27
28
15. Tweeter
16. MP3 player
17. Bass control
18. Treble control
19. Echo control
20. Mp3 volume control
21. Master volume control
22. W/MIC 1 volume control
23. MIC 2 volume control
24. Trolley
25. Handle
26. 110V/220V voltage switch
27. AC IN
28. Fuse
1. POWER SUPPLY
1) AC Power: Before operation, please confirm the voltage is same
as the specified one marked on the label.
2) Built-in Rechargeable Battery: You can use built-in rechargeable
battery without plug in AC power.
3) When the Low Voltage Indicator comes on yellow, it indicates the
battery voltage is low. Please plug in AC power to charge the
battery. When battery is fully charged, low voltage indicator will
extinguish.
4) If the unit is not going to be used for a long time, please charge
the battery every 2 months. Charging time is 8-10 hours for each
time.
2. OPERATION OF AMPLIFIER
1) Use provided AC cord to connect this unit to suitable power
socket. Pay attention to the voltage. Charge indicator will light.
Or use built in battery.
2) Turn on amplifier power switch, power indicator comes on red.
3) Adjust MASTER volume control to suitable level.
4) Turn on handheld microphone, RF indicator on receiver will
light. Wireless microphone volume can be adjusted by
W/MIC 1.
5) Adjust BASS, TREBLE and ECHO to the suitable level. Now you
are ready to talk.
6) Wired microphone(not included) can be connected to MIC 1 and
MIC 2 jack. MIC volume can be adjusted by W/MIC 1 and MIC 2
volume control respectively. You can use the wireless MIC and
the two wired MIC at the same time.
---3---
---4---
OPERATION
7) To play guitar, connect guitar to GUITAR IN jack. Guitar volume
can be adjusted by Guitar Volume control.
8) External audio device can also be connected to AUDIO IN jack.
Audio volume can be adjusted by AUDIO volume control.
9) To play MP3 player, refer MP3 player instruction.
OPERATION
1) Insert attached 9V battery into wireless transmitter.
2) Insert headset MIC or clip-on MIC to body pack transmitter
MIC-IN jack. Adjust body pack transmitter volume switch to
suitable level.
3) Move Power Switch to ON position. Power indicator will flash
once then extinguish. RF indicator on amplifier will light to
indicate receiving signal. Now you are ready to talk.
4) To mute the sound, move power switch to middle.
5) To turn off the transmitter, move power switch to OFF position.
6) If Power indicator of wireless transmitter lights red, it indicates
the battery power is low. Please replace new battery.
3. OPERATION OF WIRELESS TRANSMITTER
1
2
3
4
1. MIC grill(capsule inside)
2. Power indicator
3. Power Switch
Headset MIC
Lavalier MIC
4
3
2
5
6
4. Battery cover
5. Volume control
6. MIC-IN jack
(Optional) (Optional) (Optional)
