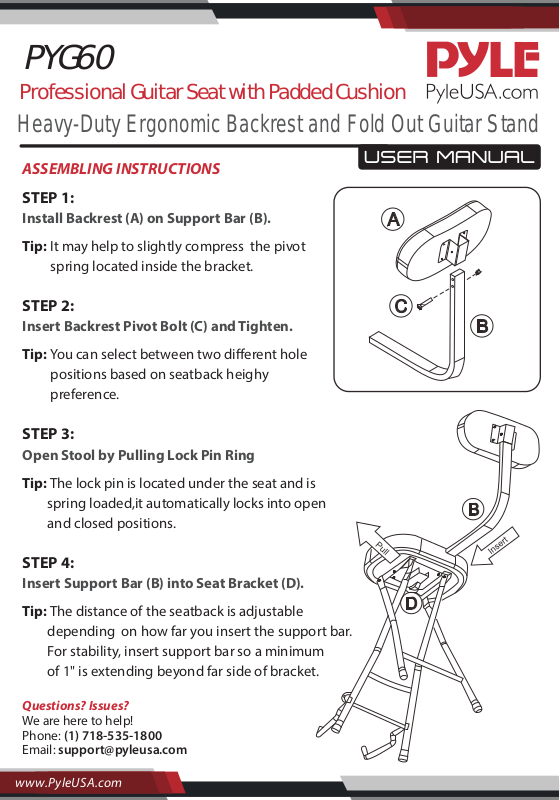

Pyle PYG60 User guide

PYG60

Professional Guitar Seat with Padded Cushion

Heavy-Duty Ergonomic Backrest and Fold Out Guitar Stand

ASSEMBLING INSTRUCTIONS

STEP 1:

Install Backrest (A) on Support Bar (B).

Tip: It may help to slightly compress the pivot

spring located inside the bracket.

STEP 2:

Insert Backrest Pivot Bolt (C) and Tighten.

Tip: You can select between two dierent hole

positions based on seatback heighy
preference.

STEP 3:

Open Stool by Pulling Lock Pin Ring

Tip: The lock pin is located under the seat and is

spring loaded,it automatically locks into open
and closed positions.

STEP 4:

Insert Support Bar (B) into Seat Bracket (D).

Tip: The distance of the seatback is adjustable

depending on how far you insert the support bar.
For stability, insert support bar so a minimum
of 1" is extending beyond far side of bracket.

Questions? Issues?

We are here to help!
Phone: [phone]
Email: [email protected]

www.PyleUSA.com

Features:

• EVA Foam Padded Cradles Fit All Guitar Types

• Finish Friendly Patch to Protect Guitar Neck when Using Stand

• Non-slip Rubber Feet

• Convenient Foot Rest for Comfortable Performance

• Cradle Folds Up When Not in Use

• Guitar Seat with Built-in Guitar Stand

• Collapsible Design

• Quick Release Pin for Compact Storage

• Durable Padded Seat Cushion

• Removable Ergonomic Backrest

• Holds Acoustic, Electric, and Bass Guitars

• *Some Assembly Required

What's in the Box:

• Guitar Seat with Padded Cushion

Technical Specs:

• Max. Load Capacity: 300 lbs.

• Construction Material: Steel

• Cradle Width: 5.9'' - 9.5'' -inches

• Seat Cushion Size (L x W): 13.78'' x 10.24'' -inches

• Seat Height: 27.17'' -inches

• Minimum to Maximum Backrest: 11'' - 13.78'' -inches

• Overall Product Dimension (L x W x H):

1.73'' x 1.38'' x 42.52'' -inches

This products can expose you to a chemical or group of checmicals, which
may include ”Lead And Cadmium” which is known in the state of California
to cause cancer, birth defects, or other reproductive harm. For more info, go
to https://www.p65warnings.ca.gov/.
