Your PYLE PRO Series Performance Mixer
is a sophisticated control center, perfect for mixing sound from multiple playback sources such as
microphones, tuners, CD players, turntables or the audio outputs from a VCR. This mixer is ruggedly
constructed for home or professional use. Wide range volume controls permit you to adjust sound levels
accurately to achieve just the right mix for playing through your speaker system or for recording.
Please read this manual thoroughly before you attempt to set up and use the mixer. It contains a
range of suggestions and instructions to insure safe usage. Set up and used properly, you can expect
years of trouble-free service from this product.
Owner’s Manual Table of Contents
Using the Microphone
i
Input/Output Features
1
Features and Controls: PYD-710/720
2
Presetting Controls Before Use
Connecting the Outputs
Playing the Mixer’s Output Signal
Recording the Mixer’s Output Signal
Connecting the Mixer Inputs
Using Headphones
3
Using the Mixer Controls
4
6
Using the Crossfader
7
Using the Tone Controls
Using the Master Level Controls
8
Using the Punch Controls
Troubleshooting
Care and Maintenance
9
Specifications
Warranty
(PYD-720)
(PYD-720)
Features and Controls: PYD710/720 Mixer
Cue Selectors let you “preview”
an input source, using the
headphones, so you can adjust
MIC Input Jack
accepts balanced or
unbalanced inputs
with either XLR or
1/4” plug
Talkover Switch
(PYD-720)
lowers the level of
input sources,
permitting you to talk
over them using a
microphone
Mic Level
Control sets the
input level for the
microphone
Cue Level
Control sets the
listening level for
the headphones
Headphone Jack
the volume prior to mixing it in
Power Switch and LED
indicator
Input Source Selector lets you
easily select your choice of audio
inputs for mixing
Tone Controls (PYD-720)
permit adjustment of the treble,
midrange and bass of the mixer
output signal
Master Level Control adjusts
the mixer’s overall output
volume level
Input/Output Features: PYD710/720
Stereo Line Inputs let you connect most high-level audio
sources, such as CD players, tape deck, tuner or VCR.
Power Switch
(PYD-710).
On PYD-720 this
switch is on the
upper right corner
of main panel
Output Jacks to connect the mixer to a
receiver or amplifier – use cables with
RCA-type plugs.
Record Output Jacks to connect the
mixer to a tape deck for recording the
mixed program
Dual Purpose Stereo Inputs for using a turntable with a
magnetic cartridge OR a high level input source
Input Select Switches – set these switches based on what
is plugged into Phono1/Line1 and Phono2/Line3 input jacks
Ground Screw for turntables
Channel Level Controls
allow fingertip control of all
sound mixing and fading
Crossfader Control
lets you smoothly and quickly
switch between two playing
input sources
Mic Level
Control sets the
input level for the
microphone
On the PYD-710, the placement
of a few features varies from
those on the PYD-720.
MIC Input Jack
accepts balanced or
unbalanced inputs
with 1/4” plug
“Punch” buttons (PYD-720)
let you quickly and easily switch
the input sources on and off for
unusual and exciting effects
Master Level Control adjusts
the mixer’s overall output
volume level
Cue Level Control sets the
listening level for the
headphones
Headphone Jack
Pyle Pro Mixer Owner’s Manual – 1i – Pyle Pro Mixer Owner’s Manual
Page 3
Presetting the Controls Before Use
Power On/Off
Balance
Gain
Tone Controls, Treble, Mid and Bass
MIC 1/2, CH 1/2/3, Master and Cue Levels
Crossfader
OFF
MID
MID
0
0
CENTER
Tape Deck
Amplifier/Receiver
OFF
OFF
FLAT
Since sudden high output levels from your Pyle Pro mixer can damage not only audio devices connected
to the mixer output but your hearing as well (especially if you are using headphones), please adjust
the mixer’s controls BEFORE connecting AC power or turning on the unit.
Set up the mixer controls like this before you start:
CONTROL SETTING
Connecting the Mixer Inputs
This mixer permits connection of up to five (5) audio input sources, including a microphone. Such a
system might include, for example:
One Microphone
Two Turntables
Two CD players
One Microphone
One Turntable
Two CD players
One Cassette Deck
One Microphones
One Turntables
One CD player
One Cassette Decks
One VCR
One Microphone
Two Turntables
One CD player
One Rhythm Synth
Connecting the Outputs
After presetting the controls (above), you can then connect the mixer’s output jacks to the output
devices’ input jacks. Before connecting these devices, however, be sure to preset their controls to
avoid any damage to your equipment due to unexpected high output levels.
Set the output devices’ controls like this before you start:
OUTPUT DEVICE SETTINGCONTROL
POWER
POWER
TONE
Playing the Mixer’s Output Signal
To play the mixer’s output signal through your speaker system (for events such as parties, dances,
conferences, etc.) connect an audio patch cord with RCA-type jacks (not supplied) from the mixer’s
MASTER L and R jacks to your receiver/amplifier’s left and right input jacks.
Recording the Mixer’s Output Signal
To record the mixer’s output signal, connect audio patch cords (not supplied) from the mixer’s REC
(Record) L and R jacks to your tape deck’s left and right input jacks.
Please observe
the following:
Do not connect any audio source with a HIGH LEVEL OUTPUT to the LOW
LEVEL PHONO 1 or PHONO 2 mixer audio input jacks (an audio source
output with a volume control is HIGH LEVEL).

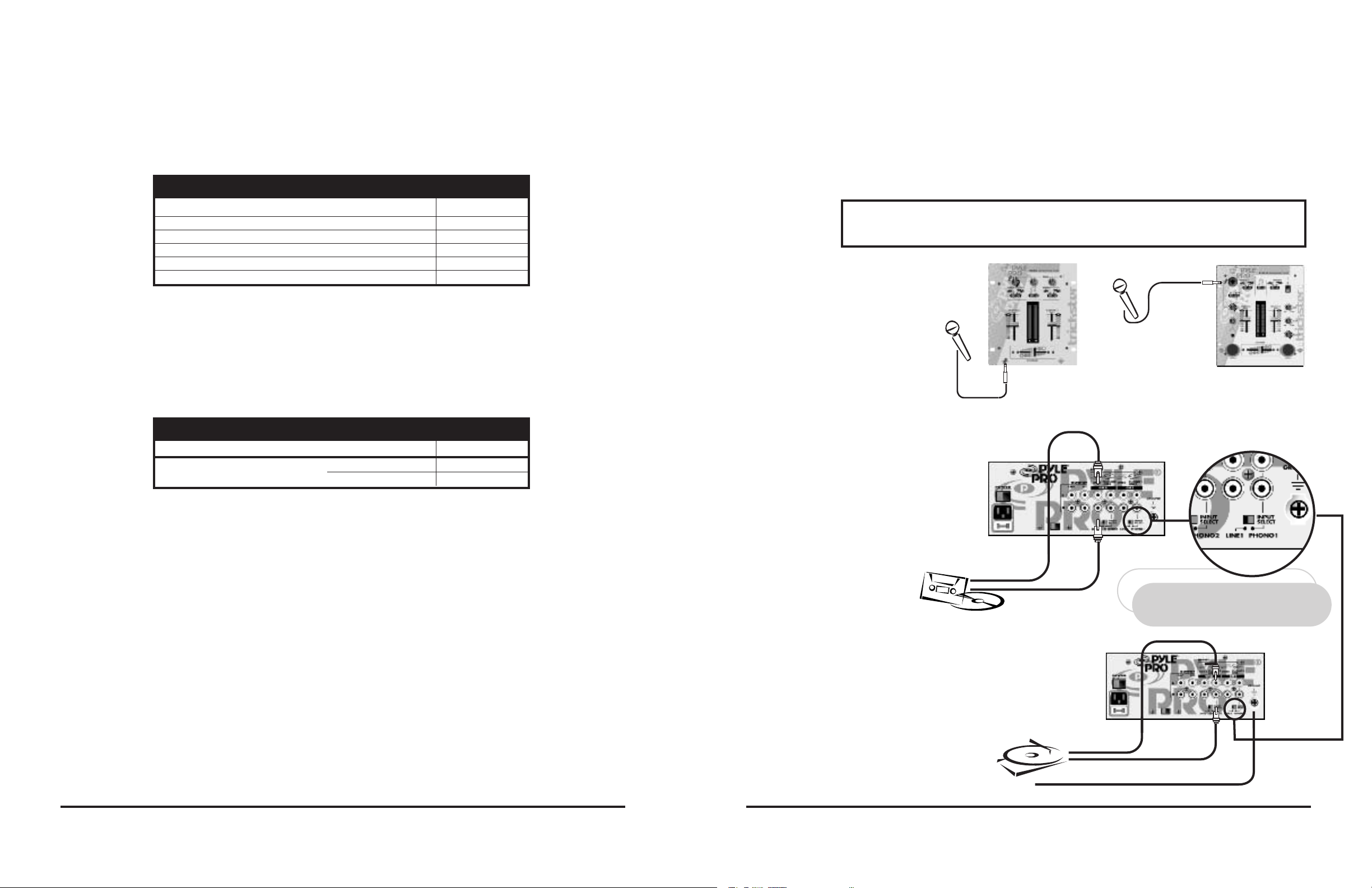

Connect audio inputs as follows:
1. DJ Microphone. Connect
the DJ’s Microphone (not
supplied) to the mic input jack.
DJ MIC
The special combo jack on the
PYD-720 permits you to connect
with either a 1/4” plug or XLR
plug.
2. High Level Output Audio
Sources. Connect up to 4
such sources (tuner, cassette
deck, CD Player, camcorder
or VCR) to the input jacks for
Line 1 (if not being used as
Phono 1 input), Line 2, Line
3 (if not being used as Phono
2 input), and Line 4. Please
note that Phono 1 and Line 1
(as well as Phono 2 and Line
3) use the same jacks. The
selector switch(e)s below the
jacks should be set to Line
position if the jacks are used
High Level Output
Audio Source
for the High Level input
sources described here.
CD player, cassette deck, camcorder, VCR, etc.
3. Turntables. Connect up to 2
turntables to the Phono 1 and Phono
2 input jacks. Please note that Phone
1 and Line 1 (as well as Phono 2 and
Line 3) use the same jacks. The
selector switch below the jacks should
be set to Phono position if the jacks
are used for phono inputs.
When using a turntable, you should
also securely connect its ground wire
(usually green or black) to the Ground
screw on the input panel of the mixer.
Use 1/4”
jack
Use RCA type
patch cables
LEFT output
Magnetic cartridge turntable
PYD-710
RIGHT output
Use RCA type
patch cables
LEFT output
RIGHT output
GROUND wire from turntable
Use 1/4” or
XLR-type jack
DJ MIC
PYD-720
NOTE!
Be sure to place the input select switch(es)
in positions which reflect what the connected
input source is (Line in or Phono In)!
Pyle Pro Mixer Owner’s Manual – 32 – Pyle Pro Mixer Owner’s Manual
Page 4

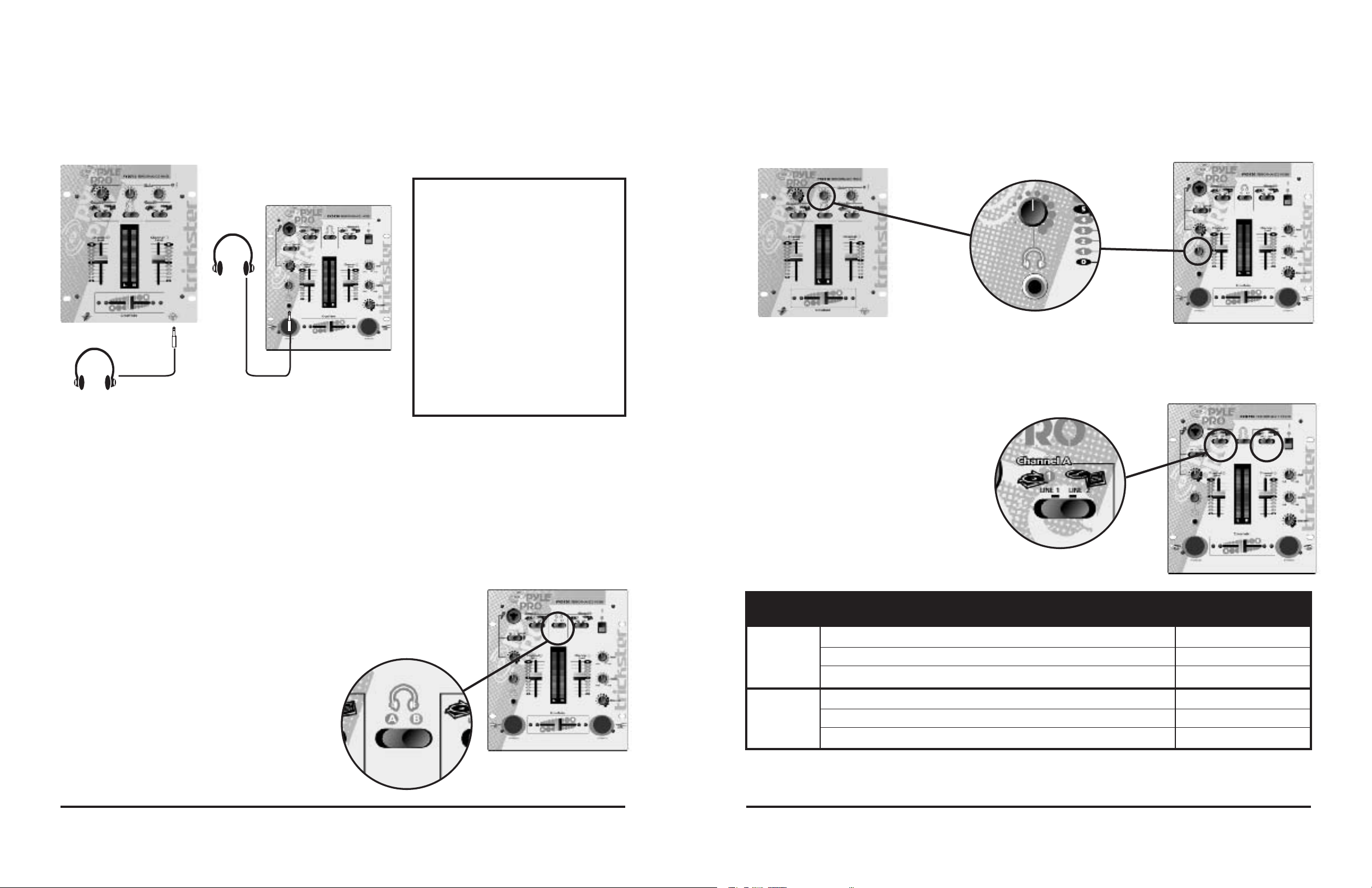

Using Headphones
Plug a pair of stereo headphones (not supplied) with a 1/4” jack into the Phones input. Using
headphones not only affords you the opportunity to listen privately, but also enables you to monitor
the incoming audio sources so you can locate an exact passage or section before mixing it in. It also
gives you the opportunity to set up the relative volume level of the upcoming passage before it joins
the mix.
Listen Safely! Please observe the following:
Stereo
Headphones
PYD-710
Stereo
Headphones
Using the Mixer Controls
PYD-720
Do not listen at extremely high
volume levels. Extended, high-volume
listening can lead to permanent hearing
loss. Follow these guidelines to protect
your hearing, especially when using
headphones.
Always start by setting the volume
level to the lowest possible level
before listening.
Put headphones on, and then
gradually increase the volume as
necessary.
Once you set the volume level do
not increase it. Over a period of time,
your ears adapt to a volume level and
there is a temptation to increase it.
Even though such an increase may not
cause discomfort, it might still damage
your hearing.
3. Set the desired audio input source’s volume to its minimum setting,
turn it on, and set it to play (or speak continuosly into the microphone).
4. Slowly turn the CUE LEVEL control clockwise until you hear the signal
through the headphones at the desired volume level.
PYD-710
CUE Level
Control
5. Repeat Steps 2-4 to select and adjust the volume level of the other
audio input sources, one at a time.
PYD-720
Mixing the Inputs
Turning on the Mixer
1. Turn on the output amplifier and temporarily set its volume to the minimum setting.
2. On the mixer, turn ON the power switch. The adjacent power LED will illuminate.
3. Turn on the audio input sources you wish to mix, and set them to play (or talk continuously into
the microphone).
4. To monitor the audio input sources so that you can decide when to mix in each input, see “Monitoring
‘Cueing’ the Inputs.”
5. To mix the audio input sources so that you can play them through your amplifier system or record
them on your tape deck, see “Mixing the Inputs.”
Monitoring (”Cueing”) the
Inputs
Follow these steps to monitor the audio input
sources.
1. Perform Steps 1 and 2 of “Turning on the
Mixer” and put headphones on.
2. Set the CUE switch to the channel you wish
to monitor (CH A or CH B).
Follow these steps to mix the audio input
sources.
1. Perform Steps 1 and 2 of “Turning on
the Mixer.”
2. Set the selected audio input source’s
volume to its minimum setting, turn
it on, and set it to play (or speak
continuously into the microphone).
3. Set the following input source selectors
as desired:
Mixer
Channel
A
B
Audio Input
Source
Turntable connected to PHONO1/LINE 1 jacks
High level output audio source connected to the PHONO1/LINE 1 jacks
High level output audio source connected to the LINE 2 jacks
Turntable connected to PHONO2/LINE 3 jacks
High level output audio source connected to the PHONO2/LINE 3 jacks
High level output audio source connected to the LINE 4 jacks
Input Source
Selector Switches
Input Selector
Switch Setting
PHONO1
LINE1
LINE2
PHONO2
LINE3
LINE4
CUE switch
Pyle Pro Mixer Owner’s Manual – 54 – Pyle Pro Mixer Owner’s Manual
Page 5

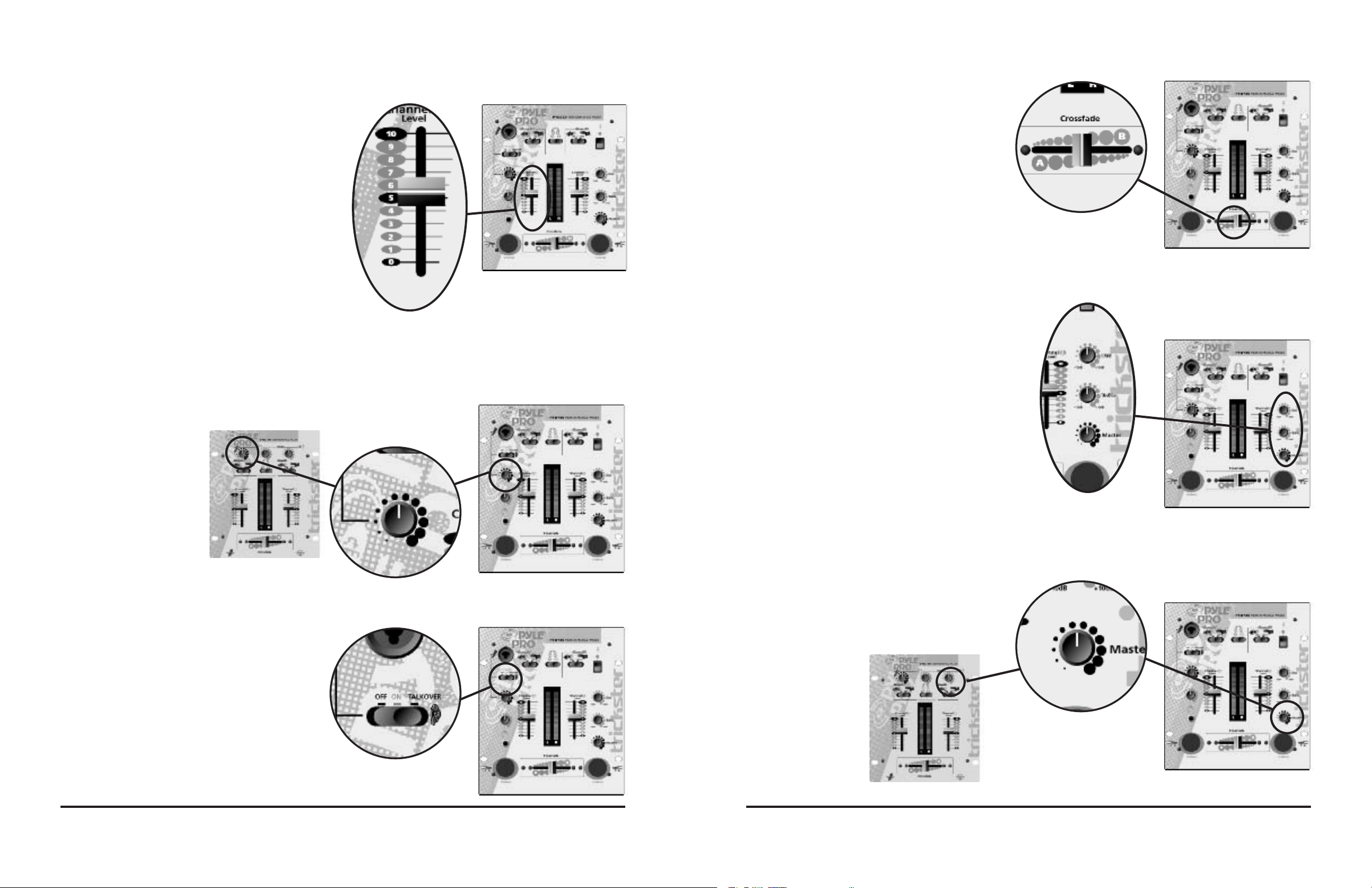

Mixing the Inputs, cont.
4. Set the Channel A and Channel B volume control
sliders to approximately 8-10.
5. Rotate the Master Volume Control clockwise
until you observe an average reading of “0”
(zero) on both Output Level LED meters, and
leave it at that setting. (Please note that the
Output Level LED meter indicates the total
output signal being mixed from all sources for
each of the Left and Right channels.)
6. When adding an audio input source to the mix,
adjust the corresponding Channel A and B
volume control sliders so you maintain the
average reading of “0” on both Output Level
LED meters.
7. Adjust the receiver/amplifier volume control
(not the mixer’s) to the desired volume.
8. To turn off the mixer, push the Power switch
to the OFF position; the Power LED will be
extinguished.
Using the Microphone
Incorporating Voice into the Mix
Input Source
Volume Control Sliders
Using the Crossfader
When the crossfade slider is in the center
position, the two assigned channels play
equally. Sliding the control towards the A
position will increase the level of A and fade
out B proportionally to the distance from
center. Likewise, sliding the control towards
the B position will increase the level of B and
fade out A.
Crossfader
Control
Using the Tone Controls
(PYD-720)
To enhance the sound or tailor the highs, mids
and low frequencies for each audio source
input to the acoustics of a particular
performance environment, you can adjust the
BASS and TREBLE tone controls.
To blend voice from the
microphone with the
audio program material,
adjust the MIC level slider
to increase or decrease
the microphone level. This
will not affect the main
volume inputs. When the
microphone is not in use,
set the MIC level slider to
“0.”
PYD-710
Talkover Mode (PYD-720)
When mixing the mic into the mix, you would
usually leave the Talkover switch in the ON
position. In special situations, however, the
PYD-720’s Talkover mode allows a voice to be
heard clearly through the microphone by
attenuating all the other audio input sources.
This mode is engaged by setting the Talkover
Switch to the TALKOVER position. When not
using the microphone, set this switch to the
OFF position.
Microphone Level
Control
Talkover Switch
PYD-720
Using the Master Level
Control
The overall volume of the mix of all inputs is
adjusted using the Master Level control.Turning
this control clockwise increases the overall
system volume.
PYD-710
Tone Controls
Master Level
Control
PYD-720
Pyle Pro Mixer Owner’s Manual – 76 – Pyle Pro Mixer Owner’s Manual
Page 6
Using the “Punch”
Specifications
Controls (PYD-720)
This featured control lets you smoothly and
quickly turn a playing source on and off, or
switch between the two different input sources
assigned to Crossfade Channel A and B.
The effect you get depends upon the position
of the Crossfader.
With the Crossfader at 100% Channel A (all
the way to the left), pressing the Channel A
Punch Button will mute the Channel A material.
Punch Control
Similarly, with the Crossfader at 100% Channel
B (all the way to the right), pressing the
Channel B Punch Button will mute the Channel
B material.
With the Crossfader in the middle position, press the Channel A punch button and the Channel A
material will be subtracted from the mix, leaving only Channel B material. Likewise, press the Channel
B punch button and the Channel B material will be subtracted from the mix.
Troubleshooting
Your mixer should require very little maintenance. If you have problems, refer to the chart below
for possible solutions. If you cannot solve the problem, contact a qualified technician for assistance.
PROBLEM POSSIBLE SOLUTION
Nothing works
No signal from an
audio input
source
Hum from PHONO
Hum from other
source
Feedback is
present
• Check the AC connection. Make sure the AC outlet is “live.”
• Check the power connection to the rest of the system
(receiver/amplifier, etc.)
• Check the control setting
• Check the connection between the mixer and the input source
• Check that the turntable’s ground wire (usually black or green) is
fastened securely to the GROUND SCREW on the mixer input
panel
• Make sure there are no low level inputs connected to the LINE
input jacks
• Move the microphone further away from the output speakers,
or use a directional microphone
Care and Maintenance
Your Pyle Pro Mixer is an example of superior design and craftsmanship. The following suggestions
will help you care for your mixer so you can enjoy years of use:
• Keep the mixer dry. If it gets wet, wipe immediately.
• Use the mixer only in well-ventilated installations.
• Handle the mixer gently and carefully - do not drop!
• Keep the mixer away from dust and dirt.
• Wipe occasionally with a damp cloth to keep it looking new. Do not use harsh chemicals, solvents
or detergents!
PYD710/720
Input Sensitivity/Impedance
Mic
Phono 1-2
Line 1-4
Output Level
Main Out
Record
Frequency Response
S/N Ratio (at 1 kHz)
Mic
Phono
Line
Limited Warranty
All PYLE PRO products are carefully constructed and tested before
shipment. Units purchased in the USA are warranted to be free of
defects in material and workmanship for two (2) years from the date
of purchase. This warranty is limited to the original retail purchaser
of the mixer.
Should the unit fail due to factory defects in material or workmanship,
your unit will be repaired or replaced at the sole discretion of PYLE.
To obtain warranty service, you must first call our Consumer Return
Hotline at (718) 236-6948 to obtain a Return Authorization Number.
This R.A. # must appear on the outside of your package and on all
paperwork relating to your return.
When returning the unit to us for warranty service, it must be carefully
packed and shipped, prepaid, to:
You must also include the following items with your return:
• A copy of your sales receipt or other proof of purchase
• A brief letter, indicating the problem you are experiencing with
the product
• Include in your letter your return address, daytime phone number
and R.A. number
• Also include a check or money order for $15.00 for return
shipping, handling and insurance, or provide your Visa/MC number with
expiration date.
Our obligation under this warranty is limited to the repair or replacement
of the defective unit when it is returned to us prepaid. This warranty
will be considered void if the unit was tampered with, improperly
serviced or subject to misuse, neglect or accidental damage.
1.5 mV/600 Ohms
3.0 mV/50K Ohms
150.0 mV/27K Ohms
2.0 V/10-kOhms
120mV/10-kOhms
20Hz – 20kHz +/- 3 dB
55 dB/1.5mV input
65 dB/3.0mV input
70 dB/150.0 mV input
R.A.#: _____________
PYLE PRO Service Center
1600 63rd Street
Brooklyn, NY 11204
Distortion
Mic
Phono
Line
Tone Control
Treble
Bass
Talkover Attenuation
Power Source
Dimensions, inches
(mm)
Weight, lbs (kg)
Here
Place
Stamp
Please complete warranty card, detach and return
0.50%
0.08%
0.05%
10kHz; +/-10dB
100Hz; +/-10dB
-16dB
120 VAC, 60Hz/230 VAC, 50 Hz
Model PYD-170:
7.5 x 3.4 x 8.7
(190 x 86 x 220)
Model PYD-720:
8.7 x 3.4 x 10.0
(220 x 86 x 254)
Model PYD-710/PYD-720
4.4 (2.0)/5.5 (2.5)
Brooklyn, NY 11204
1600 63rd Street
PYLE PRO Audio, Inc.
Pyle Pro Mixer Owner’s Manual – 98 – Pyle Pro Mixer Owner’s Manual
Loading...
