Page 1
Thank you for choosing our productThank you for choosing our product
Pyle Audio
1600 63rd st , Brooklyn, NY, 11204
(718)236-8000
Warning
This product contains small items that could be a choking hazard if swallowed. Keep
these items away from young children
1.Make sure these instructions are read and completely understood before attempting
installation. If you are unsure of any part of this installation, contact a professional
installer for assistance.
2.The wall or mounting surface must be capable of supporting the combined weight of
the mount and the display; otherwise the structure must be reinforced
3.Safety gear and proper tools must be used. A minimum of two people are required
for this installation. Failure to use safety gear can result in property damage, serious
injury or death.
!
.

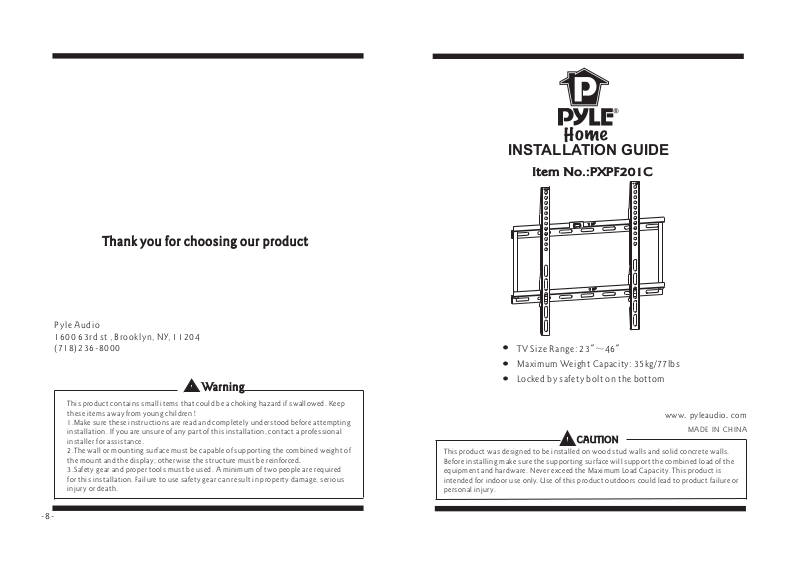

INSTALLATION GUIDE
Item No.:PXPF201CItem No.:PXPF201C
TV Size Range: 23 46
Maximum Weight Capacity: 35kg/77lbs
Locked by safety bolt on the bottom
This product was designed to be installed on wood stud walls and solid concrete walls.
Before installing make sure the supporting surface will support the combined load of the
equipment and hardware. Never exceed the Maximum Load Capacity. This product is
intended for indoor use only. Use of this product outdoors could lead to product failure or
personal injury.
"～ "
www pyleaudio com..
MADE IN CHINA
CAUTION
-8-
Page 2
Hardware List:Hardware List:
A-D
2
2
4
1
3
E
F
HG
I
-2-
ID Description
Qty
1
2
3
41
A
B
C
Wall plate
1
2
Bracket
Safety bolt
2
Bubble level
4
M4 mm×25 bolt
4
Mmm5×25 bolt
M ×25mm6 bolt
4
ID
Qty
4
D
4
E
4
F
4
G
4
H
4
I
Description
M8× mm25 bolt
Square washer
Long bolt washer
Long bolt
Wall anchor
Spacer
-7-
Page 3
Part 3-Mounting the flat panel screen
Part 3-Mounting the flat panel screen
Part 1a-Wood Stud Mounting
Part 1a-Wood Stud Mounting
Hook the top of brackets onto the top flange of wall plate(1). Then swing
thescreendown.Tightenthesafetybolt oneachbrackettolockthe
(2)
(3)
screen into place.
NOTE:
NOTE: Always use an assistant or mechanical lifting equipment to safely lift
and position heavy equipment.
2
3
1
Usewallplate(1)asatemplate,makesureitislevel,andmarkfourmounting
holes along the center lines of the wood studs. Drill four 3/16
””(5mm)dia
.
holes 2 (50mm) deep. Level wall plate(1) and attach to wall with four long
bolts(G and four washers(F . Tighten screws firmly Do not overtighten
)) ..
Stud finder
2 50mm)”(
Wood stud
Φ3/16 (5mm)”
-6-
F
G
Bubble level
-3-
Page 4
Part 1b-Concrete Wall Mounting
Part 1b-Concrete Wall Mounting
Part 2-Attaching Brackets To Screen
Part 2-Attaching Brackets To Screen
Level wall plate(1) and use wall as a template to mark four holes. Drill four
3/8 (10mm) dia. holes 2 (50mm) deep. Insert four anchors(H) into holes
””
and secure wall plate with four long bolts(G) and four washers(F).Tighten
screws firmly. Do not overtighten
.
2 (50mm)”
Φ3/8 (10mm)”
Concrete Wall
H
F
G
Center brackets vertically on back of screen. Select the small(A),medium
(B or C) or large(D) screws. Attach brackets to screen using four selected
screws ,four square washers(E) and spacers(I) at the top and bottom of each
bracket. Tighten screws firmly. Do not overtighten
Square washer(E)
Large hole for
M8 screws
Medium hole for
M5 and M6 screws
Small hole for
M4 screws
.
I
A-D
E
-4-
Bubble level
-5-
