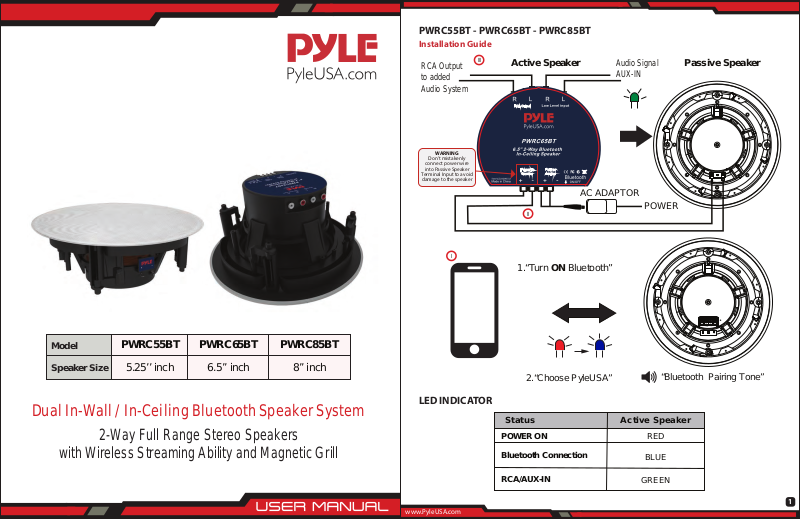

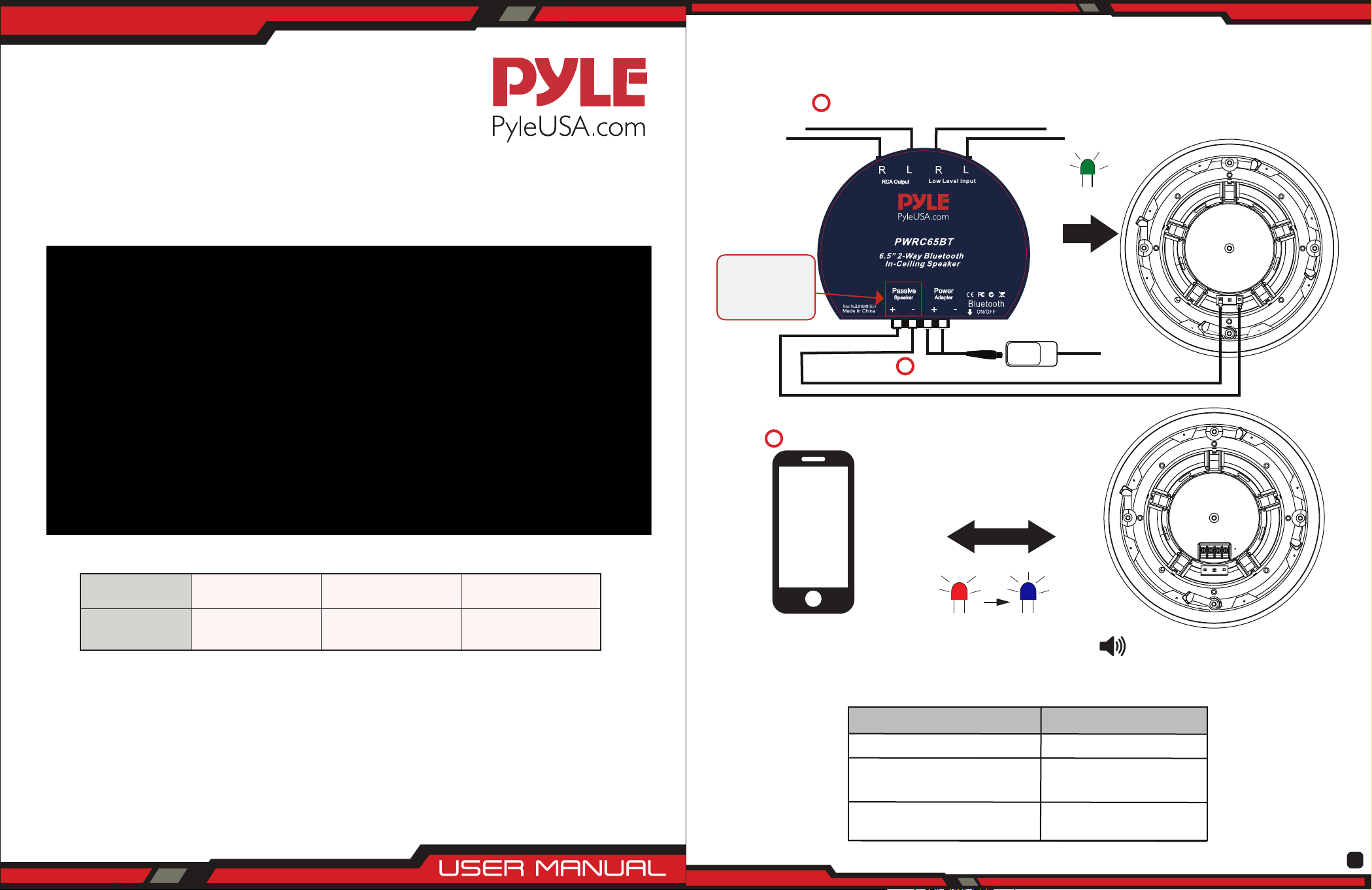

PWRC55BT - PWRC65BT - PWRC85BT
Installation Guide
RCA Output
to added
Audio System
WARNING
Don’t mistakenly
connect power wire
into Passive Speaker
Terminal Input to avoid
damage to the speaker
I
III
Active Speaker
Audio Signal
Passive Speaker
AUX-IN
AC ADAPTOR
POWER
II
1.“Turn ON Bluetooth”
Model
Speaker Size
PWRC55BT PWRC85BTPWRC65BT
5.25’’ inch 6.5’’ inch 8’’ inch
Dual In-Wall / In-Ceiling Bluetooth Speaker System
2-Way Full Range Stereo Speakers
with Wireless Streaming Ability and Magnetic Grill
LED INDICATOR
www.PyleUSA.com
2.“Choose PyleUSA”
Status
POWER ON
Bluetooth Connection
RCA/AUX-IN
“Bluetooth Pairing Tone”
Active Speaker
RED
BLUE
GREEN
1
Page 2
Please read these instructions carefully before using this product,
and save this manual for future use.
PWRC55BT - PWRC65BT - PWRC85BT
In-Wall/In-Ceiling 2-Way Speakers
State of the art product carefully designed and manufactured for vehicle use and has been
thoroughly tested to ensure consistent and reliable performance.
If you have any question about the installation or operation of your PYLE speaker system which
are not answered by this user manual, contact your dealer in rst instance
PWRC55BT PWRC65BT PWRC85BT INSTALLATION
Ways to connect
• Bluetooth Connection
Connect the active speaker to a power source via a included power adapter. Upon successful
connection a red light will illuminate in active speaker. Switch ON Bluetooth on your phone /
tablet and select Bluetooth connection name of ‘PyleUSA’. Upon successful connection you
will hear a connection tone and blue light will illuminate on active speaker. Conversely upon
Bluetooth disconnection, you will hear a disconnection tone and red light illuminates on
active speaker.
• Using included speaker wire to daisy Chain connection in between Active and Passive speakers
to build up the complete stereo system
Dual In-Wall / In-Ceiling Bluetooth Speaker System 2-Way Full Range Stereo Speakers
with Wireless Streaming Ability, Magnetic Grill
MODEL PWRC85BTPWRC55BT
PWRC65BT
Speaker Size 5.25’’ inch 6.5’’ inch 8’’ inch
Power Output
Frequency
Response
Sensitivity
Cut-out Diameter
Active Speaker
Mounting Depth
Passive Speaker
Mounting Depth
240 Watt MAX 300 Watt MAX 360 Watt MAX
80Hz-20kHz 70Hz-20kHz 55Hz-22kHz
87 +/- 2 dB @ 1W/1M 89 +/- 2 dB @ 1W/1M 91 +/- 2 dB @ 1W/1M
4.7'' -inches 5.77'' -inches 7.25'' -inches
2.94'' -inches 3.15'' -inches 4.4'' -inches
2.78’’ -inches 2.90” -inches 3.76” -inches
• RCA Low level input allow user to have any AUX-IN option additionally while Bluetooth
feature is disconnected. The active speaker stays green light illumination while RCA AUX-IN.
Vice Versa, while Bluetooth is connected, the Bluetooth signal dominates the audio system.
• Optional ‘RCA Output’ allows user to wire and extend wider audio system. The added pair is to
receive audio signal via ‘Low Level Input’ and turn Bluetooth pin OFF on added active speaker
to avoid Bluetooth connection confusion. The way of daisy chain connection in between
active and passive speaker on added pair audio system is same as above point 2 method.
The active speaker on added speaker system stays at green light illumination. User can use
‘RCA Output’ and ‘Low Level Input’ to add up numerous pair speakers to build up optimal
audio system for dierent places.
2
www.PyleUSA.com
Power Supply
www.PyleUSA.com
110/240V
(12V Power Adapter)
110/240V
(12V Power Adapter)
110/240V
(18V Power Adapter)
3
Page 3
Features:
• In-Wall / In-Ceiling Home Speakers
• Active + Passive Speaker System
• Built-in Bluetooth Wireless Receiver
• Universal Flush Mount for Any Flat Surface
• Flat & Thin, Slim-Style Removable Speaker Grill
• Convenient Magnetic Speaker Grill Quickly Attaches / Detaches
• Digital Sound Processing Amplier
• Ability to Connect External Devices
• RCA Audio Aux (L/R) Connectors
• 2-Way Full Range Stereo Sound Reproduction
• 1/2'' High Compliance Polymer Tweeter
• Polypropylene Cone with Rubber Edge
• Cut-Out Template for Easy Installation
• Integrated Clamp-Type Mounting Brackets
• Environmentally Friendly ABS Construction
• Perfect for Custom Audio Applications
• Used for Home, Oce & Business
What’s in the Box:
• (1) Active Speaker
• (1) Passive Speaker
• (2) Speaker Connection Wires, 9.8’ ft.
• Cut-Out Template
• Power Adapter
Technical Specs:
• Speaker Style: Round / Circle
• Impedance: 8 Ohm
